Haro 2023 Lineage Ground Master Bike Black
Brand: Haro
£1,899.99
The Lineage Ground Master takes its design cues from 1992, but it's living in the now with an all chromoly, twin top tube frame with a low-profile stance, matched with a 19.5" top tube length. Modern details like an hourglass mid bottom bracket shell, integrated head tube and clean routing for the brake cables. Heat-treated chromoly forks with internal cable routing, chromoly Haro Kneesaver bars and Fusion 3-piece cranks with a matching Fusion 25T disc sprocket are all part of the package. Topped off with classic Haro paint and graphics, it not only looks the part, it's ready to live it.
The Lineage Ground Master was created to take a DNA strand or two from our past and thread it into state of the art contemporary designs of the present. Look at this masterpiece, from a glance its difficult to tell from the original 30 years prior. But when you look closely, you will see all modern technology. Hourglass Mid BB, internal headset. Forks are full heat treated and butted same as the Kneesaver bars and 48 spline 19mm cranks. This bike is as high level BMX you are going to buy in today's market.
Specs:
| FRAMESET | |
|---|---|
| Frame | Lineage ground master frame - 19.5" full crmo; internal h/t crmo - with removable rotor tab mounting holes; removable brake mounts. |
| Fork | Haro Ground Master fork with (removable) 990 mounts and internal cable routing; 15mm offset; 3/8" axle; fluted one piece cnc cr-mo steerer; tapered fluted legs |
| Colour | Black |
| DRIVETRAIN | |

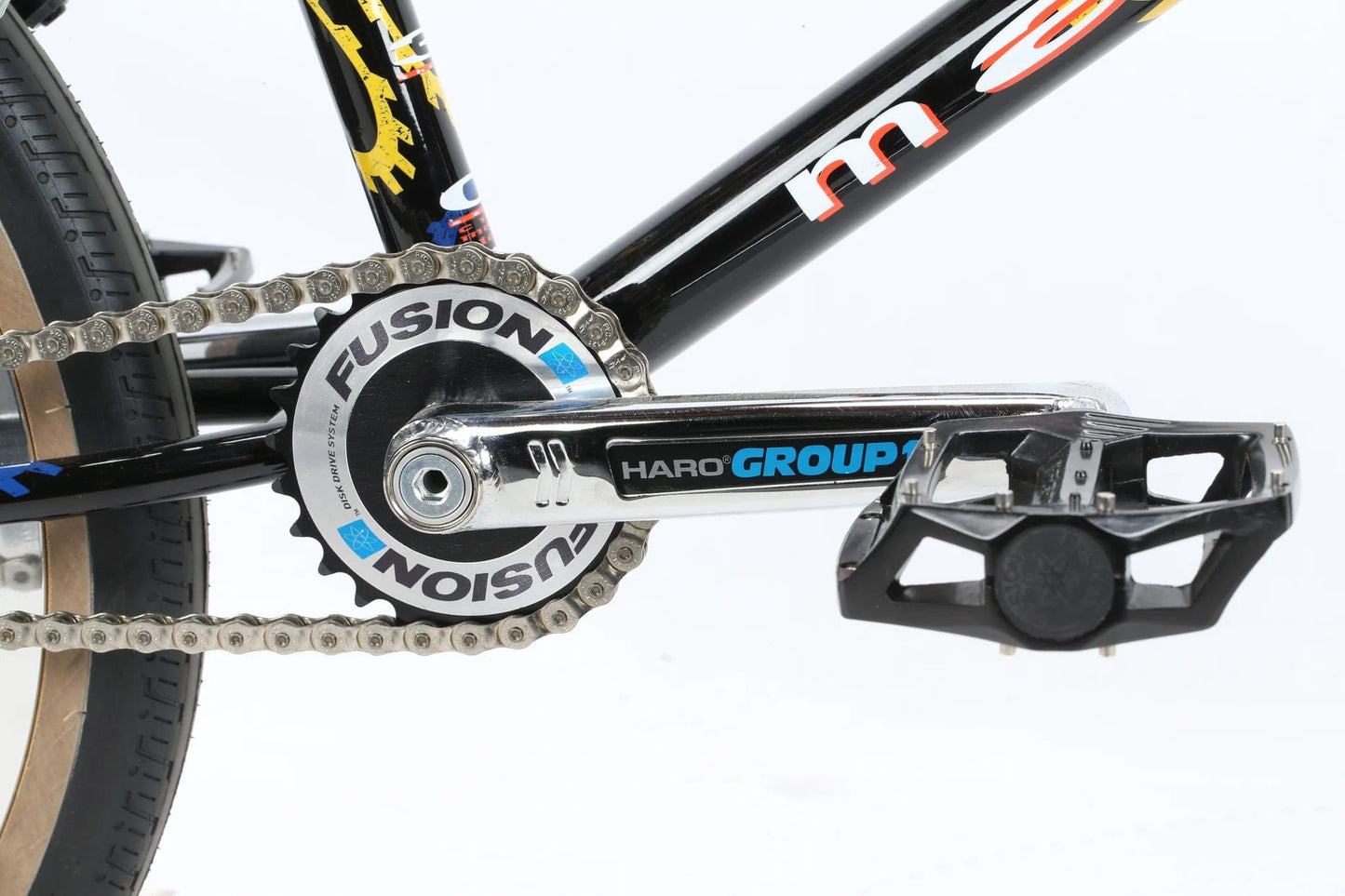

| Cranks | Haro Fusion cranks (bolt drive interface) rsd and lsd; 165; 165mm; 19mm od 48-spline spindle; heat treated 4130 |
| Bottom Bracket | Sealed MID BB |
| Sprocket | Fusion disc sprocket; cnc bolt drive sprocket; 5mm alloy ring; 1/2" x 1/8" x 25t ; solid ring w/ machined teeth, included sprocket adapter |
| Gearing | 25/9 |
| Pedals | Haro Fusion; alloy pedal body; crmo axle |
| Chain | KMC K1Sl; 1/2 x 1/8; Narrow Silver Super Lite |
| WHEELS | |
| Tyres | Haro HPF; 20x2.00; 100 max psi |

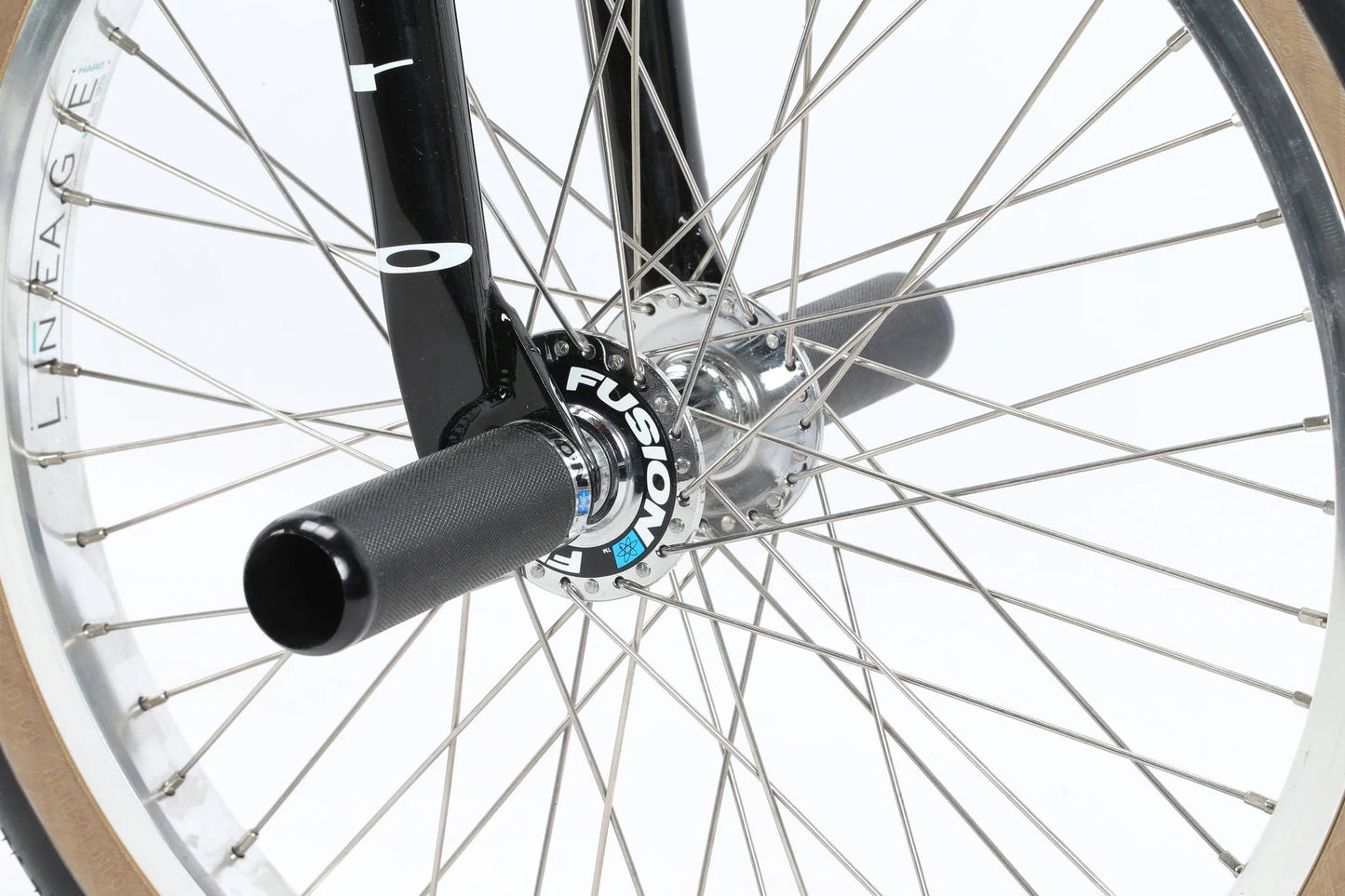

| Front Hub | 48h alloy hub body; 3/8"x100wx155l; crmo 155mm straight axle; 2 sealed bearings |
| Rear Hub | Freecoaster hub (male bolt); sealed bearings; 9t driver; 17mm steel flange axle nuts; all hardware in cp finish including cone nuts, axle nuts |
| Rims | Lineage Rims 20x1.75"; 48h; (w200) (double wall welded joint) |
| BRAKING SYSTEM | |

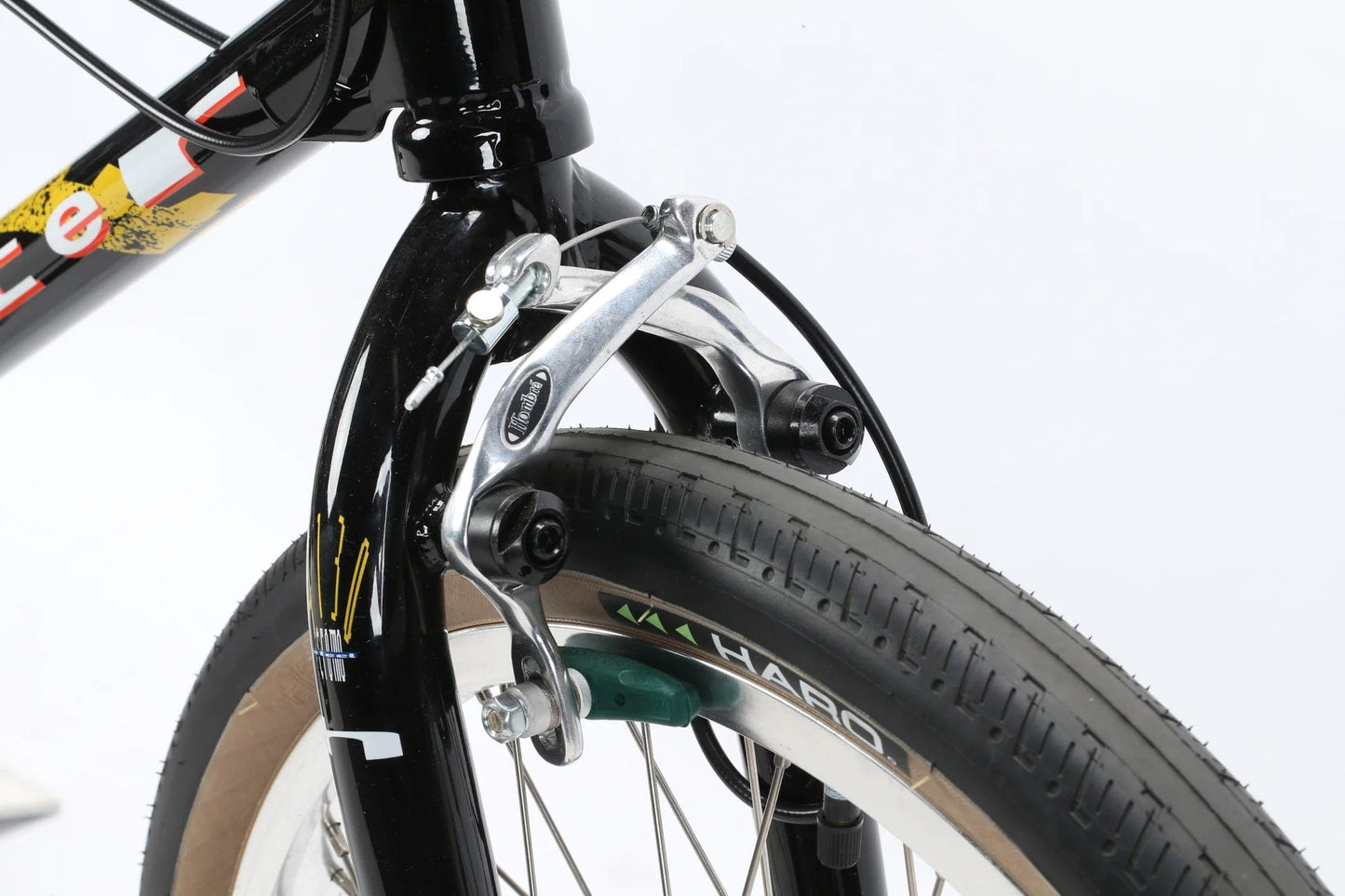

| Brake | Dia-Compe fs996 "hombre" u-brake; cold forged aluminum arms; dual spring tension adjustment w/anchor bolt parts |
| Brake Lever | Dia-Compe "tech-77" lever without stopper; right and left side; diecast aluminum bracket with hinged clamp; cold forged aluminum lever |
| Rotor | Teflon bearing gyro - full cnc 6061 t6 included a-plate |
| OTHER COMPONENTS | |
| Grips | Haro team grip; 145mm length x 29mm diameter; 50mm od flange (low); kraton a15 material (super soft). |

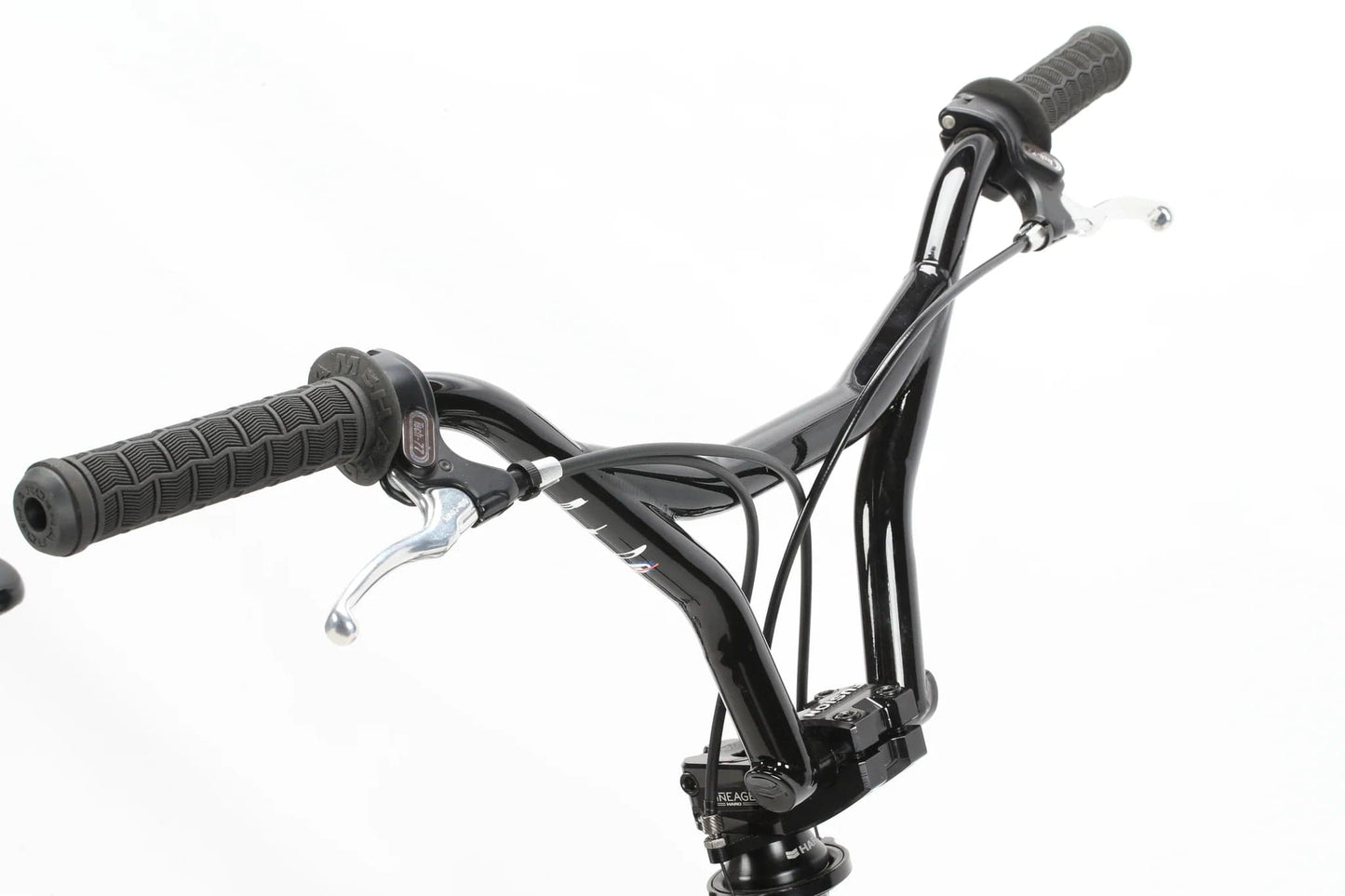

| Handlebar | Lineage kneesaver bar 8.5"; 100% heat treated; multi-butted |
| Stem | Haro Lineage fusion top load stem; T6 alloy; cold forged with cnc; 45mm |
| Headset | Sealed Integrated, 1 1/8" |

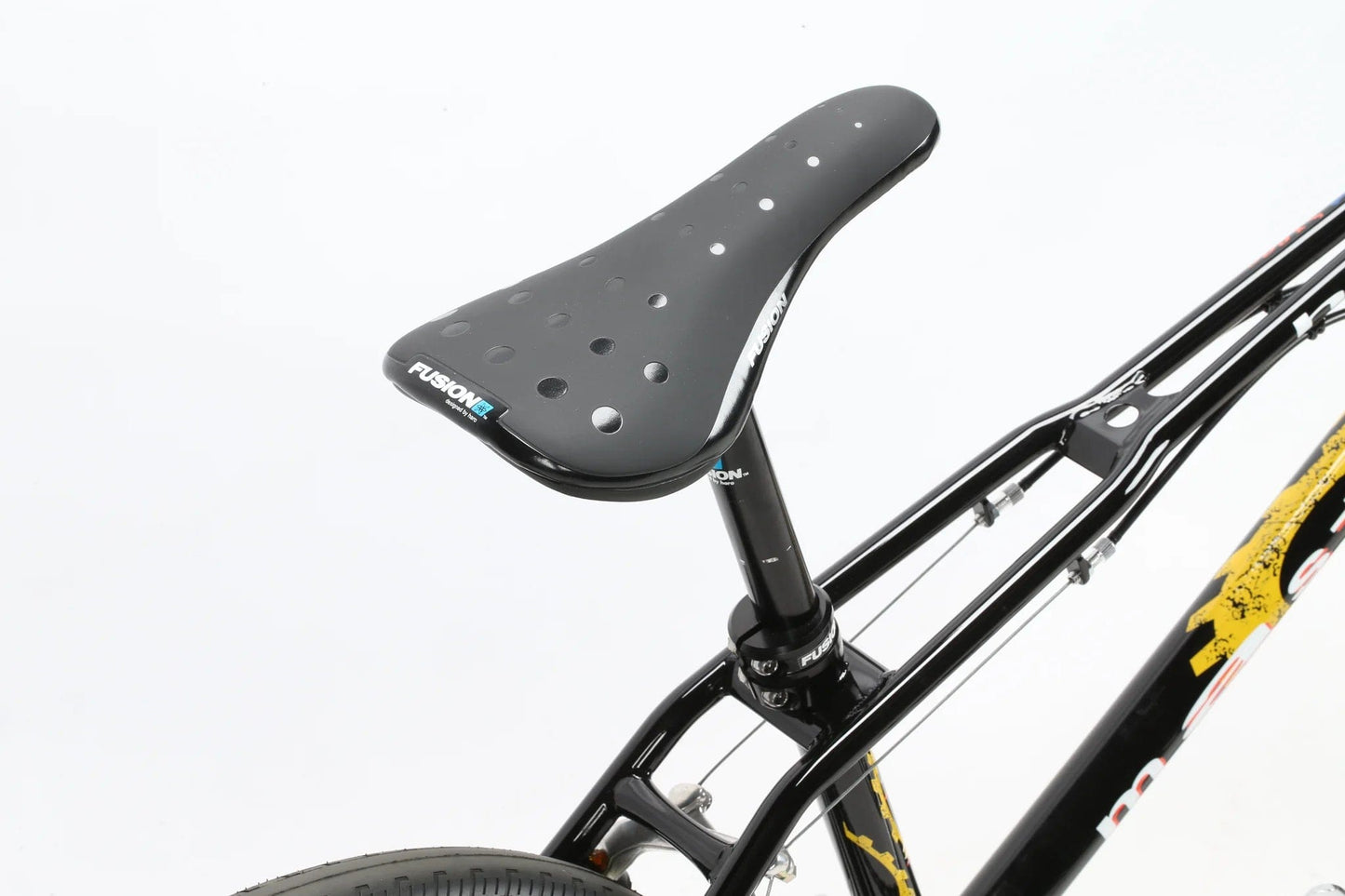

| Seat | Haro Fusion slim stealth pivotal seat |
| Seat Post | Haro Fusion stealth pivotal seat post; 25.4 x 300mm |
| Seat Post Clamp | Haro Fusion twintorc clamp; alloy 6061 |
| Pegs | 6061 alloy pegs; 34mm od; 110mm length; include 4 total pegs |
