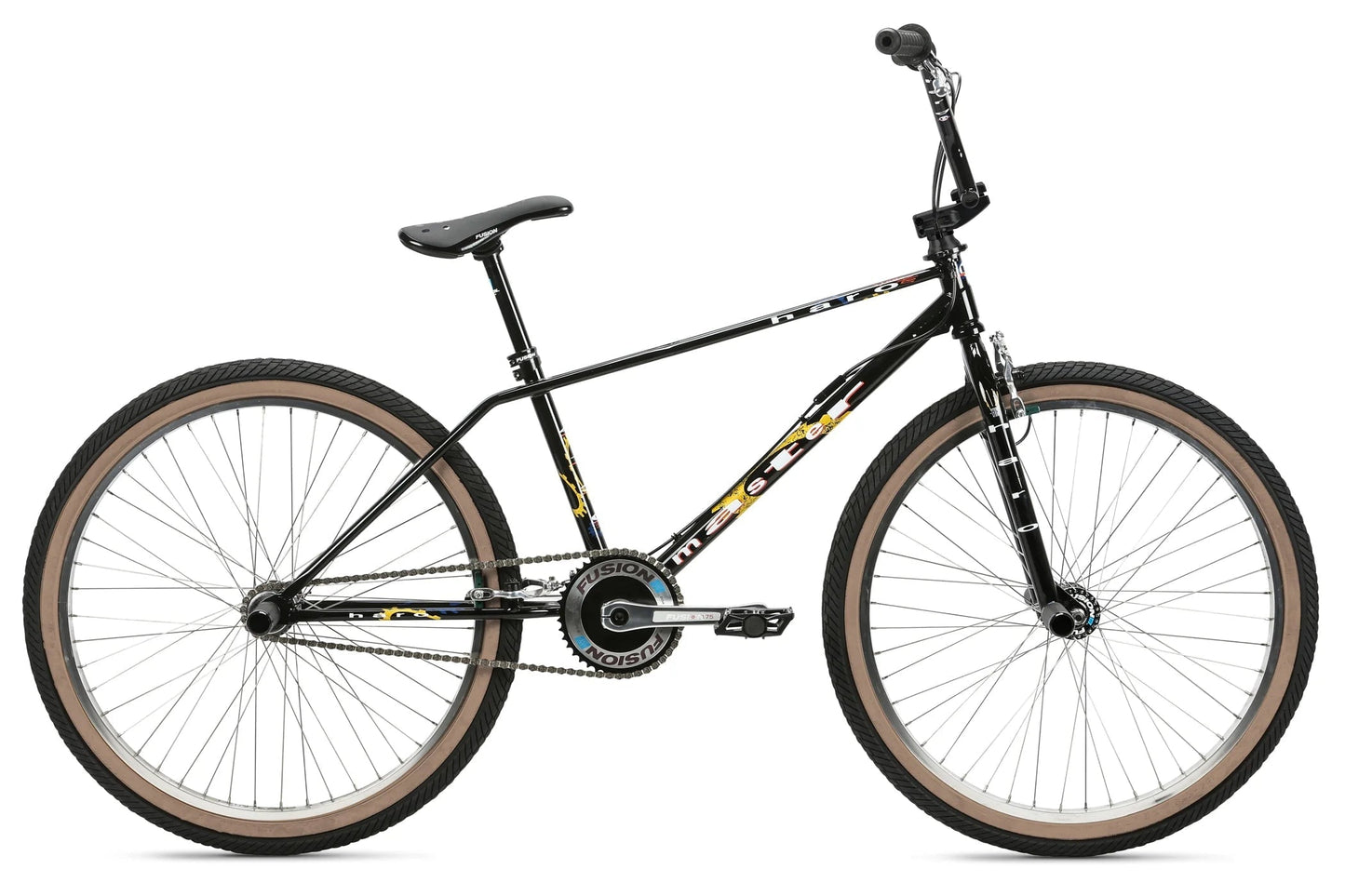

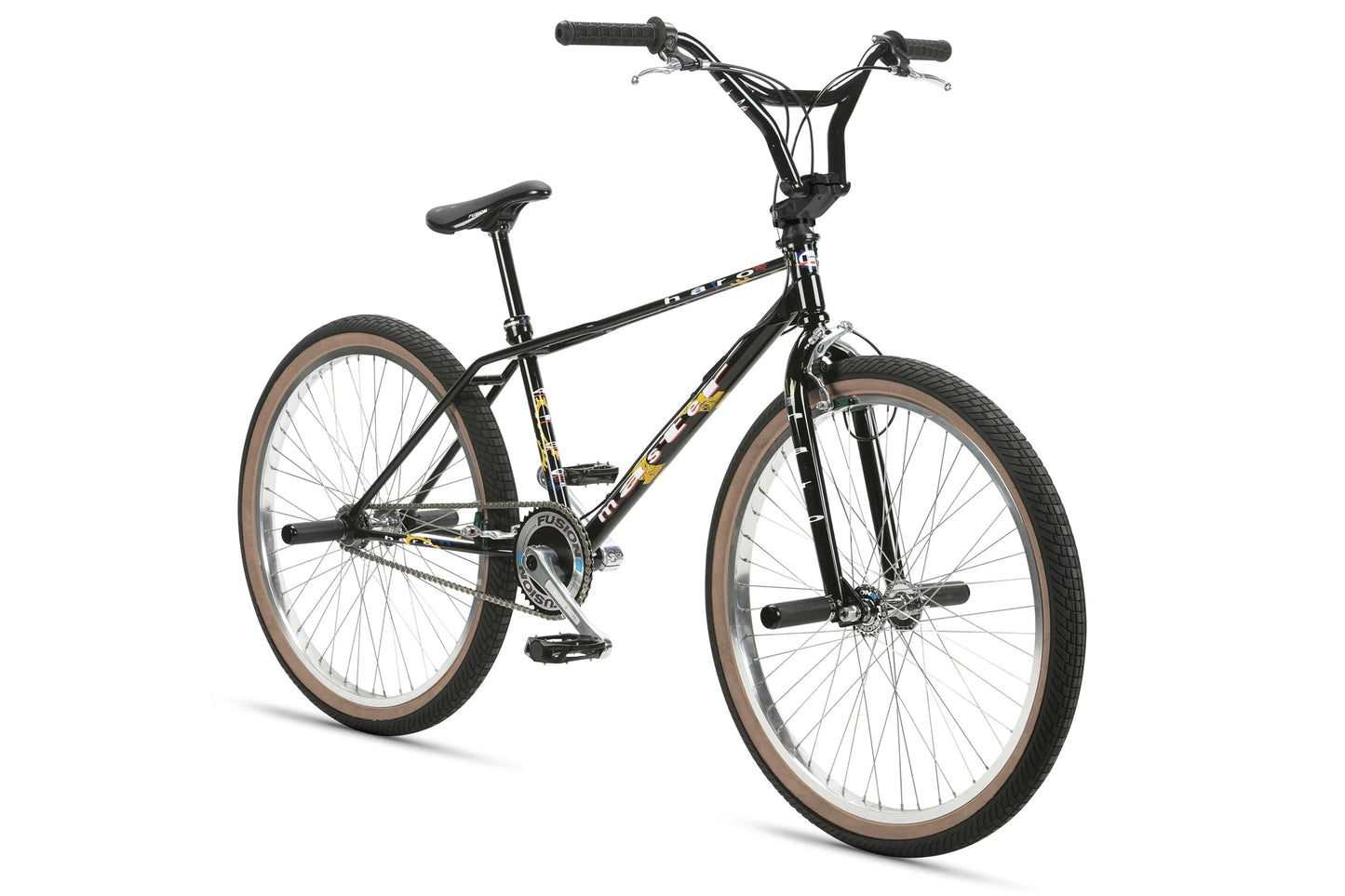

Haro Lineage Ground Master 26" Bike Black
Brand: Haro
The Ground Master 26" is the big brother to the 20" version with a few changes to keep it tight and right on a larger scale. You get the 1992-inspired all chromoly twin top tube frame and heat treated chromoly fork, Kneesaver bars and Fusion parts throughout. Down below, we're rolling steady on double-wall alloy rims, laced to sealed high flange hubs, mounted with Kenda Kranium 26 X 2.25" tyres. Smooth, larger diameter pegs are easy on your feet. Chainstay mounted rear brakes and internally routed front brakes keep the bike in control, even when you aren't. "Tricks are for kids" does not apply to the Ground Master 26".
As usual with the Lineage bikes, they are made to the very highest standards with the off-the-scale attention-to-detail - and the photos don't do them justice, they literally take your breath away when you see them in the flesh.
Specs:
| FRAMESET |
|
| Frame |
| Lineage Master Bashguard 26" frame - 22.5" full crmo; internal h/t crmo - with removable rotor tab mounting holes; removable brake mounts. |
|
|
| Fork |
| Haro Fork with 990 mounts and internal cable routing; 28mm offset; 3/8" axle; cr-mo steerer; tapered fluted legs |
|
|
| Colour |
Black |
| DRIVETRAIN |
|
| Cranks |

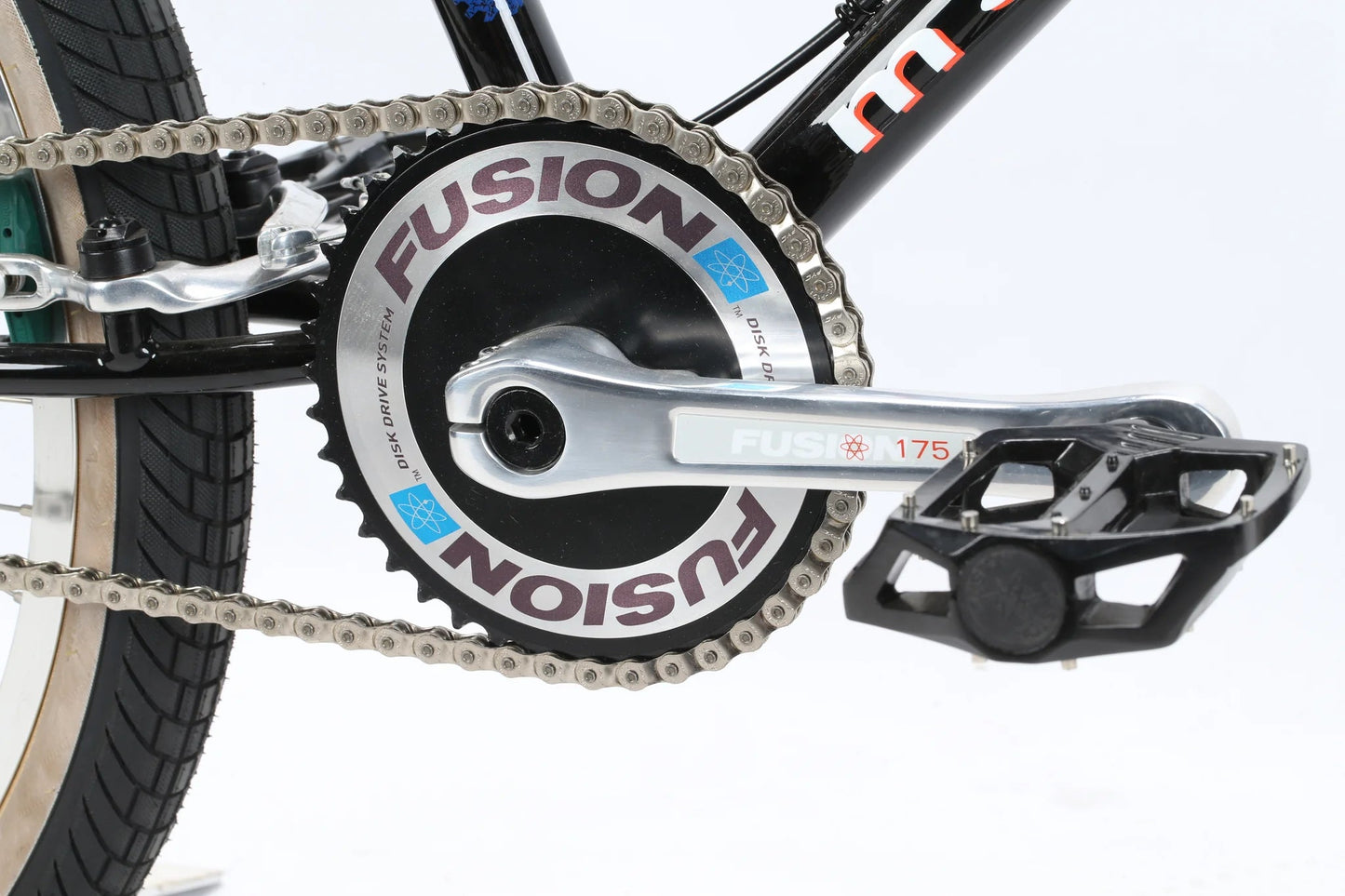

Haro Fusion alloy cranks (bolt drive interface) rsd and lsd; 175mm; 22mm od 48-spline spindle; heat treated 4130 |
| Bottom Bracket |
Sealed MID BB |
| Sprocket |
Fusion disc sprocket; cnc bolt drive sprocket; 5mm alloy ring; 1/2" x 1/8" x 41t ; solid ring w/ machined teeth, included sprocket adapter |
| Gearing |
25/9 |
| Pedals |
Haro Fusion; alloy pedal body; crmo axle |
| Chain |
KMC K1Sl; 1/2 x 1/8; Narrow Silver Super Lite |
| WHEELS |
|
| Tyres |
| Kinda Kranium skinwall tyre; 26x2.25; 60 max psi |
|
|
| Front Hub |
48h alloy hub body; 3/8"x100wx155l; crmo 155mm straight axle; 2 sealed bearings |
| Rear Hub |
Freecoaster hub (male bolt); sealed bearings; 17mm steel flange axle nuts; all hardware in cp finish including cone nuts, axle nuts, 17T freewheel |
| Rims |
| Haro Lineage 26x1.75"; 48h; (w200) (double wall welded joint) |
|
|
| BRAKING SYSTEM |
|
| Brake |

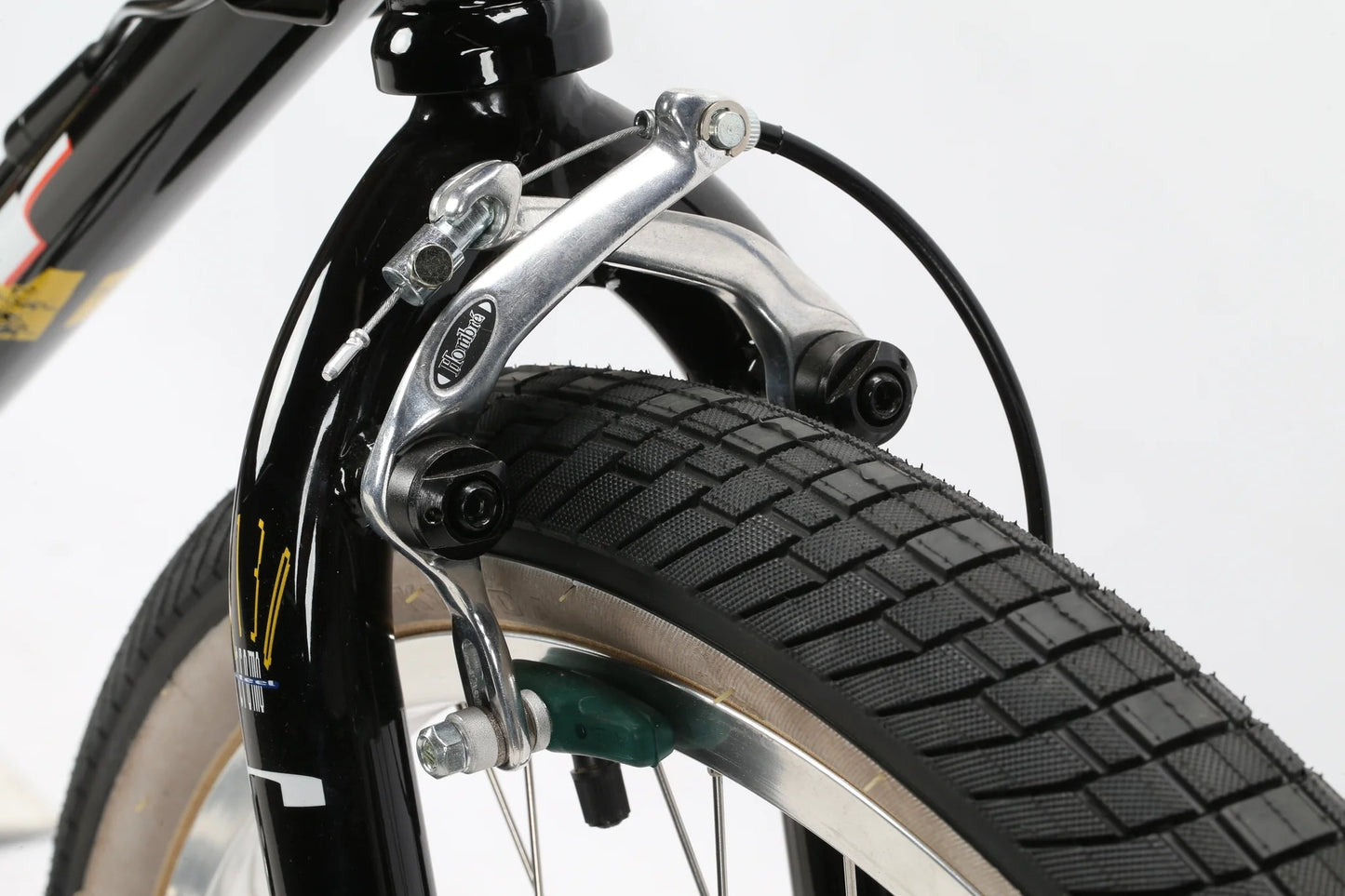

Dia-Compe fs996 "hombre" u-brake; cold forged aluminum arms; dual spring tension adjustment w/anchor bolt parts |
| Brake Lever |
Dia-Compe "tech-77" lever without stopper; right and left side; diecast aluminum bracket with hinged clamp; cold forged aluminum lever |
| Rotor |
Teflon bearing gyro - full cnc 6061 t6 included a-plate |
| OTHER COMPONENTS |
|
| Grips |
Haro team grip; 145mm length x 29mm diameter; 50mm od flange (low); kraton a15 material (super soft). |
| Handlebar |
Lineage kneesaver bar 8.5"; 100% heat treated; multi-butted |
| Stem |
Haro Lineage fusion top load stem; T6 alloy; cold forged with cnc; 45mm |
| Headset |
Sealed Integrated, 1 1/8" |
| Seat |

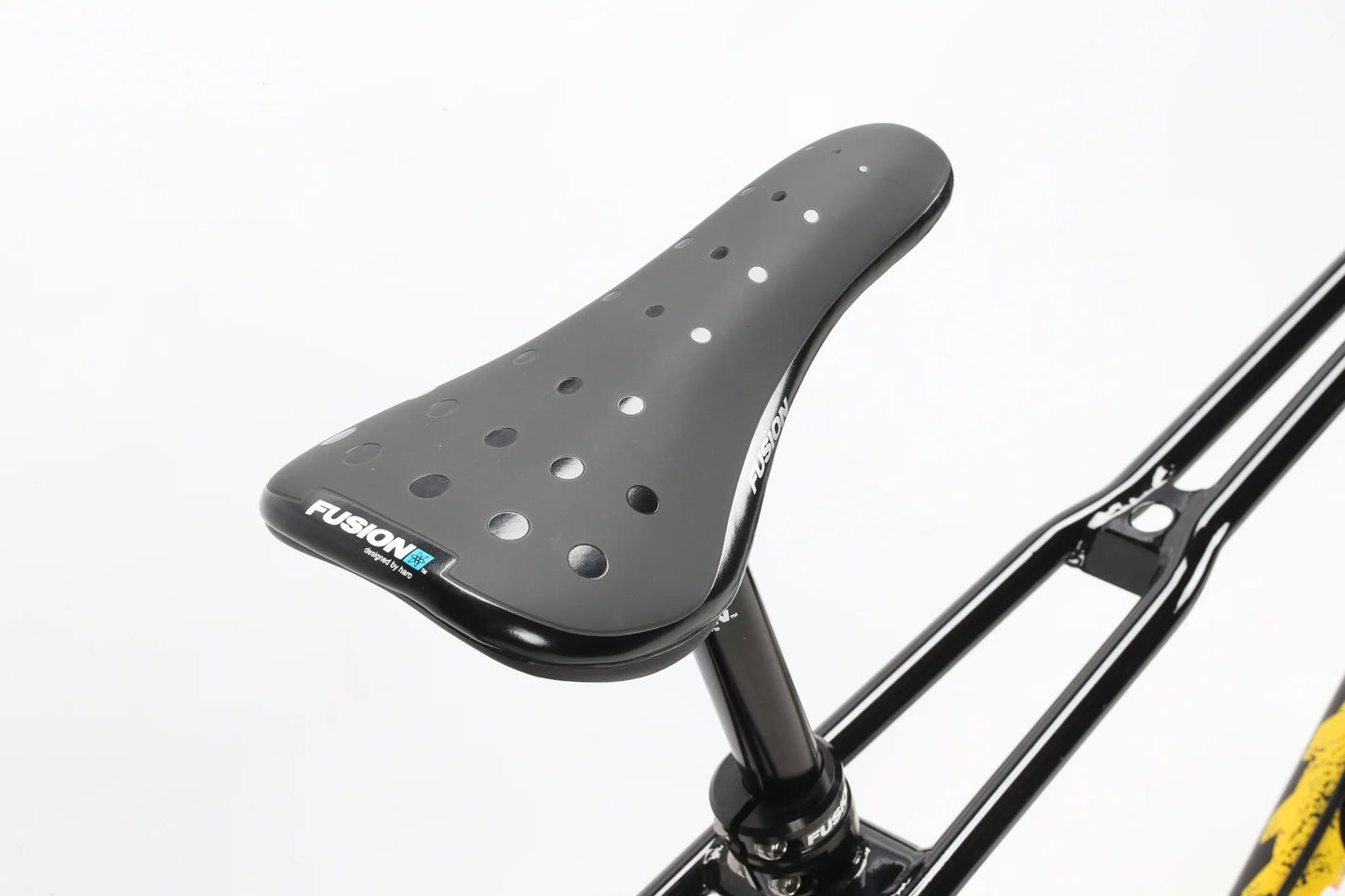

Haro Fusion slim stealth pivotal seat |
| Seat Post |
Haro Fusion stealth pivotal seat post; 25.4 x 300mm |
| Seat Post Clamp |
Haro Fusion twintorc clamp; alloy 6061 |
| Pegs |

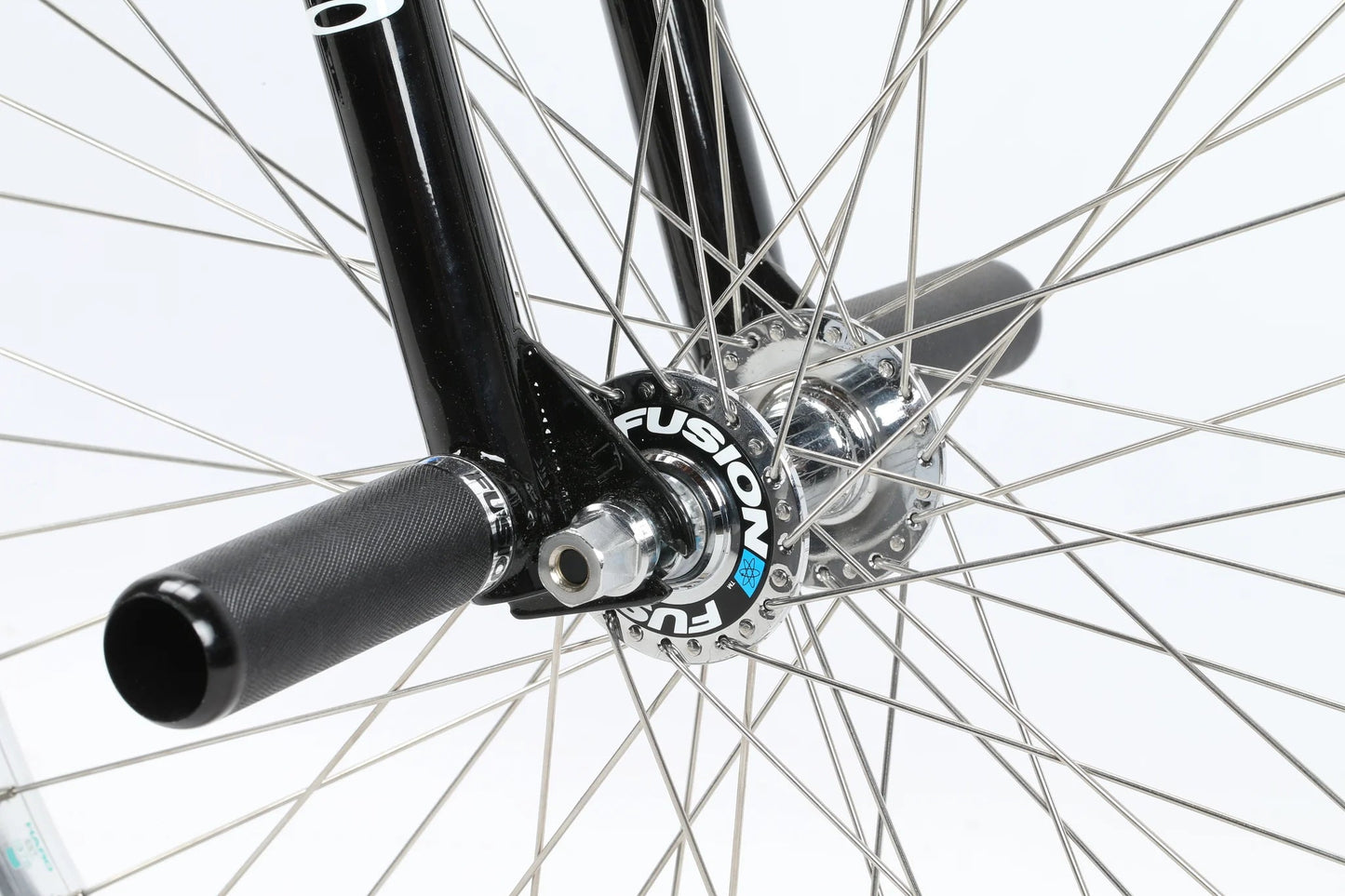

6061 alloy pegs; 34mm od; 110mm length; include 4 total pegs |
