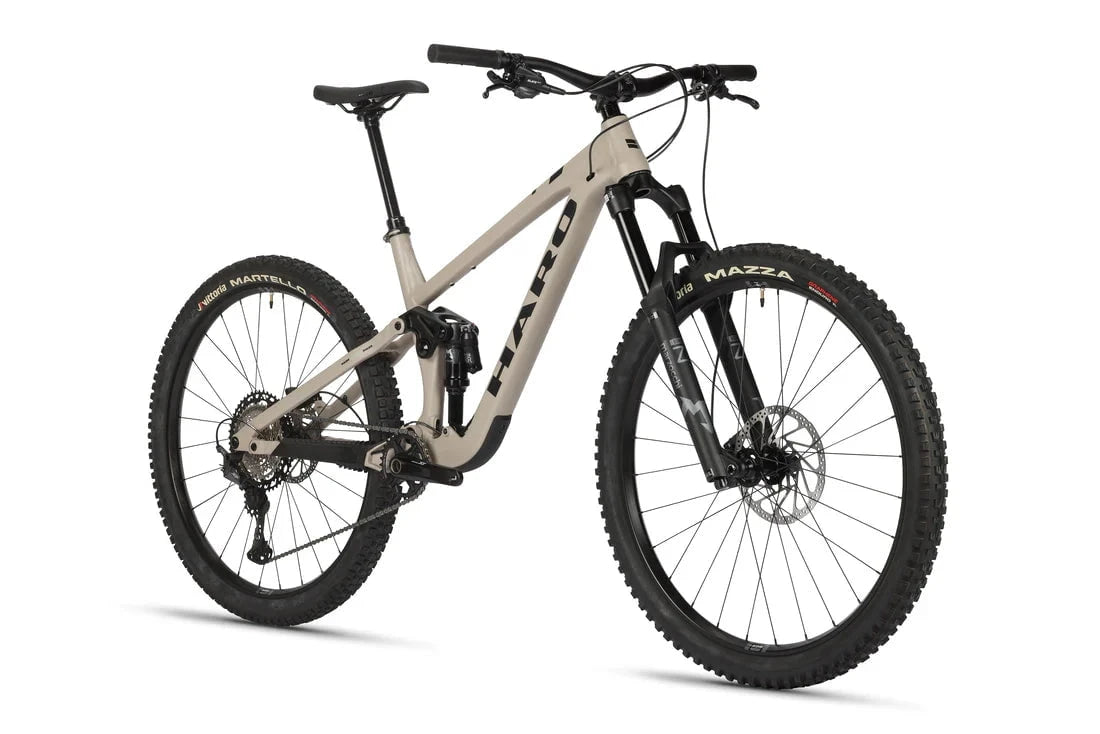

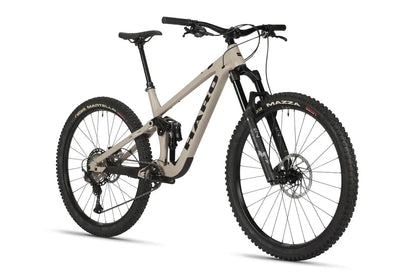

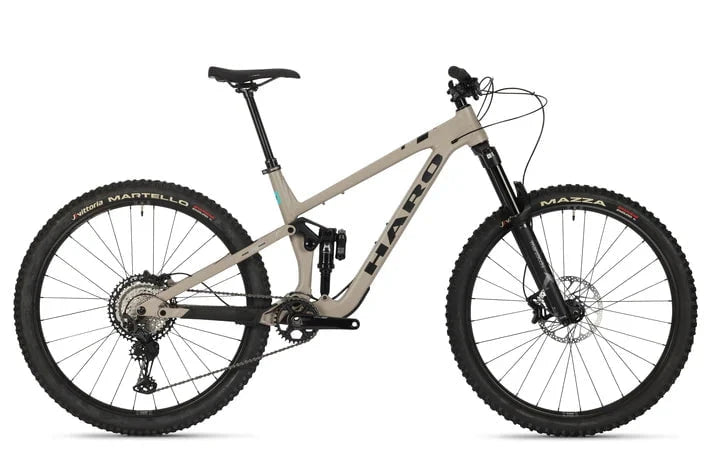

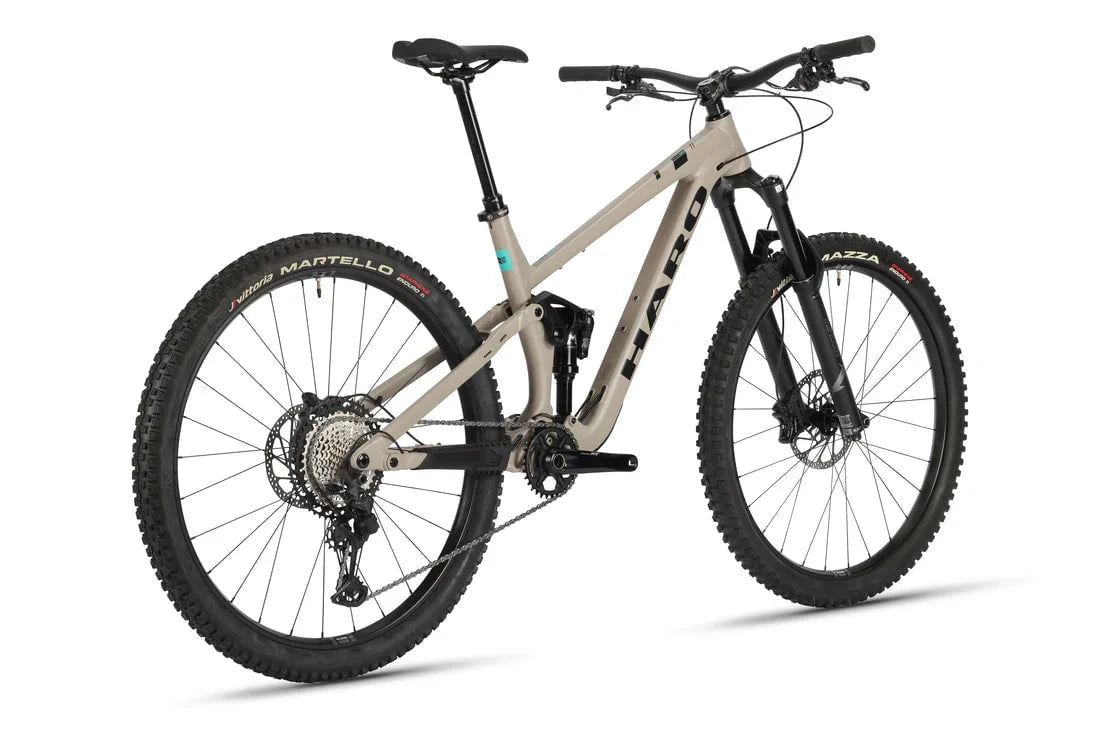

Haro Daley Alloy 1 Full Suspension Mountain Bike Matte Black
Haro Daley Alloy 1 Full Suspension Mountain Bike Matte Black
Colour is as shown in the images despite being called Matte Black
Named after one of our favorite trail networks, the Daley is our all-new all-mountain 29er, ready for any adventure—from steep climbs to tough descents. The exclusive aluminum frame combined with proven 150/140 mm suspension delivers tailored riding pleasure for every build.
The Daley is our ultimate trail bike: playful off-road, with maximum grip in corners, and enough power for the steepest climbs. Ready to take off, lean into the corner, and really put the pedal to the metal.
No gimmicks, no unnecessary frills – just what you need.
FEATURES
- Haro Daley alloy full-suspension frame, 1-1/8" - 1-1/5" Tapered Head Tube, 148mm Boost OLD, UDH Derailleur Hanger
- Marzocchi Bomber Air shock. 140mm travel, with sweep adjust
- Marzocchi Bomber Z1 fork, 150mm Travel with sweep adjust
- Shimano XT M8100 drivetrain
- Vittoria Mazza 2.4", enduro G2.0 front & Vittoria Martello 2.4" enduro G2.0 rear tires
- TRP Slate EVO 4-piston hydraulic disc brakes. 203mm front rotor, 180mm rear rotor
- Race Face Chester 35mm rise bars and 40mm reach stem
- Kind Shock Rage-I dropper post, size-specific
- Includes tubeless valves and sealant
| FRAMESET | |
|---|---|
| Frame | Haro Daley alloy full-suspension frame, 1-1/8" - 1-1/5" tapered head tube, 148mm Boost OLD, UDH derailleur hanger |
| Fork | Marzocchi Bomber Z1, Rail - sweep adjust, 150mm travel |
| Frame Shock | Marzocchi Bomber Air, sweep adjust, 140mm travel |
| Colors | Trans Black / Amber, Matte Stone Grey |
| Weight | 38.2 lbs 17.29 kg, (L) |
| DRIVETRAIN | |
| Cranks | Shimano XT, FC-M8120-1, 32T, 165mm, 55:CL |
| Pedals | N/A |
| Chain | Shimano CN-M8100 HG 12-speed |
| Bottom Bracket | Shimano BB-MT501 BSA 68/ 73mm |
| Front Derailleur | N/A |
| Rear Derailleur | Shimano XT 12-speed, Shadow Plus, RD-M8100 |
| Derailleur Shifter | Shimano XT 12-speed, SL-M8100R |
| Freewheel/Cassette | Shimano XT 12-speed CS-M8100, Hyper Glide Plus, 10-51T |
| WHEELS | |
| Tires | Front: Vittoria Mazza 2.4", enduro G2.0 120TPI / Rear: Vittoria Martello 2.4" enduro G2.0 120TPI |
| Wheels/Rims | WTB KOM Trail, I30, sleeved double-wall alloy, 28H TSC 2.0 |
| Hubs | Alloy CNC, 4 sealed bearings, 110 x 15 front axle, 148 x 12 rear axle with 5-pawl driver |
| BRAKING SYSTEM | |
| Brakes | TRP Slate EVO 4-piston hydraulic disc with 203mm front rotor and 180mm rear rotor |
| Brake Levers | TRP Slate EVO |
| OTHER COMPONENTS | |
| Grips/Tape | WTB Wavelength 130mm lock-on |
| Handlebar | Race Face Chester 35mm OD, 780mm wide, 35mm rise |
| Stem | Race Face Chester 35mm ID, 40mm Reach |
| Headset | FSA ORBIT 1.5E ZS/ NO.57E tapered, 44/56mm head tube |
| Saddle | WTB Volt Medium, PU leather, Flex Tuned, with ABR corners |
| Seat Post | Kind Shock Rage-i dropper post, 34.9mm OD. Lengths: Small 150mm, Medium 170mm, Large 200mm, X-Large 200mm |
| Seat Clamp | 3D forged 6061 aluminum, 38.9mm ID |
| Extras | Includes tubeless valves and sealant |
