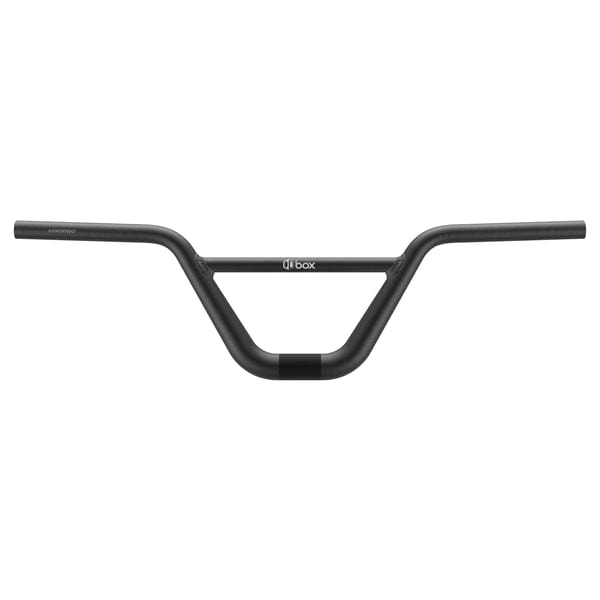

BOX One Triple Taper Alloy Handlebars
All Box handlebars are engineered and crafted using our Oversized Technology. Handlebars have a dual purpose as they contribute to both steering and pedaling stiffness. By strategically varying wall thicknesses and tube diameters we have moved material from 3 low stress areas to zones of high load. This has greatly minimized twist and contributed to responsiveness. Concurrently we have increased pedaling stiffness by providing a backstop to the “lifting” phenomenon. There is no point pushing hard on your pedals if you can’t pull up on your handlebars and deliver that power. Power can easily be lost to handlebar deflection and the consequences can lead to poor power delivery and steering control. When combined with Box’s other Oversized components, you’ll experience heightened responsiveness and reduced latency.
Key differences: This particular model handlebar is tailored for medium-sized racers so we decided to use hardened aluminum alloy to reduce unnecessary mass.
Material: 6061-T6 Aluminum
Process: Extruded and Mandrel Formed
Finish: Matte Black Anodized with Laser Etched Graphics
• Bar Bore: 31.8mm
• Sweep: 7° back, 2° up
• Clamp Diameter: 31.8mm
• Grips: 22.2mm
Height & Weight:
• 6”: 447 g / 15.8 oz
• 6.5”: 465 g / 16.4 oz
• 7”: 480 g / 16.8 oz
