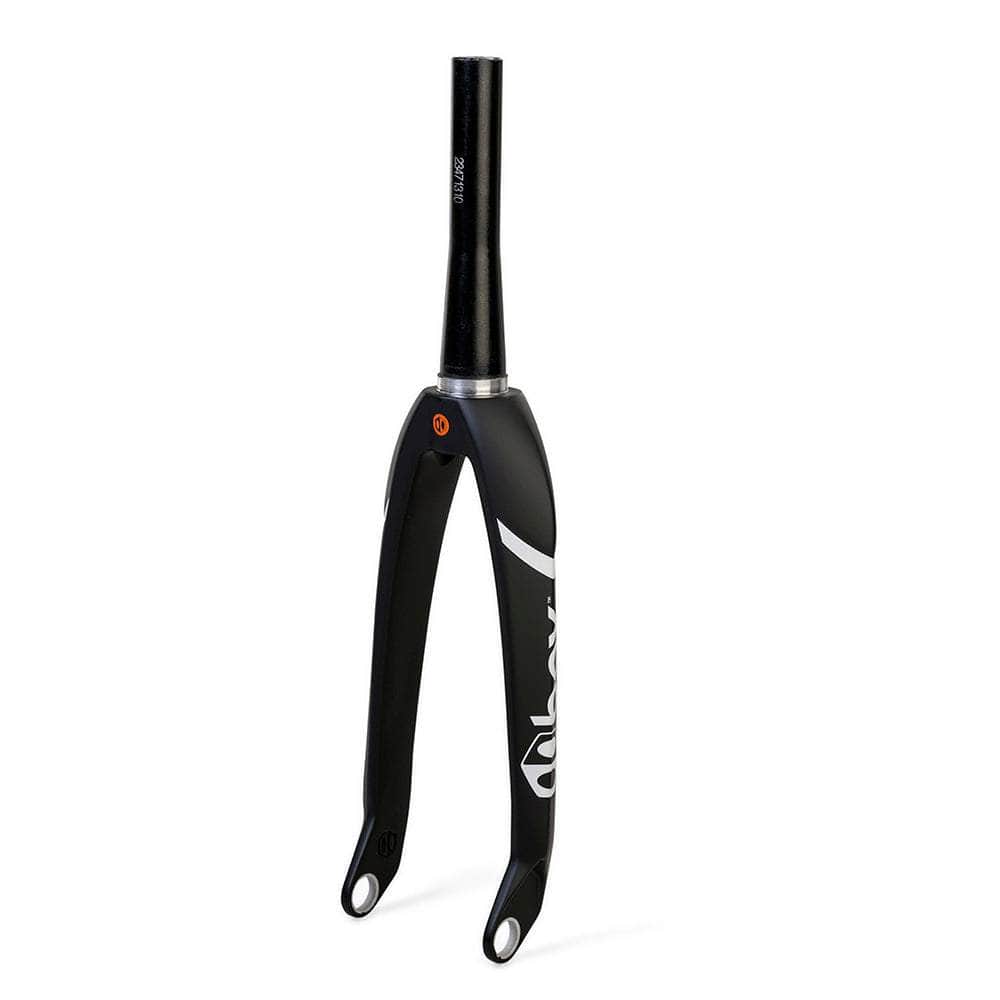

Box One X5 Pro Carbon Tapered Forks
Box One X5 Pro Carbon Tapered Forks
All Box One forks are engineered and crafted using our Oversized Technology. These forks are the single most important component in the quest for bike control. We’ve moved carbon from areas of low stress to areas that handle high load. Those muscular shoulders aren’t just for looks as they are integral to achieving superior steering stiffness. When combined with Box’s other Oversized components, you’ll experience heightened responsiveness and reduced latency.
Key differences: This particular model fork pushes our Oversized Technology to the extreme as it includes the 1.5 to 1-1/8 inch tapered 7000 series aluminum steerer tube and stiffer 20mm through-axle cold-forged dropouts. Say good-bye to deflection.
Weight Limit: 115kg (253 lbs) with limitations as per Category 2 of EN 16054:2012 Standard
IMPORTANT NOTES
Includes Box One™ Stem Lock
Includes Box One™ Fork Adapters
Note: Use of a star nut voids the warranty for this product.
SPECIFICATIONS
Material:
• Legs: High Modulus Unidirectional Carbon Fiber
• Steerer: 7075-T6 Aluminum
• Butterfly & Dropouts: 6061-T6 Aluminum
Process:
• Legs: Vacuum Mold
• Steerer: Extruded & Butted
• Butterfly & Dropouts: Cold-Forged
Hardware: Stem Lock & Fork Adapters
Finish: Gloss Black/Matte Black with Water Decals
Compatibility/Size:
• Height: 20” / 24”
• Steerer: 1-1/8" tapers to 1.5"
• Offset: 32mm
• Through-Axle: 20mm
Weight
• 20”: 579g/20.4oz
• 24”: 616g/21.7oz
