SKU: Product Code: FKBX1XL20M

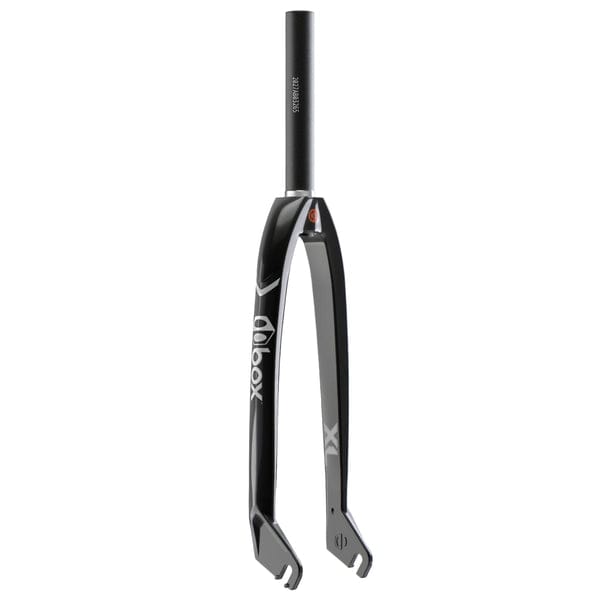

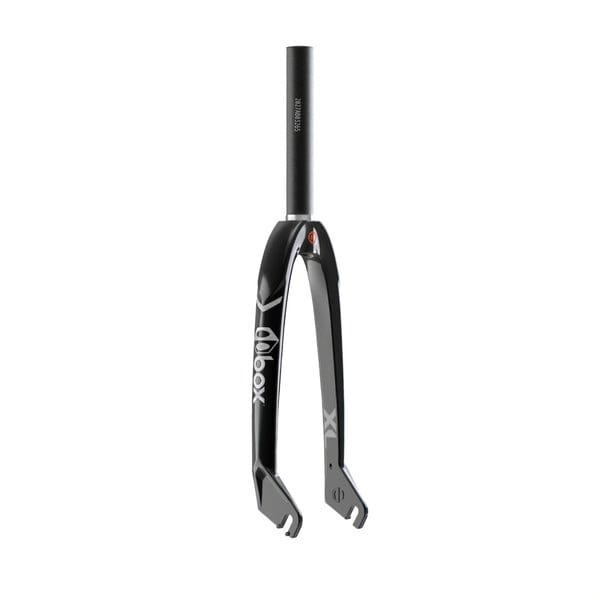

Box One XL Pro Lite 1 1/8" Carbon Fork
Box One XL Pro Lite 1 1/8" Carbon Fork
All Box One forks are engineered and crafted using our Oversized Technology. These forks are the single most crucial component in the quest for bike control. We’ve moved carbon from areas of low stress to areas that handle high load. Those muscular shoulders aren’t just for looks, as they are integral to achieving superior steering stiffness. When combined with Box’s other Oversized components, you’ll experience heightened responsiveness and reduced latency.
Key differences: This particular model fork is tailored for mid-sized racers and includes a lighter weight 1 inch 7000 series aluminum steerer tube and 10mm cold-forged dropouts.
Weight Limit: 45 kg (99 lbs) or less with limitations as per Category 1 of EN 16054:2012 Standard
IMPORTANT NOTES
Includes Box One™ Stem Lock
Note: Use of a star nut voids the warranty for this product.
SPECIFICATIONS
Material:
• Legs: High Modulus Unidirectional Carbon Fiber
• Steerer: 7075-T6 Aluminum
• Butterfly & Dropouts: 6061-T6 Aluminum
Process:
• Legs: Vacuum Mold
• Steerer: Extruded & Butted
• Butterfly & Dropouts: Cold-Forged
Hardware: Stem Lock
Finish: Gloss Black/Matte Black with Water Decals
Compatibility/Size:
• Height: 20” / 24”
• Steerer: 1" Straight
• Offset: 32mm
• Axle: 10mm
Weight
• 20": 480g/16.9oz
• 24": 490g/17.3oz
