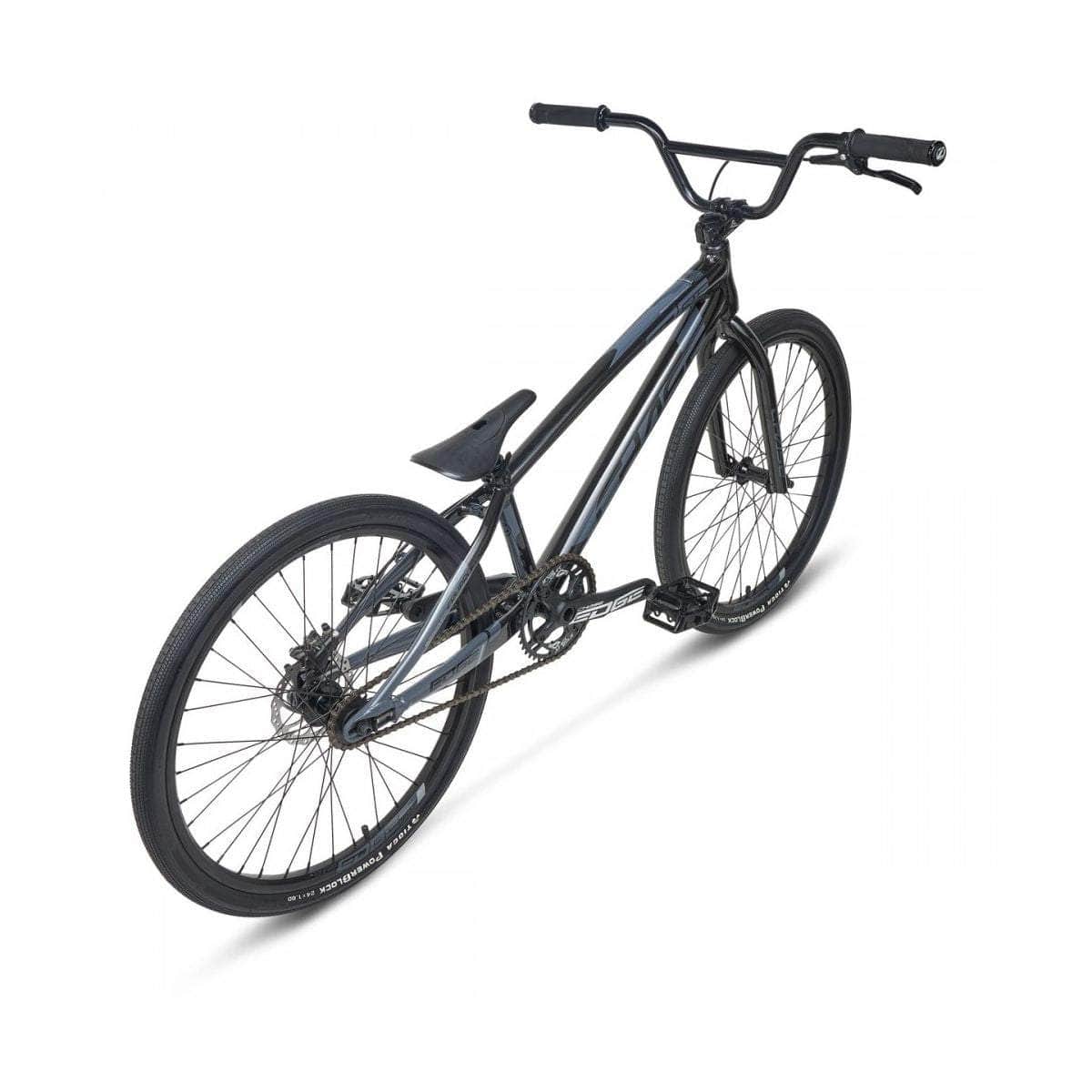

Chase 2025 Edge 24" Cruiser Race Bike Black / Grey
Chase 2025 Edge 24" Cruiser Race Bike Black / Grey
The all new CHASE Edge 24" Cruiser is a race ready BMX machine, ideal for riders ready to get serious about BMX racing and take it to the next level. Just when you didn't think it was possible, the new Edge has been improved, now equipped with Shimano Hydraulic disc brakes, all new Chase 24mm 2 piece Alloy Cranks, updated gearing and crank size, 2 tone paint and graphics, and a closed rear dropout system with integrated chain tensioner system. The Edge frame also features hydroformed, triple butted, 6061 aluminum tubes with an integrated head tube. Other featured parts on the Edge include 4130 chromoly fork and handlebars, double wall rims with triple engagement rear cassette rear hub, and TIOGA tyres. The combination of all these components makes the CHASE Edge one of the most advanced race BMX bikes available today.
IMPORTANT NOTE ABOUT PEDAL FITMENT
- FRAME: CHASE Edge Pro Cruiser 21.5″ Top Tube, Triple Butted Hydroformed 6061 T6 Alloy, Enclosed rear dropouts, Integrated Chain tensioner system
- FORK: CHASE Edge Cruiser, Full Cr-mo, 1-1/8″ Steer Tube
- STEM: CHASE Edge 50mm
- HANDLEBAR: CHASE Edge 5.75″
- HEADSET: Integrated Sealed Bearing
- CHAINRING: INSIGHT 41T 4 Bolts BCD 104mm
- CRANKSET: CHASE Edge 2 Pieces Alloy 175mm
- HUBS: CHASE Edge 10mm, Sealed Bearings, Steel Cassette Body, Triple precise Rear Hub Clutch System with ISO disc brake standard (3 Pawls at Triple Angle Engagement for 24T Ratchets), 18T cog
- RIMS: CHASE Edge 1.75 Double Wall 24″x1.75″, 36H Front and Rear
- TYRES: TIOGA PowerBlock 24″x1.75″ Front and 24″x1.60″ Rear
- BRAKES: Shimano Hydraulic BL-MT200(R) / BR-MT200(R) ISO 140mm
- SEAT: CHASE Edge Pro Pivotal
RECOMMENDED SIZE: 1.68m – 1.85m
WEIGHT: 10Kg without pedals
PLEASE NOTE THIS BIKE IS FOR TRACK USE ONLY.
SPECIFICATIONS :
|

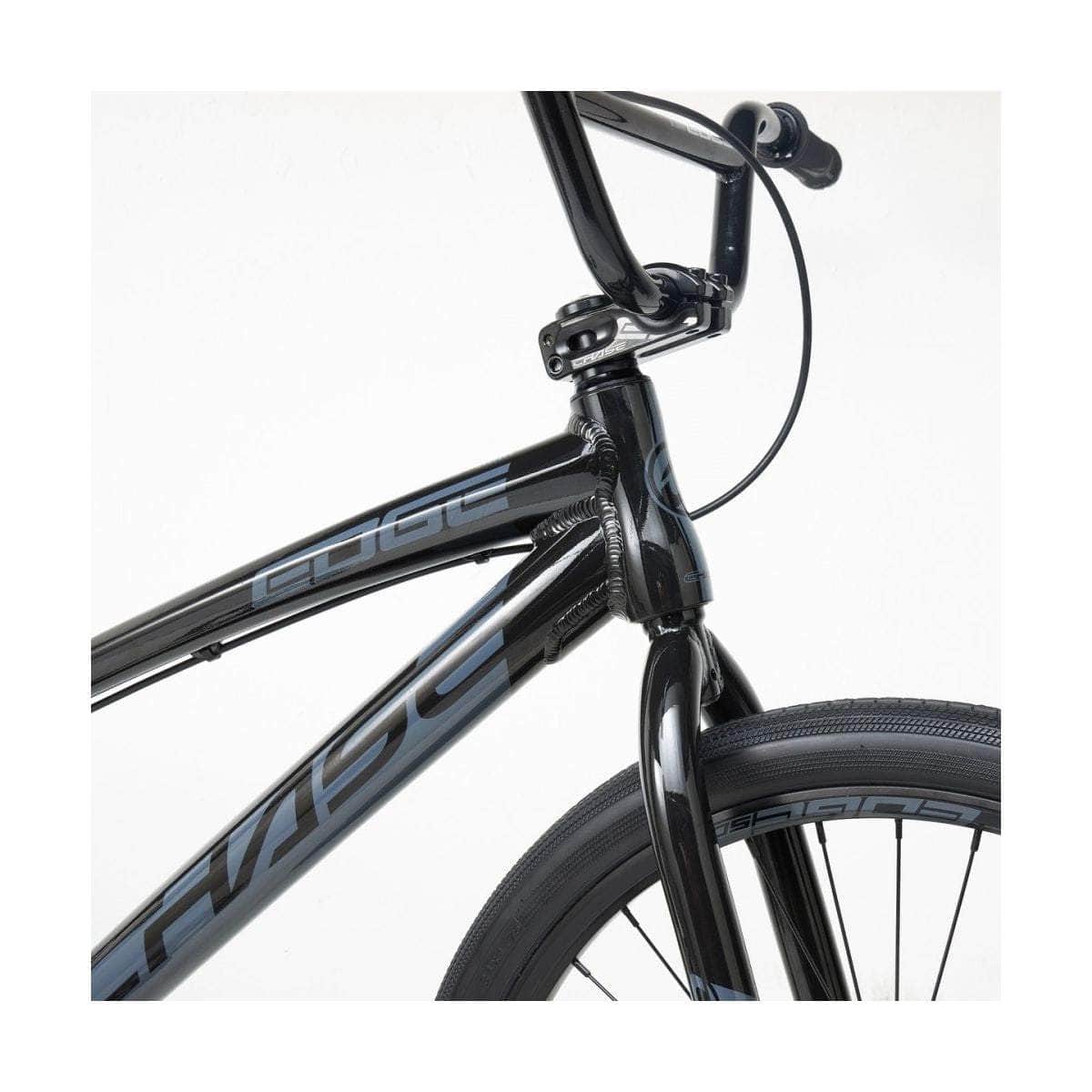

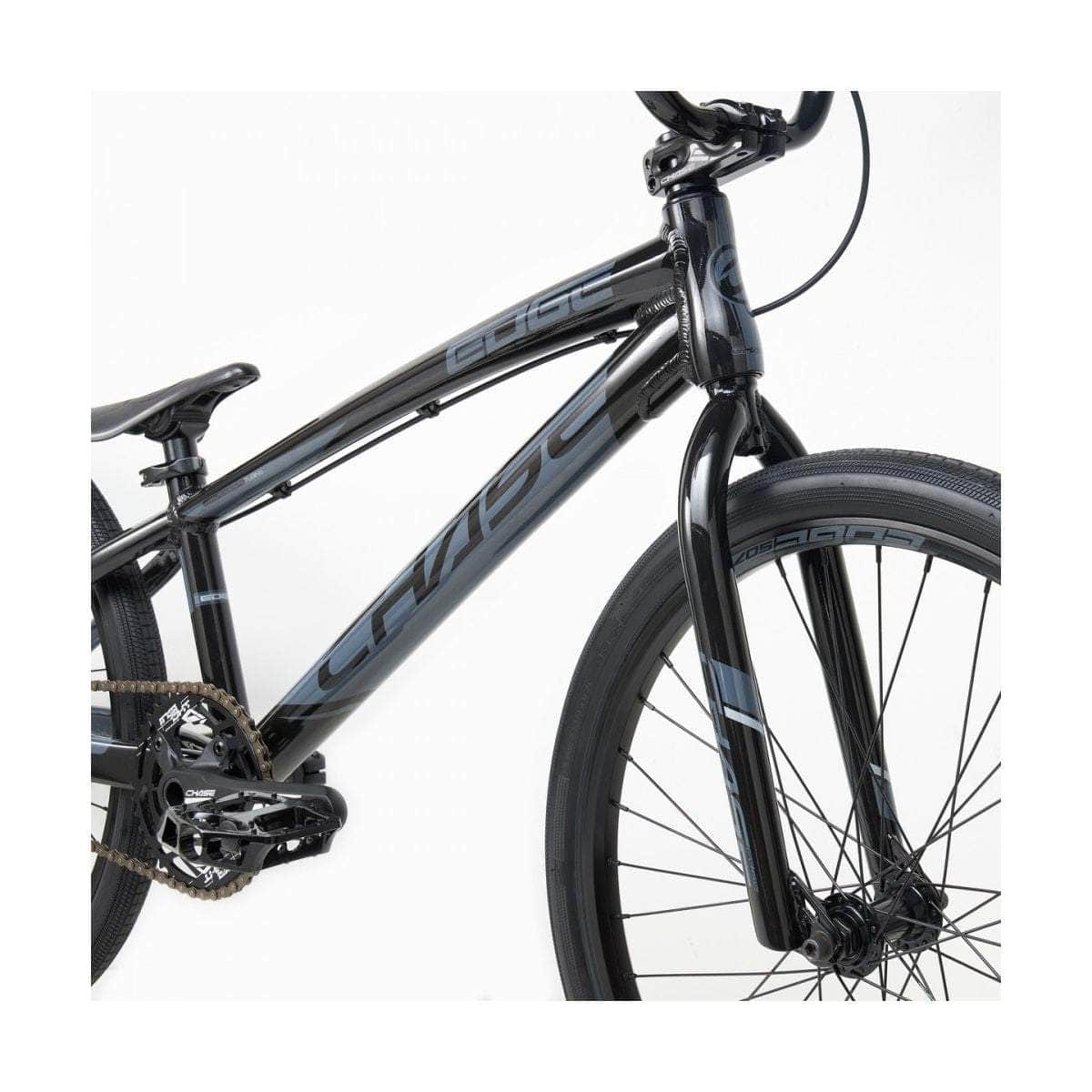

FRAME
|
CHASE Edge Pro Cruiser 21.5" Top Tube, 6061 T6 Alloy Triple butted Hydroformed, Integrated Head Tube, Enclosed rear dropouts and Chain tensioner system |
|
FORK
|
CHASE Edge Full Cr-mo, 1-1/8" Steer Tube, Tapered Blades |
|
HEADSET
|
Integrated IS 42/42 1-1/8", Sealed Bearing |
|
HANDLEBAR
|
CHASE Edge Cr-mo, 5.75" Rise, 28.5" Width, 11° Back Sweep, 2.5° Up Sweep |
|
GRIPS
|
INSIGHT C.O.G.S 145mm Lock-on |
|
STEM
|
CHASE Edge 50mm 6061 T6 Alloy |
|
BB
|
Euro External BSA 24mm Sealed Bearing |
|
CHAINRING
|
INSIGHT 41 Tooth 4 Bolt 104mm 1/2"x3/32" 5mm Alloy Ring |
|

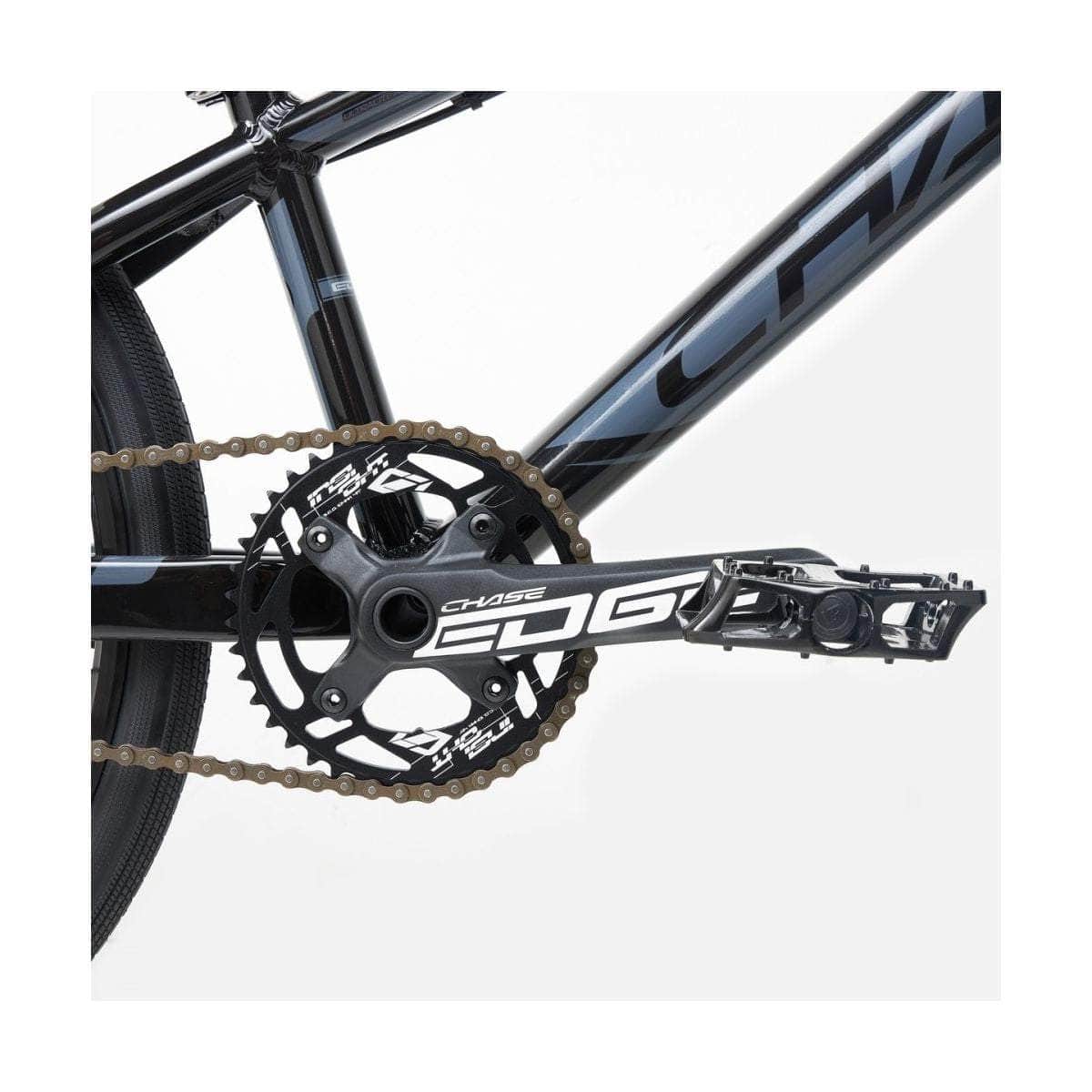

CRANK
|
Chase Edge 2 Pieces 24mm Axle Crank 175mm Alloy Arm With Laser Etched Logo, Cr-mo Chain Ring Bolts / Nuts |
|
PEDAL
|
Pro Platform 9/16" Barrel Polished With Grip Nodes, Axle Boron Steel, Ball Bearing |
|
CHAIN
|
KMC Z1 narrow 1/2"x3/32" |
|
COG
|
18T steel |
|
FRONT HUB
|
Pro 36H, Sealed Bearing, 10mm Axle |
|
REAR HUB
|
Pro ISO 36H, Sealed Bearing, 10mm Axle, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets |
|
SPOKES
|
Front 234mm, Rear 230/231mm, 14 Gauge, Steel |
|
NIPPLES
|
16mm, 14 Gauge, Brass |
|
FRONT RIM
|
CHASE Edge 175 Double Wall 36H 24"x1.75" Schrader Valve |
|
REAR RIM
|
CHASE Edge 175 Double Wall 36H 24"x1.75" Schrader Valve |
|
FRONT TYRE
|
TIOGA PowerBlock 24"x1.75" Wire Bead |
|
REAR TYRE
|
TIOGA PowerBlock 24"x1.60" Wire Bead |
|
TUBES
|
24''x1.5"-1.75" Schrader Valve |
|

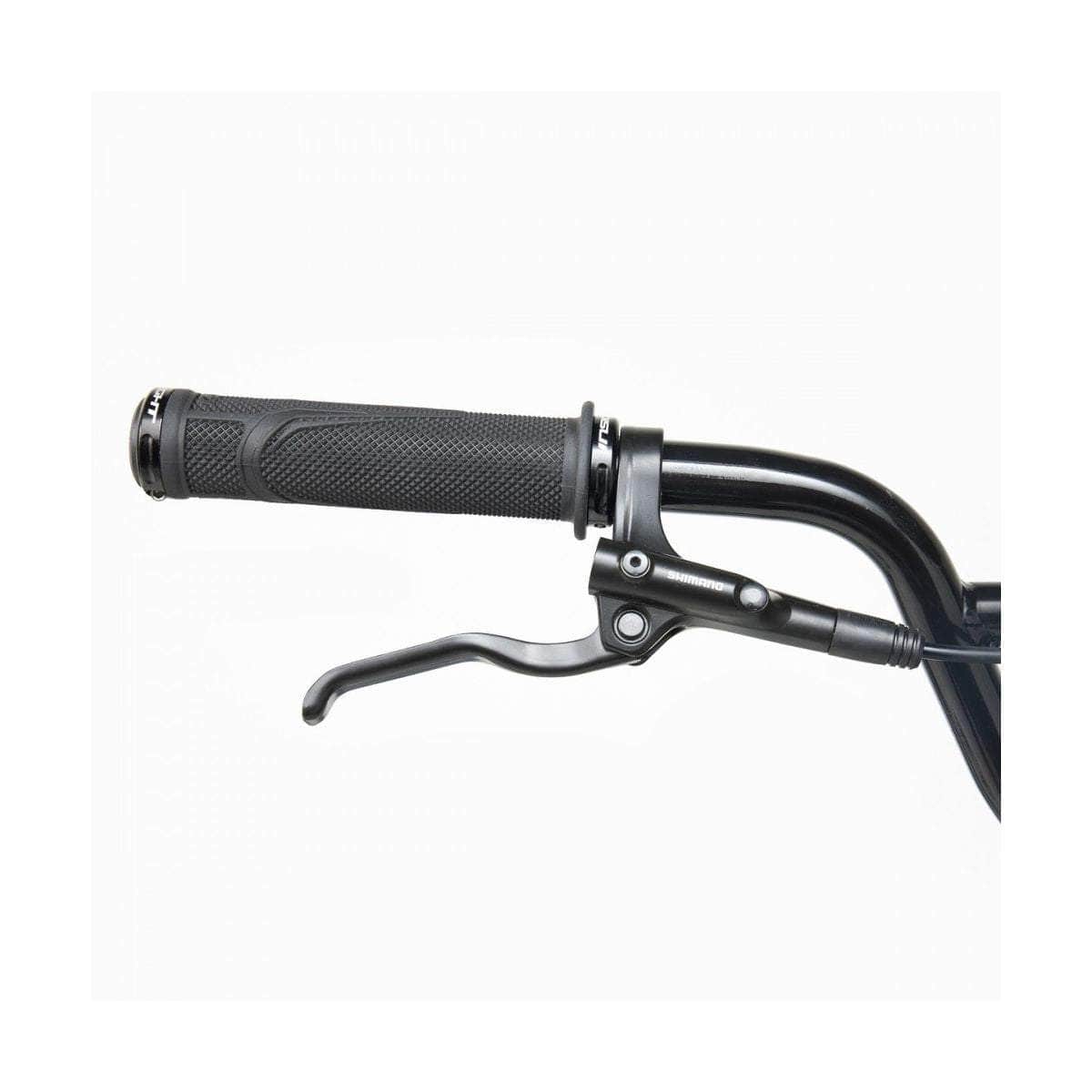

BRAKE LEVER
|
Shimano Disc Brake BL-MT200(R) Hydraulic |
|
BRAKE CALIPER
|
Adaptor 140mm Setup, With Shimano Disc Brake Caliper BR-MT200(R) Hydraulic Resin Pads And 140mm Rotor |
|

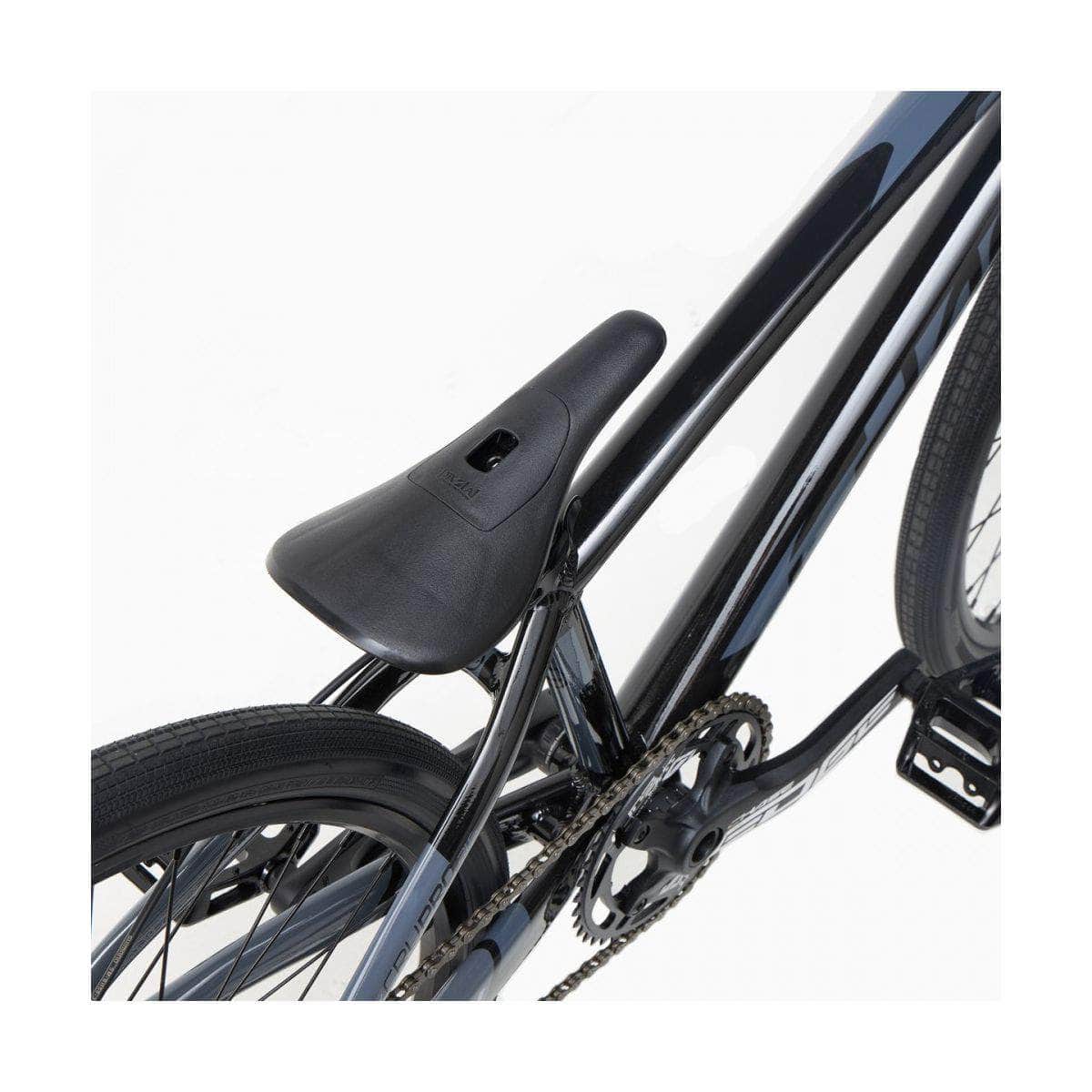

SADDLE
|
Pro Pivotal |
|
SEAT POST
|
Pivotal 27.2x250mm Alloy |
|
SEAT CLAMP
|
CHASE Edge QR Alloy 31.8mm |
|
CHAIN TENSIONER
|
Integrated Built-In With New Lock Disc Adaptor |
