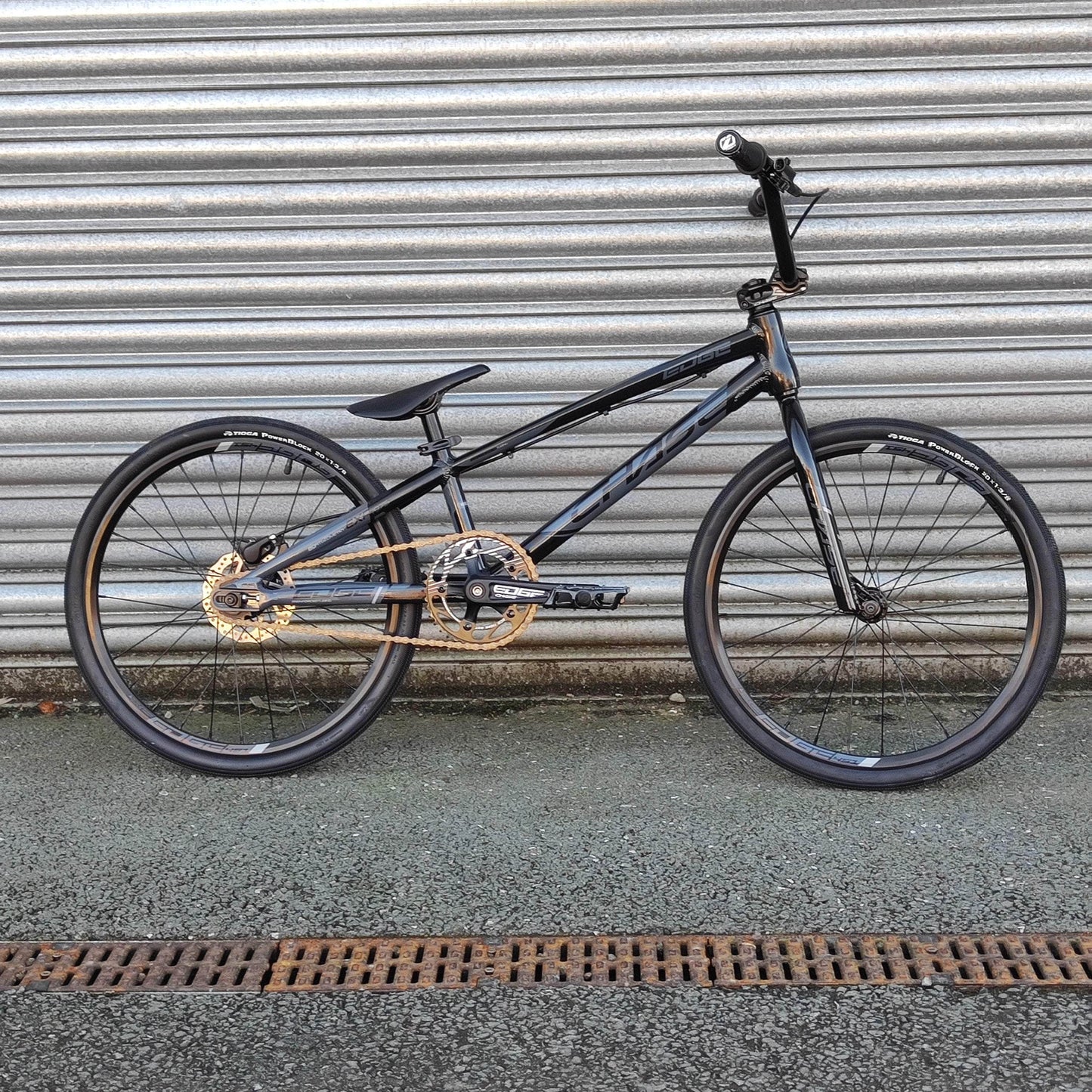

Chase 2025 Edge Expert Race Bike Black / Grey
Chase 2025 Edge Expert Race Bike Black / Grey
Give your youngster the best possible start in BMX Racing with the new Chase Edge Expert, which now comes with a Shimano hydraulic disc brake, a hydroformed triple butted alloy frame and hand-picked quality parts throughout.
IMPORTANT NOTE ABOUT PEDAL FITMENT
Just when you thought it wasn't possible, the new Chase Edge comes right back at you, equipped with genuine Shimano Hydraulic disc brakes, updated gearing and crank size, 2-tone paint and graphics, and a closed rear dropout system with integrated chain tensioner system.
The Edge frame also features hydroformed, triple butted, 6061 aluminum tubing with an integrated head tube. Other featured parts on the Edge include 4130 chromoly fork and handlebars, double wall rims with triple engagement rear cassette rear hub, and TIOGA tyres.
The combination of all these components makes the CHASE Edge one of the most advanced race BMX bikes available today.
Carbon Fork Upgrade
CONTACT US about a carbon fork upgrade on this bike. You just pay for the Carbon fork which we will fit, and include the stock fork with your bike.
Also available in Red with Black.
PLEASE NOTE THIS BIKE IS FOR TRACK USE ONLY.
RECOMMENDED SIZE: 1.32m to 1.46m tall
Chase Size Chart (download Excel file)
WEIGHT: 8.47kg without pedals
SPECIFICATIONS :
|
FRAME
|
CHASE Edge Expert 19.75" Top Tube, 6061 T6 Alloy Triple butted Hydroformed, Integrated Head Tube, Enclosed rear dropouts and Chain tensioner system |
|

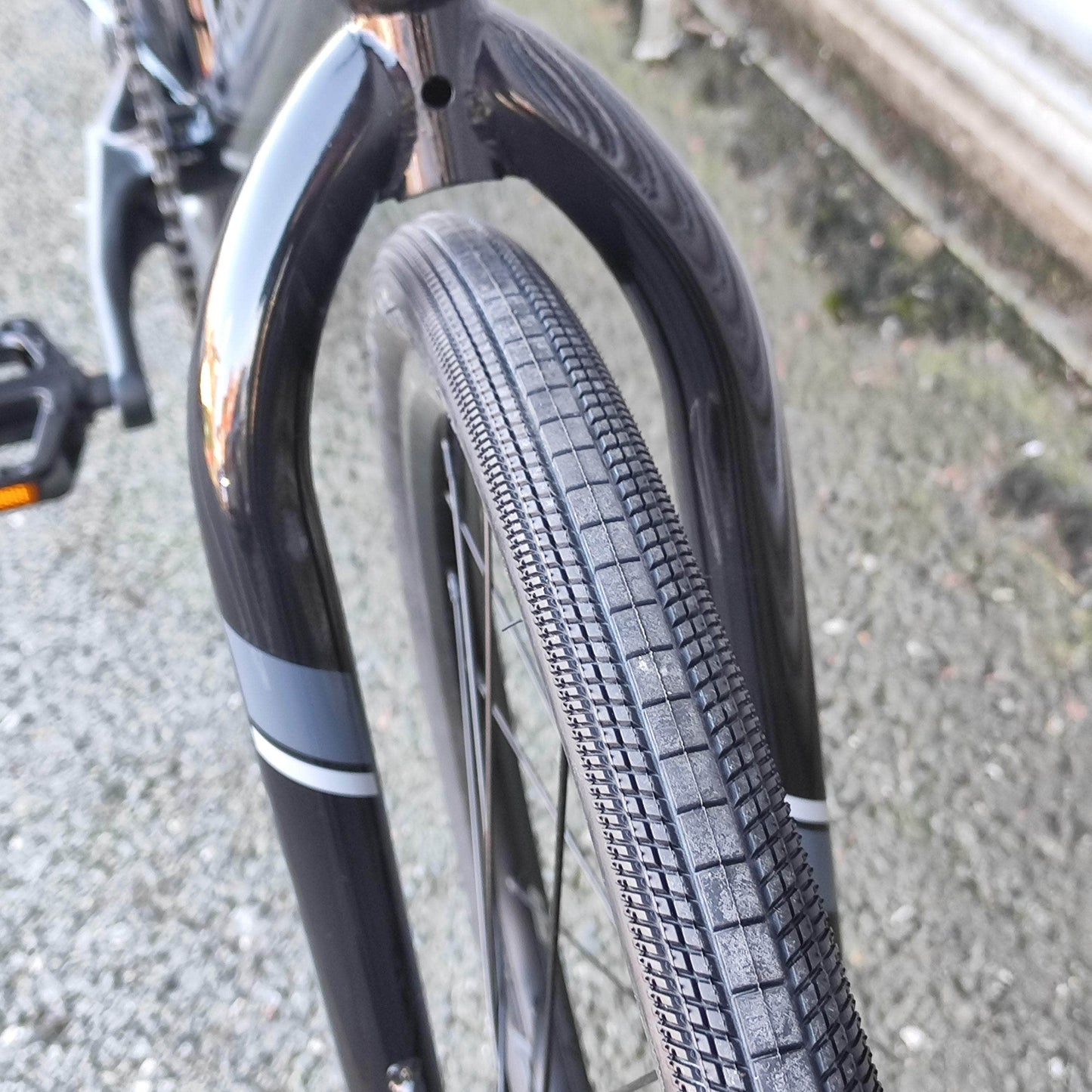

FORK
|
CHASE Edge Full Cr-mo, 1-1/8" Steer Tube, Tapered Blades |
|
HEADSET
|
Integrated IS 42/42 1-1/8", Sealed Bearing |
|

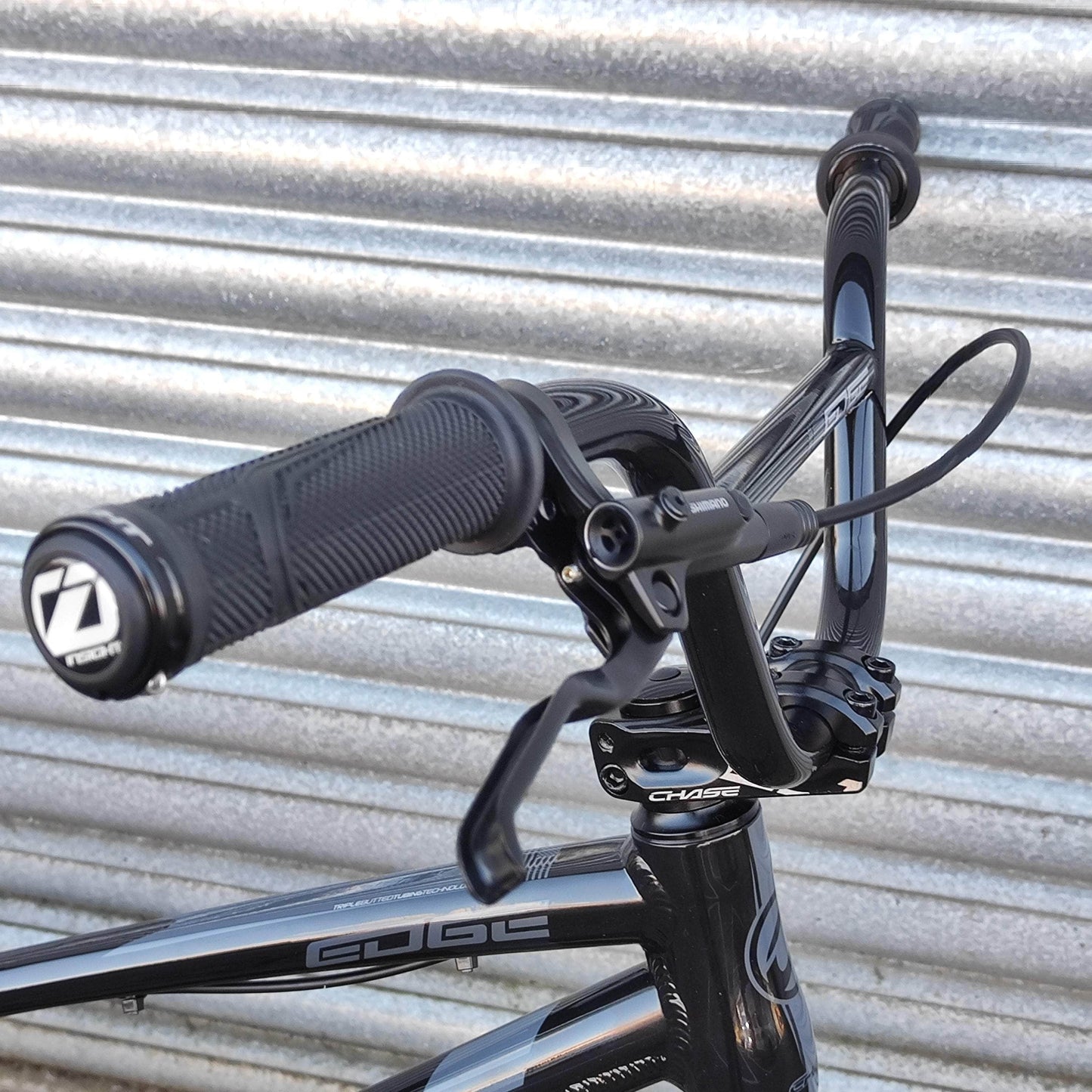

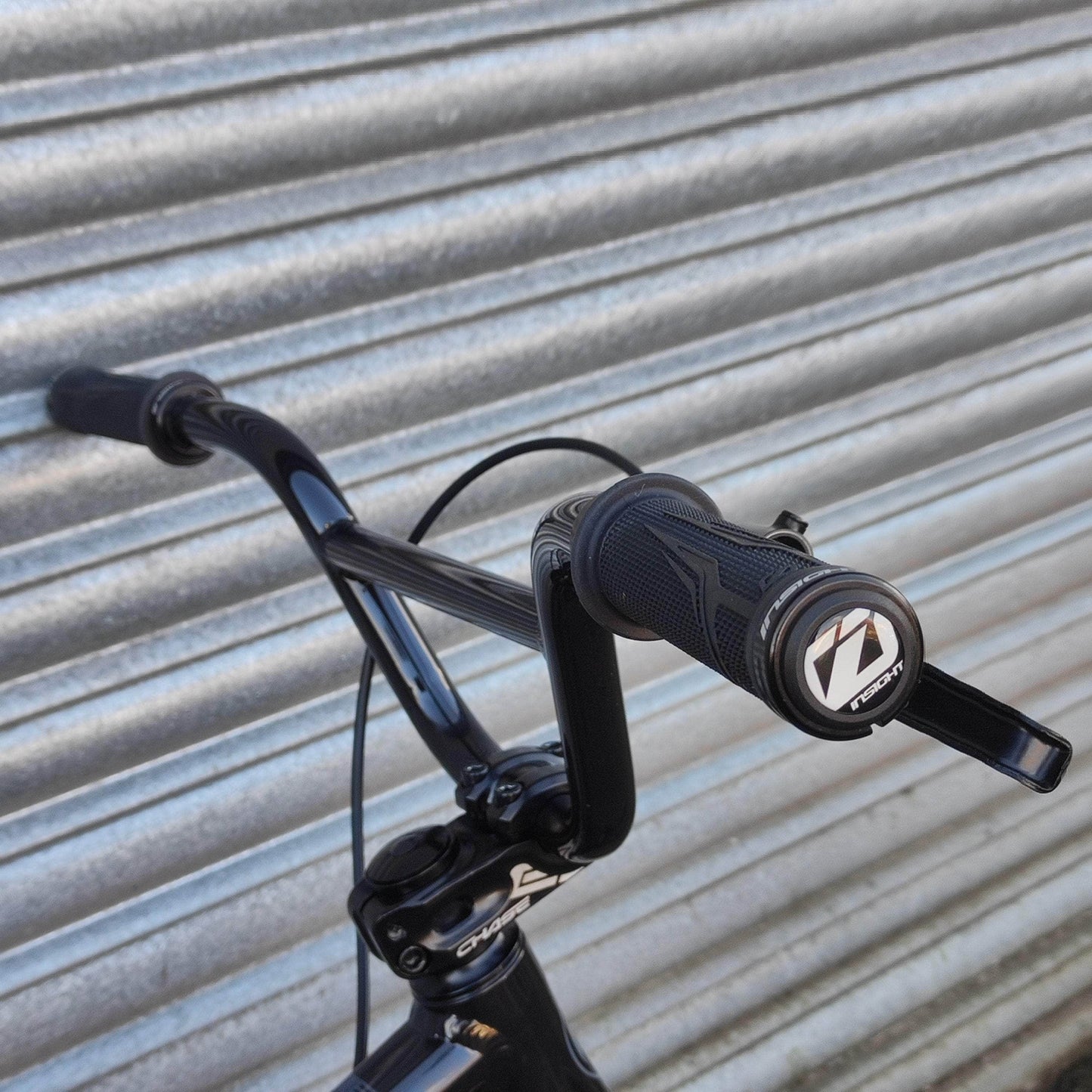

HANDLEBAR
|
Chase Edge Cr-mo 5.75" Rise, 25.5" Wide, 8° Back Sweep & 2° Up Sweep |
|
GRIPS
|
INSIGHT C.O.G.S 130mm Lock-on |
|
STEM
|
CHASE Edge 50mm 6061 T6 Alloy |
|
BB
|
Euro Square 113mm Sealed Bearing |
|
CHAINRING
|
Insight 40 Tooth 5 Bolt 110mm 1/2"x3/32" 3mm Alloy Ring |
|

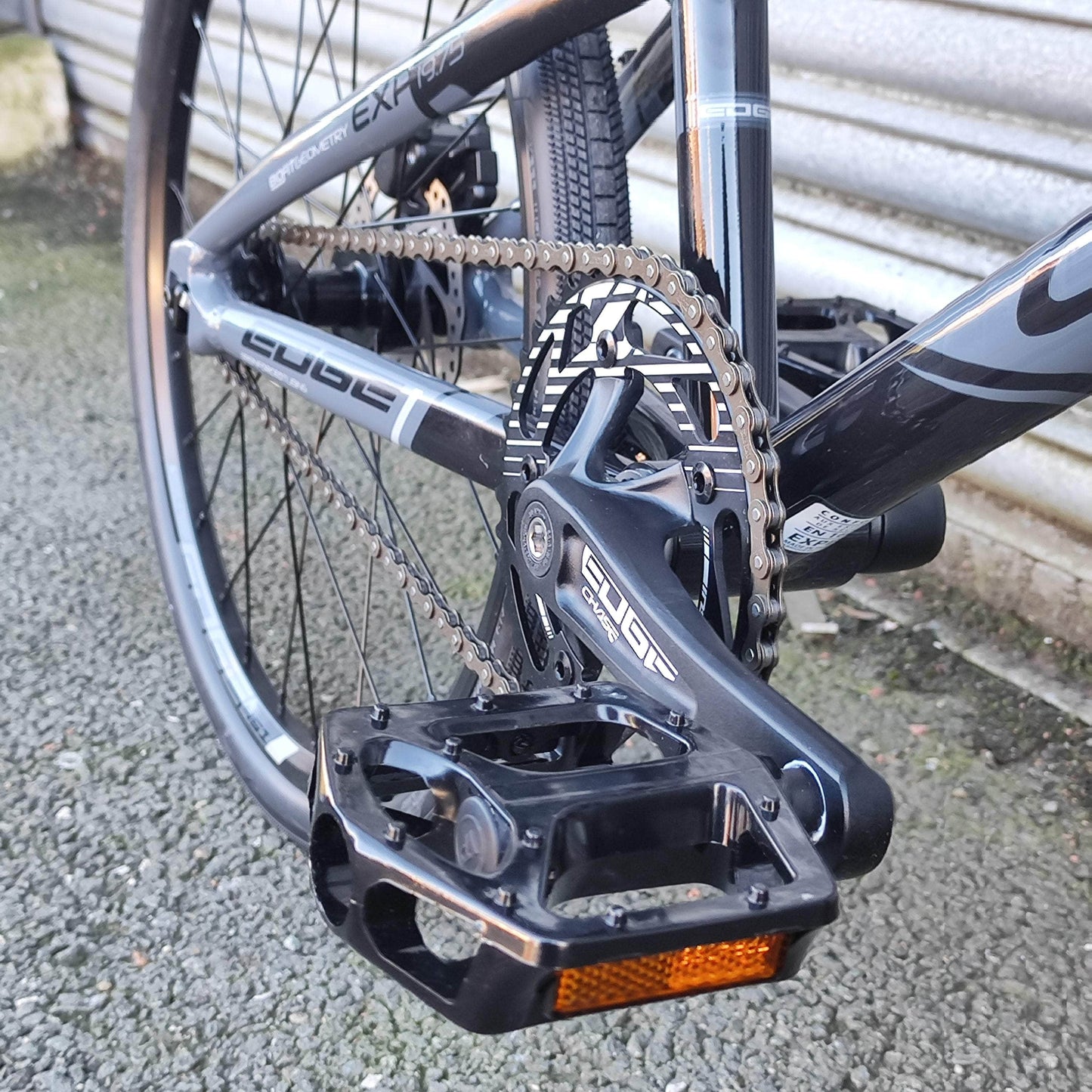

CRANK
|
CHASE Edge 3 Piece Crank 160mm Alloy Arm, Cr-mo Chainring Bolts |
|
PEDAL
|
Pro Platform 9/16" Barrel Polished With Grip Nodes, Axle Boron Steel, Ball Bearing |
|
CHAIN
|
KMC Z1 narrow 1/2"x3/32" |
|
COG
|
16T steel |
|
FRONT HUB
|
Mini 28H, Sealed Bearing, 10mm Axle, M6 bolts |
|
REAR HUB
|
Mini ISO 28H, Sealed Bearing, 10mm Axle, M6 bolts, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets |
|
SPOKES
|
Front 206mm, Rear 198/199mm, 14 Gauge, Steel |
|
NIPPLES
|
16mm, 14 Gauge, Brass |
|
FRONT RIM
|
Chase Edge Alloy 138 Double Wall 28H 20"x1-3/8" Schrader Valve |
|
REAR RIM
|
Chase Edge Alloy 138 Double Wall 28H 20"x1-3/8" Schrader Valve |
|

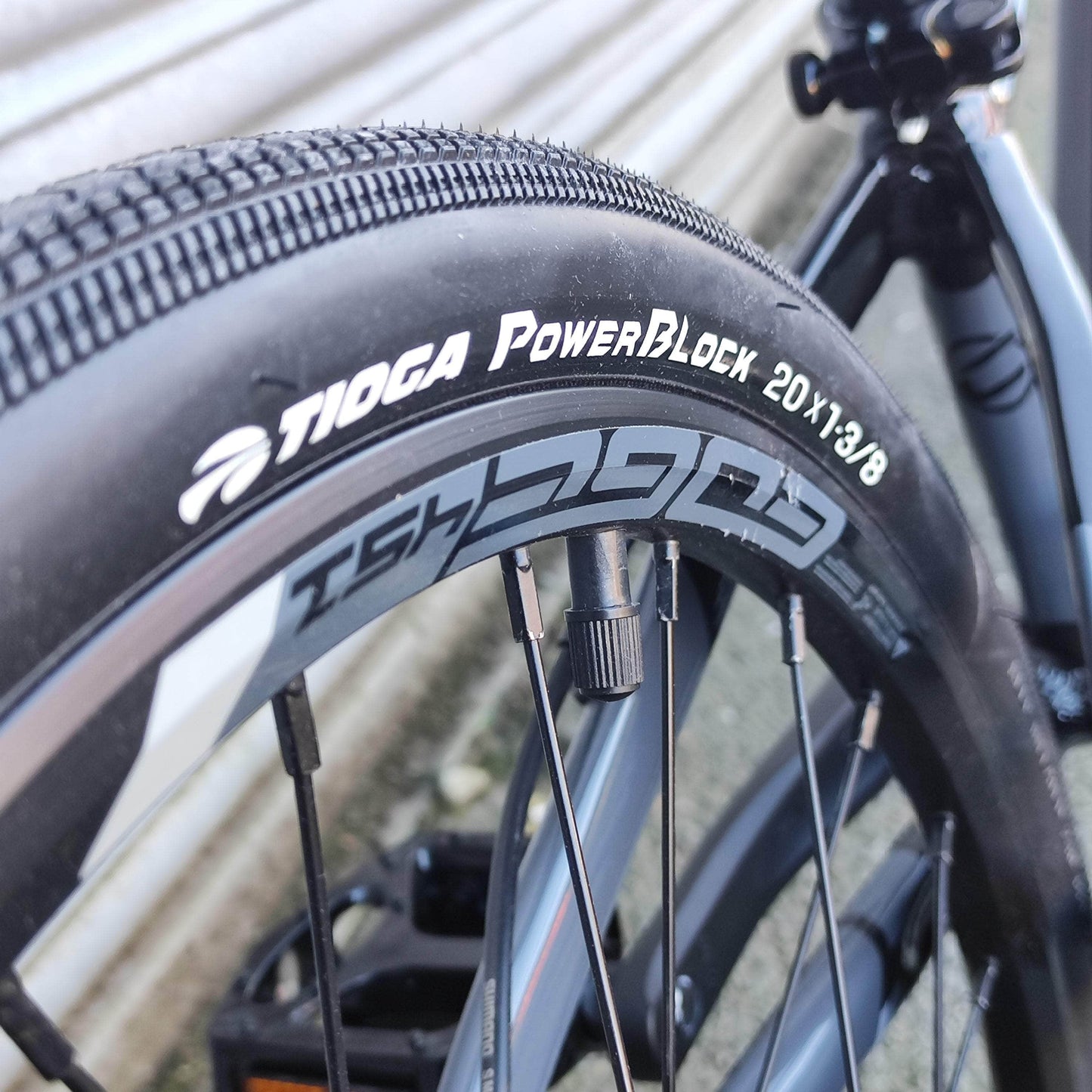

FRONT TYRE
|
TIOGA PowerBlock 20"x1 3/8" Wire Bead |
|
REAR TYRE
|
TIOGA PowerBlock 20"x1 3/8" Wire Bead |
|
TUBES
|
20''x1-3/8" Schrader Valve |
|
BRAKE LEVER
|
Shimano Disc Brake BL-MT200(R) Hydraulic |
|
BRAKE CALIPER
|
Adaptor 140mm Setup, With Shimano Disc Brake Caliper BR-MT200(R) Hydraulic Resin Pads and 140mm Rotor |
|

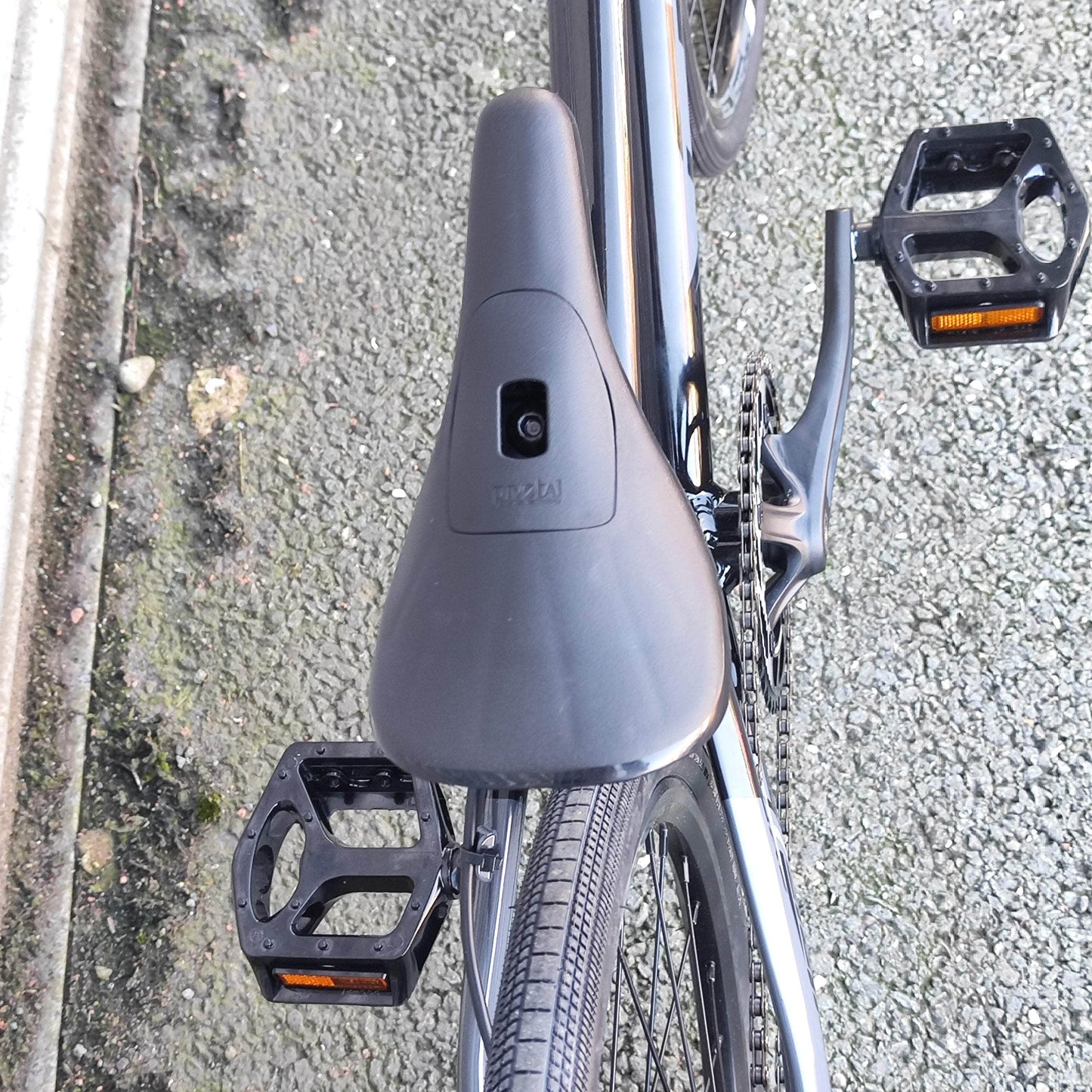

SADDLE
|
Pro Pivotal |
|
SEAT POST
|
Pivotal 25.4x200mm Polished Alloy |
|
SEAT CLAMP
|
Chase Edge QR Alloy 28.6mm |
|

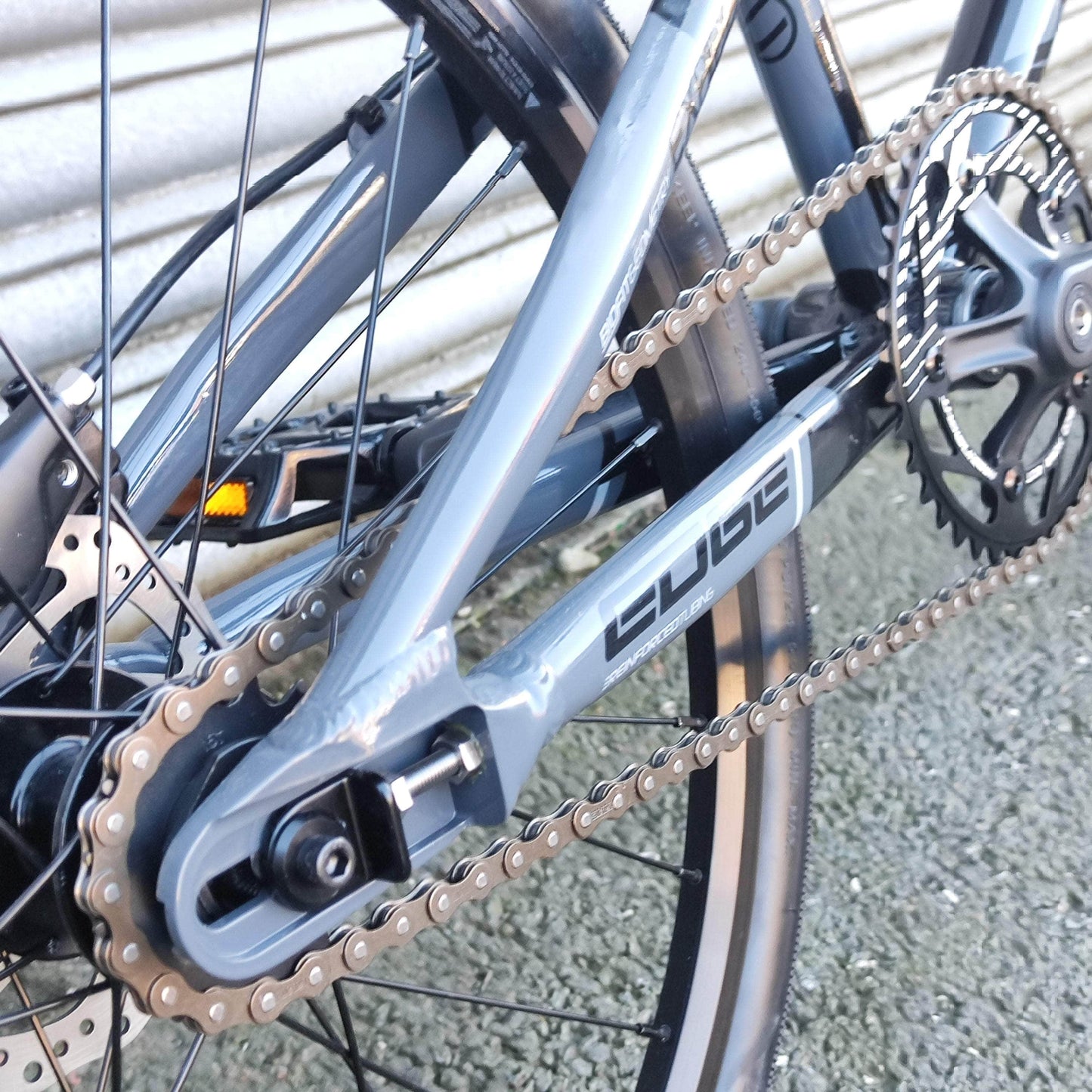

CHAIN TENSIONER
|
Integrated Built-In With New Lock Disc Adaptor |
