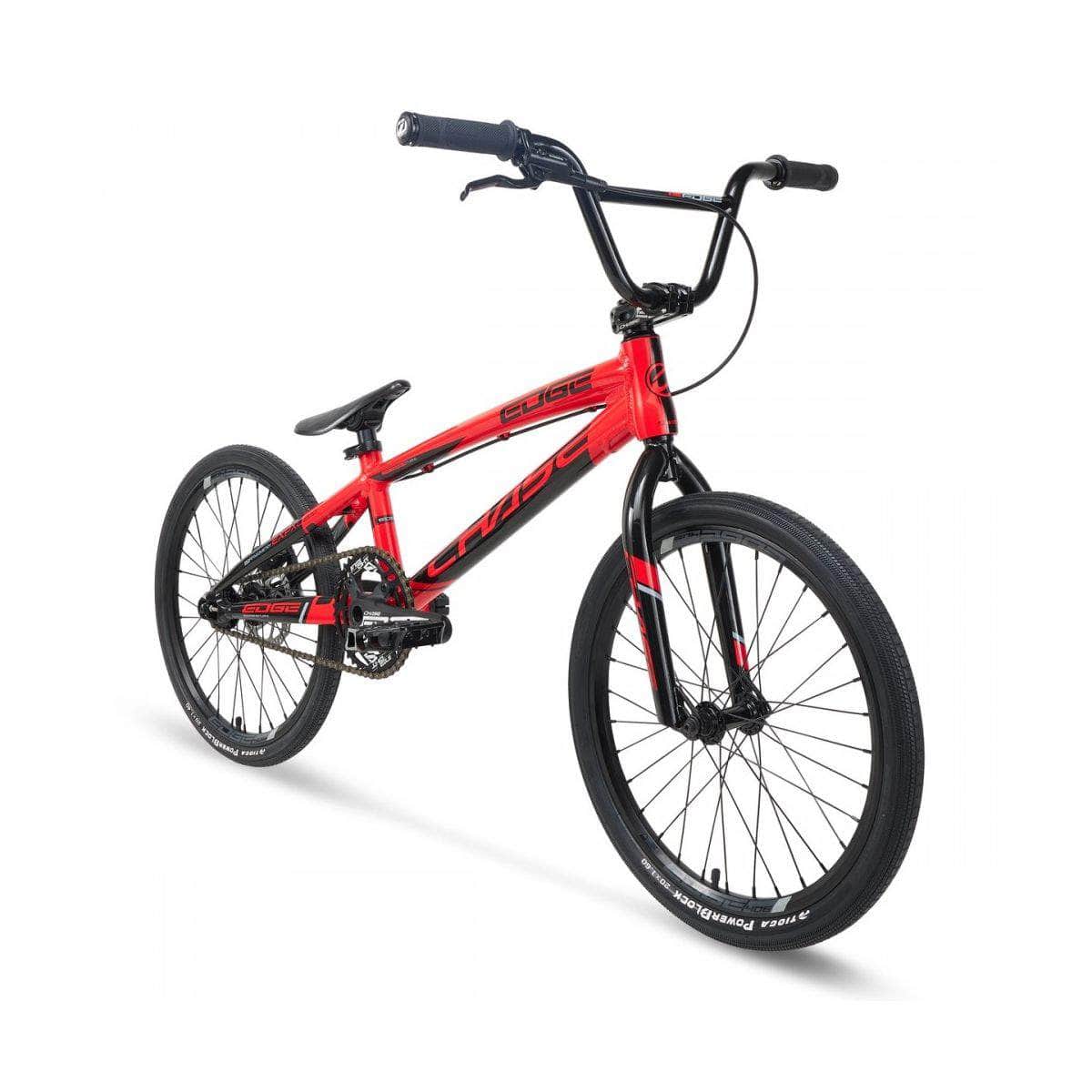

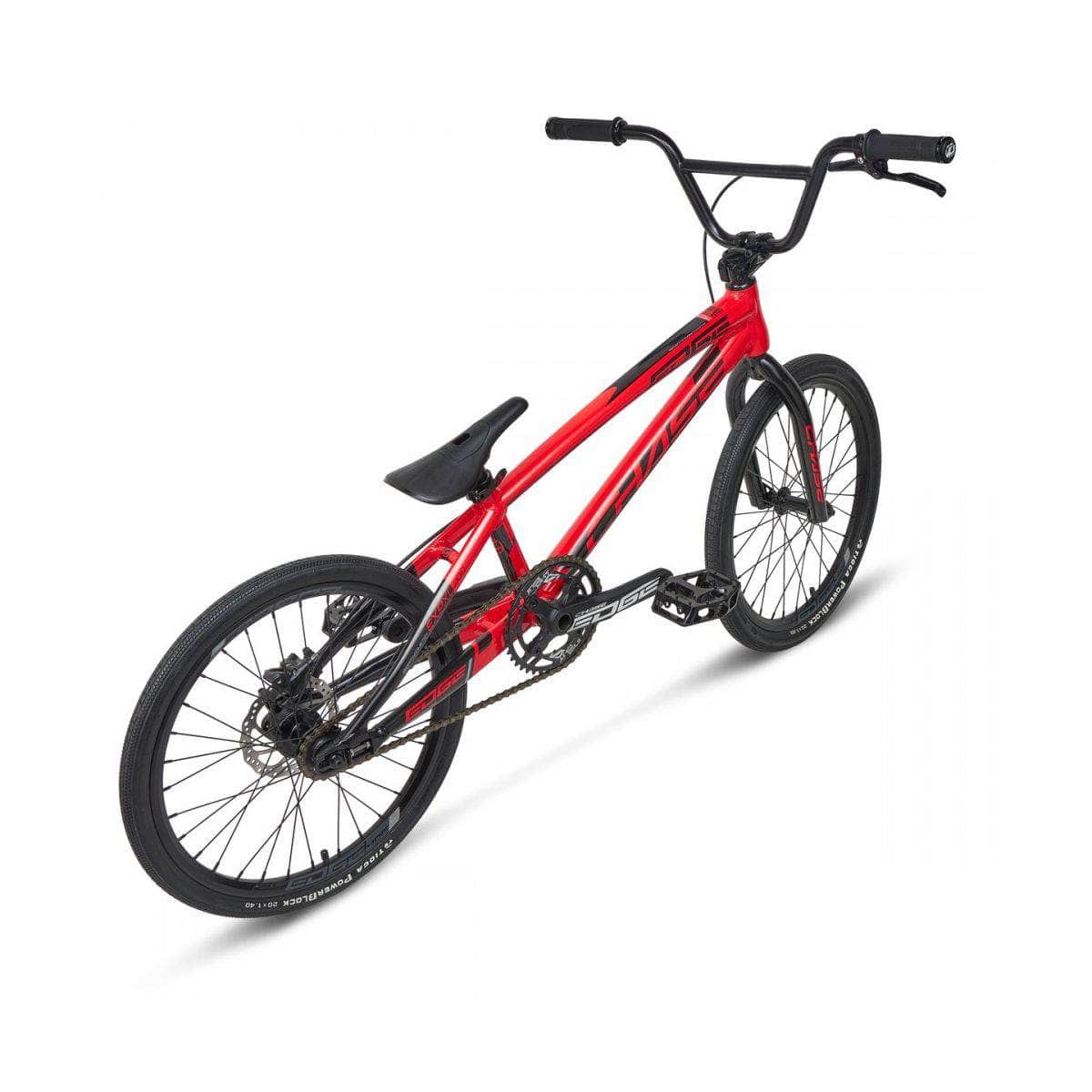

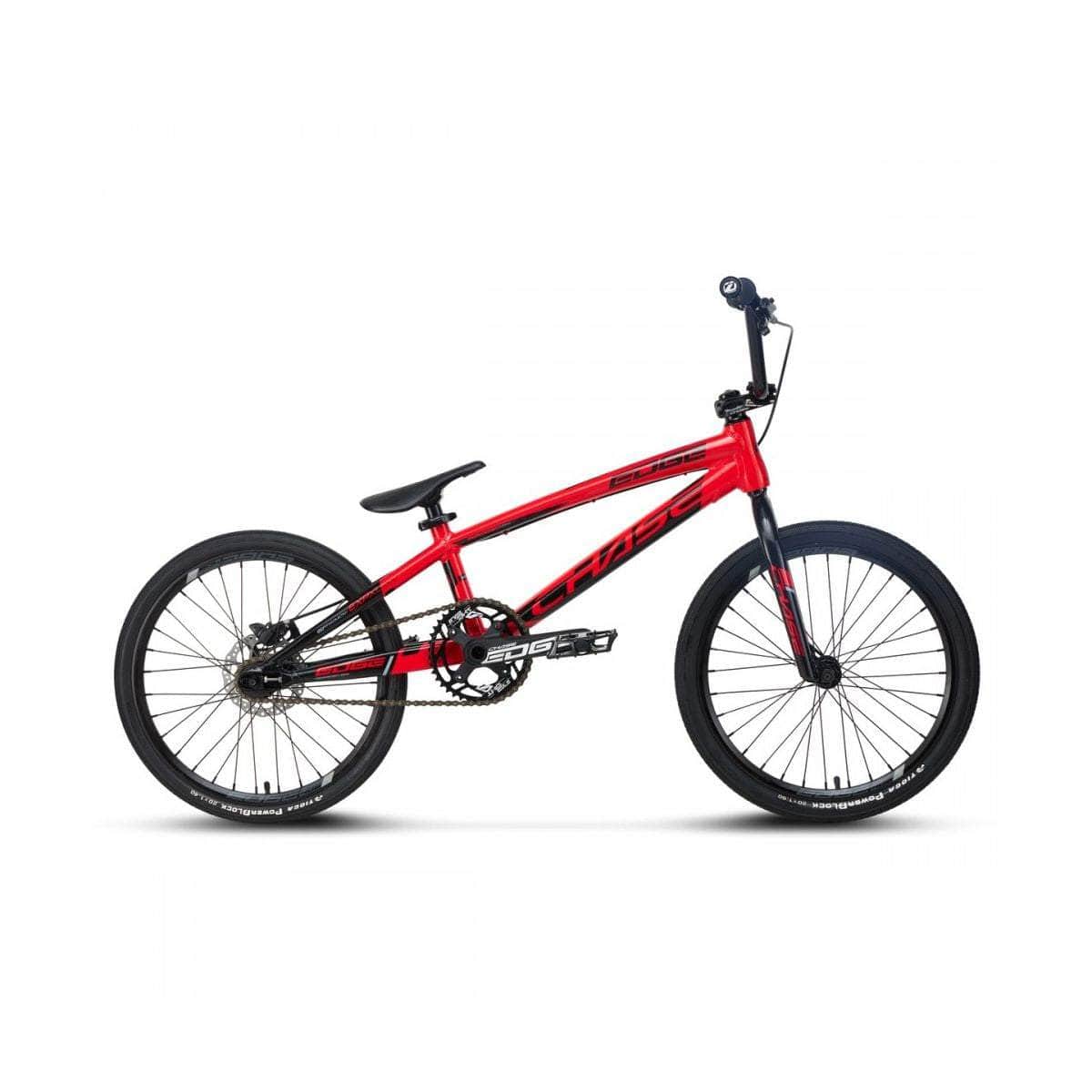

Chase 2025 Edge Expert XL Race Bike Red / Black
Chase 2025 Edge Expert XL Race Bike Red / Black
The all new CHASE Edge Expert XL is a race ready BMX machine, ideal for riders ready to get serious about BMX racing and take it to the next level.
Just when you didn't think it was possible, the new Edge has been improved, as now it is equipped with Shimano Hydraulic disc brakes (Junior size & above), all new Chase 24mm 2 piece Alloy Cranks (Expert XL & Above) , updated gearing and crank sizes, a 2 tone paint and graphics design, and an closed rear dropout system with integrated chain tensioner system,. The Edge frame also features hydroformed, triple butted, 6061 aluminum tubes with an integrated head tube. Other featured parts on the Edge include 4130 chromoly fork and handlebars, double wall rims with triple engagement rear cassette rear hub, and TIOGA tires. The combination of all these components arguably makes the CHASE Edge one of the most advanced race BMX bikes available today.

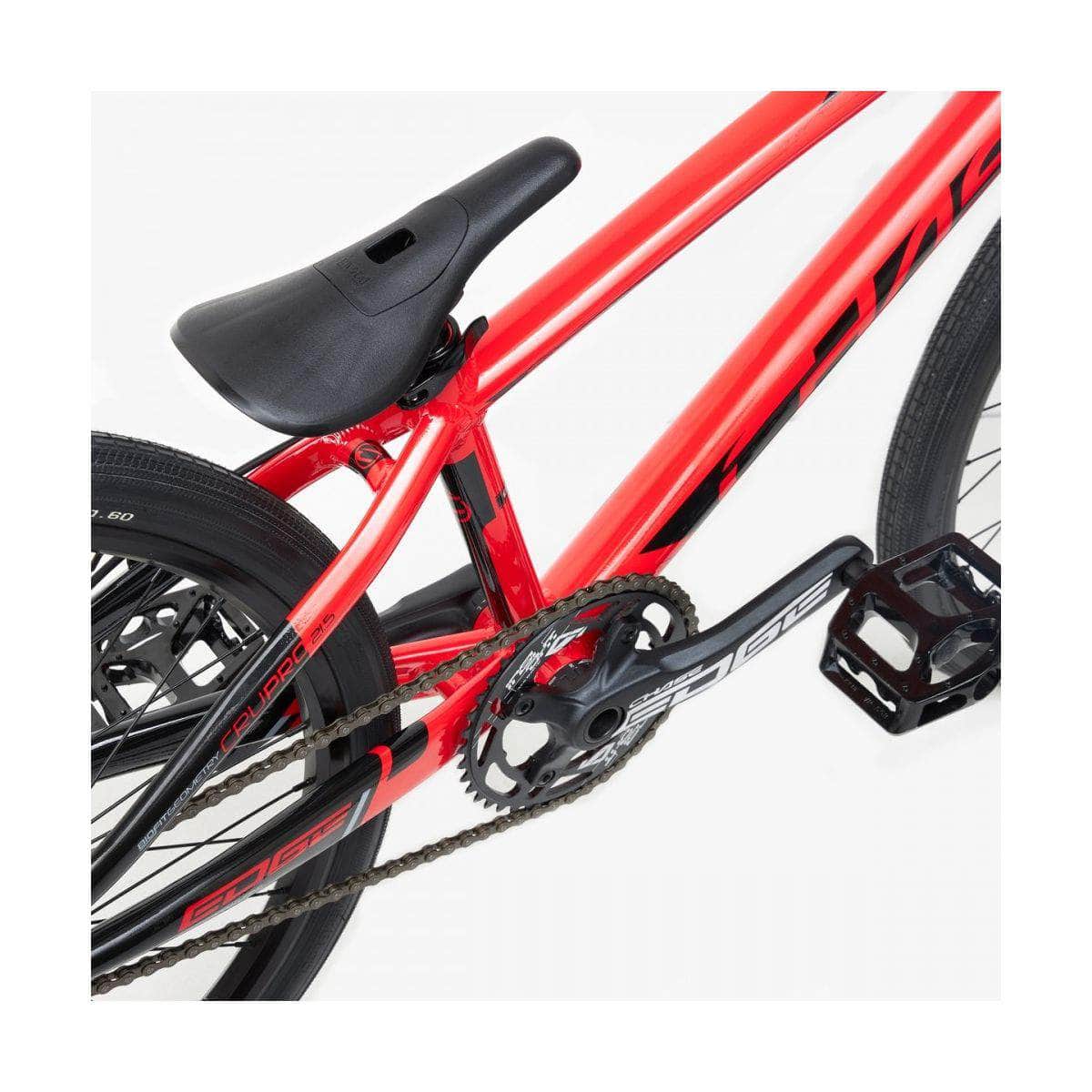

- FRAME: Chase Edge Expert XL 20″ Top Tube, Triple Butted Hydroformed 6061 T6 Alloy, Enclosed rear dropouts, Integrated Chain tensioner system

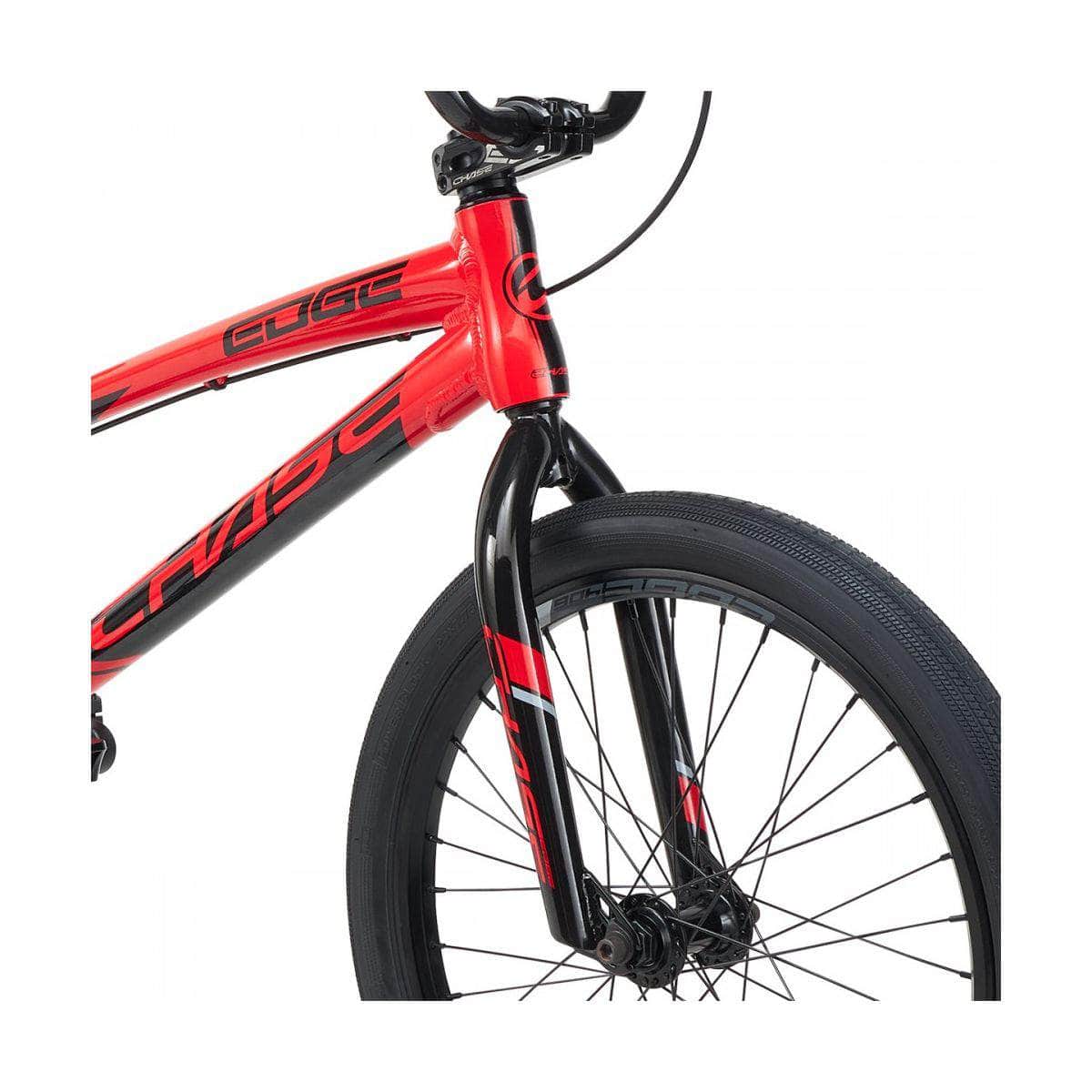

- FORK: Chase Edge Expert, Full Cr-mo, 1-1/8″ Steer Tube
- STEM: Chase Edge 50mm
- HANDLEBAR: Chase Edge 6.5″
- HEADSET: Integrated Sealed Bearing
- CHAINRING: Insight 41T 4 Bolts BCD 104mm
- CRANKSET: Chase Edge 2 Pieces Alloy 170mm
- HUBS: Chase Edge Mini 3/8″ Axle, Sealed Bearings, Steel Cassette Body, Triple precise Rear Hub Clutch System with ISO disc brake standard (3 Pawls at Triple Angle Engagement for 24T Ratchets), 16T cog
- RIMS: Chase Edge 150 Double Wall 20″x1.50″, 32H Front and Rear
- TYRES: Tioga PowerBlock 20″x1.60″ Front and 20″x1.40″ Rear
- BRAKES: Shimano Hydraulic BL-MT200(R) / BR-MT200(R) ISO 140mm
- SEAT: Chase Edge Pro Pivotal
- RECOMMENDED SIZE: 144cm – 155cm
WEIGHT: 8.85Kg without pedals
Give your youngster the best possible start in BMX Racing with the new Chase Edge Expert, which now comes with a Shimano hydraulic disc brake, a hydroformed triple butted alloy frame and hand-picked quality parts throughout.
Carbon Fork Upgrade
CONTACT US about a carbon fork upgrade on this bike. You just pay for the Carbon fork which we will fit and set up, and include the stock fork with your bike.
Also available in Red with Black.
PLEASE NOTE THIS BIKE IS FOR TRACK USE ONLY.
- FRAME: Chase Edge Expert XL 20″ Top Tube, Triple Butted Hydroformed 6061 T6 Alloy, Enclosed rear dropouts, Integrated Chain tensioner system
- FORK: Chase Edge Expert, Full Cr-mo, 1-1/8″ Steer Tube
- STEM: Chase Edge 50mm
- HANDLEBAR: Chase Edge 6.5″
- HEADSET: Integrated Sealed Bearing
- CHAINRING: Insight 41T 4 Bolts BCD 104mm
- CRANKSET: Chase Edge 2 Pieces Alloy 170mm
- HUBS: Chase Edge Mini 3/8″ Axle, Sealed Bearings, Steel Cassette Body, Triple precise Rear Hub Clutch System with ISO disc brake standard (3 Pawls at Triple Angle Engagement for 24T Ratchets), 16T cog
- RIMS: Chase Edge 150 Double Wall 20″x1.50″, 32H Front and Rear
- TIRES: Tioga PowerBlock 20″x1.60″ Front and 20″x1.40″ Rear
- BRAKES: Shimano Hydraulic BL-MT200(R) / BR-MT200(R) ISO 140mm
- SEAT: Chase Edge Pro Pivotal
- RECOMMENDED SIZE: 1m44 – 1m55
WEIGHT: 8.85Kg without pedal
SPECIFICATIONS :
|
FRAME
|
CHASE Edge Expert XL 20" Top Tube, 6061 T6 Alloy Triple butted Hydroformed, Integrated Head Tube, Enclosed rear dropouts and Chain tensioner system |
|
FORK
|
CHASE Edge Full Cr-mo, 1-1/8" Steer Tube, Tapered Blades |
|
HEADSET
|
Integrated IS 42/42 1-1/8", Sealed Bearing |
|
HANDLEBAR
|
Chase Edge Cr-mo 6.5" Rise, 26" Wide, 8° Back Sweep & 2° Up Sweep |
|
GRIPS
|
INSIGHT C.O.G.S 130mm Lock-on |
|
STEM
|
CHASE Edge 50mm 6061 T6 Alloy |
|
BB
|
Euro External BSA 24mm Sealed Bearing |
|
CHAINRING
|
Insight 41 Tooth 4 Bolt 104mm 1/2"x3/32" 5mm Alloy Ring |
|
CRANK
|

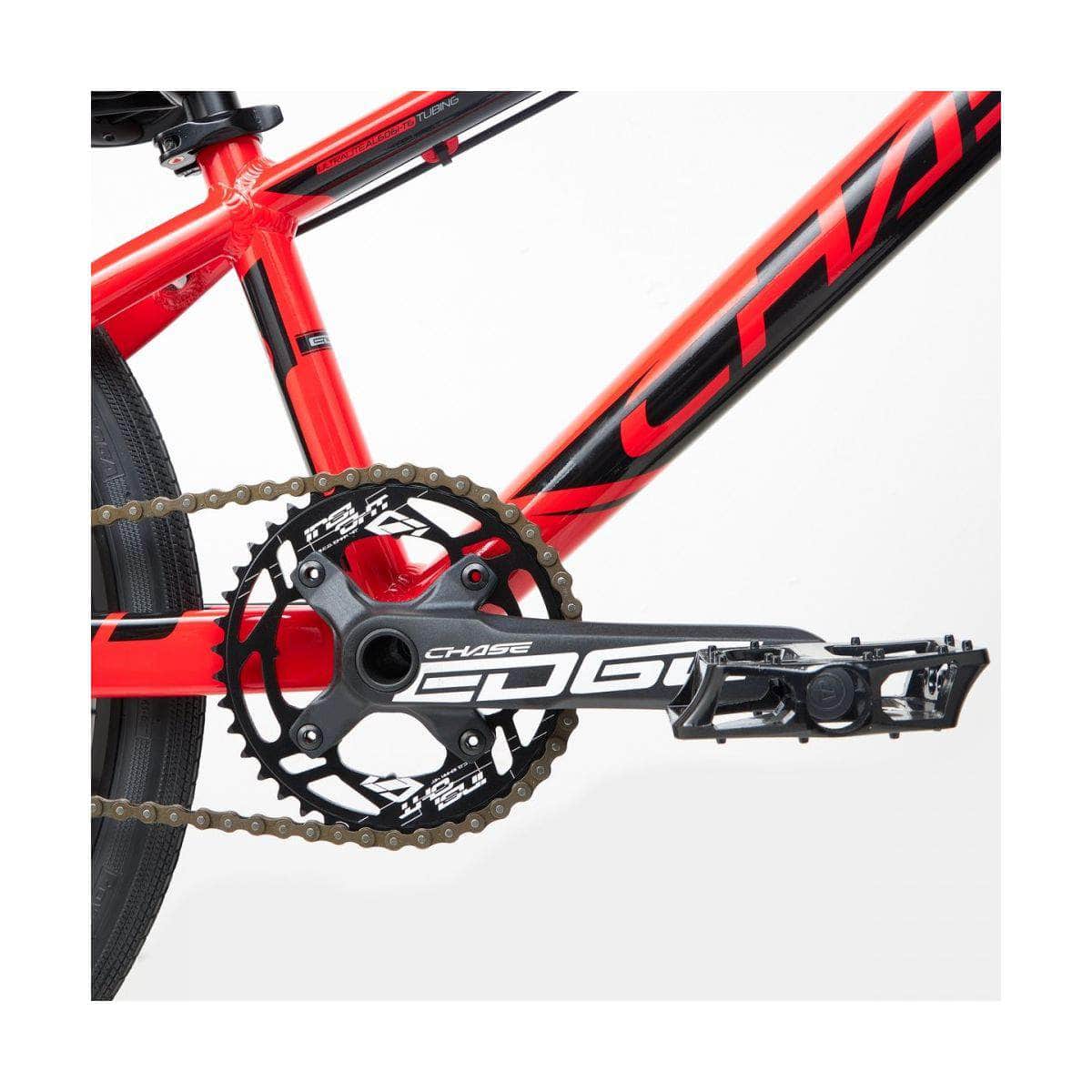

Chase Edge 2 Pieces 24mm Axle Crank 170mm Alloy Arm With Laser Etched Logo, Cr-mo Chain Ring Bolts / Nuts |
|
PEDAL
|
Pro Platform 9/16" Barrel Polished With Grip Nodes, Axle Boron Steel, Ball Bearing |
|
CHAIN
|
KMC Z1 narrow 1/2"x3/32" |
|
COG
|
16T steel |
|
FRONT HUB
|
Mini 32H, Sealed Bearing, 10mm Axle, M6 bolts |
|
REAR HUB
|
Pro ISO 32H, Sealed Bearing, 10mm Axle, M6 bolts, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets |
|
SPOKES
|
Front 181mm, Rear 173/174mm, 14 Gauge, Steel |
|
NIPPLES
|
16mm, 14 Gauge, Brass |
|
FRONT RIM
|
CHASE Edge 150 Double Wall 32H 20"x1.50" Schrader Valve |
|
REAR RIM
|
CHASE Edge 150 Double Wall 32H 20"x1.50" Schrader Valve |
|
FRONT TYRE
|
TIOGA PowerBlock 20"x1.60" Wire Bead |
|
REAR TYRE
|
TIOGA PowerBlock 24"x1.40" Wire Bead |
|
TUBES
|
20''x1.5"-1.75" Schrader Valve |
|
BRAKE LEVER
|

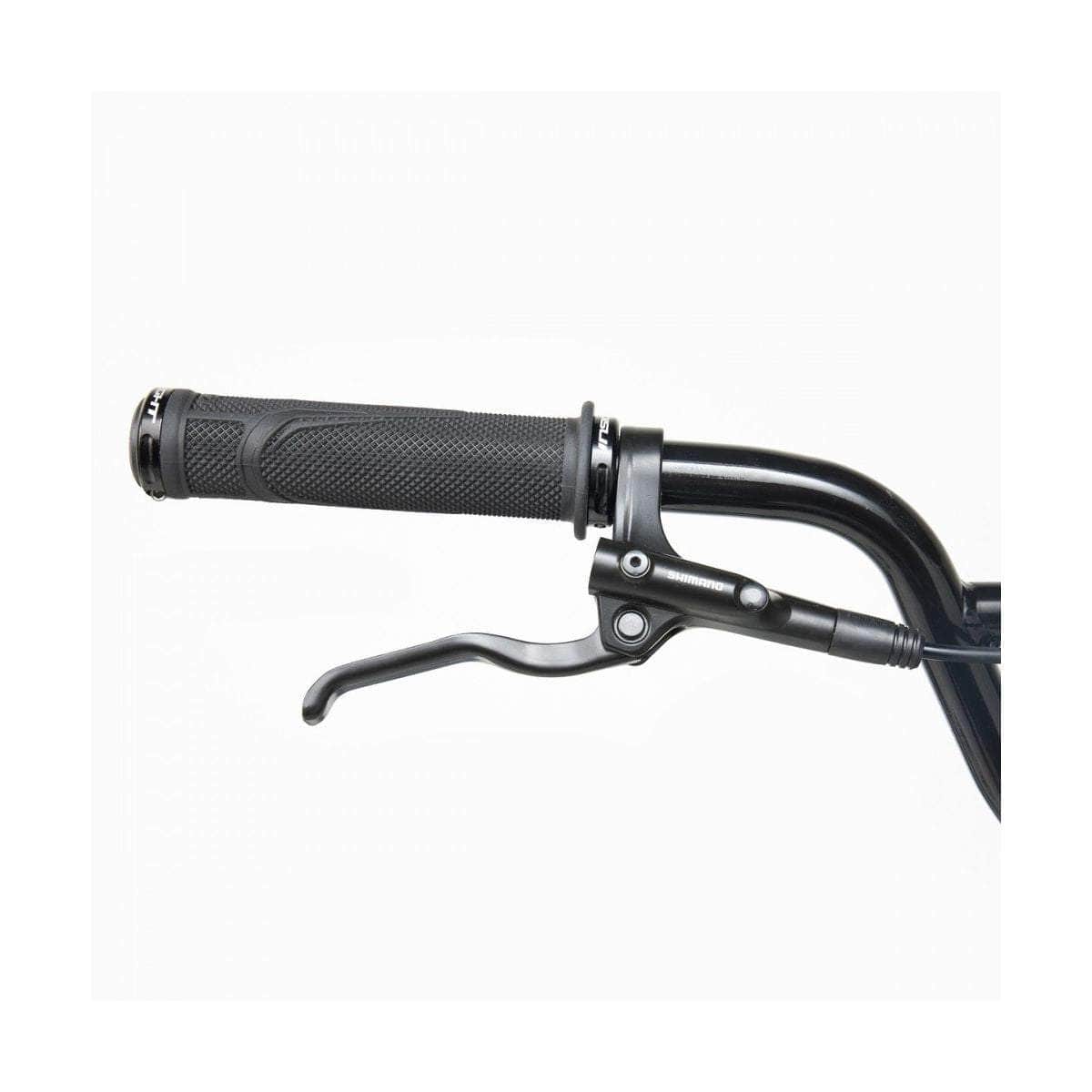

Shimano Disc Brake BL-MT200(R) Hydraulic |
|
BRAKE CALIPER
|

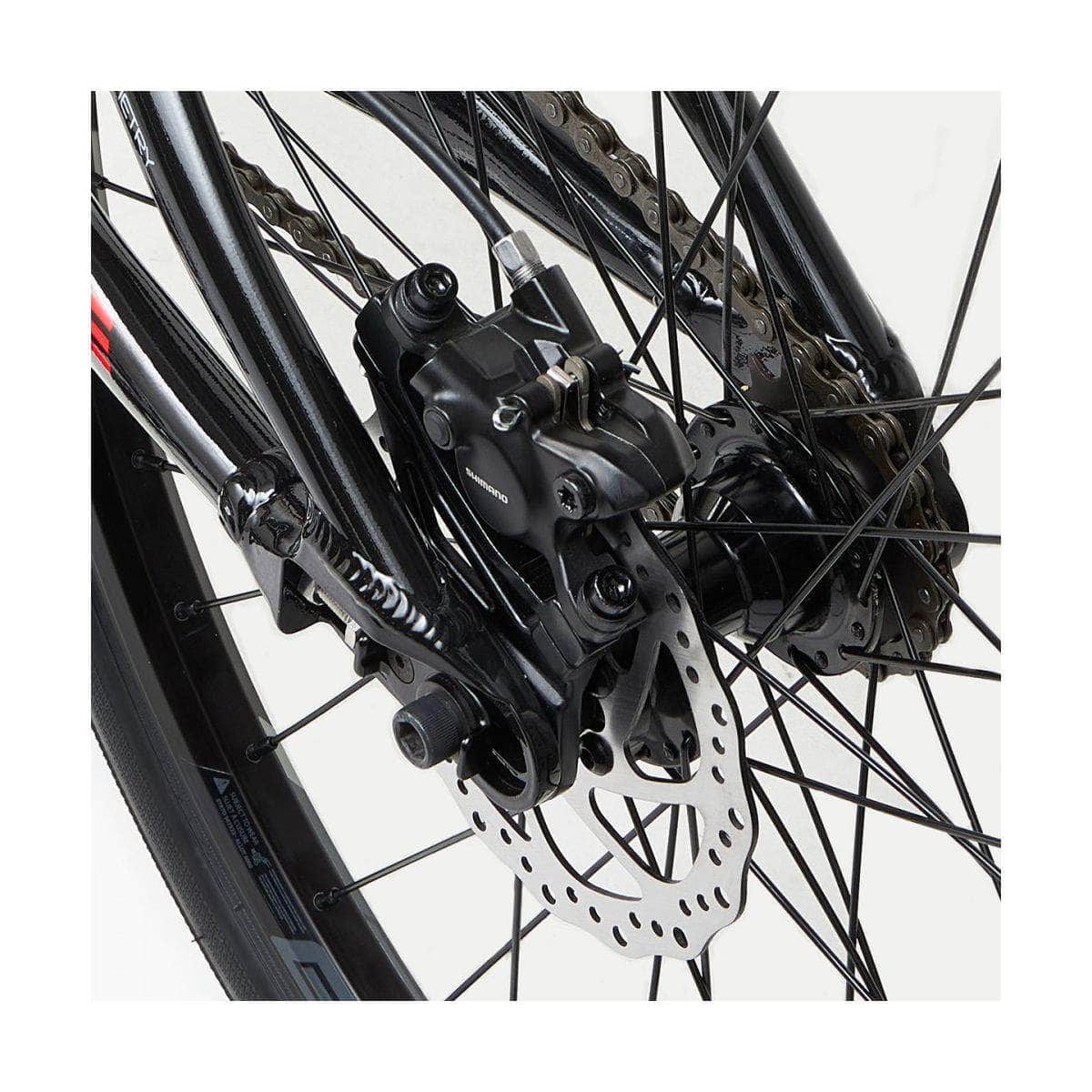

Adaptor 140mm Setup, With Shimano Disc Brake Caliper BR-MT200(R) Hydraulic Resin Pads And 140mm Rotor |
|
SADDLE
|
Pro Pivotal |
|
SEAT POST
|
Pivotal 27.2x250mm Alloy |
|
SEAT CLAMP
|
CHASE Edge QR Alloy 31.8mm |
|
CHAIN TENSIONNER
|
Integrated Built-In With New Lock Disc Adaptor |
