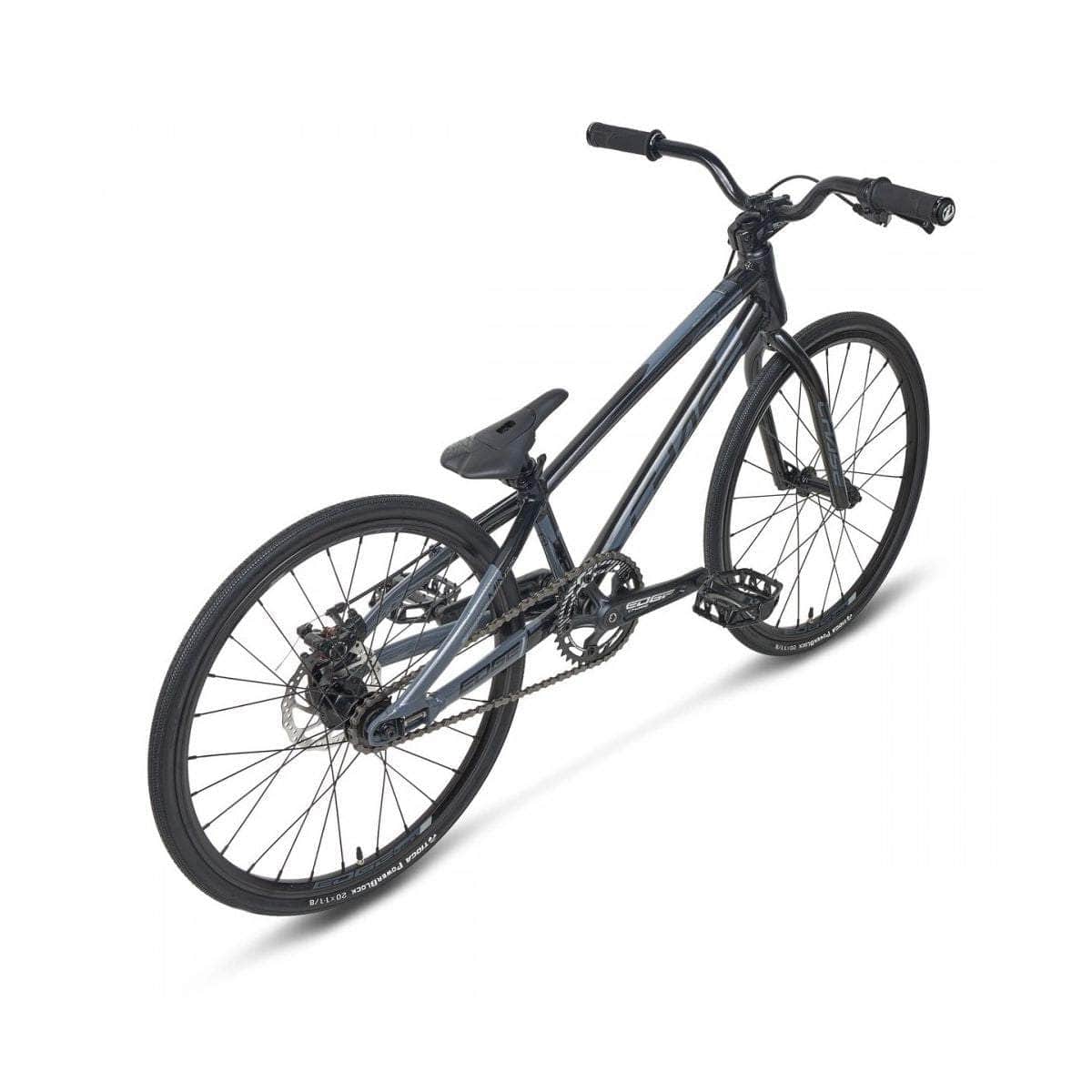

Chase 2025 Edge Mini Race Bike Black / Grey
Chase 2025 Edge Mini Race Bike Black / Grey
Give your young Olympic prospect a head start with this new Chase Edge Mini, which now comes with a disc brake, a hydroformed triple butted alloy frame and quality parts throughout.
Just when you didn't think it was possible, the new Edge has been improved! It now comes equipped with disc brakes, has updated gearing and crank size, beautiful 2 tone paint and graphic design - and a closed rear dropout system with integrated chain tensioner system. Quality parts like a Pivotal seat system and Tioga tyres round out the package.
IMPORTANT NOTE ABOUT PEDAL FITMENT
Carbon Fork Upgrade
CONTACT US about a carbon fork upgrade on this bike. You just pay for the Carbon fork which we will fit, and include the stock fork with your bike. The 4130 cro-mo fork is easily upgraded to carbon now or later, as budget allows.
Also available in Red with Black.
PLEASE NOTE THIS BIKE IS FOR TRACK USE ONLY.
IMPORTANT NOTE ABOUT PEDAL FITMENT
RECOMMENDED SIZE: 1.10m – 1.25m
WEIGHT: 7.59Kg without pedals
SPECIFICATIONS :
|
FRAME
|
CHASE Edge Mini 17.25" Top Tube, 6061 T6 Alloy Triple butted Hydroformed, Integrated Head Tube, Enclosed rear dropouts and Chain tensioner system |
|
FORK
|
CHASE Edge Full Cr-mo, 1" Steer Tube, Tapered Blades |
|
HEADSET
|
Integrated IS 42/42 Reductor 1", Sealed Bearing |
|
HANDLEBAR
|
Chase Edge Cr-mo 2.25" Rise, 20" Wide, 8° Back Sweep & 2° Up Sweep |
|
GRIPS
|
INSIGHT C.O.G.S 115mm Lock-on |
|
STEM
|
CHASE Edge 40mm 6061 T6 Alloy |
|
BB
|
Euro Square 113mm Sealed Bearing |
|
CHAINRING
|
Insight 36 Tooth 5 Bolt 110mm 1/2"x3/32" 3mm Alloy Ring |
|

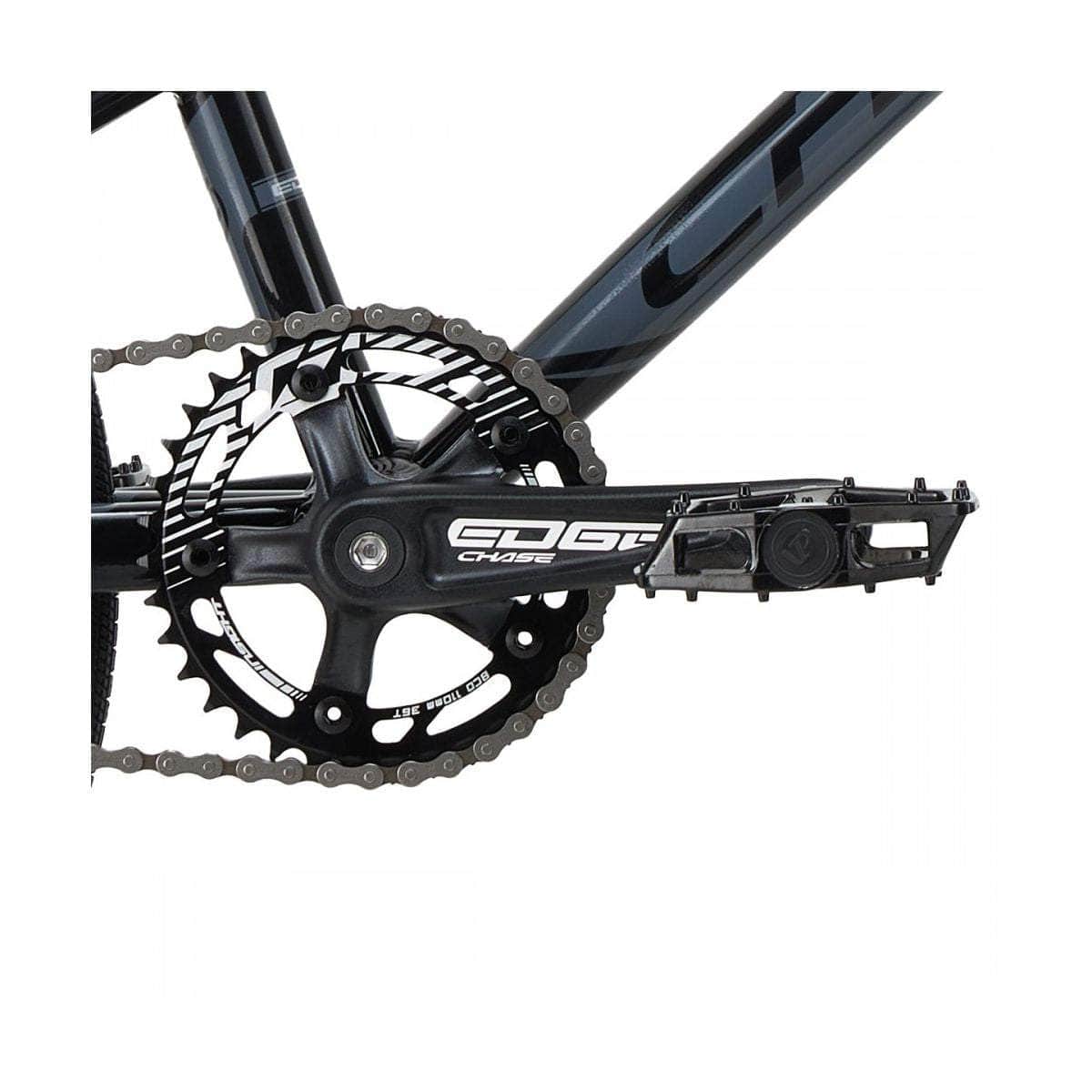

CRANK
|
CHASE Edge 3 Piece Crank 140mm Alloy Arm, Cr-mo Chainring Bolts |
|
PEDAL
|
Mini Platform 9/16" Barrel Polished With Grip Nodes, Axle Boron Steel, Ball Bearing |
|
CHAIN
|
KMC Z1 narrow 1/2"x3/32" |
|
COG
|
16T steel |
|
FRONT HUB
|
Mini 24H, Sealed Bearing, 10mm Axle, M6 bolts |
|
REAR HUB
|
Mini ISO 28H, Sealed Bearing, 10mm Axle, M6 bolts, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets |
|
SPOKES
|
Front 208mm, Rear 198/199mm, 14 Gauge, Steel |
|
NIPPLES
|
16mm, 14 Gauge, Brass |
|
FRONT RIM
|
Chase Edge Alloy 118 Double Wall 24H 20"x1-1/8" Presta Valve |
|
REAR RIM
|
Chase Edge Alloy 118 Double Wall 28H 20"x1-1/8" Presta Valve |
|
FRONT TYRE
|
Tioga PowerBlock 20"x1-1/8" Wire Bead |
|
REAR TYRE
|
Tioga PowerBlock 20"x1-1/8" Wire Bead |
|
TUBES
|
20''x1-1/8" Presta Valve |
|

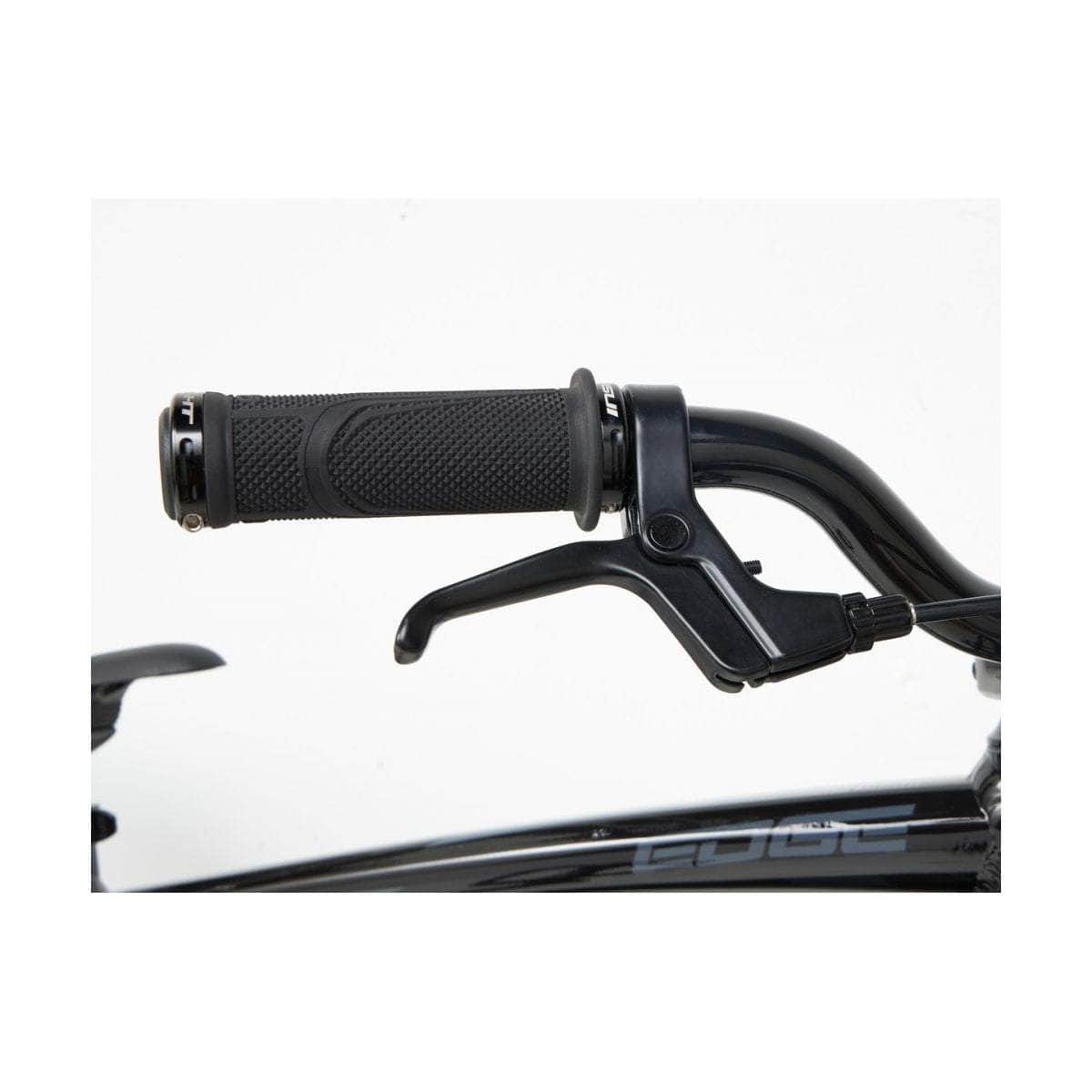

BRAKE LEVER
|
Junior/Expert Alloy |
|
BRAKE CALIPER
|
Mechanical, 140mm disc rotor, Shimano B01S compatible Pads, Lock Disc Adaptor |
|
SADDLE
|
Insight Mini Pivotal Nylon Plastic Body with Cr-mo Bolt |
|
SEAT POST
|
Pivotal 25.4x110mm Polished Alloy |
|
SEAT CLAMP
|
Chase Edge QR Alloy 28.6mm |
|
CHAIN TENSIONER
|
Integrated Built-In With New Lock Disc Adaptor |
