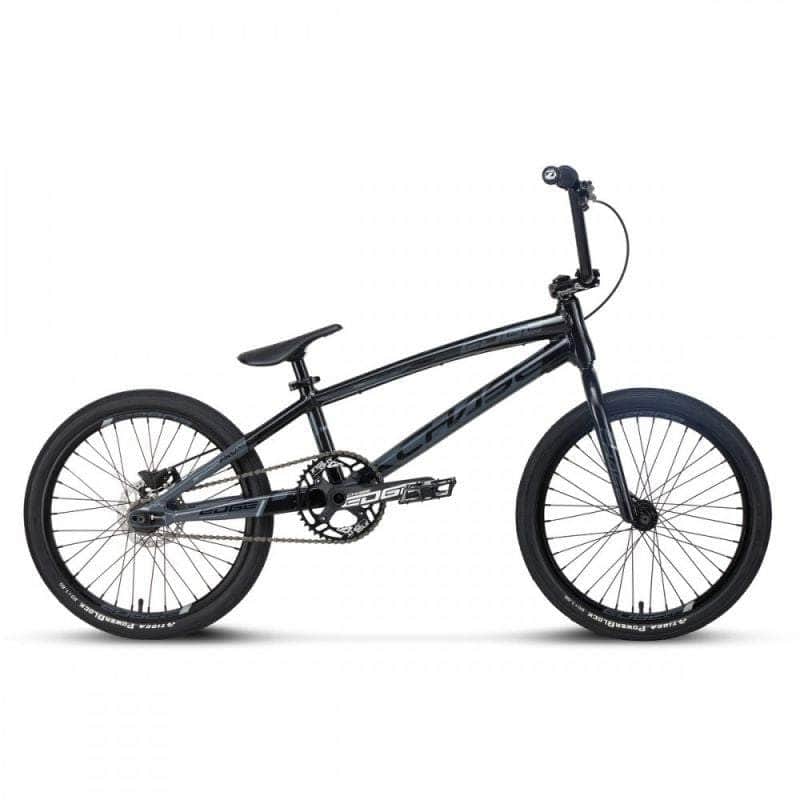

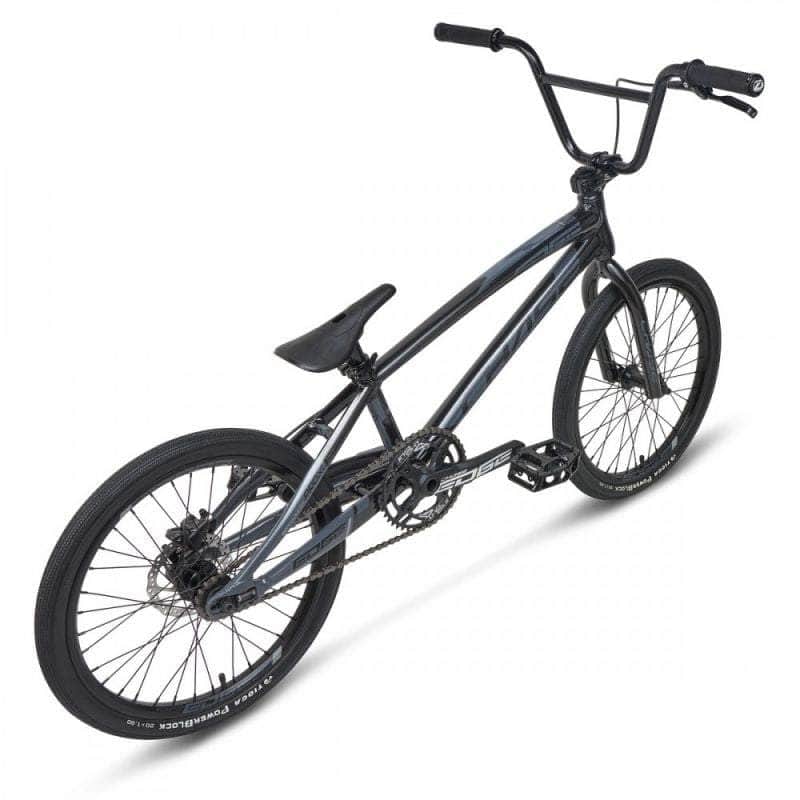

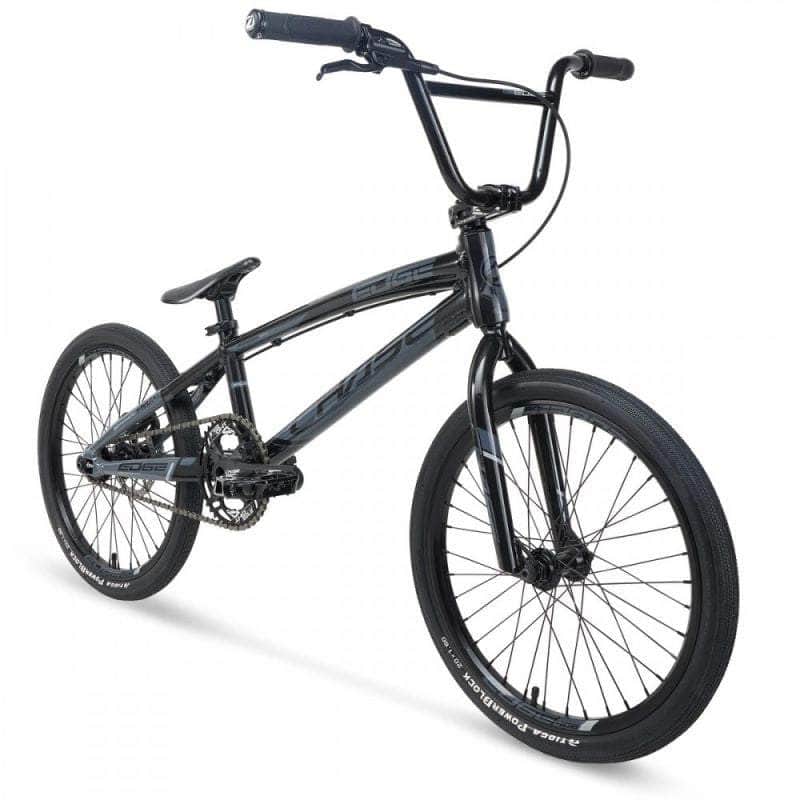

Chase 2025 Edge Pro XL Race Bike Black / Grey
Chase 2025 Edge Pro XL Race Bike Black / Grey
The new Chase Edge Pro XL, with disc brake, hydroformed triple butted alloy frame and hand-picked quality parts is probably the best value - and best-looking - complete race bikes available today.
The CHASE Edge is a pure BMX racing machine, ideal for improving and taking it to the next level. Now equipped with a disc brake and closed rear dropout system, it has a hydroformed triple butted 6061 aluminum frame with integrated headset, a chromoly fork and handlebars, a crankset with INSIGHT chainring, double wall rims with cassette rear hub and TIOGA tyres. The combination of all these components arguably makes the CHASE Edge one of the most advanced race BMX bikes you can buy.
IMPORTANT NOTE ABOUT PEDAL FITMENT
PLEASE NOTE THIS BIKE IS FOR TRACK USE ONLY.
- FRAME: CHASE Edge Pro XL 21″ Top Tube, Triple Butted Hydroformed 6061 T6 Alloy, Enclosed rear dropouts, Integrated Chain tensioner system
- FORK: CHASE Edge Pro, Full Cr-mo, 1-1/8″ Steer Tube
- STEM: CHASE Edge 50mm
- HANDLEBAR: CHASE Edge 8.0″
- HEADSET: Integrated Sealed Bearing
- CHAINRING: INSIGHT 43T 4 Bolts BCD 104mm
- CRANKSET: CHASE Edge 2 Pieces Alloy 175mm
- HUBS: CHASE Edge Pro 3/8″ Axle, Sealed Bearings, Steel Cassette Body, Triple precise Rear Hub Clutch System with ISO disc brake standard (3 Pawls at Triple Angle Engagement for 24T Ratchets), 16T cog
- RIMS: CHASE Edge 175 Double Wall 20″x1.75″, 36H Front and Rear
- TIRES: TIOGA PowerBand 20″x1.85″ Front and PowerBlock 20″x1.60″ Rear
- BRAKES: Shimano Hydraulic BL-MT200(R) / BR-MT200(R) ISO 140mm
- SEAT: CHASE Edge Pro Pivotal
RECOMMENDED SIZE: 1m64 – 1m78
WEIGHT: 9.41Kg without pedal
SPECIFICATIONS :
FRAME
|
CHASE Edge Pro XL 21" Top Tube, 6061 T6 Alloy Triple butted Hydroformed, Integrated Head Tube, Enclosed rear dropouts and Chain tensioner system |
FORK
|
CHASE Edge Full Cr-mo, 1-1/8" Steer Tube, Tapered Blades |
HEADSET
|
Integrated IS 42/42 1-1/8", Sealed Bearing |
HANDLEBAR
|
Chase Edge Cr-mo 8" Rise, 28" Wide, 12° Back Sweep & 1° Up Sweep |
GRIPS
|
INSIGHT C.O.G.S 145mm Lock-on |
STEM
|
CHASE Edge 50mm 6061 T6 Alloy |
BB
|
Euro External BSA 24mm Sealed Bearing |

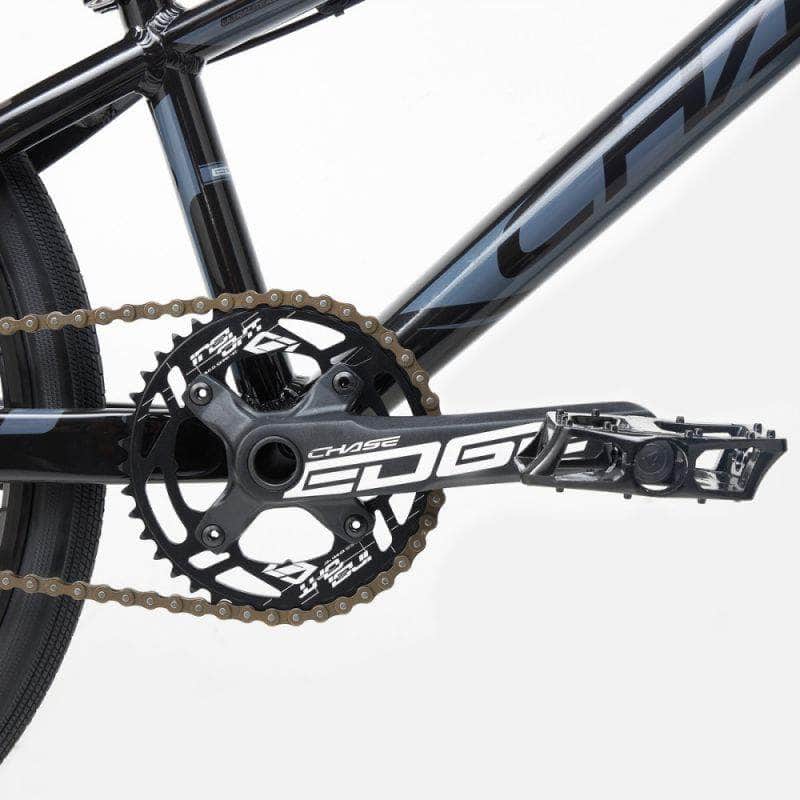

CHAINRING
|
Insight 43 Tooth 4 Bolt 104mm 1/2"x3/32" 5mm Alloy Ring |
CRANK
|
Chase Edge 2 Pieces 24mm Axle Crank 175mm Alloy Arm With Laser Etched Logo, Cr-mo Chain Ring Bolts / Nuts |
PEDAL
|
Pro Platform 9/16" Barrel Polished With Grip Nodes, Axle Boron Steel, Ball Bearing |
CHAIN
|
KMC Z1 narrow 1/2"x3/32" |
COG
|
16T steel |
FRONT HUB
|
Pro 36H, Sealed Bearing, 10mm Axle |
REAR HUB
|
Pro ISO 36H, Sealed Bearing, 10mm Axle, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets |
SPOKES
|
Front 184mm, Rear 180/181mm, 14 Gauge, Steel |
NIPPLES
|
16mm, 14 Gauge, Brass |
FRONT RIM
|
CHASE Edge 175 Double Wall 36H 20"x1.75" Schrader Valve |
REAR RIM
|
CHASE Edge 175 Double Wall 36H 20"x1.75" Schrader Valve |
FRONT TIRE
|
TIOGA PowerBlock 20"x1.85" Wire Bead |
REAR TIRE
|
TIOGA PowerBlock 20"x1.60" Wire Bead |
TUBES
|
20''x1.5"-1.75" Schrader Valve |

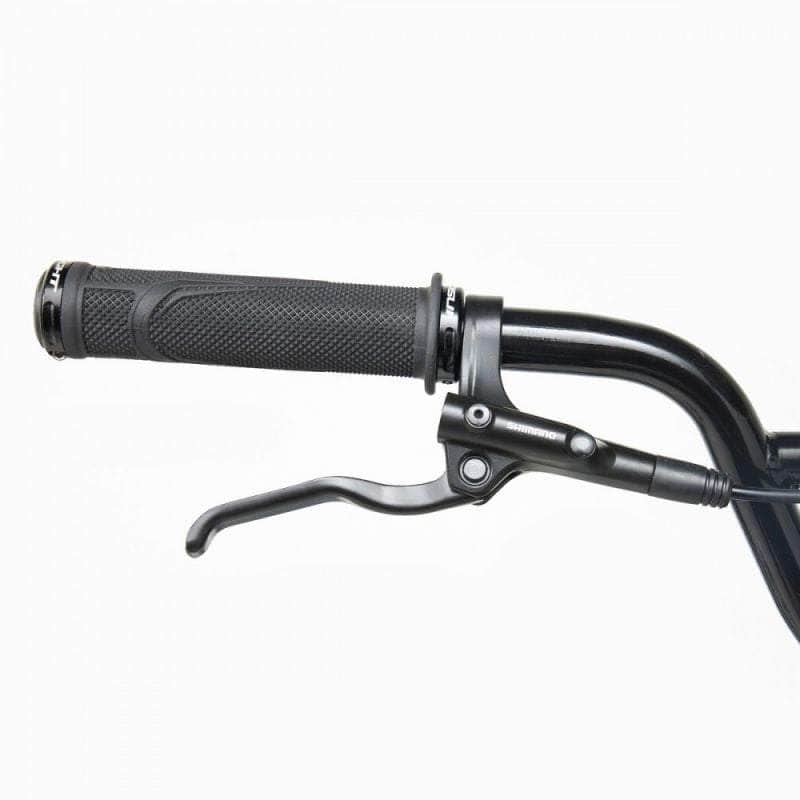

BRAKE LEVER
|
Shimano Disc Brake BL-MT200(R) Hydraulic |

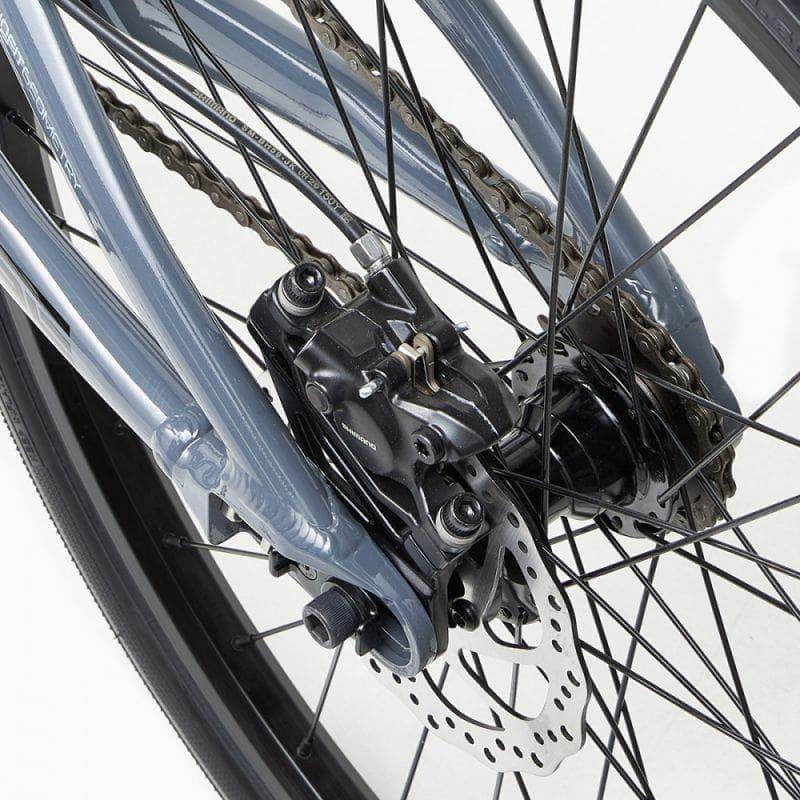

BRAKE CALIPER
|
Adaptor 140mm Setup, With Shimano Disc Brake Caliper BR-MT200(R) Hydraulic Resin Pads And 140mm Rotor |
SADDLE
|
Pro Pivotal |
SEAT POST
|
Pivotal 27.2x250mm Alloy |
SEAT CLAMP
|
CHASE Edge QR Alloy 31.8mm |
CHAIN TENSIONNER
|
Integrated Built-In With New Lock Disc Adaptor |
