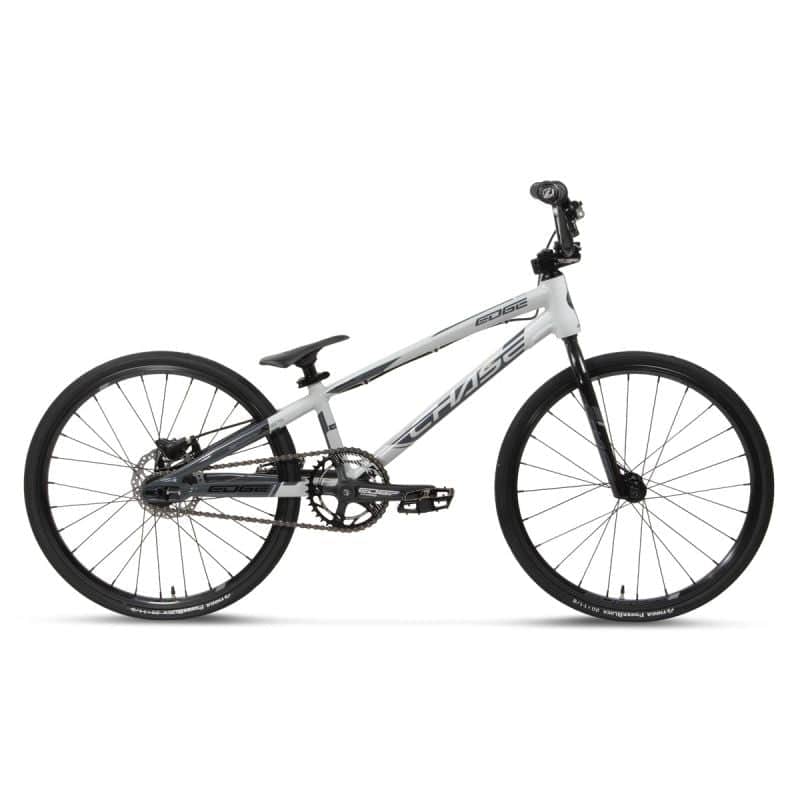

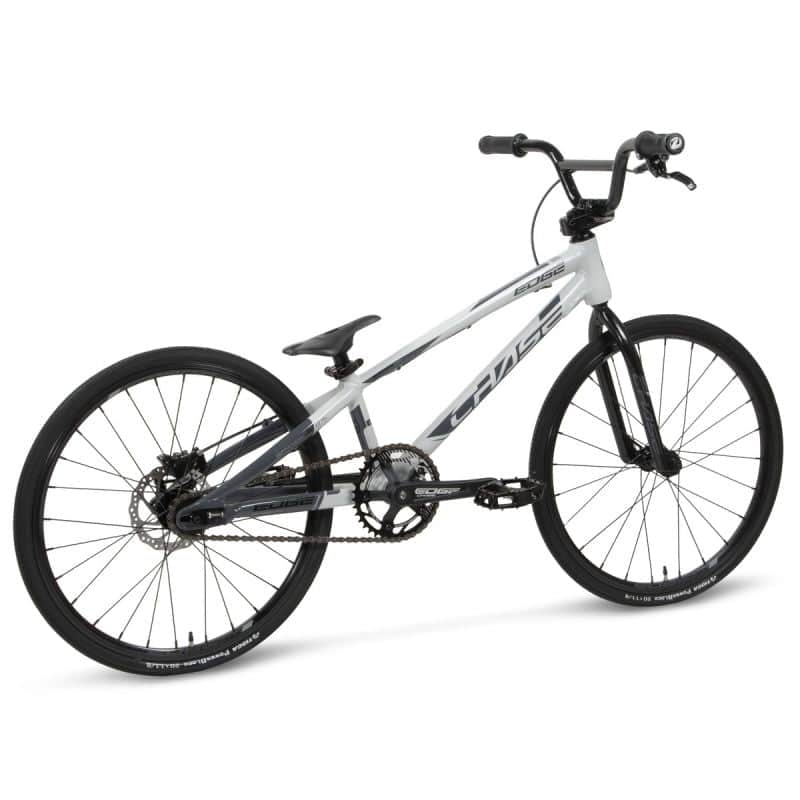

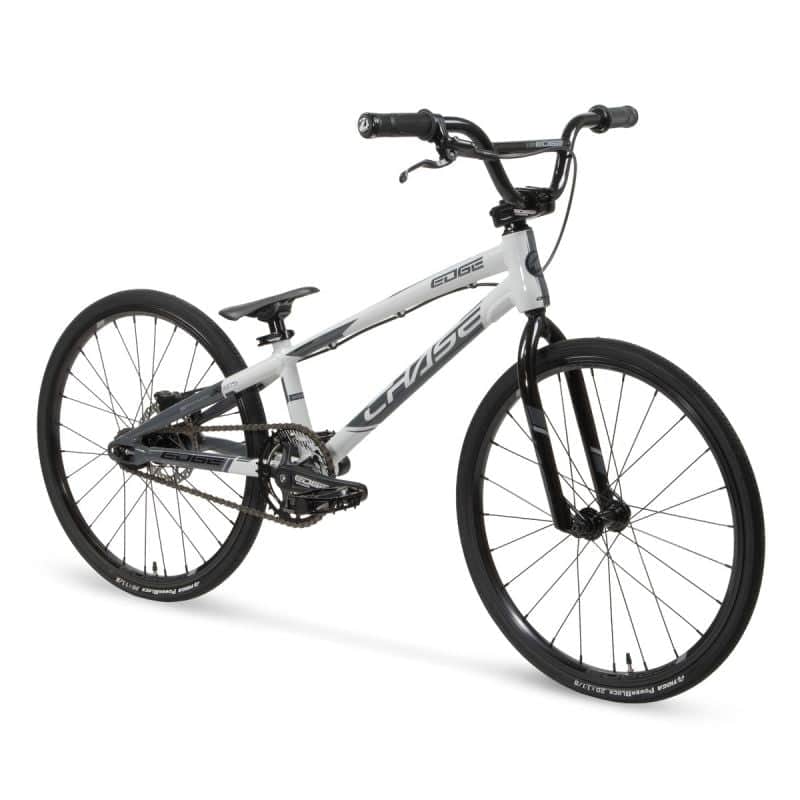

Chase Edge Expert Race Bike Cement Grey
Chase Edge Expert Race Bike Cement Grey
Give your kid the very best start in BMX racing with this new Chase Edge Expert bike, equipped with disc brake, hydroformed triple butted alloy frame and quality parts, this looks like a custom-built bike at the fraction of the price. Upgradable too as you go.
The CHASE Edge is a pure BMX racing machine, ideal for improving and taking it to the next level after starting the BMX Race. Now equipped with a disc braking system and closed rear dropout system, it has a hydroformed triple butted 6061 aluminum frame with integrated headset, a chromoly fork and handlebars, a crankset with INSIGHT chainring, double wall rims with cassette rear hub and Vee Rubber Speedster tyres. The combination of all these components arguably makes the CHASE Edge one of the most advanced race BMX bikes on the market today.
Also available in Slate Blue.
PLEASE NOTE THIS BIKE IS FOR TRACK USE ONLY.
FEATURES :
- Aluminum 6061-T6 Triple butted frame 19.75"TT
- Integrated headtube 1-1/8" and enclosed rear dropouts
- 100% Chromoly fork and handlebar
- Mechanical disc braking
- Chase Edge Alloy Stem 50mm Top Load
- Chase Edge 3 Piece Crank 165mm, Chromo Chainring bolts
- Euro Square 113mm Sealed Bearing bottom bracket
- 42T Insight Chainring 5 points BCD 110mm
- Mini 28H alloy hubs, sealed bearings
- Rear ISO bracket cassette hub 16T cogs
- Chase Double Wall Alloy rims 20x1-3/8"
- TIOGA PowerBlock tyres Wire Bead
- KMC Z1 chain
RECOMMENDED SIZE: 1.32m to 1.46m (4' 4" to 4' 10") tall
WEIGHT: 8.47Kg without pedals
SPECIFICATIONS :
FRAME
|
CHASE Edge Expert 19.75" Top Tube, 6061 T6 Alloy Triple butted Hydroformed, Integrated Head Tube, Enclosed rear dropouts and Chain tensioner system |
FORK
|
CHASE Edge Full Cr-mo, 1-1/8" Steer Tube, Tapered Blades |
HEADSET
|
Integrated IS 42/42 1-1/8", Sealed Bearing |
HANDLEBAR
|
Chase Edge Cr-mo 5.75" Rise, 25.5" Wide, 8° Back Sweep & 2° Up Sweep |
GRIPS
|
INSIGHT C.O.G.S 130mm Lock-on |
STEM
|
CHASE Edge 50mm 6061 T6 Alloy |
BB
|
Euro Square 113mm Sealed Bearing |
CHAINRING
|
Insight 42 Tooth 5 Bolt 110mm 1/2"x3/32" 3mm Alloy Ring |
CRANK
|
CHASE Edge 3 Piece Crank 165mm Alloy Arm, Cr-mo Chainring Bolts |
PEDAL
|
Pro Platform 9/16" Barrel Polished With Grip Nodes, Axle Boron Steel, Ball Bearing |
CHAIN
|
KMC Z1 narrow 1/2"x3/32" |
COG
|
16T steel |
FRONT HUB
|
Mini 28H, Sealed Bearing, 10mm Axle, M6 bolts |
REAR HUB
|
Mini ISO 28H, Sealed Bearing, 10mm Axle, M6 bolts, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets |
SPOKES
|
Front 206mm, Rear 198/199mm, 14 Gauge, Steel |
NIPPLES
|
16mm, 14 Gauge, Brass |
FRONT RIM
|
Chase Edge Alloy 138 Double Wall 28H 20"x1-3/8" Schrader Valve |
REAR RIM
|
Chase Edge Alloy 138 Double Wall 28H 20"x1-3/8" Schrader Valve |
FRONT TYRE
|
TIOGA PowerBlock 20"x1.60" Wire Bead |
REAR TYRE
|
TIOGA PowerBlock 24"x1.40" Wire Bead |
TUBES
|
20''x1-3/8" Schrader Valve |
BRAKE LEVER
|
Junior/Expert Alloy |
BRAKE CALIPER
|
Mechanical, 140mm disc rotor, Shimano B01S compatible Pads, Lock Disc Adaptor |
SADDLE
|
Pro Pivotal |
SEAT POST
|
Pivotal 25.4x200mm Polished Alloy |
SEAT CLAMP
|
Chase Edge QR Alloy 28.6mm |
CHAIN TENSIONER
|
Integrated Built-In With New Lock Disc Adaptor |
