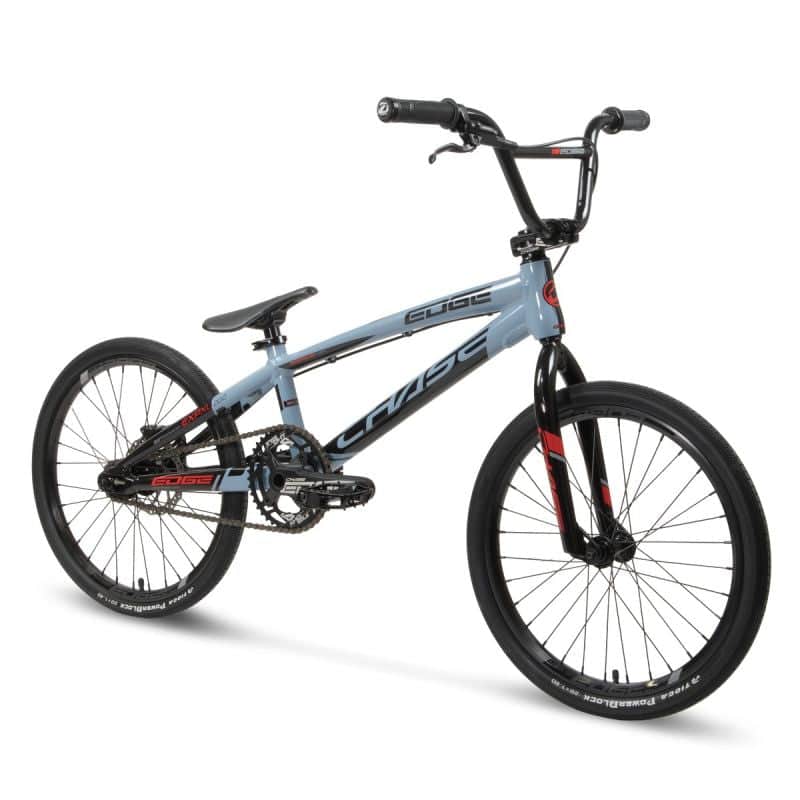

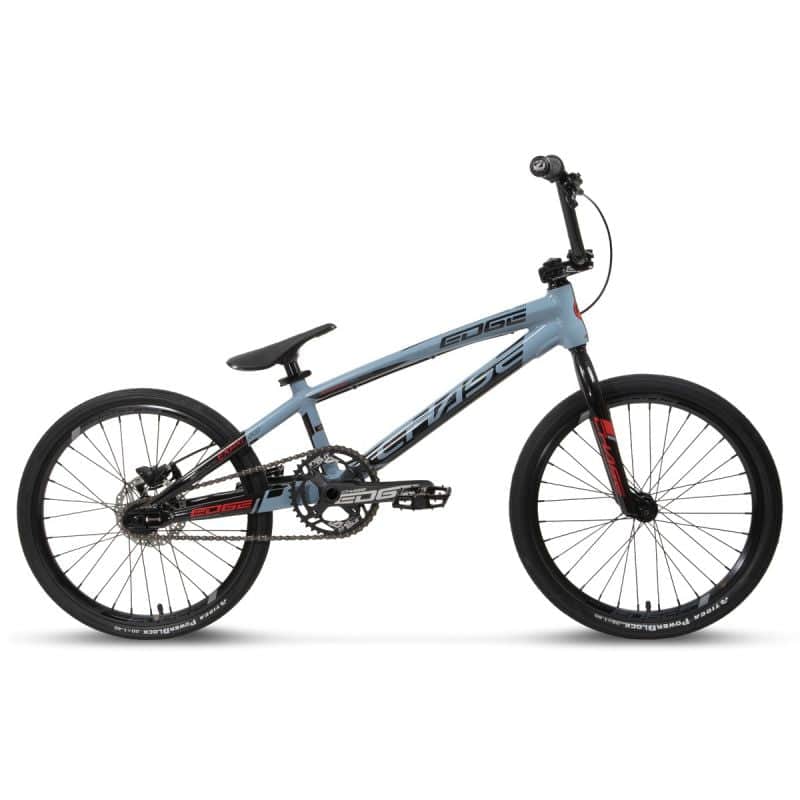

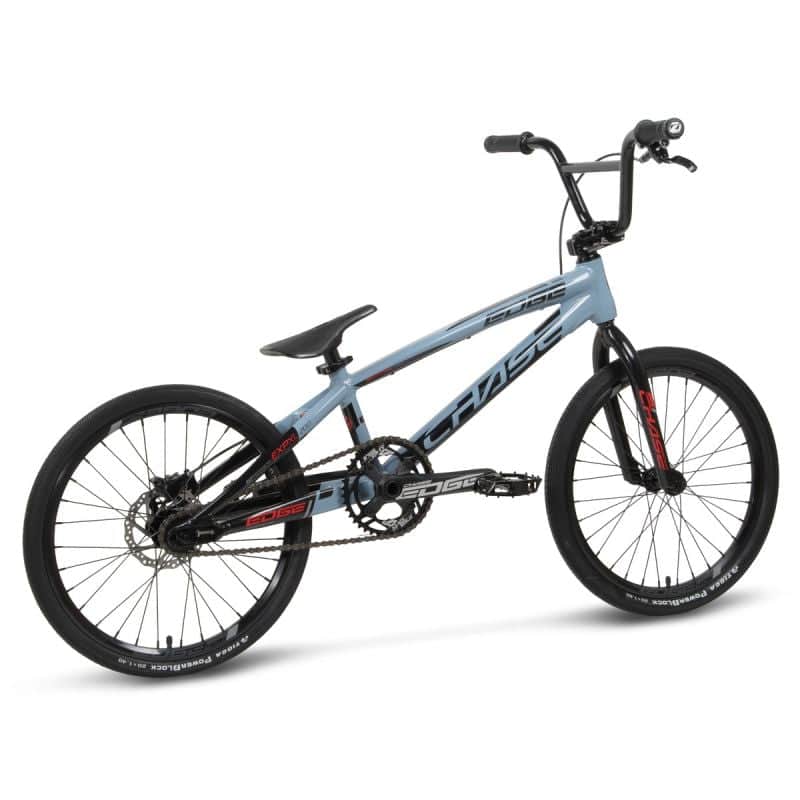

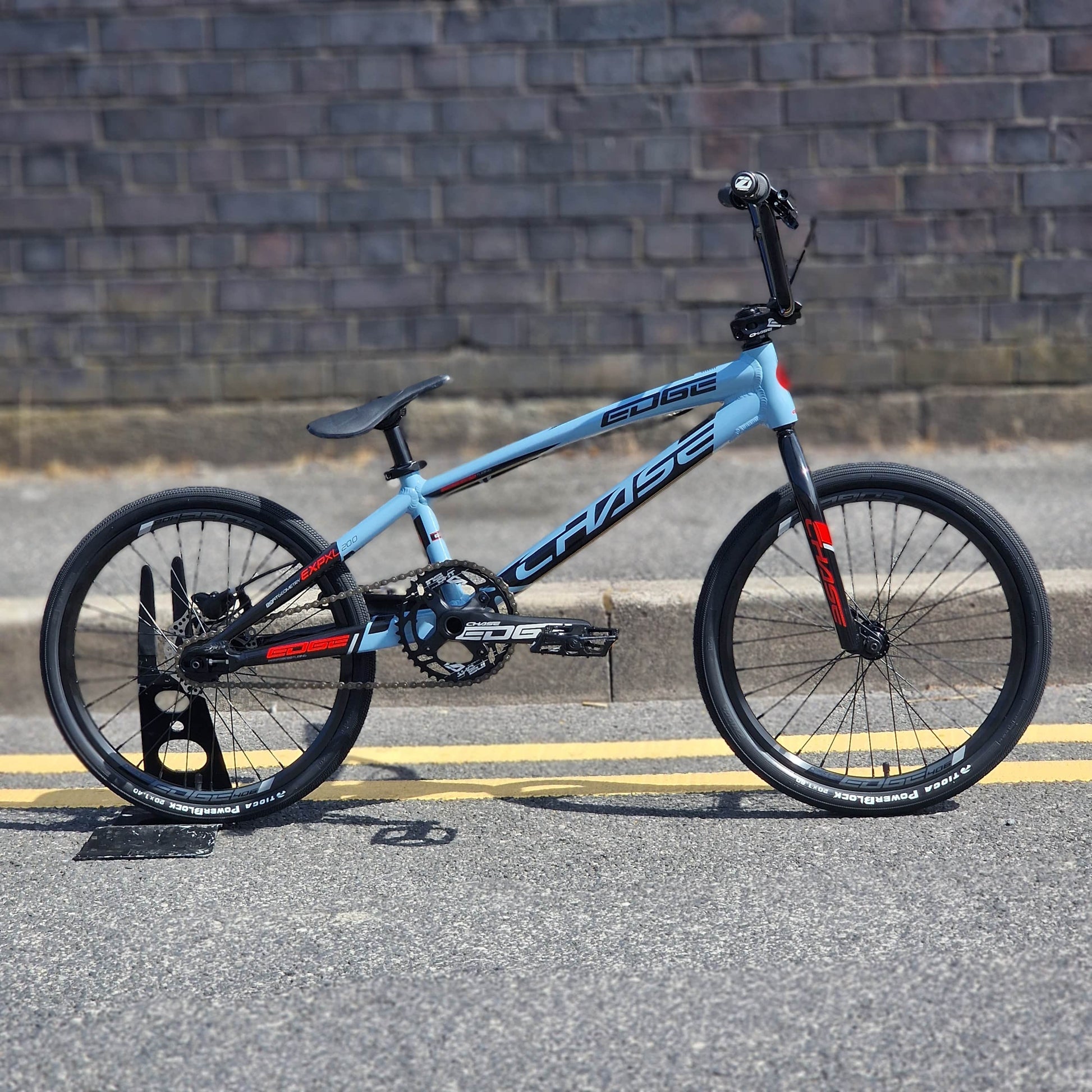

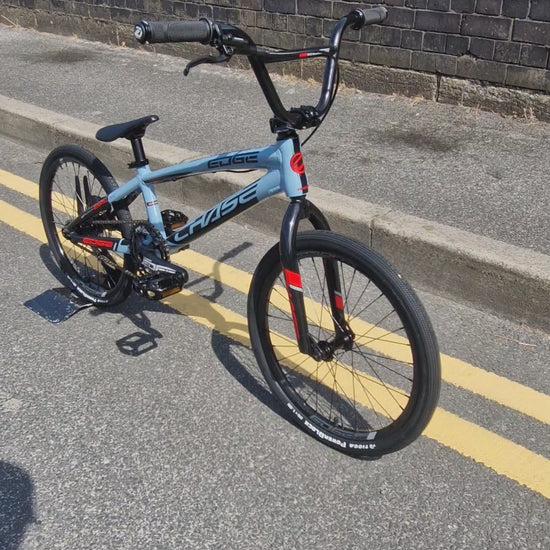

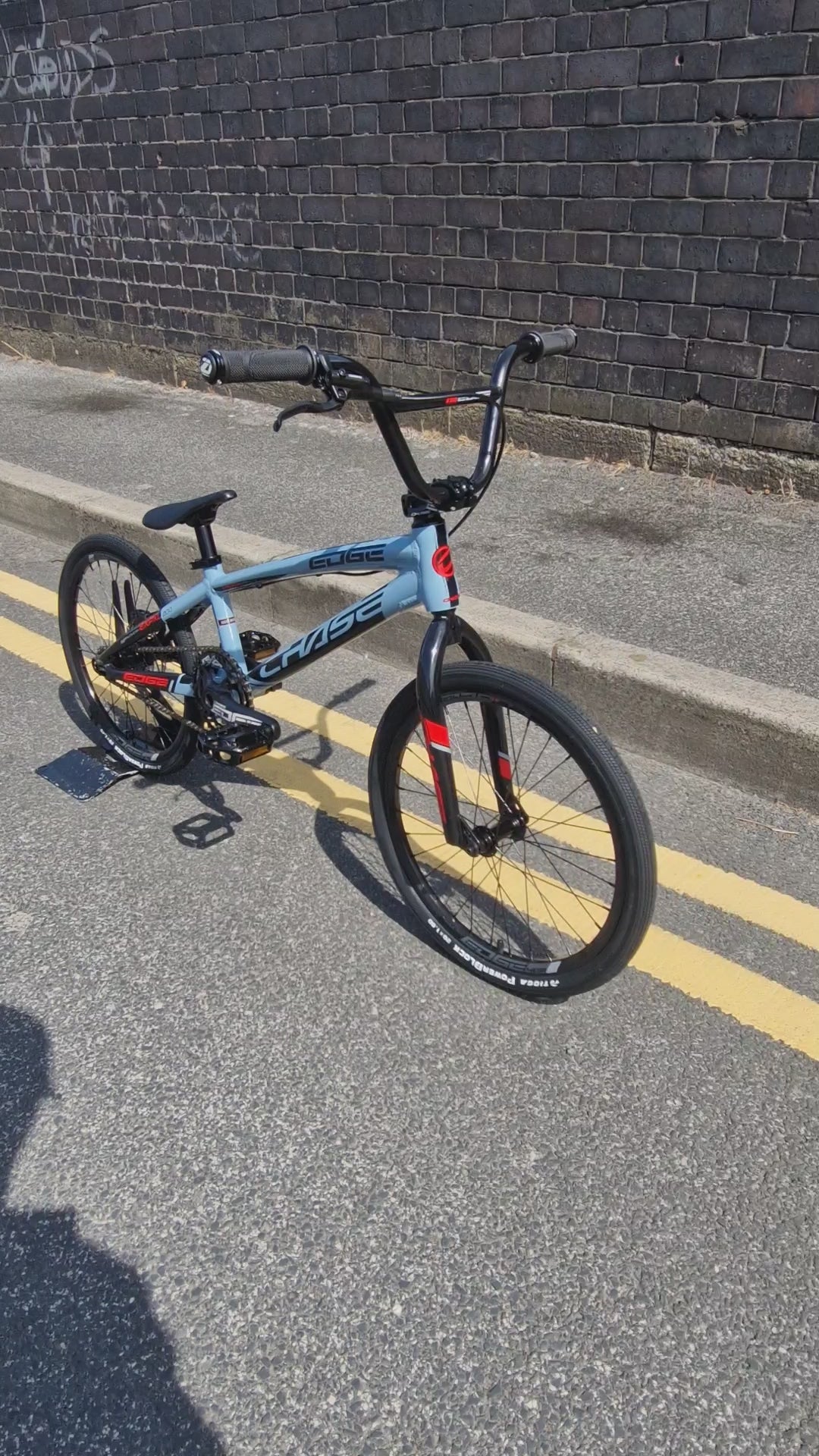

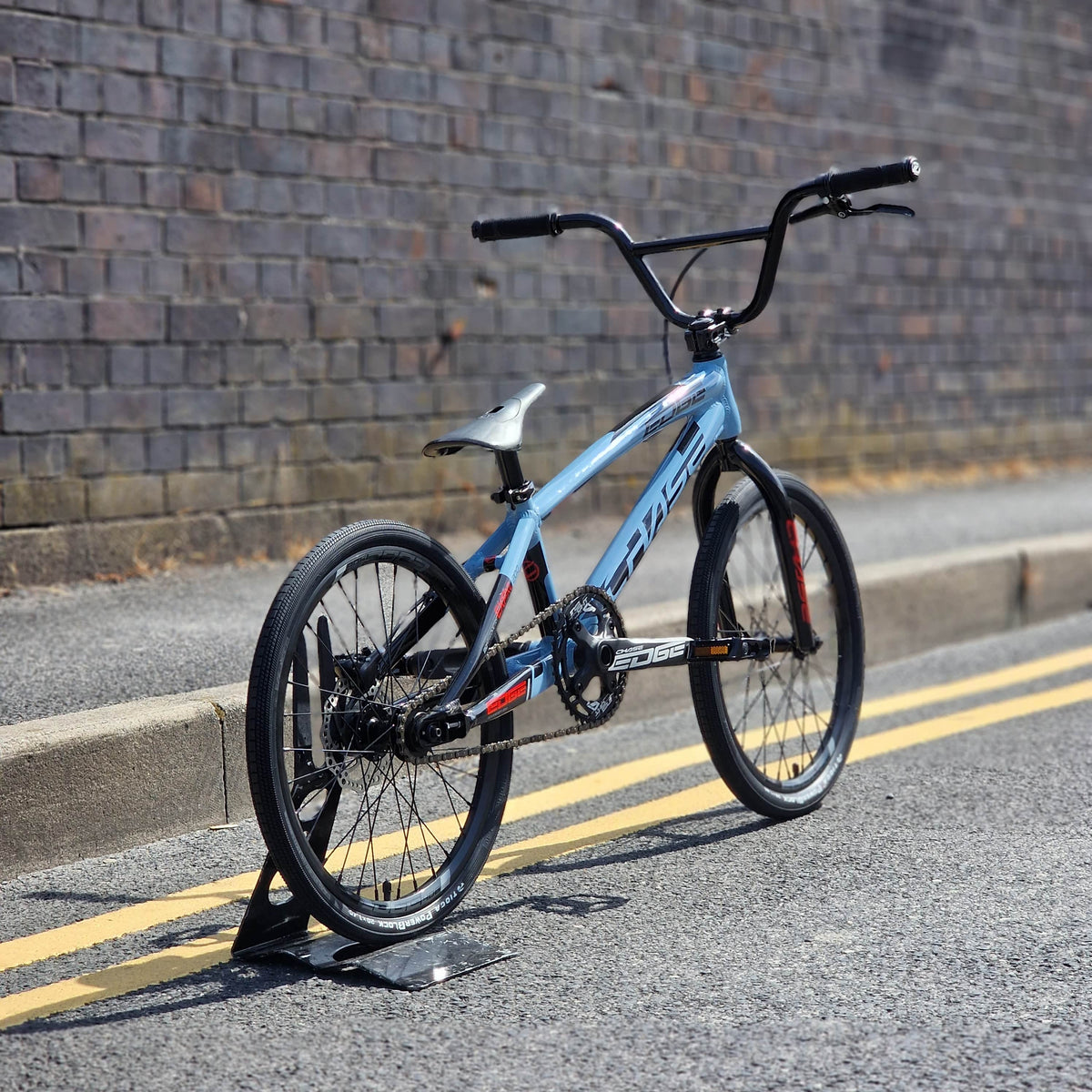

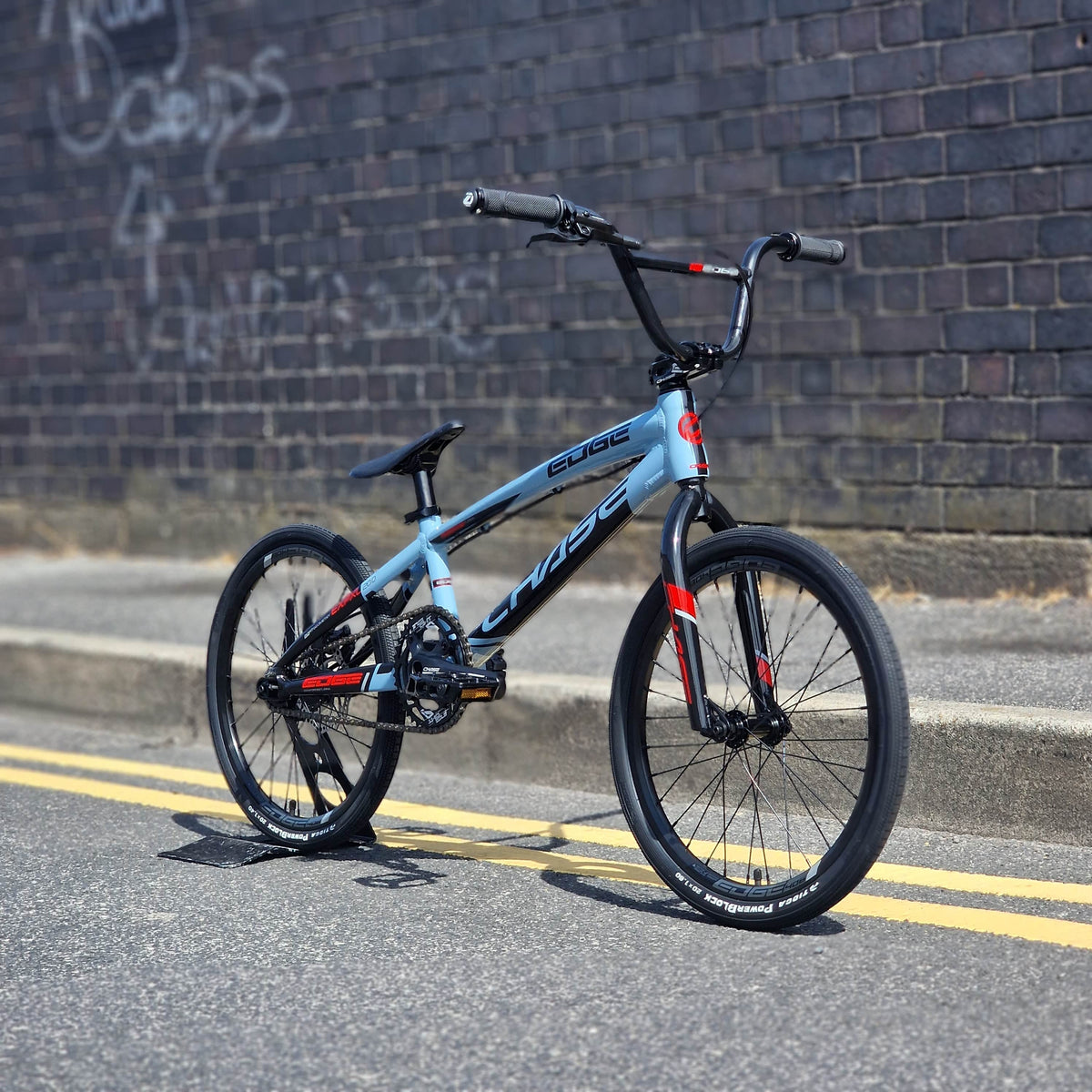

Chase Edge Expert XL Race Bike Slate Blue
Chase Edge Expert XL Race Bike Slate Blue
The CHASE Edge Expert XL is a pure-bred BMX racing machine, ideal for improving and taking it to the next level. Now equipped with a disc braking system and closed rear dropout system, it has a hydroformed triple butted 6061 aluminum frame with integrated headset, a chromoly fork and handlebars, a crankset with INSIGHT chainring, double wall rims with cassette rear hub and TIOGA Powerblocks. The combination of all these components arguably makes the CHASE Edge one of the most advanced race BMX bikes on the market today.
Also available in Cement Grey.
FEATURES :
- Aluminum 6061-T6 Triple butted frame 20"TT
- Integrated headtube 1-1/8" and enclosed rear dropouts
- 100% Chromoly fork and handlebar
- Mechanical disc braking
- Chase Edge Alloy Stem 50mm Top Load
- Chase Edge 3 Piece Crank 170mm, Chromo Chainring bolts
- Euro ISIS 113mm Sealed Bearing bottom bracket
- 42T Insight Chainring 4 points BCD 104mm
- Mini 32H alloy hubs, sealed bearings
- Rear ISO bracket cassette hub 16T cogs
- Chase Double Wall Alloy rims 20x1.50"
- TIOGA PowerBlock tyre Wire Bead
- KMC Z1 chain
RECOMMENDED RIDERHEIGHT: 1.44m – 1.55m
WEIGHT: 8.85Kg without pedals
SPECIFICATIONS :

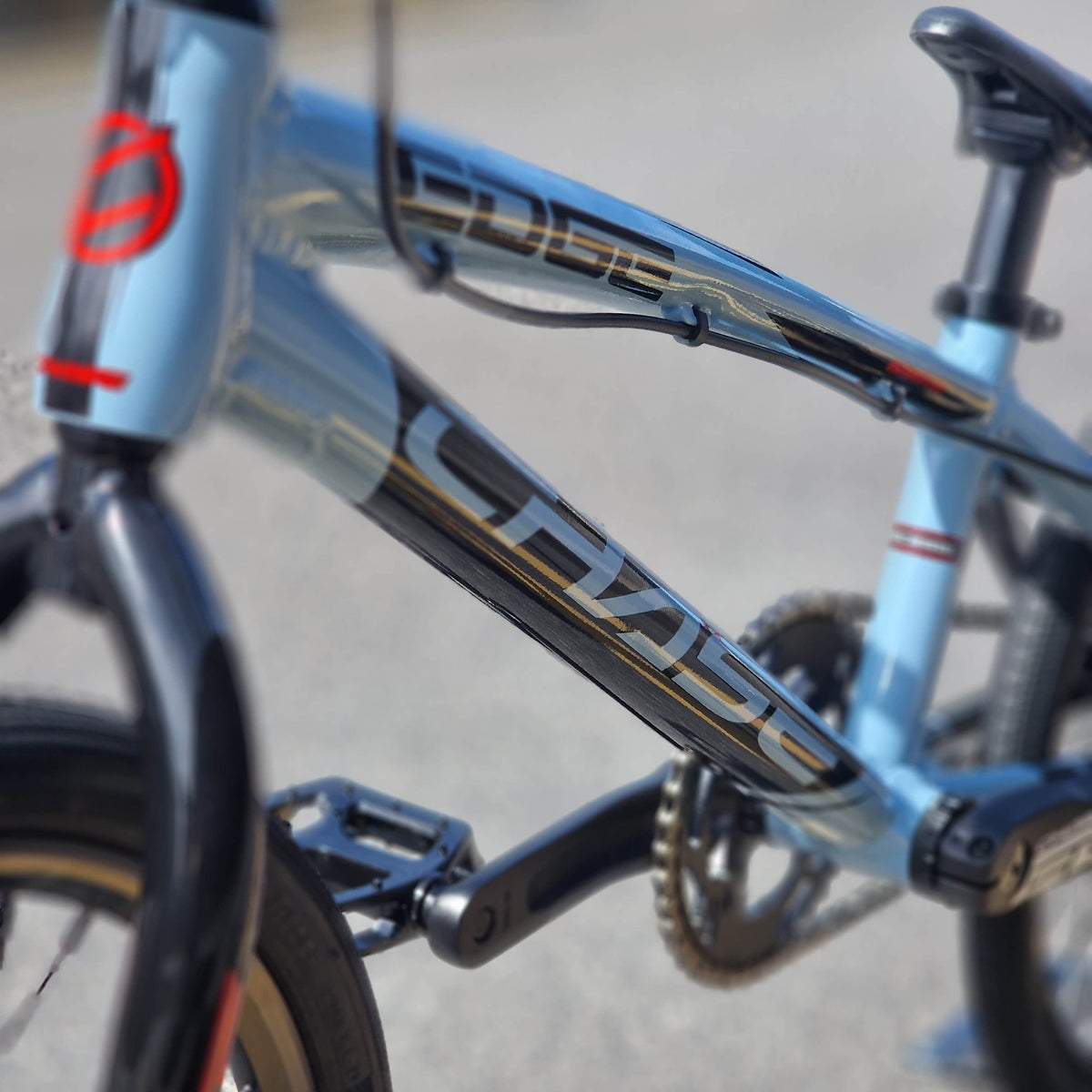

FRAME
|
CHASE Edge Expert XL 20" Top Tube, 6061 T6 Alloy Triple butted Hydroformed, Integrated Head Tube, Enclosed rear dropouts and Chain tensioner system |

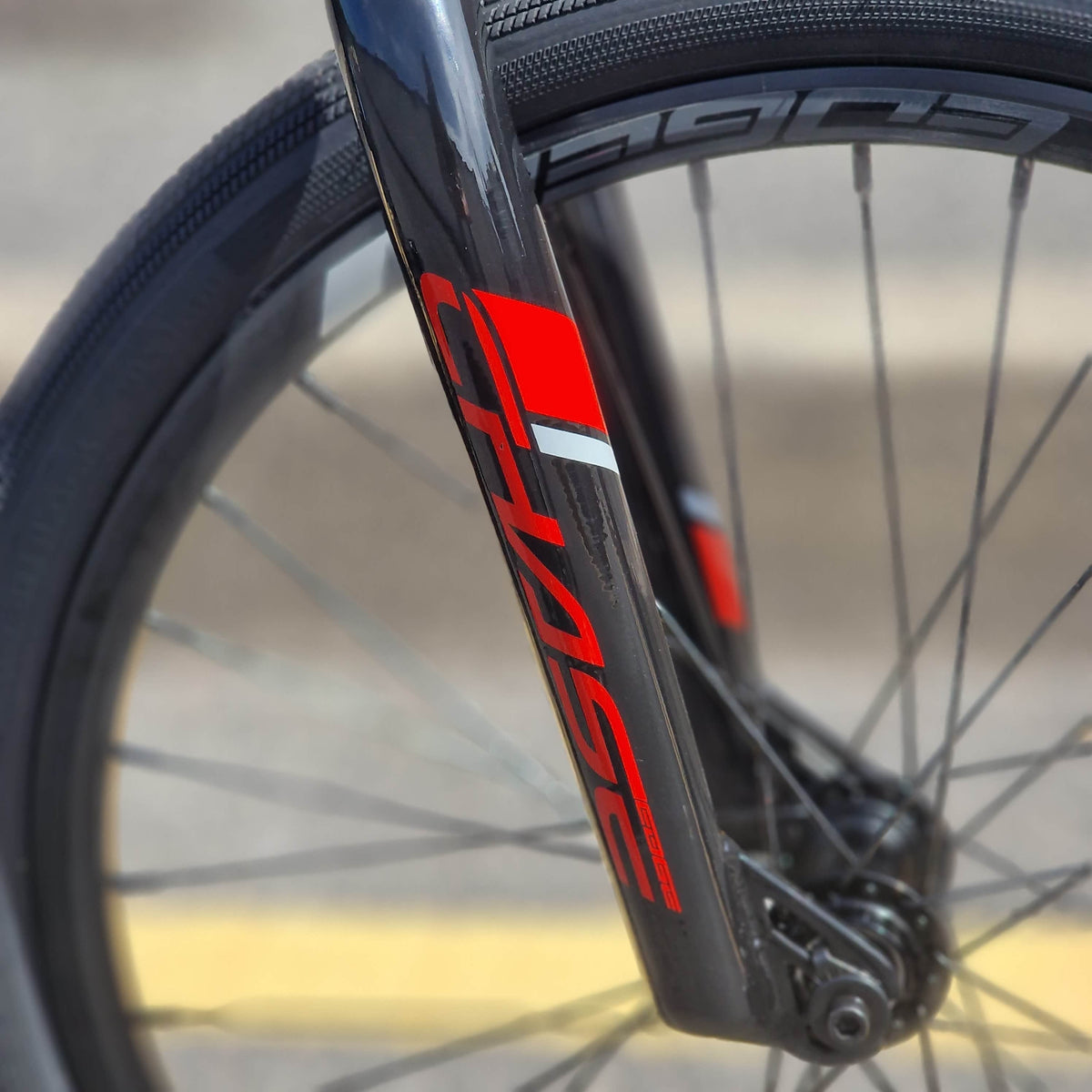

FORK
|
CHASE Edge Full Cr-mo, 1-1/8" Steer Tube, Tapered Blades |

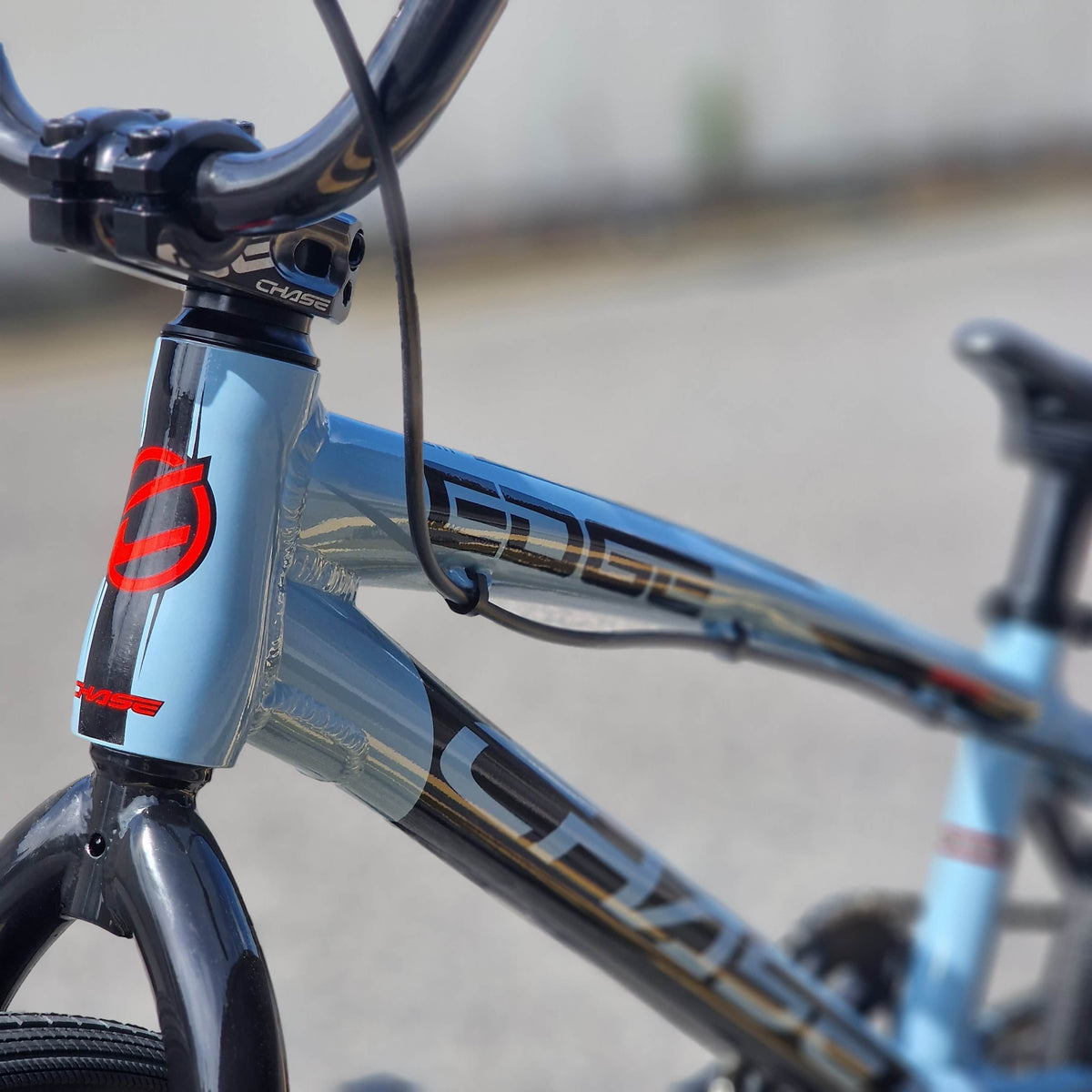

HEADSET
|
Integrated IS 42/42 1-1/8", Sealed Bearing |

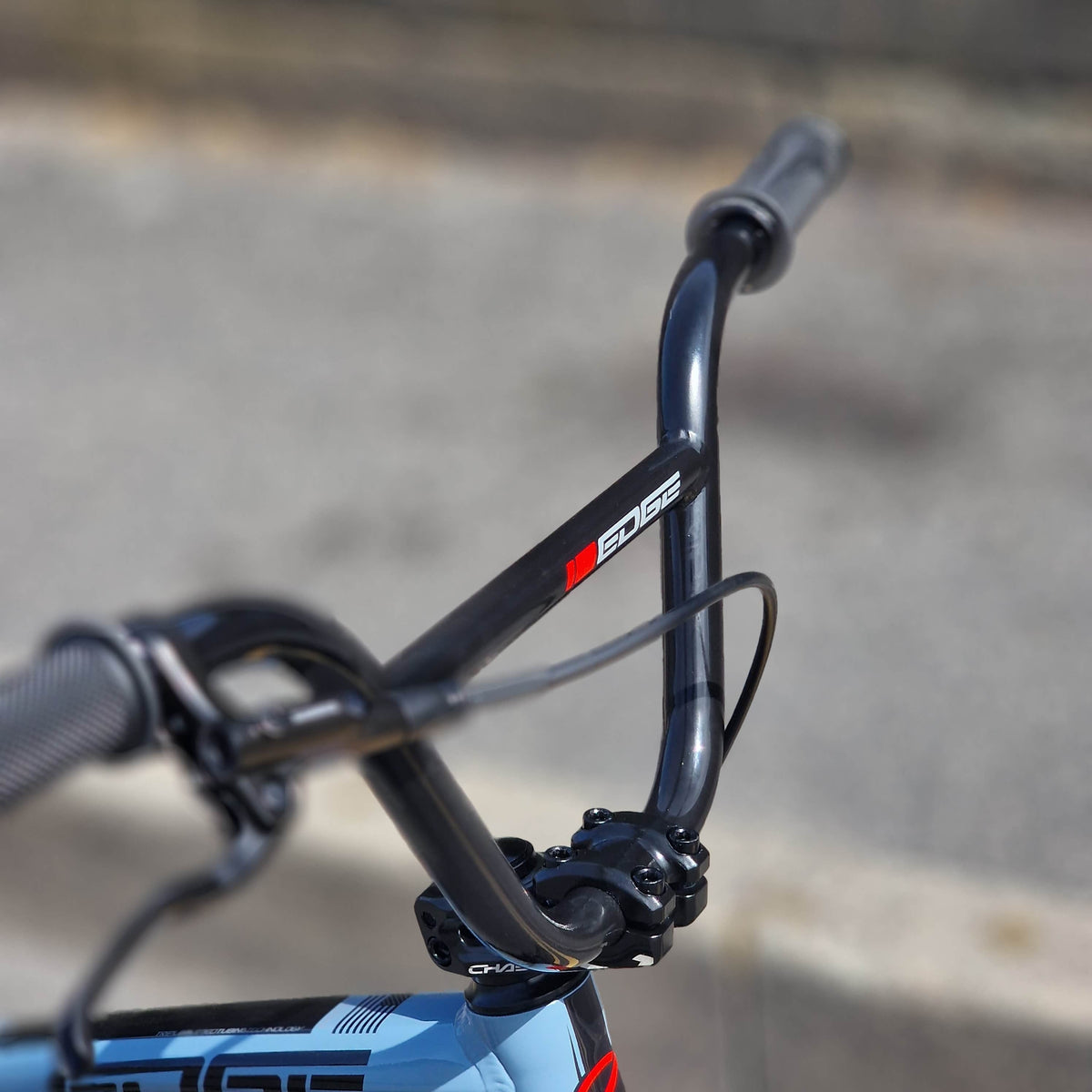

HANDLEBAR
|
Chase Edge Cr-mo 6.5" Rise, 26" Wide, 8° Back Sweep & 2° Up Sweep |

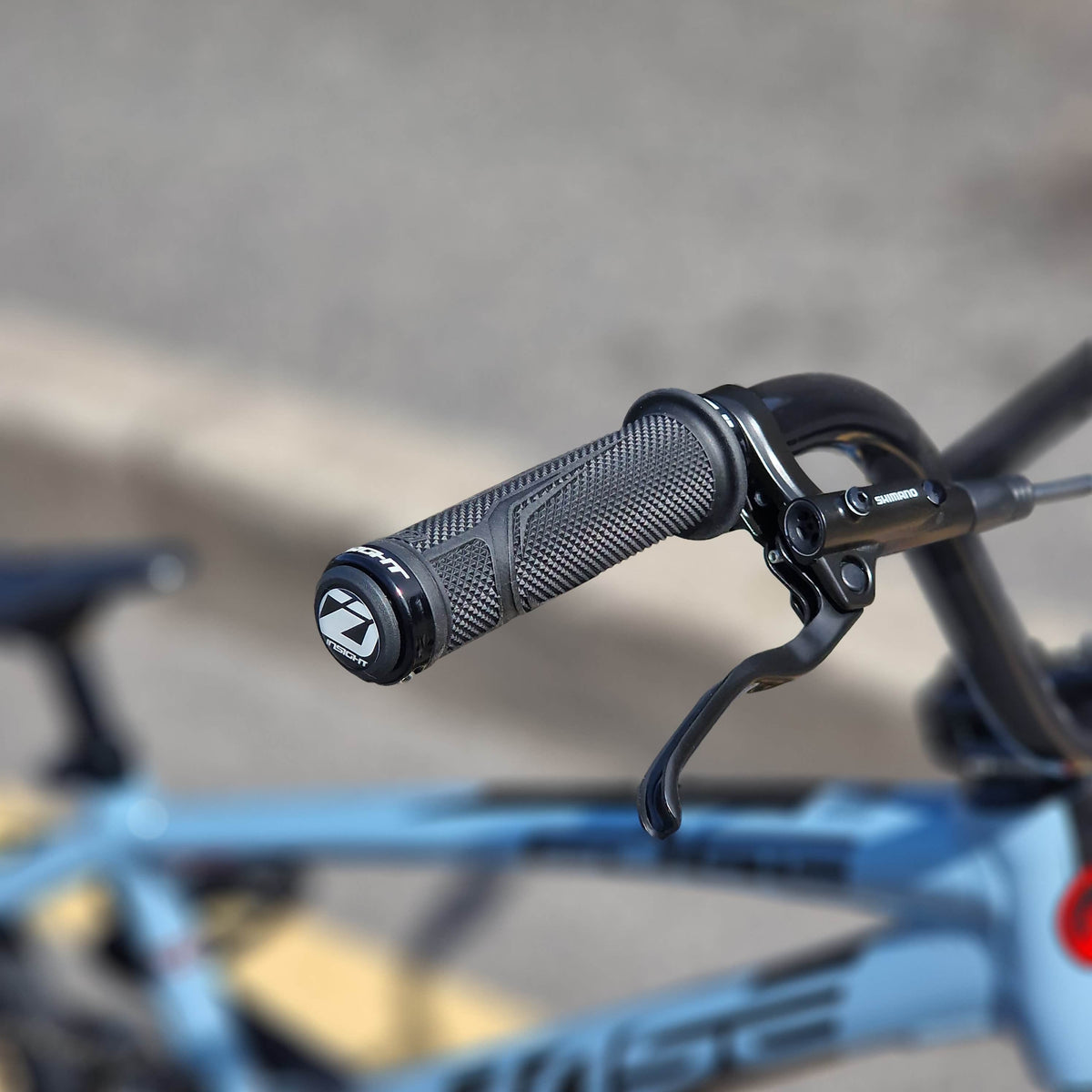

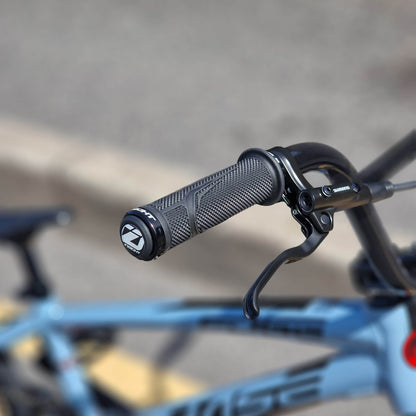

GRIPS
|
INSIGHT C.O.G.S 130mm Lock-on |

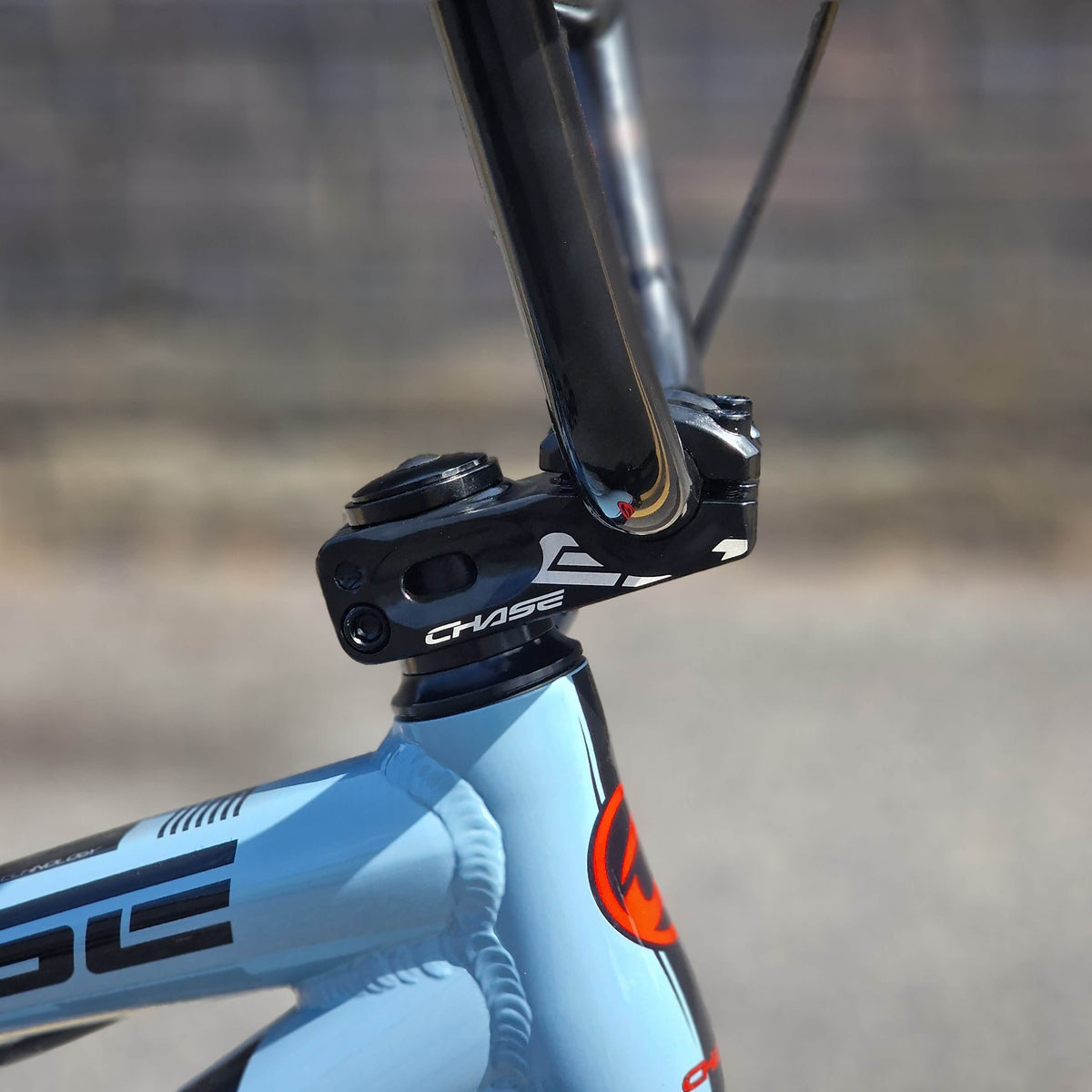

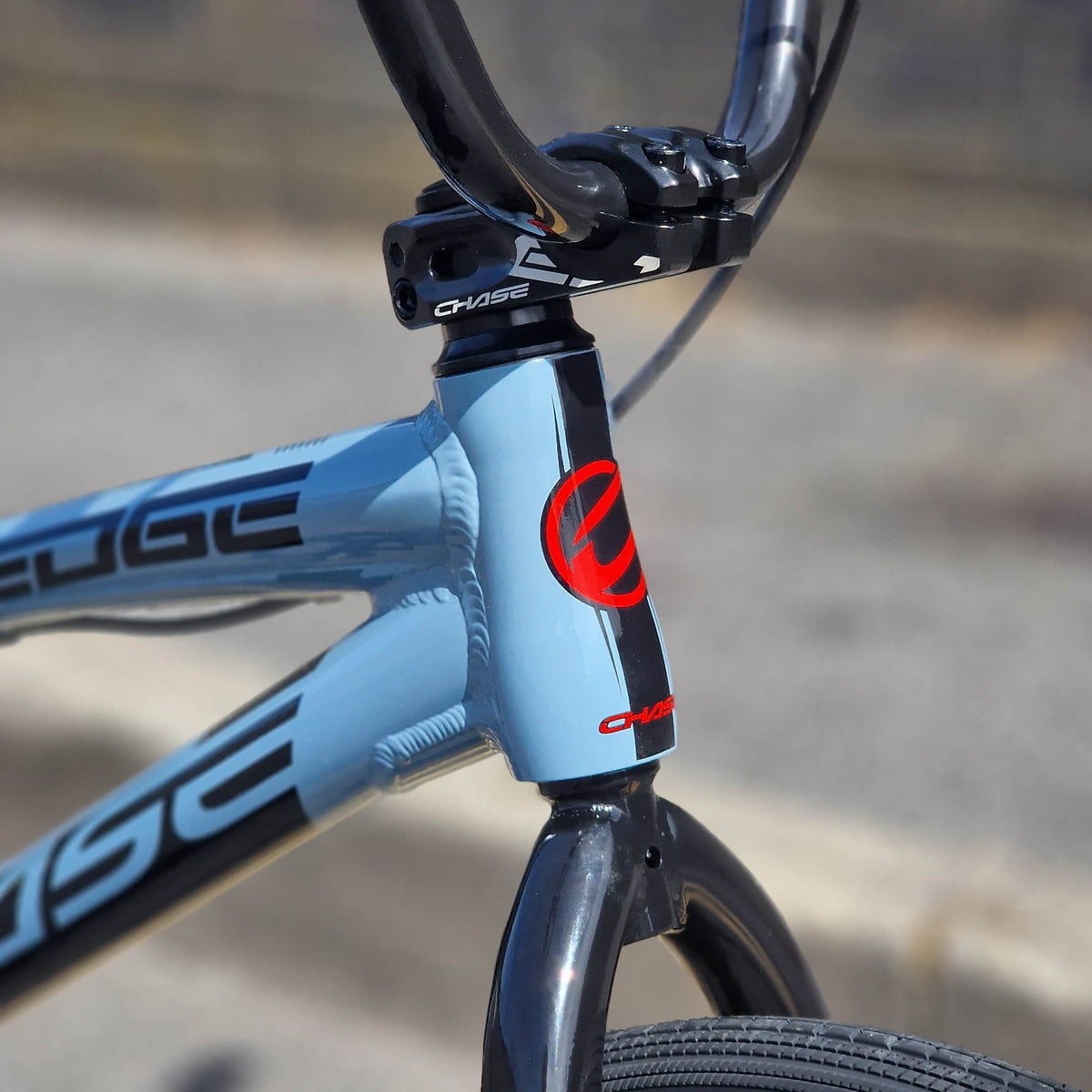

STEM
|
CHASE Edge 50mm 6061 T6 Alloy |
BB
|
Euro ISIS 113mm Sealed Bearing |

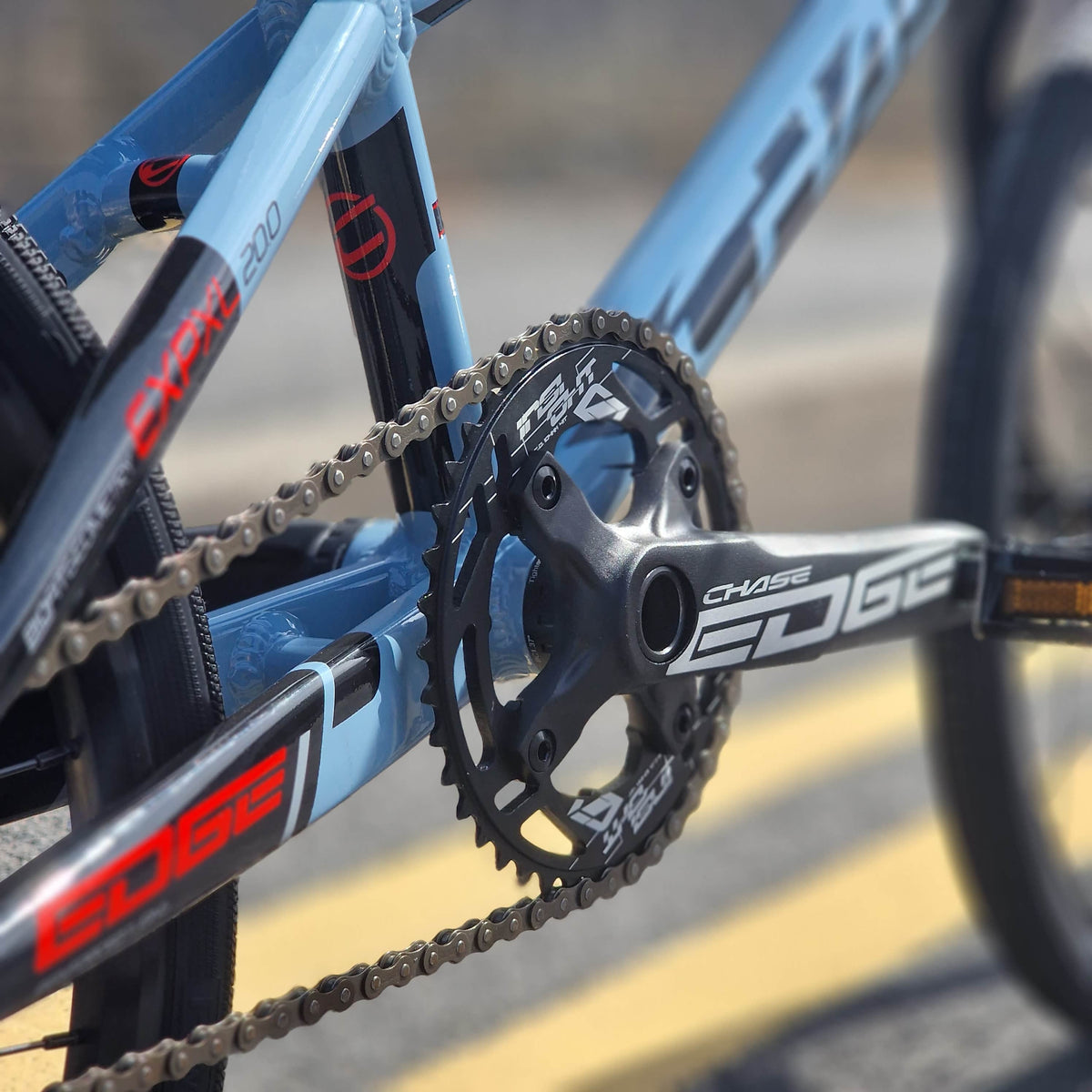

CHAINRING
|
INSIGHT 42 Tooth 4 Bolt 104mm 1/2"x3/32" 5mm Alloy Ring |

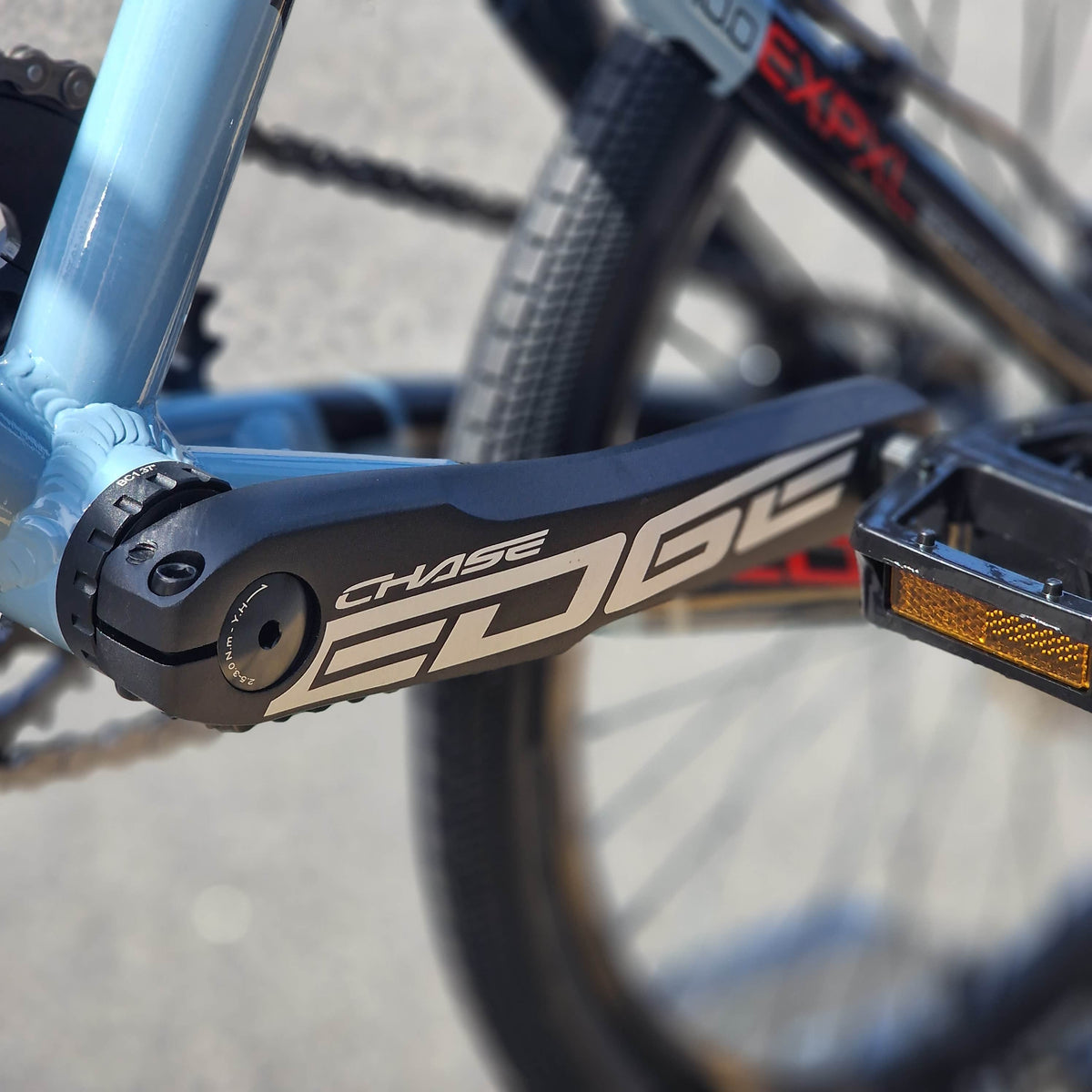

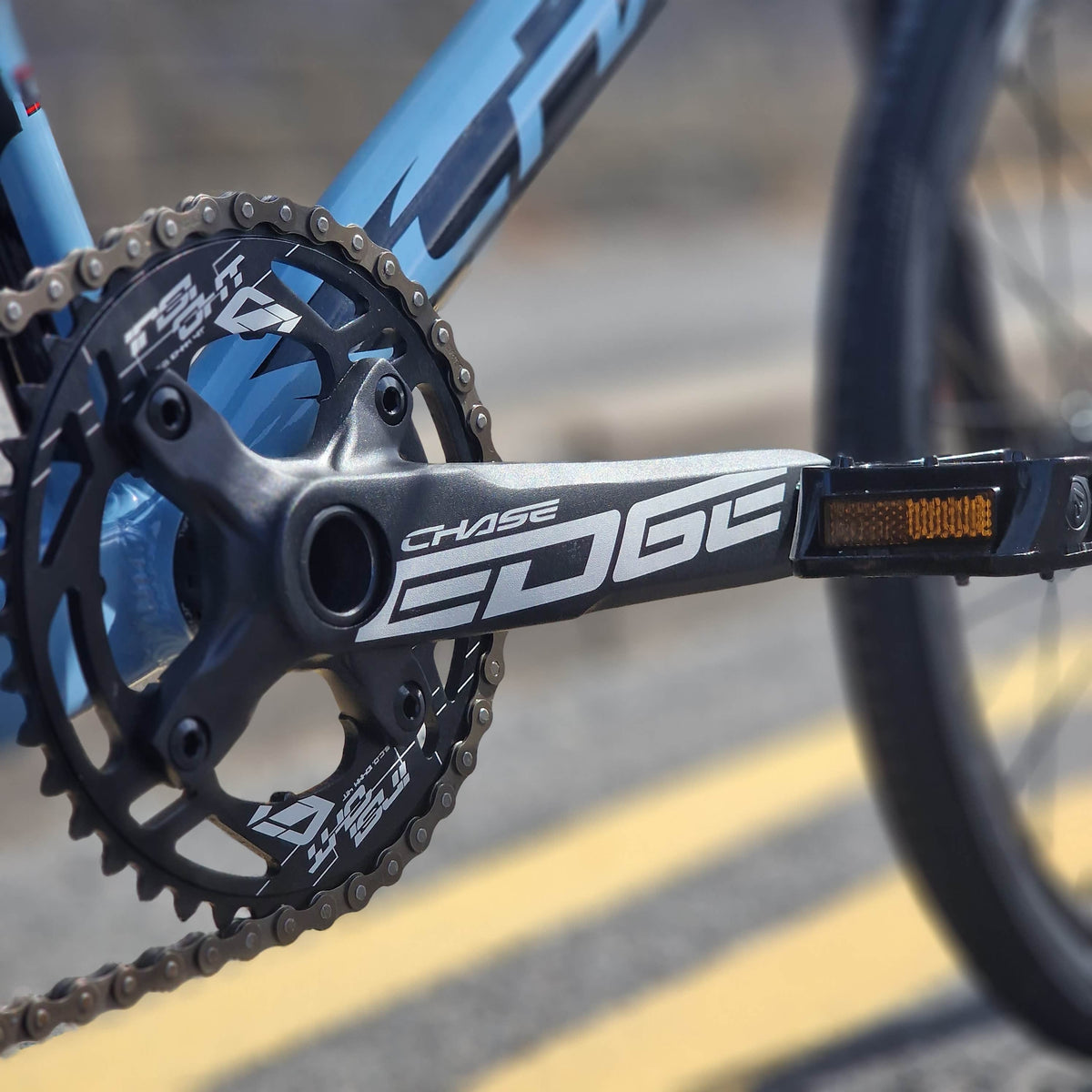

CRANK
|
CHASE Edge 3 Piece Crank 170mm Alloy Arm, Cr-mo Chainring Bolts |

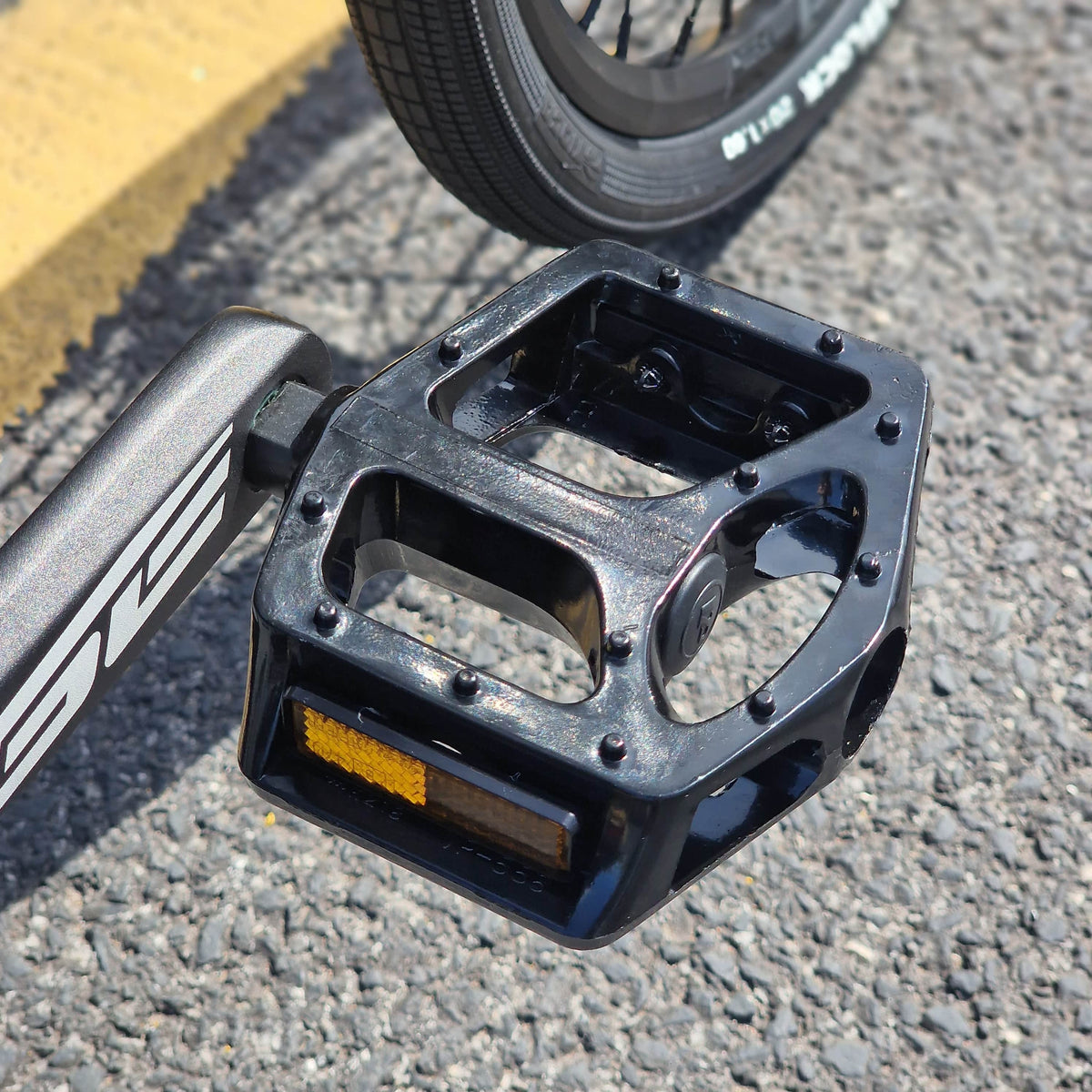

PEDAL
|
Pro Platform 9/16" Barrel Polished With Grip Nodes, Axle Boron Steel, Ball Bearing |
CHAIN
|
KMC Z1 narrow 1/2"x3/32" |
COG
|
16T steel |

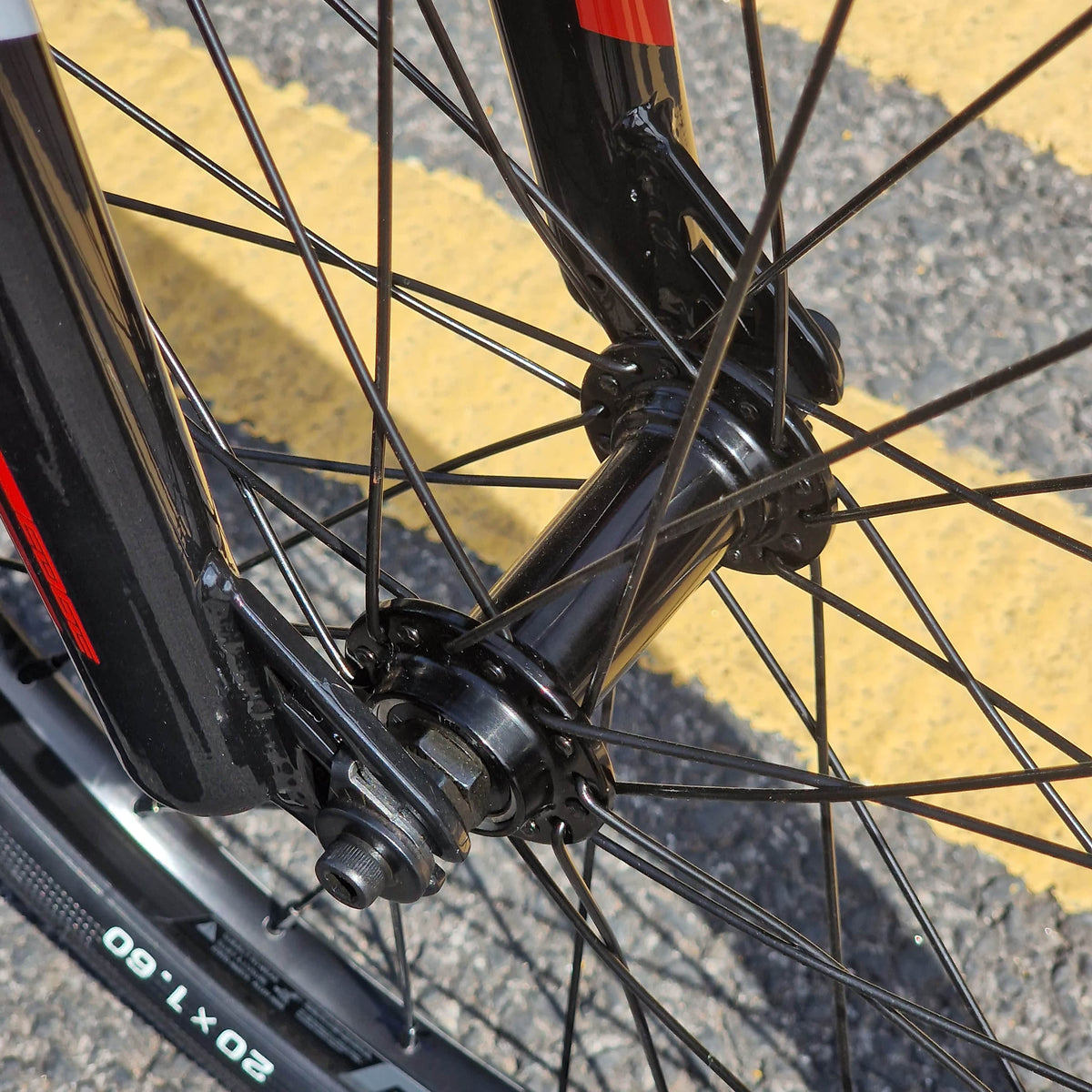

FRONT HUB
|
Mini 32H, Sealed Bearing, 10mm Axle, M6 bolts |
REAR HUB
|
Pro ISO 32H, Sealed Bearing, 10mm Axle, M6 bolts, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets |
SPOKES
|
Front 181mm, Rear 173/174mm, 14 Gauge, Steel |
NIPPLES
|
16mm, 14 Gauge, Brass |
FRONT RIM
|
CHASE Edge 150 Double Wall 32H 20"x1.50" Schrader Valve |
REAR RIM
|
CHASE Edge 150 Double Wall 32H 20"x1.50" Schrader Valve |

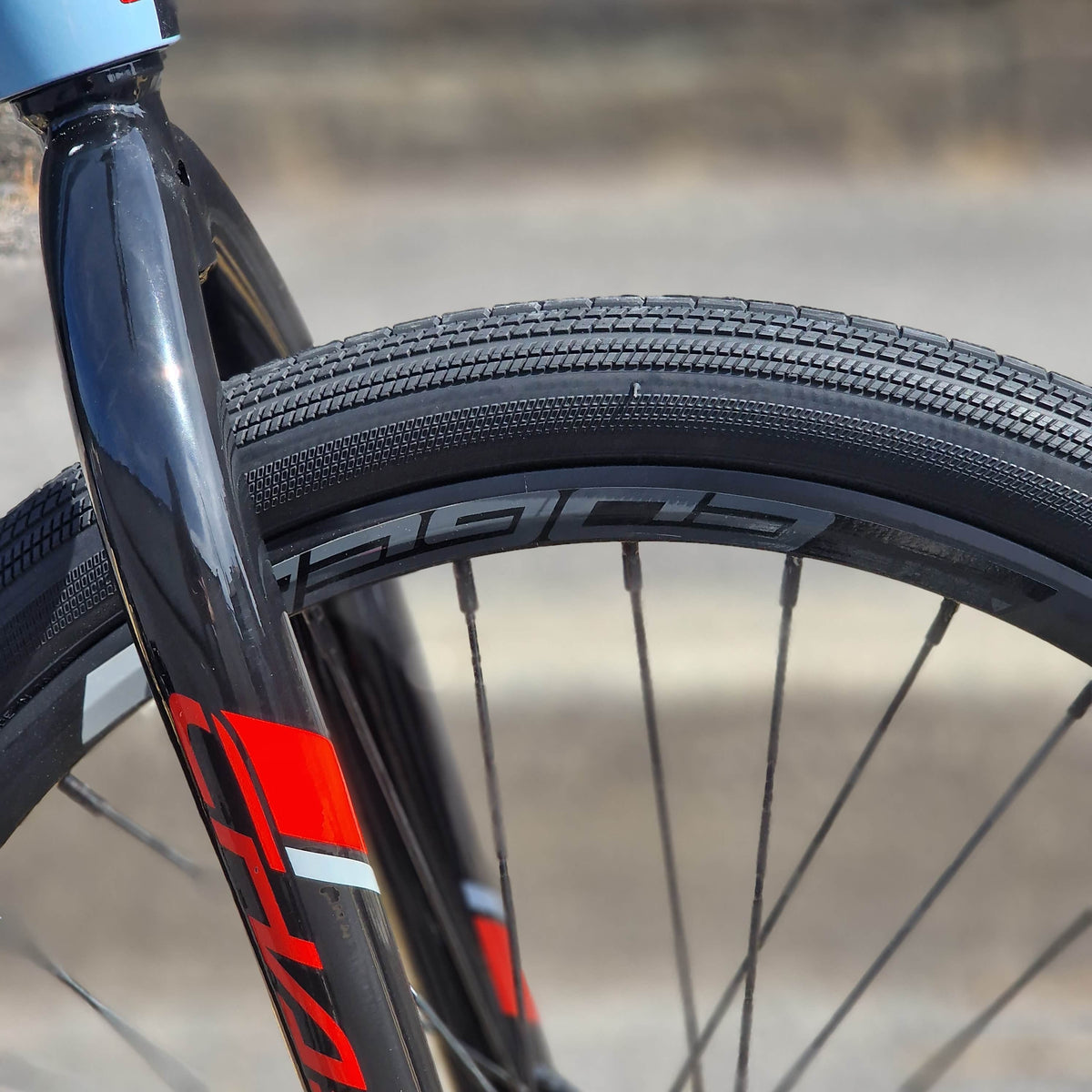

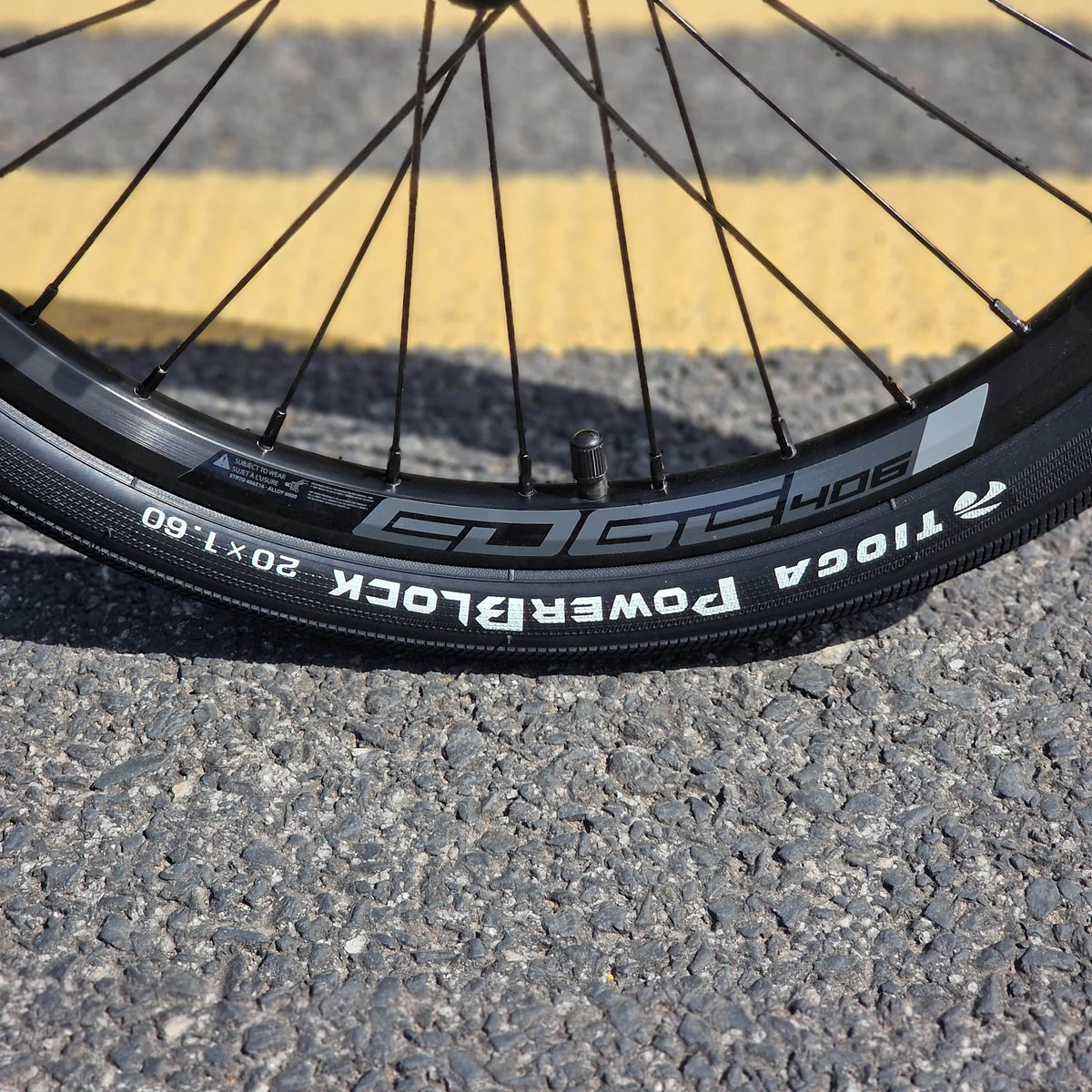

FRONT TYRE
|
TIOGA PowerBlock 20"x1.60" Wire Bead |
REAR TYRE
|
TIOGA PowerBlock 24"x1.40" Wire Bead |
TUBES
|
20''x1.5"-1.75" Schrader Valve |

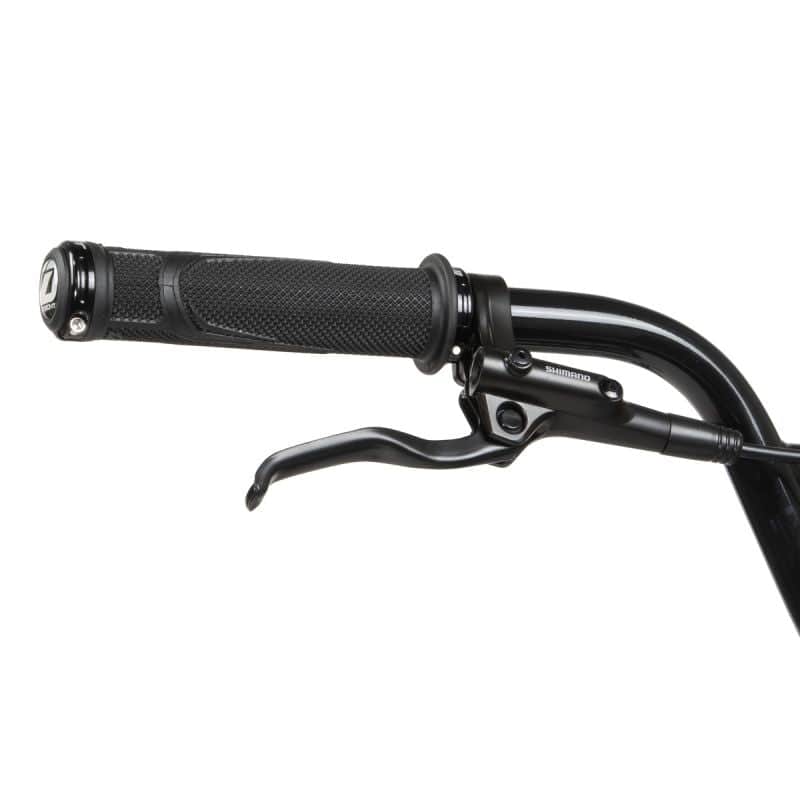

BRAKE LEVER
|
Pro Alloy |

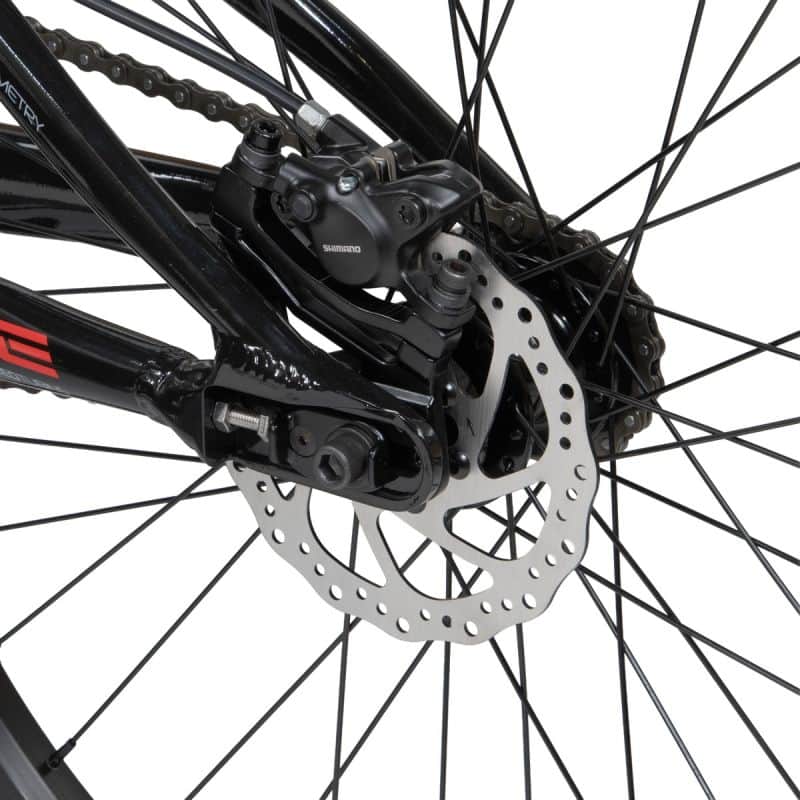

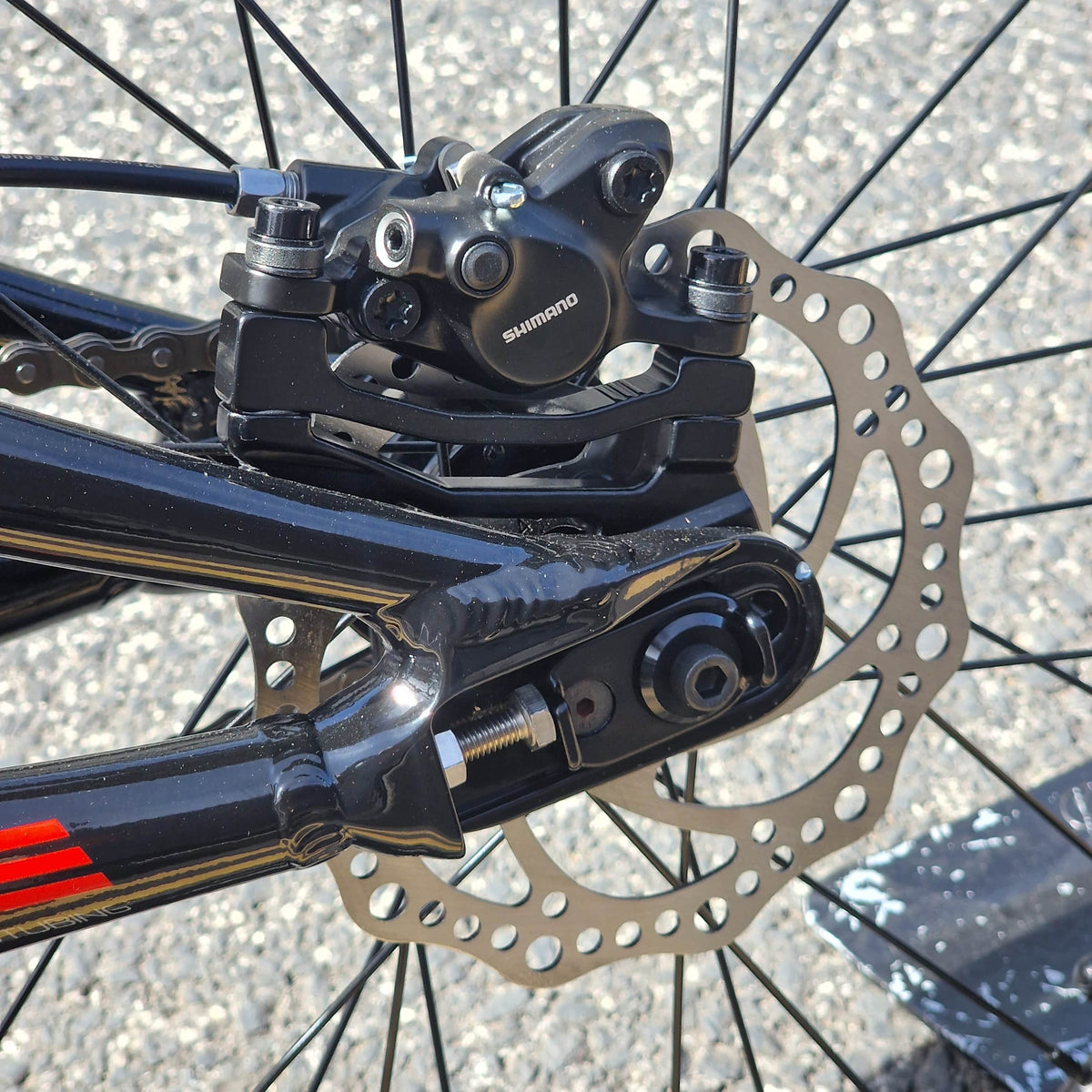

BRAKE CALIPER
|
Mechanical, 140mm disc rotor, Shimano B01S compatible Pads, Lock Disc Adaptor |

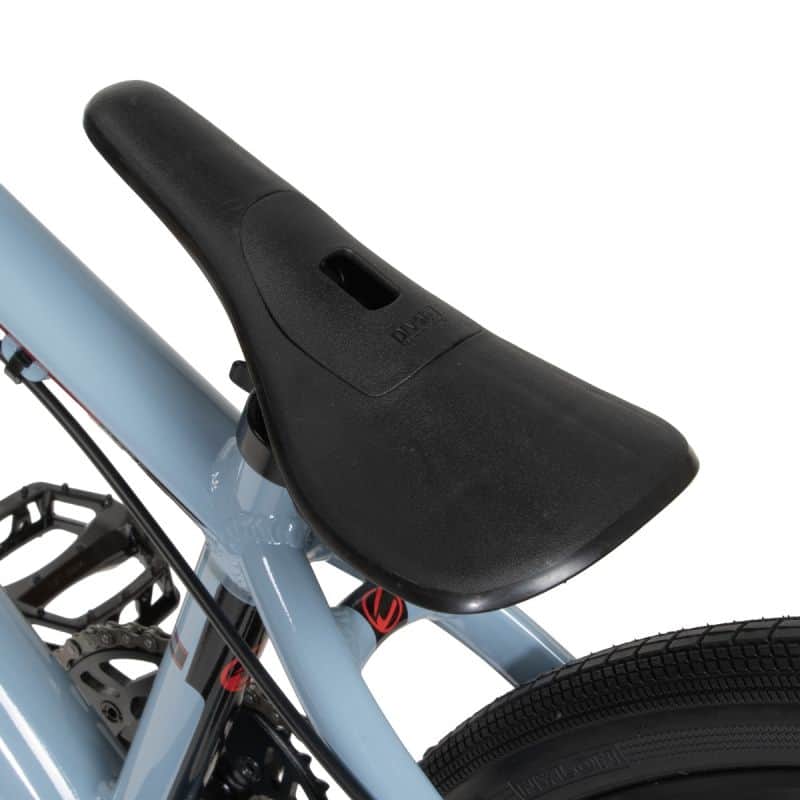

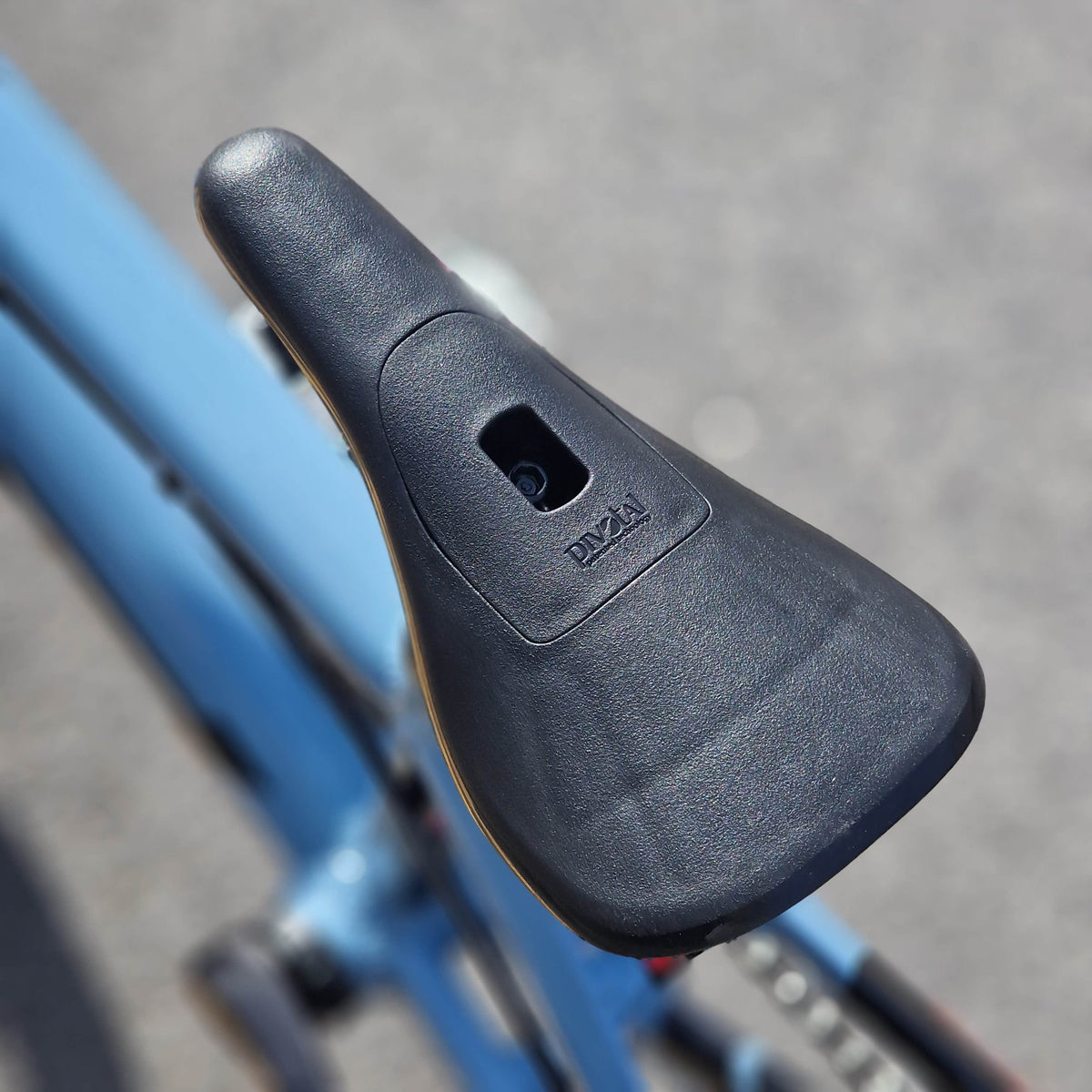

SADDLE
|
Pro Pivotal |
SEAT POST
|
Pivotal 27.2x250mm Alloy |
SEAT CLAMP
|
CHASE Edge QR Alloy 31.8mm |

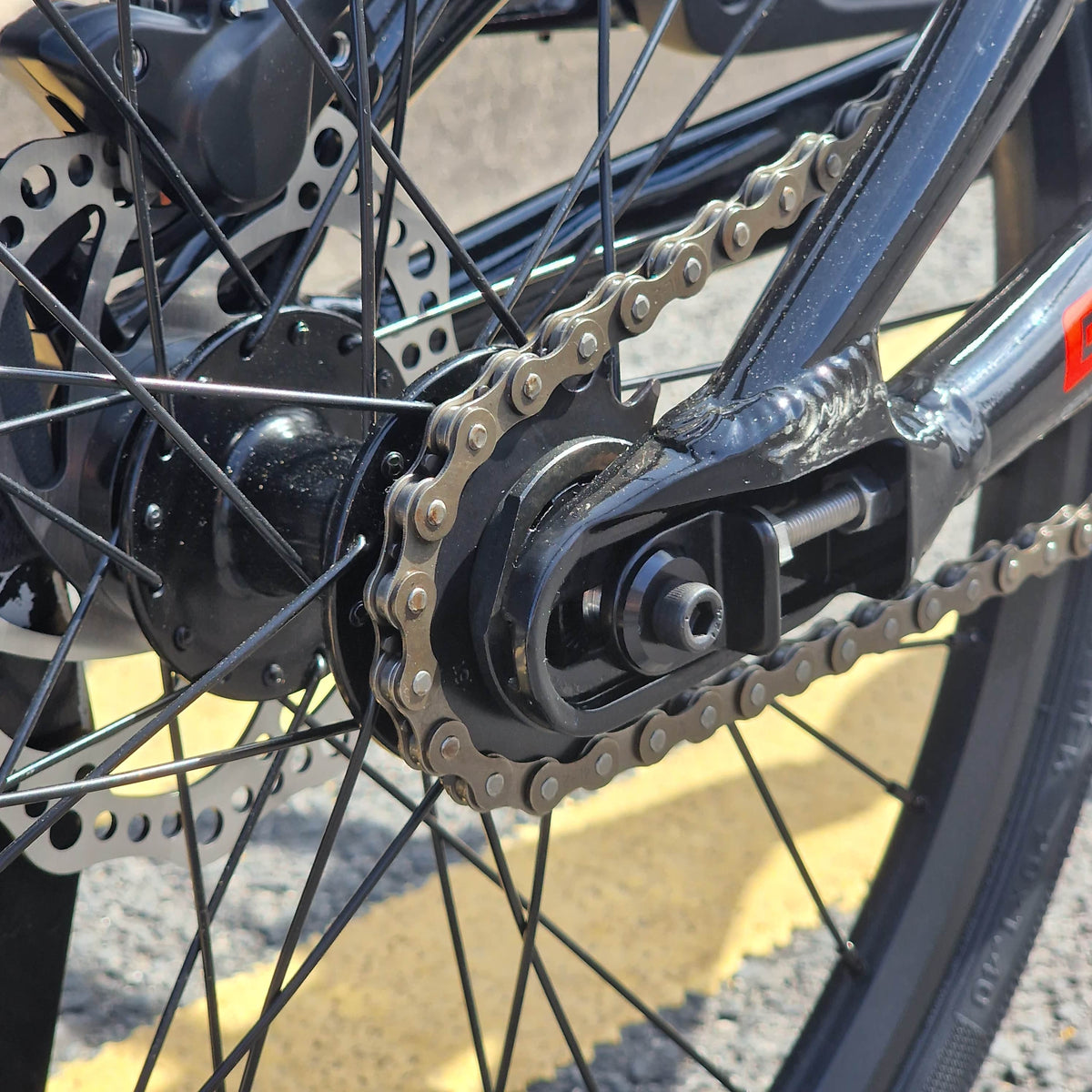

CHAIN TENSIONNER
|
Integrated Built-In With New Lock Disc Adaptor |
