SKU: Product Code: CHACOBI250

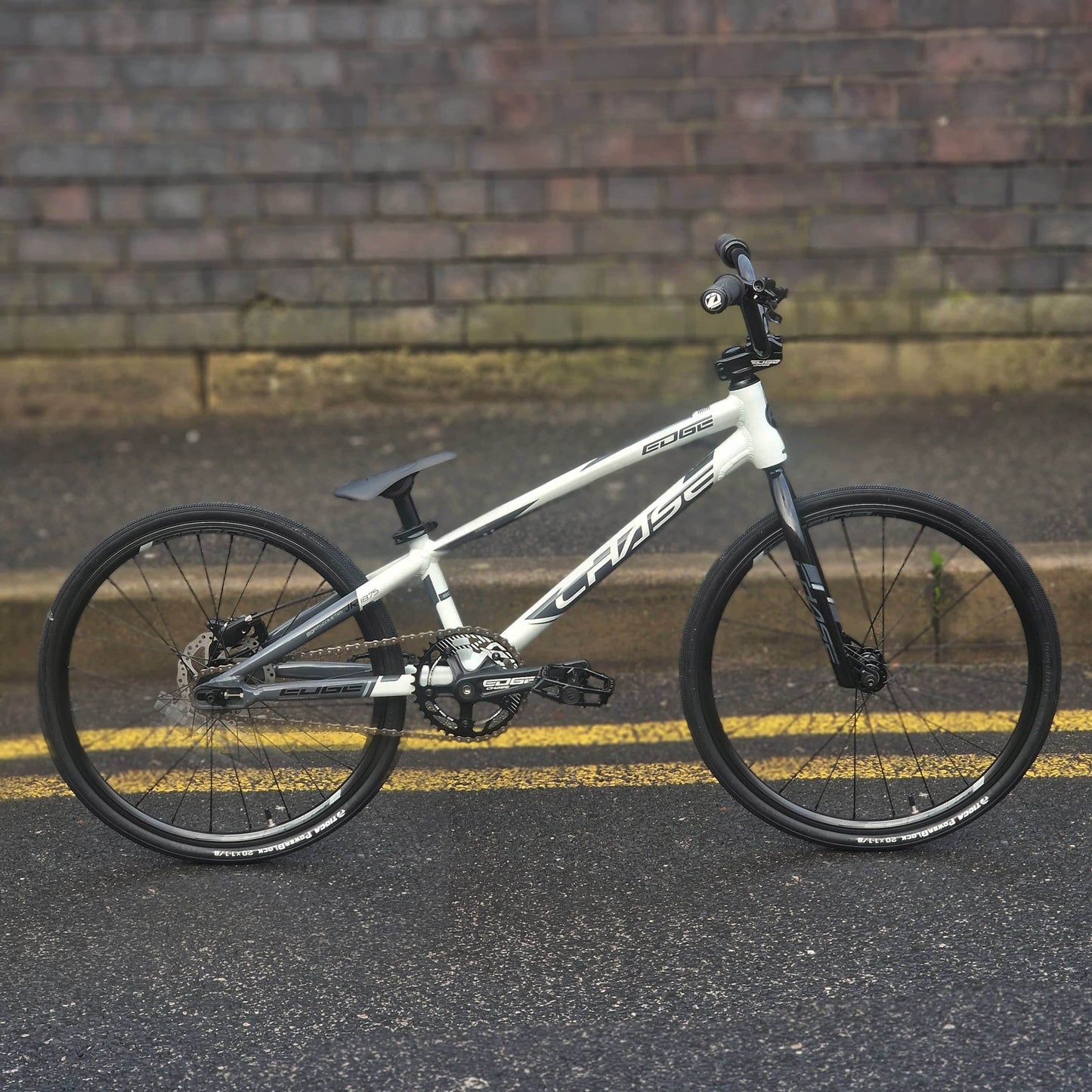

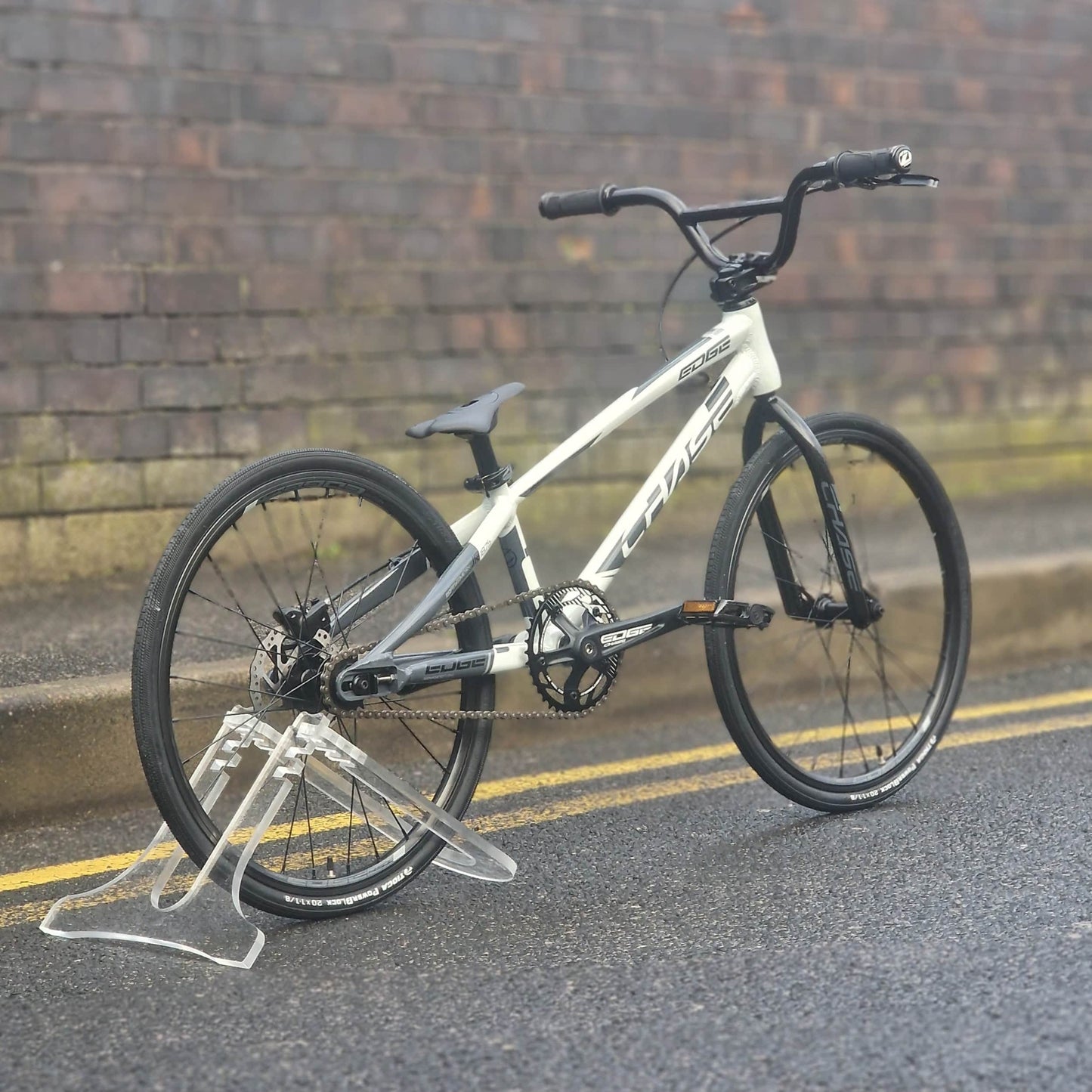

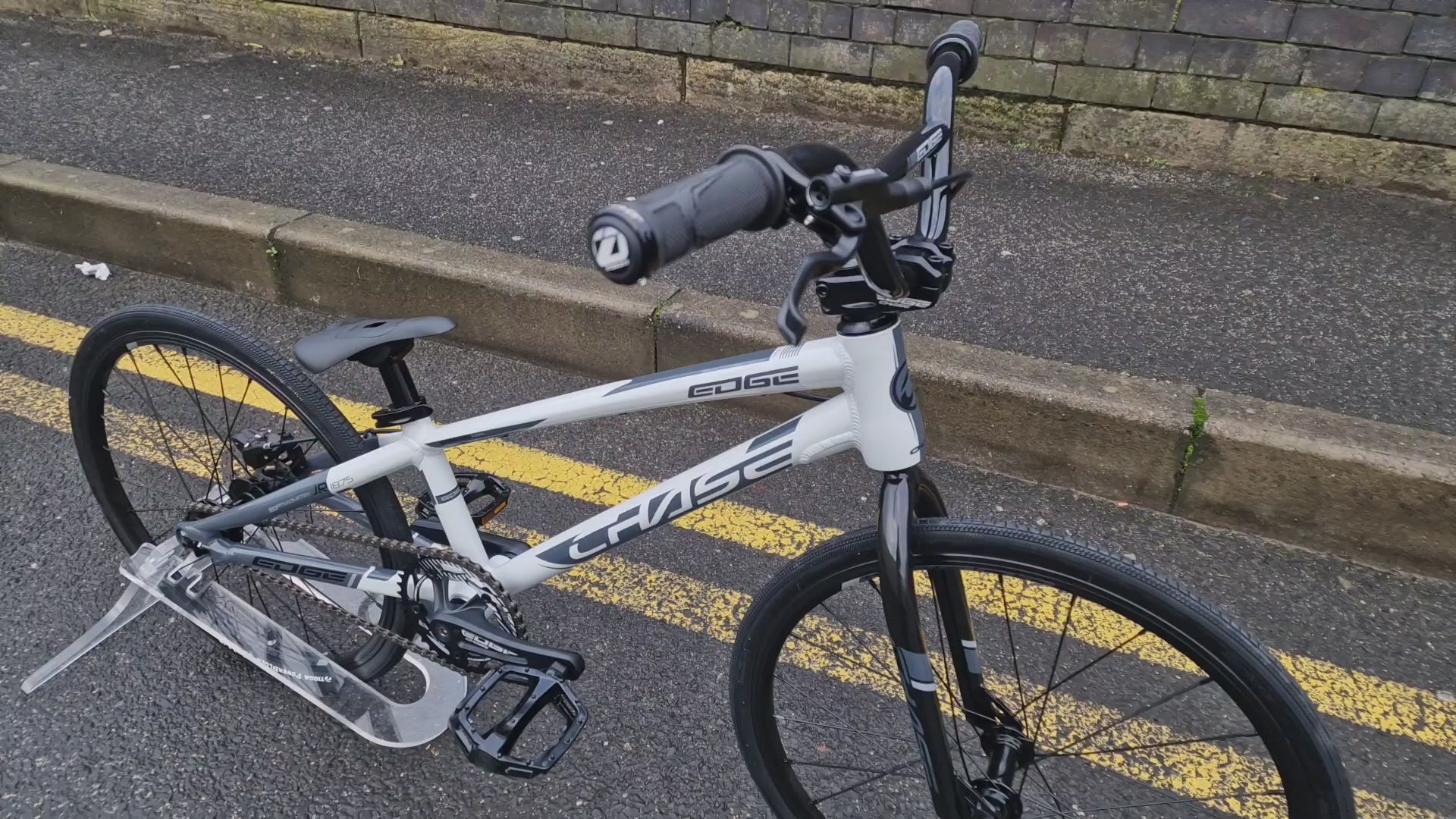

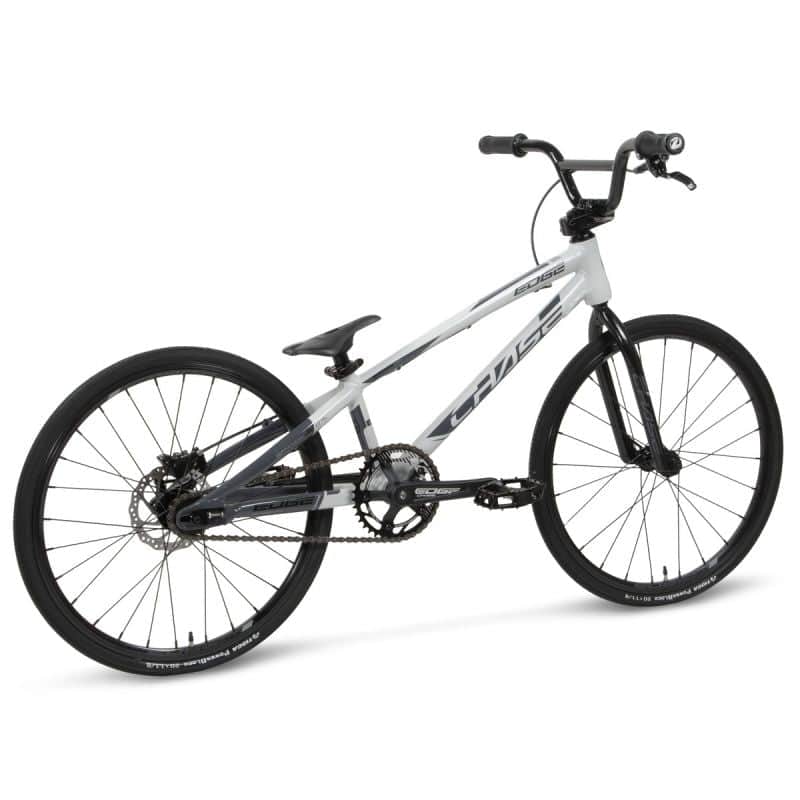

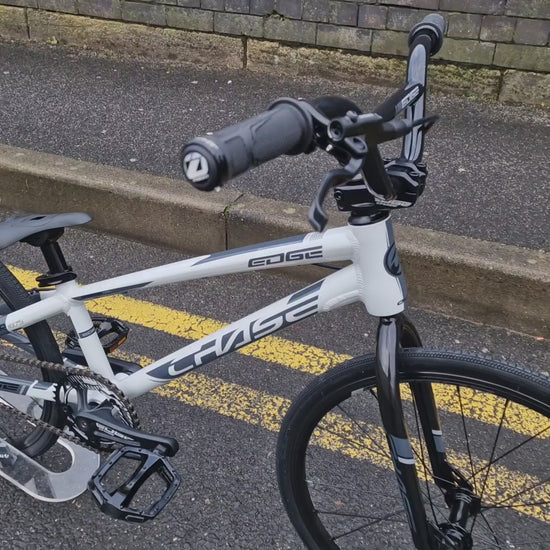

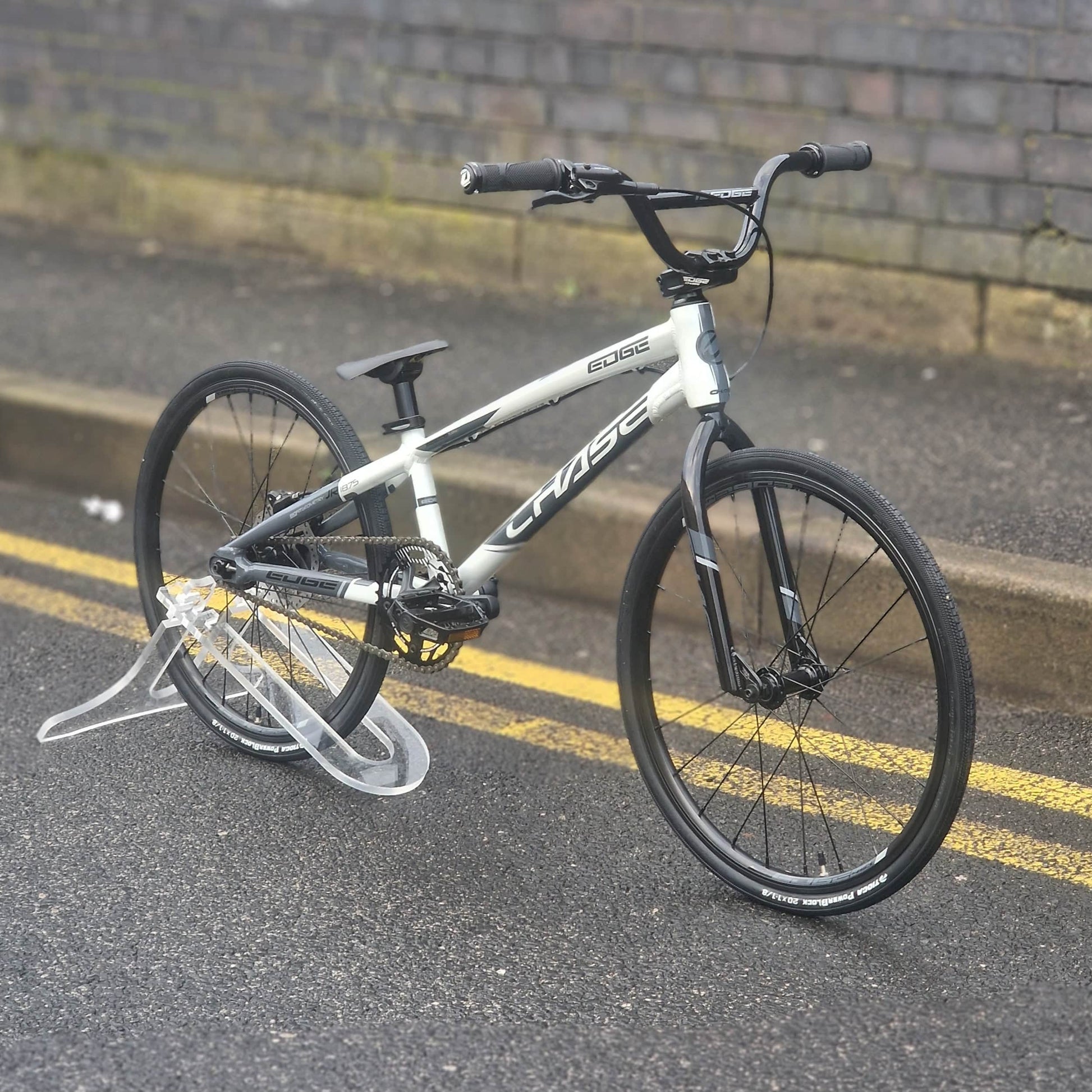

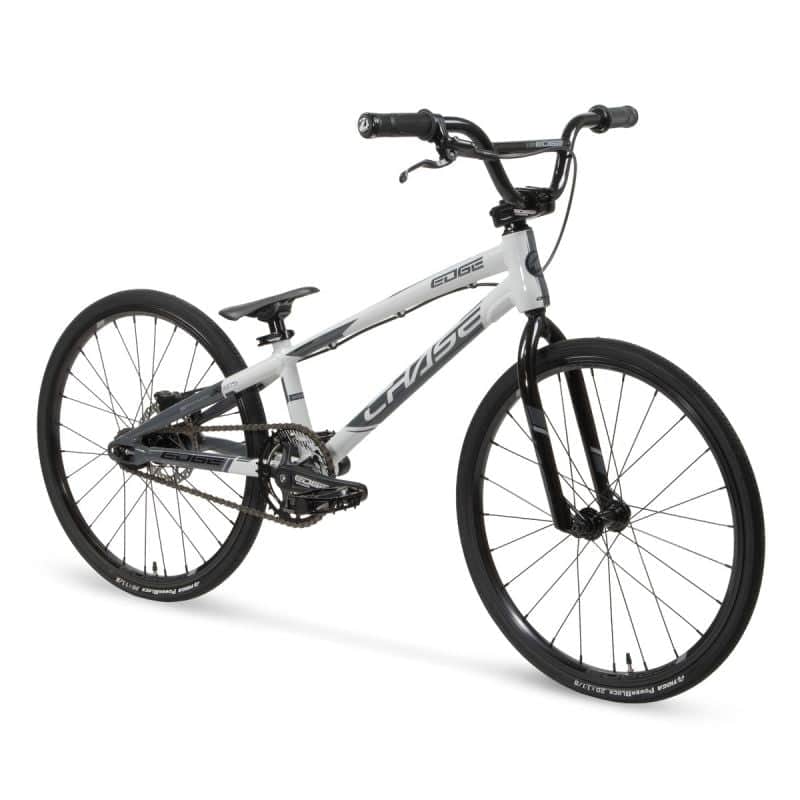

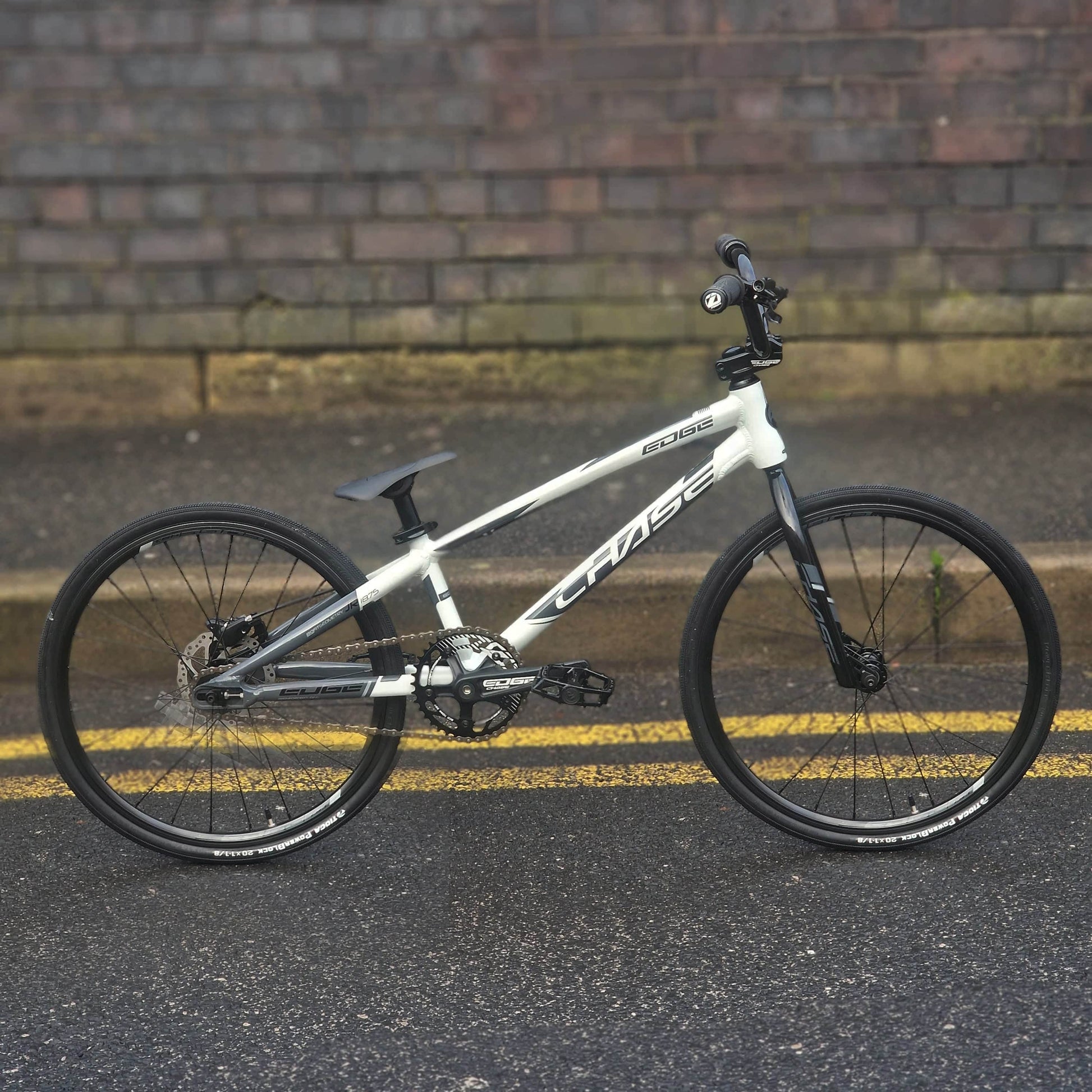

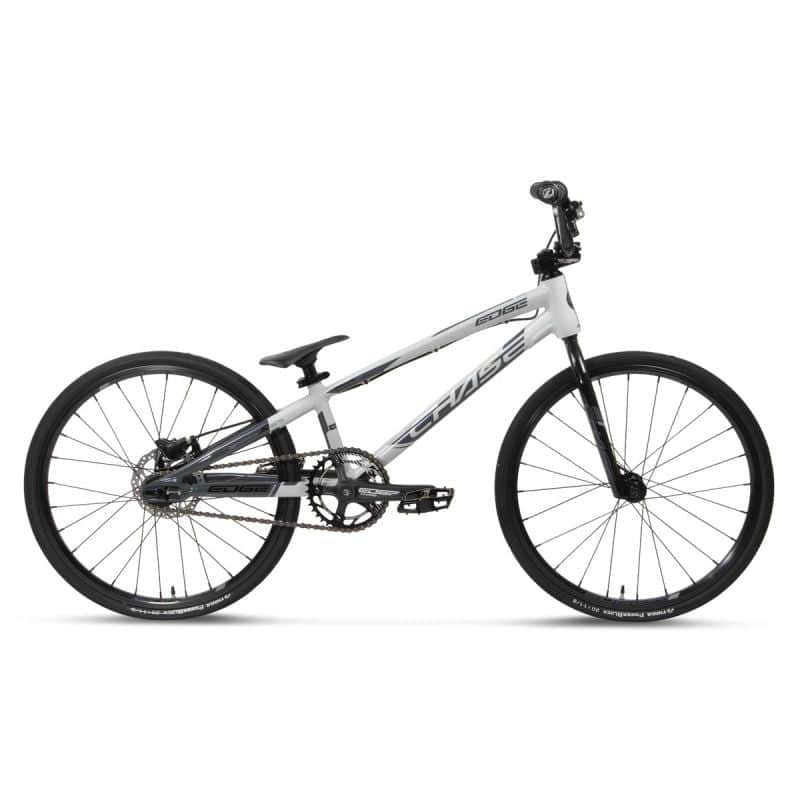

Chase Edge Junior Race Bike Cement
Chase Edge Junior Race Bike Cement
The all new CHASE Edge Junior is a race ready BMX machine, ideal for riders ready to get serious about BMX racing and take it to the next level.
Just when you didn't think it was possible, the new Edge has been improved, now equipped with Shimano disc brakes, updated gearing and crank length, 2 tone paint and graphics, closed rear dropout with integrated chain tensioner system,. The Edge frame also features hydroformed, triple butted, 6061 aluminum tubes with an integrated head tube. Other featured parts on the Edge include 4130 chromoly fork and handlebars, double wall rims with triple engagement rear cassette rear hub, and TIOGA tyres. The combination of all these components arguably makes the CHASE Edge one of the most advanced race BMX bikes available today.
FEATURES :
- FRAME: CHASE Edge Junior 18.75″ Top Tube, Triple Butted Hydroformed 6061 T6 Alloy, Enclosed rear dropouts, Integrated Chain tensioner system
- FORK: CHASE Edge Mini, Full Cr-mo, 1″ Steer Tube
- STEM: CHASE Edge 40mm
- HANDLEBAR: CHASE Edge 4.25″
- HEADSET: Integrated Sealed Bearing
- CHAINRING: INSIGHT 38T 5 Bolts BCD 110mm
- CRANKSET: CHASE Edge Alloy 150mm, 113mm squared axle BB
- HUBS: CHASE Edge Mini 3/8″ Axle, Sealed Bearings, Steel Cassette Body, Triple precise Rear Hub Clutch System with ISO disc brake standard (3 Pawls at Triple Angle Engagement for 24T Ratchets), 16T cog
- RIMS: CHASE Edge 118 Double Wall 20″x1-1/8″, 24H Front and 28H Rear
- TYRES: TIOGA PowerBlock 20″x1-1/8″ Front and Rear
- BRAKES: Shimano Hydraulic BL-MT200(R) / BR-MT200(R) ISO 140mm
- SEAT: INSIGHT Mini Pivotal
RECOMMENDED SIZE: 1.22m – 1.35m
WEIGHT: 7.95Kg without pedal
SPECIFICATIONS :
|

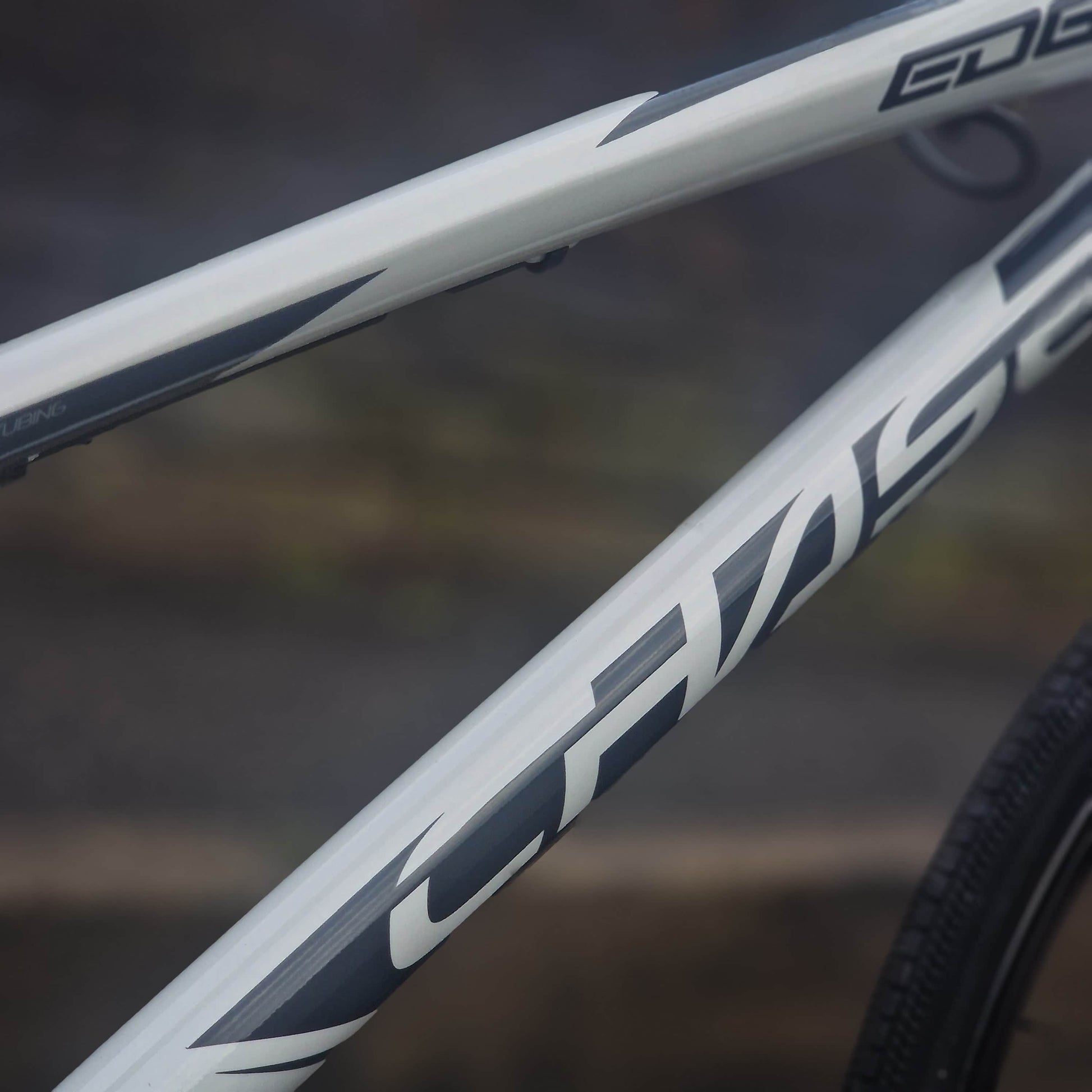

FRAME
|

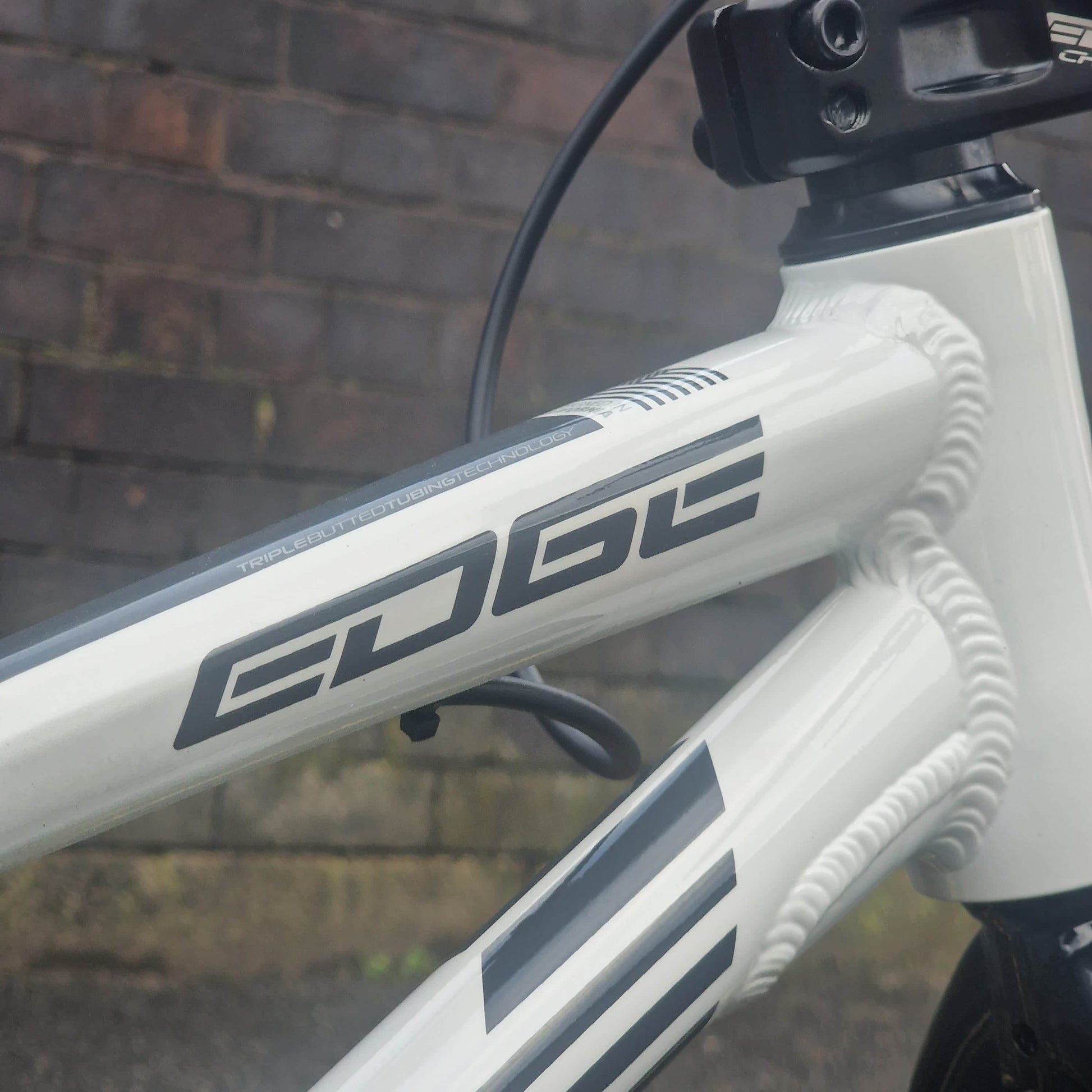

CHASE Edge Junior 18.75" Top Tube, 6061 T6 Alloy Triple butted Hydroformed, Integrated Head Tube, Enclosed rear dropouts and Chain tensioner system |
|

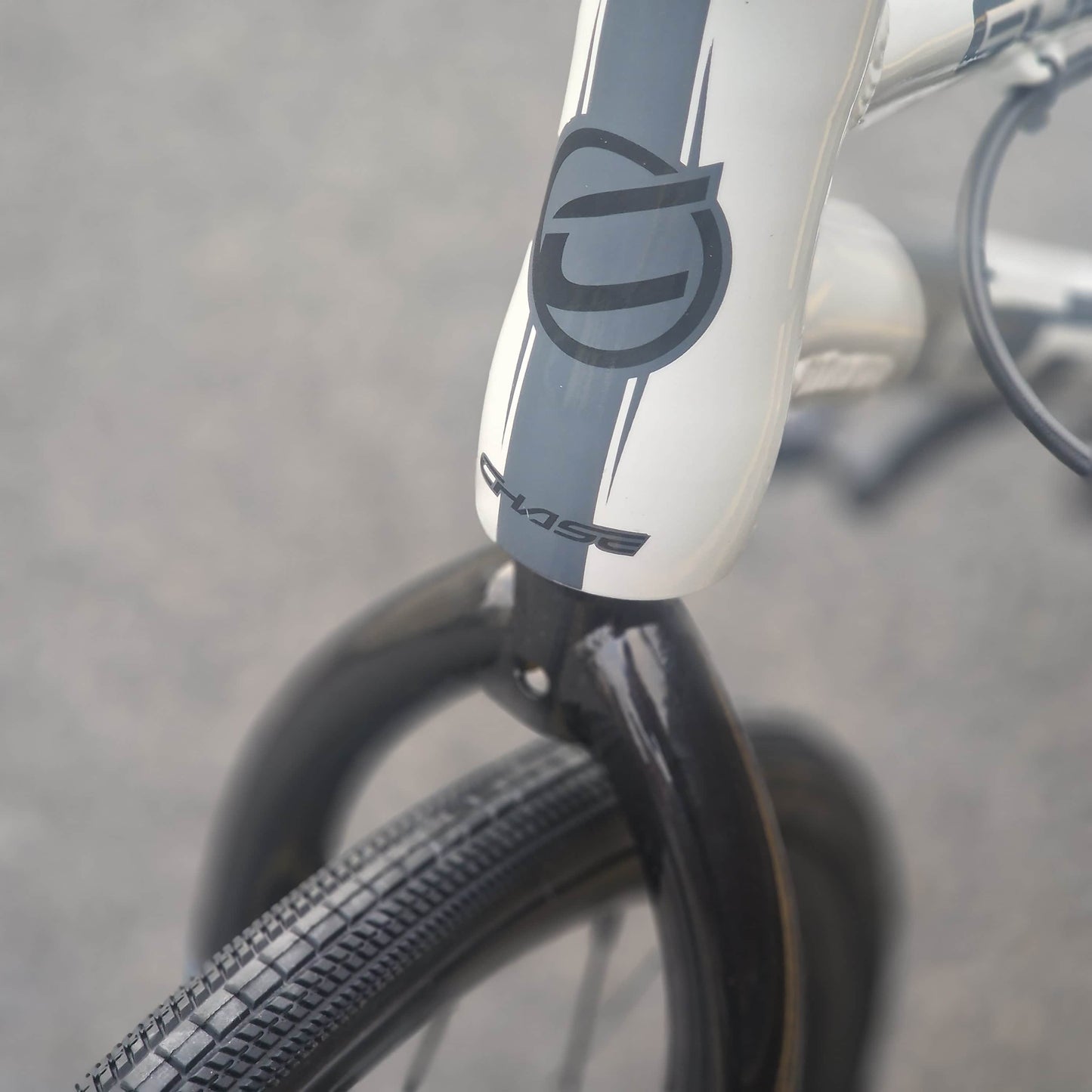

FORK
|
CHASE Edge Full Cr-mo, 1" Steer Tube, Tapered Blades |
|
HEADSET
|
Integrated IS 42/42 Reducer 1", Sealed Bearing |
|

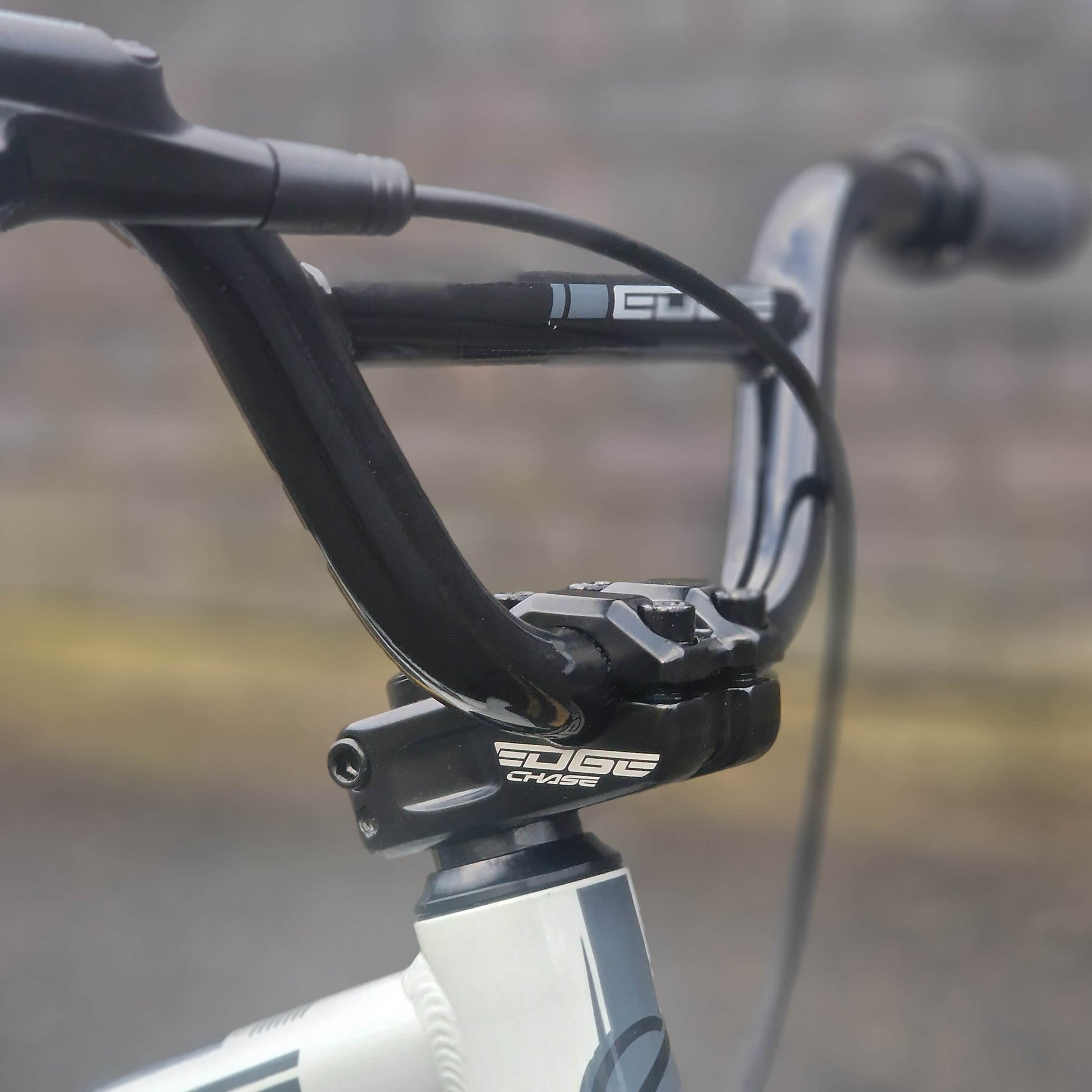

HANDLEBAR
|
Chase Edge Cr-mo 4.25" Rise, 24" Wide, 8° Back Sweep & 2° Up Sweep |
|
GRIPS
|

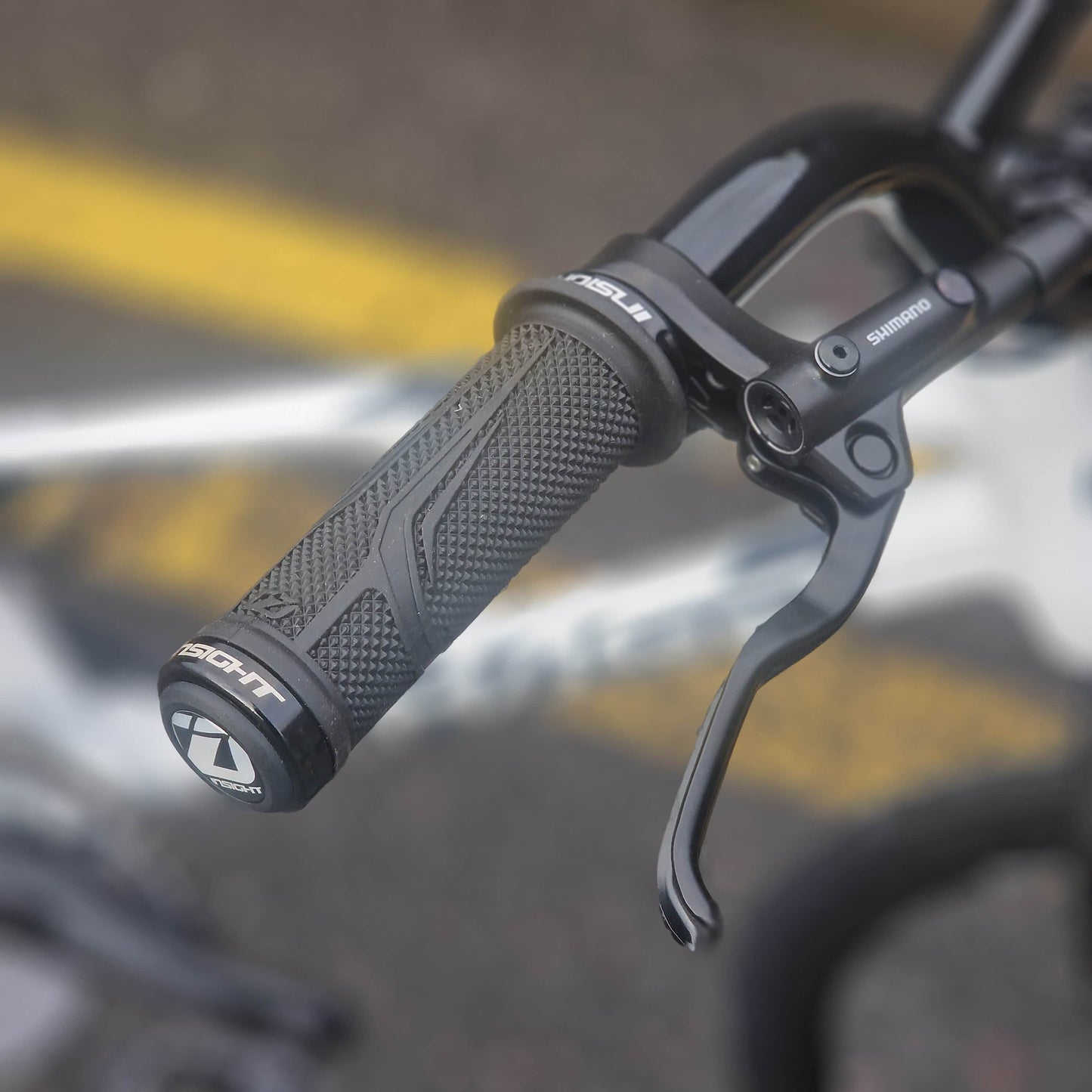

INSIGHT C.O.G.S 115mm Lock-on |
|
STEM
|
CHASE Edge 40mm 6061 T6 Alloy |
|
BB
|
Euro Square 113mm Sealed Bearing |
|

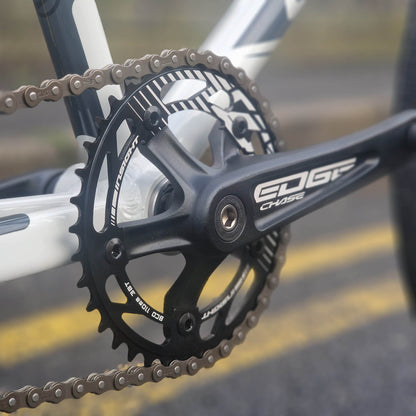

CHAINRING
|
Insight 38 Tooth 5 Bolt 110mm 1/2"x3/32" 3mm Alloy Ring |
|
CRANK
|
Chase Edge 3 Piece Crank 150mm Alloy Arm With Laser Etched Logo, Cr-mo Chain Ring Bolts / Nuts |
|
PEDAL
|
Mini Platform 9/16" Barrel Polished With Grip Nodes, Axle Boron Steel, Ball Bearing |
|
CHAIN
|
KMC Z1 narrow 1/2"x3/32" |
|
COG
|
16T steel |
|

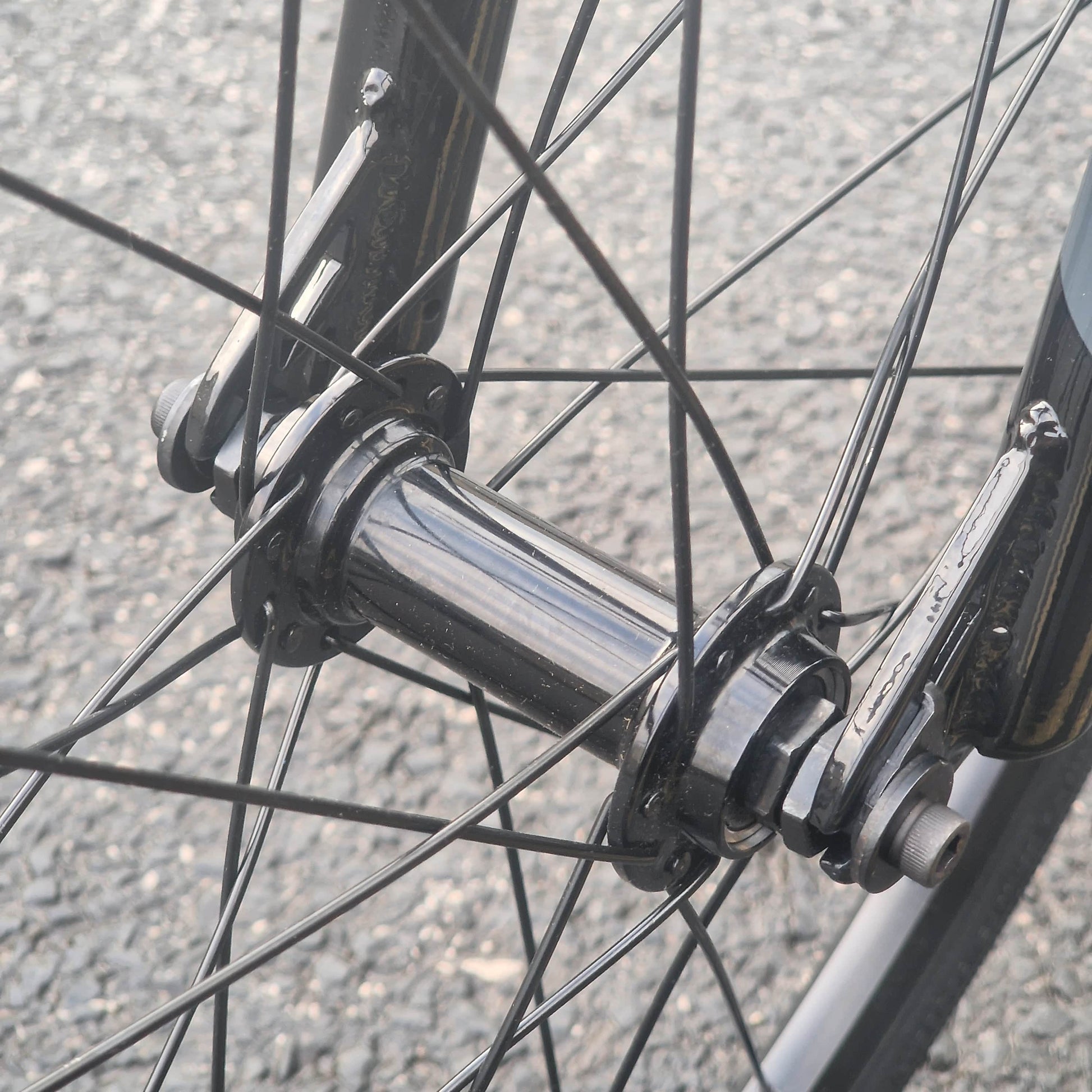

FRONT HUB
|
Mini 24H, Sealed Bearing, 10mm Axle, M6 bolts |
|
REAR HUB
|
Mini ISO 28H, Sealed Bearing, 10mm Axle, M6 bolts, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets |
|
SPOKES
|
Front 208mm, Rear 198/199mm, 14 Gauge, Steel |
|
NIPPLES
|
16mm, 14 Gauge, Brass |
|
FRONT RIM
|

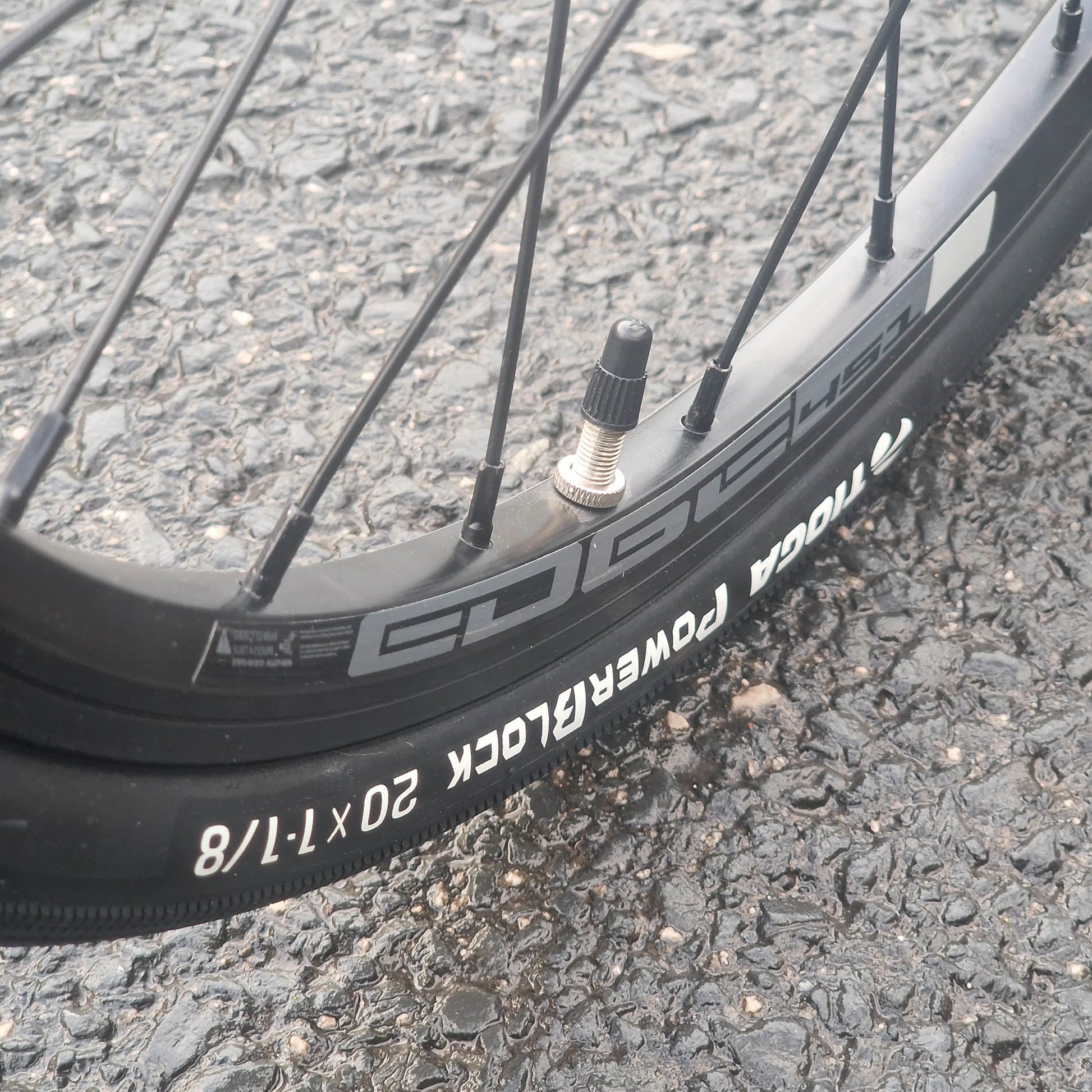

Chase Edge Alloy 118 Double Wall 24H 20"x1-1/8" Presta Valve |
|
REAR RIM
|
Chase Edge Alloy 118 Double Wall 28H 20"x1-1/8" Presta Valve |
|
FRONT TYRE
|
Tioga PowerBlock 20"x1-1/8" Wire Bead |
|
REAR TYRE
|
Tioga PowerBlock 20"x1-1/8" Wire Bead |
|
TUBES
|
20''x1-1/8" Presta Valve |
|
BRAKE LEVER
|
Shimano Disc Brake BL-MT200(R) Hydraulic |
|

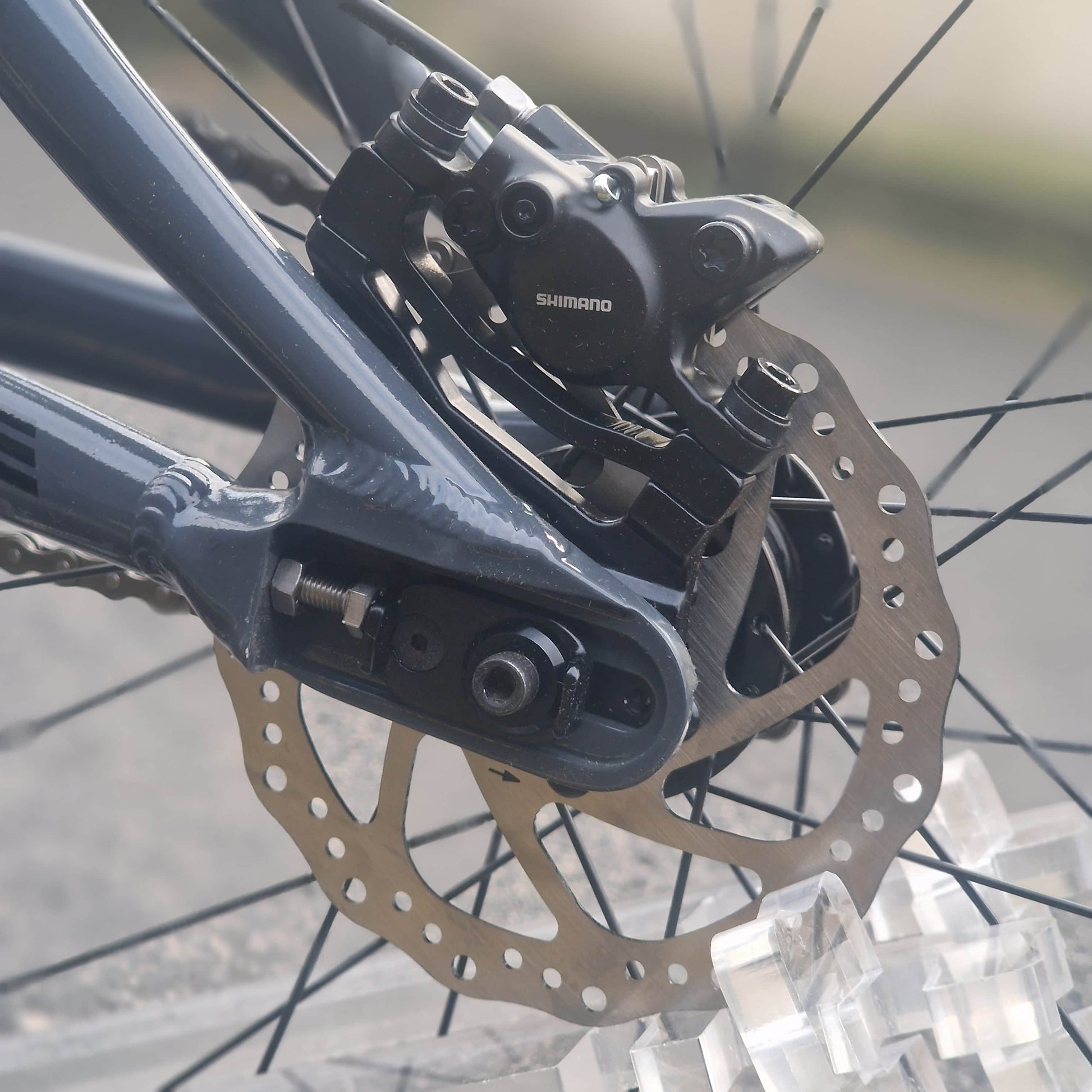

BRAKE CALIPER
|
Adaptor 140mm Setup, With Shimano Disc Brake Caliper BR-MT200(R) Hydraulic Resin Pads And 140mm Rotor |
|

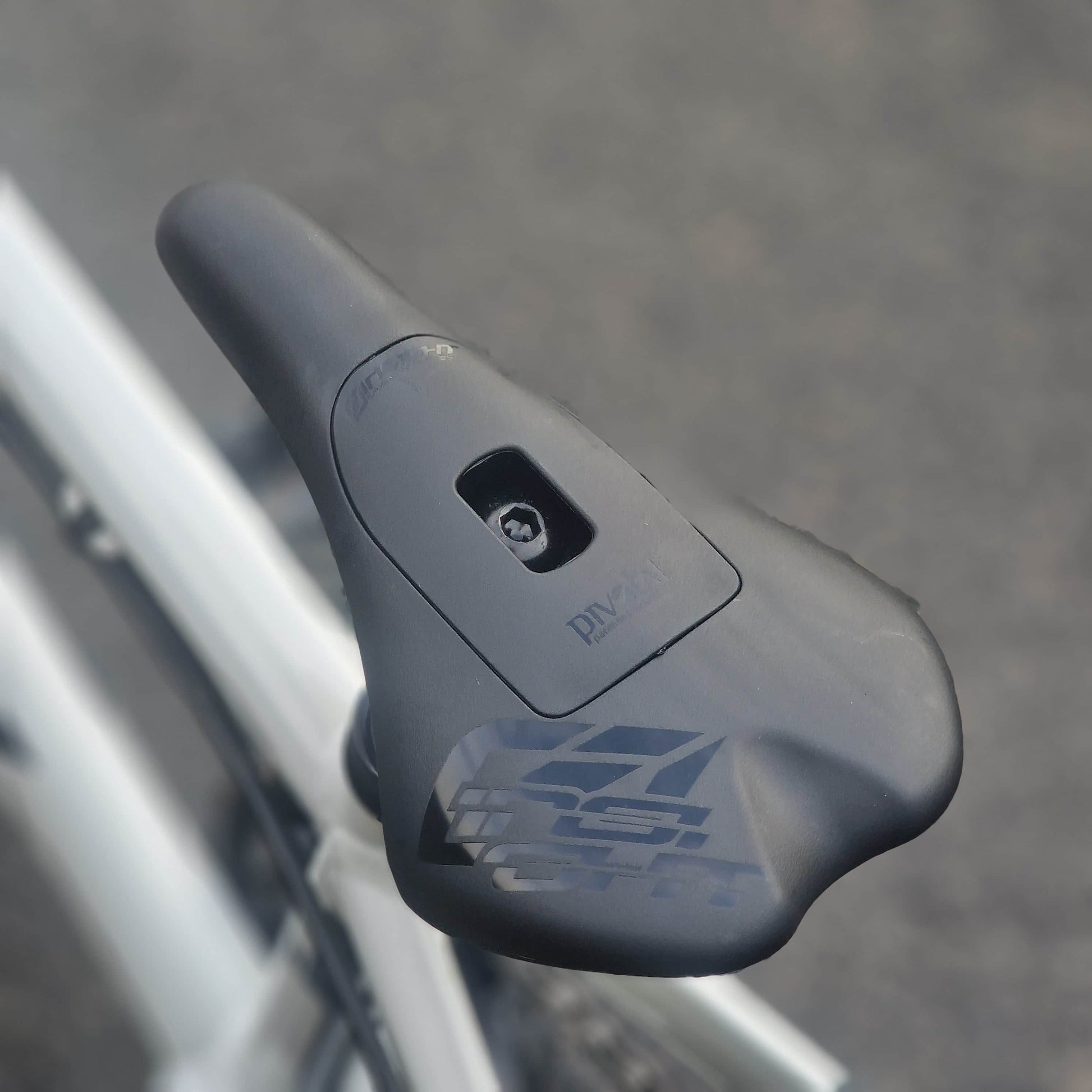

SADDLE
|

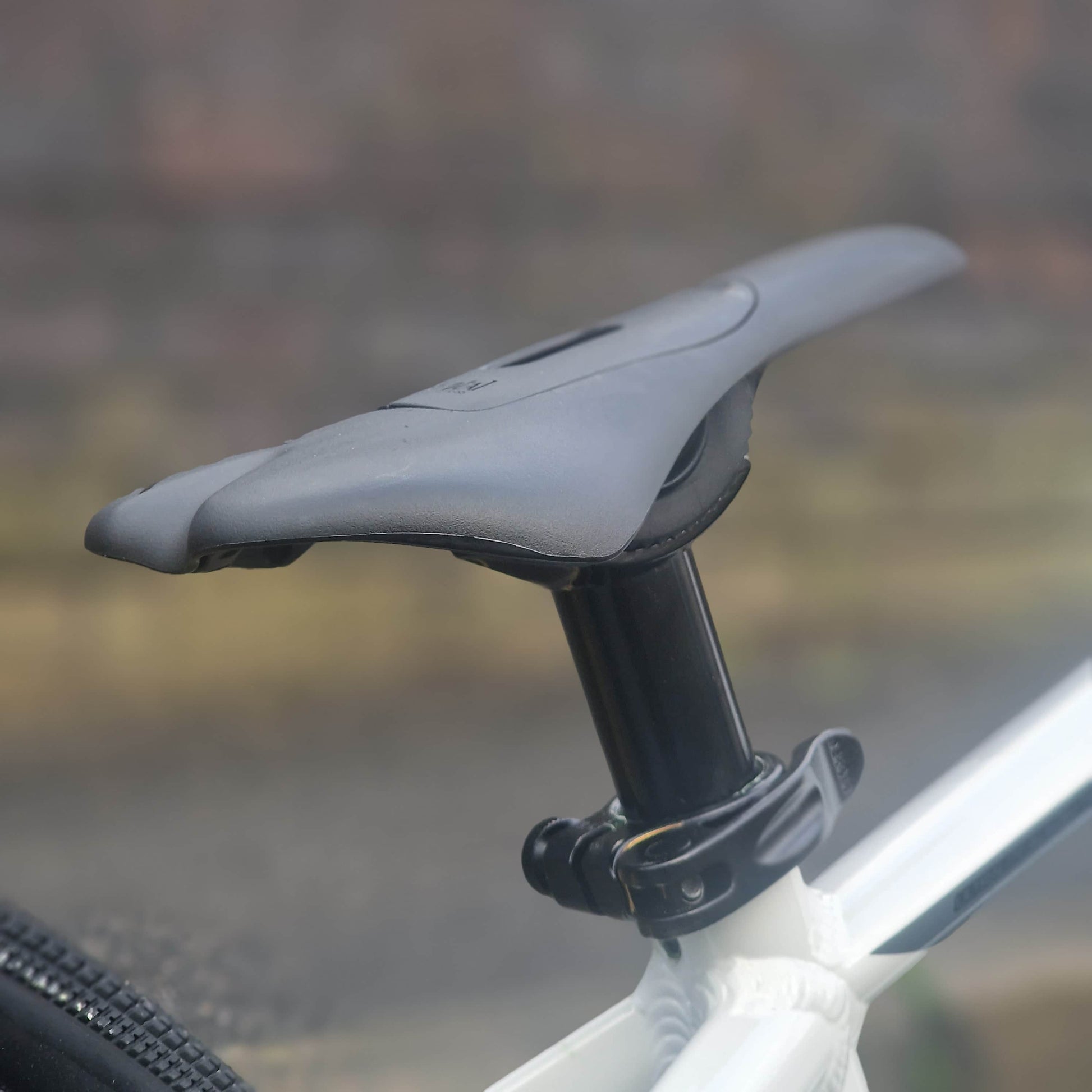

Insight Mini Pivotal Nylon Plastic Body with Cr-mo Bolt |
|
SEAT POST
|
Pivotal 25.4x110mm Polished Alloy |
|
SEAT CLAMP
|
Chase Edge QR Alloy 28.6mm |
|
CHAIN TENSIONER
|
Integrated Built-In With New Lock Disc Adaptor |
