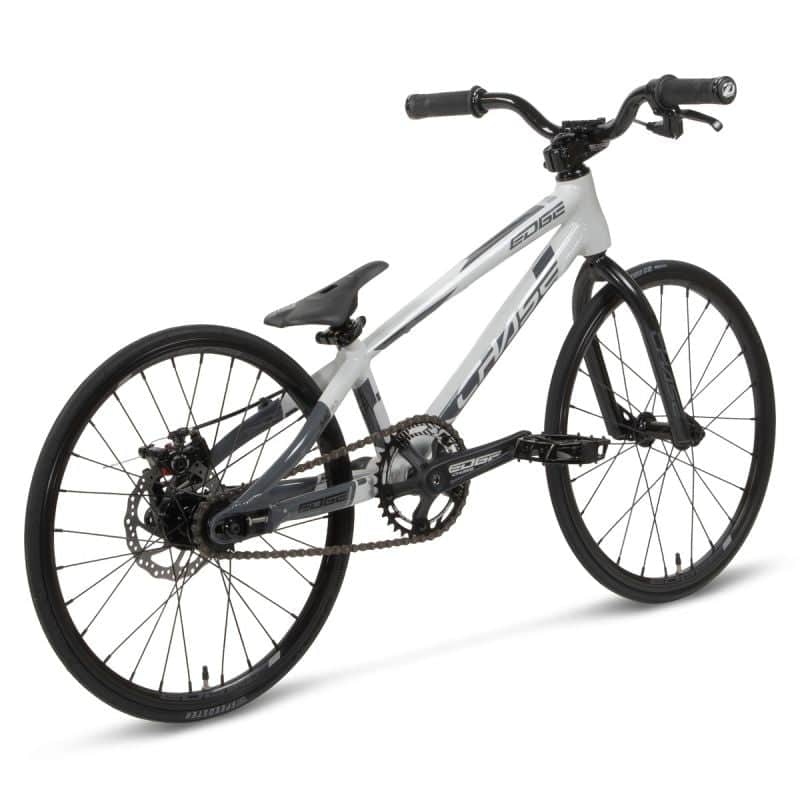

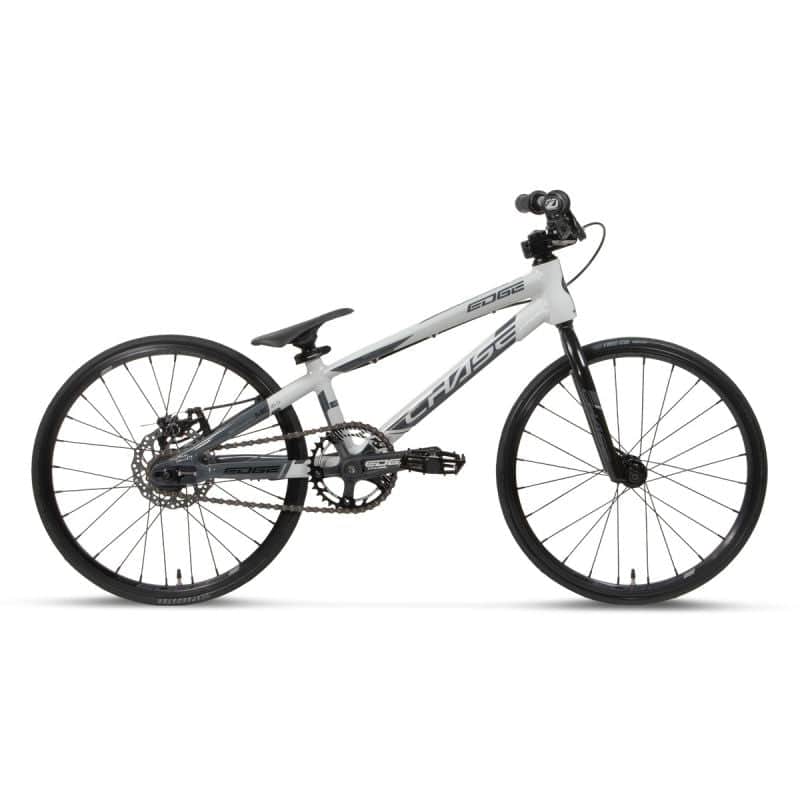

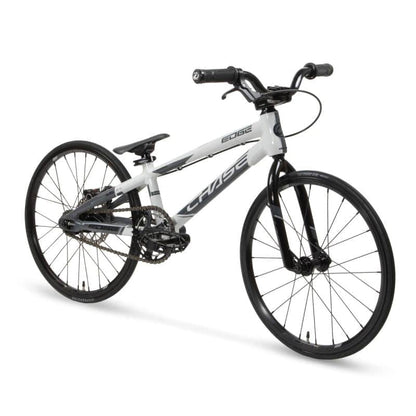

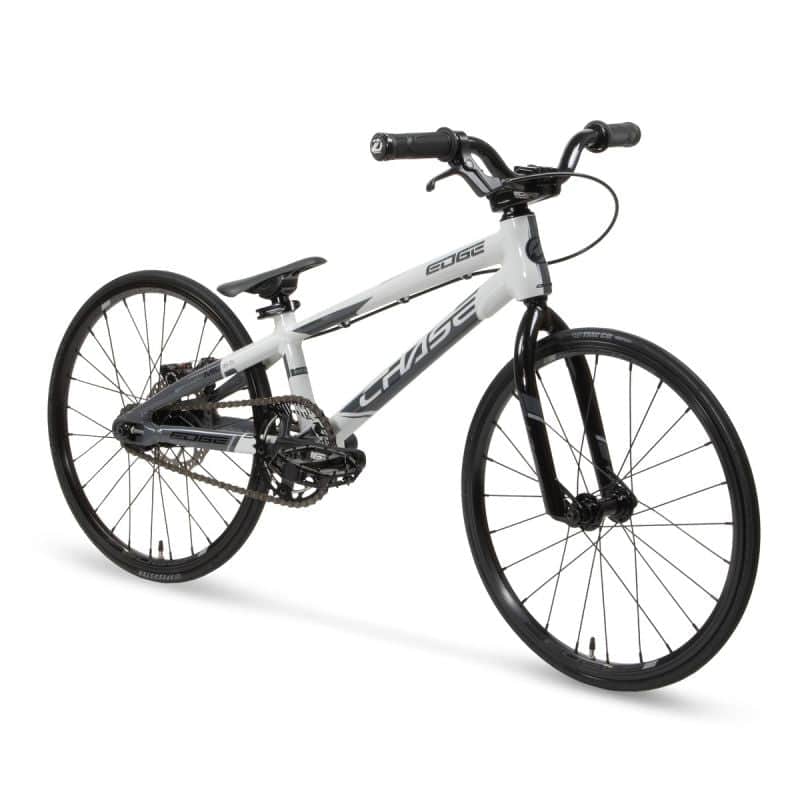

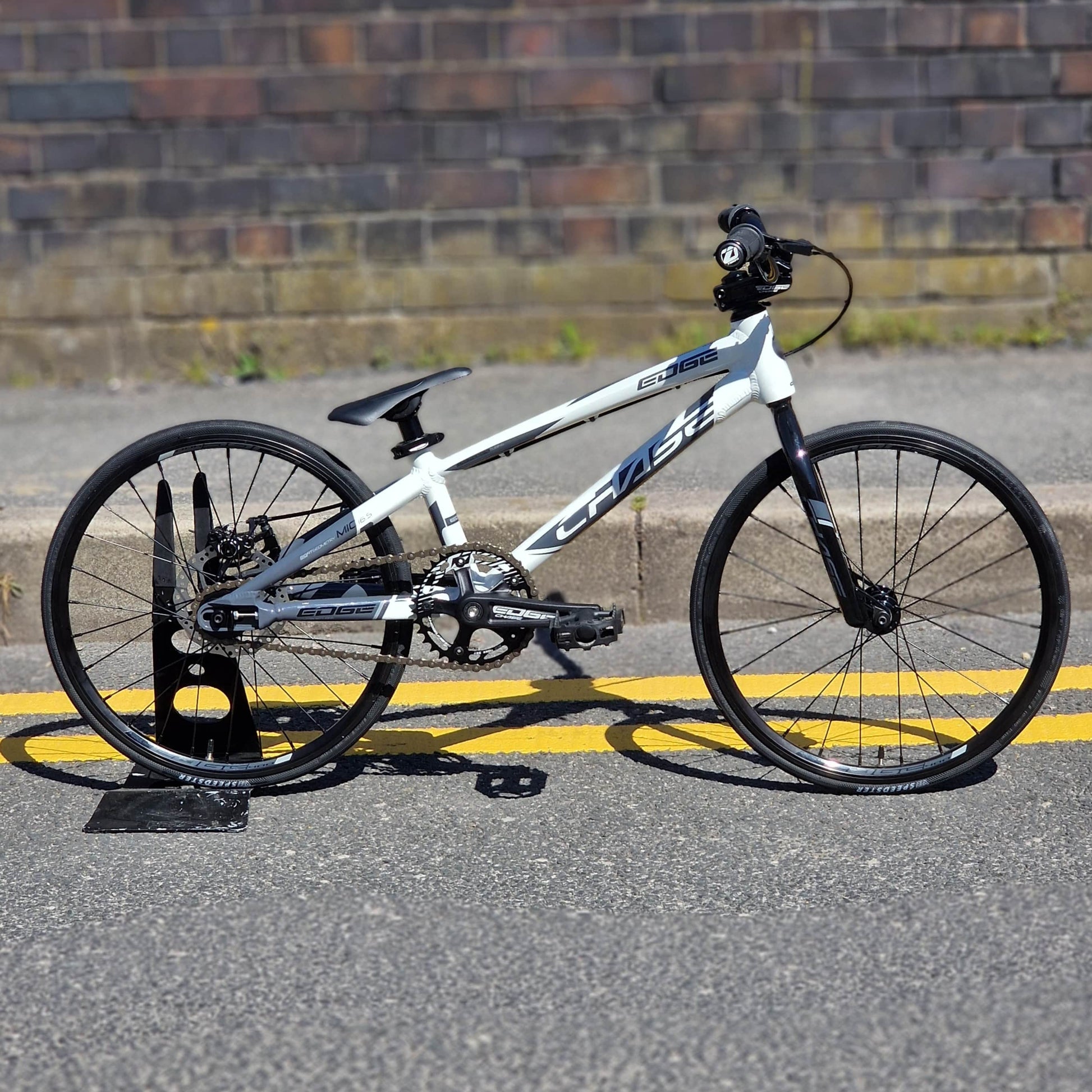

Chase Edge Micro Race Bike Cement Grey
Chase Edge Micro Race Bike Cement Grey

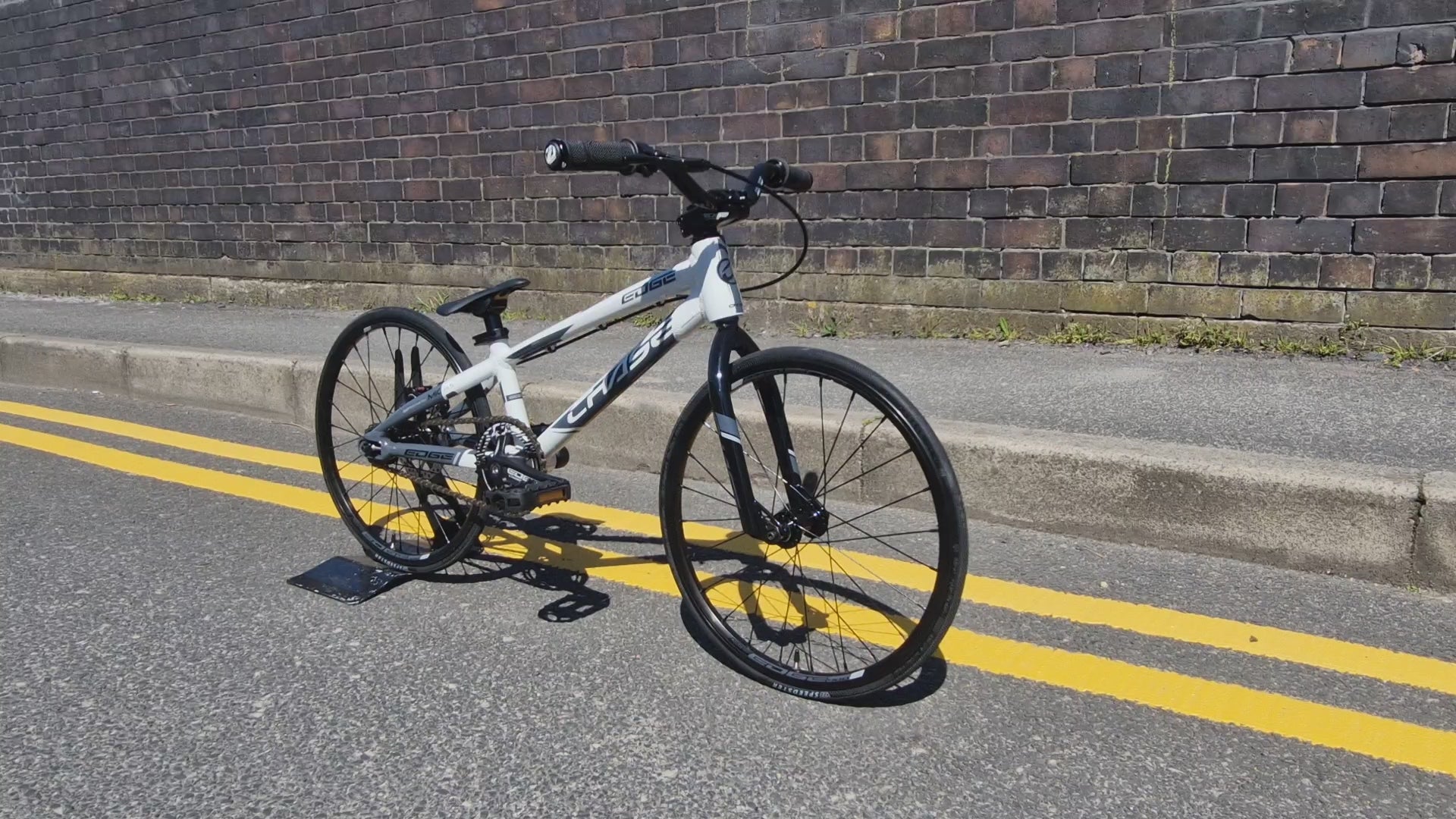

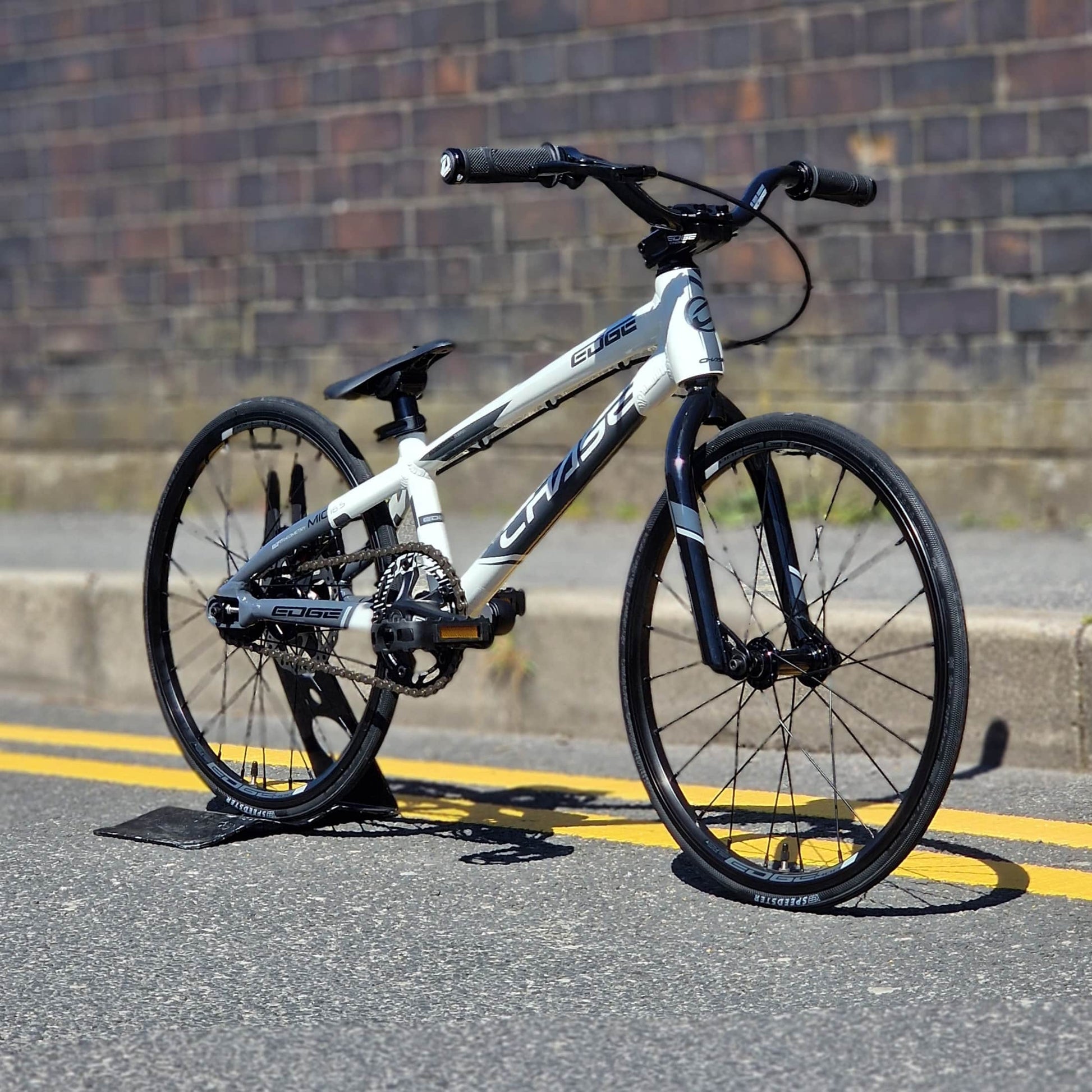

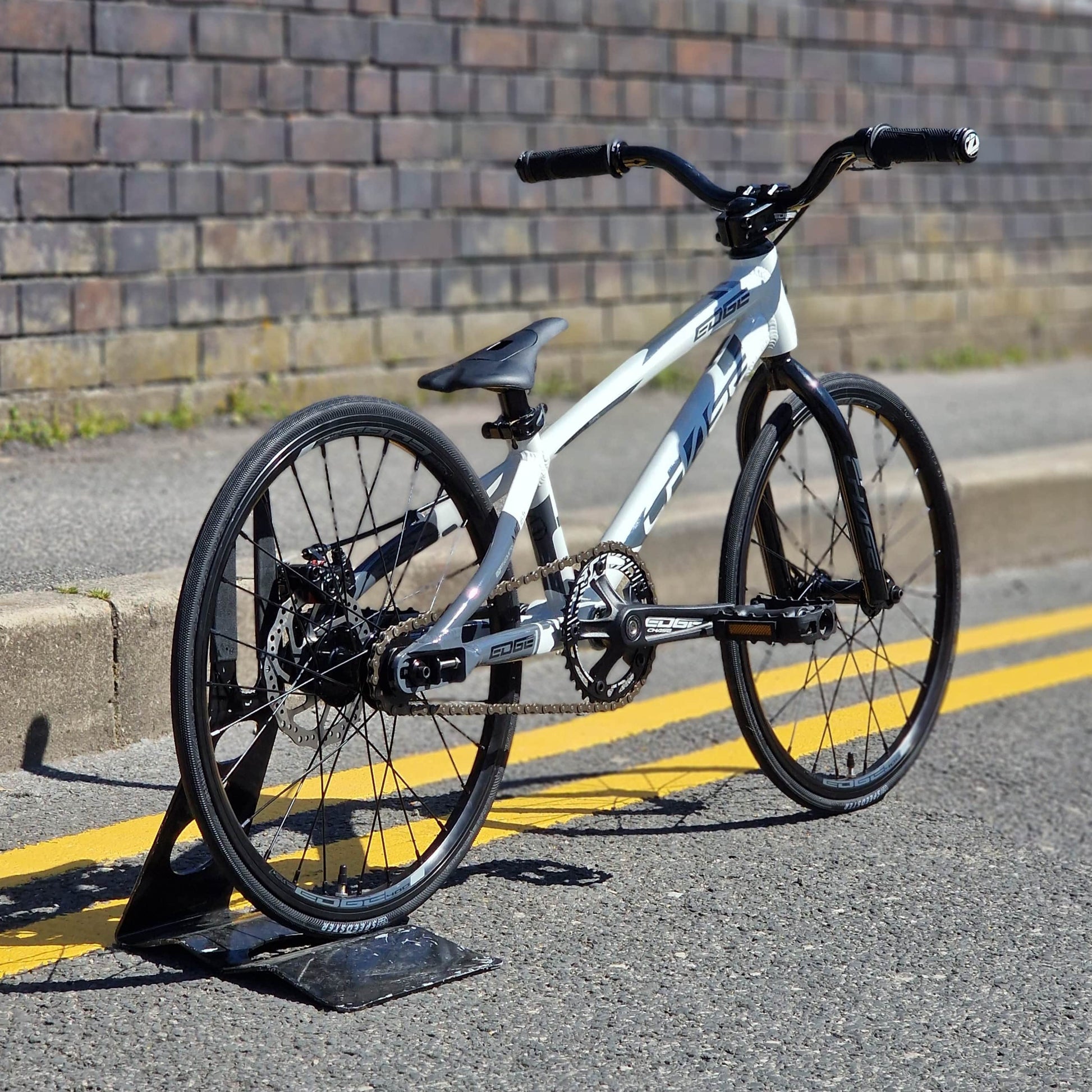

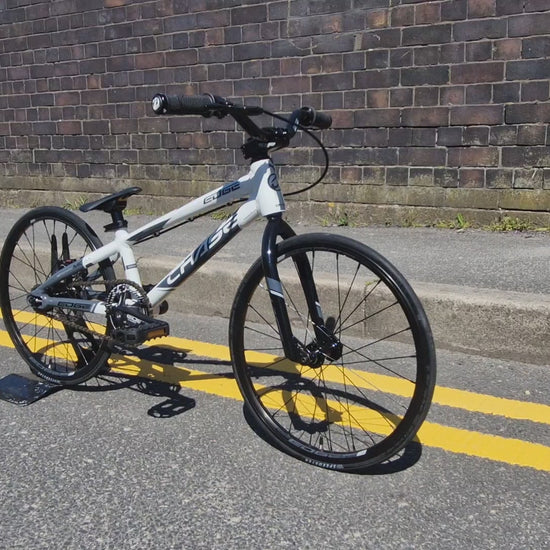

The CHASE Edge is a pure BMX racing machine, ideal for improving and taking it to the next level after starting the BMX Race. Now equipped with a disc braking system and closed rear dropout system, it has a hydroformed triple butted 6061 aluminum frame with integrated headset, a chromoly fork and handlebars, a crankset with INSIGHT chainring, double wall rims with cassette rear hub and Vee Rubber Speedster tyres. The combination of all these components arguably makes the CHASE Edge one of the most advanced race BMX bikes on the market today.
Also available in Slate Blue
FEATURES
Aluminum 6061-T6 Triple butted frame 16.25"TT
Integrated headtube 1" and enclosed rear dropouts
100% Chromoly fork and handlebar
Mechanical disc braking
Chase Edge Alloy Stem 40mm Top Load
Chase Edge 3 Piece Crank 130mm, Chromo Chainring bolts
Euro Square 113mm Sealed Bearing
35T Insight Chainring 5 points BCD 110mm
Mini 24H Front, 28H Rear alloy hubs, sealed bearings
Rear ISO bracket cassette hub 16T cogs
Chase Double Wall Alloy rims 18x1"
Insight Mini Pivotal Seat
Vee Rubber Speedster tyres Wire Bead
KMC Z1 chain

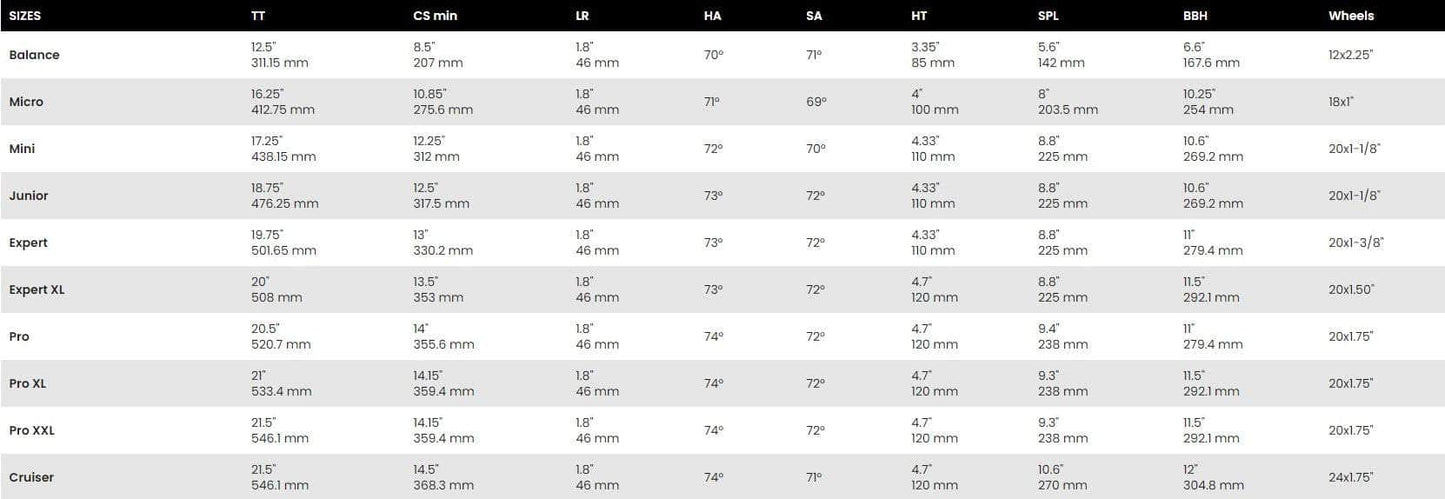

RECOMMENDED SIZE: 100cm-115cm
WEIGHT: 6.99kg without pedals
SPECIFICATIONS
SPECIFICATIONS :

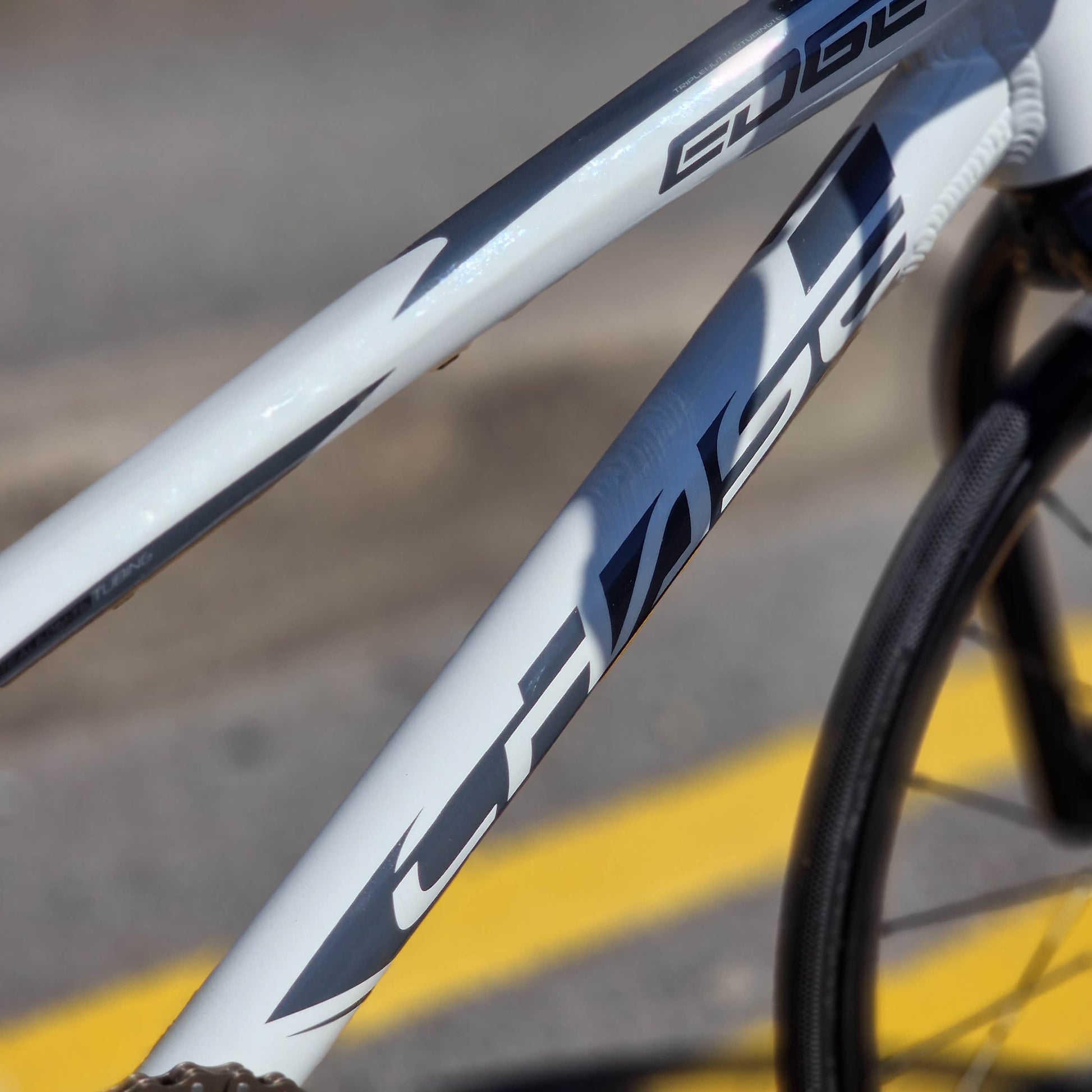

FRAME
|

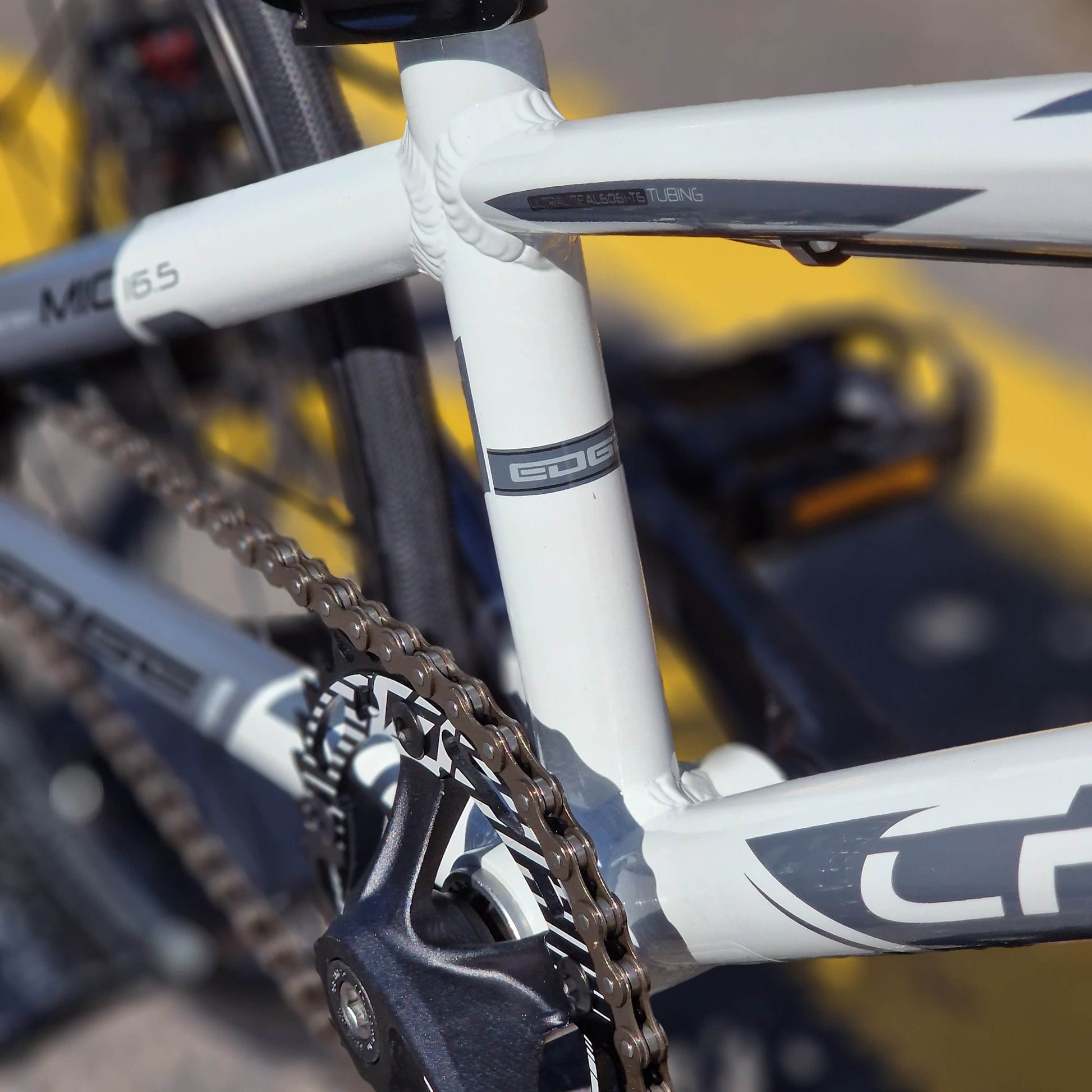

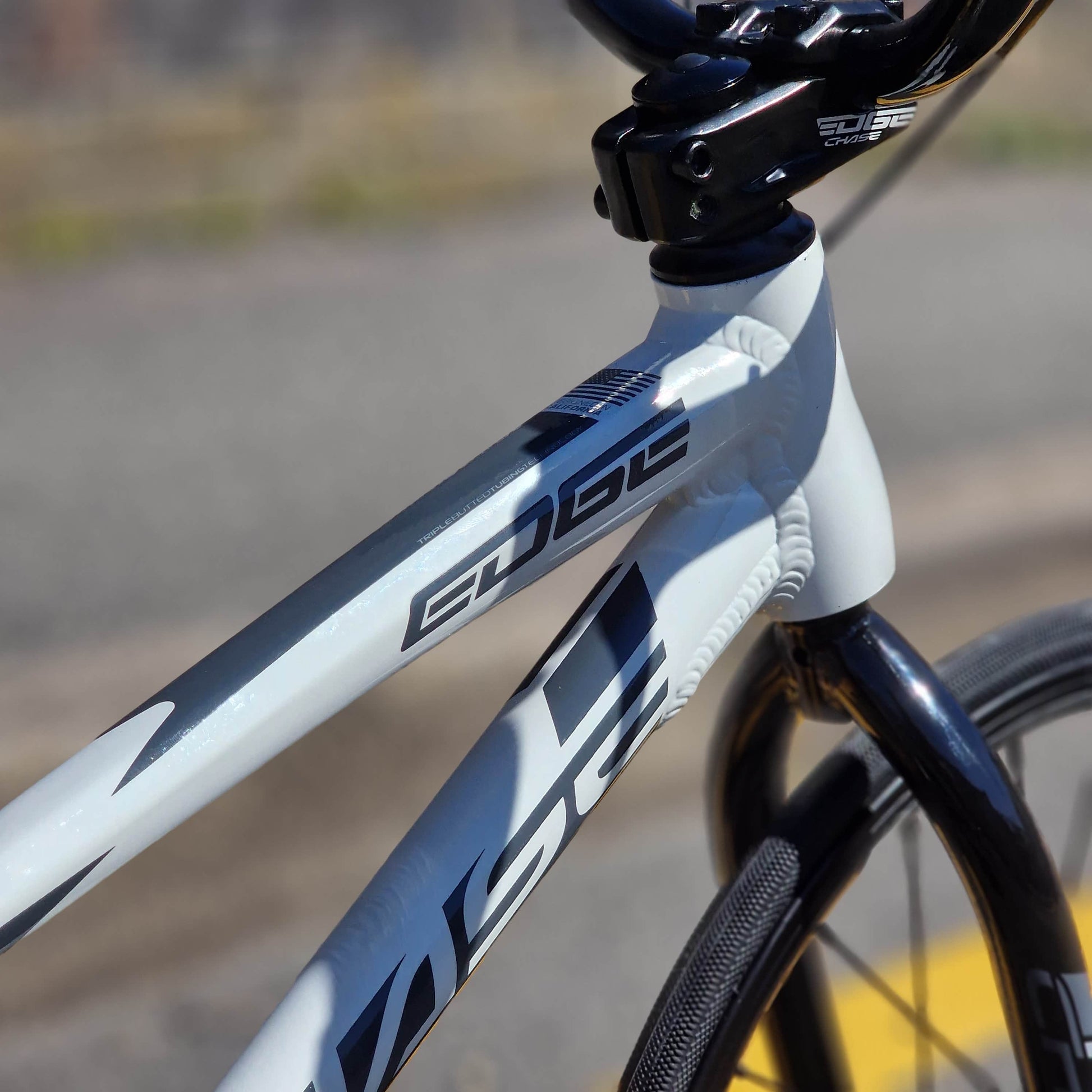

CHASE Edge Mini 16.25" Top Tube, 6061 T6 Alloy Triple butted Hydroformed, Integrated Head Tube, Enclosed rear dropouts and Chain tensioner system |
FORK
|

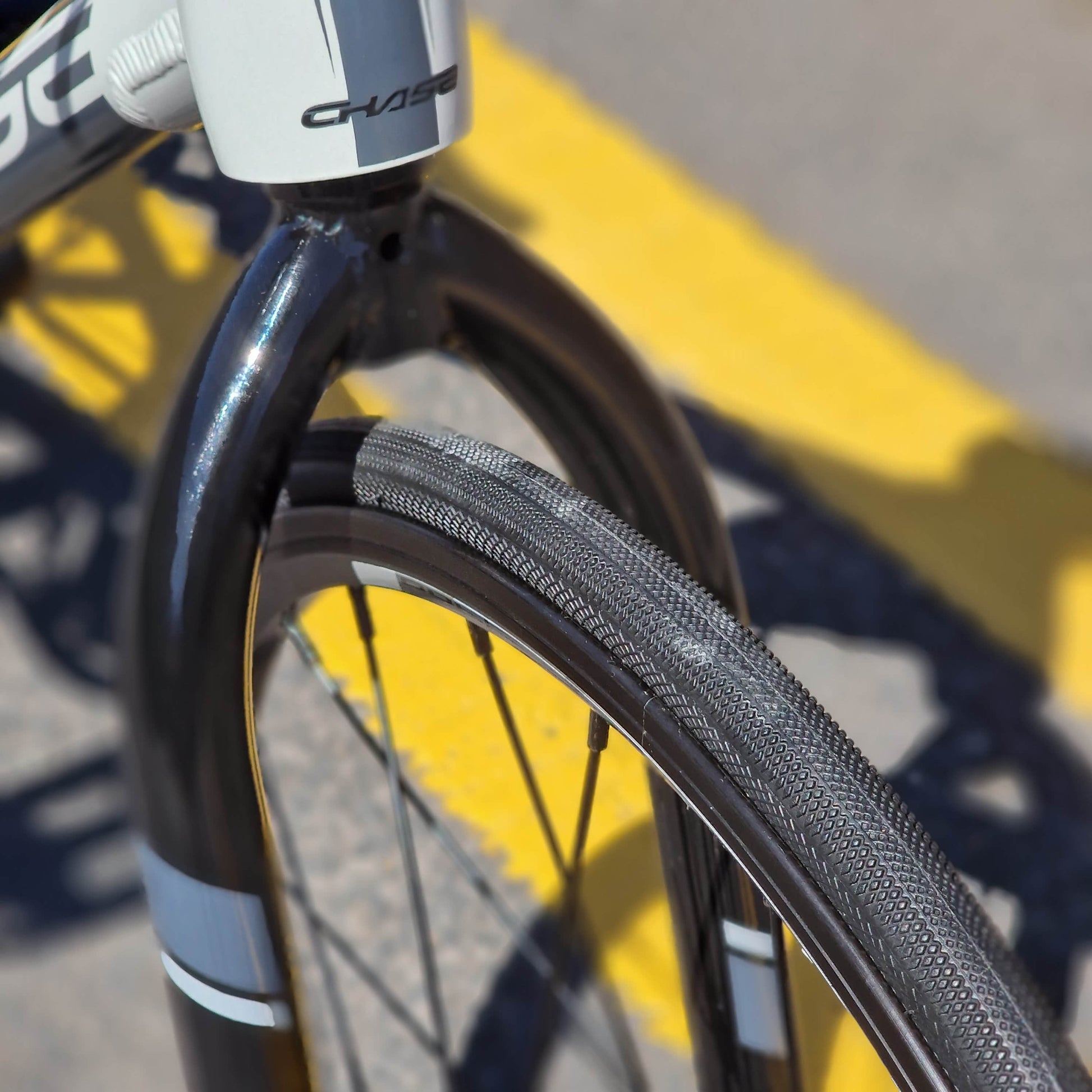

CHASE Edge Full Cr-mo, 1" Steer Tube, Tapered Blades |
HEADSET
|

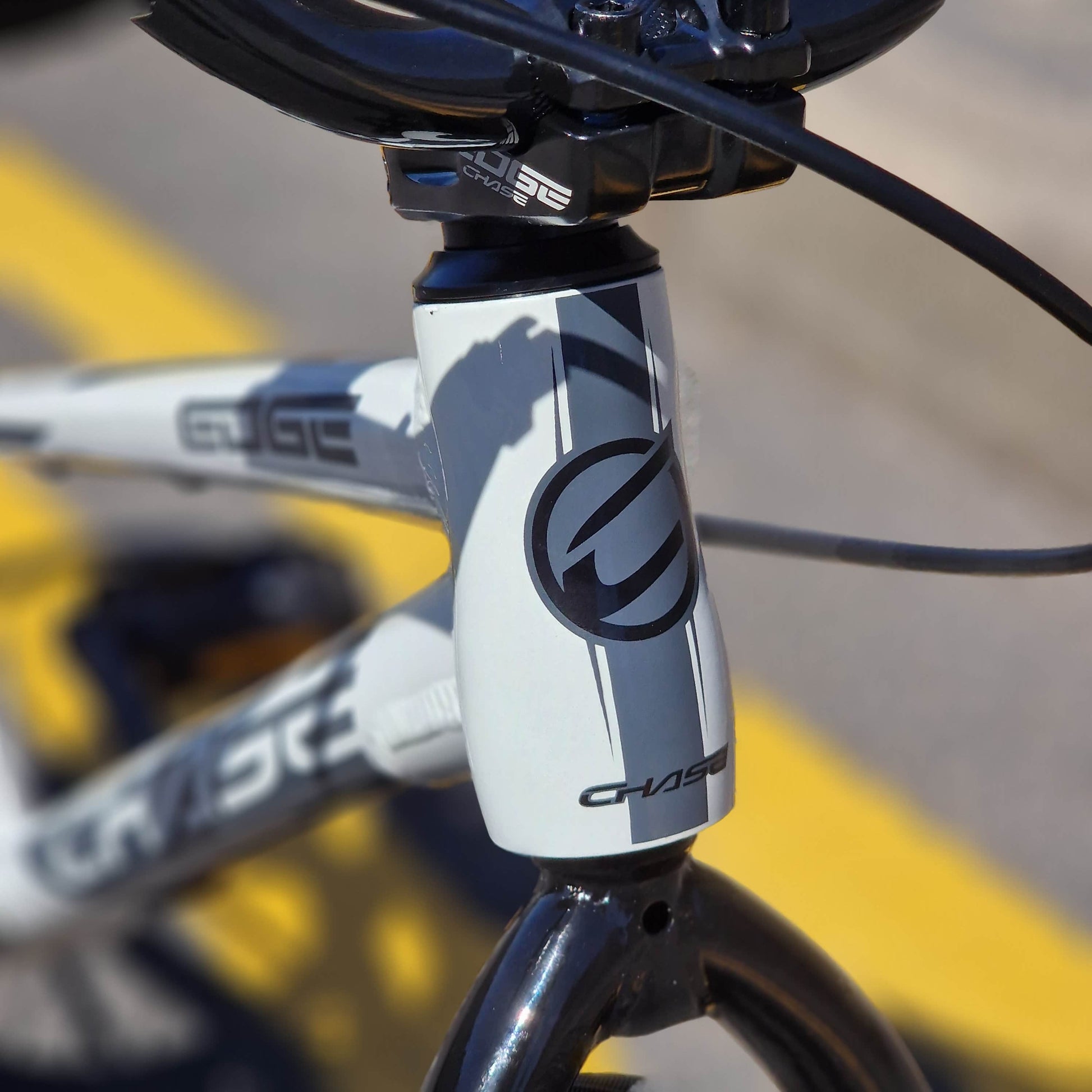

Integrated IS 42/42 Reductor 1", Sealed Bearing |
HANDLEBAR
|

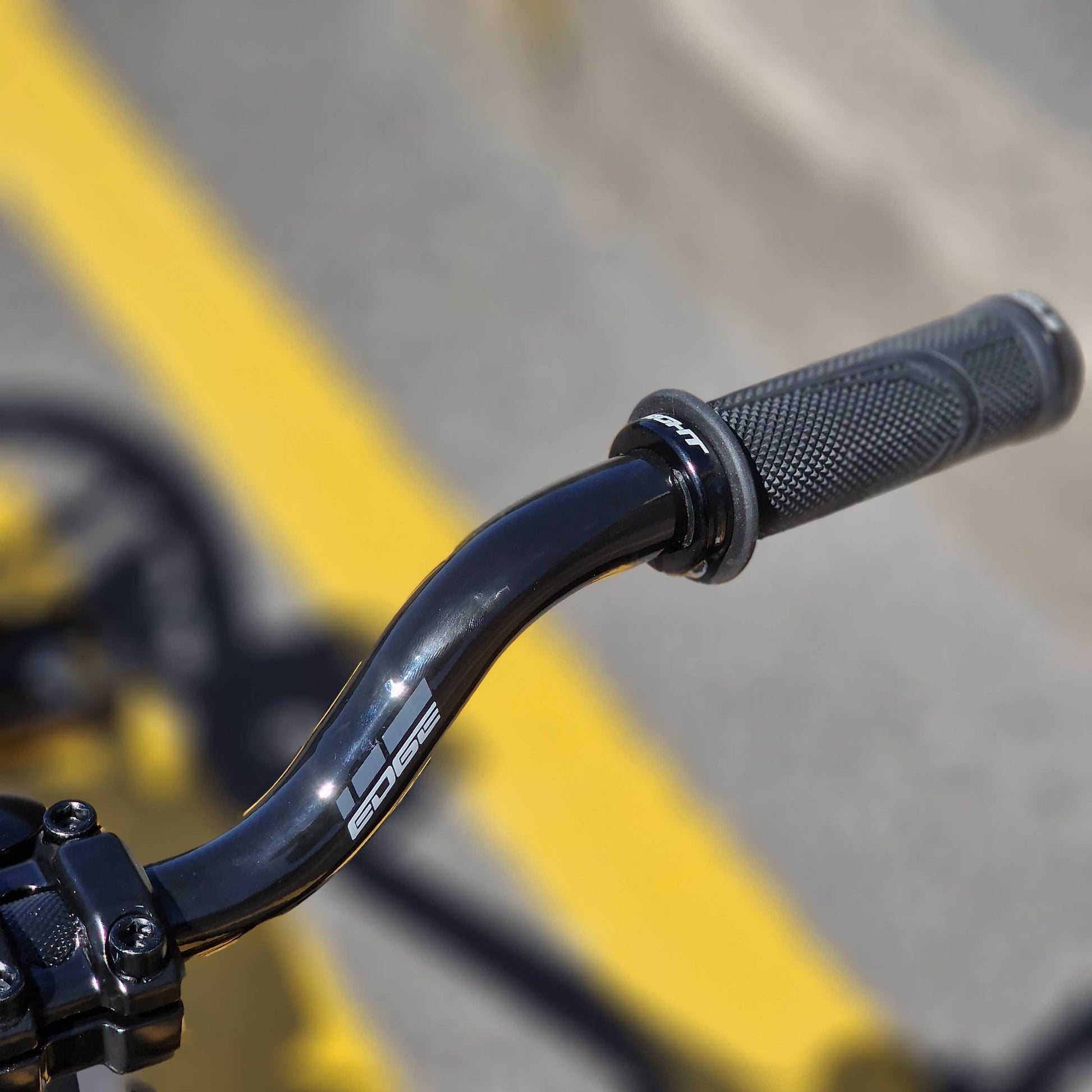

Chase Edge Cr-mo 2.25" Rise, 20" Wide, 8° Back Sweep & 2° Up Sweep |
GRIPS
|

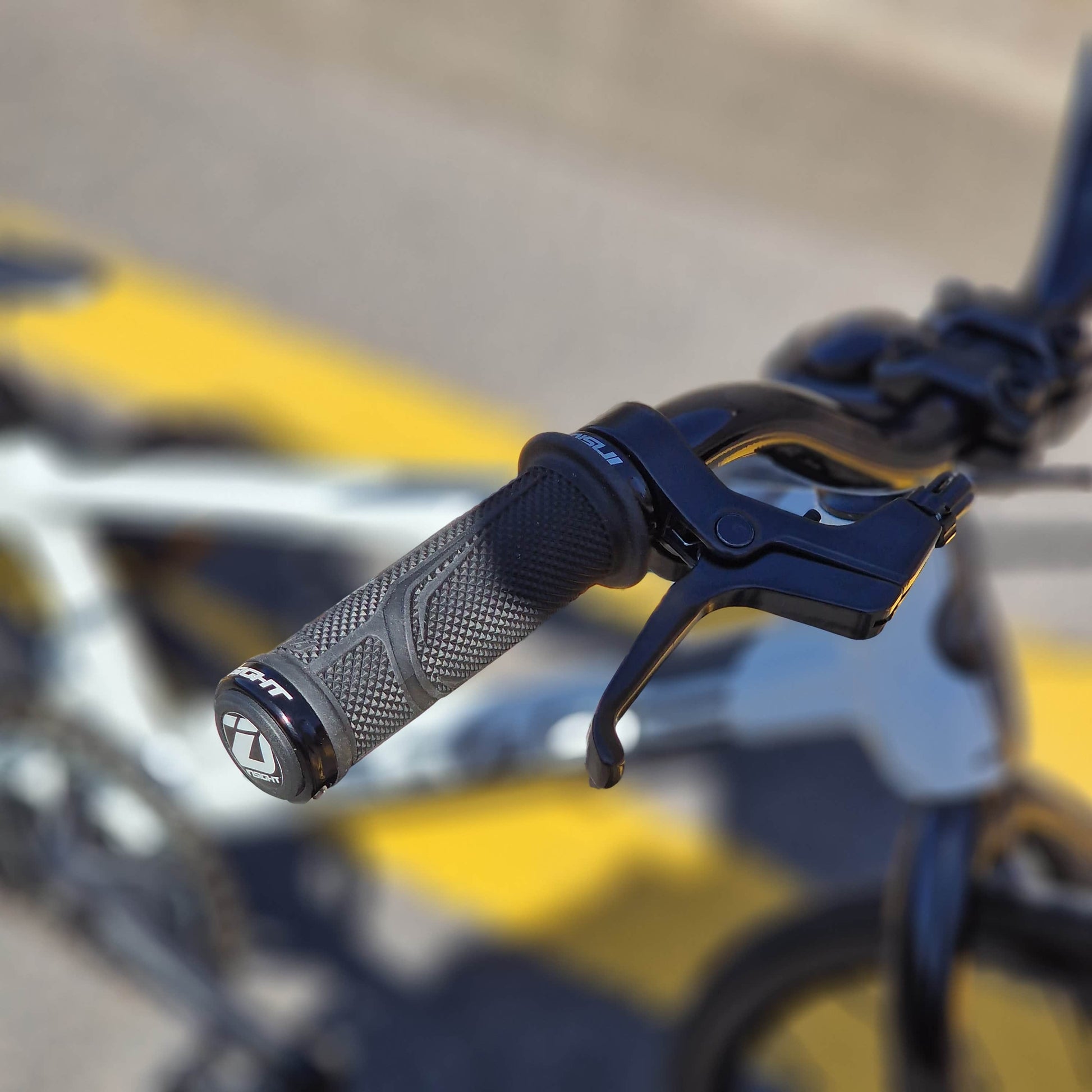

INSIGHT C.O.G.S 115mm Lock-on |
STEM
|

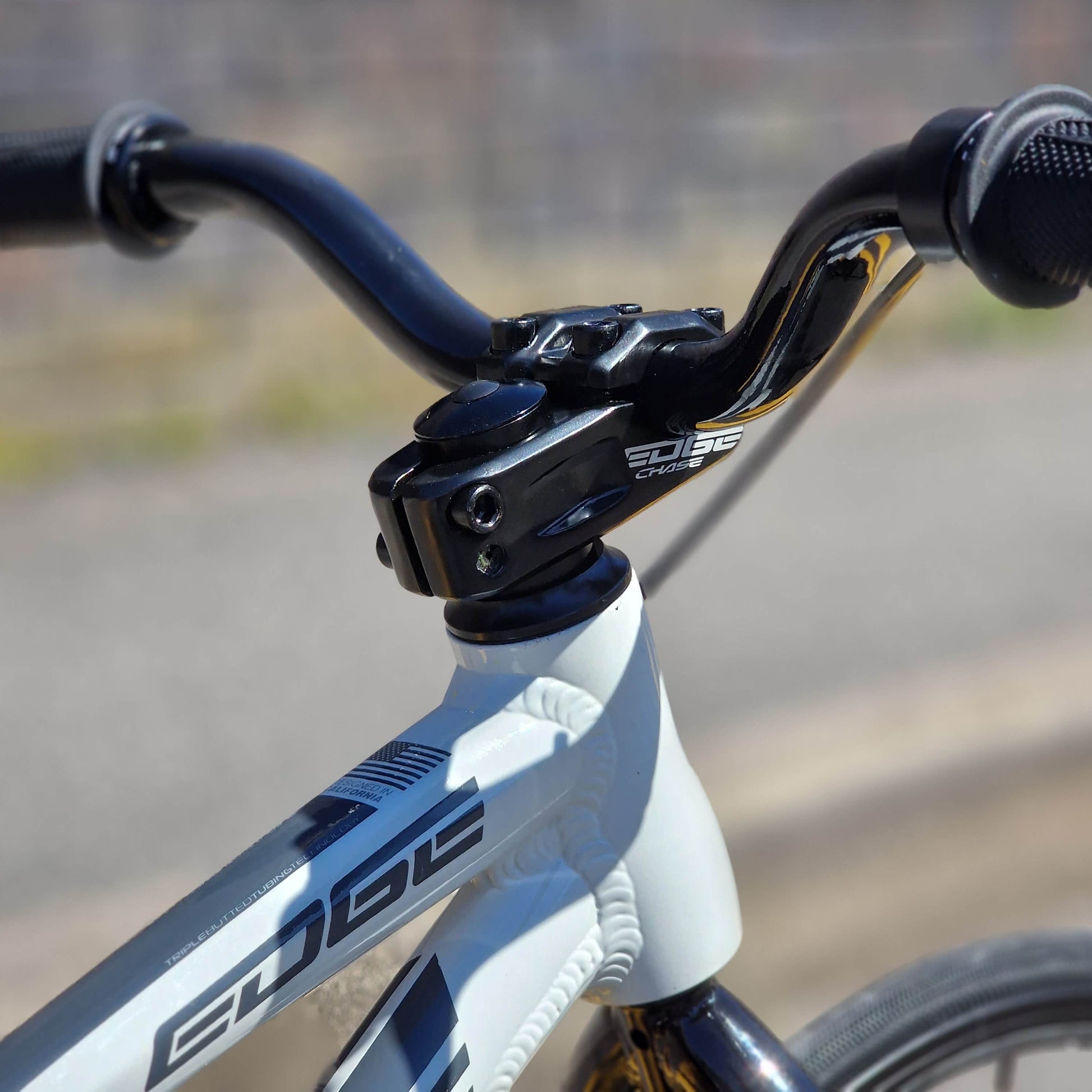

CHASE Edge 40mm 6061 T6 Alloy |
BB
|
Euro Square 113mm Sealed Bearing |
CHAINRING
|

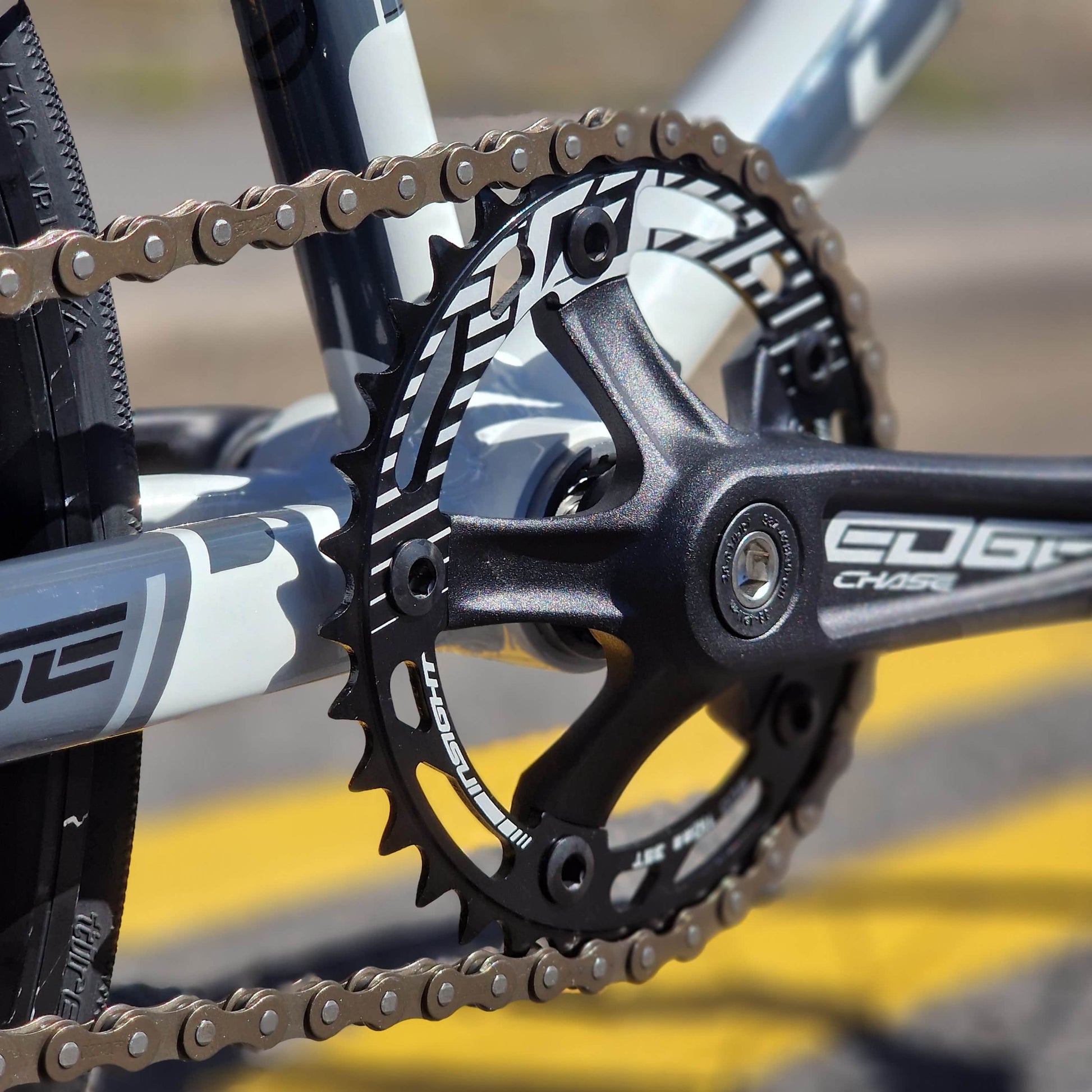

Insight 35 Tooth 5 Bolt 110mm 1/2"x3/32" 3mm Alloy Ring |
CRANK
|
CHASE Edge 3 Piece Crank 130mm Alloy Arm, Cr-mo Chainring Bolts |
PEDALS
|

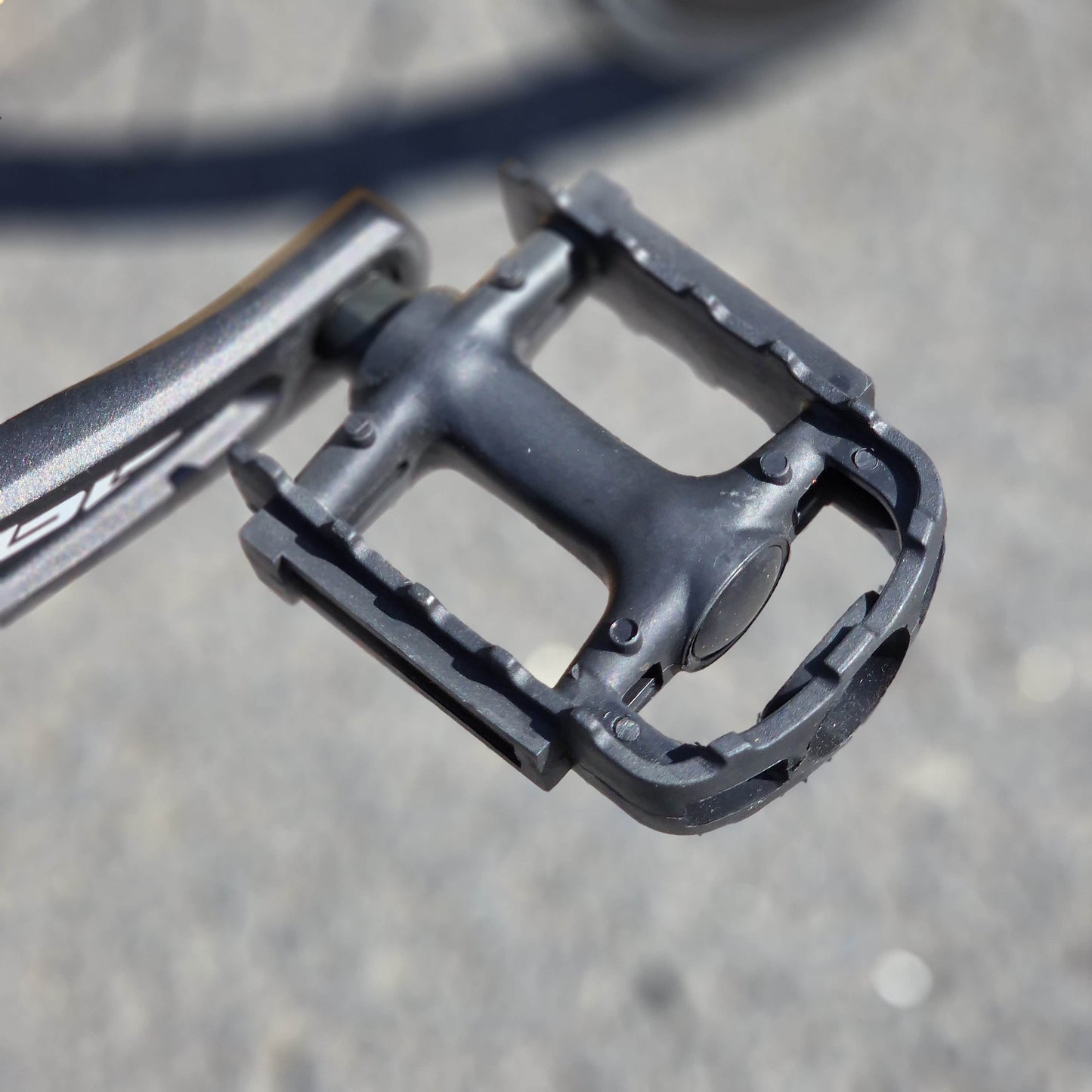

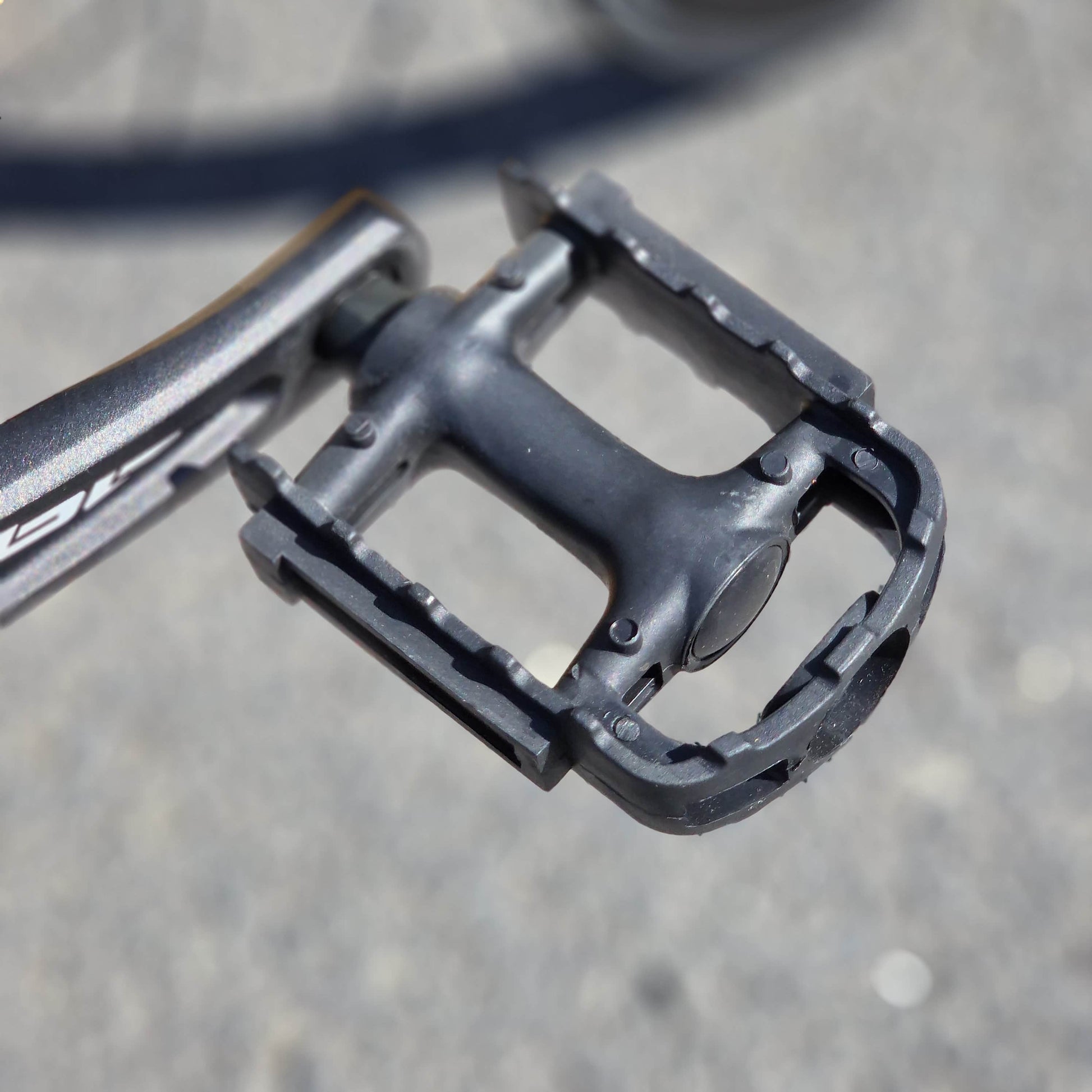

Mini Platform 9/16" Barrel Polished With Grip Nodes, Axle Boron Steel, Ball Bearing |
CHAIN
|
KMC Z1 narrow 1/2"x3/32" |
COG
|
16T steel |
FRONT HUB
|
Mini 24H, Sealed Bearing, 10mm Axle, M6 bolts |
REAR HUB
|
Mini ISO 28H, Sealed Bearing, 10mm Axle, M6 bolts, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets |
SPOKES
|
Front 182mm, Rear 173/174mm, 14 Gauge, Steel |
NIPPLES
|
16mm, 14 Gauge, Brass |
FRONT RIM
|
Chase Edge Alloy 100 Double Wall 24H 18"x1" Presta Valve |
REAR RIM
|
Chase Edge Alloy 100 Double Wall 28H 18"x1" Presta Valve |
FRONT TYRE
|
Vee Rubber Speedster 18"x1" Wire Bead |
REAR TYRE
|
Vee Rubber Speedster 18"x1" Wire Bead |
TUBES
|
18''x1" Presta Valve |
BRAKE LEVER
|
Junior/Expert Alloy |
BRAKE CALIPER
|

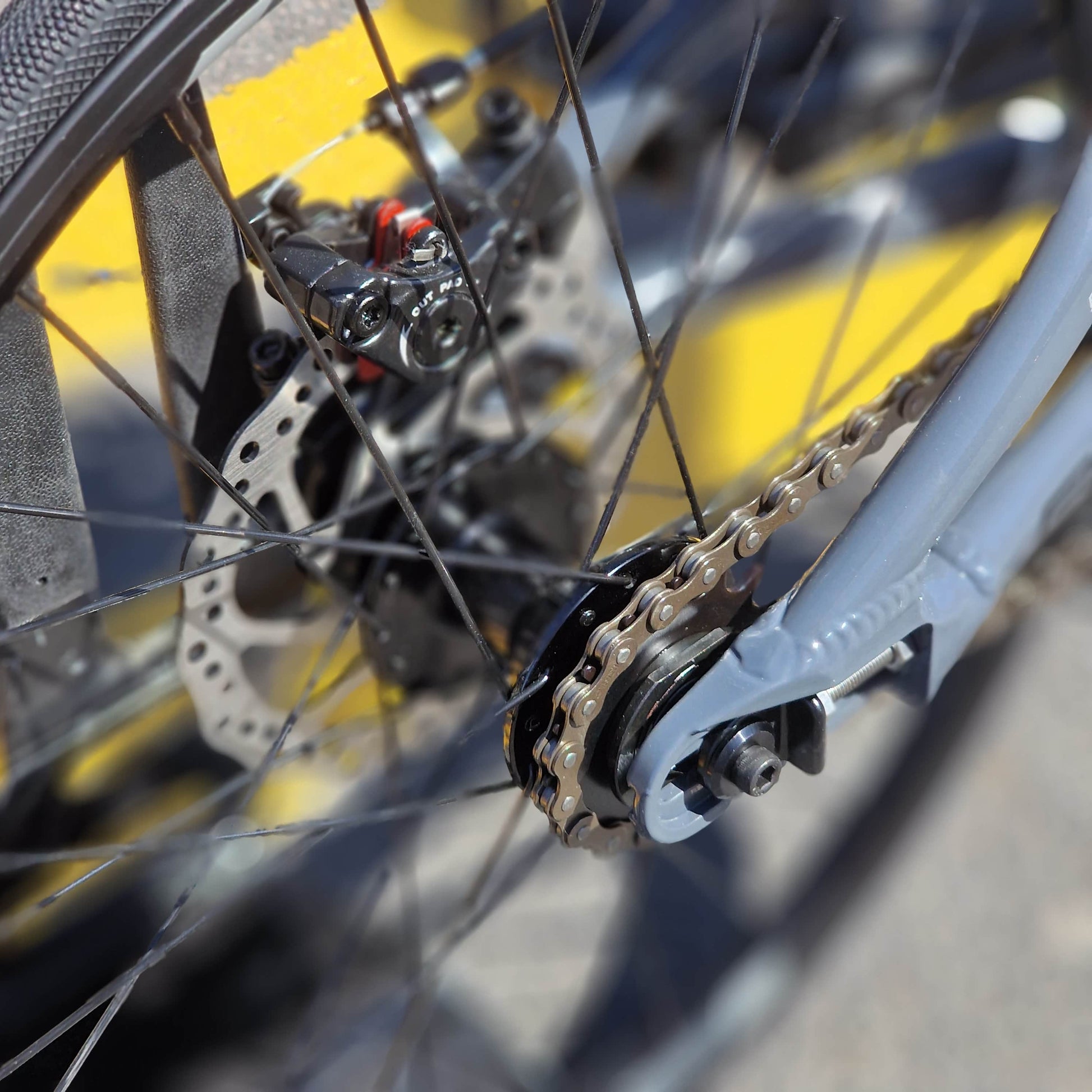

Mechanical, 140mm disc rotor, Shimano B01S compatible Pads, Lock Disc Adaptor |

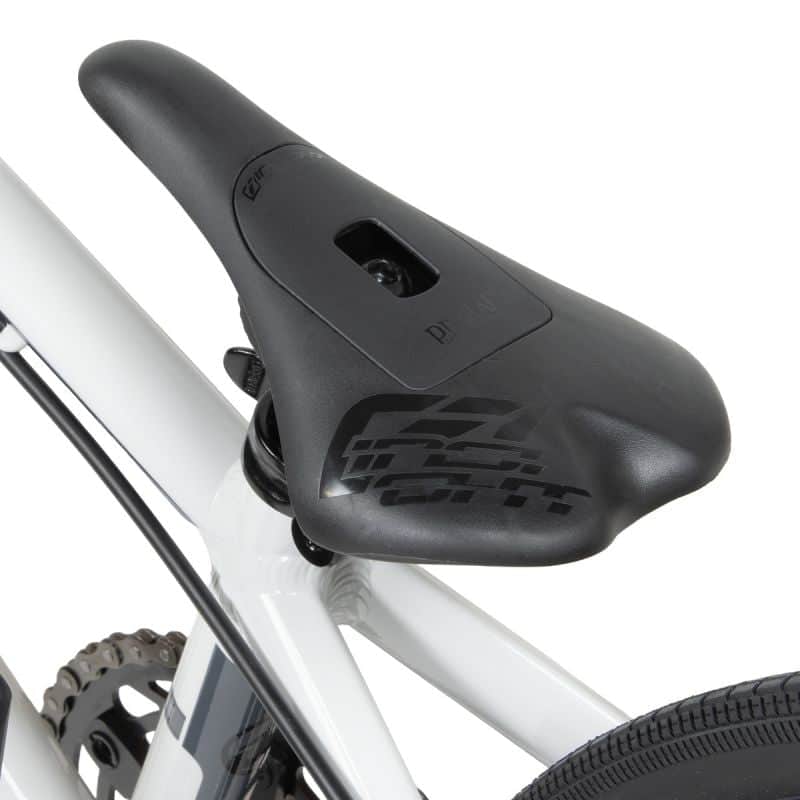

SADDLE
|

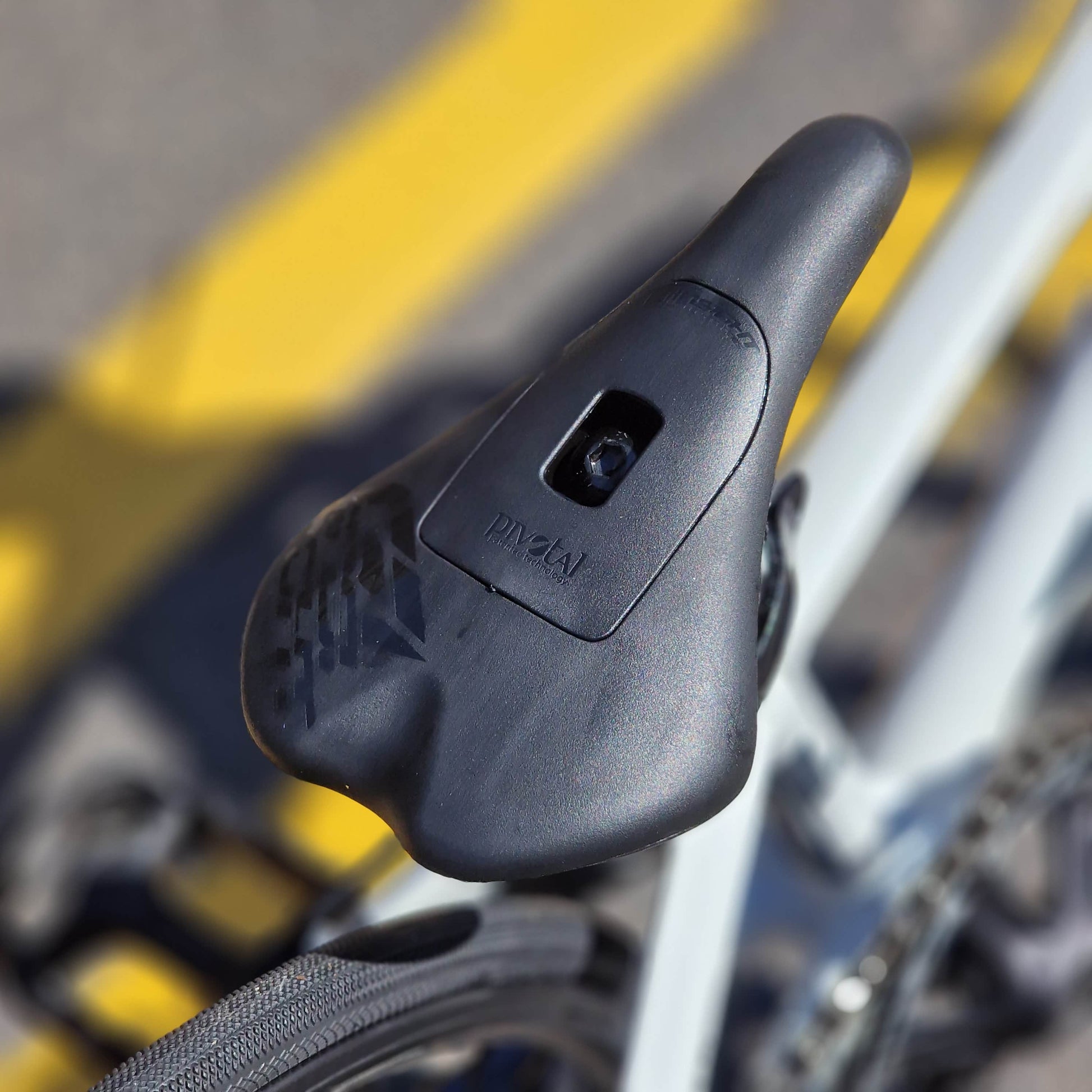

Insight Mini Pivotal Nylon Plastic Body with Cr-mo Bolt |
SEAT POST
|
Pivotal 25.4x110mm Polished Alloy |
SEAT CLAMP
|
Chase Edge QR Alloy 28.6mm |
CHAIN TENSIONER
|
Integrated Built-In With New Lock Disc Adaptor |
