SKU: Product Code: CHACOBI247

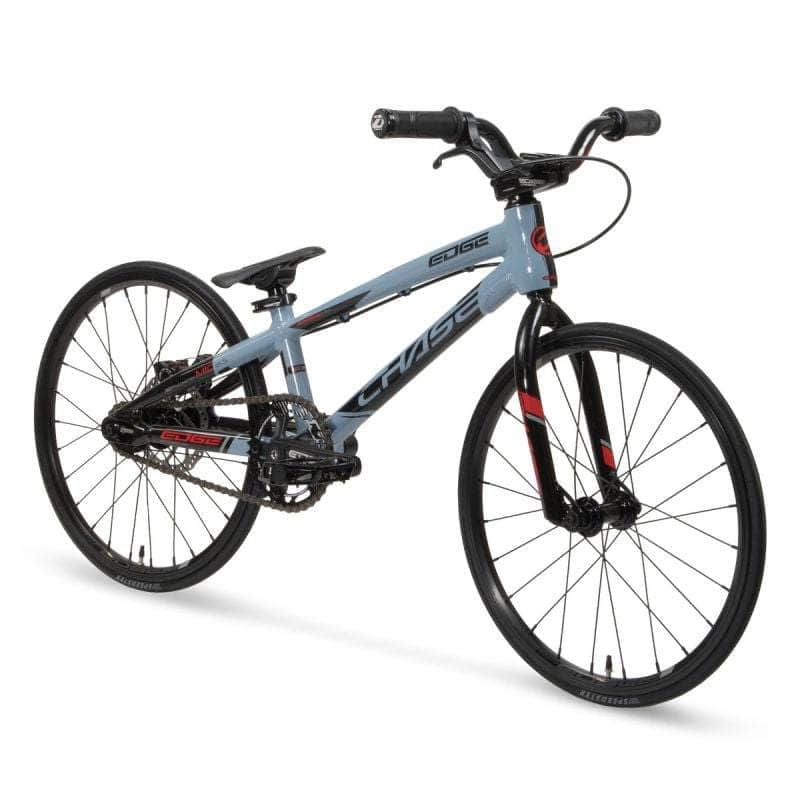

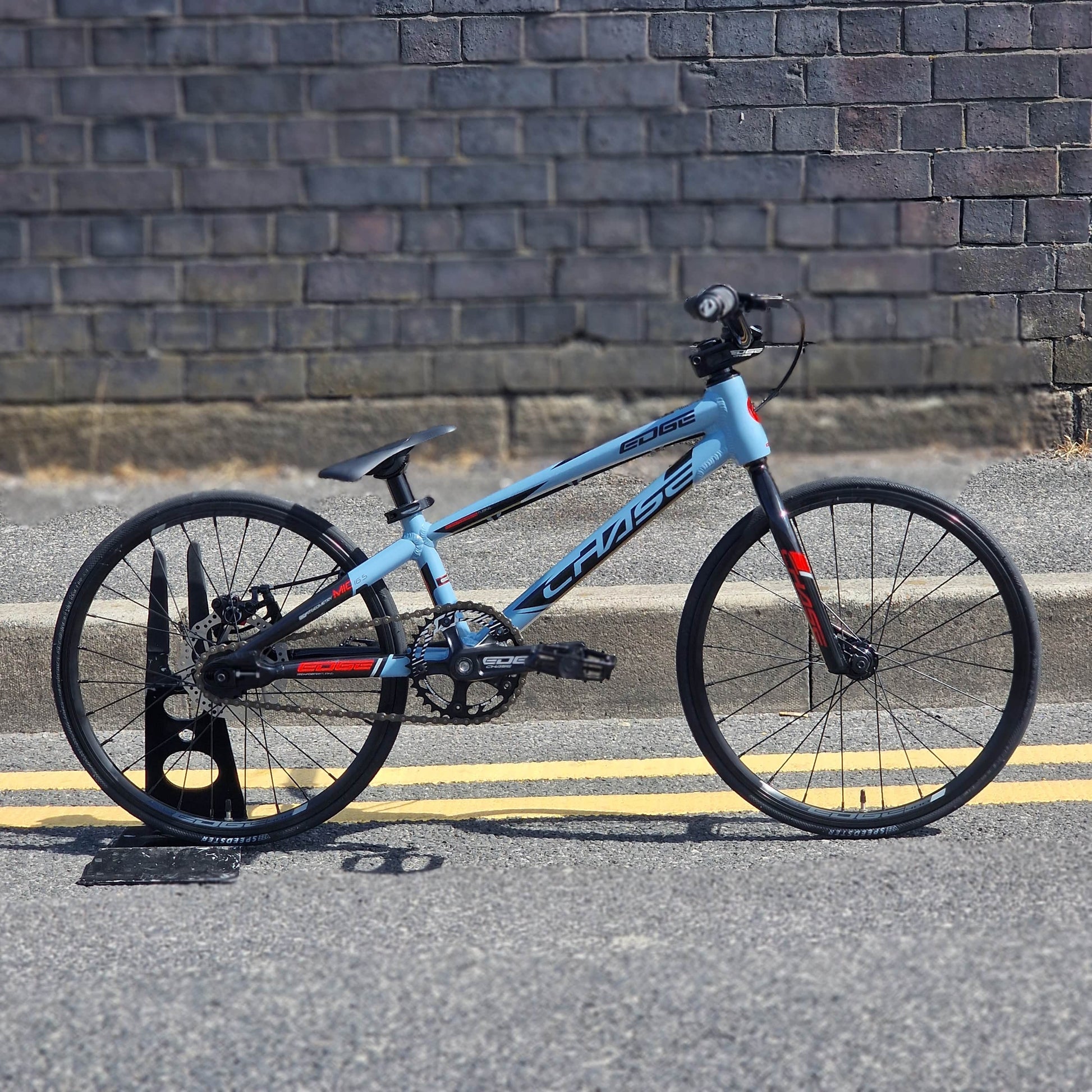

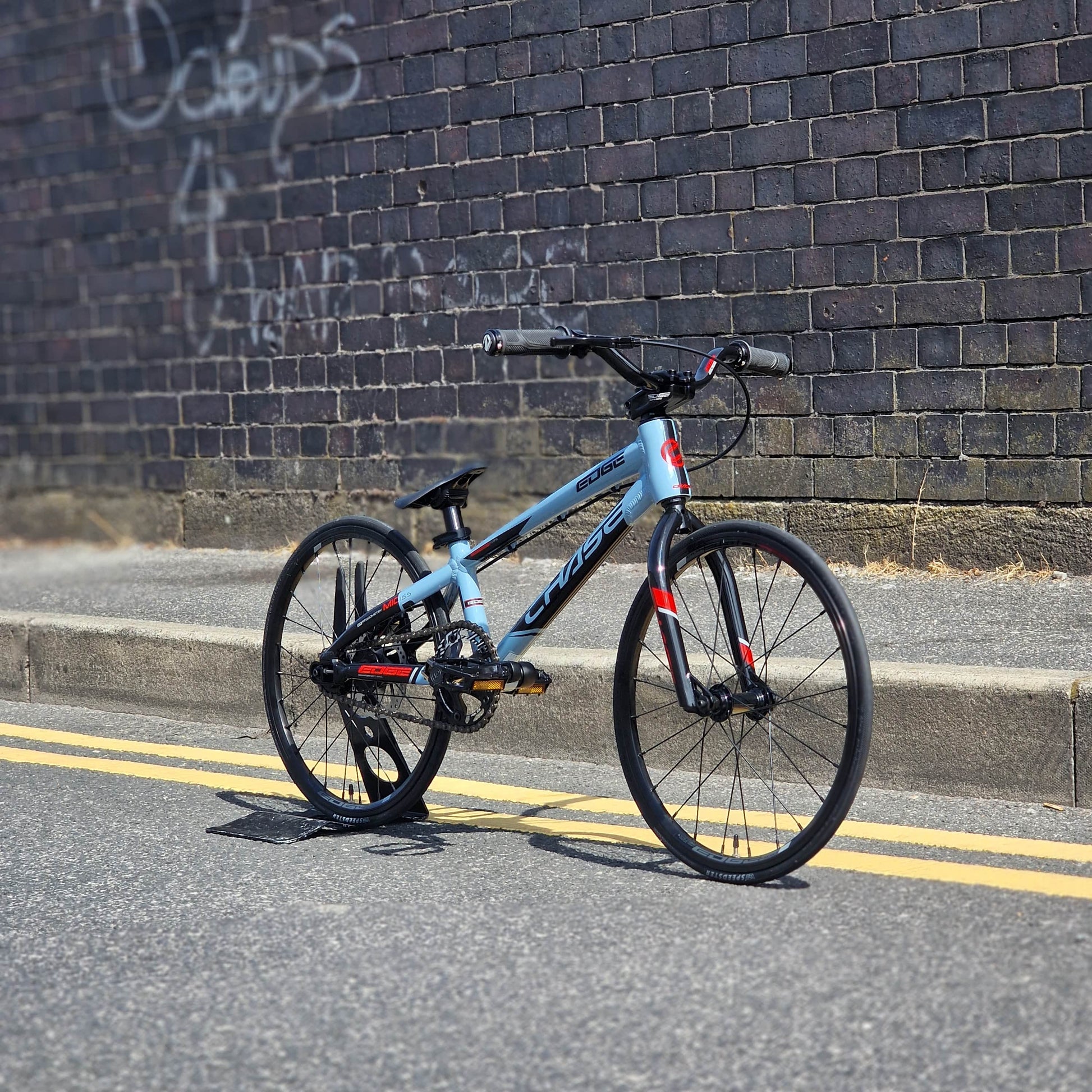

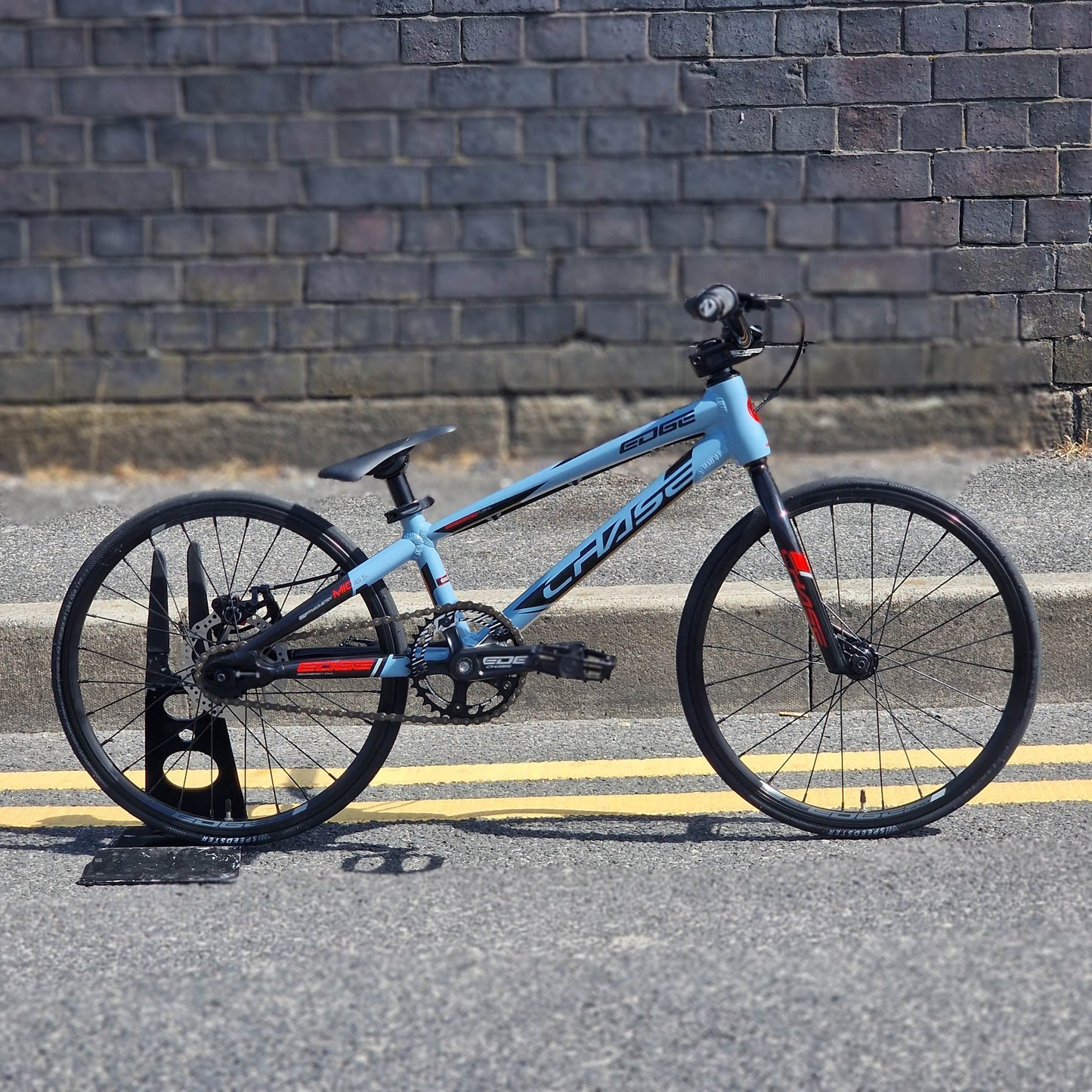

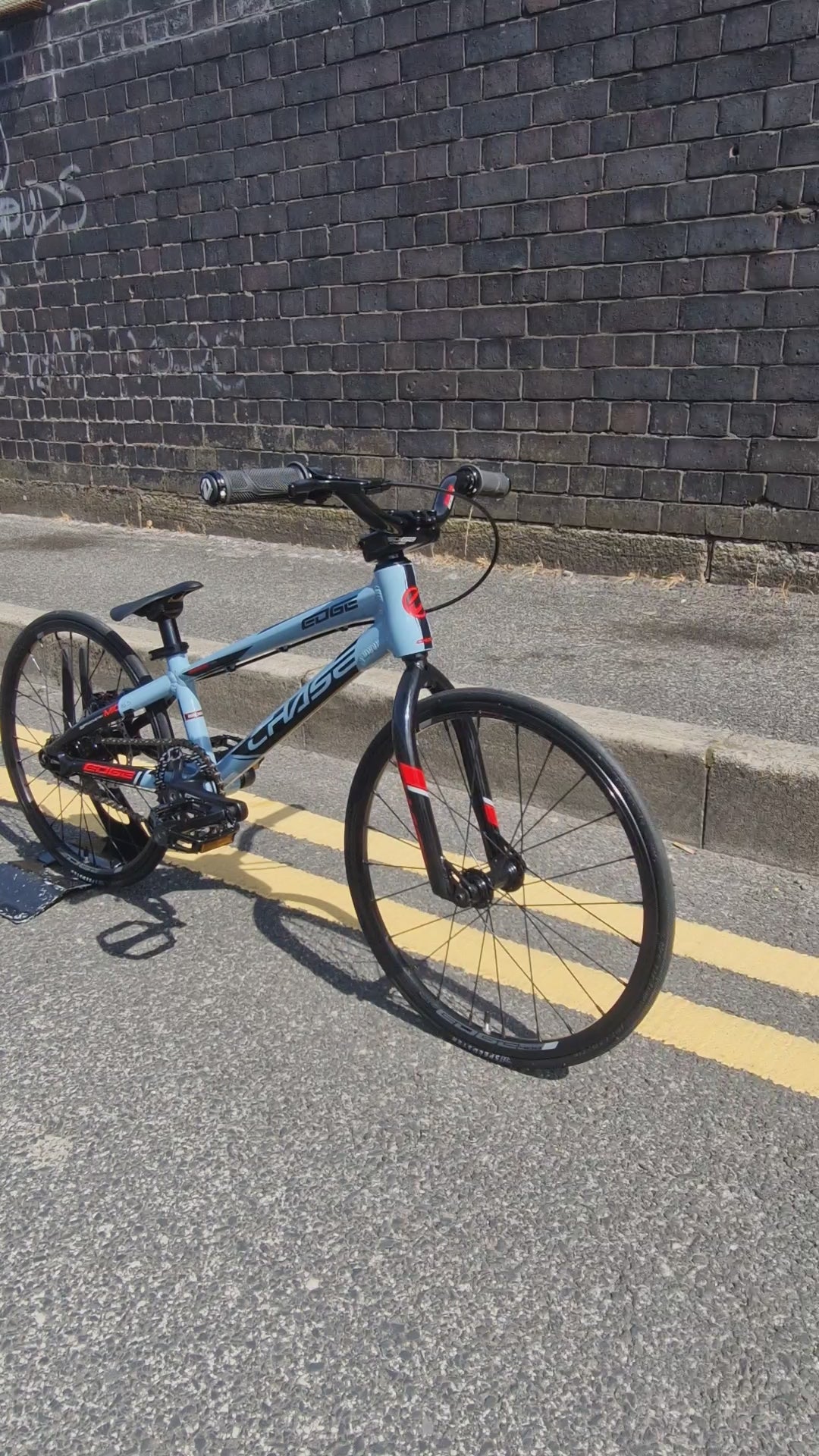

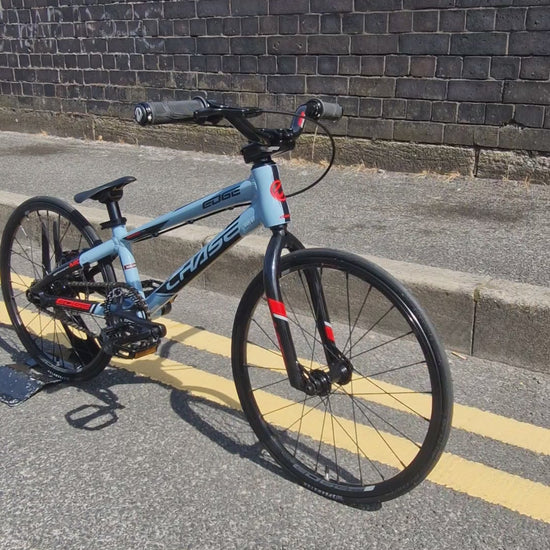

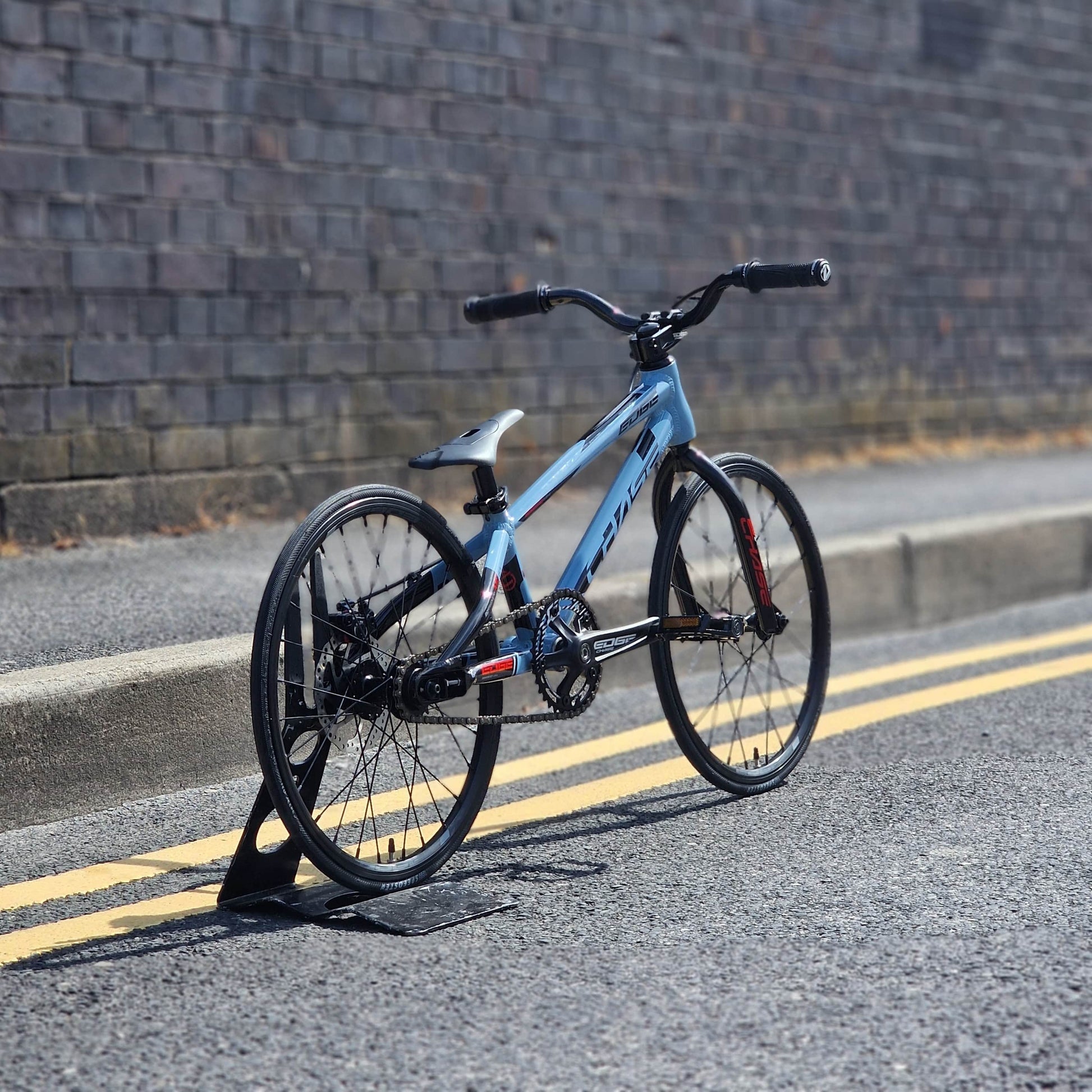

Chase Edge Micro Race Bike Slate
Chase Edge Micro Race Bike Slate
The all new CHASE Edge Micro is a race ready BMX machine, ideal for riders ready to get serious about BMX racing and take it to the next level. The Micro is the smallest size in the range and everything is designed specifially for the smallest racers.
Just when you didn't think it was possible, the new Edge has been improved, now equipped with disc brake, 130mm Alloy Cranks, updated gearing, sweet 2 tone paint and graphics, a closed rear dropout system with integrated chain tensioner system. The Edge frame also features utra lightweight hydroformed, triple butted, 6061 aluminum tubes with an integrated head tube. Other featured parts on the Edge include 4130 chromoly fork and handlebars, double wall rims with triple engagement rear cassette rear hub, and 18"x1" tyres. The combination of all these components arguably makes the CHASE Edge one of the most advanced race BMX bikes available today.
- FRAME: CHASE Edge Micro 16.25″ Top Tube, Triple Butted Hydroformed 6061 T6 Alloy, Enclosed rear dropouts, Integrated Chain tensioner system
- FORK: CHASE Edge Micro, Full Cr-mo, 1″ Steer Tube
- STEM: CHASE Edge 40mm
- HANDLEBAR: CHASE Edge 2.25″
- HEADSET: Integrated Sealed Bearing
- CHAINRING: INSIGHT 35T 5 Bolts BCD 110mm
- CRANKSET: CHASE Edge Alloy 130mm, 113mm squared axle BB
- HUBS: CHASE Edge Mini, 3/8″ Axle, Sealed Bearings, Steel Cassette Body, Triple precise Rear Hub Clutch System with ISO disc brake standard (3 Pawls at Triple Angle Engagement for 24T Ratchets), 16T cog
- RIMS: CHASE Edge 100 Double Wall 18″x1″, 24H Front, 28H Rear
- TYRES: VEE RUBBER Speedster 18″x1″ Front and Rear
- BRAKES: Mechanical, 140mm Disc Rotor, Shimano B01S Compatible Pads, Lock Disc Adaptor
- SEAT: INSIGHT Mini Pivotal
RECOMMENDED SIZE: 1.0m – 1.15m
WEIGHT: 6.99Kg without pedala
SPECIFICATIONS :
|

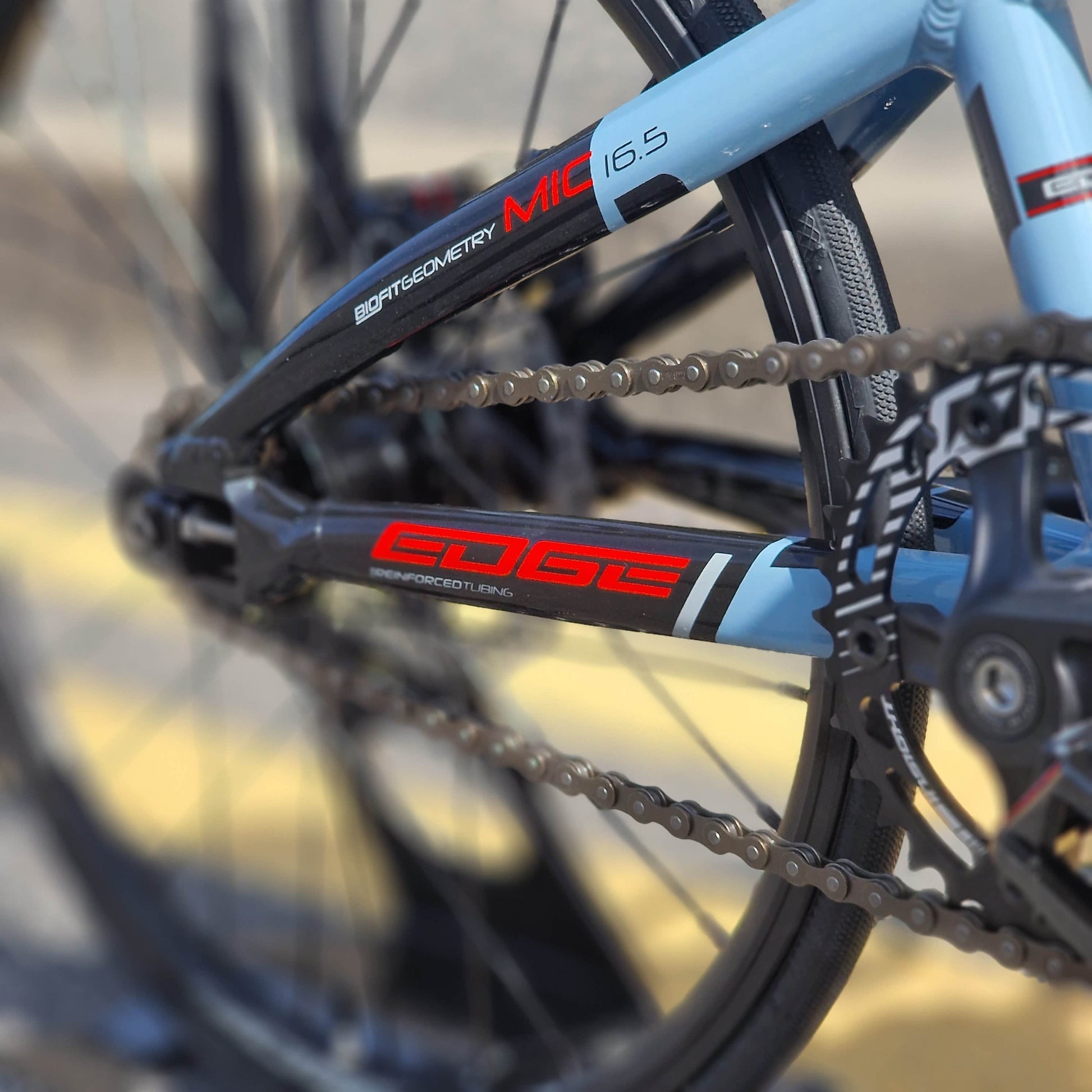

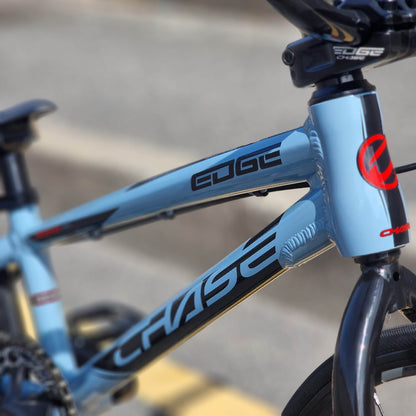

FRAME
|

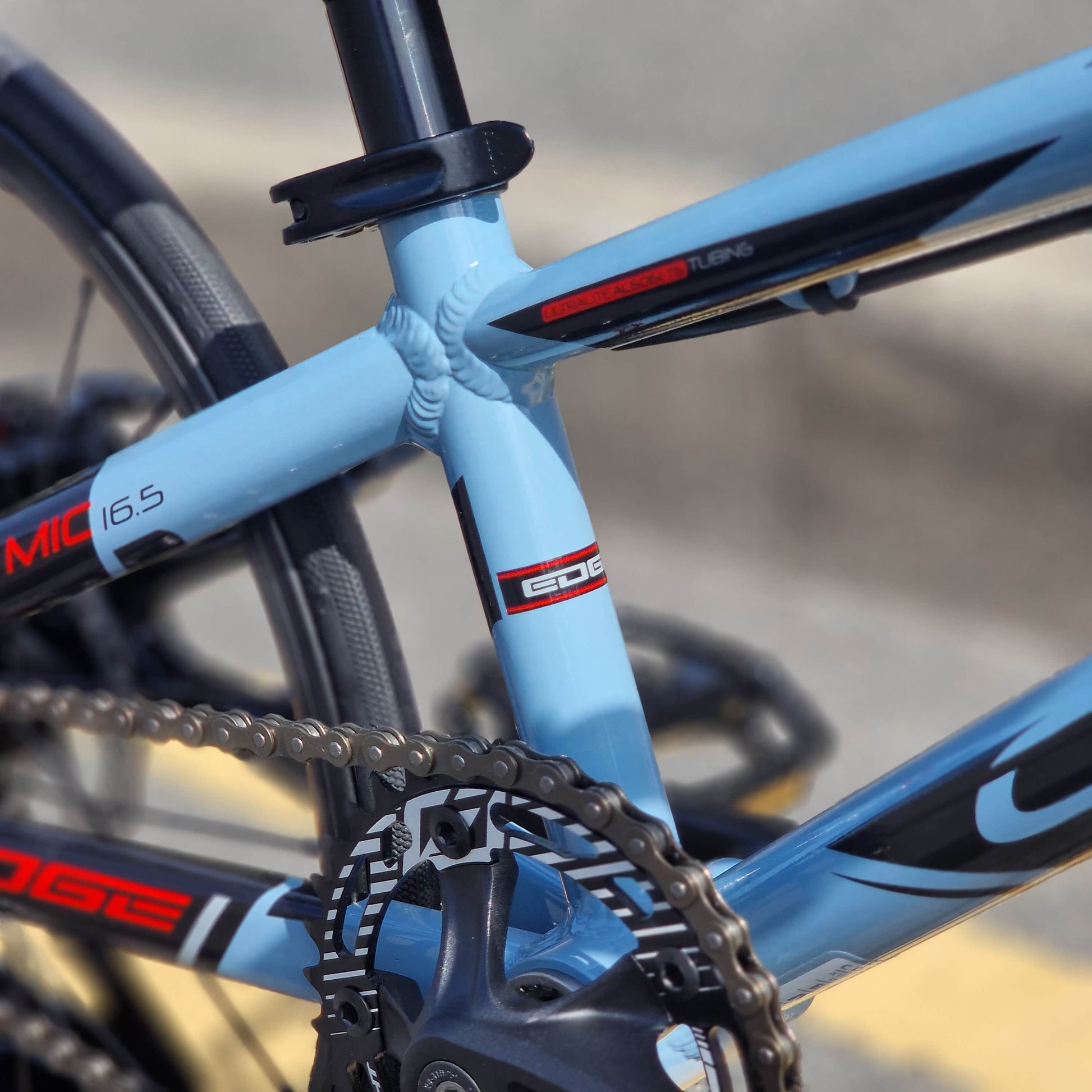

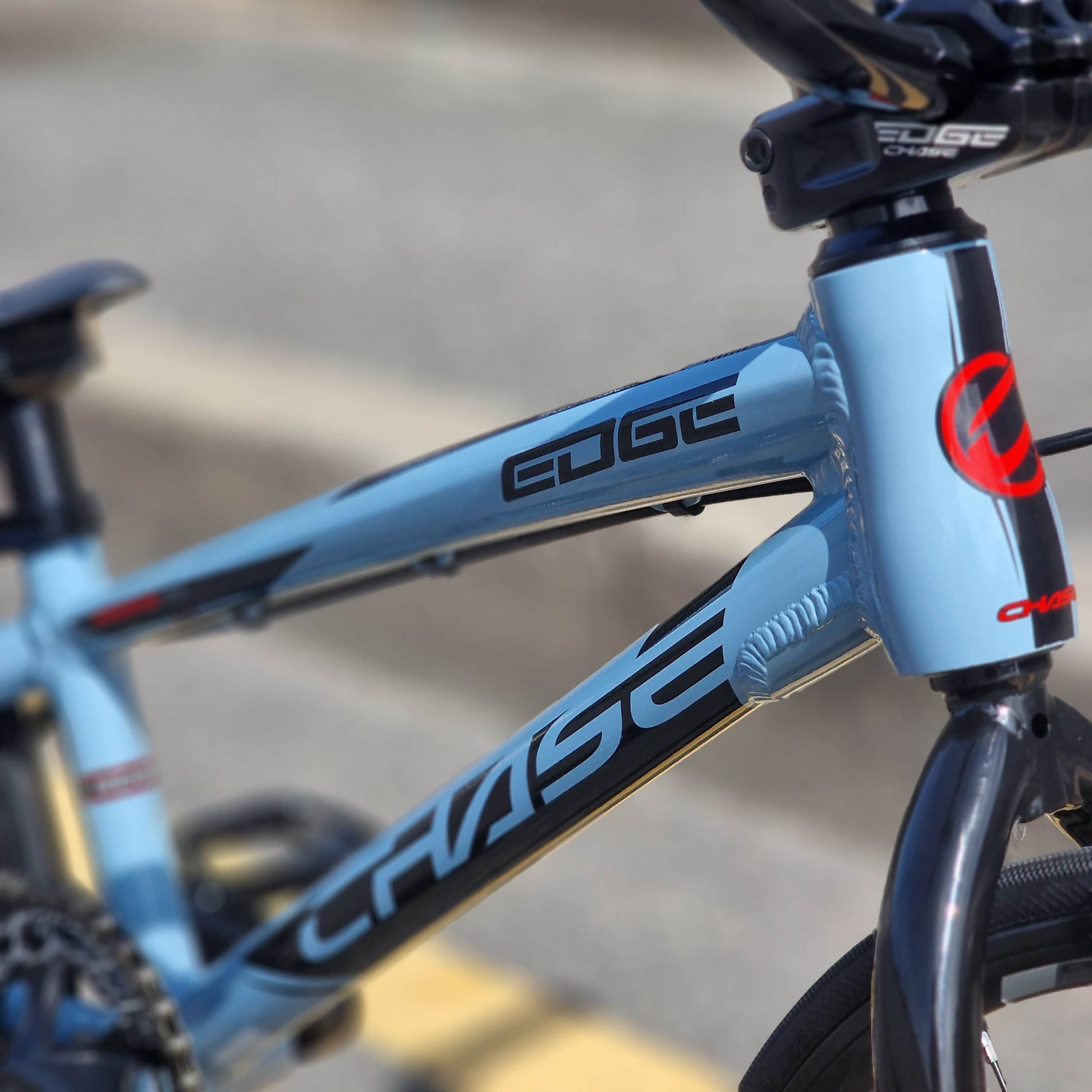

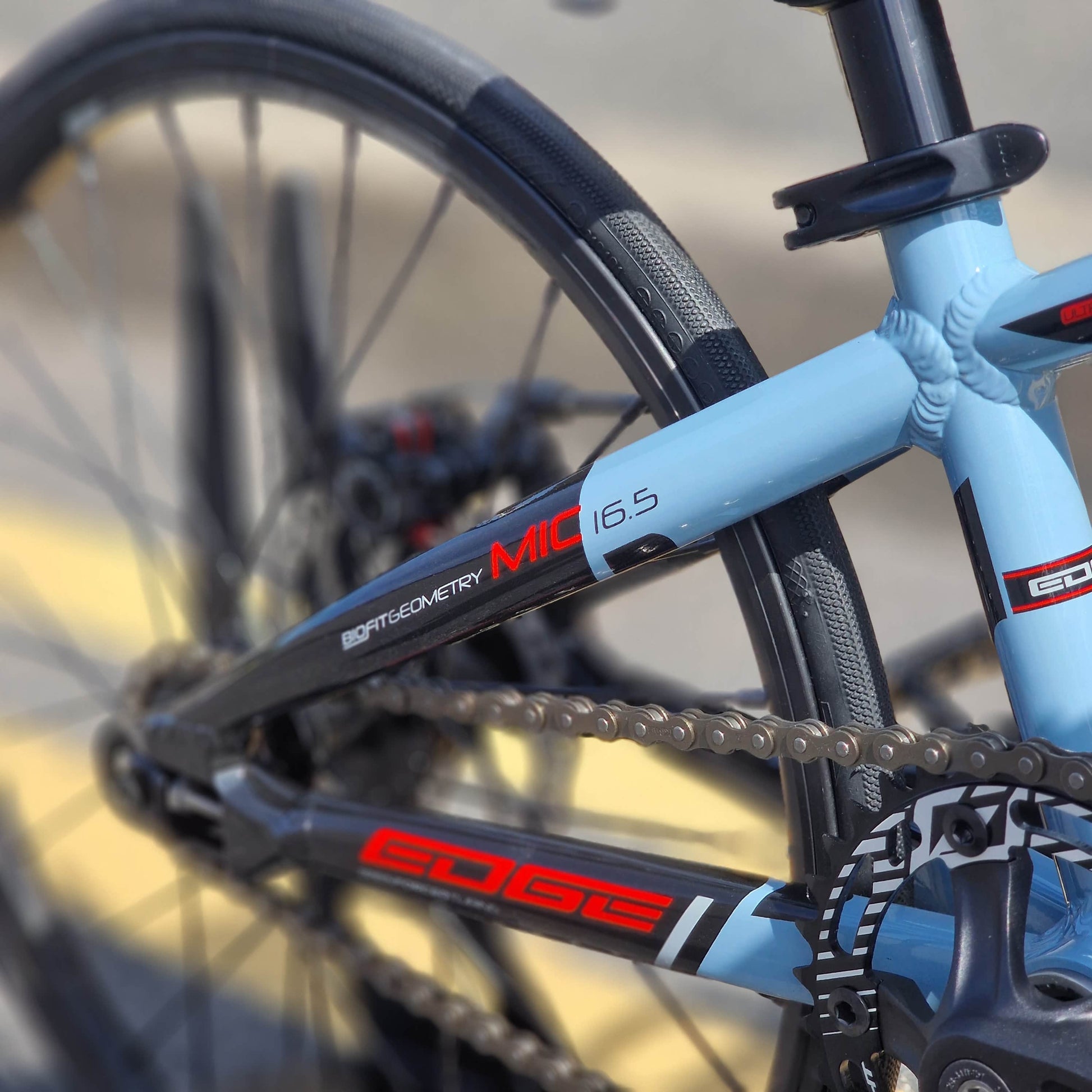

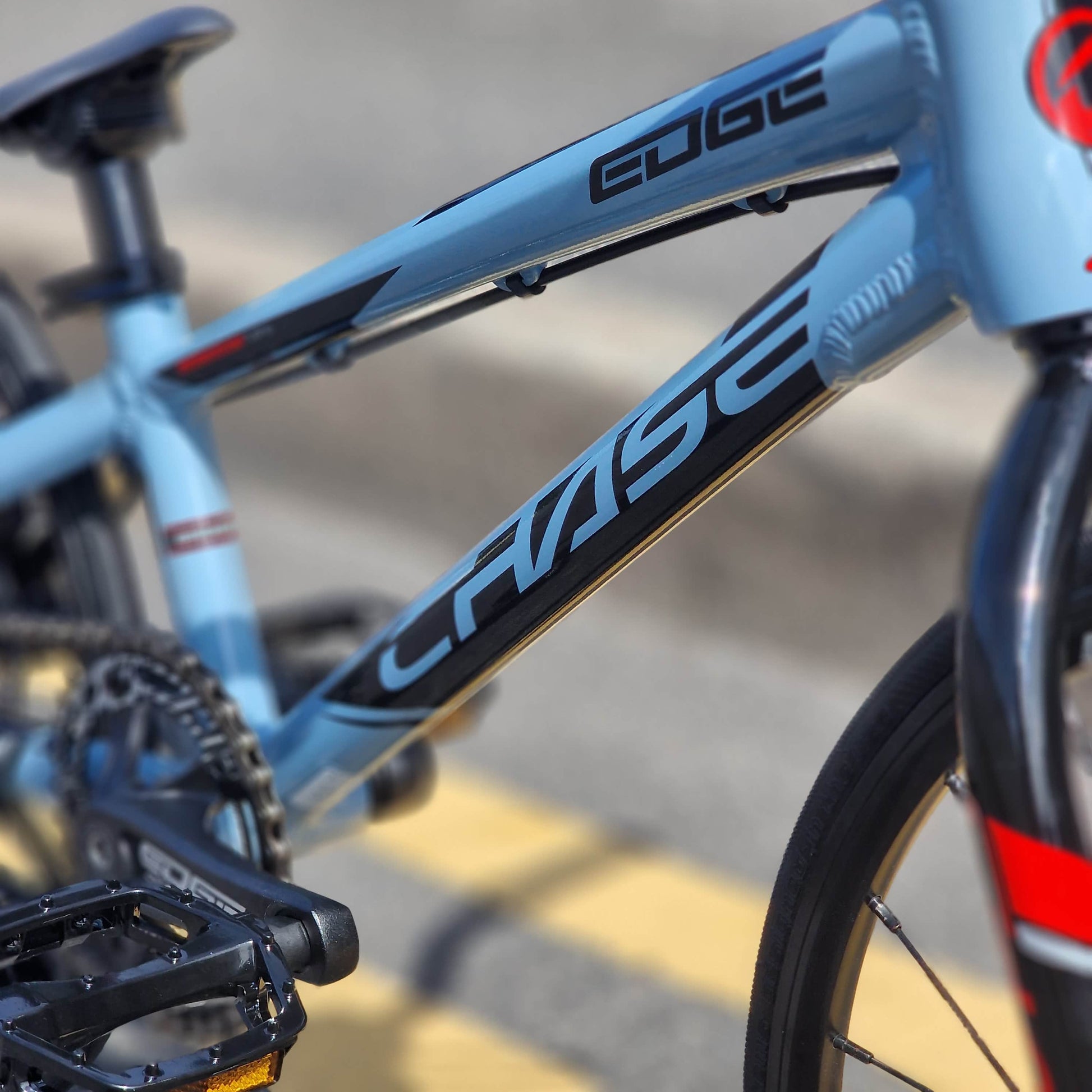

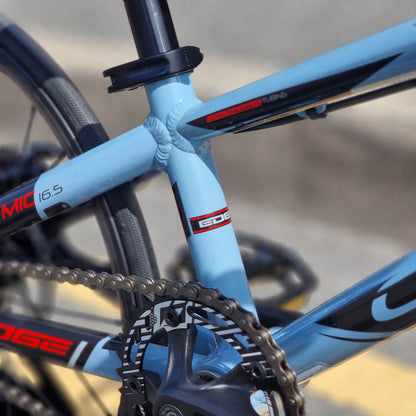

CHASE Edge Micro 16.25″ Top Tube, 6061 T6 Alloy Triple Butted Hydroformed, Integrated Head Tube, Enclosed Rear Dropouts And Chain Tensioner System |
|

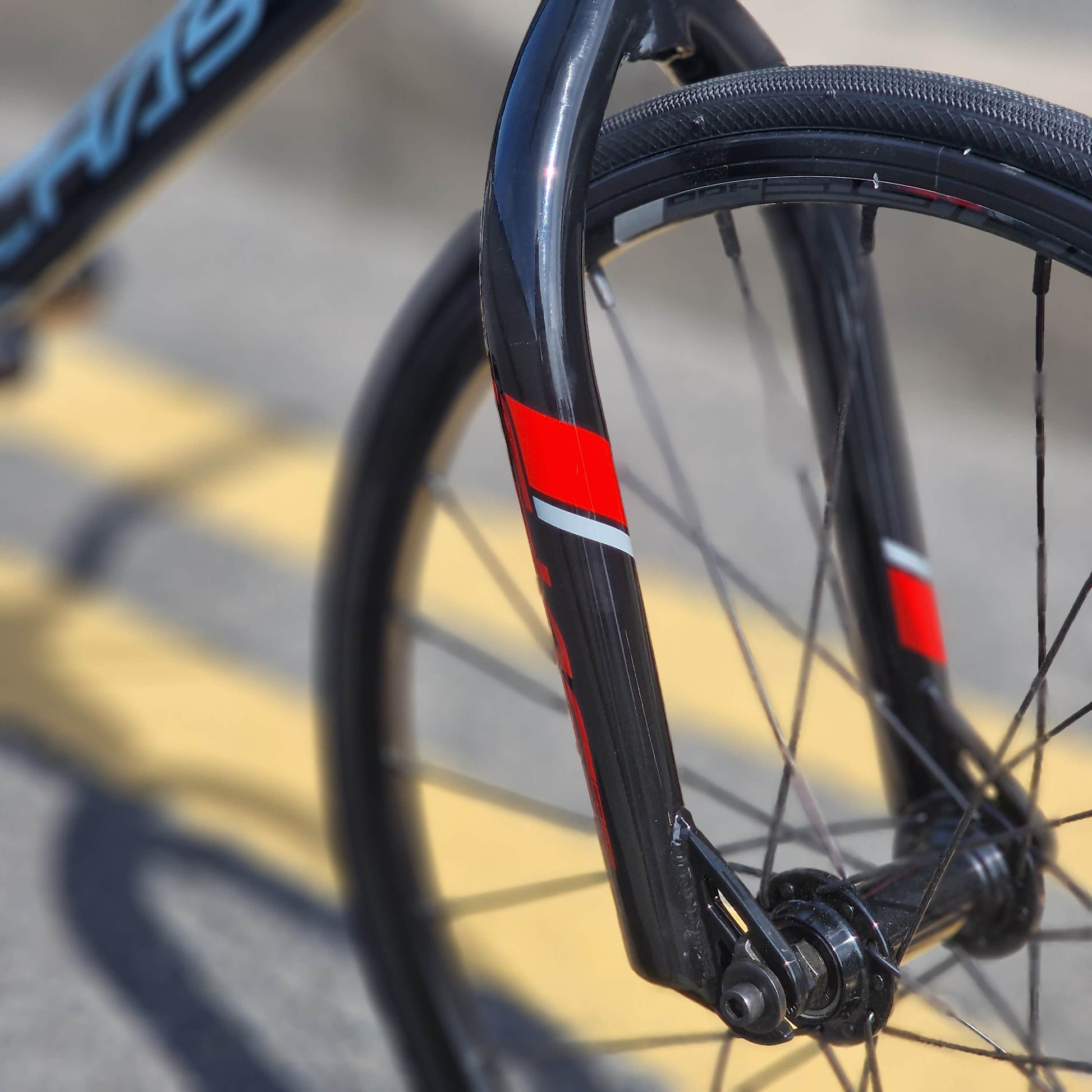

FORK
|
CHASE Edge Micro Full Cr-mo, 1″ Steer Tube With Tapered Blades |
|
HEADSET
|

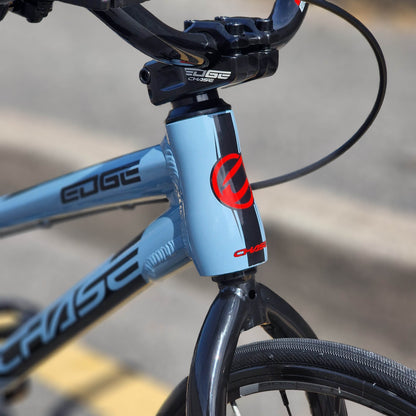

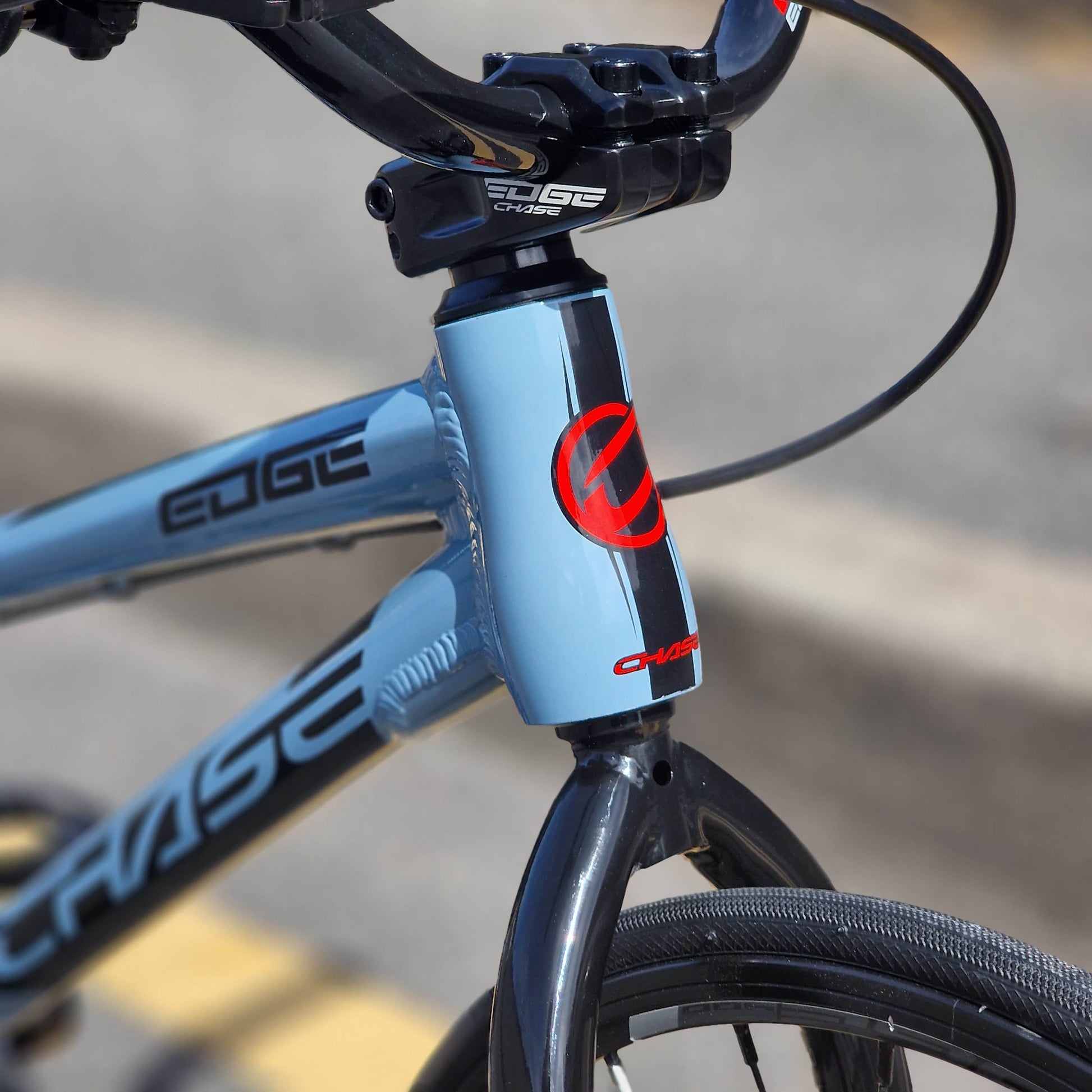

Integrated IS 42/42 Reductor 1″, Sealed Bearing |
|

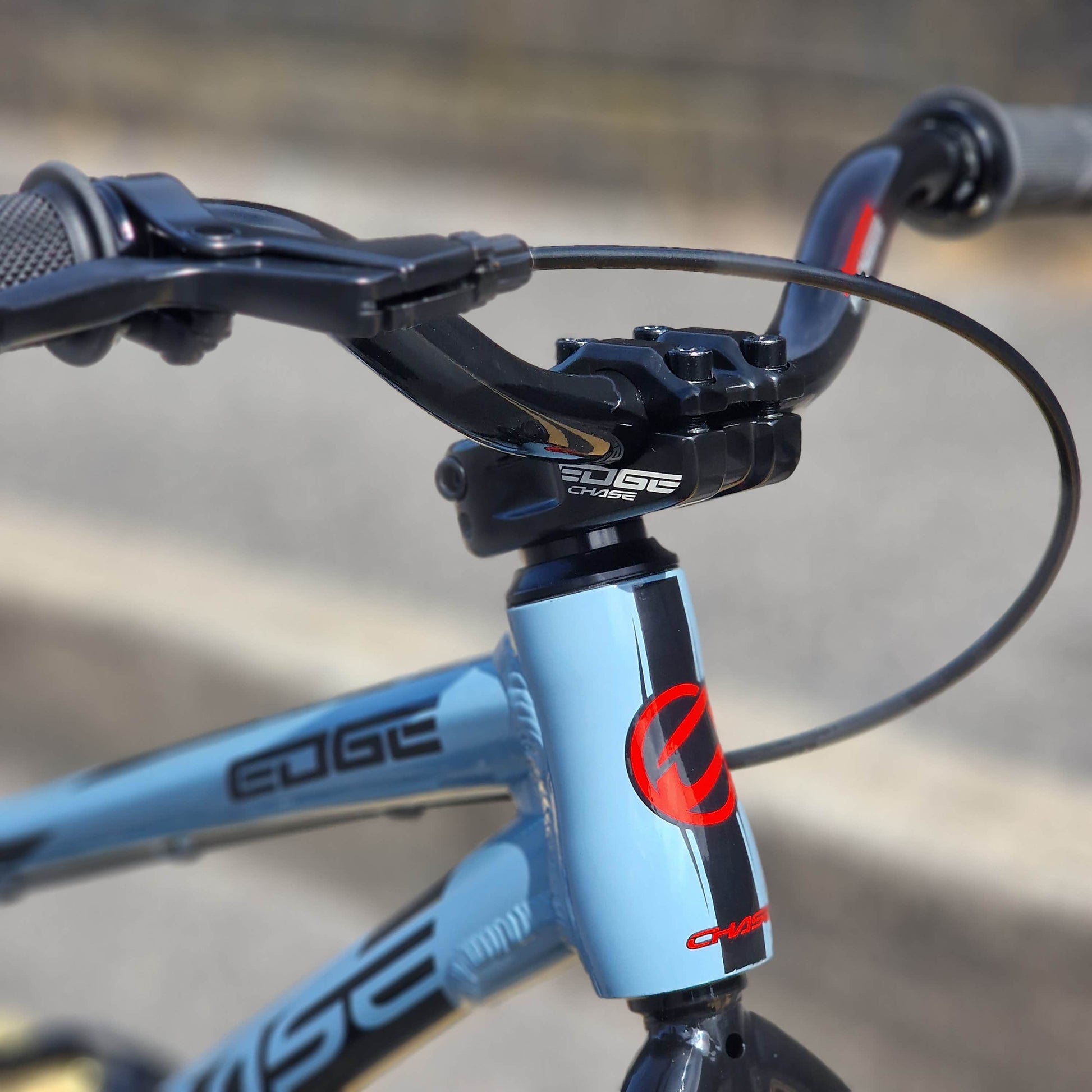

HANDLEBAR
|

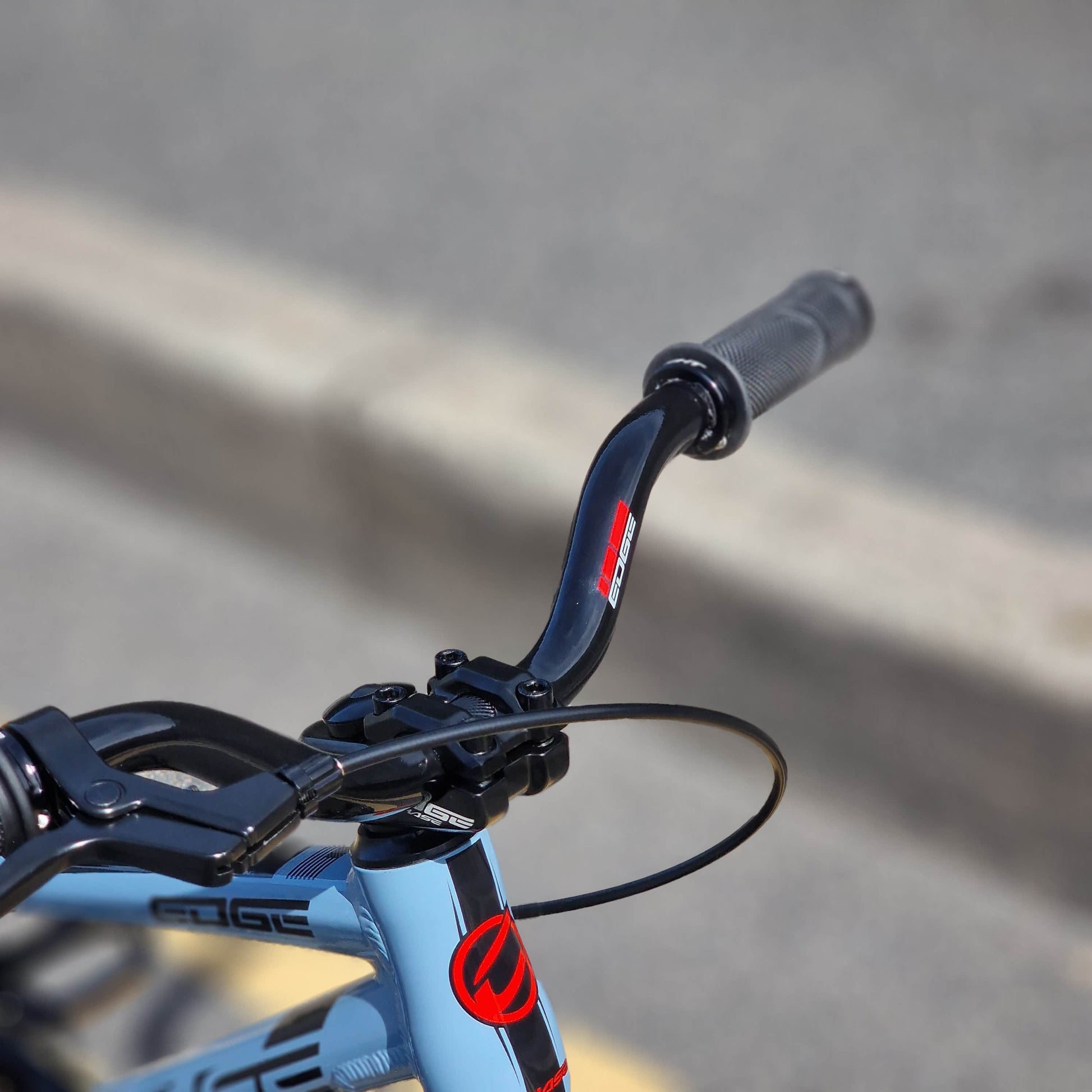

Chase Edge Cr-Mo 2.25″ Rise, 20″ Wide, 8° Back Sweep & 2° Up Sweep |
|
GRIPS
|

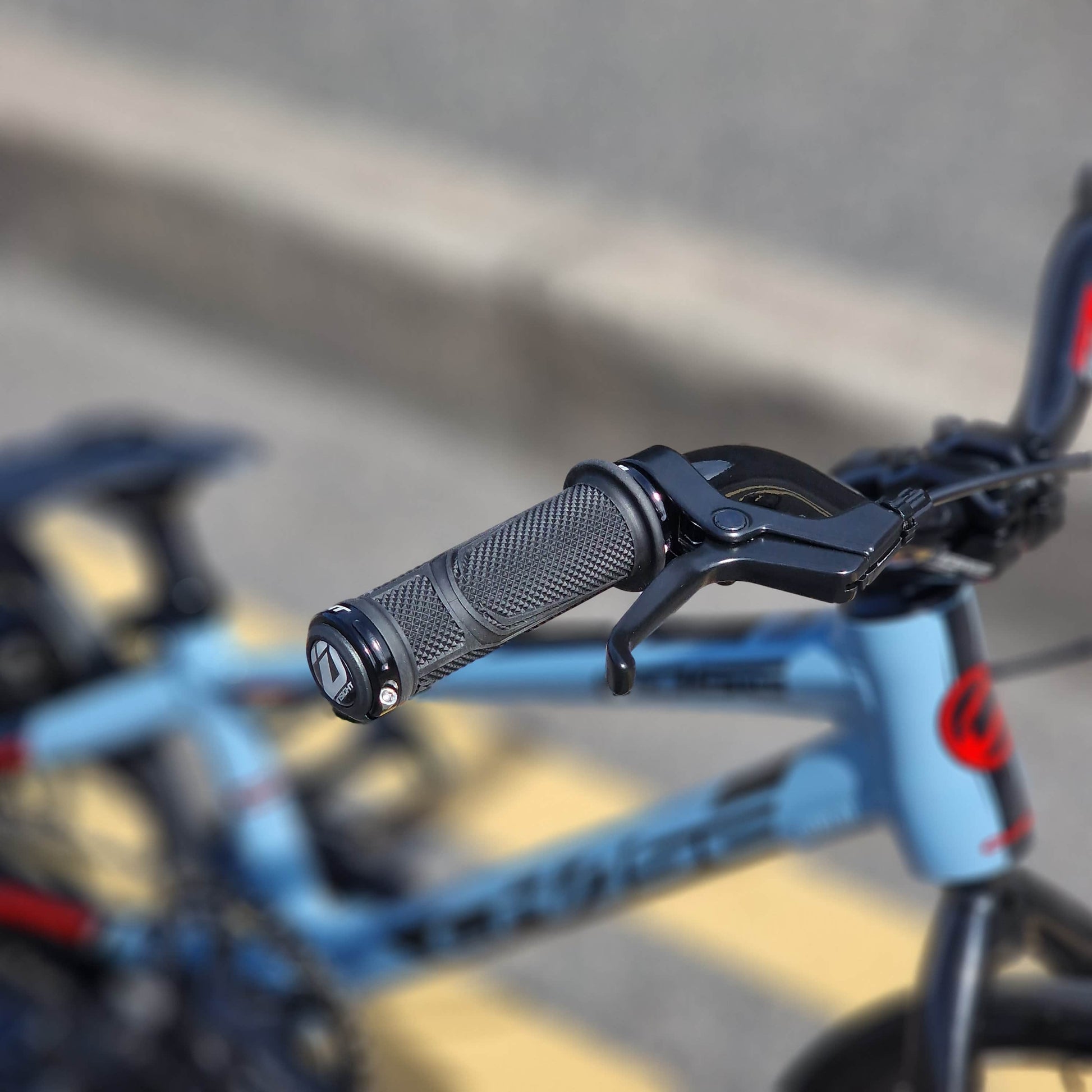

INSIGHT C.O.G.S 115mm Alloy Clamps Laser Etched Logo, PVC End Plug |
|
STEM
|
CHASE Edge 40mm 6061 T6 Alloy Laser Etched Logo |
|
BB
|
Euro Square 113mm Sealed Bearing |
|
CHAINRING
|

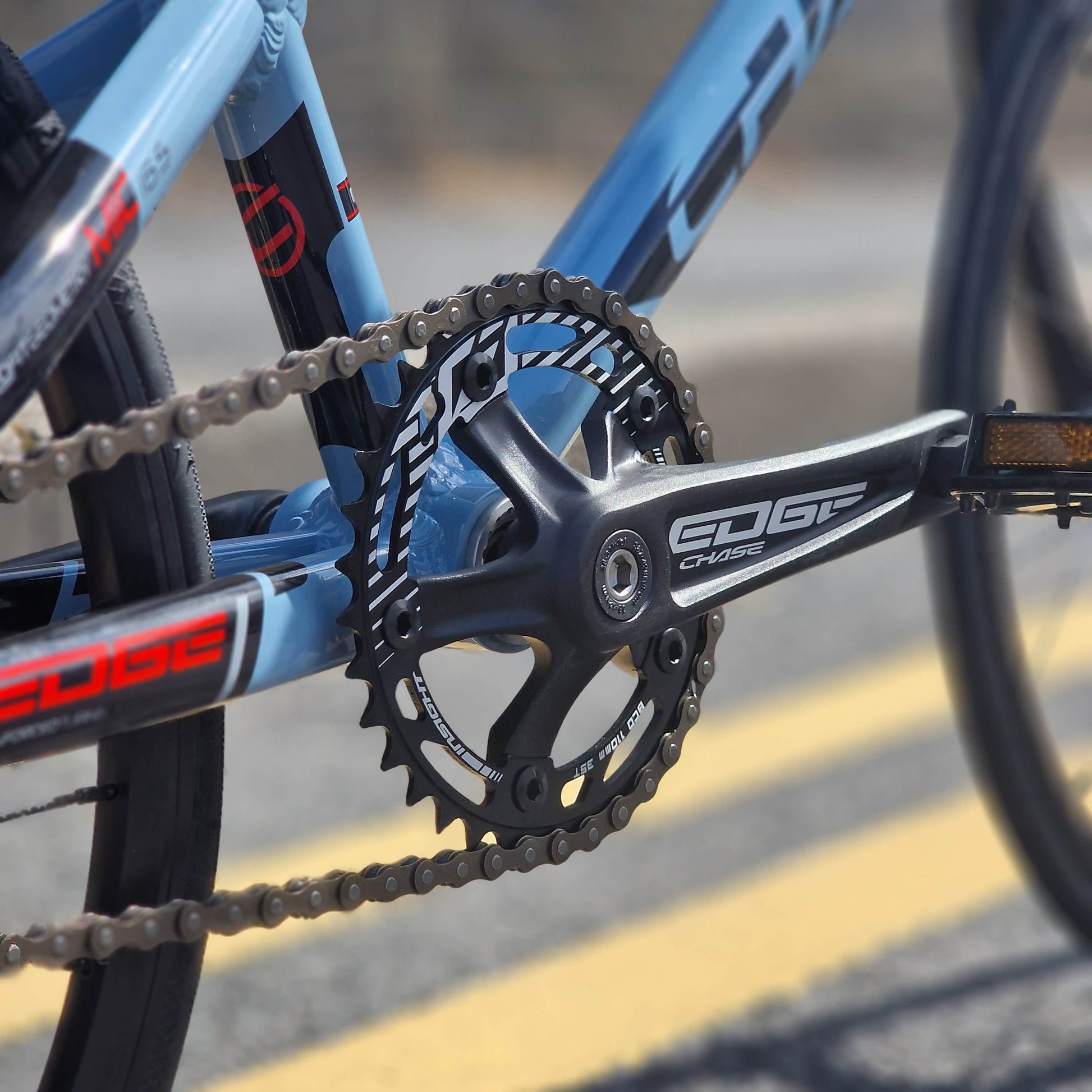

Insight 35 Tooth 5 Bolt 110mm 1/2″X3/32″ 3mm Alloy Ring |
|

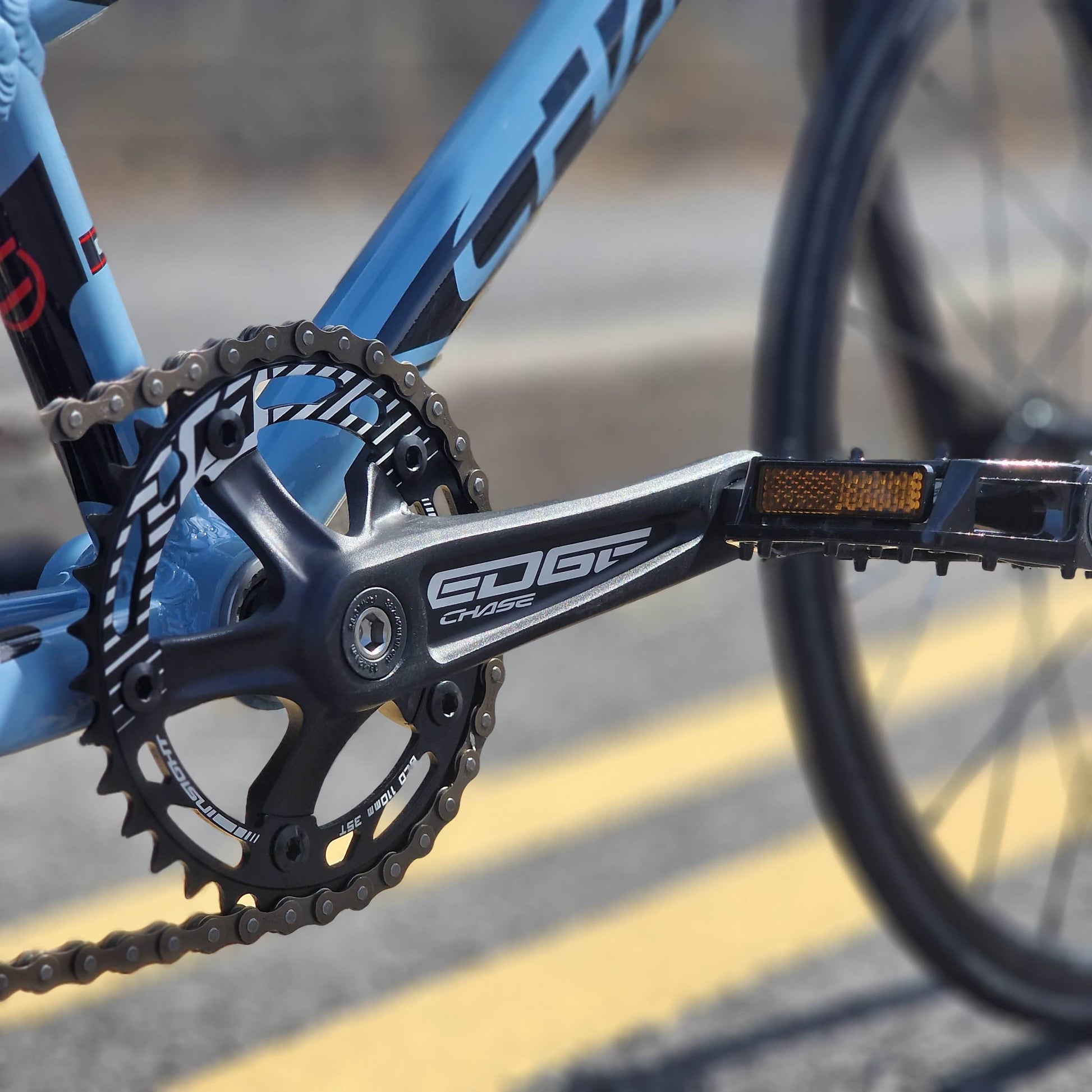

CRANK
|
CHASE Edge 3 Piece Crank 130mm Alloy Arm, Cr-Mo Chainring Bolts |
|

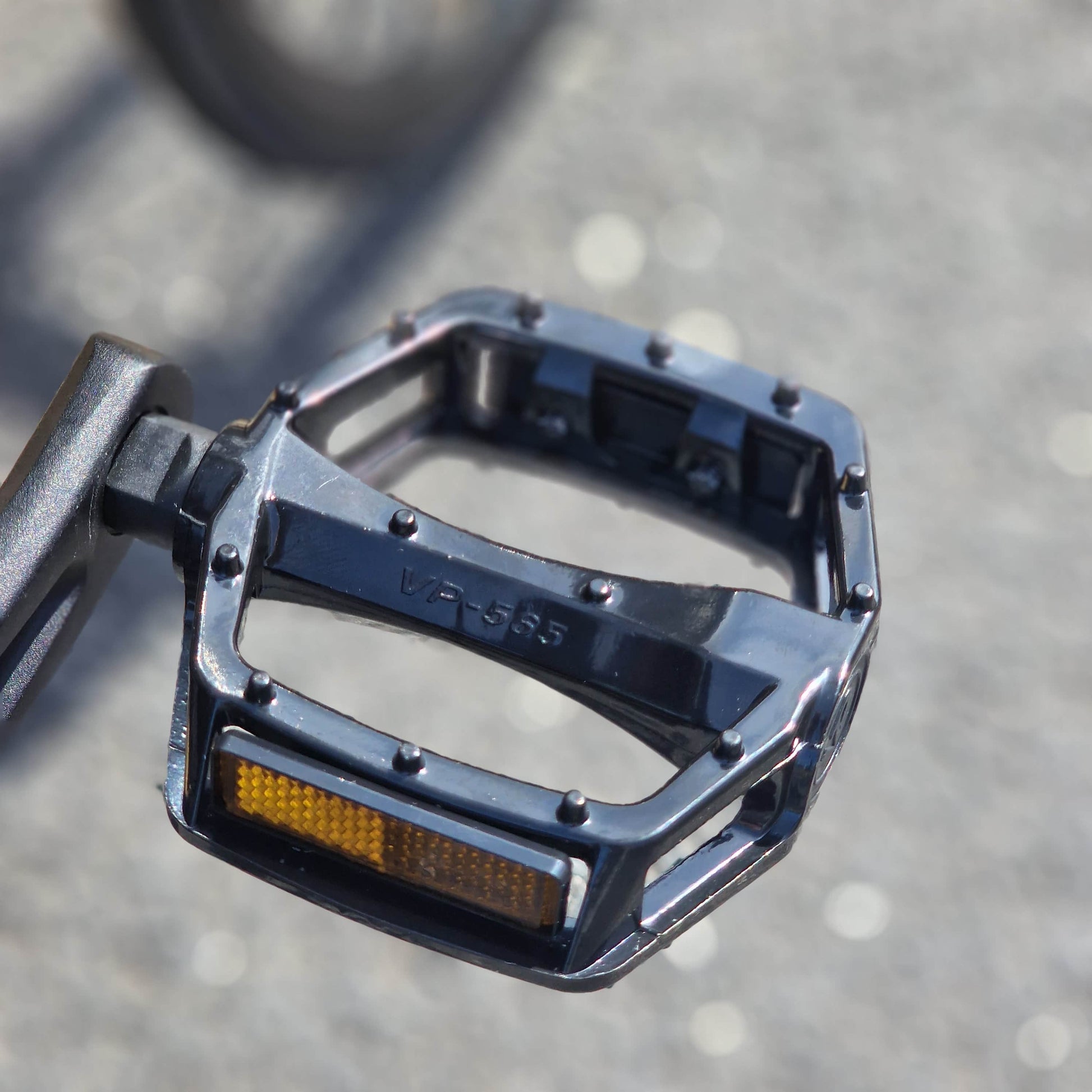

PEDAL
|
Mini Platform 9/16" Barrel Polished With Grip Nodes, Axle Boron Steel, Ball Bearing |
|
CHAIN
|
KMC Z1 narrow 1/2″x3/32″ |
|
COG
|
16T steel |
|
FRONT HUB
|
Mini 24H, Sealed Bearing, 10mm Axle, M6 Bolts |
|
REAR HUB
|
Mini ISO 28H, Sealed Bearing, 10mm Axle, M6 Bolts, Steel Cassette Body With 3 Pawls At Triple Angle Engagement For 24T Ratchets |
|
SPOKES
|
Front 182mm, Rear 173/174mm, 14 Gauge, Steel |
|
NIPPLES
|
16mm, 14 Gauge, Brass |
|
FRONT RIM
|
Chase Edge Alloy 100 Double Wall 24H 18″X1″ Presta Valve |
|
REAR RIM
|
Chase Edge Alloy 100 Double Wall 24H 18″X1″ Presta Valve |
|
FRONT TYRE
|
Vee Rubber Speedster 18″X1″ Wire Bead |
|
REAR TYRE
|
Vee Rubber Speedster 18″X1″ Wire Bead |
|
TUBES
|
18″x1.00″ Presta Valve |
|
BRAKE LEVER
|
Junior/Expert Alloy |
|
BRAKE CALIPER
|
Disc, Shimano B01S Compatible Pads, Lock Disc Adaptor |
|
SADDLE
|
Insight Mini Pivotal Nylon Plastic Body With Cr-Mo Bolt |
|
SEAT POST
|
Chase Edge QR Alloy 28.6mm |
|
SEAT CLAMP
|
Chase Edge QR Alloy 28.6mm |
|

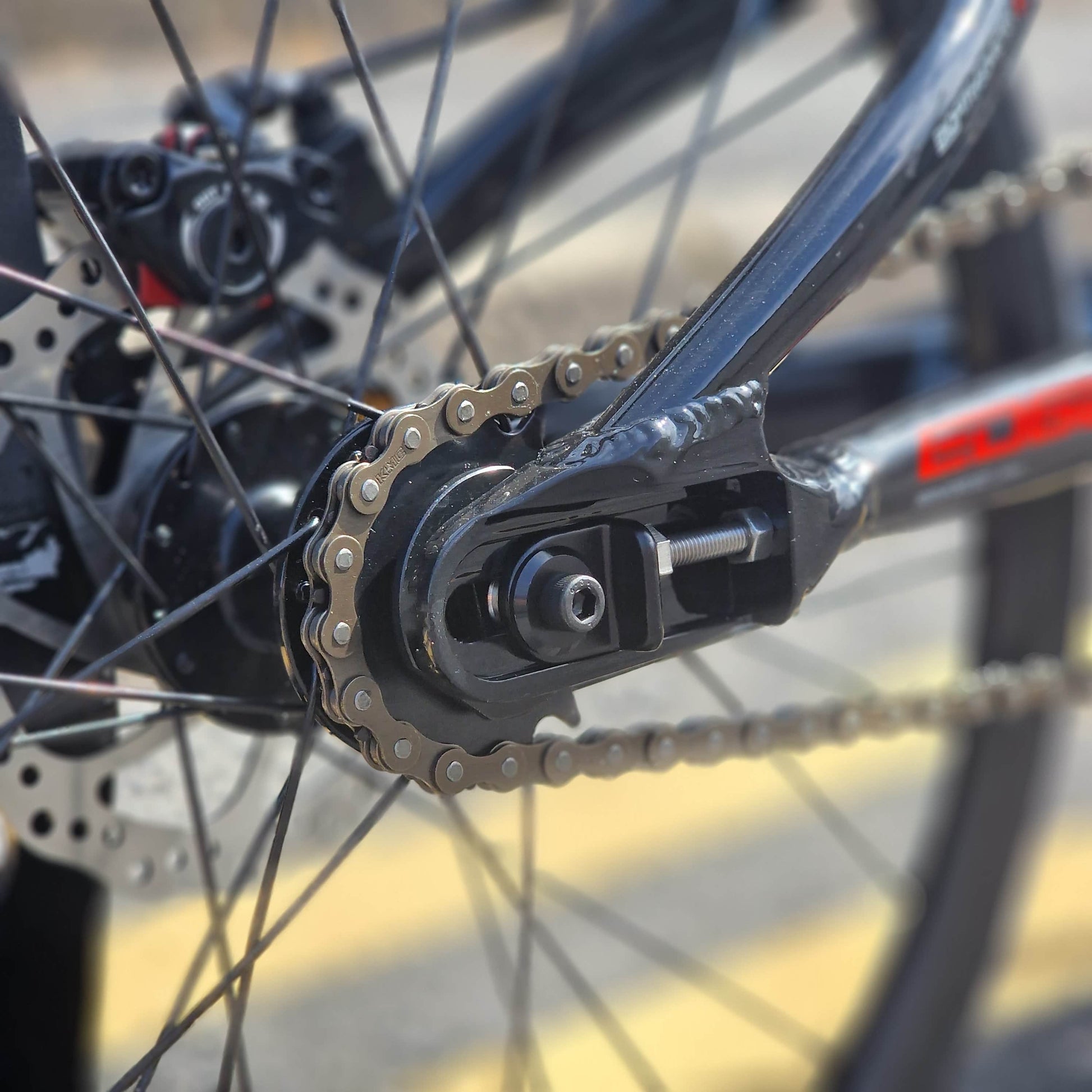

CHAIN TENSIONER
|
Integrated Built-In With New Lock Disc Adaptor |
