Chase Edge Pro XXL Race Bike Slate Blue
Chase Edge Pro XXL Race Bike Slate Blue

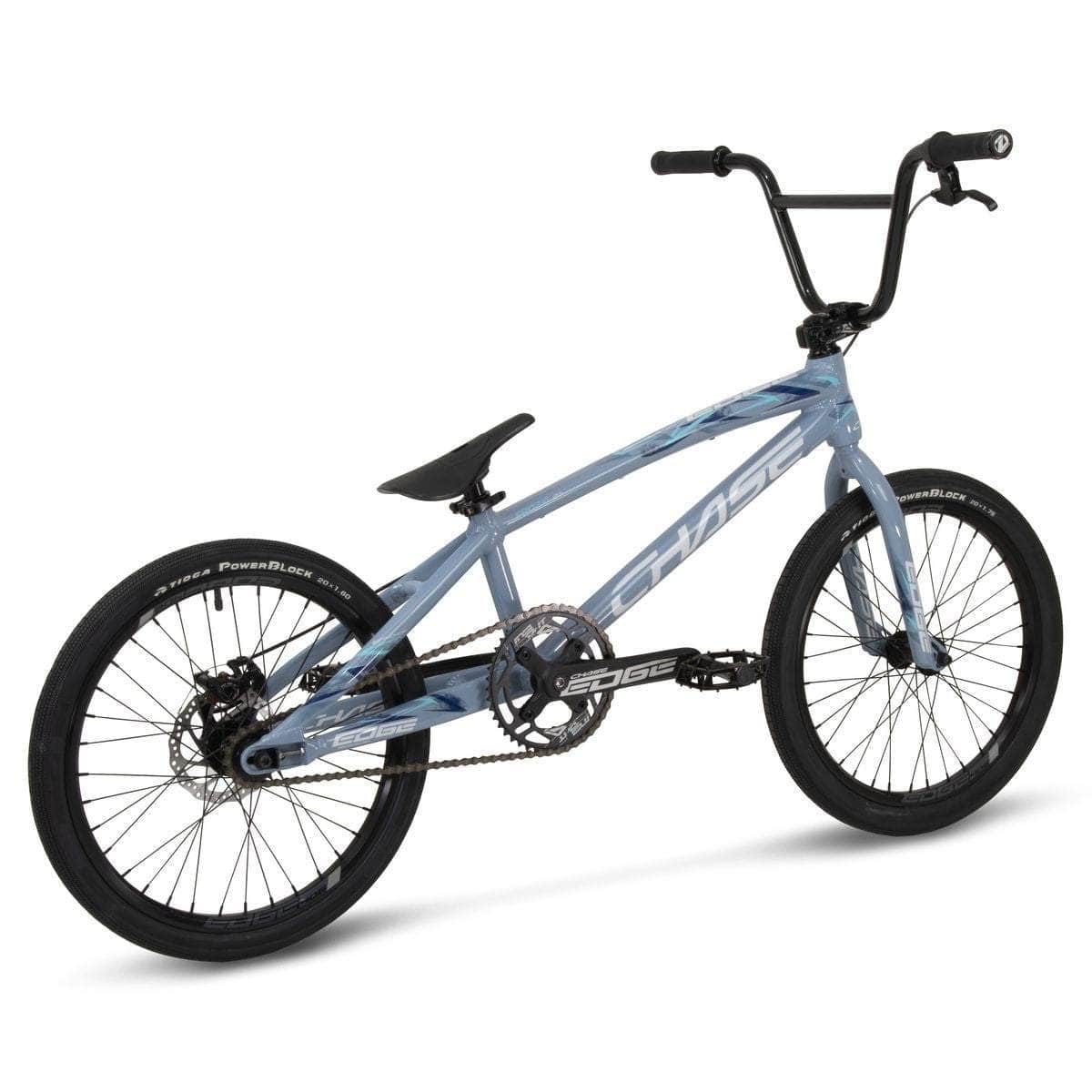

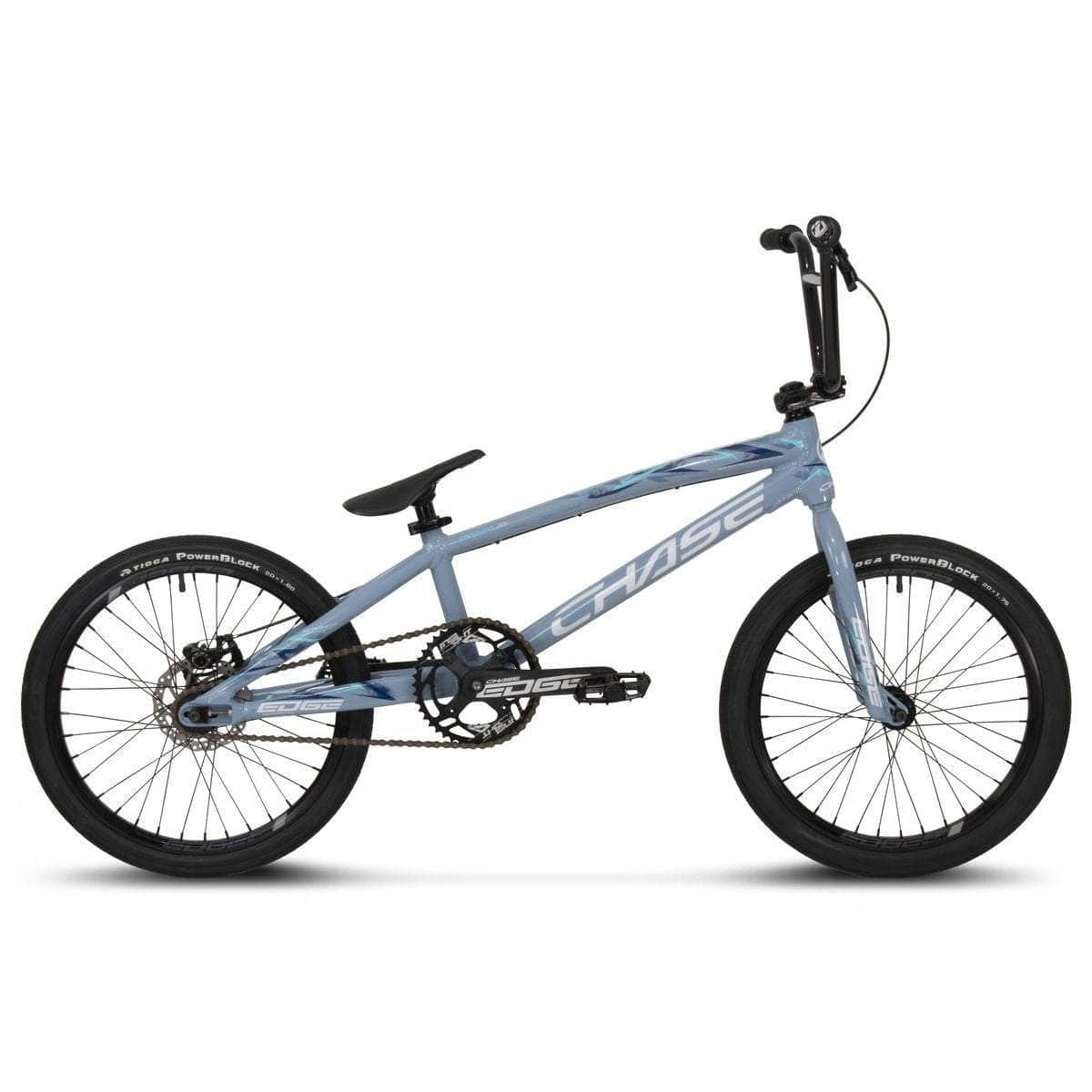

For the taller rider (1.75m +) the Chase Edge Pro XXL, as an out of the box race bike, is hard to beat, with a disc brake, hydroformed triple butted alloy frame and quality parts throughout.
The CHASE Edge is a pure BMX racing machine, ideal for improving and taking it to the next level. Now equipped with a disc brake and closed rear dropout system, it has a hydroformed triple butted 6061 aluminum frame with integrated headset, a chromoly fork and handlebars, a crankset with INSIGHT chainring, double wall rims with cassette rear hub and TIOGA Powerblock tyres. The combination of all these components arguably makes the CHASE Edge one of the most advanced race BMX bikes on the market today.
IMPORTANT NOTE ABOUT PEDAL FITMENT
Also available in Cement Grey
PLEASE NOTE THIS BIKE IS FOR TRACK USE ONLY.
FEATURES :
- Aluminum 6061-T6 Triple butted frame 21.5TT
- Integrated headtube 1-1/8" and enclosed rear dropouts
- 100% Chromoly fork and handlebar
- Mechanical disc braking
- Chase Edge Alloy Stem 50mm Top Load
- Chase Edge 3 Piece Crank 180mm, Chromo Chainring bolts
- Euro ISIS bottom bracket
- 44T Insight Chainring 4 points BCD 104mm
- Pro 36H alloy hubs, sealed bearings
- Rear ISO bracket cassette hub 16T cogs
- Chase Double Wall Alloy rims 20x1.75"
- TIOGA PowerBlock tyres Wire Bead
- KMC Z1 chain
RECOMMENDED SIZE: 1.75m (5' 9") and taller
WEIGHT: 9.41Kg without pedals
FRAME
|
CHASE Edge Pro XXL 21.5" Top Tube, 6061 T6 Alloy Triple butted Hydroformed, Integrated Head Tube, Enclosed rear dropouts and Chain tensioner system |
FORK
|

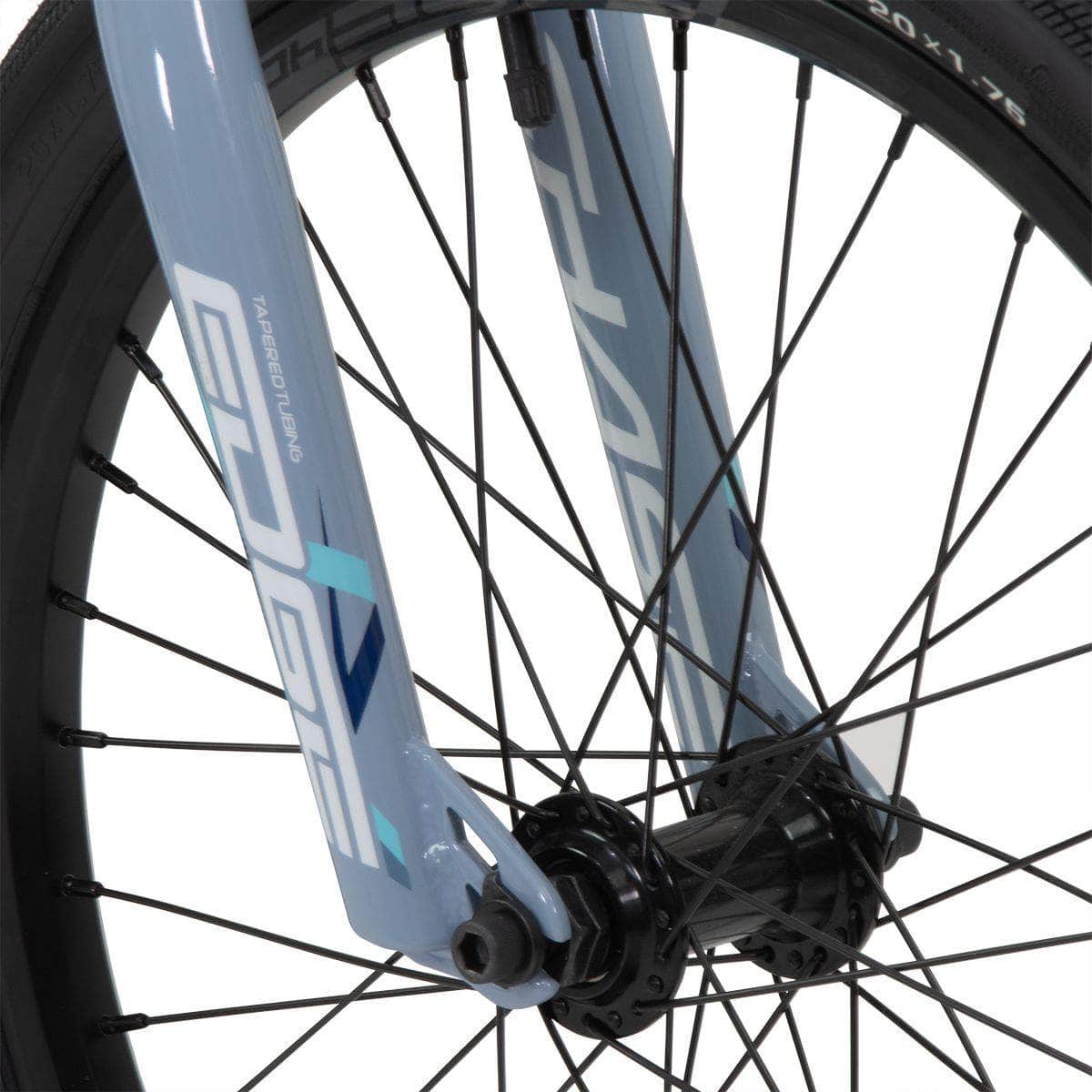

CHASE Edge Full Cr-mo, 1-1/8" Steer Tube, Tapered Blades |
HEADSET
|
Integrated IS 42/42 1-1/8", Sealed Bearing |
HANDLEBAR
|

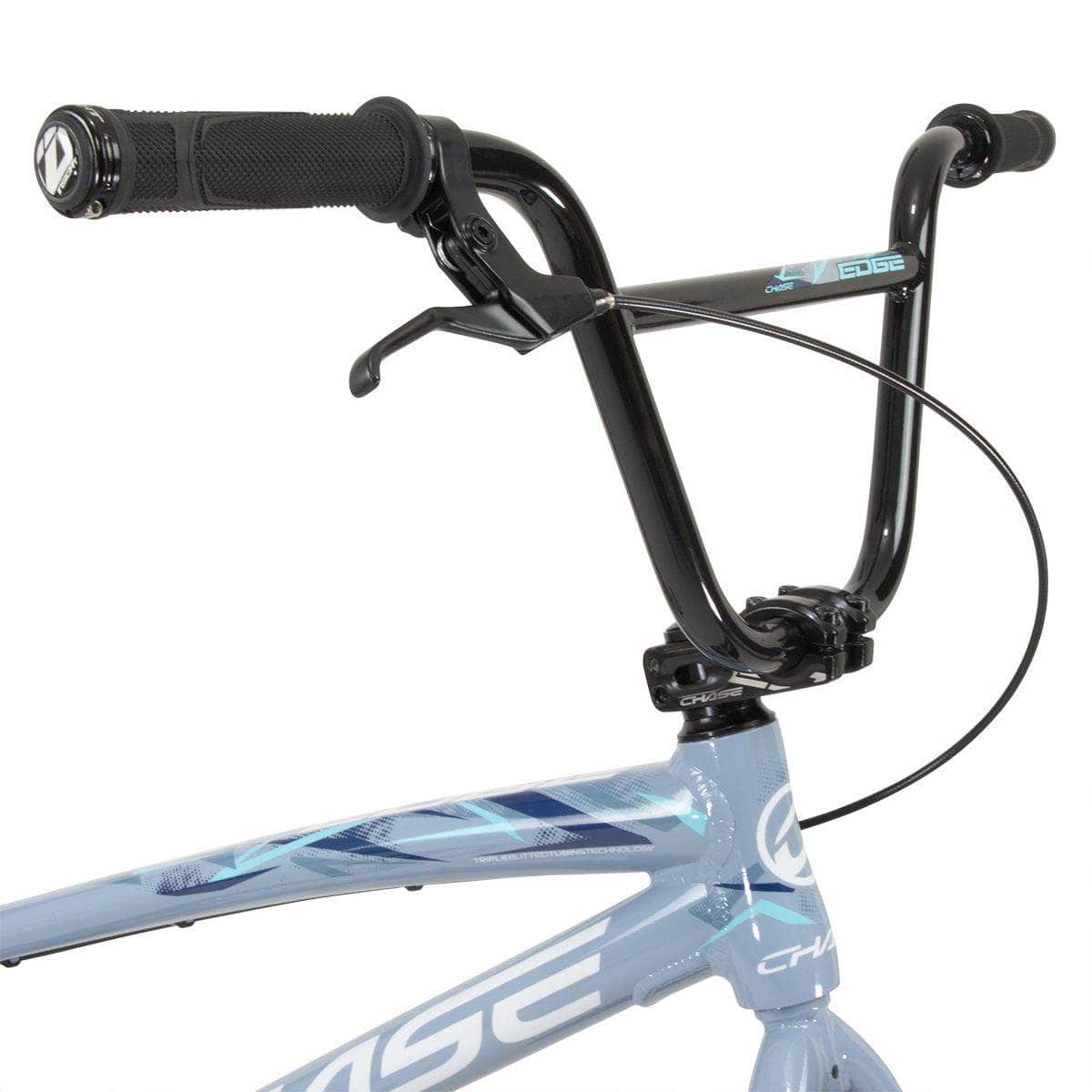

Chase Edge Cr-mo 8.5" Rise, 29" Wide, 12° Back Sweep & 1° Up Sweep |
GRIPS
|
INSIGHT C.O.G.S 145mm Lock-on |
STEM
|
CHASE Edge 50mm 6061 T6 Alloy |
BB
|
118mm Euro, ISIS, Sealed Cartridge |
CHAINRING
|
INSIGHT 44 Tooth 4 Bolt 104mm 1/2"x3/32" 5mm Alloy Ring |
CRANK
|

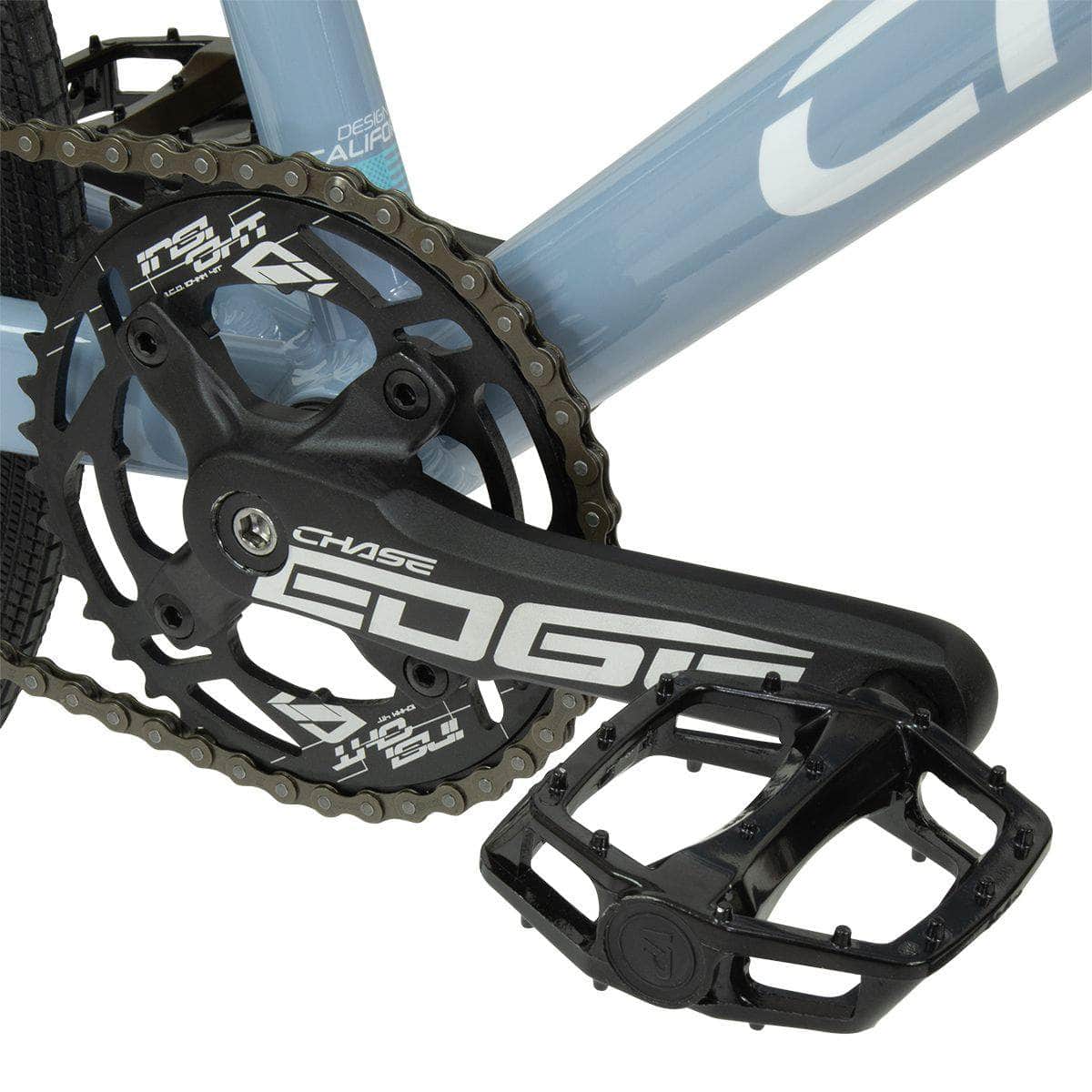

CHASE Edge 3 Piece Crank 180mm Alloy Arm, Cr-mo Chainring Bolts |
PEDAL
|
Pro Platform 9/16" Barrel Polished With Grip Nodes, Axle Boron Steel, Ball Bearing |
CHAIN
|
KMC Z1 narrow 1/2"x3/32" |
COG
|
16T steel |
FRONT HUB
|
Pro 36H, Sealed Bearing, 10mm Axle |
REAR HUB
|
Pro ISO 36H, Sealed Bearing, 10mm Axle, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets |
SPOKES
|
Front 184mm, Rear 180/181mm, 14 Gauge, Steel |
NIPPLES
|
16mm, 14 Gauge, Brass |
FRONT RIM
|
CHASE Edge 175 Double Wall 36H 20"x1.75" Schrader Valve |
REAR RIM
|
CHASE Edge 175 Double Wall 36H 20"x1.75" Schrader Valve |
FRONT TYRE
|
TIOGA PowerBlock 20"x1.85" Wire Bead |
REAR TYRE
|
TIOGA PowerBlock 20"x1.60" Wire Bead |
TUBES
|
20''x1.5"-1.75" Schrader Valve |
BRAKE LEVER
|
Pro Alloy |
BRAKE CALIPER
|

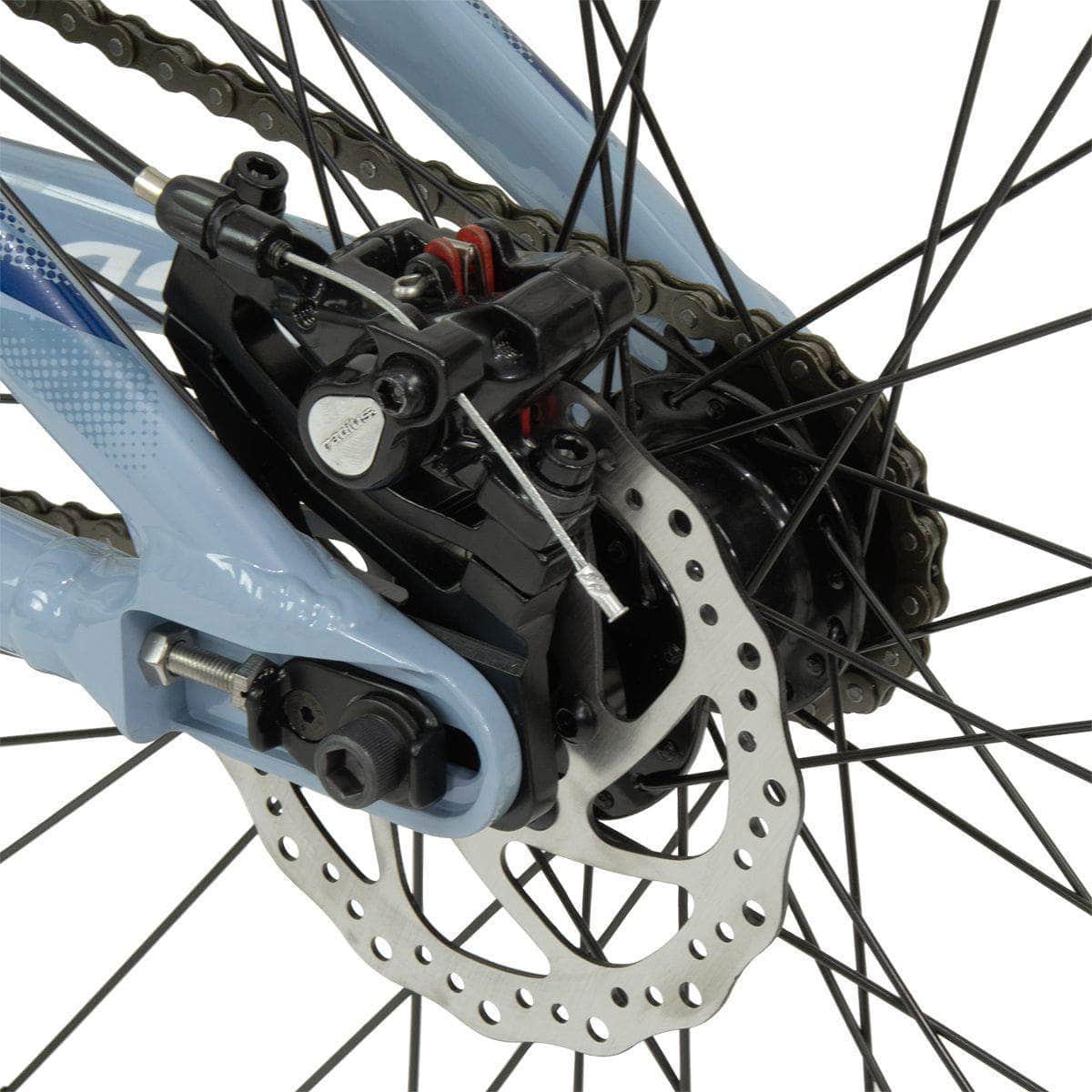

Mechanical, 140mm disc rotor, Shimano B01S compatible Pads, Lock Disc Adaptor |
SADDLE
|
Pro Pivotal |
SEAT POST
|
Pivotal 27.2x250mm Alloy |
SEAT CLAMP
|
CHASE Edge QR Alloy 31.8mm |
CHAIN TENSIONNER
|
Integrated Built-In With New Lock Disc Adaptor |
