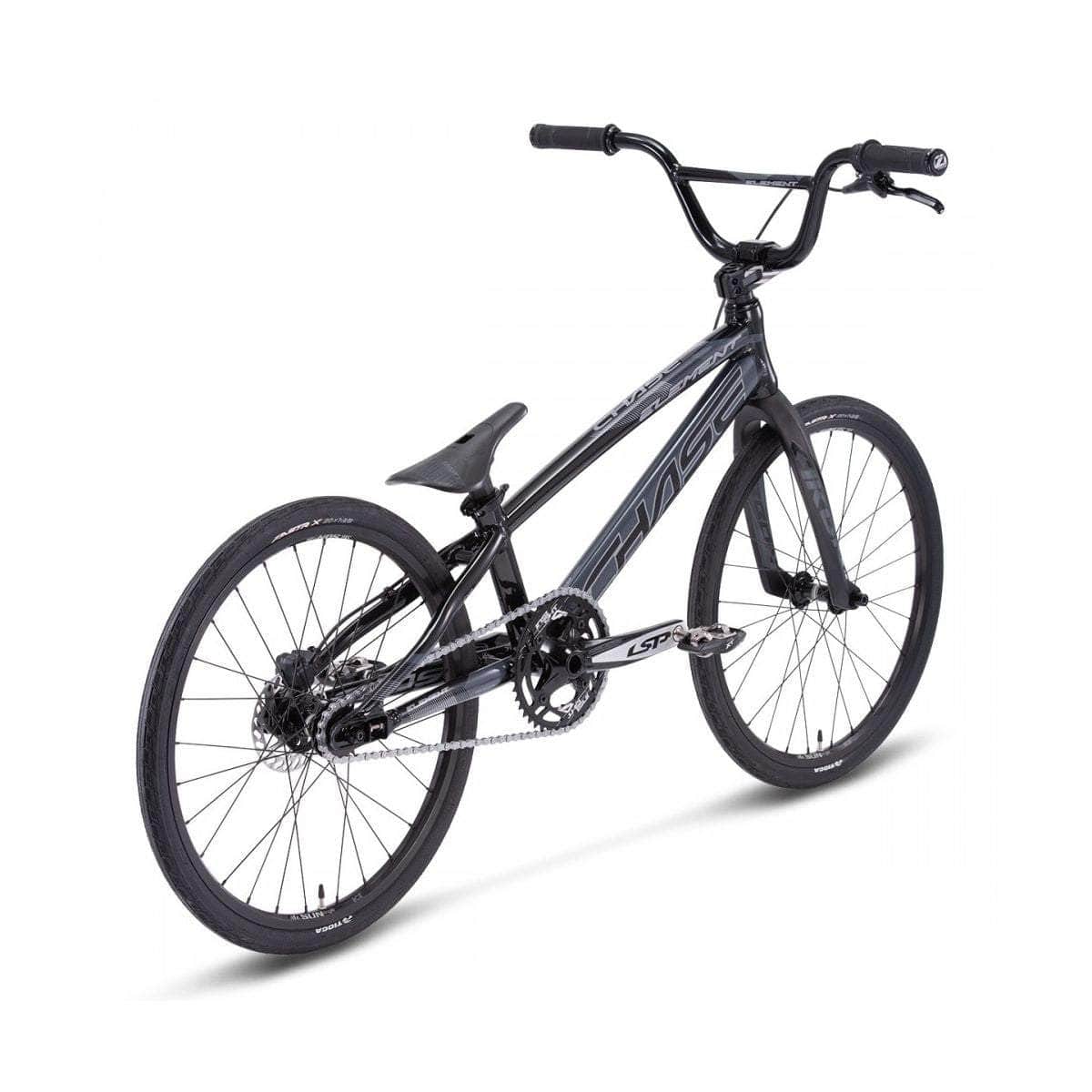

Chase 2025 Element Expert Race Bike Black / Grey
Chase 2025 Element Expert Race Bike Black / Grey
Chase has been pushing the boundaries with their complete bikes for 11 years now and the latest 2025 edition of the Element, the Element 10, is the best Expert bike they have ever offered, complete with carbon fork and hydraulic disc brake ready to win right out of the box at a fraction of the price it would cost to build separately.
IMPORTANT NOTE ABOUT PEDAL FITMENT
FRAME: Chase Element Expert 20" Top tube, Hydroformed 7005-T6 Alloy, Aero system shaping, Enclosed rear dropouts, Integrated Chain tensioner system
FORK: Ikon Carbon Pro 1-1/8", 20mm drop out, Alloy Steer Tube, Drop Out & Top Cap
STEM: Chase Element 31.8mm 45mm
HANDLEBAR: Chase Element 31.8mm 5.75"

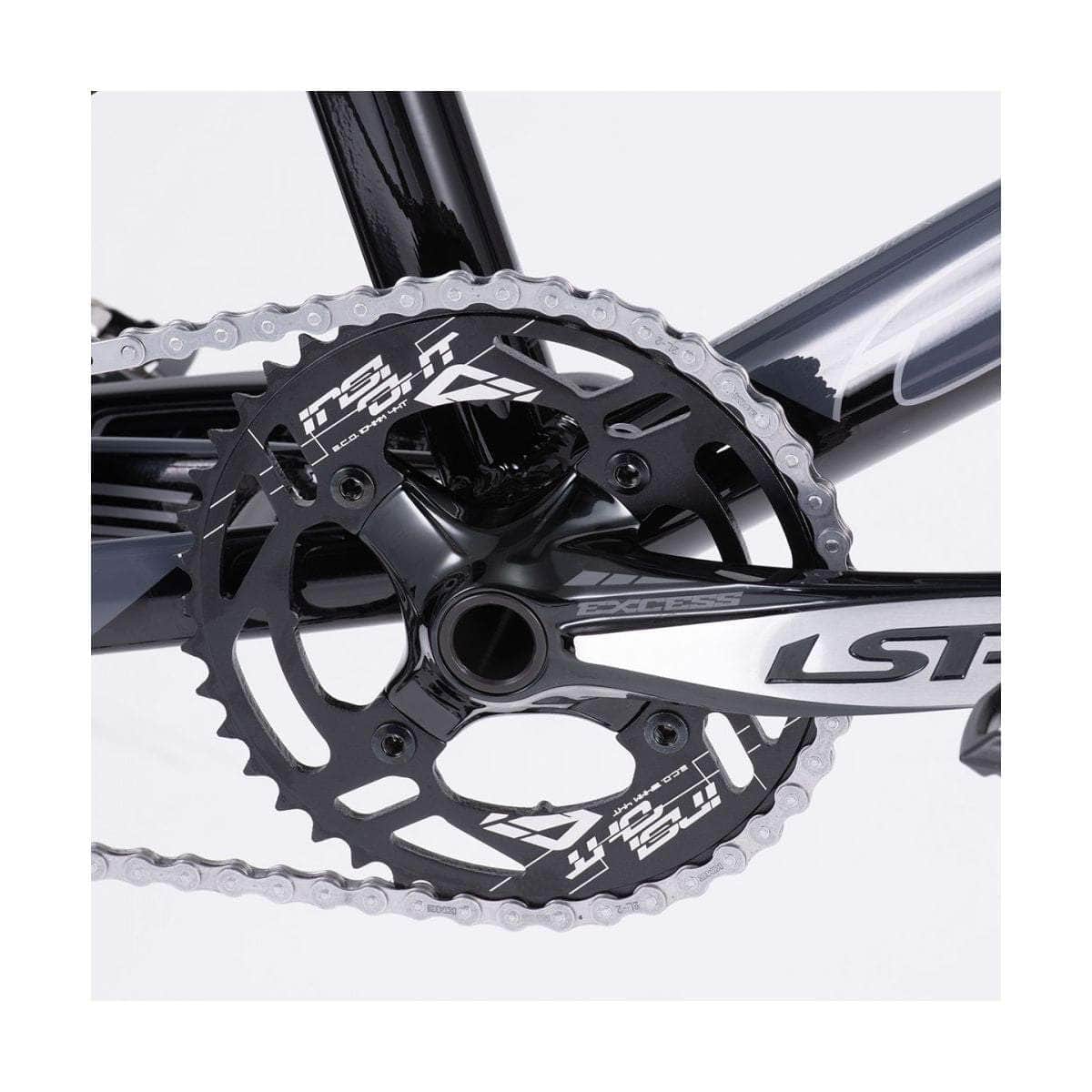

CHAINRING: Insight 42T 4 Bolts BCD 104mm
CRANKSET: Excess LSP 165mm, Press Fit BB86
HUBS : Chase Element M6 Bolts, 28H Front, Chase Element M6 Cassette ISO Hub 28H, 3 Pawls Triple Angle Engagement 24T Ratchets Rear, 16T cog
RIMS: Sun Ringlé ICI-1 Rims 20×1-3/8", 28H, No Brake Surface
TYRES: Tioga Fastr X 20×1-3/8" Front & Rear

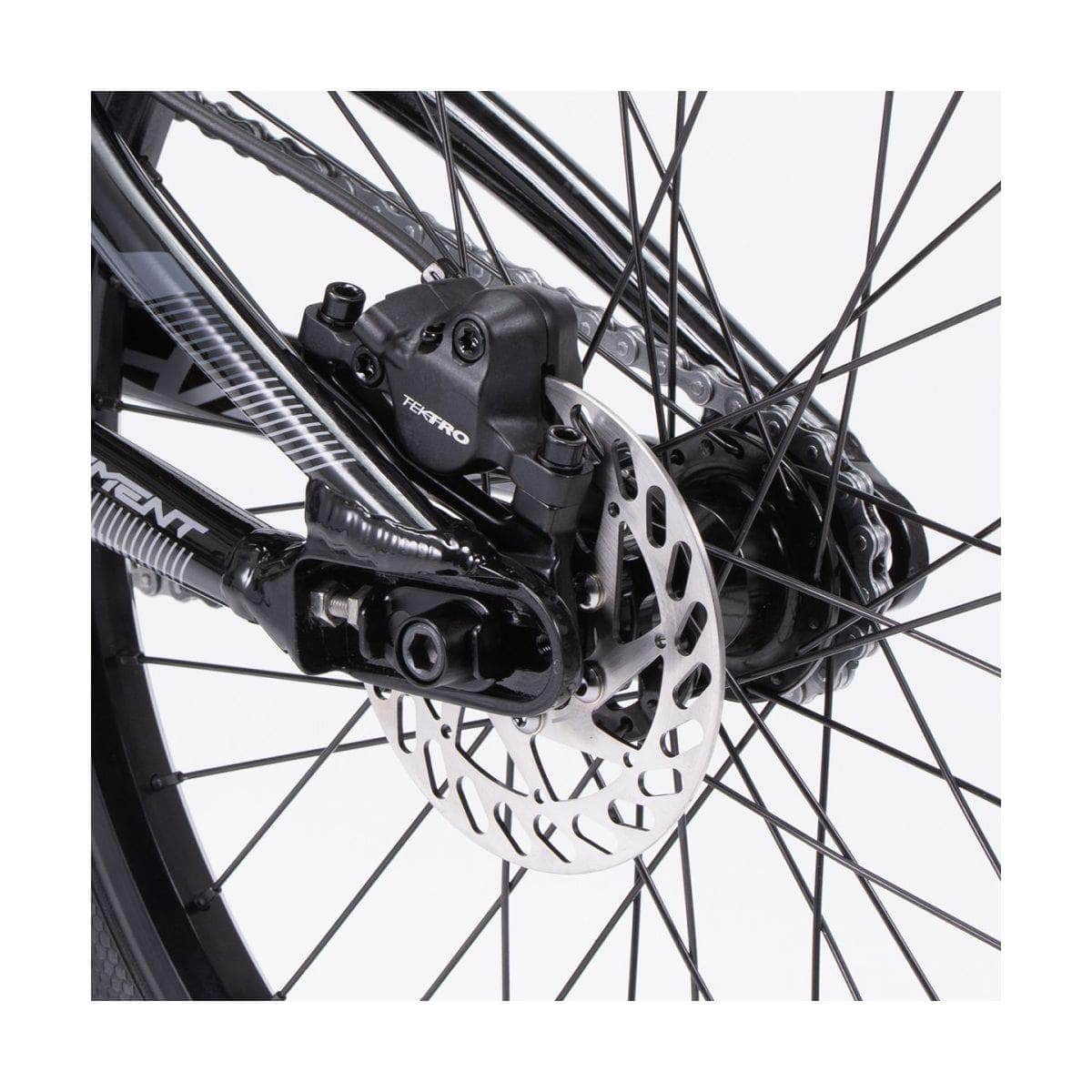

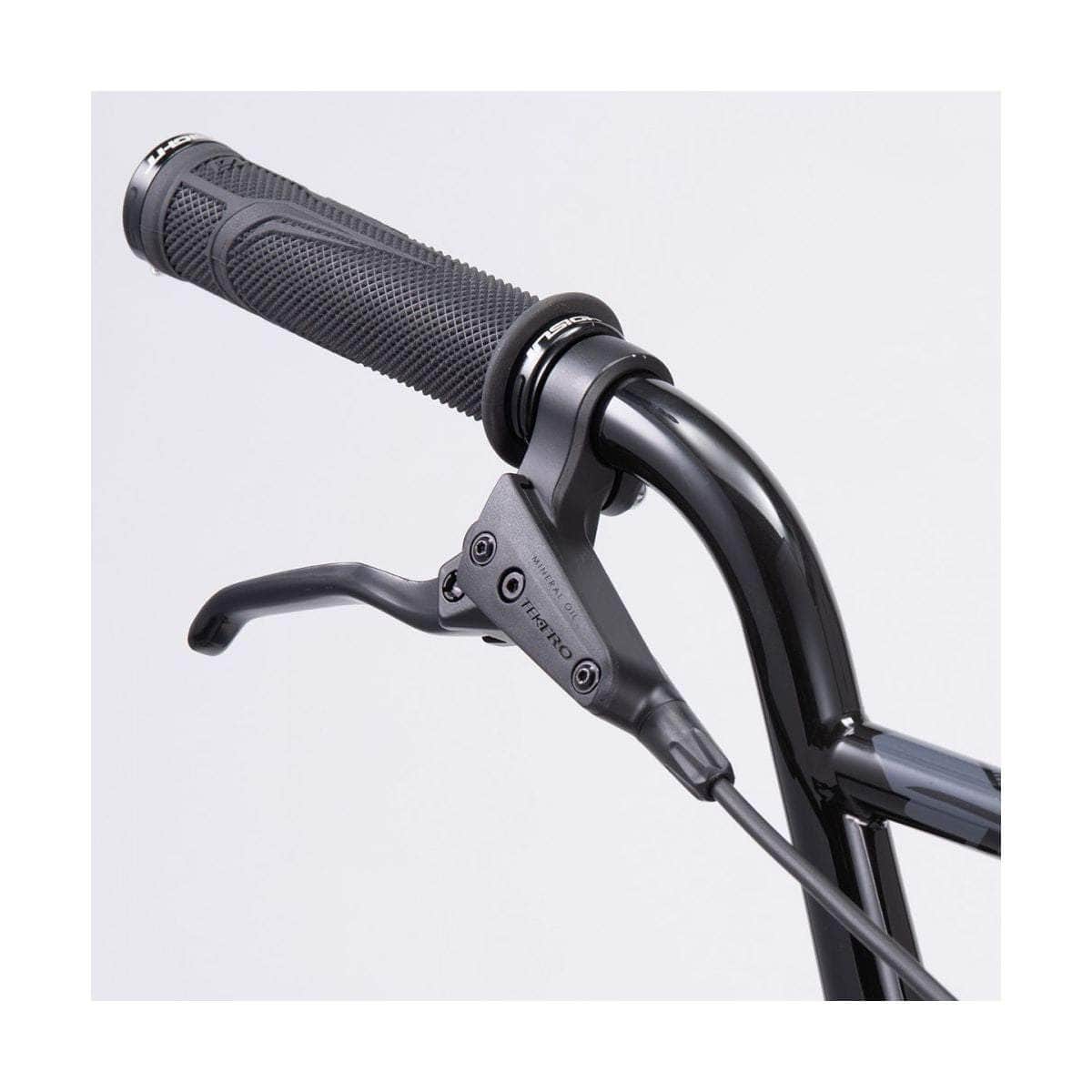

BRAKES: Tektro Hydraulic lever and caliper (Resin pads), 120mm disc rotor

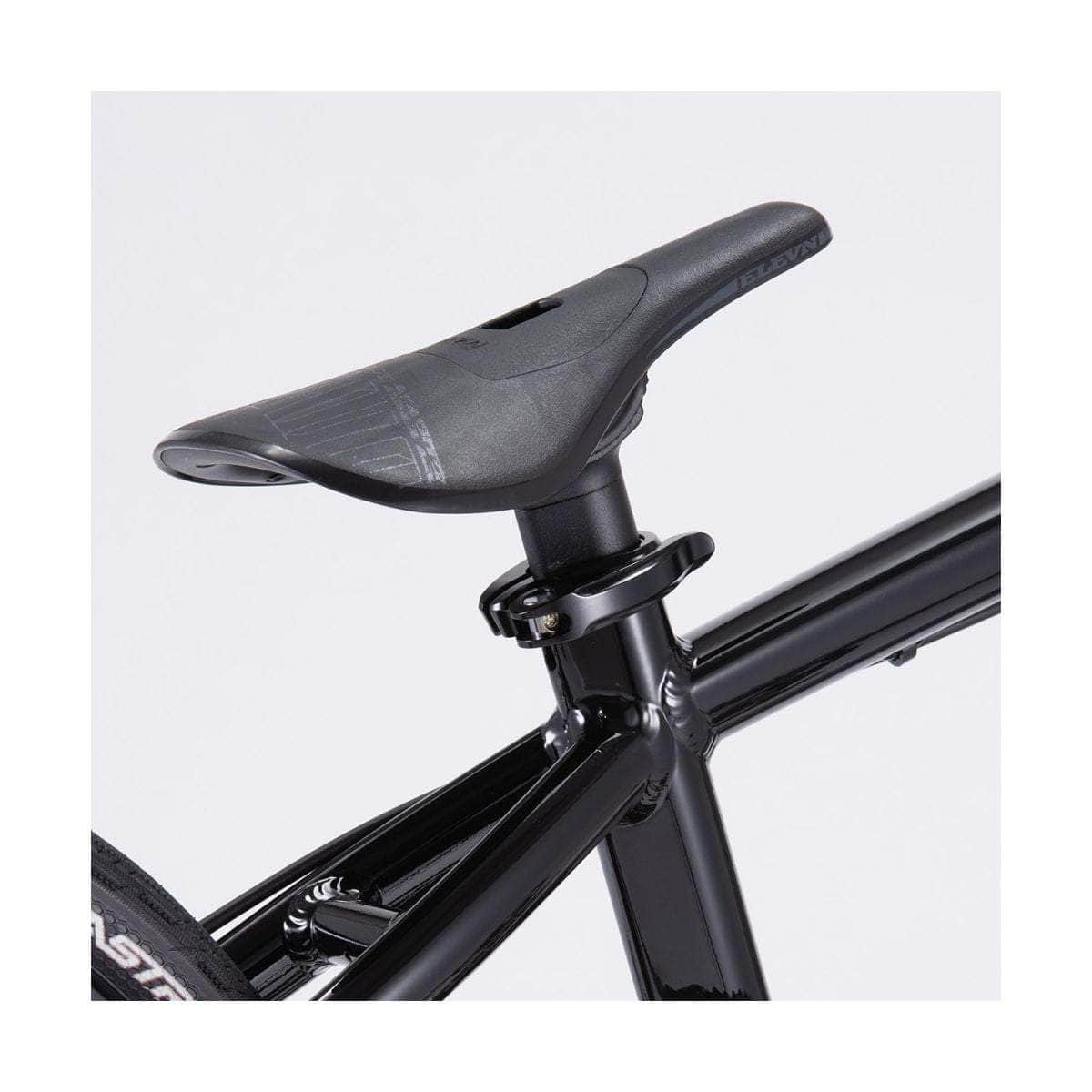

SEAT: Chase Aero seat post & clamp / Elevn PC Pivotal seat
PEDALS: Nylon platform. Pictured with Shimano XT Pedals but this was for photo purposes only.
RECOMMENDED SIZE: 4' 7.5" - 5' 0.6" / 1.41m - 1.54m
WEIGHT: 8.2 Kg with pedals
PLEASE NOTE THIS BIKE IS FOR TRACK USE ONLY.
SPECIFICATIONS :
|
FRAME
|
Chase Element Expert 20" Top Tube 7005 T6 Alloy, Integrated Head Tube, 1-1/8", Closed Drop Out |
|
FORK
|
Ikon Pro 20" Carbon, Alloy 1-1/8" Steer Tube, 20mm Drop Out with Adaptor 3/8" Axle, Alloy Top Cap |
|
HEADSET
|
Integrated IS 42/42 1-1/8", Sealed Bearing |
|
HANDLEBAR
|
Chase Element Alloy 5.75", Diameter 31.8mm, Rise, 26.25" Wide, 10° Back Sweep & 2° Up Sweep |
|
GRIPS
|
Insight C.O.G.S 130mm Alloy Clamps Laser Etched Logo, PVC End Plug |
|
STEM
|
Chase Element 1-1/8" Steer Tube, Diameter 31.8mmmm, Length 45mm 6061 T6 Alloy CNC Laser Etched Logo |
|
BB
|
Press Fit 68/73mm Cartridge Bearings |
|
CHAINRING
|
Insight 42 Tooth 4 Bolt 104mm 1/2"x3/32" 5mm Alloy Ring |
|
CRANK
|
Excess LSP 2 Piece Crank 165mm Alloy Arm, 4 Bolt Spider, Cr-mo Pedal Inserts, Alloy Chain Ring Bolts / Nuts |
|
PEDAL
|
Nylon Platform Pedal 9/16" |
|
CHAIN
|
KMC Z1 Narrow 1/2"x3/32" |
|
COG
|
16 teeth |
|
FRONT HUB
|
Chase Element M6 Bolts ,28H, Sealed Bearing |
|
REAR HUB
|
Chase Element Mini ISO, 28H, Sealed Bearing, M6 Bolts, Steel Cassette Body with 3 Pawls at Triple Angle Engagement for 24T Ratchets |
|
SPOKES
|
Front 215mm, Rear 213mm, 14 Gauge, Steel |
|
NIPPLES
|
Brass 14Gx5/8" |
|
RIMS
|
Sun Rims Alloy ICI-1 28H 20"x1-3/8" No Brake Surface Presta Valve |
|
FRONT TYRE
|
Tioga Fastr X 20"x1-3/8" 60 TPI Wire Bead |
|
REAR TYRE
|
Tioga Fastr X 20"x1-3/8" 60 TPI Wire Bead |
|
TUBES
|
20x1-3/8" presta valve |
|
BRAKES
|
Tektro HD-M281 Hydraulic, Resin Pads, 120mm Rotor |
| SEAT | ELEVN PC Pivotal |
|
SEAT POST
|
CHASE Aero Pivotal 27.2x260mm Alloy |
|
SEAT CLAMP
|
Chase Aero QR Alloy 31.8mm |
|
CHAIN TENSIONER
|
Integrated Built-In With New Lock Disc Adaptor |
Mounted with Shimano XT pedals for photographic purposes only. The bikes come with nylon platform pedals.
IMPORTANT NOTE: The washers supplied with the EXCESS crank set must be fitted between the pedal and the crank. No after-sales service will be accepted if the washers have not been fitted as of the 1st use.
