SKU: Product Code: DMR-F-RHYTHM-SG-R

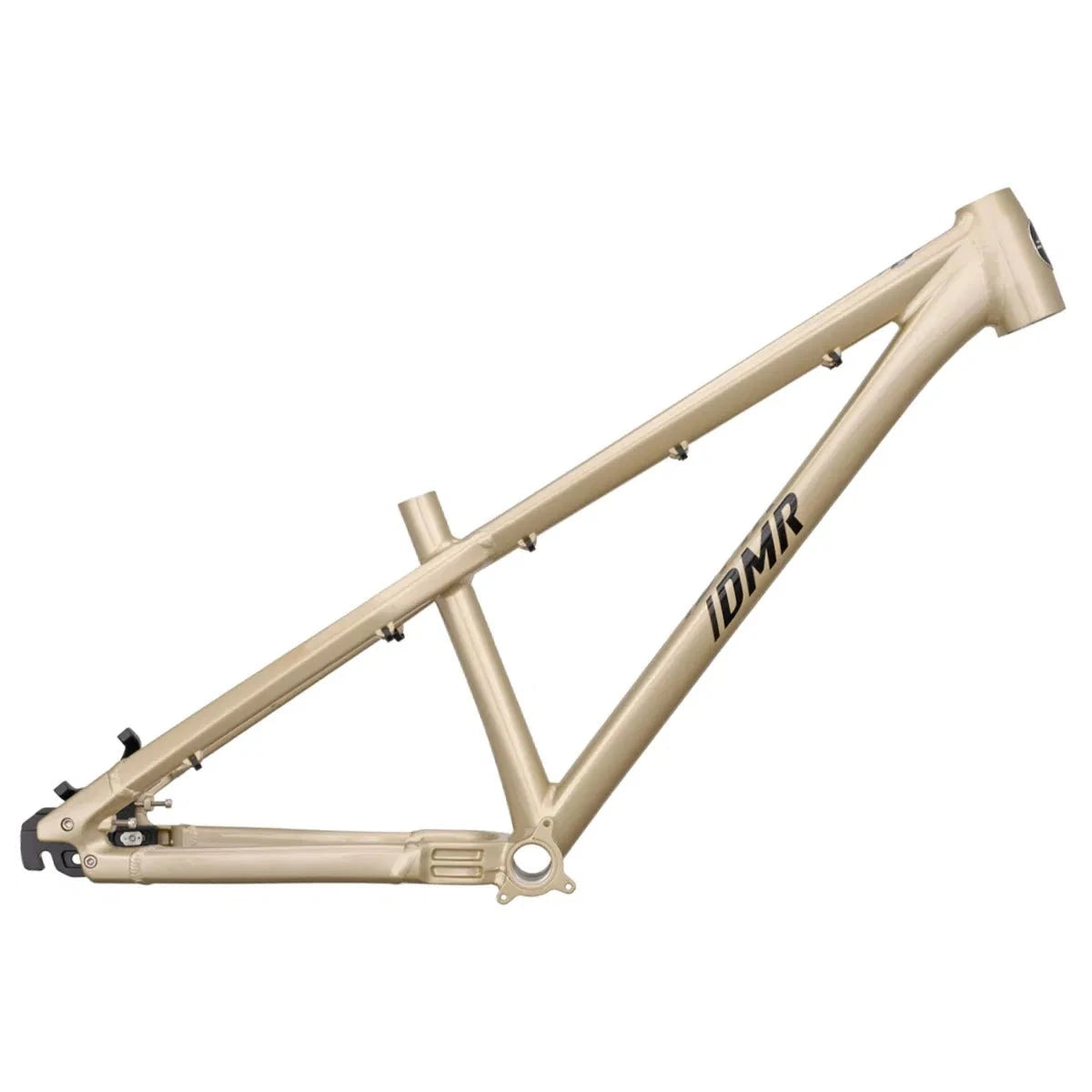

DMR Rhythm Dirt Jump MTB Frame Sola Gold
DMR Rhythm Dirt Jump MTB Frame Sola Gold
Launch. Land. Repeat.
So here it is. The Rhythm is back. Only this time it moves to your beat. The NEW Rhythm is a 26” wheel aluminium JUMP/PUMP/4X/PLAY frame, built for big airs, endless laps and elbow to elbow antics.
Let’s talk about materials. At DMR we are known for our steel hardtails. But we never rest on our laurels. The Rhythm uses tubes made from 6061 T6 aluminium alloy. The lightness and stiffness of this tubing make it ideal for a frame that holds its own equally at the trails and the 4X track.
Details include a tapered headtube, machined chainstay yoke and interchangeable dropouts (purchase dropouts separately). You choose whether to go geared or single speed. The dropouts sit on sliding system for easy chain tension, with the added benefit of adjustable chainstay length. The Rhythm is a frame that you can dial in to suit your requirements.
Please Note: Frame does not include dropouts, axle or headset. Please select your desired option at time of purchase from the options below. Dropouts available HERE
Available in two colours, two lengths and two dropout options.
• 6061 T6 Aluminium Alloy frameset.
• Can be used for Dirt Jump, 4X Racing, Pump Track, Street, Park and Play.
• For 26” wheels.
• Two lengths available, Regular and Long.
• 142x12mm geared or 135x10mm single speed dropouts available.
• Sliding dropout system for chain tensioning and adjusting chainstay length.
Fork compatibility: 100-140mm.
Wheel Size: 26”.
Tyre size compatibility: Up to 2.5”.
Headset required: Zero Stack Tapered. 44mm upper / 56mm lower.
BB Shell: BSA Threaded.
Brake attachment: Post Mount Disc 160mm.
Seat Post required: 31.6mm.
Seat Clamp: 34.9mm.
Front Derailleur: Not compatible.
Weight: 2.37kg (Long)
Options: Additional stickers included
Rear Thru Axle: 12mm diameter / 175mm shaft length / 19mm thread length / 1.75 thread pitch.
| Size | Regular | Long | ||||||
| Seat Tube Length C-T | 330 | 330 | ||||||
| Top Tube Length Actual | 561 | 579 | ||||||
| Head Tube Length | 115 | 120 | ||||||
| Head Tube Angle | 69.5 | 69.5 | ||||||
| Seat Tube Angle | 71 | 71 | ||||||
| Bottom Bracket Drop | 20 | 20 | ||||||
| Chain Stay Length | 385 | 385 | ||||||
| Front Centre | 653 | 674 | ||||||
| Wheelbase | 1037 | 1058 | ||||||
| Stack | 564 | 569 | ||||||
| Reach | 401 | 420 | ||||||
| Recommended Fork Length | 483 | 483 | ||||||
| Recommended Fork Offset | 45 | 45 | ||||||
| All dimensions in mm | ||||||||
| Seat Post Size: Ø31.6 | Seat Clamp Size: Ø34.9 | Threaded 73 Bottom bracket Shell | Axle Choices: 9mm SS & 142x12 Thru Axle | ||||||||
