SKU: Product Code: DMR-F-SLED-XL-R

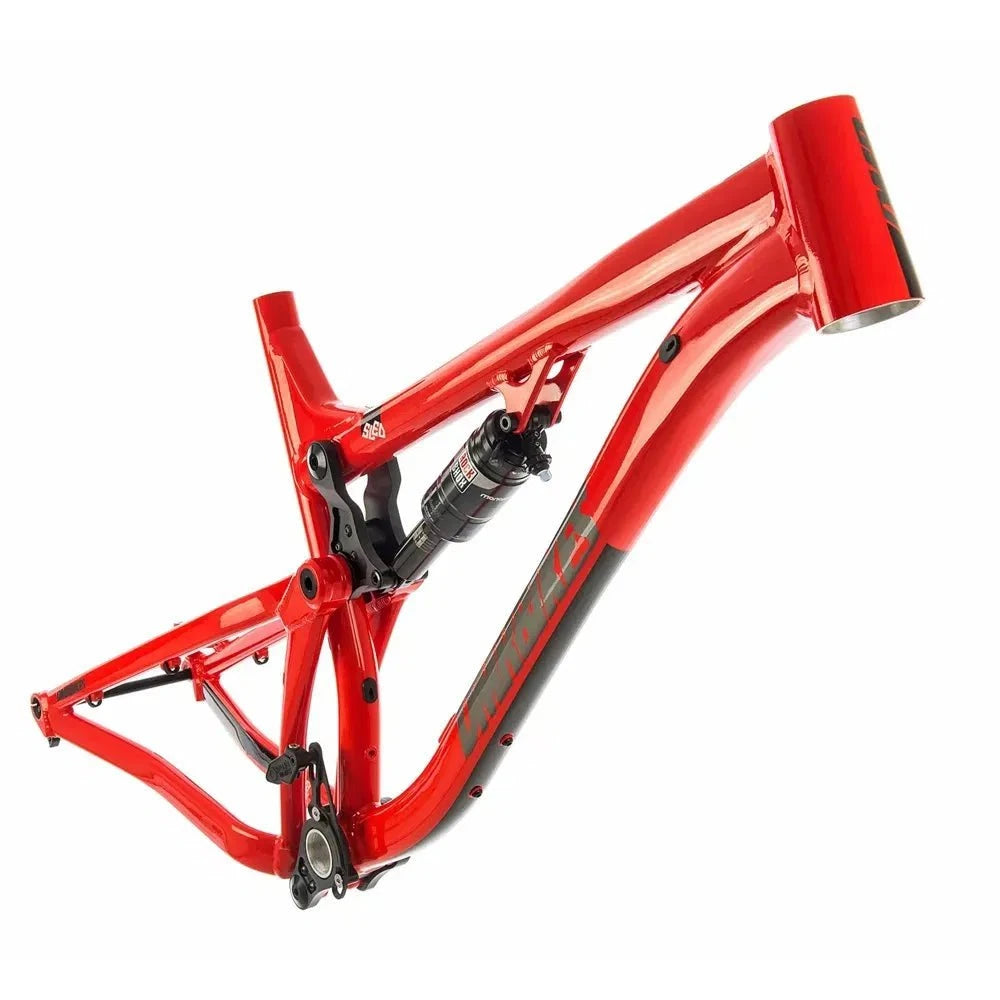

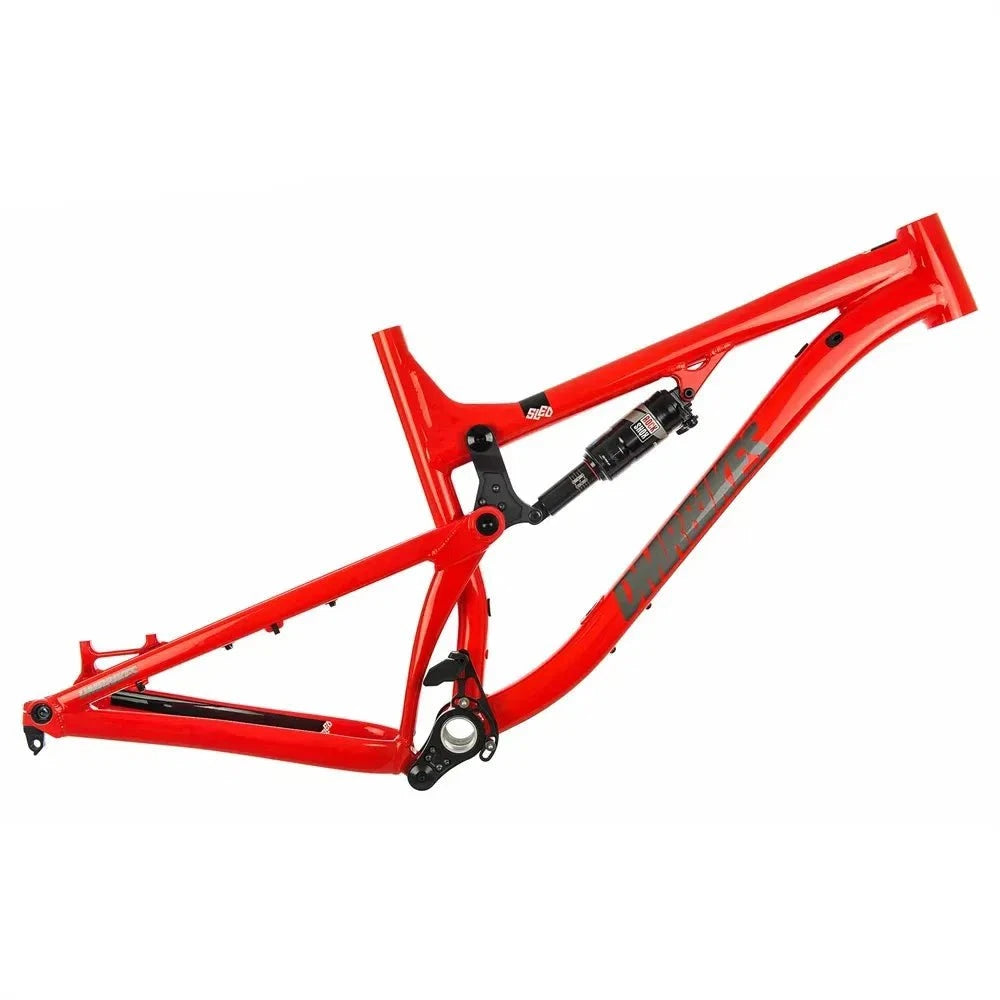

DMR Sled Full Suspension MTB Frame
DMR Sled Full Suspension MTB Frame
The DMR Sled Enduro mountain bike frame has improved 2019 frame geometry with Offset Bushing.
Slacker angles and lower Bottom Bracket. Fast!
DMR ‘Orbit Link’ suspension developed with industry guru David Earle.
This DMR Sled frame has full suspension which begs to descend and is confident to climb.
Alloy frame durability proven with DMR Team riders in 2017-18 seasons.
The DMR SLED frame extracts the fun out of every turn and top speed from every decent.
“Refined enough for big mountain missions, while burly enough to satisfy even the most air-hungry inner child.”
SPECS
• Slack, Long and Low geometry available in 4 sizes
• Short 430mm Chainstays
• 160mm of Travel
• Custom Rock Shox Monarch RT3 Debonair Shock
• 6061 series Aluminium DMR custom tube set
• Integral welded front and rear triangles for maximum stiffness
• Virtual pivot delivered through our own ‘Orbit link’ suspension design. Developed with David Earle from Sotto design.
• Collet style main pivot hardware for maximum stiffness and durability
• All Ball bearing pivots
• Syntace X12 148mm Axle and Mech hanger
• Internal cable and hose routing
• Top guide included
• 73mm Threaded BSA BB
• Water bottle mount and Ride Saver Mount
• Clearance for tyres up to 2.4”
• Available in Metallic Black or InfraRed
• Decal sets available in a range of colours
| Size | S | M | L | XL | ||||
| Head Angle | 65.5° | 65.5° | 65.5° | 65.5° | ||||
| Seat Angle | 74° | 74° | 74° | 74° | ||||
| Front Centre | 740.6 | 760.6 | 780.6 | 796.2 | ||||
| Top Tube Virtual | 595 | 615 | 635 | 650 | ||||
| Seat Tube Length | 375 | 425 | 450 | 470 | ||||
| Rear Centre | 430 | 430 | 430 | 430 | ||||
| Bottom Bracket Drop | 10 | 10 | 10 | 10 | ||||
| Stack | 592.2 | 592.2 | 592.2 | 601.2 | ||||
| Reach | 422.3 | 442.3 | 462.3 | 473.7 | ||||
| Headtube Length | 115 | 115 | 115 | 115 | ||||
| Wheelbase | 1169 | 1189 | 1209 | 1225.5 | ||||
| Maximum Seatpost Insertion Depth | 160 | 210 | 230 | 250 | ||||
| All dimensions in mm | ||||||||
| Seat Post Size: Ø30.9 | Seat Clamp Size: Ø34.9 | Threaded 73 Bottom bracket Shell | 148 x 12 Syntace axle system | ||||||||
