SKU: Product Code: 00-202661

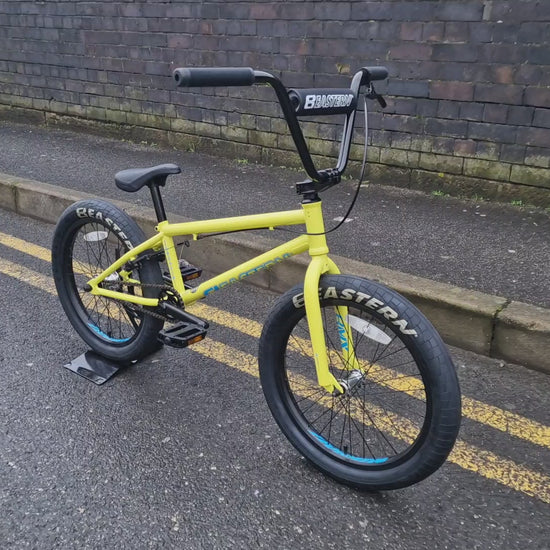

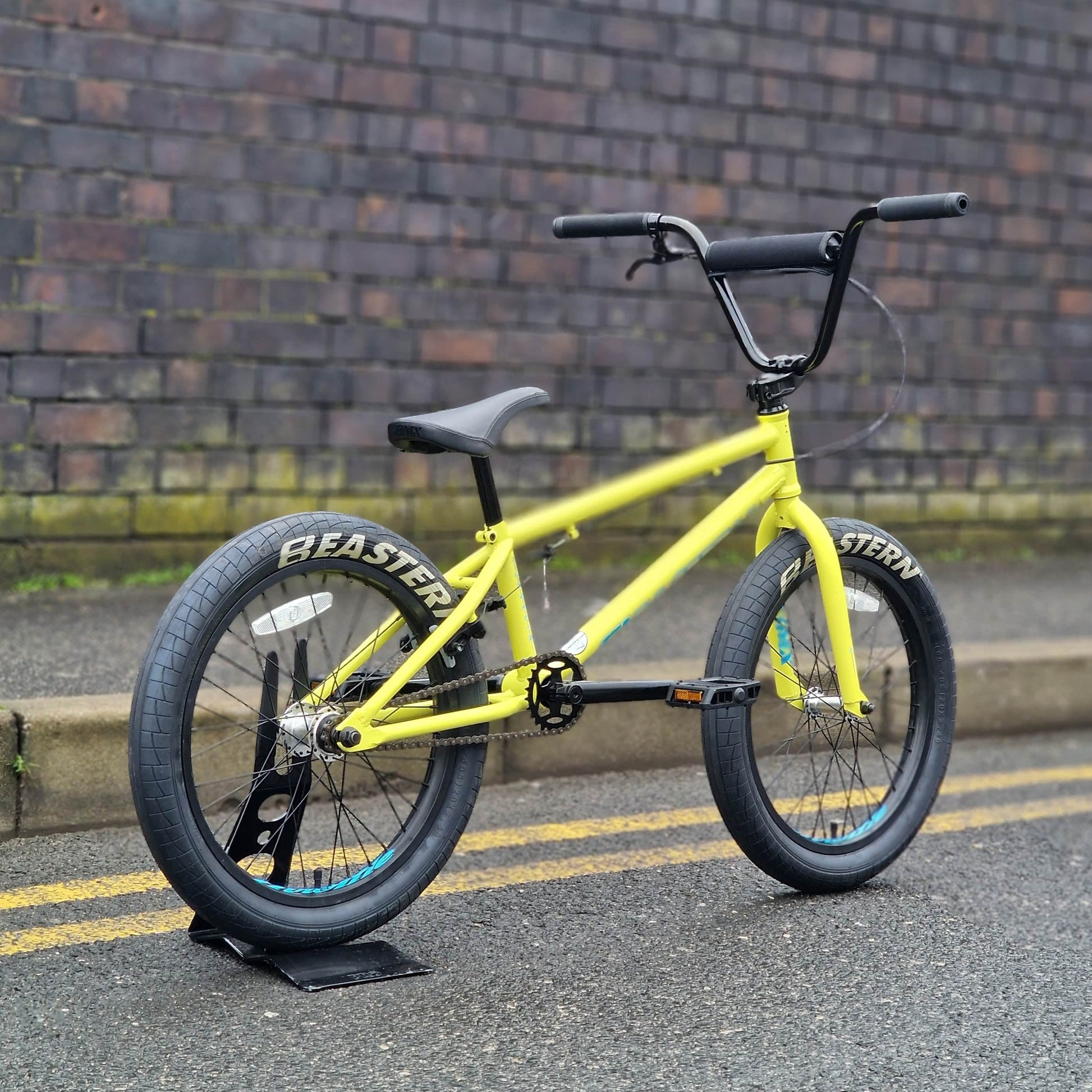

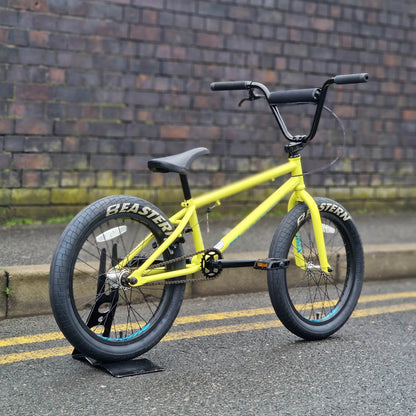

Eastern Bikes Javelin 20.5" TT Bike Neon Yellow
Eastern Bikes Javelin 20.5" TT Bike Neon Yellow

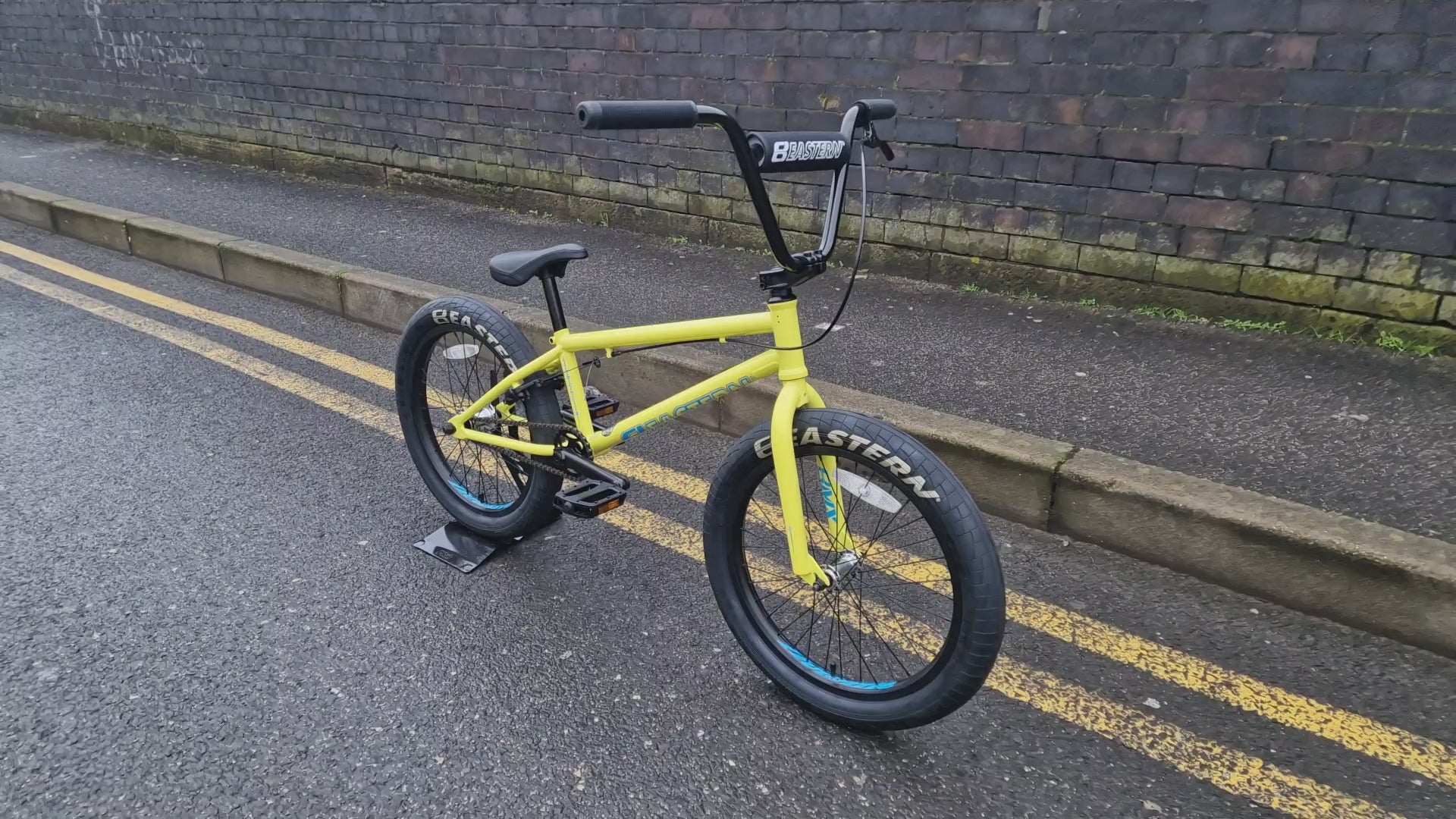

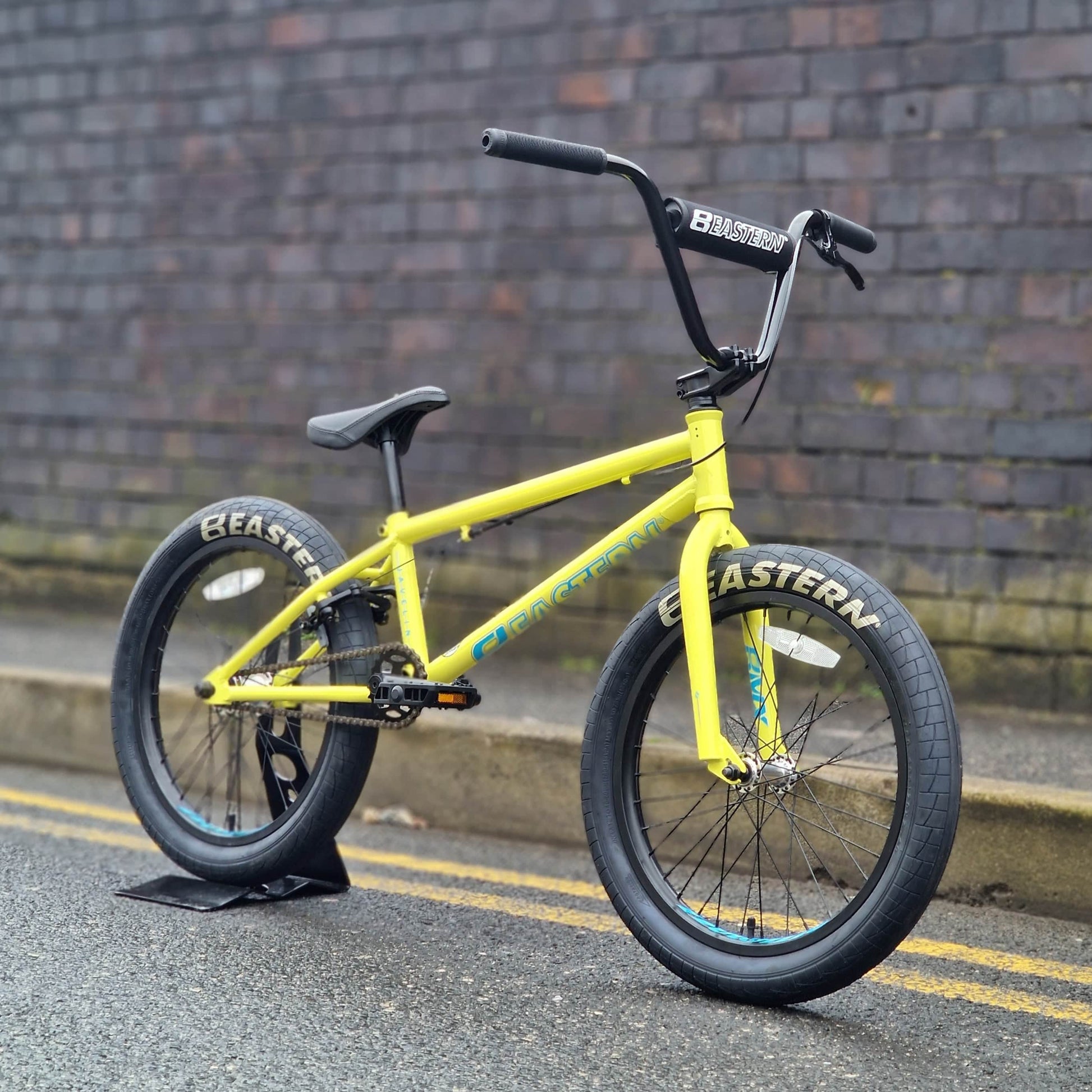

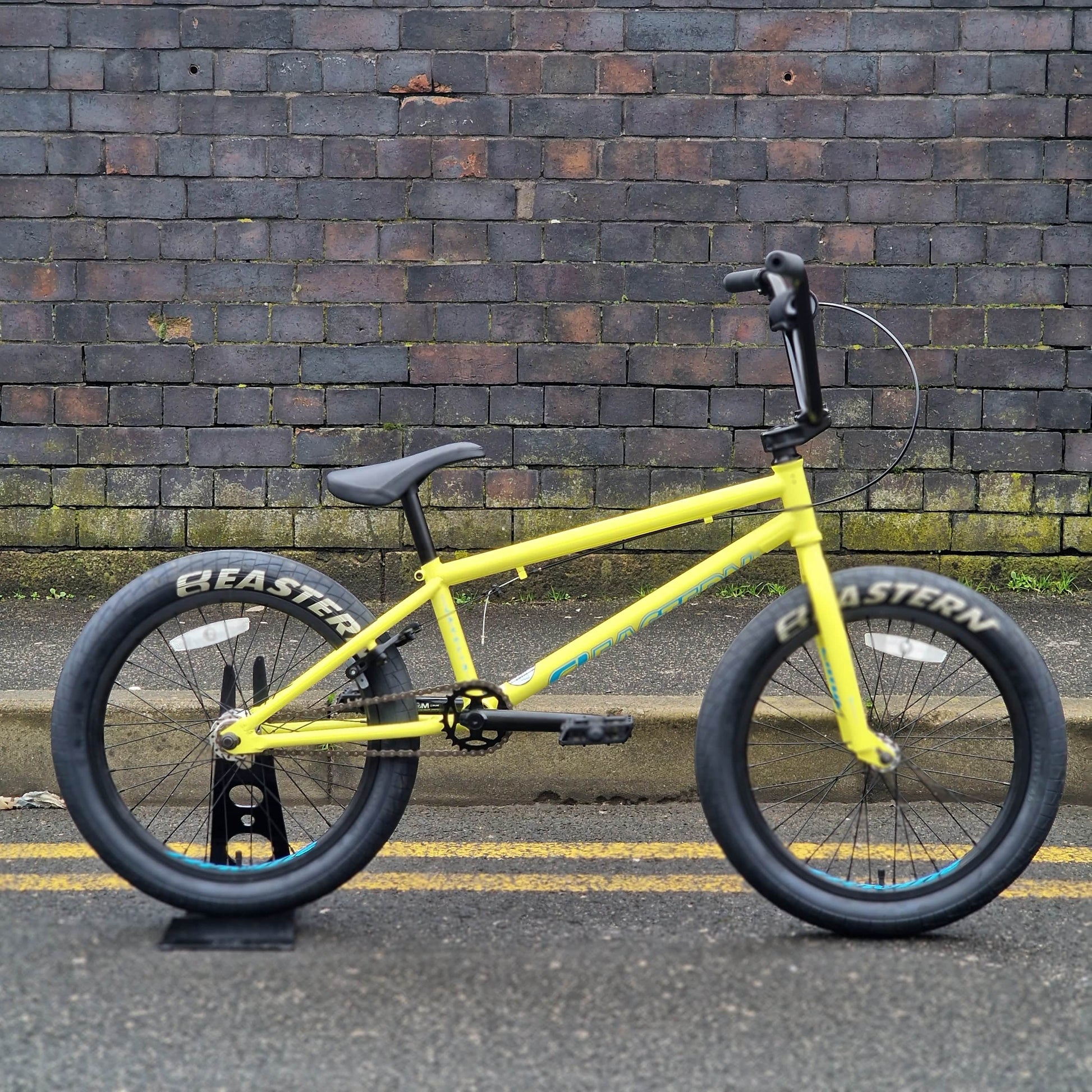

Looking for an affordable - but not rubbish - BMX bike? The Eastern Javelin could be just the ticket for you! The Javelin features a steel frame w/ cro-mo down tube, sealed front & rear hubs for a low-maintenance, smooth ride. Sealed bearing integrated headset, tubular 3-piece chromoly cranks with sealed bearings, Eastern grips, pedals, and sprocket. The Javelin is a perfect intro to BMX.
THE EASTERN JAVELIN BIKE DOES NOT FIT PEGS ON THE REAR WHEEL.
IMPORTANT NOTE ABOUT PEDAL FITMENT
Please note: plastic pedals are not guaranteed against breakage.
Specifications
|
FRAME

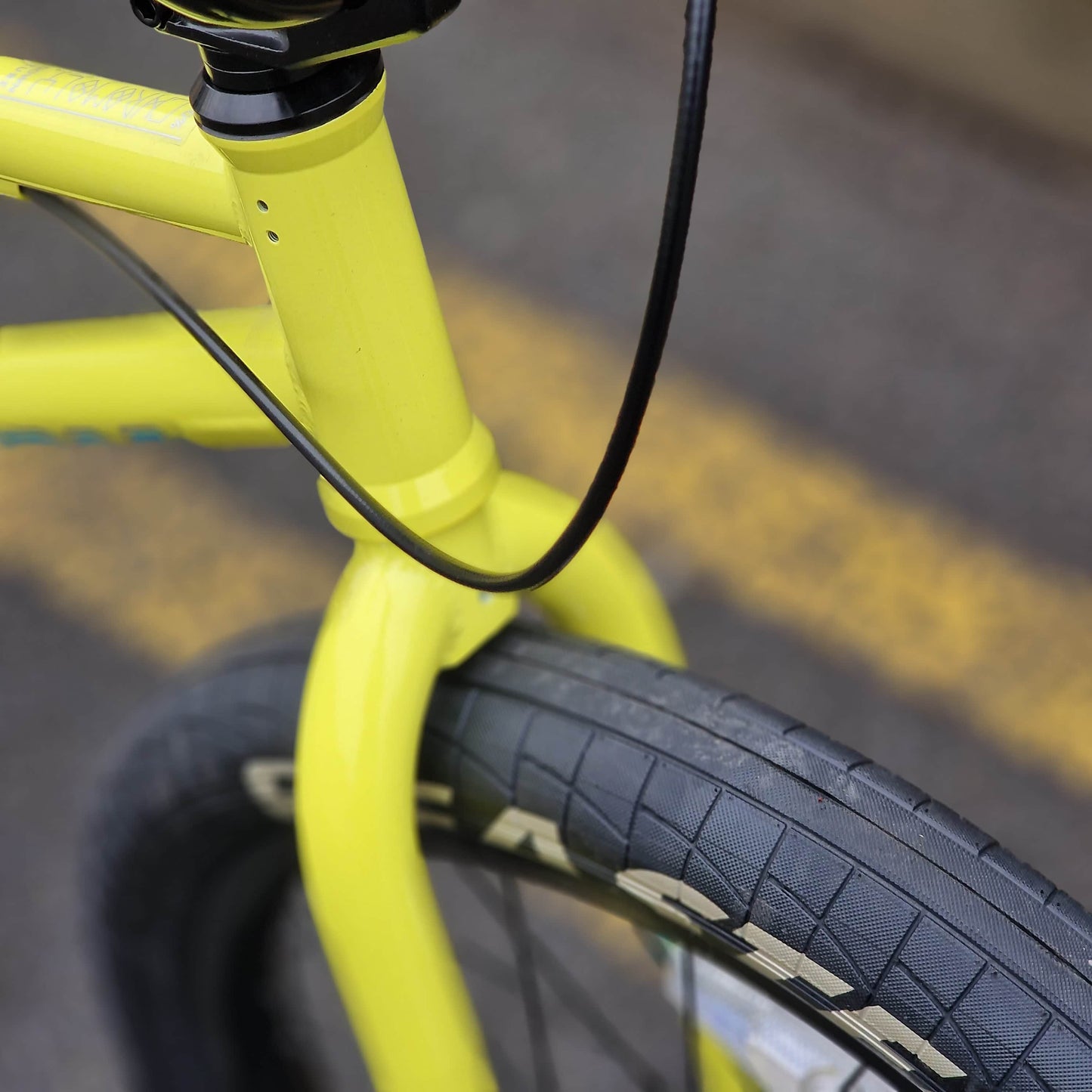

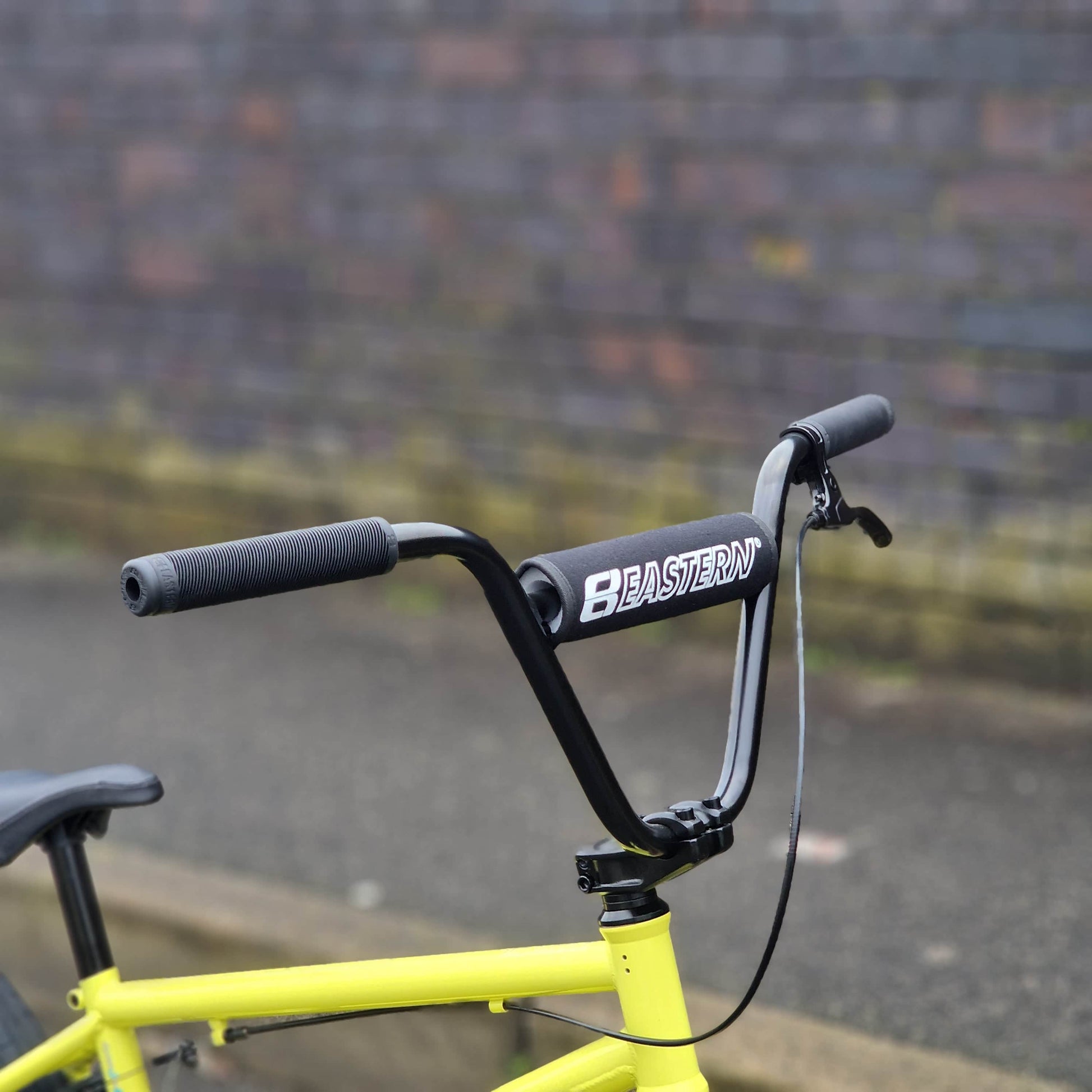

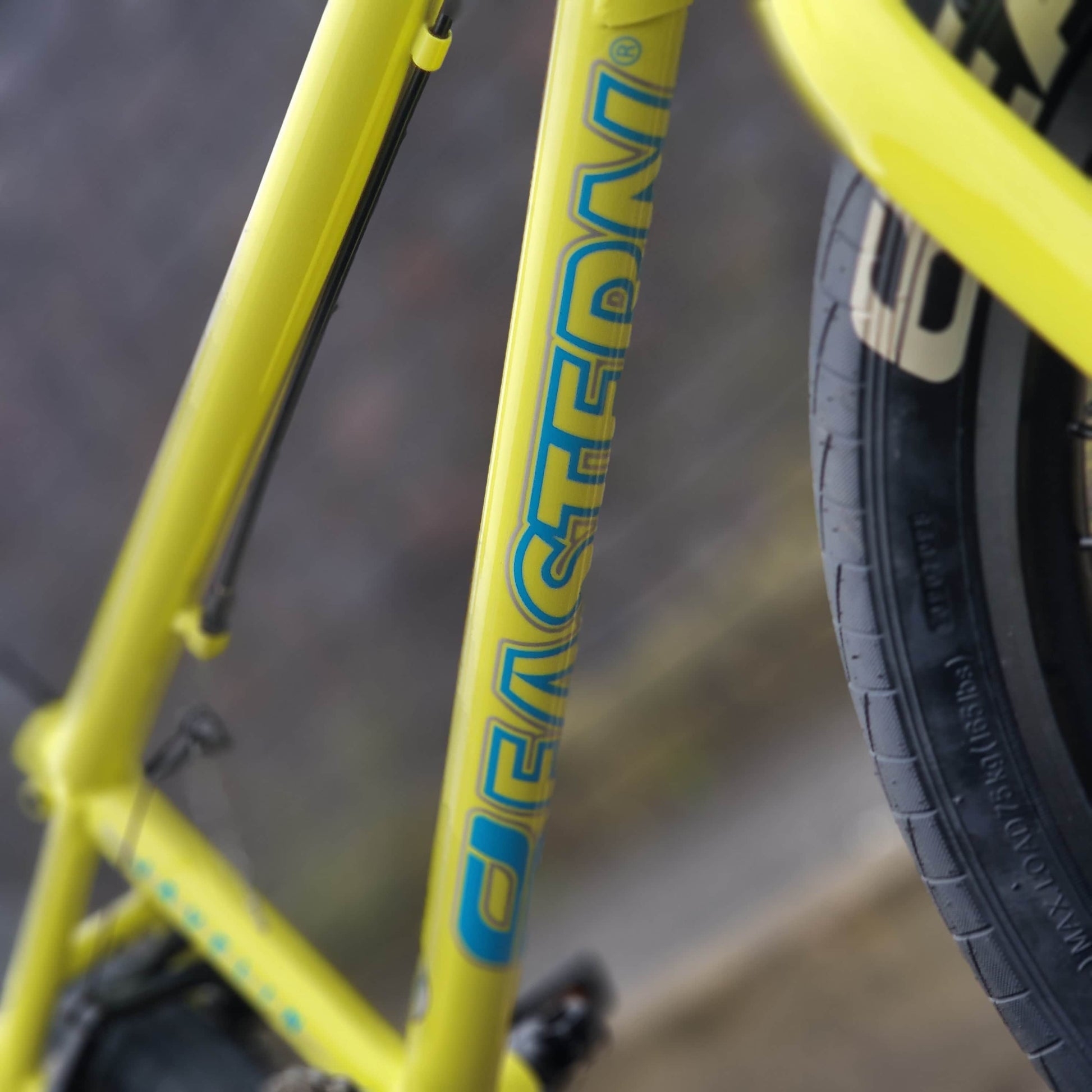

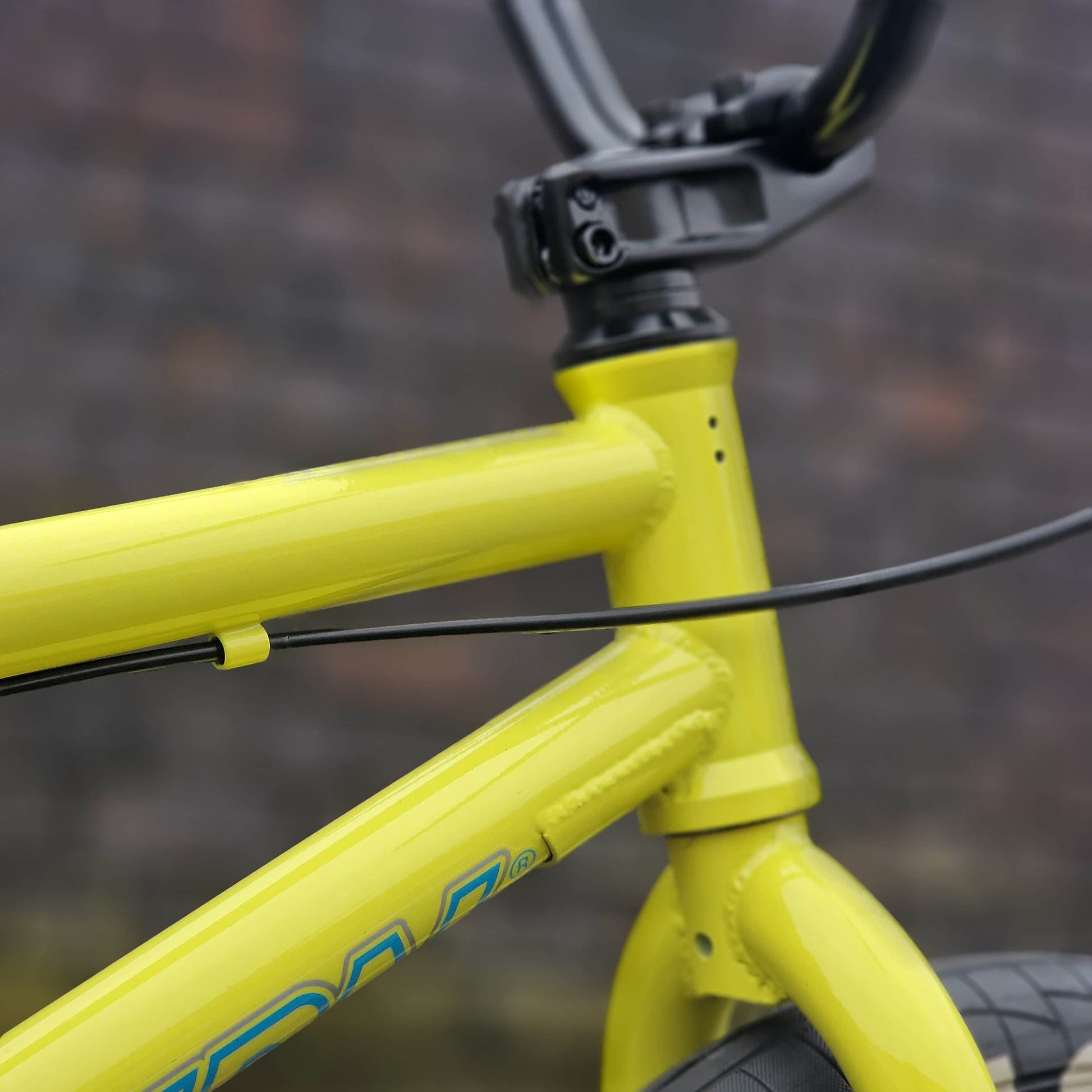

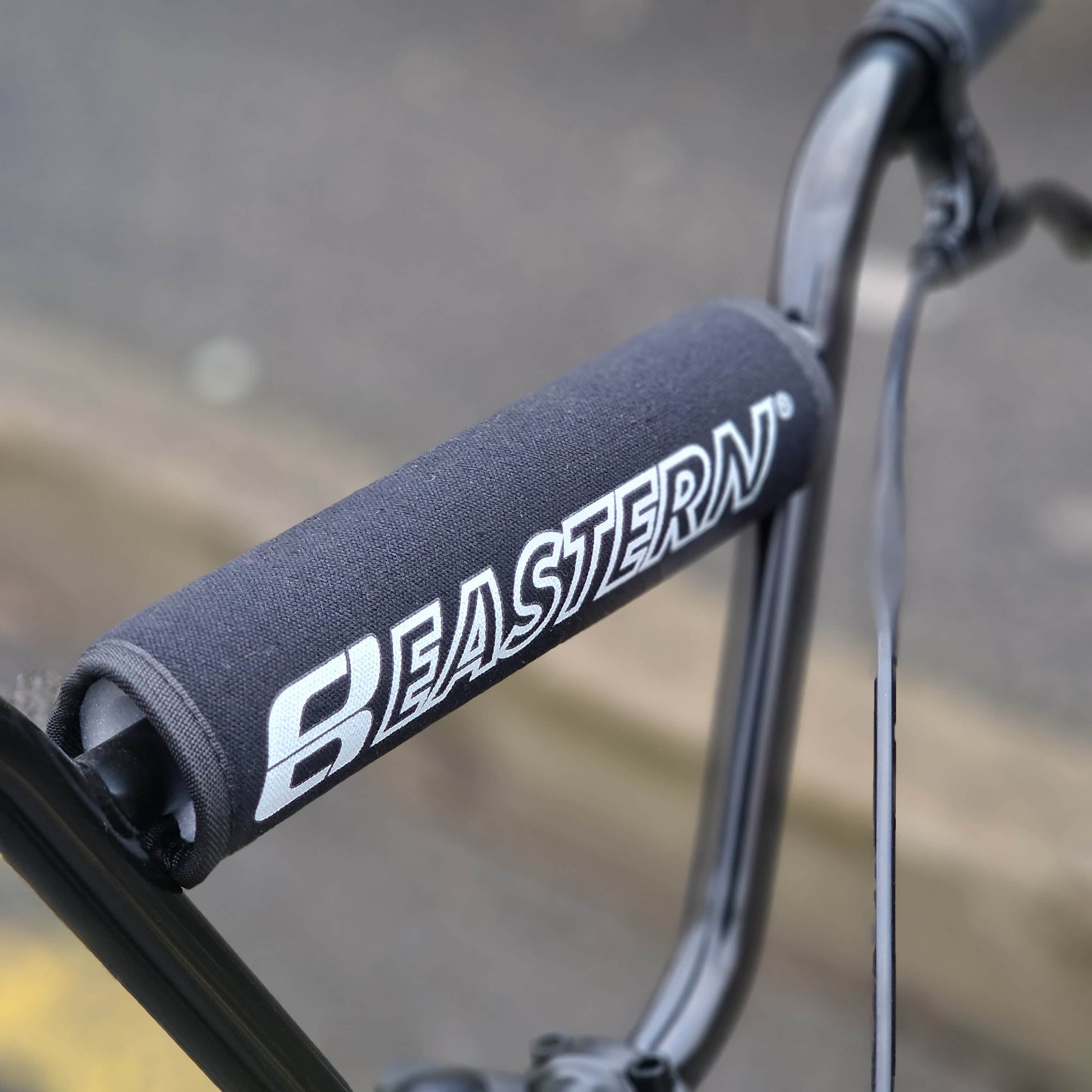

Hi-Tensile Steel with Chromoly Down Tube, Mid BB, Internal Headset Top Tube Size: 20.5″ BB: Mid Headtube: Integrated Chainstay Length: 13.38″ Clamp: Integrated with Frame BARS Hi-Ten 8.5"Upsweep/Backsweep 12⁰/1⁰ FORK Chromoly Steerer Tube with Hi-tensile steel Tapered legs, 3/8" dropouts Fork Rake: 28mm HEADSET Integrated 45°X45° Sealed Cartridge Bearing

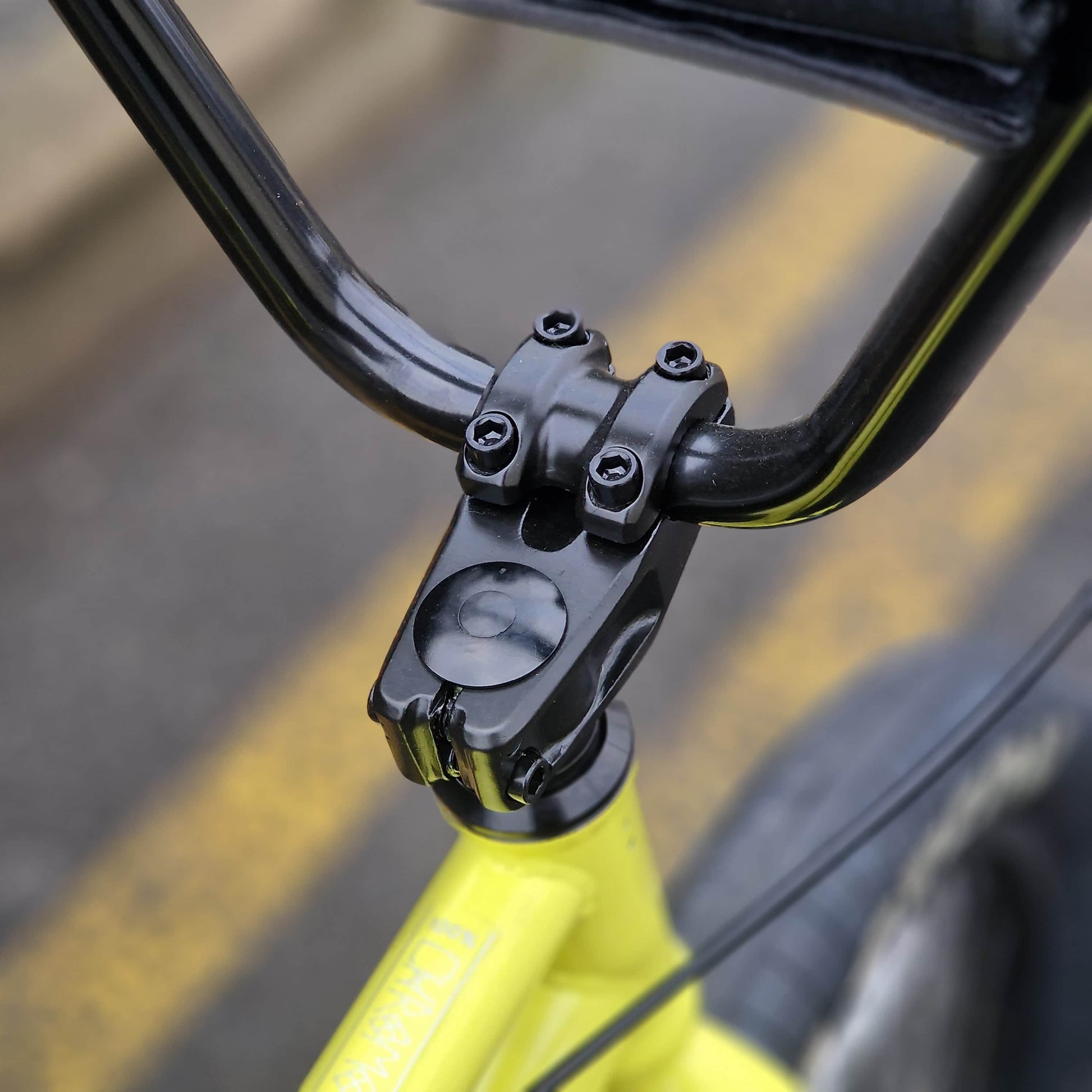

STEM Forged Alloy Top Load Stem
GRIP Eastern Riblet Grips

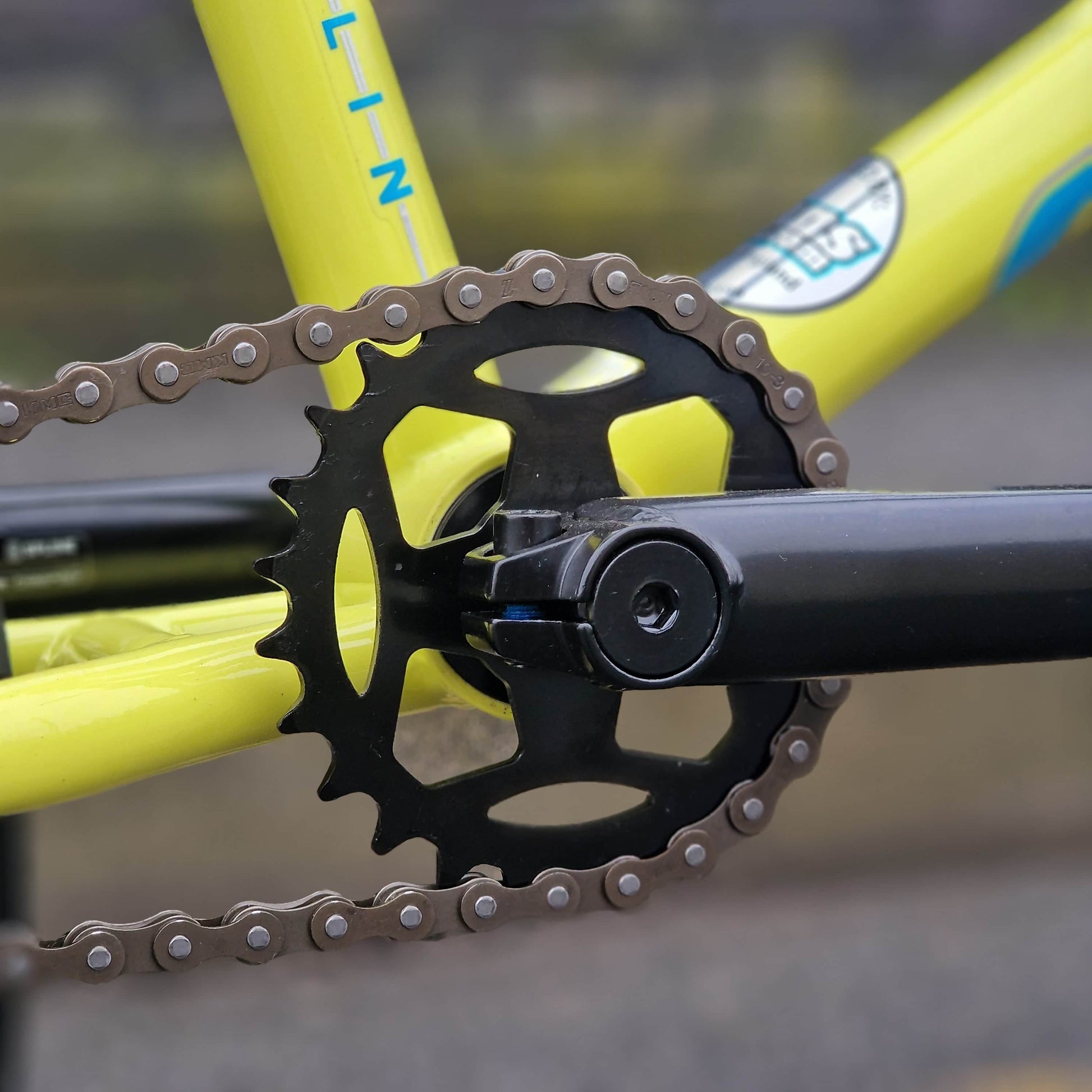

CRANK 3-Piece, Tubular Heat-Treated Chromoly, Bolt for Sprocket, Pinch Bolt with 8-Splined Spindle, 170mm 28.6mm Round Arm
BOTTOM BRACKET Sealed Bearing Mid
CHAINWHEEL Eastern Phorcys, Cold Hard Steel, 25T
CHAIN KMC Z510 1/2 x 1/8

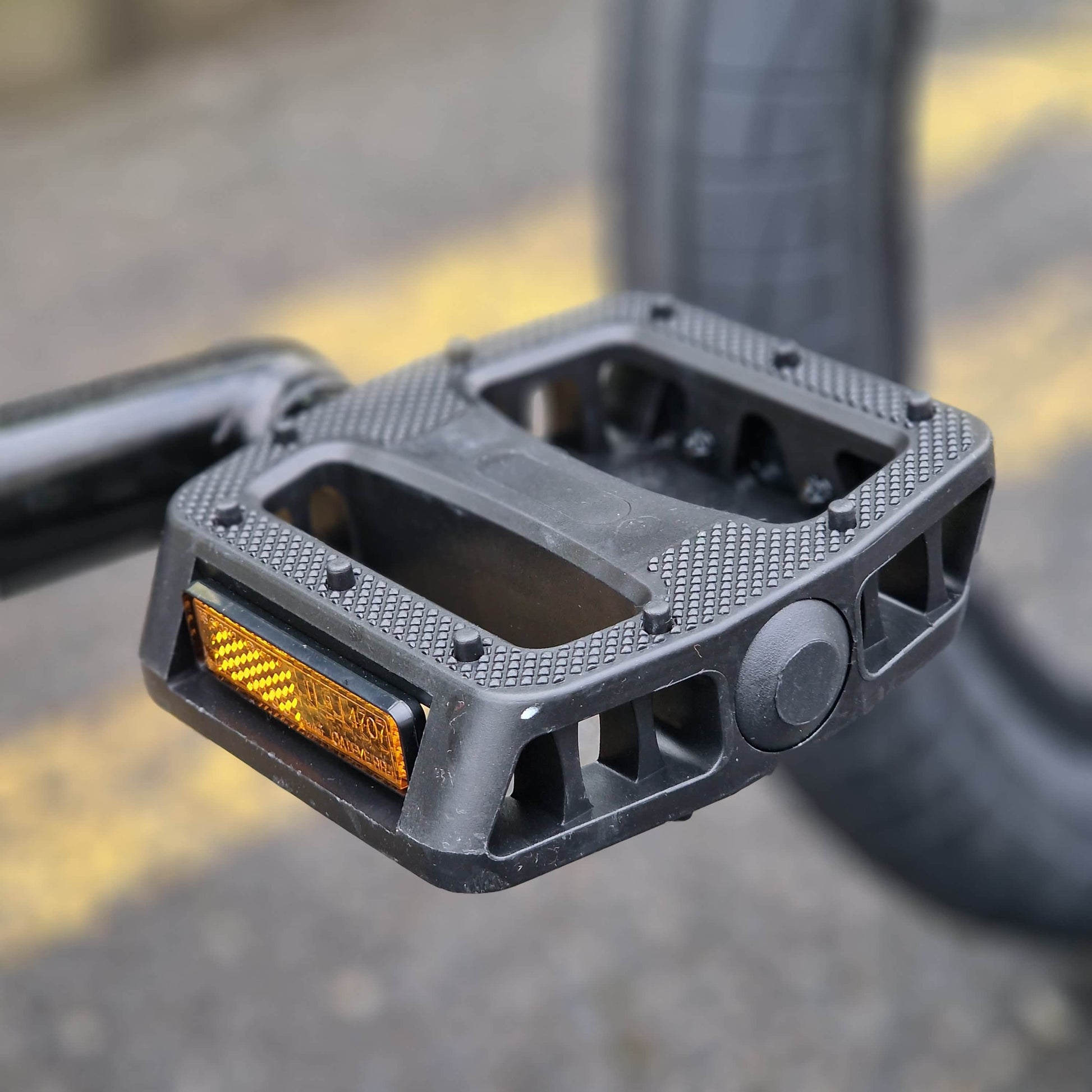

PEDAL Eastern Atom Plastic Pedal with 9/16" Axle
FRONT BRAKE N/A
FRONT LEVER N/A
|
REAR BRAKE U-Brake, Forged Alloy, Wide Body, Grey Brake Pads

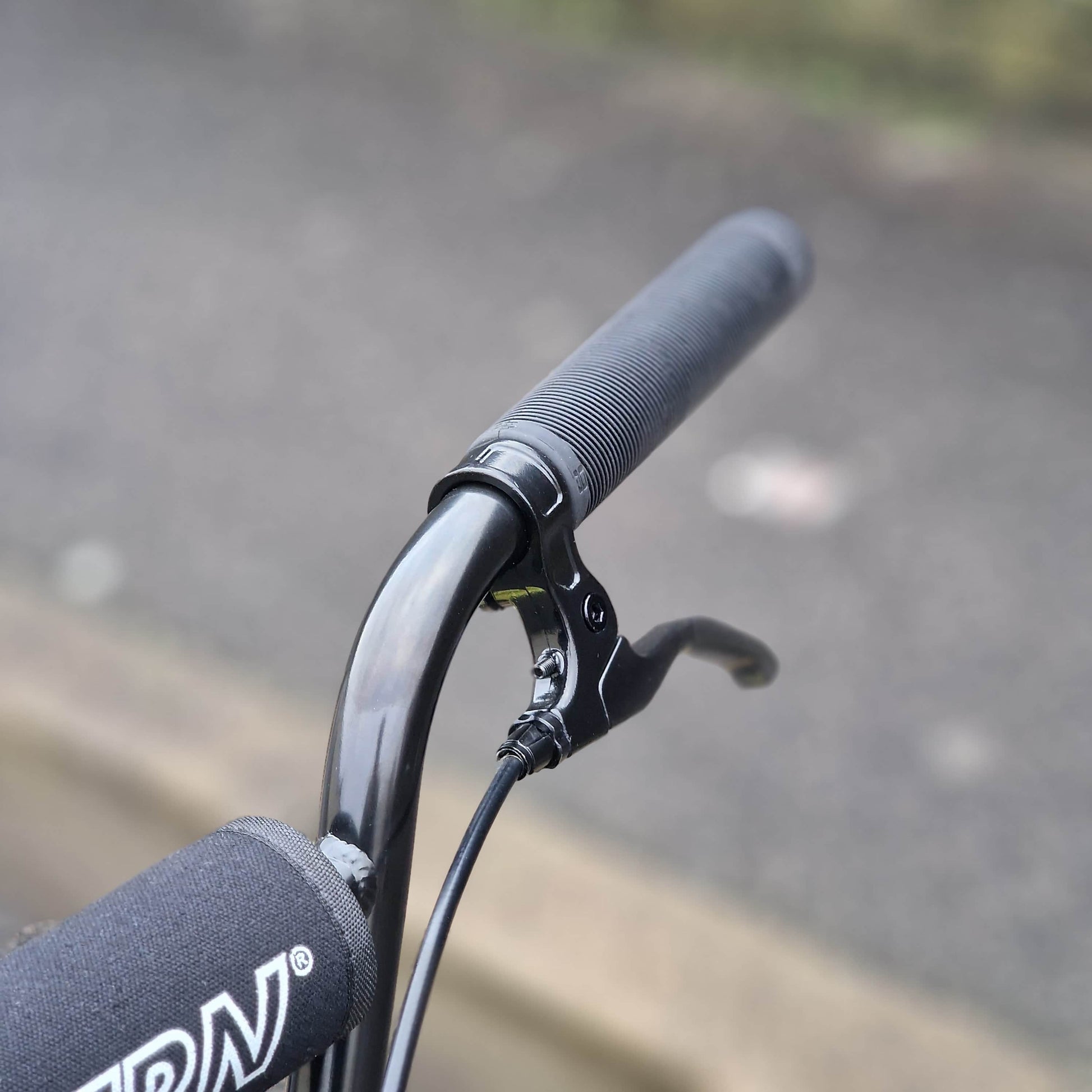

REAR LEVER Forged Alloy Lever
BRAKE CABLE [S] LINEAR

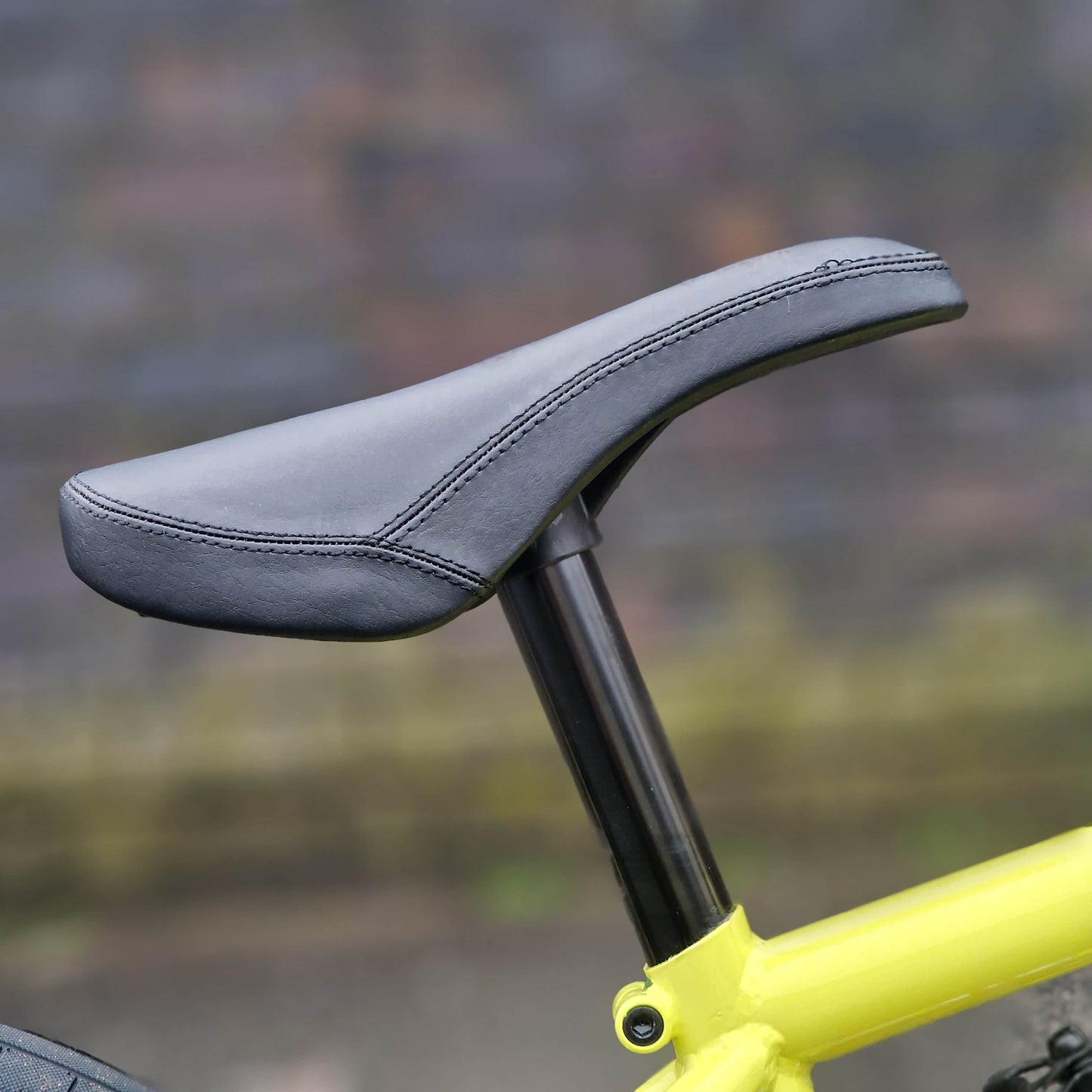

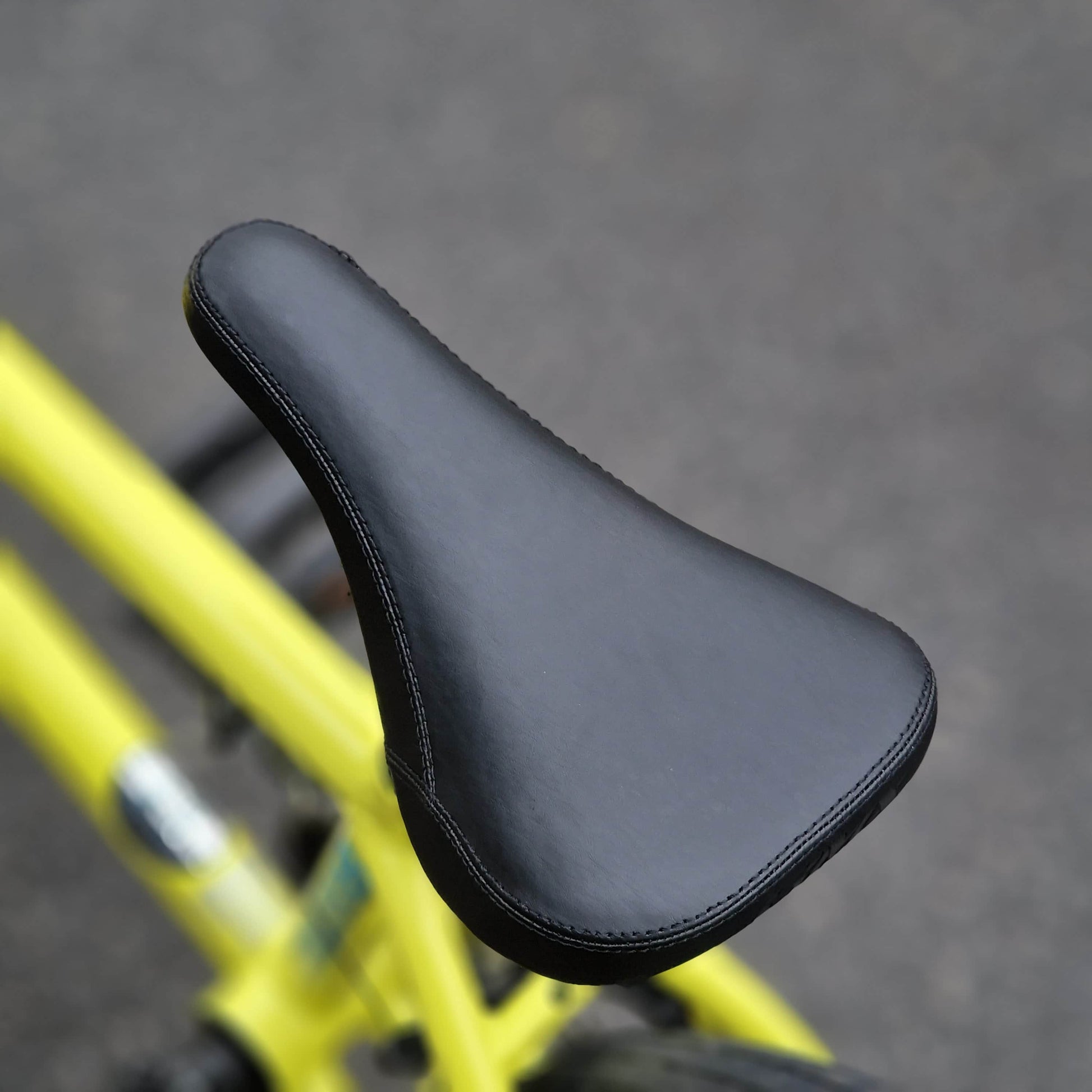

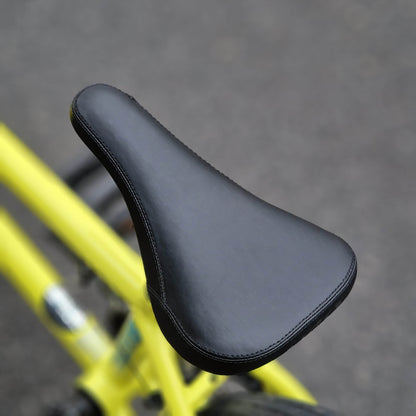

SADDLE Medium Width Seat/ Post Combo
POST Comes with seat

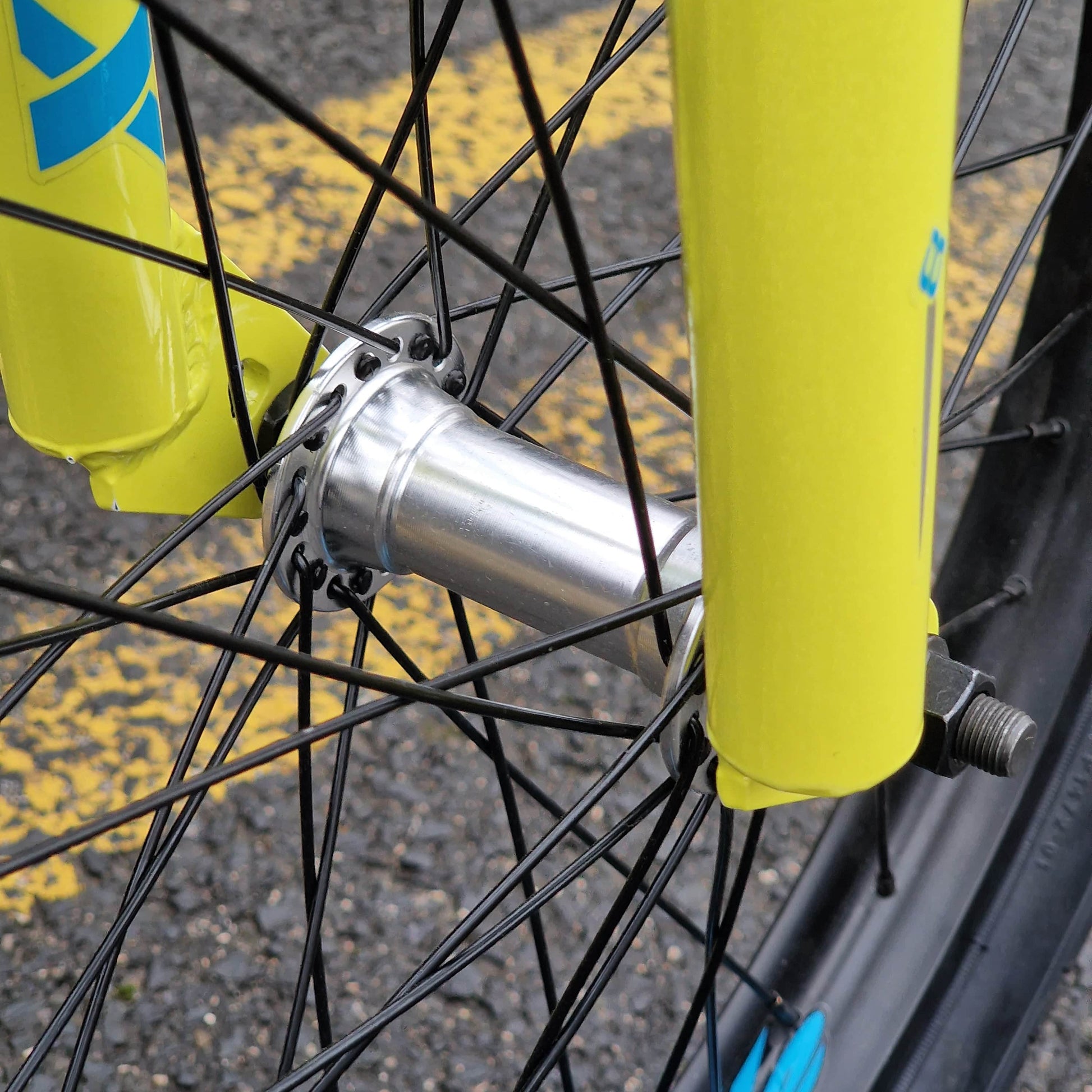

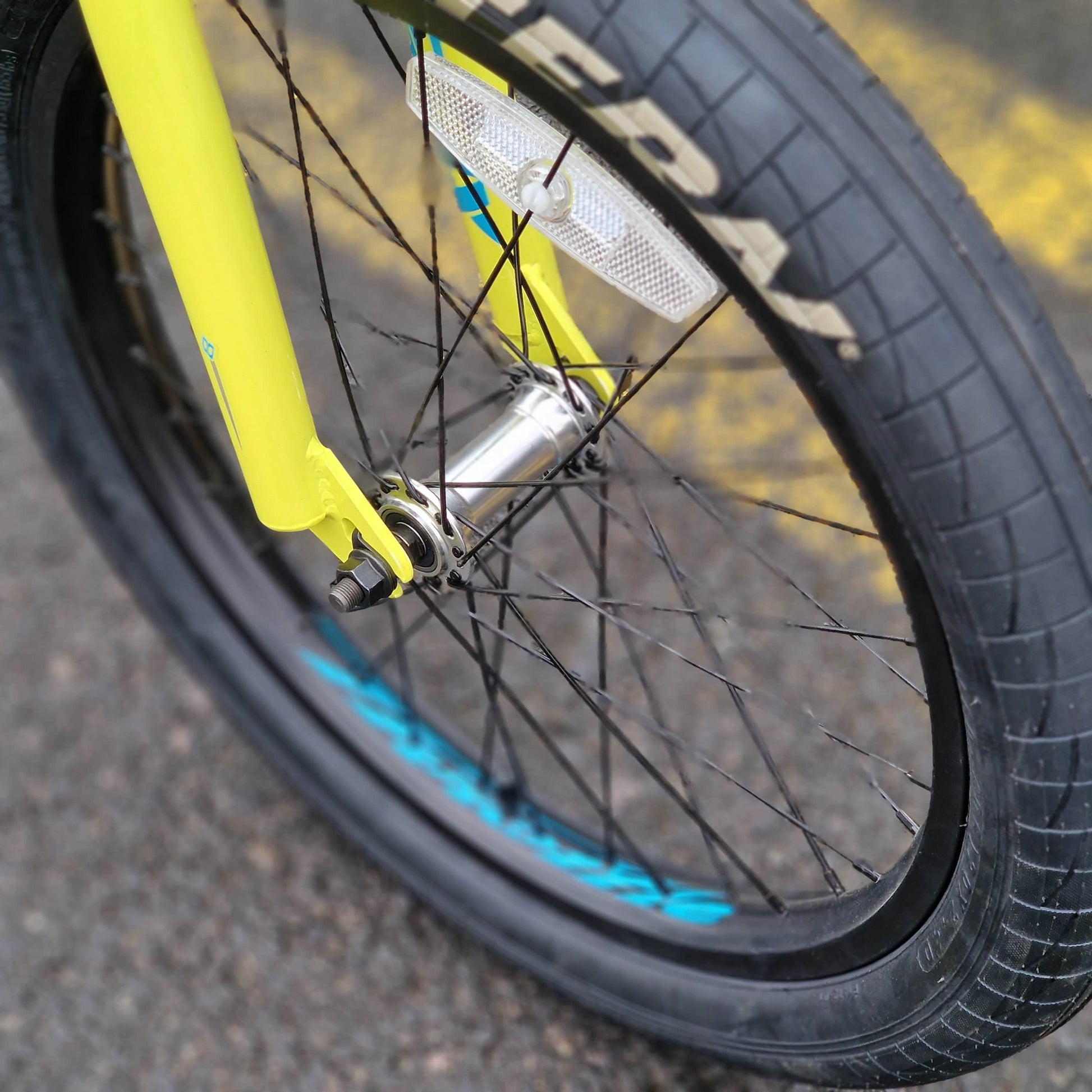

FRONT HUB Sealed Bearings, Forged Alloy Shell, Drilled for 36 Spokes, 3/8" Chromoly Axle

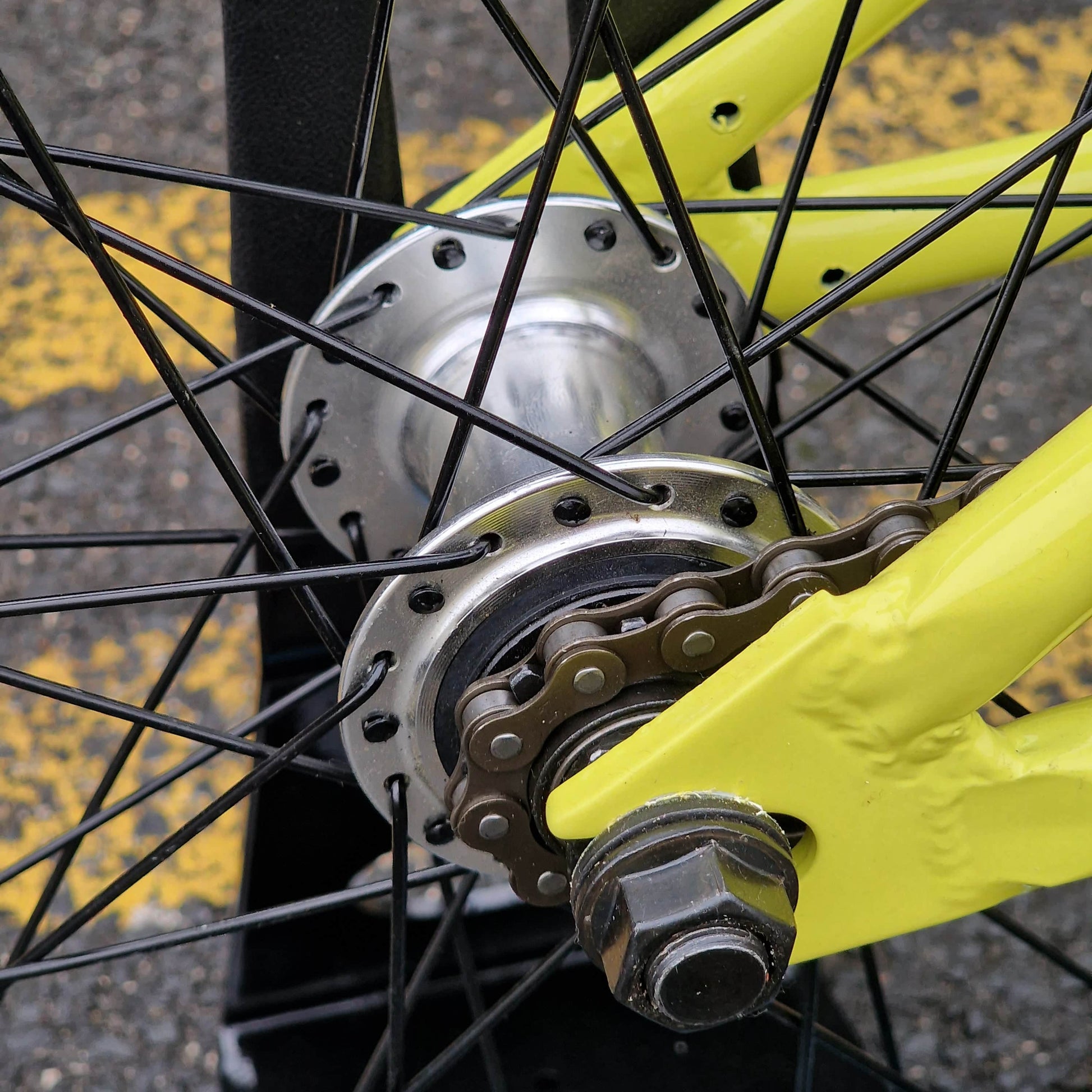

REAR HUB Sealed Bearings, Forged Alloy Shell Drilled for 36 Spokes, 14mm Chromoly Axle
FREEWHEEL 9 Tooth Driver with Hub
FRONT RIM Alloy, Double Wall, Drilled for 36 Spokes
REAR RIM Alloy, Double Wall, Drilled for 36 Spokes
SPOKES 14 Gauge with Brass Nipples

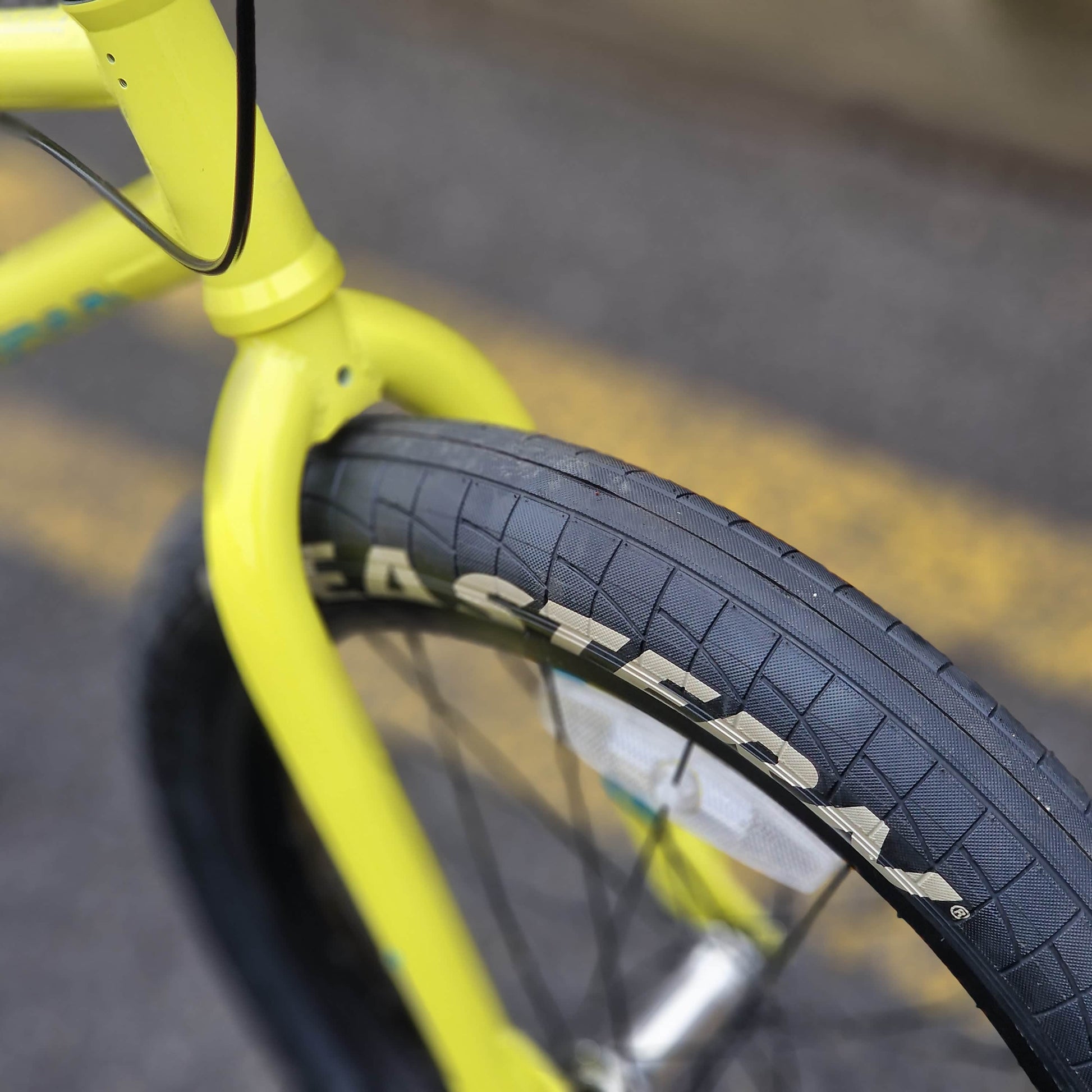

FRONT TYRE 20 x 2.3 *Specs subject to change
REAR TYRE 20 x 2.3 *Specs subject to change
PEG none
*Specs & pricing subject to change *Bikes are designed for riders 13 years old and up.
|
