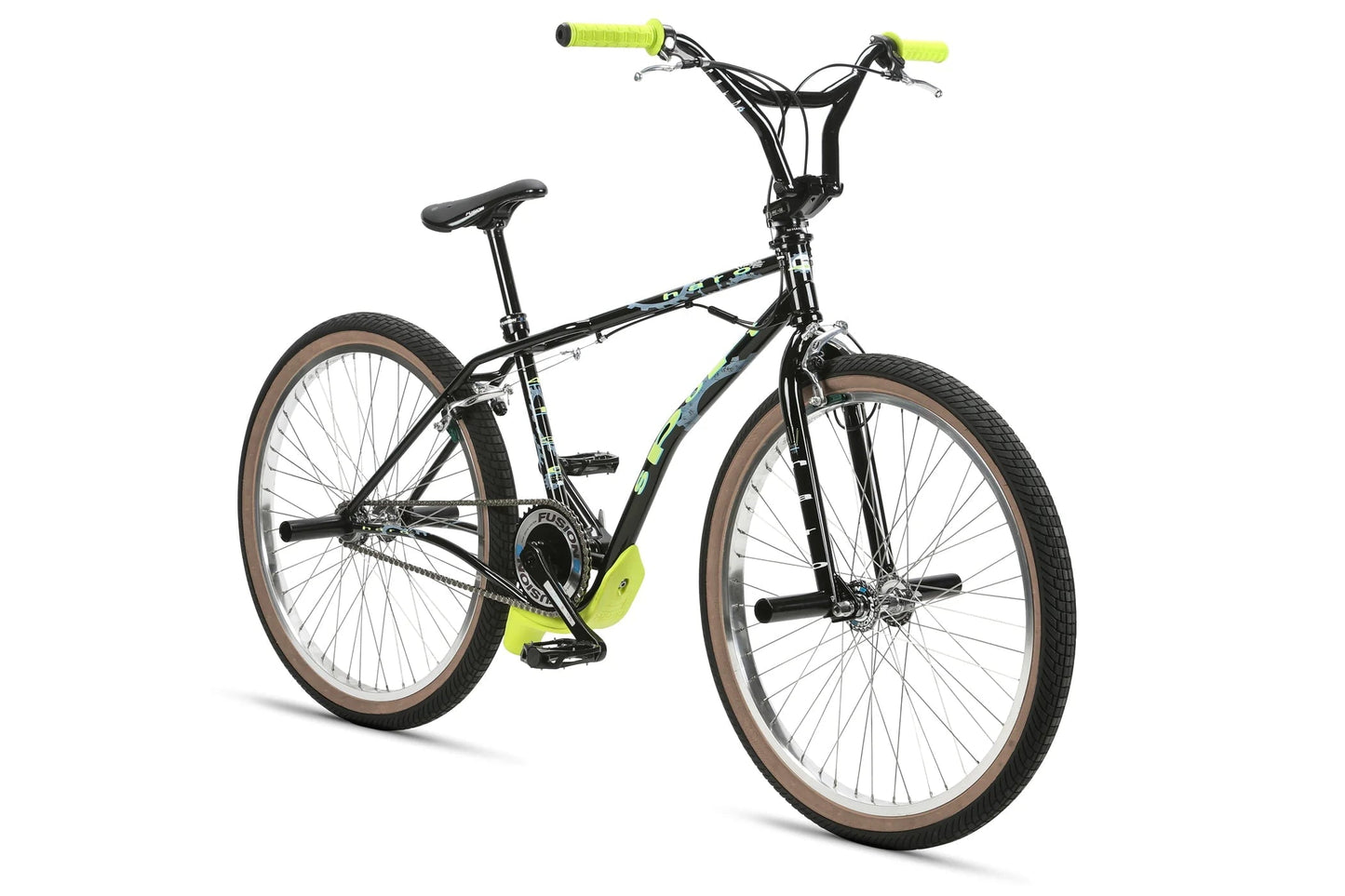

Haro Lineage Sport 26" Bashguard Bike Black
Haro Lineage Sport 26" Bashguard Bike Black
Specs:
FRAMESET | ||
---|---|---|
Frame |
|
|
Fork |
|
|
Colour | Black | |
DRIVETRAIN | ||

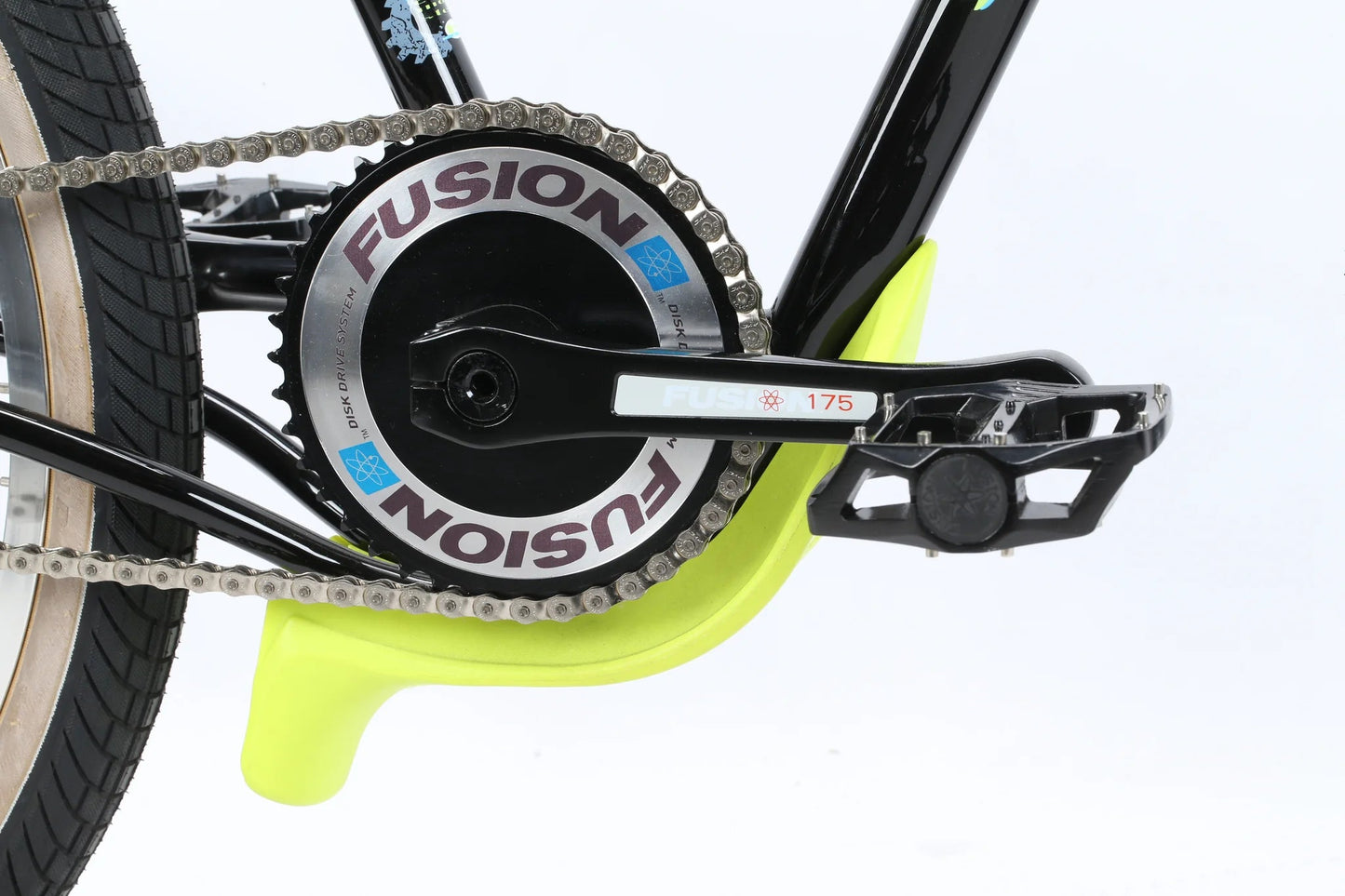

Cranks | Haro Fusion alloy cranks (bolt drive interface) rsd and lsd; 175mm; 22mm od 48-spline spindle; heat treated 4130 | |
Bottom Bracket | Sealed MID BB | |
Sprocket | Fusion disc sprocket; cnc bolt drive sprocket; 5mm alloy ring; 1/2" x 1/8" x 41t ; solid ring w/ machined teeth, included sprocket adapter | |
Gearing | 25/9 | |
Pedals | Haro Fusion; alloy pedal body; crmo axle | |
Chain | KMC K1Sl; 1/2 x 1/8; Narrow Silver Super Lite | |
WHEELS | ||
Tyres |
|
|
Front Hub | 48h alloy hub body; 3/8"x100wx155l; crmo 155mm straight axle; 2 sealed bearings | |
Rear Hub | Freecoaster hub (male bolt); sealed bearings; 17mm steel flange axle nuts; all hardware in cp finish including cone nuts, axle nuts, 17T freewheel | |
Rims |
|
|
BRAKING SYSTEM | ||

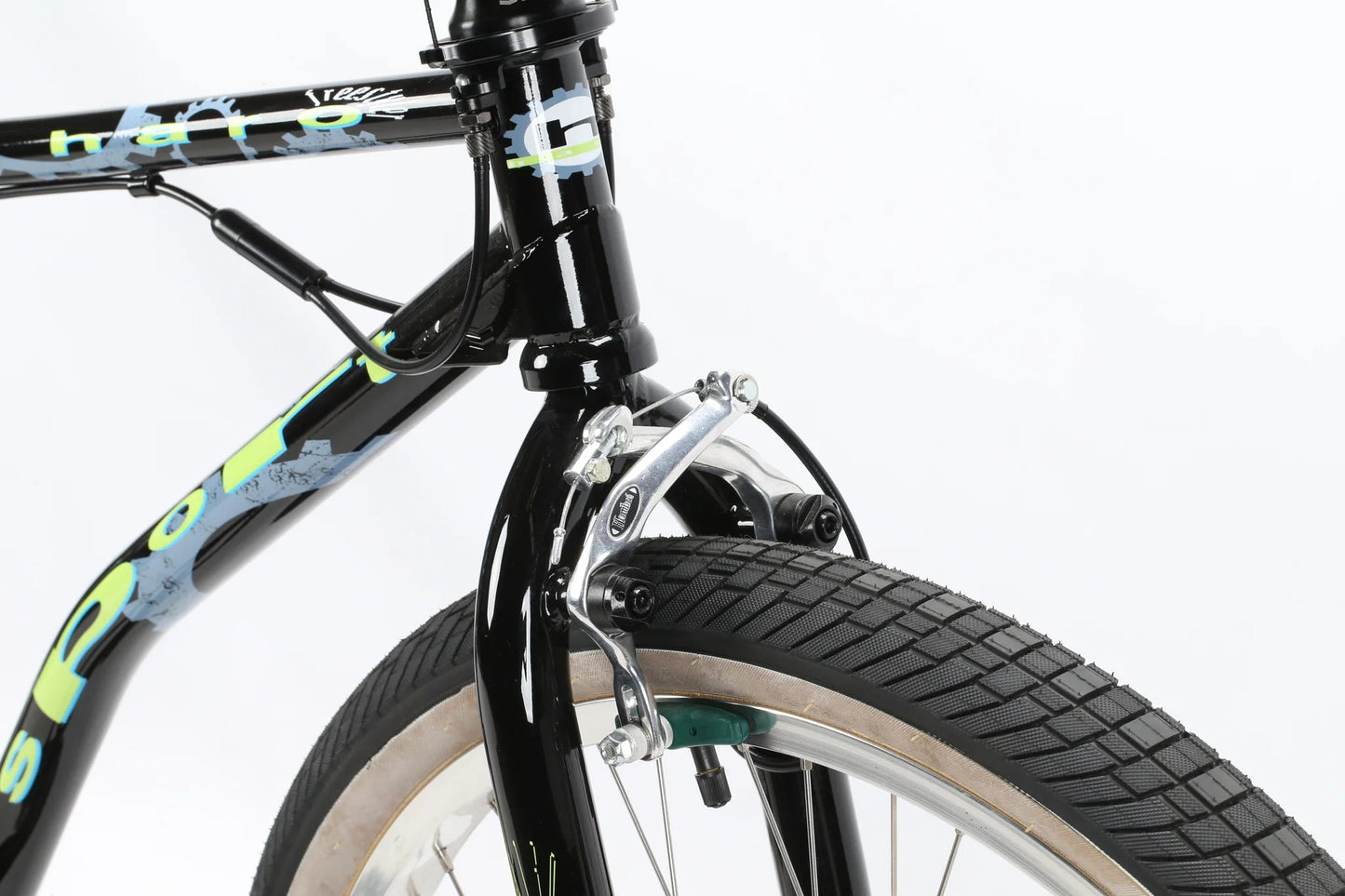

Brake | Dia-Compe fs996 "hombre" u-brake; cold forged aluminum arms; dual spring tension adjustment w/anchor bolt parts | |
Brake Lever | Dia-Compe "tech-77" lever without stopper; right and left side; diecast aluminum bracket with hinged clamp; cold forged aluminum lever | |
Rotor | Teflon bearing gyro - full cnc 6061 t6 included a-plate | |
OTHER COMPONENTS | ||
Grips | Haro team grip; 145mm length x 29mm diameter; 50mm od flange (low); kraton a15 material (super soft). | |

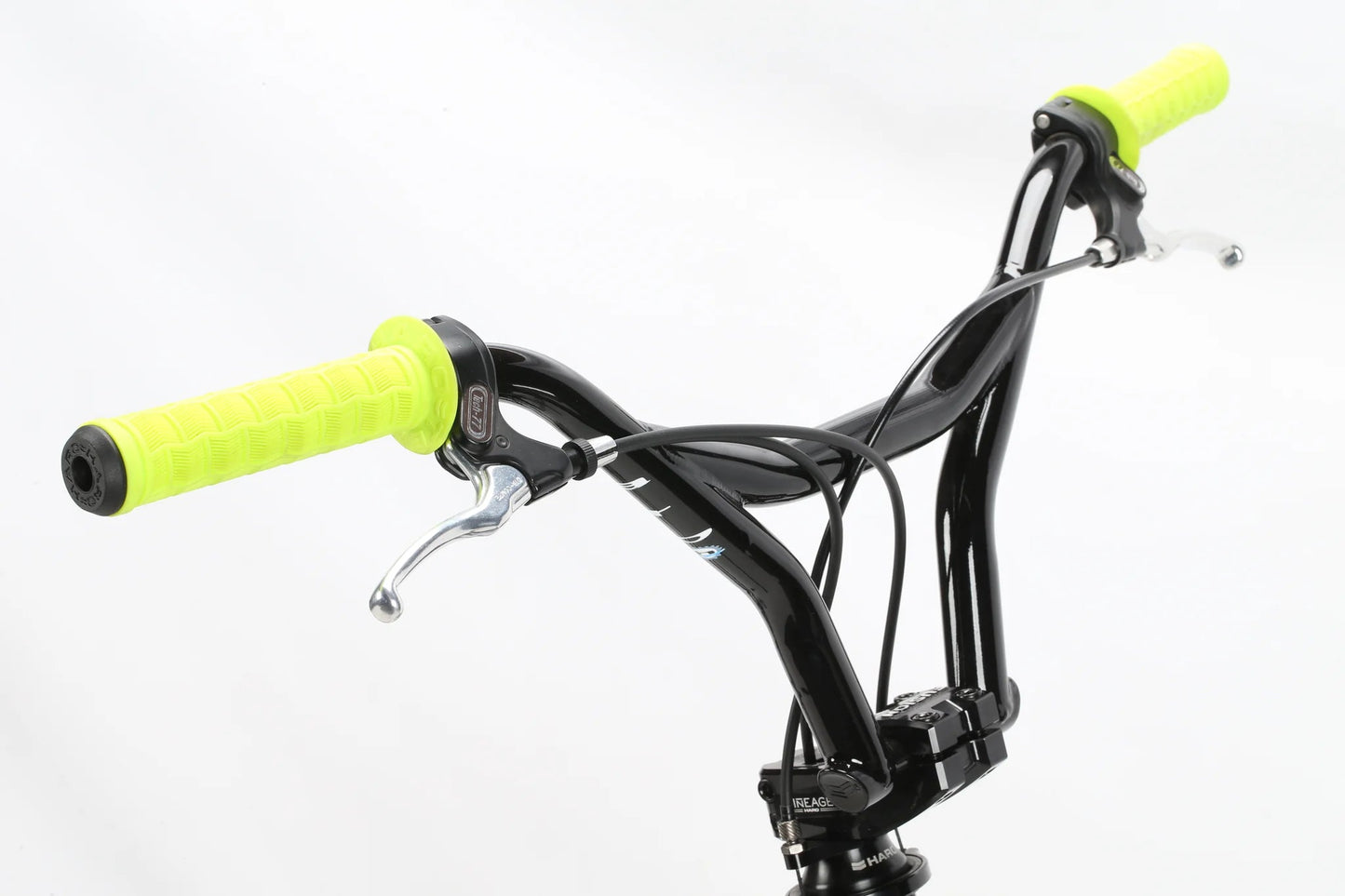

Handlebar | Lineage kneesaver bar 8.5"; 100% heat treated; multi-butted | |

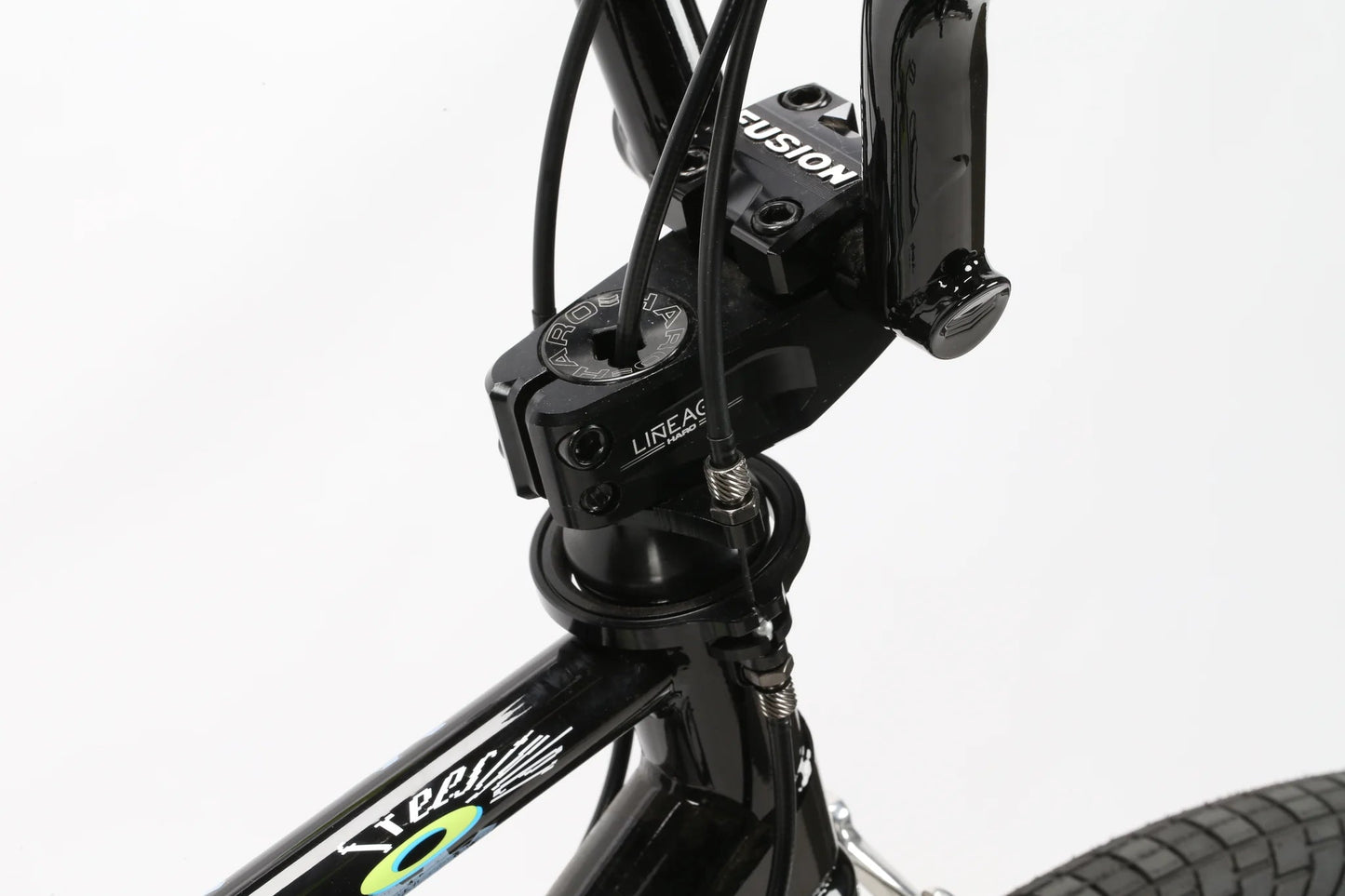

Stem | Haro Lineage fusion top load stem; T6 alloy; cold forged with cnc; 45mm | |
Headset | Sealed Integrated, 1 1/8" | |

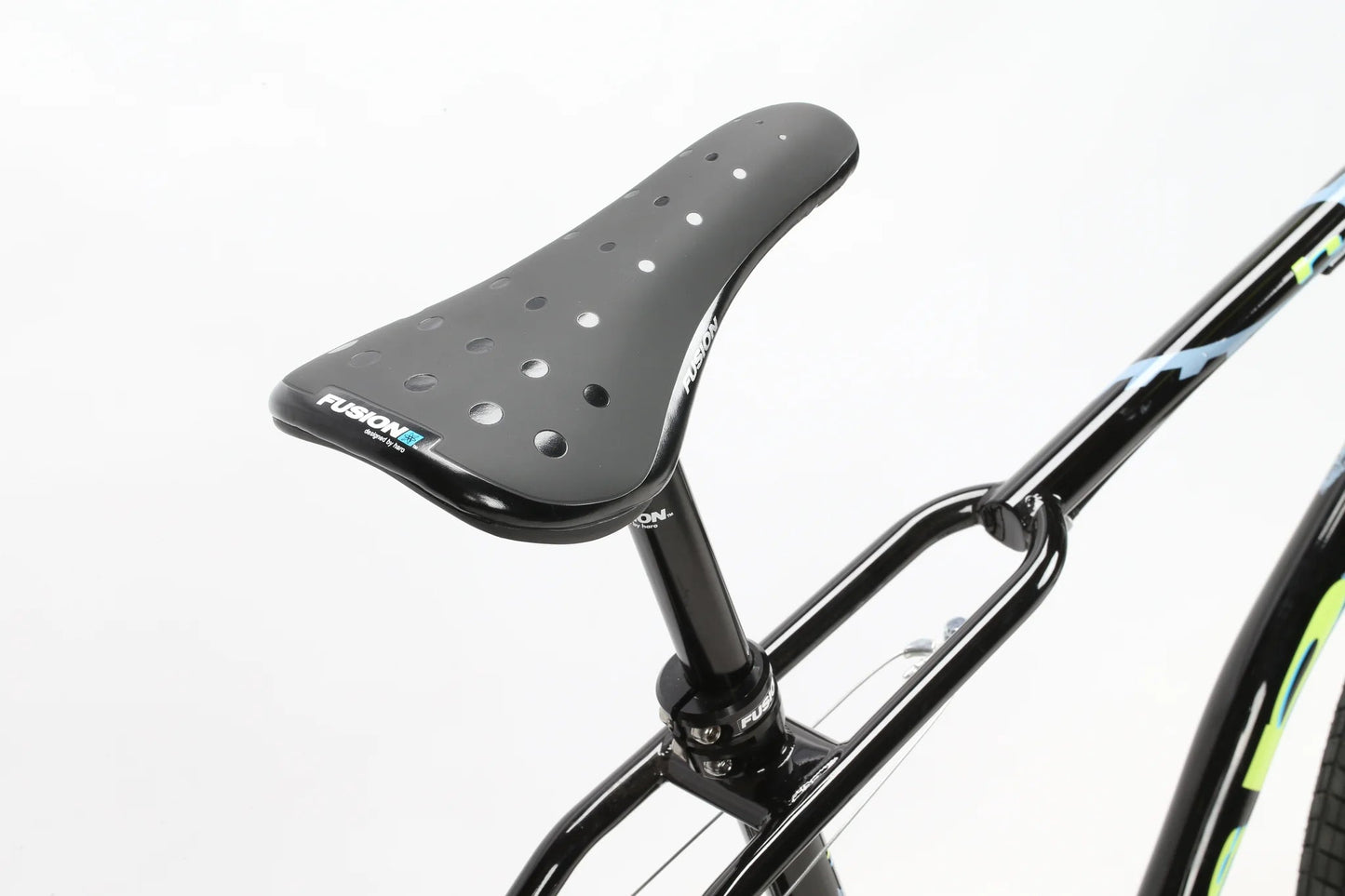

Seat | Haro Fusion slim stealth pivotal seat | |
Seat Post | Haro Fusion stealth pivotal seat post; 25.4 x 300mm | |
Seat Post Clamp | Haro Fusion twintorc clamp; alloy 6061 | |

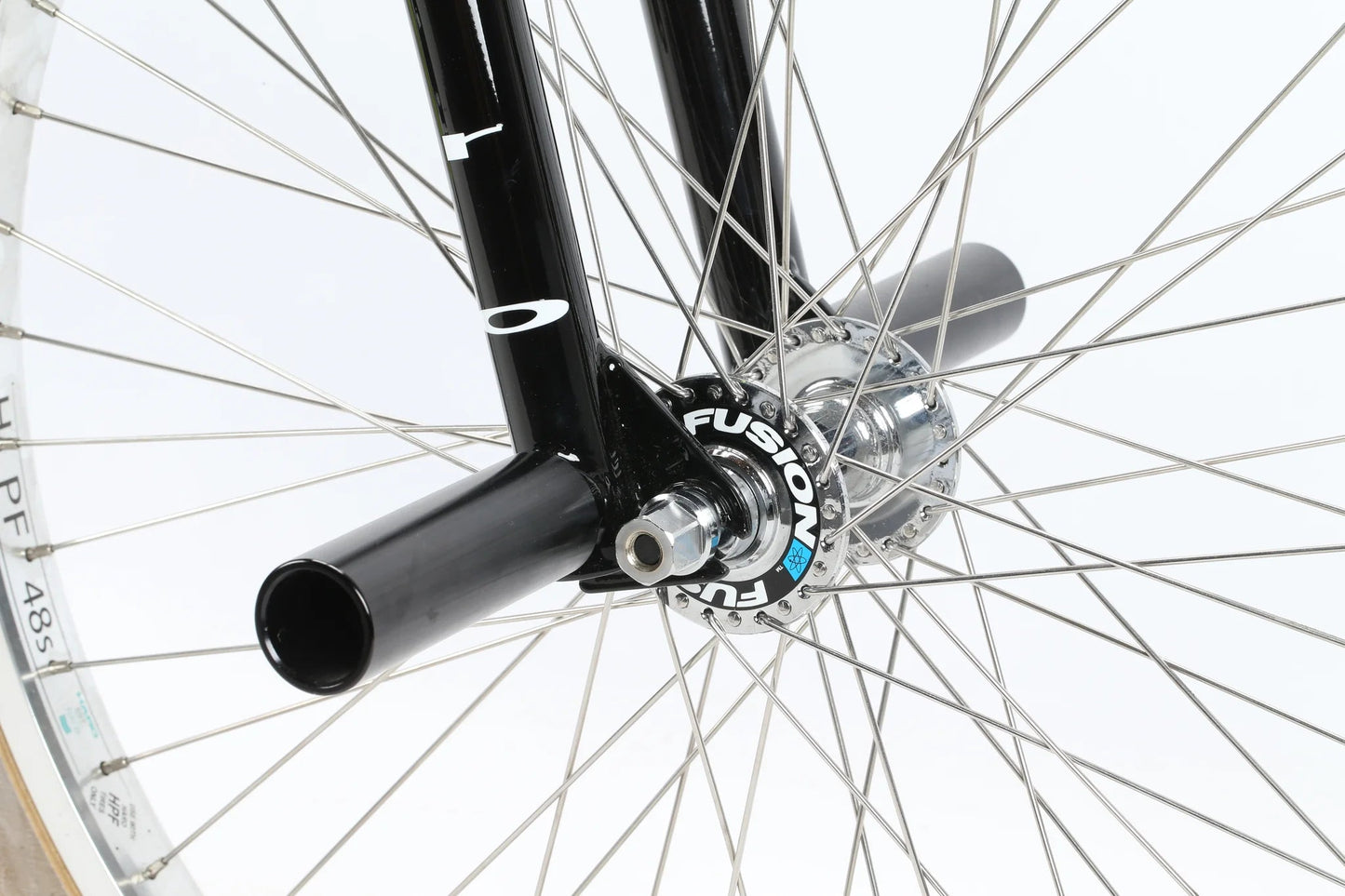

Pegs | 6061 alloy pegs; 34mm od; 110mm length; include 4 total pegs |
