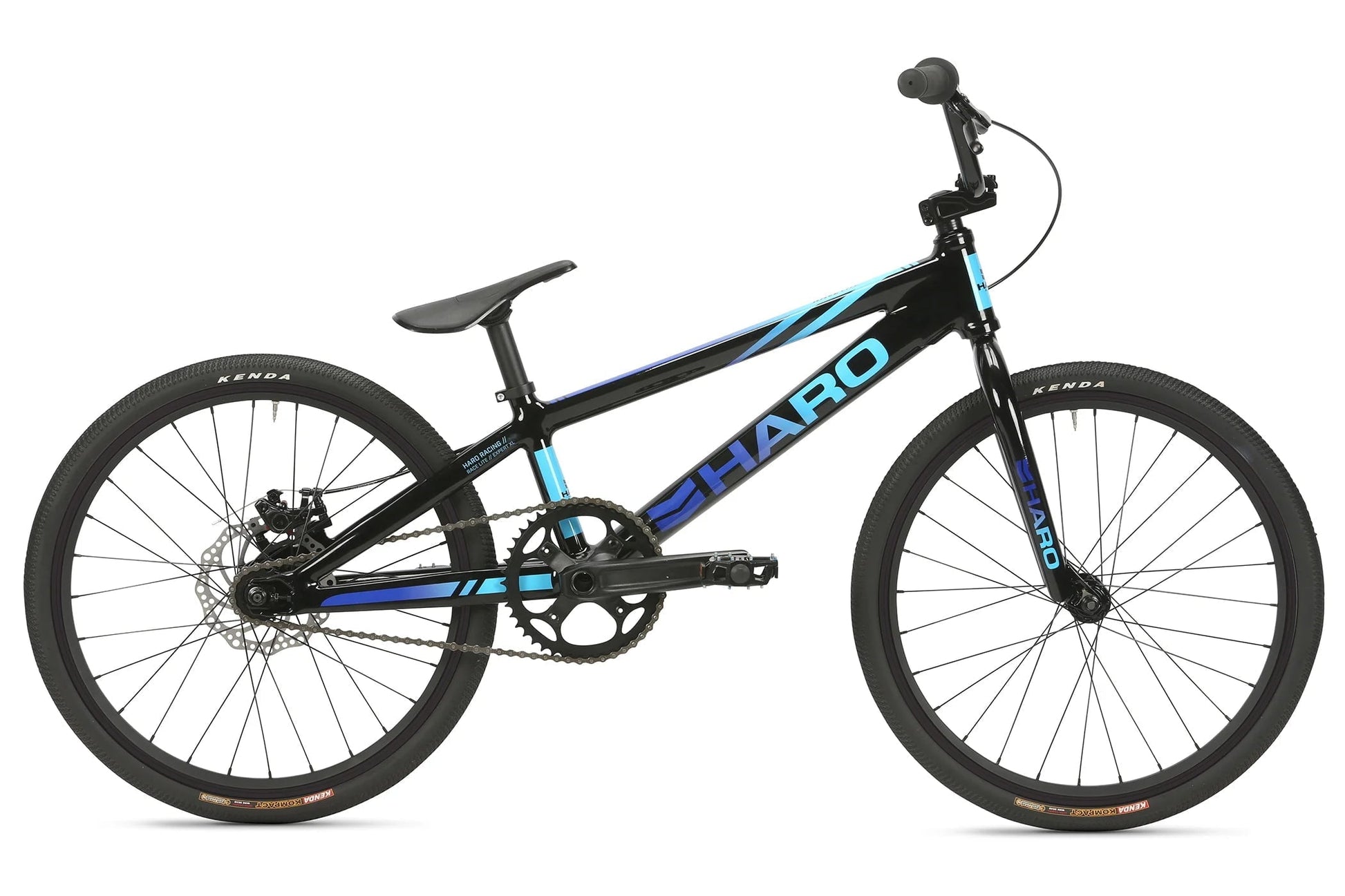

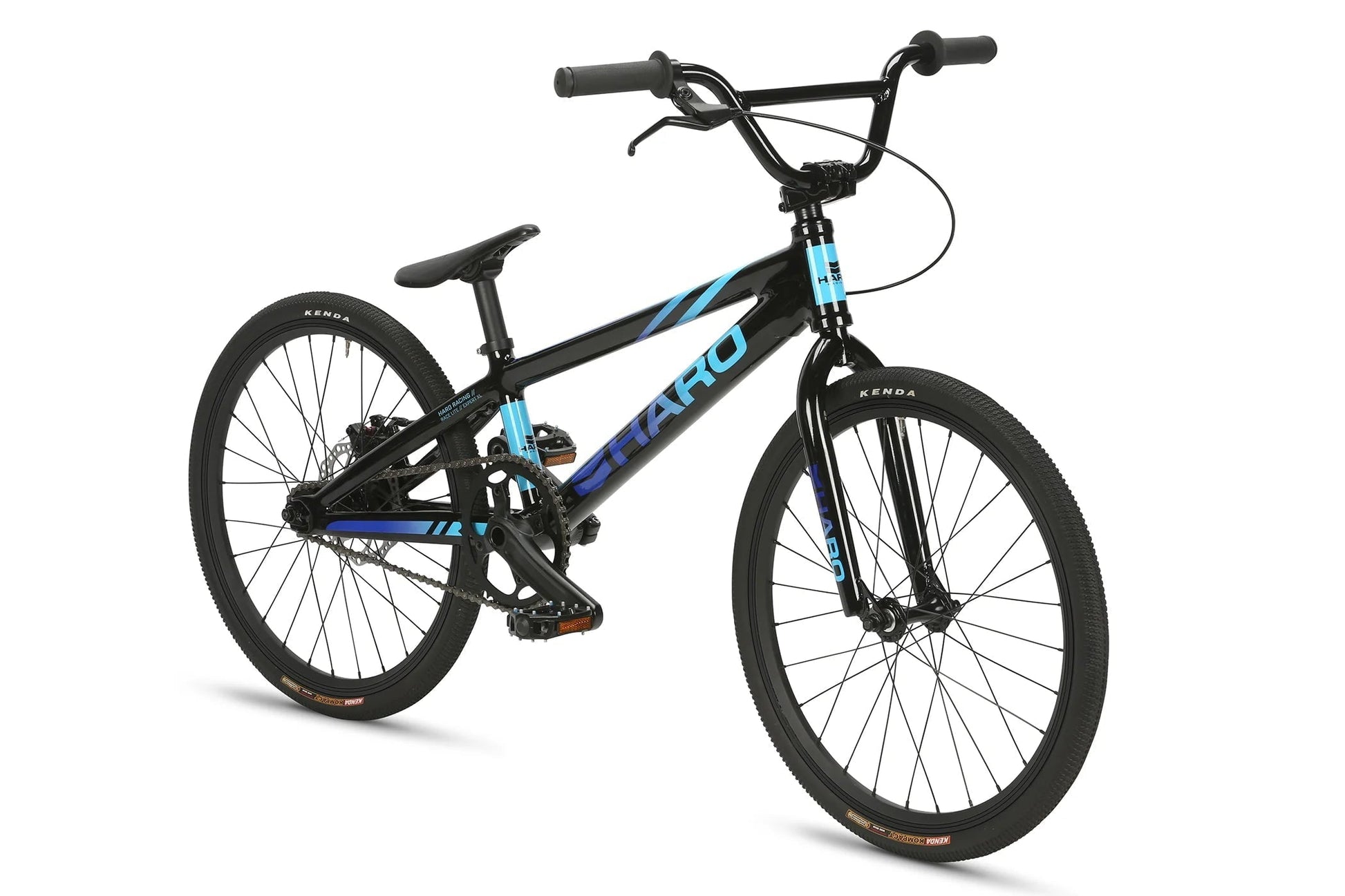

Haro Race Lite Expert XL Race Bike Black / Blue
Haro Race Lite Expert XL Race Bike Black / Blue
Almost there. Just short of full-sized, the Haro Race Lite Expert XL is race ready with rear disc brake and a 20" top tube length with room to move. Lightweight aluminum construction with a sturdy chromoly fork to handle the hard landings of the learning curve. The parts are size-matched to fit the slightly longer frame with 170mm 2-piece alloy cranks and instead of the narrower "Mini" sized wheels and tyres of the smaller bikes in the lineup, the Expert XL features 20 X 1.5" alloy rims with a 1.65" front and 1.5" rear tyre for more surface contact to put the power to the ground. A rear disc brake slows your roll when you've crossed the finish line.
FRAMESET | |
---|---|
Frame | 6061-T6 heat-treated aluminum frame with integrated head tube. Internal cable routing, 3D dropouts w/integrated chain tensioners |
Fork | Full chromoly 1 1/8" Threadless Steerer w/tapered legs |
Colour | Black |
DRIVETRAIN | |
Cranks | 2-pc Forged Alloy w/ 24mm Hollow Spindle. 165mm |
Bottom Bracket | Press-Fit BB86, Sealed Bearing |
Sprocket | 38t Alloy Chainring |
Gearing | 38/15 |
Pedals | Alloy DX, 9/16" |
Chain | KMC Z33 1/2 X 3/32" |
Cassette | 15t Cassette |
WHEELS | |
Tyres | Kenda "Konversion" tires: 20 x 1.65" front/20 x 1.50" rear |
Front Hub | 36h Alloy Sealed-Bearing |
Rear Hub | 36h Alloy Sealed-Bearing w/ Disc Cassette Rear |
Rims | 20" Alloy 36h, Double Wall |
BRAKING SYSTEM | |
Brake | Promax DSK-300 Mechanical Disc Brake w/ 160mm Rotor |
Brake Lever | Promax XL-373 Two Finger |
OTHER COMPONENTS | |
Grips | Micro-Knurl Grip |

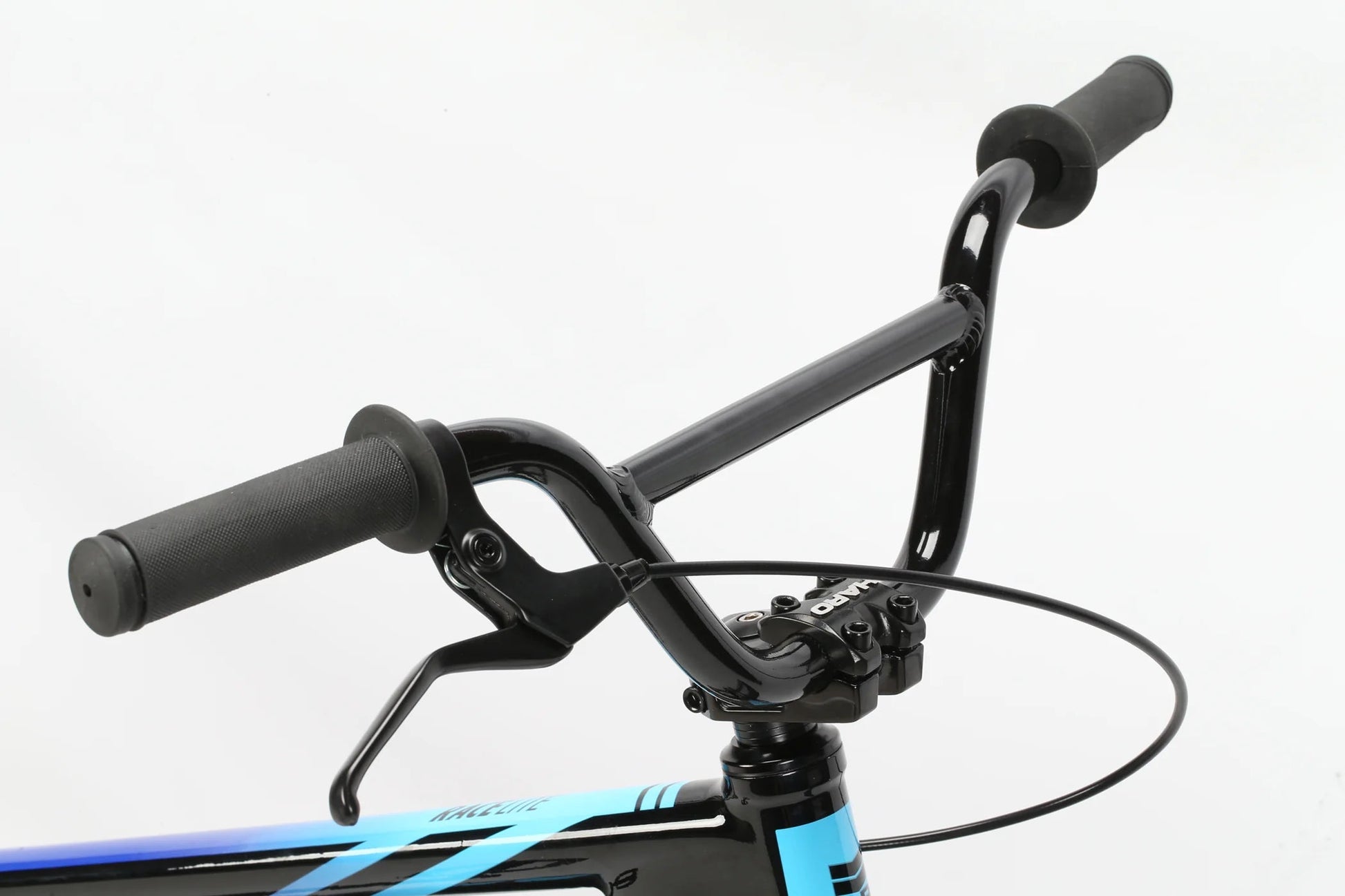

Handlebar | Haro Mini Alloy Bar, 6.5" Rise |
Stem | Forged Alloy Top-Load, 45mm Ext. |
Headset | 1-1/8" Sealed Threadless |
Seat | Haro Slim Plastic Pivotal |
Seat Post | Alloy Pivotal, 27.2mm |
Seat Post Clamp | Alloy, 31.8mm |
