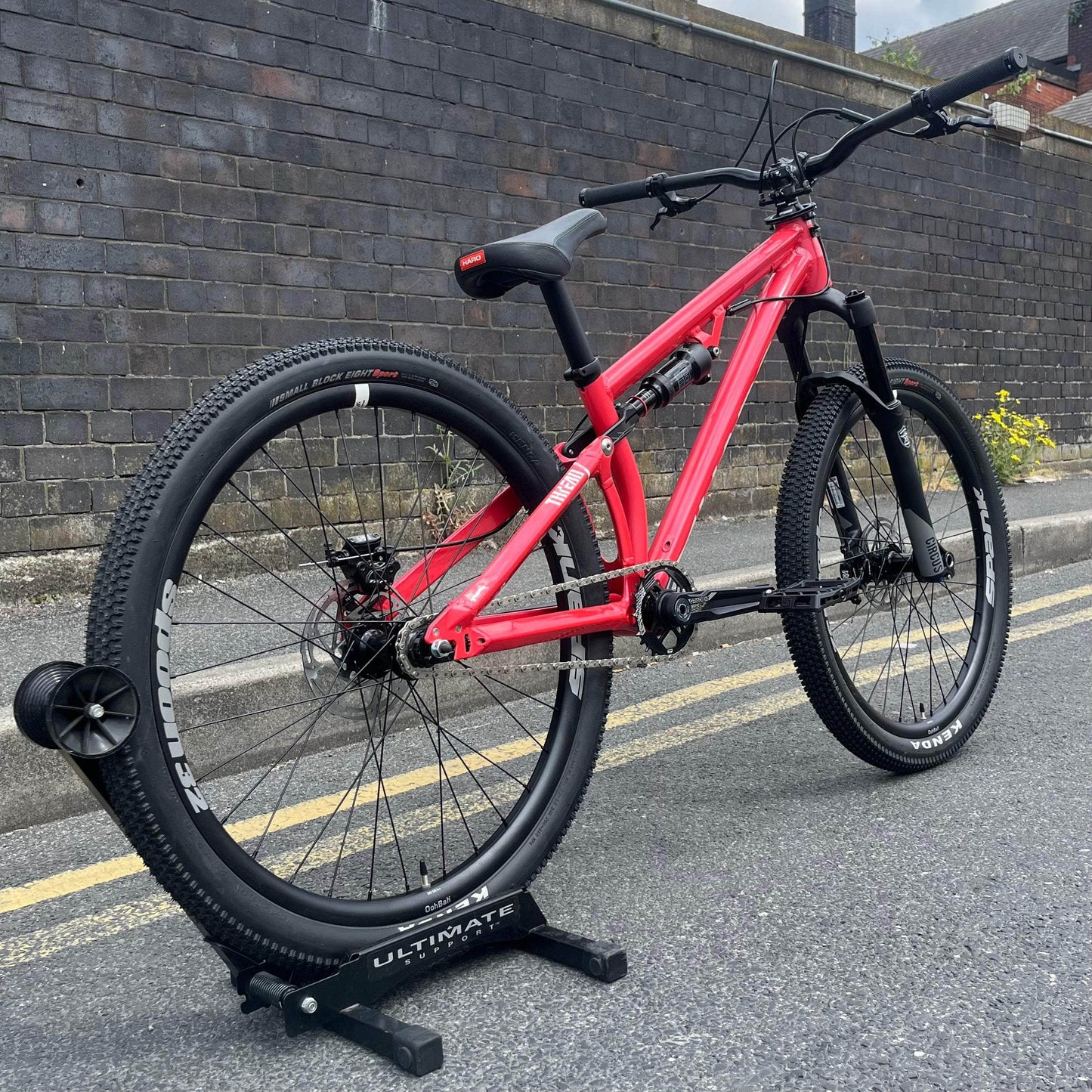

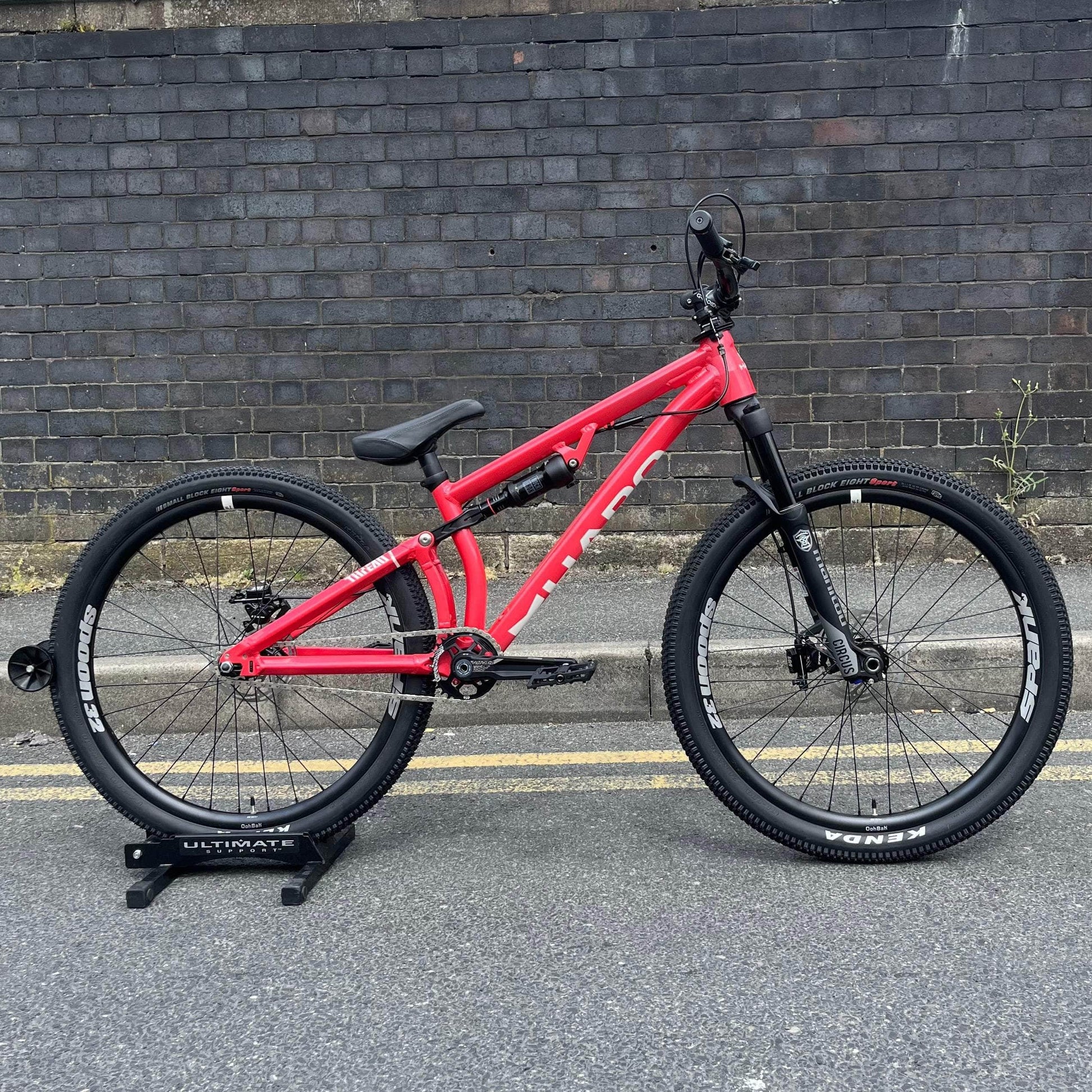

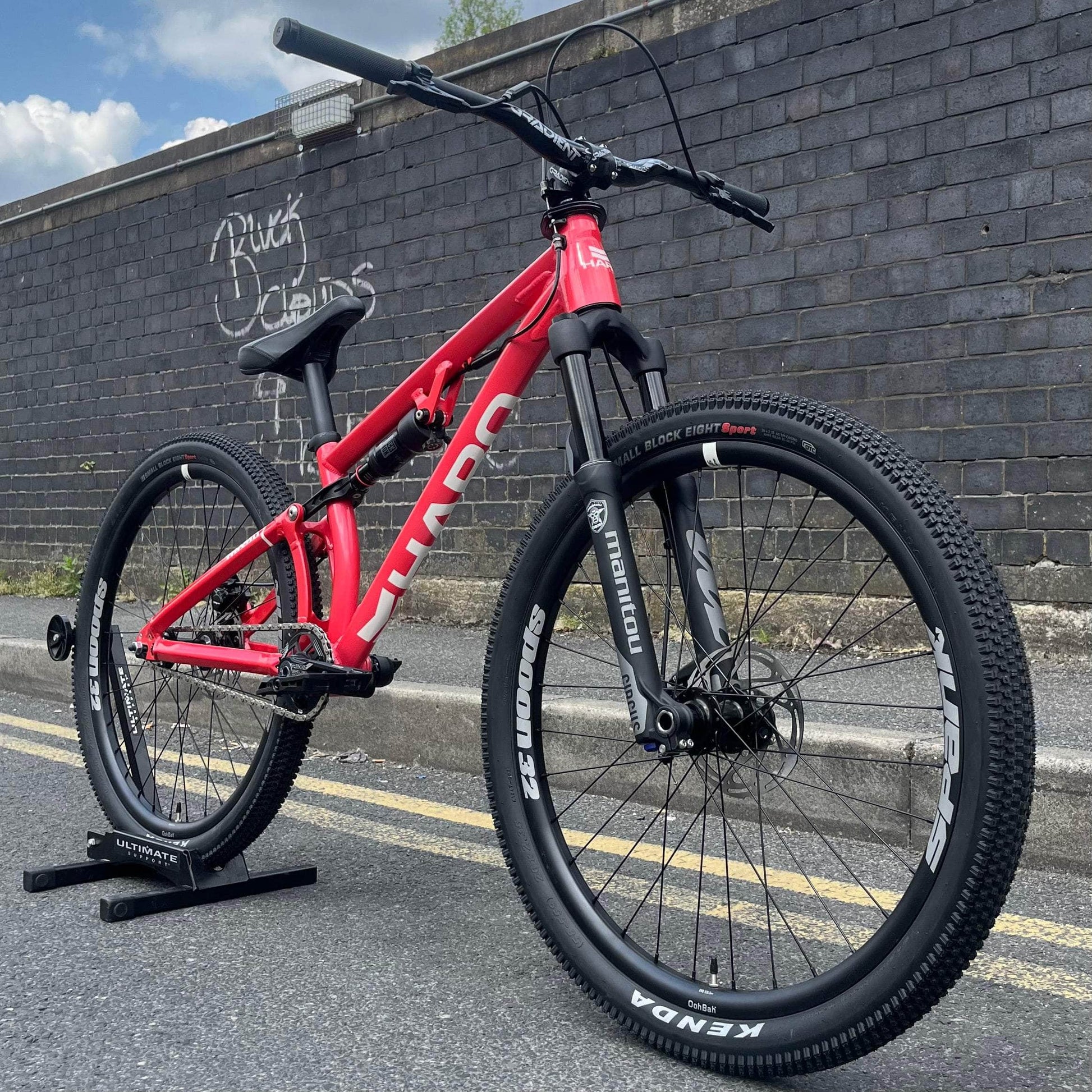

Haro Thread Slope 26" Full Suspension Dirt Jump Bike Red
Haro Thread Slope 26" Full Suspension Dirt Jump Bike Red
The Thread Slope is the ultimate model in the Haro Thread dirt jump line up. With its new X6 tubing dual suspension frame, it features 100mm of front travel with a Manitou Circus Expert fork and 80mm of rear travel without any chain stretch thanks to its central BB shell pivot for a simple, solid and efficient single-speed suspension platform. Light and precise, the Thread Slope features a gravity-proven FSA Gradient cockpit and crankset with a 30-14t gearing ratio, sealed bearing Haro SD Nylon Pedals, Spank Spoon rims, Pivotal MTB saddle and alloy seat-post, and a Haro oversize sealed rotor for fast bar spin action. The Thread Slope offers a unique combination with its custom alloy detangler and hydraulic-assisted rear brake with the innovative TRP HY/RD disc caliper for high-performance braking and bar-spinning experience...
- Thread Slope X6 series frame w/ 80mm travel

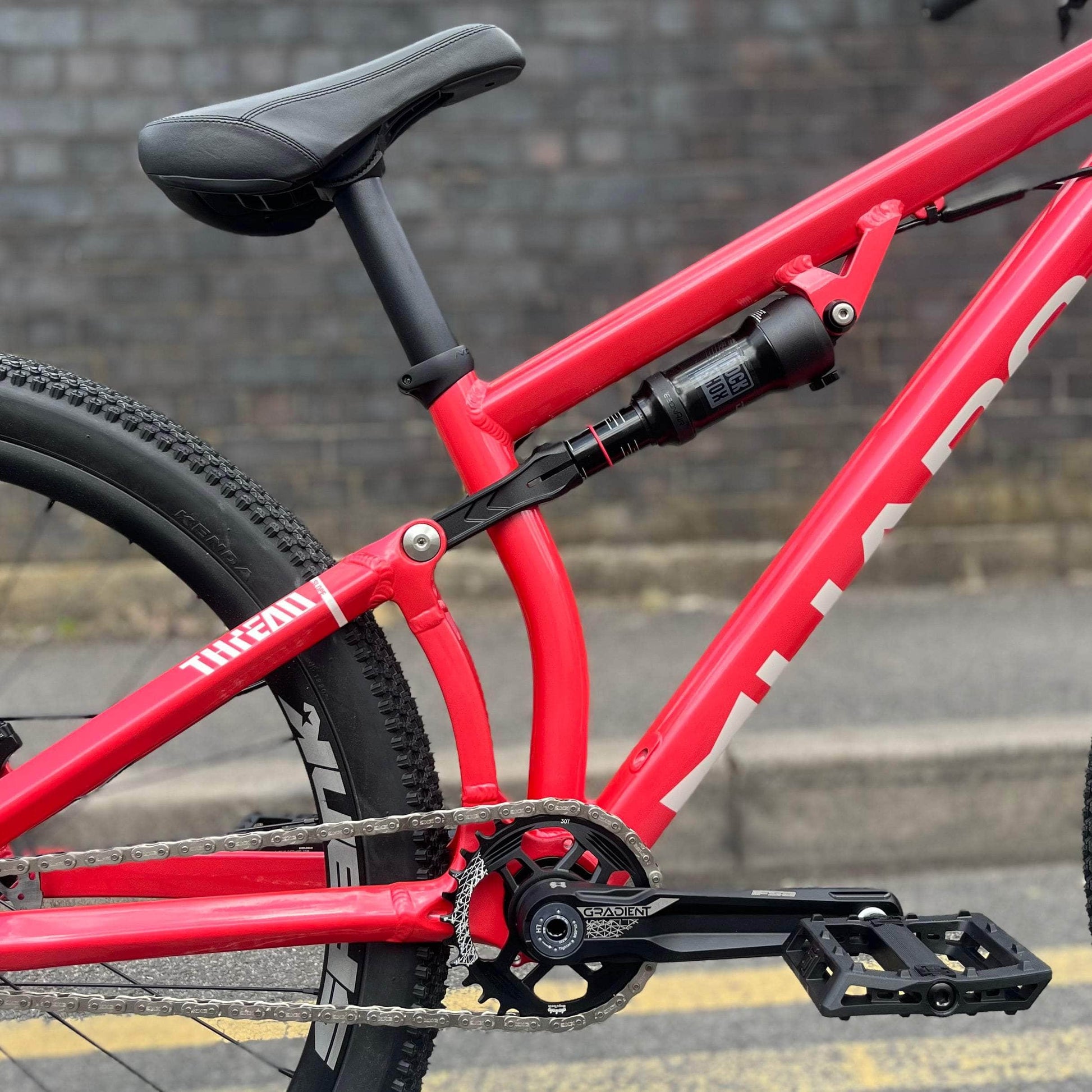

- Swing arm pivot around BB shell for no chain stretch in rear wheel travel
- 22.6" TT w/ 420mm/16.5" reach
- Rockshox RS Deluxe R rear shock
- Custom Haro OS rotor
- Manitou Circus Expert 100mm fork
- FSA Gradient 2-pc crankset, 30T alloy Megatooth chainring
- FSA Gradient 25mm rise bar & stem
- Haro Pivotal saddle and post
- Spank Ind. Spoon alloy DW 32h rims

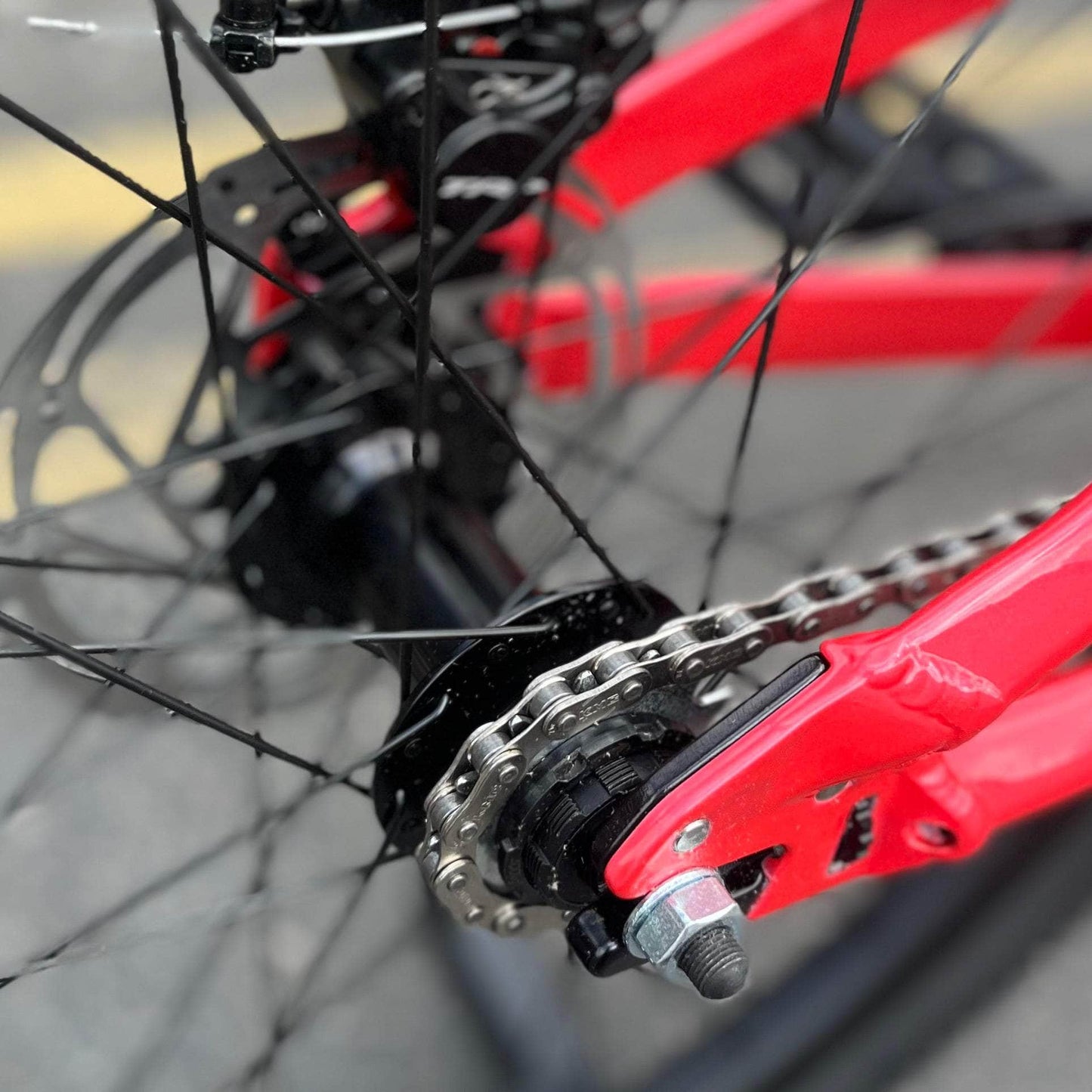

- Pivit alloy disc cassette hubs w/14t Crmo cog
- Kenda Small Block Eight 2.35"/2.10" tires
- TRP HY/RD-C mechanical/hydraulic rear disc brake
- One size
FULL SPEC
| FRAMESET | |
|---|---|
| Frame | Haro Full X6 Aluminum Thread Slope | dual suspension frame | Internal head tube | 68mm Threaded BSA | ISCG Mount |
| Fork | Manitou Circus Expert | 100mm travel | 1.5" Tapered steer tube | 110x20mm thru-axle |

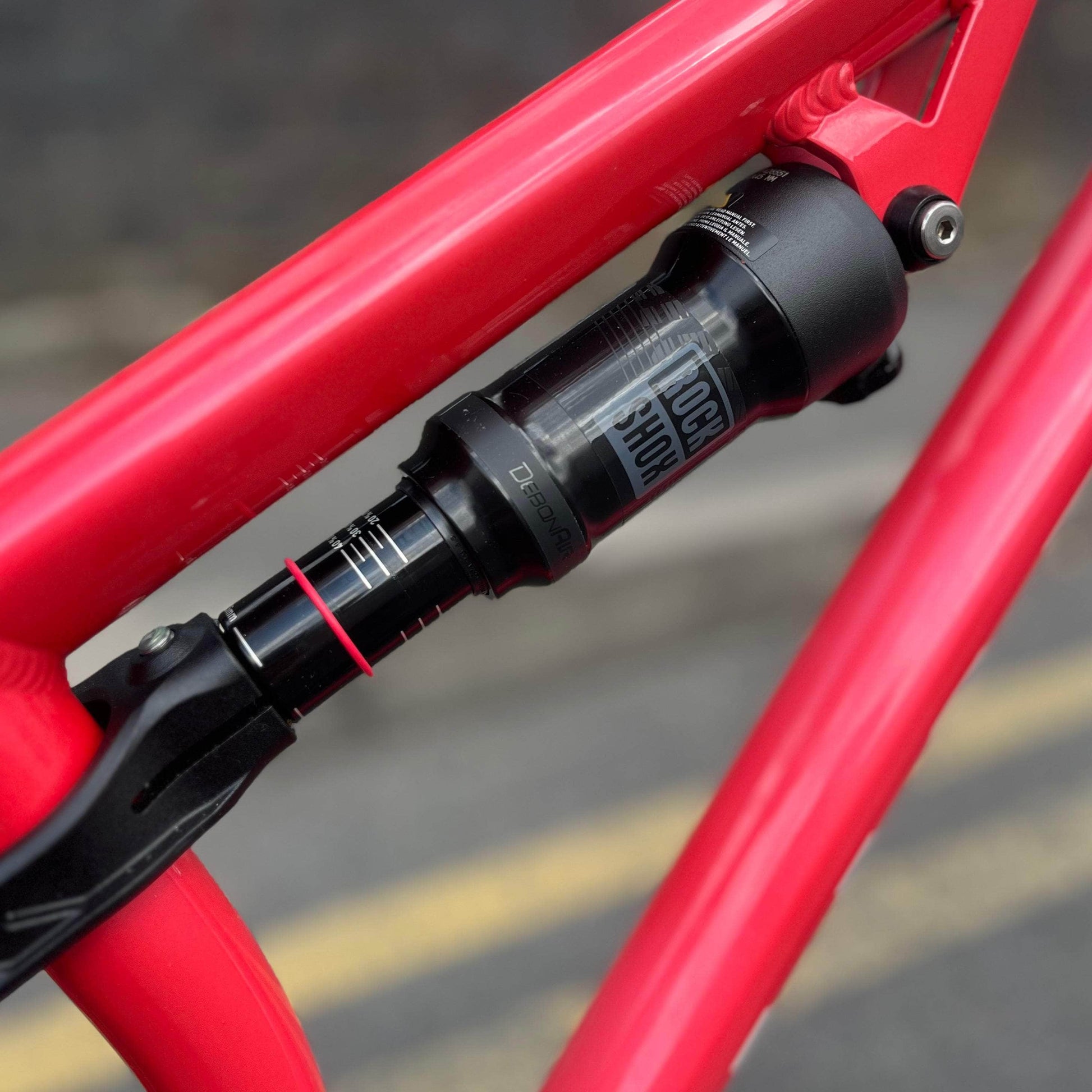

| Frame Shock | Rockshox RS Deluxe R | 190X45mm Debonair | 2 Tokens | MM Tune |
| Colors | Navajo Red |
| DRIVETRAIN | |

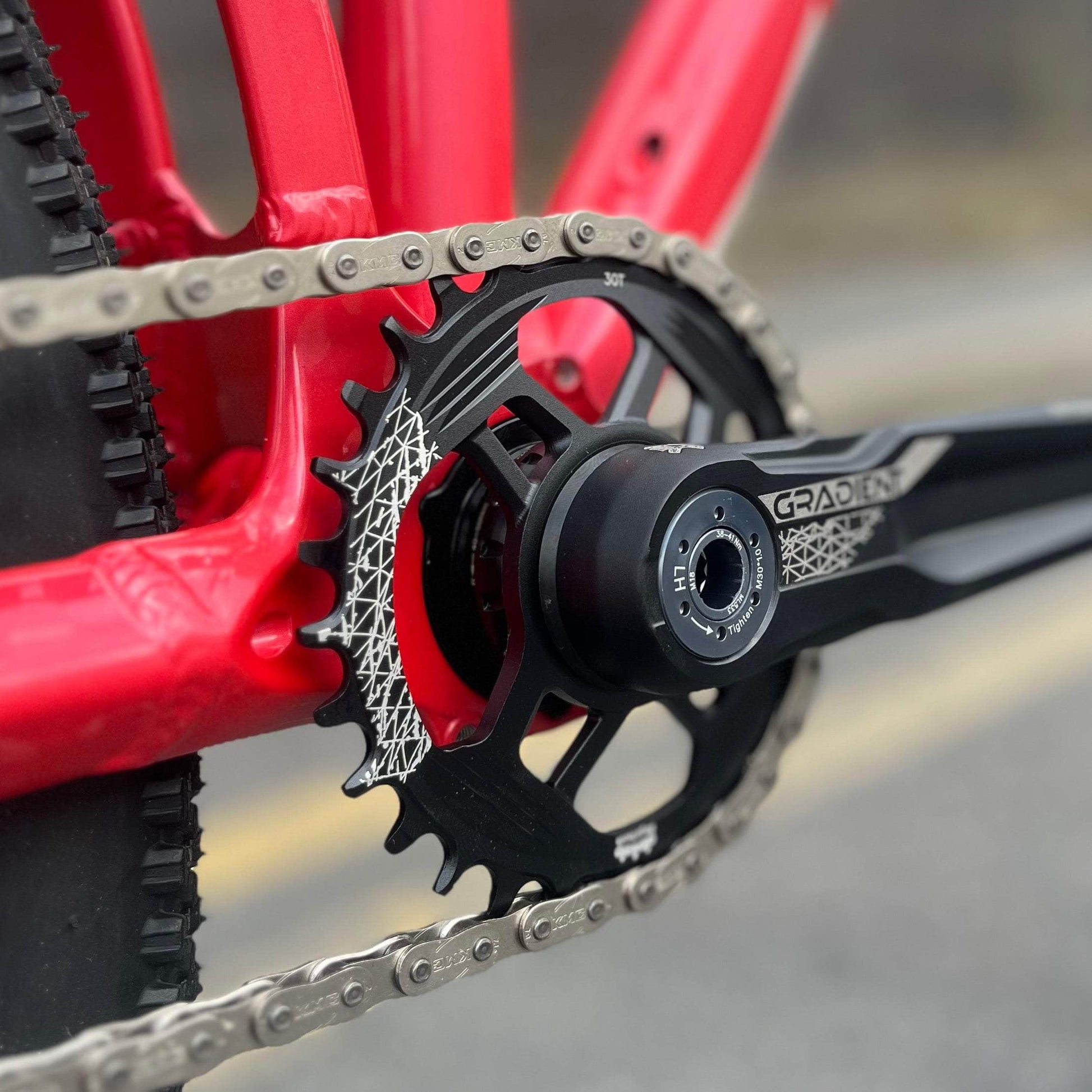

| Cranks | FSA Gradient Modular 1X Direct Mount | 170mm | Megatooth 30T Forged Aluminum Chainring |

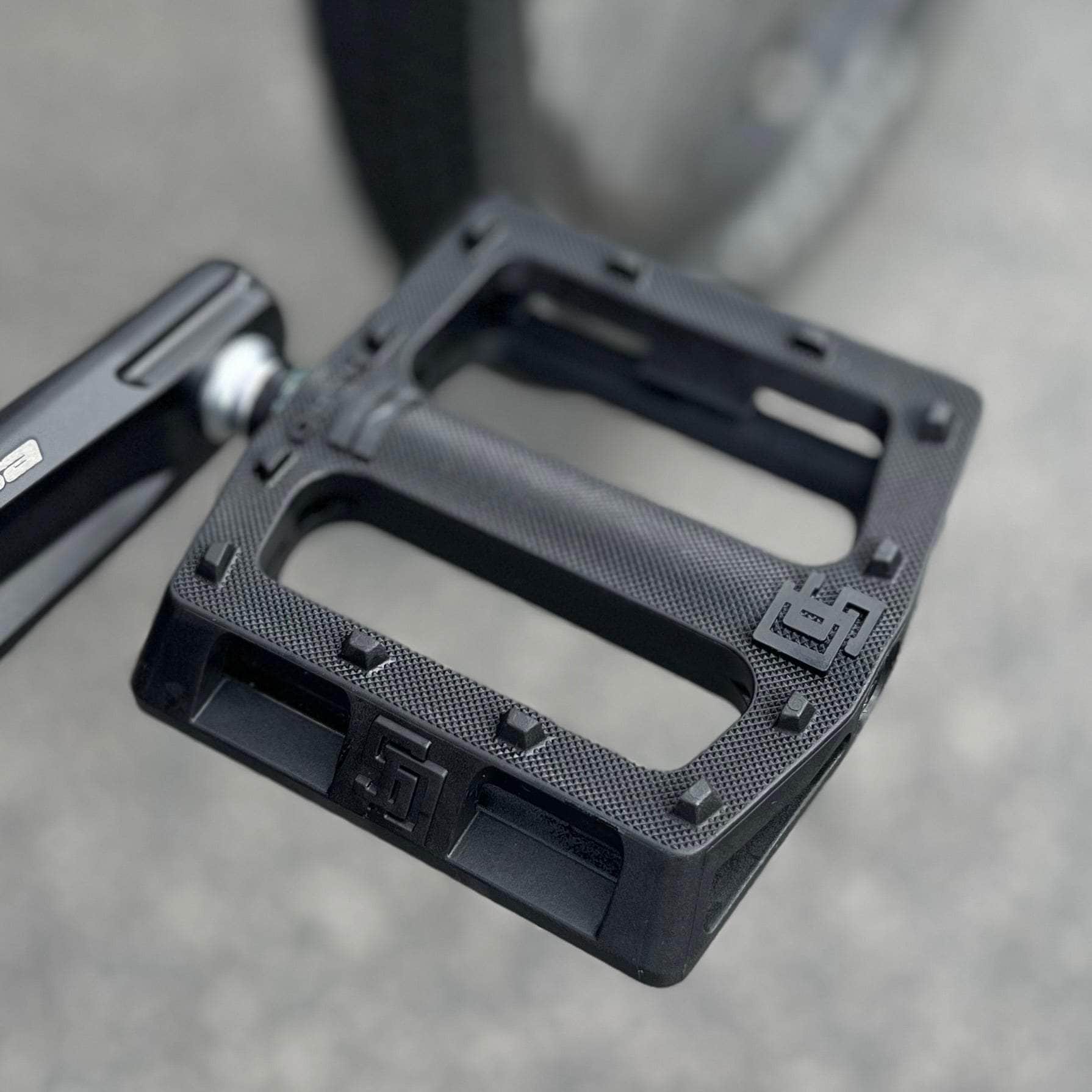

| Pedals | Haro SD Nylon | Sealed bearings |
| Chain | KMC Z1 HX | 1/2" X 1/8" |
| Bottom Bracket | FSA BB-392-EVO | sealed bearings |
| Front Derailleur | |
| Rear Derailleur | |
| Derailleur Shifter | |
| Freewheel/Cassette | 14T Chromoly cog |
| WHEELS | |

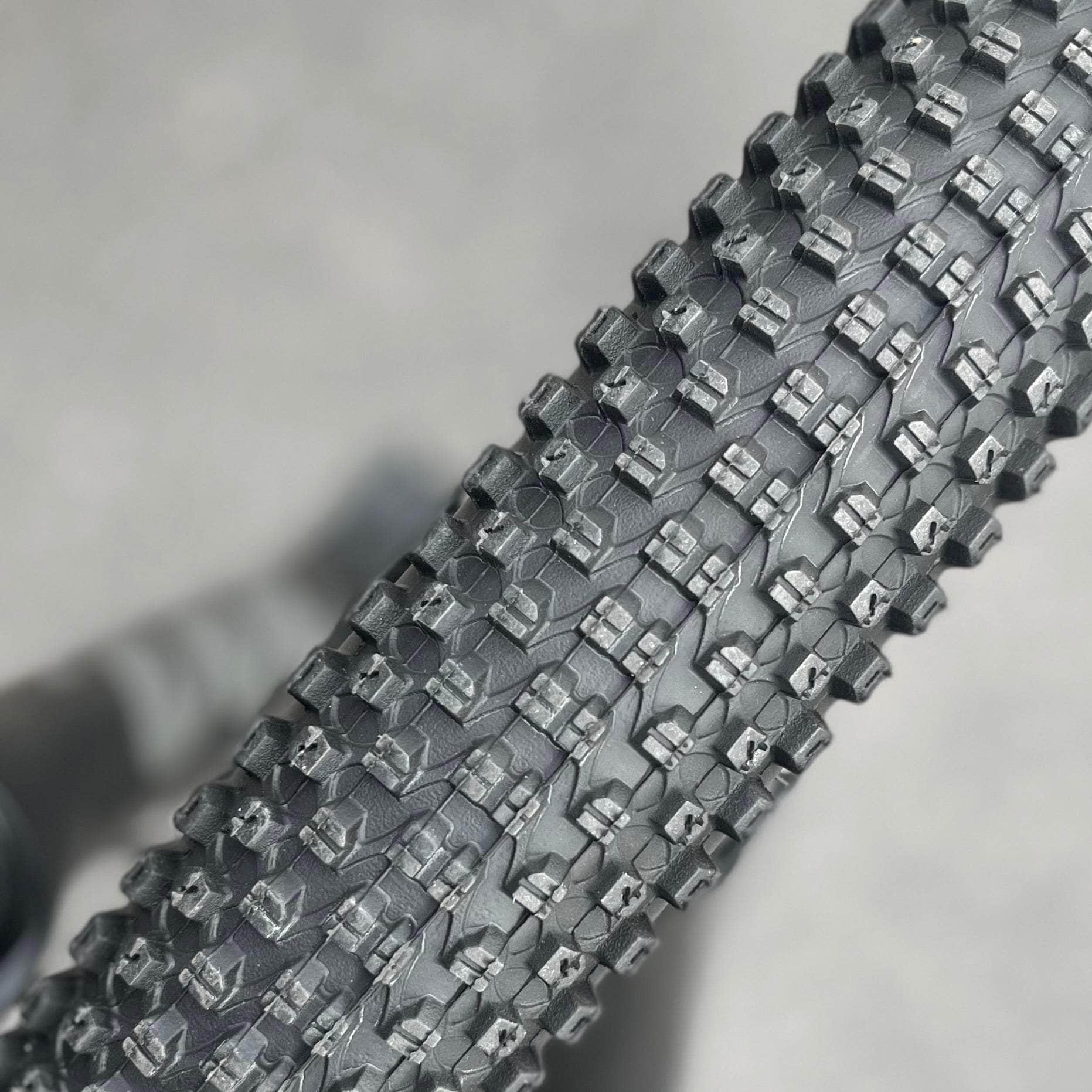

| Tyres | Kenda Small Block 8 | 26x2.35" Front | 26"x2.10" Rear | 60 TPI |

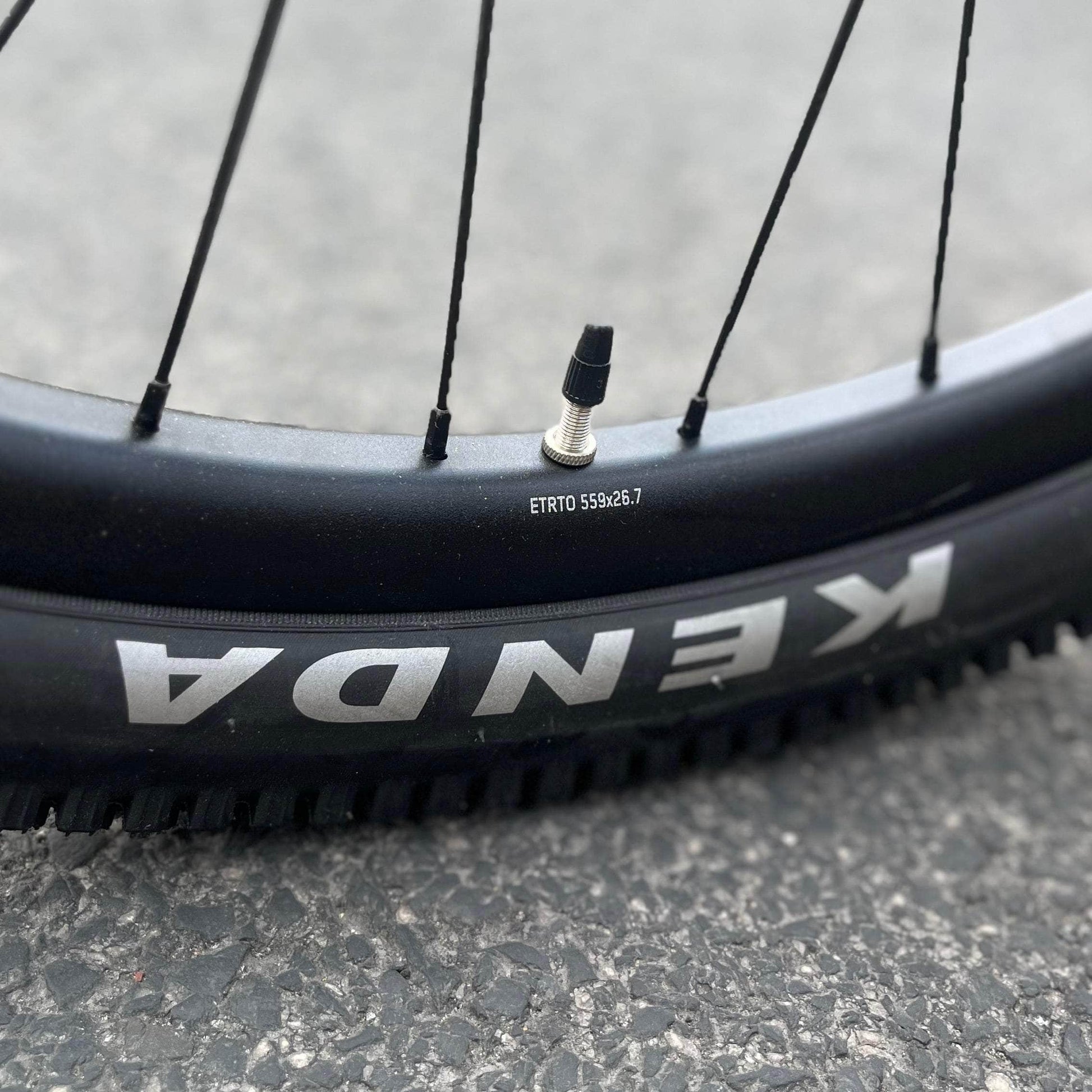

| Wheels/Rims | Spank Ind. Spoon aluminum doublewall, 32h |
| Hubs | Pivit sealed bearing aluminum disc | singlespeed cassette | 20mm front thru axle | 32h |
| BRAKING SYSTEM | |

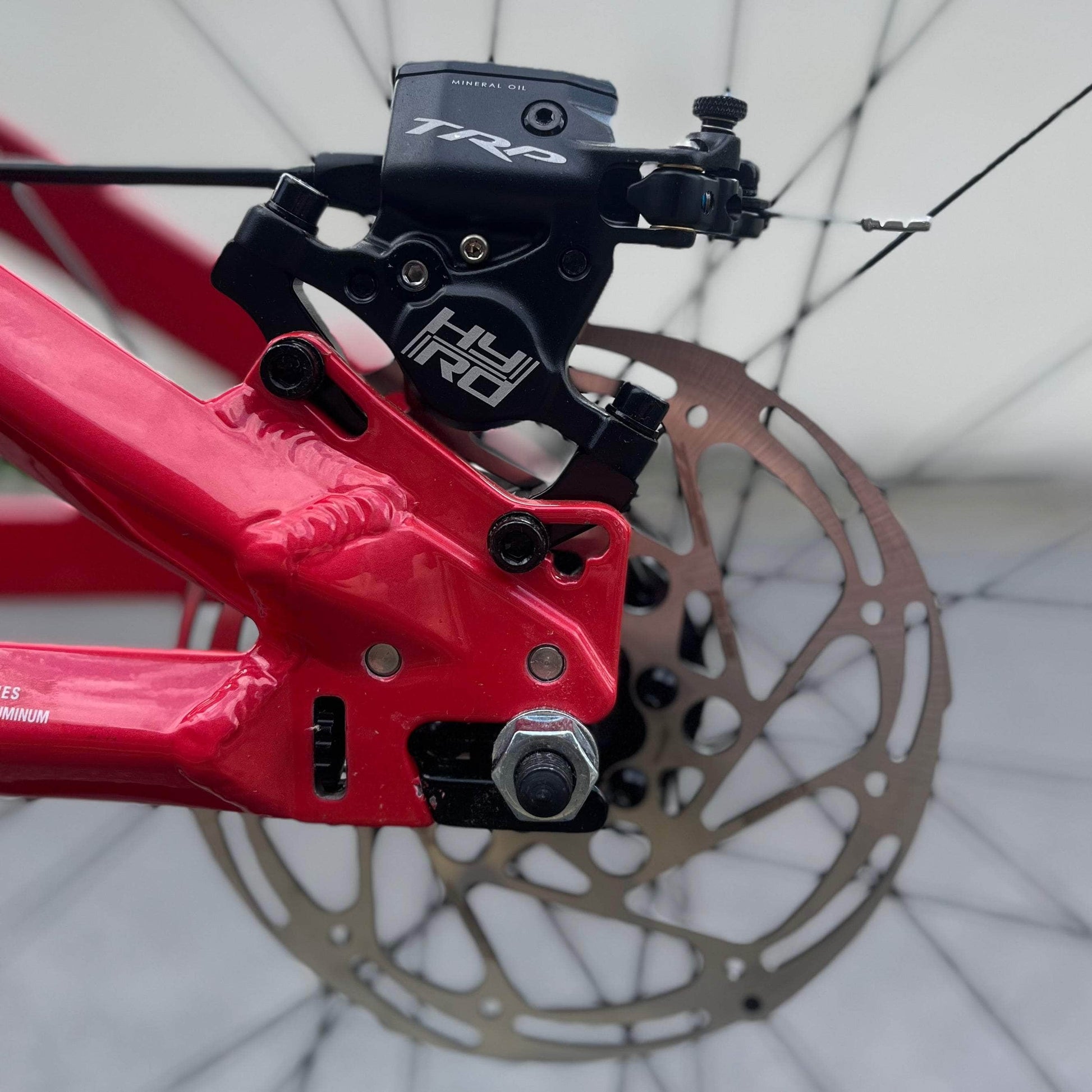

| Brakes | TRP HY/RD-C 160 | Cable / Hydraulic Disc Brake for IS Rear Mount | 160mm disc |

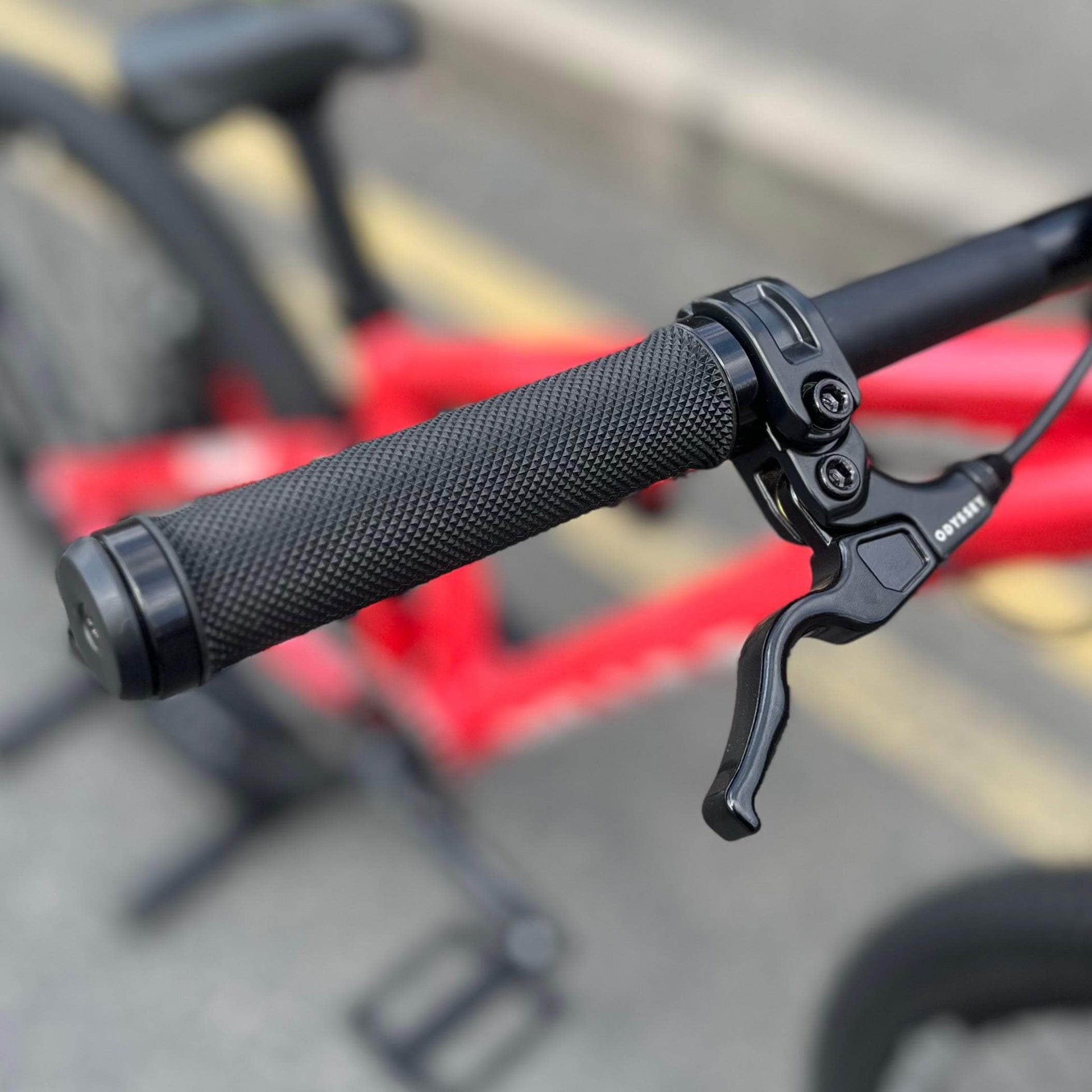

| Brake Levers | Odyssey Trigger for Single Gyro upper cable |
| OTHER COMPONENTS | |
| Grips/Tape | Velo Lock On |

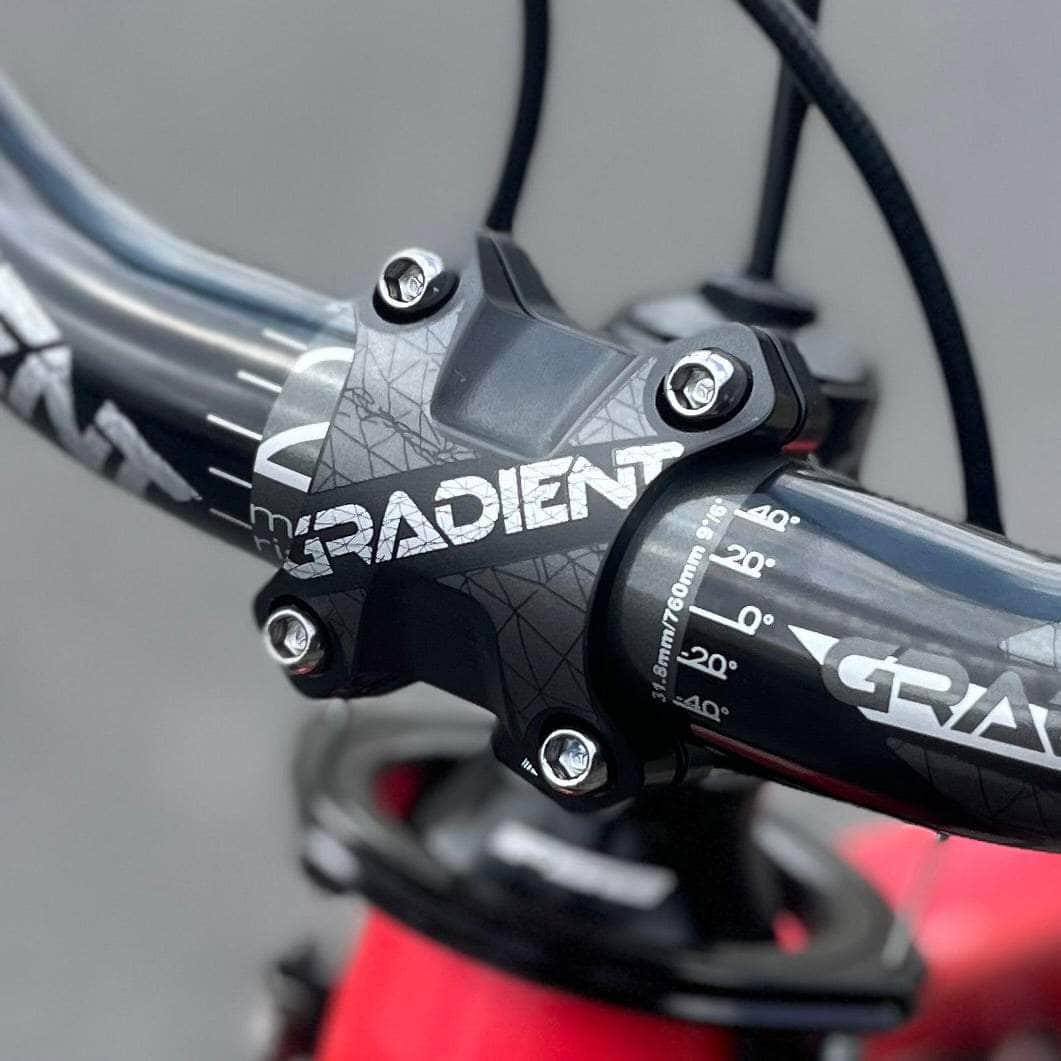

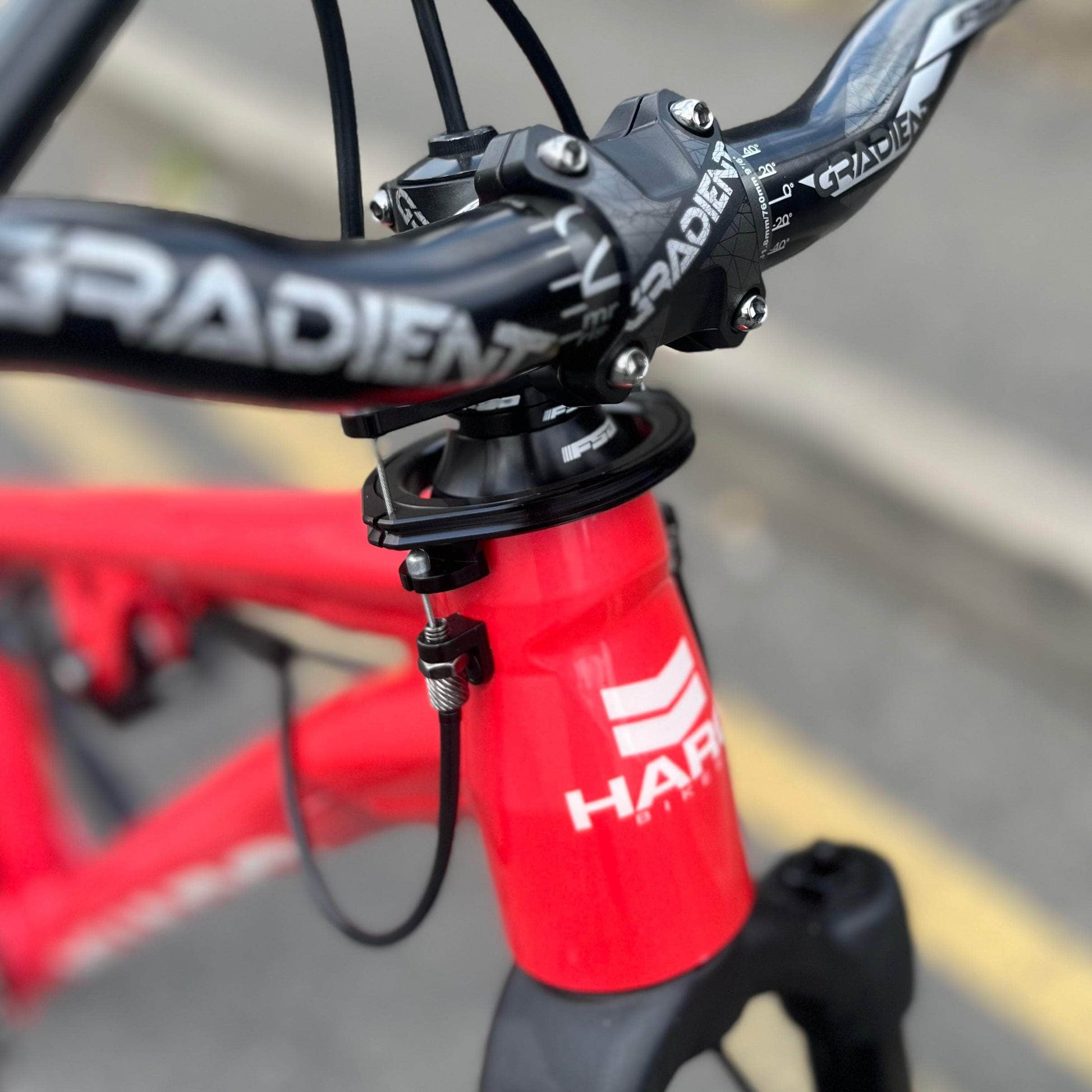

| Handlebar | FSA Gradient Riser | 25mm Rise | 9 Deg. Backsweep | 6 deg. Upsweep | 31.8mm Clamp |
| Stem | FSA Gradient 1-1/8" | 45mm Ext. |
| Headset | FSA # 51 | 1-1/8"-1.5" Aluminum | top | lower AC Bearing |

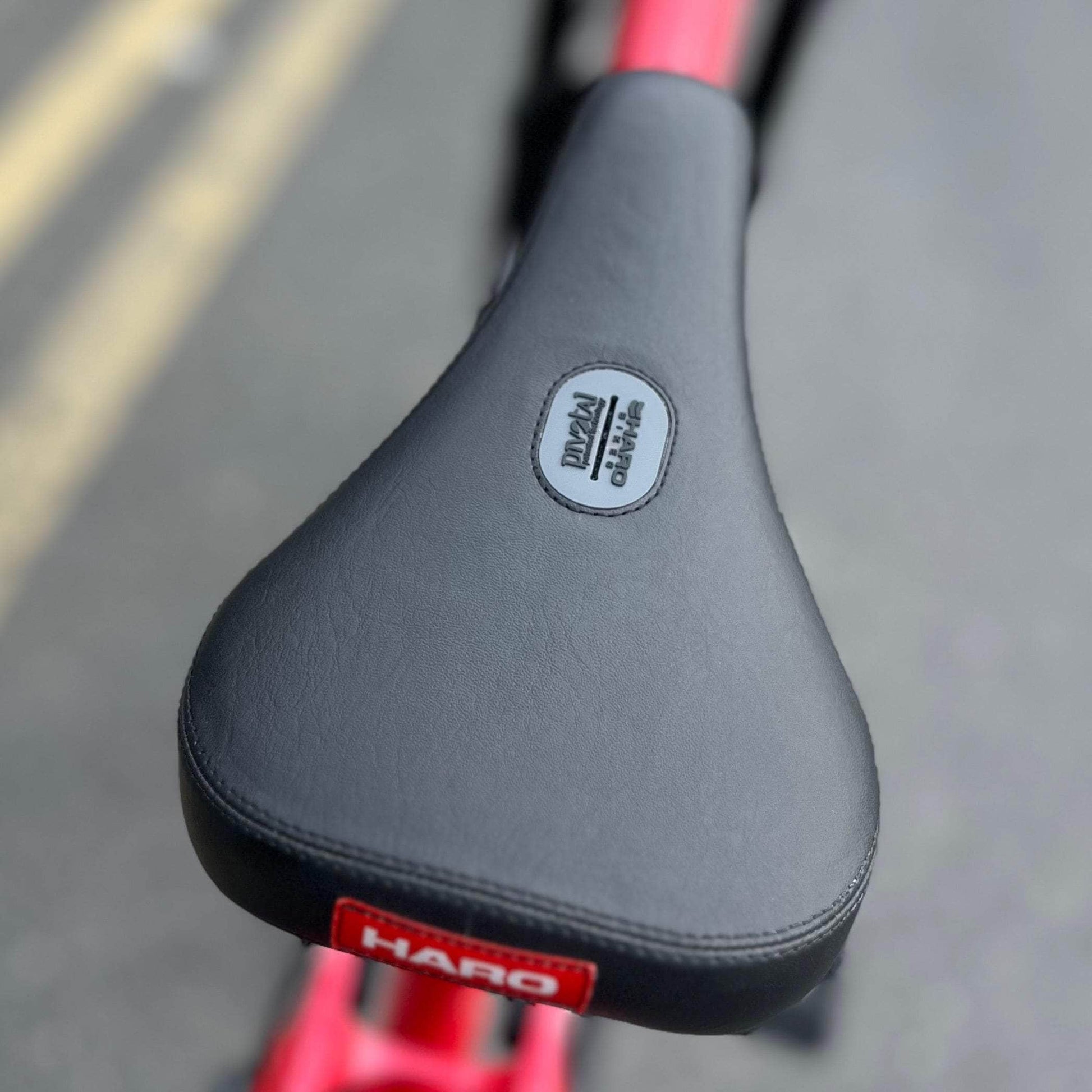

| Saddle | Haro Pivotal w/ hollow bolt |
| Seat Post | Pivotal aluminum | 31.6mm |
| Seat Clamp | Pivit aluminum 35mm |

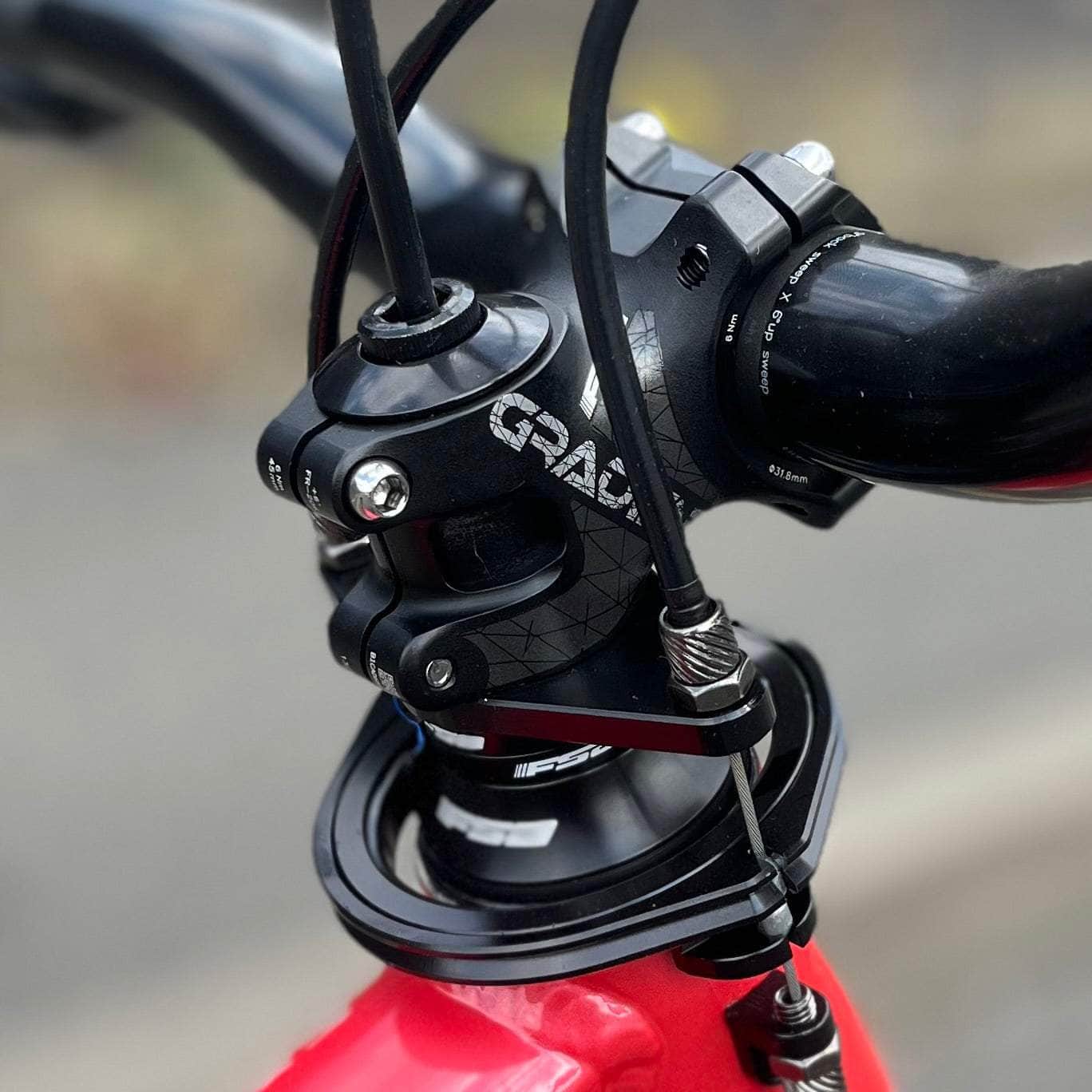

| Extras | Haro OS Teflon Bearing Rotor | Upper & Lower rotor cables |
