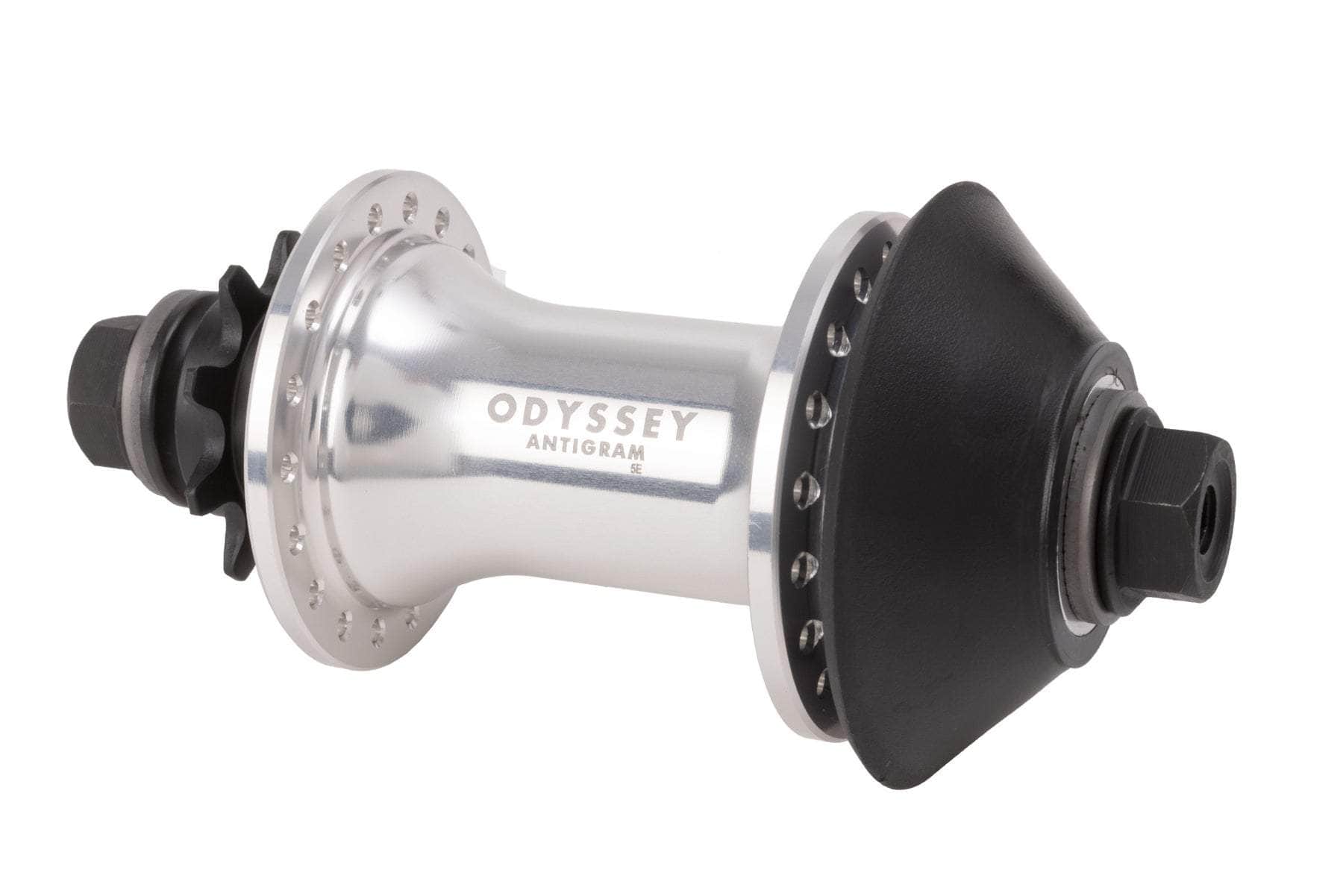

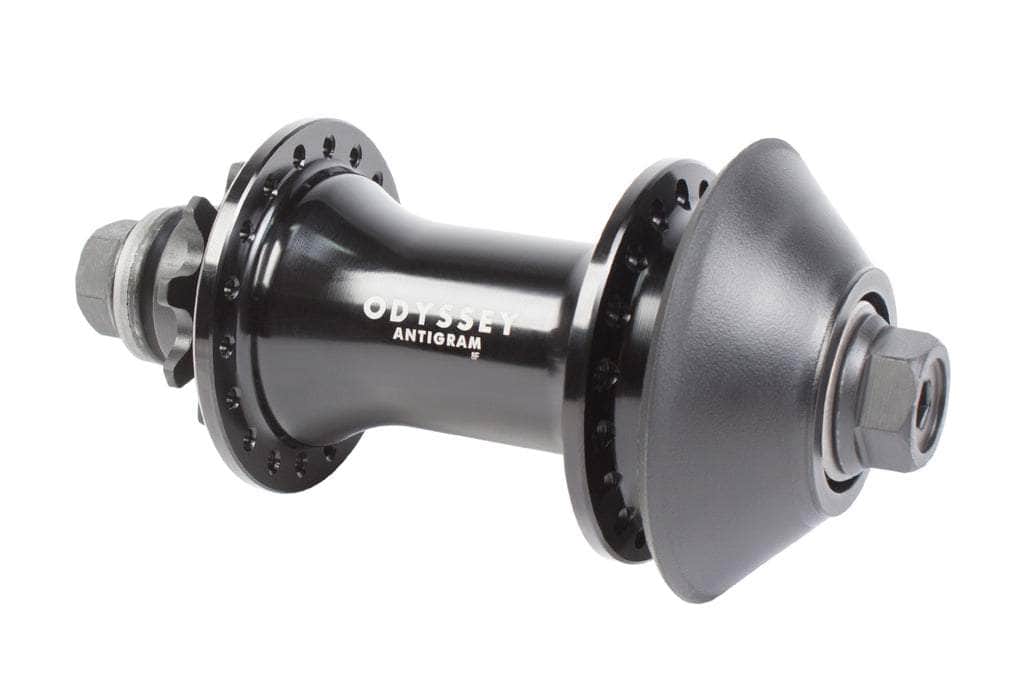

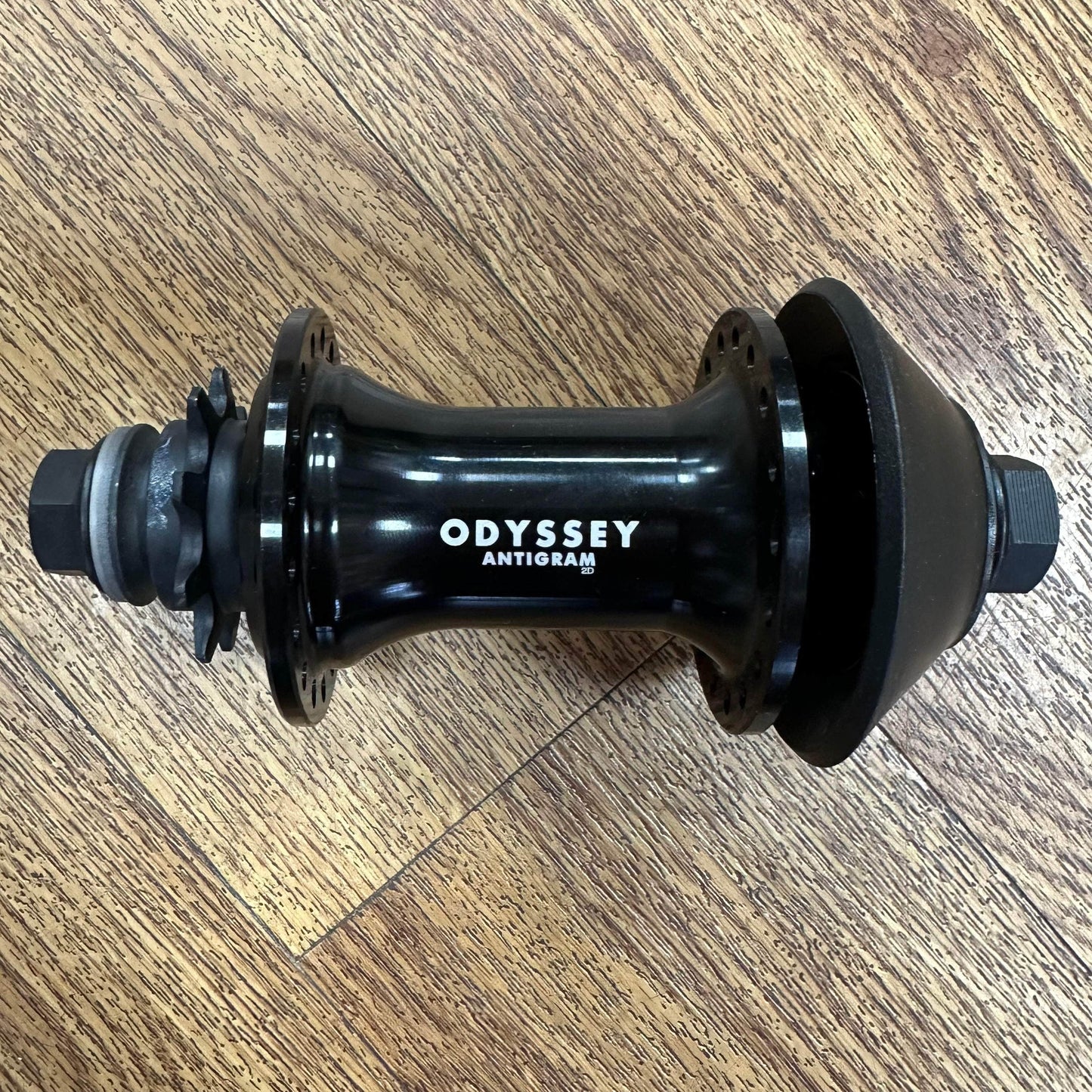

Odyssey Antigram v2 Cassette Hub
Odyssey Antigram v2 Cassette Hub
The Odyssey Antigram is a 36-H rear hub that is strong, light and reasonably priced with in-bound axle bolts that is both RHD/LHD switchable and now comes with a replaceable hub guard.
The Antigram v2 now uses the same hub guard as the Clutch v2 to address all your grinding needs.
Features
- 2014-T6 forged aluminum hub shell
- 6903RS sealed cartridge ball bearings
- 14mm, 4130 chromoly axle bolts w/17mm 4130 chromoly female axle
- 9t driver with 3-Pawl independent springs design and precision caged needle bearings
- RHD/LHD switchable
- Replaceable plastic hub guard included
- 454g with guard and 436 without guard
Measurements
- Drive Side Effective Flange Diameter: 49mm
- Non-Drive Side Effective Flange Diameter: 49mm
- Drive Side Flange to Center Distance: 30mm
- Non-Drive Side Flange to Center Distance: 30mm
