SKU: Product Code: ODW-470R-BK

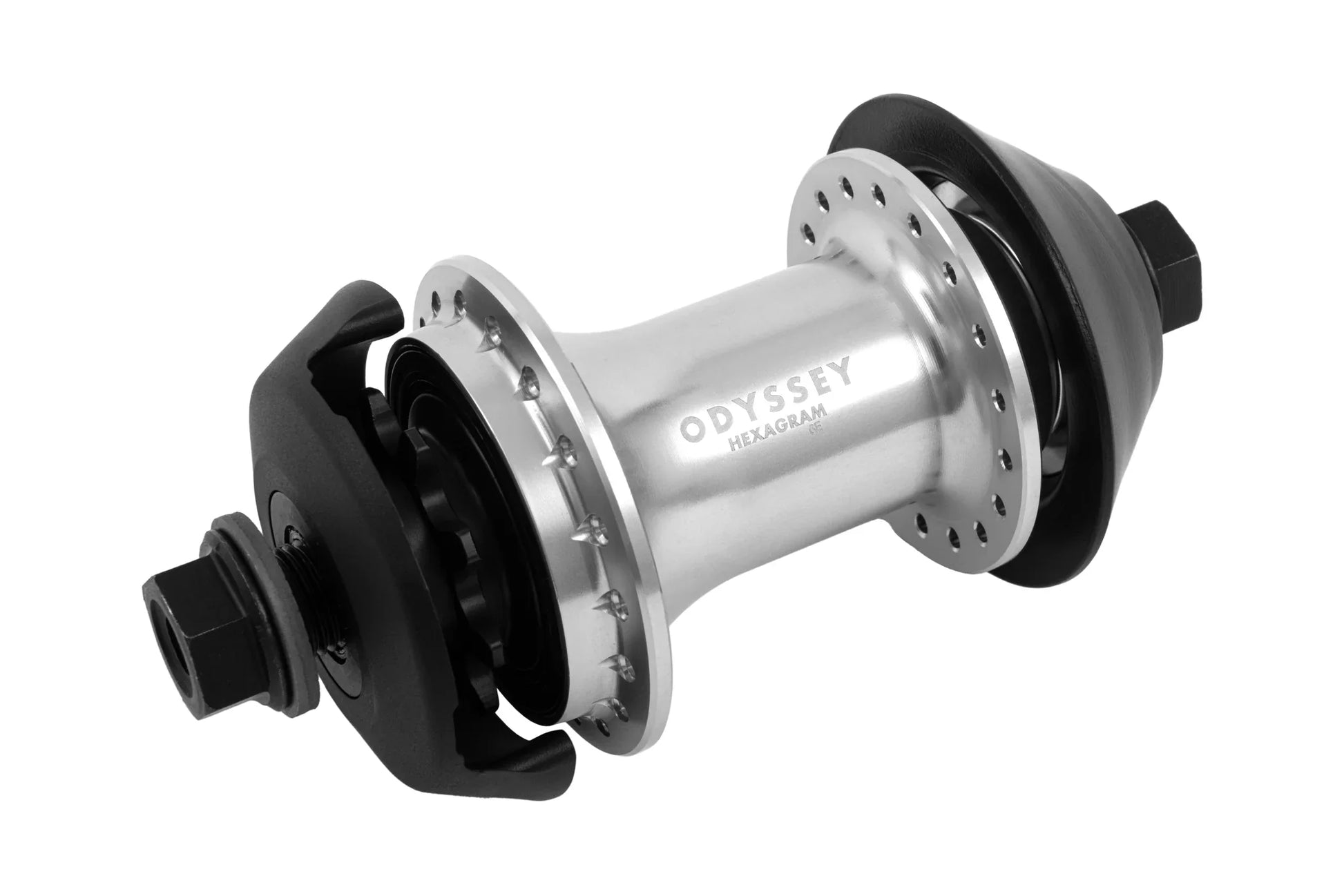

Odyssey Hexagram Switchable Rear Cassette Hub
Odyssey Hexagram Switchable Rear Cassette Hub
The Hexagram is an all-new, lightweight freestyle cassette hub from Odyssey featuring faster, alternating 6-pawl engagement that is RHD/LHD switchable and comes with plastic drive and non-drive side guards.
Key Features
-
7075-T6 aluminum hub shell
- 6 Pawls with alternating 3 Pawl engagement
- Improved, faster engagement than traditional 3 Pawl designs
- All-new 9T driver design with improved durability
- Sealed cartridge bearing and precision needle roller assembly
- Proven LHD/RHD square tooth profile
- Simplified service procedure
- Pawls and springs mount in hubshell
- Keeps driver simple and low maintenance
- Makes swapping pawls and springs much easier
- LHD/RHD switchable
- Alternating 3 pawl engagement
- Drive-side and Non-drive-side guard compatibility
- PC guards included for both sides
- Slim NDS collar available separately for clean look without guards
- 6903 hubshell bearings
- Easily obtainable, available at most bike shops, often on-hand
- Easy knock-out/press-in serviceability
- 17mm 4130 chromoly inbound axle with 4130 chromoly 14mm bolts
SPECS
Driver: 9T, RHD/LHD Switchable
Axle: 4140 chromoly with in-bound 14mm bolts
Spoke Configuration: 36-Hole
Color: Black
WHEEL BUILDING INFO
Drive Side Effective Flange Diameter: 55mm
Non-Drive Side Effective Flange Diameter: 48mm
Drive Side Flange to Center: 28mm
Non-Drive Side Flange to Center: 26mm
BEARINGS
Hub Shell Non-Drive: 6903 Sealed
Driver: Sealed Precision Caged Needle Roller
