SKU: Product Code: POSCOBI054

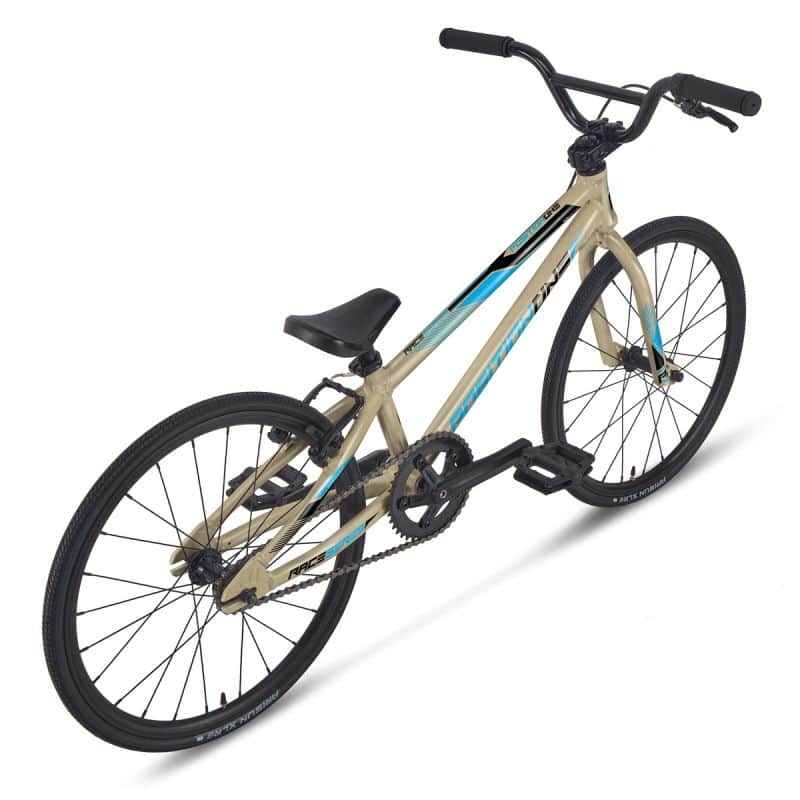

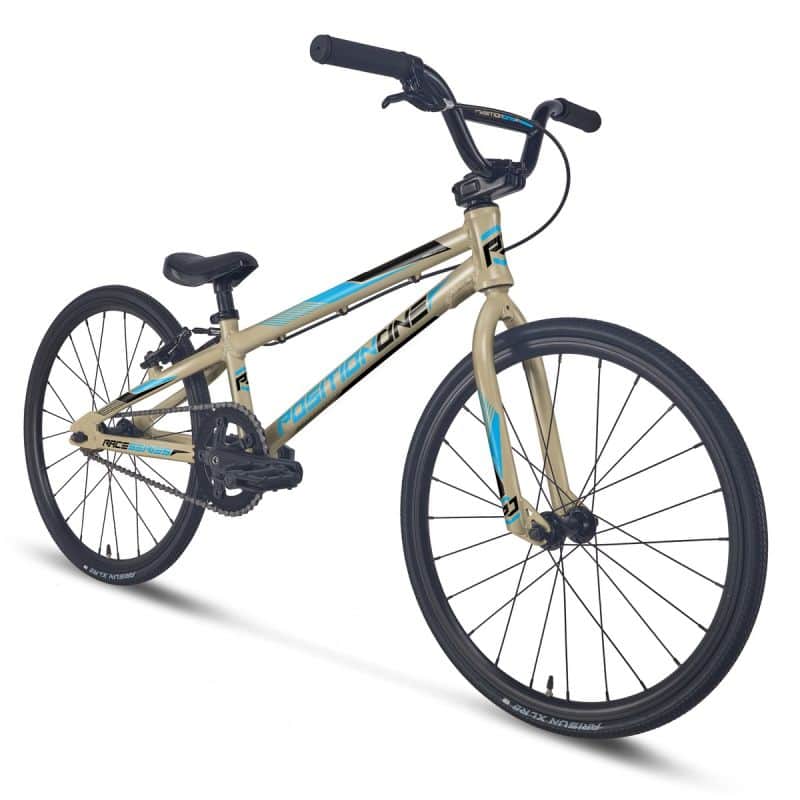

Position One Junior Race Bike Sand
Position One Junior Race Bike Sand
The Position One Junior is a quality entry level race BMX to get your kid started. This is the same geometry as used on the championship winning Chase frames, for a more affordable price.
POSITION ONE Race were specially created to introduce beginners to BMX Race thanks to a range of studied geometry, thus offering you the best value for money in an entry-level BMX. Equipped with a 6061 aluminum frame with integrated steering, it is equipped with a chromoly fork and handlebars, a 3-piece crankset, double-wall rims, V-Brake braking and ARISUN XLR8 tyres.
FEATURES
- Aluminum 6061-T6 frame 18.75" Top Tube
- Integrated Reducer Sealed Bearing 1-1/8th outer with 1” Inner bearing for 1” steer tube
- Full Chromoly fork and handlebar
- 3-piece Aluminium crankset 155mm
- 40T steel Chainring 5 points
- Double wall Aluminium rims 20x1-1/8"
- Euro bottom bracket Sealed Bearing
- Freewheel rear hub 16T
- ARISUN tyres 20x1-1/8"
- KMC chain
RECOMMENDED SIZE: 1m22 – 1m37
WEIGHT: 7.7 Kg without pedal
SPECIFICATIONS
|
FRAME
|
Junior 18.75" Top Tube 6061 T6 Alloy, Integrated Head Tube, 1-1/8", Water Decals |
|
FORK
|
Full Cr-mo, 1" Steer Tube |
|
HEADSET
|
Integrated Reducer Sealed Bearing 1-1/8th outer with 1” Inner bearing for 1” steer tube |
|
HANDLEBAR
|
Cr-mo 4.25" Rise, Diameter 22.2mm, 22.75" Wide, 8° Back Sweep & 2° Up Sweep |
|
GRIPS
|
Single Ply 92mm Flangeless |
|
STEM
|
40mm 6061 T6 Alloy Top Load |
|
BB
|
Euro Square 118mm Sealed Bearing |
|
CHAINRING
|
40 Tooth 5 Bolt 110mm 1/2"x3/32" 3mm Steel |
|
CRANK
|
3 Pieces Crank 155mm Alloy Arm, Cr-mo Chain Ring Bolts / Nuts |
|
PEDAL
|
Platform Nylon 9/16" |
|
CHAIN
|
KMC Z33 1/2"x3/32" |
| FREEWHEEL | 16 Tooth 1/2"x3/32" |
|
FRONT HUB
|
24H, Double Contact Seals Bearing, 3/8" Axle/Nuts |
|
REAR HUB
|
24H, Double Contact Seals Bearing, 3/8" Axle/Nuts |
|
SPOKES
|
Front 205mm, Rear 203mm, 14 Gauge, Steel |
|
NIPPLES
|
16mm, 14 Gauge, Brass |
|
RIMS
|
Double Wall Alloy 24H 1-1/8" Presta Valve |
|
TYRES
|
ARISUN XLR8 20x1-1/8" Wire Bead |
|
TUBES
|
20x1-1/8" Presta Valve |
|
BRAKE LEVER
|
Junior/Expert Alloy |
|
BRAKE CALIPER
|
V-Brake 95mm |
|
SADDLE
|
Mini Nylon Combo 25.4mm Aluminium Seat Post |
|
SEAT CLAMP
|
28.6mm Alloy 1 Bolt |
