Profile Racing Elite AL F1 Limited Edition Cranks
Profile Racing Elite AL F1 Limited Edition Cranks

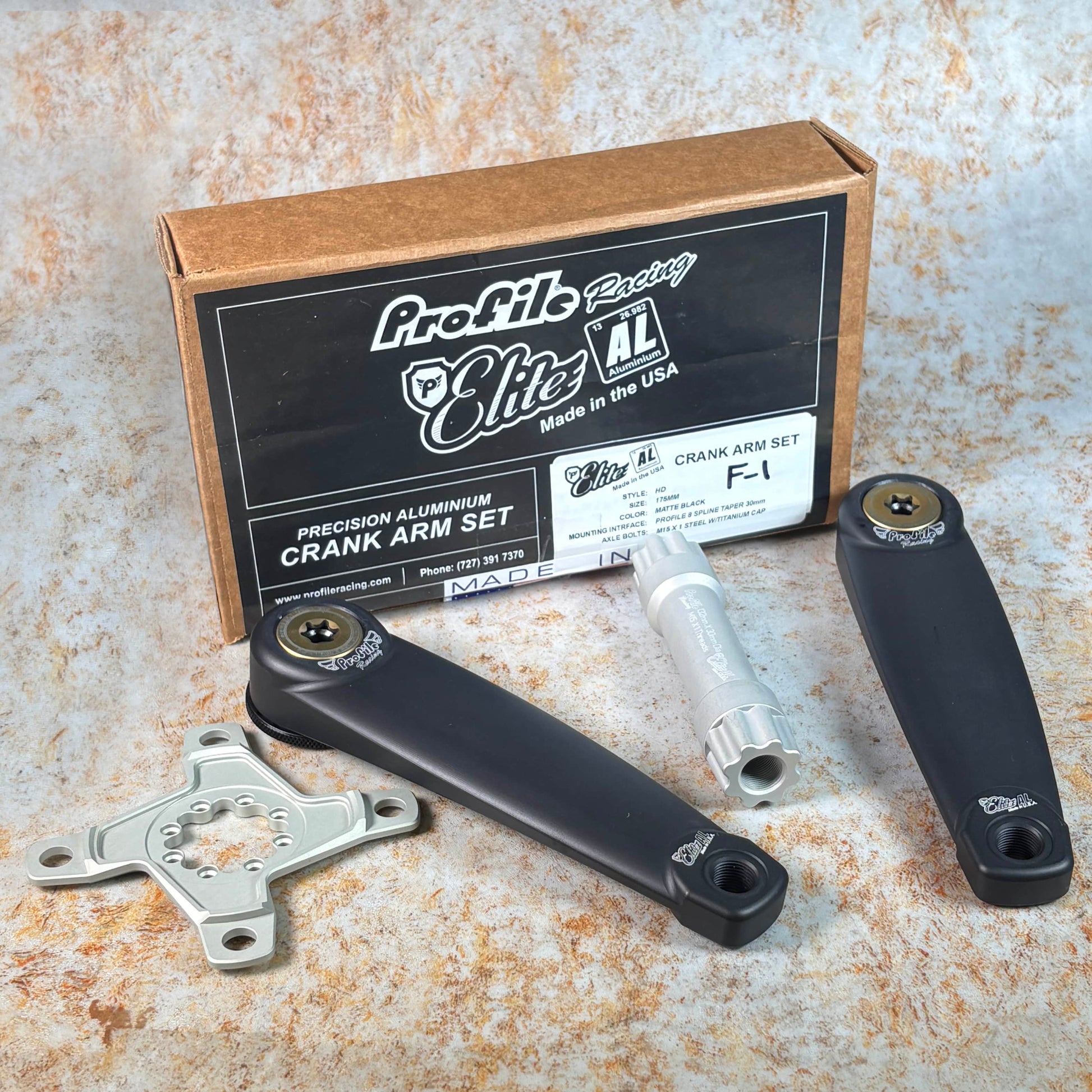

Introducing the Limited Edition F1 alloy race cranks.The kit includes: LH & RH crank arms, 30mm axle, pedal washers, 8 piece T20 Torx mounting screws & AL Single Chainring Spider.
Please see the installion video below.
30mm Bottom Bracket sold separately like this one
Features:
-Precision CNC 3-D surfaced machined from 2024 Billet Aluminum
-Unique heavy duty design for maximum strength
-Adjustable pre-load ring on non-drive crank arm for precise bottom bracket adjustment
–Supplied with self extractor axle bolts(8mm Hex) and caps(T60 Torx)
-For use with 30mm axle bottom brackets
-Anodised colour finish
-Two year warranty
Specifications:
Q FACTORS:
-173mm on 68mm BSA/BB86 bottom bracket
-178mm on 73mm BSA/BB92 bottom bracket
-188mm on 83mm BSA/BB107bottom bracket
CHAINLINE:
-45mm (on 68mm BSA/BB86 bottom bracket with 3mm offset spider/chainwheel)
-47.5mm (on 73mm BSA/BB92 bottom bracket with 3mm offset spider/chainwheel)
-52.5mm (on 83mm BSA/BB107 bottom bracket with 3mm offset spider/chainwheel)

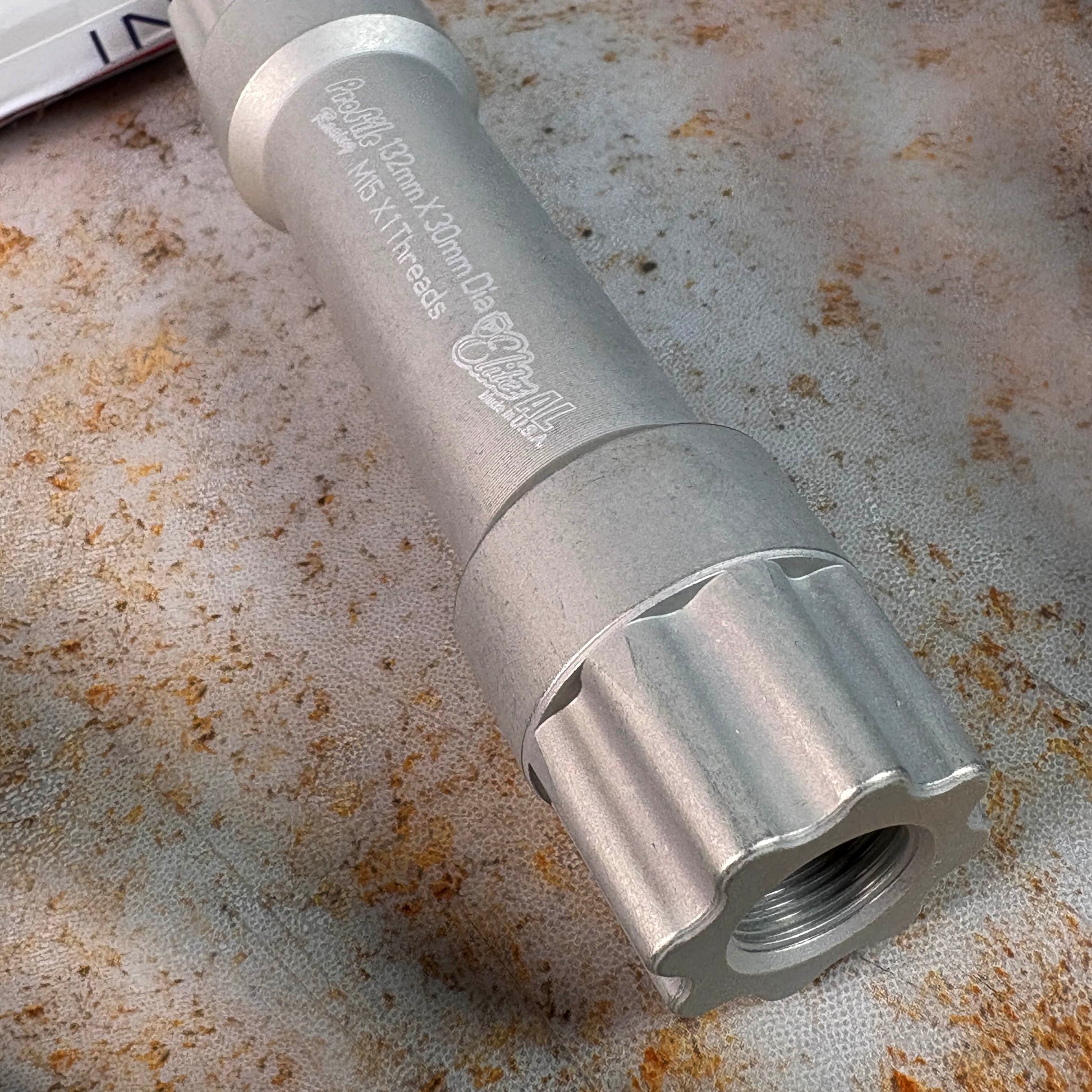

AXLE:
-7075 AL
-30mm dia. with Profile 8-Spline Taper
-M15 x 1 axle bolt threads
-Lengths:
-132mm(for use with 68mm BSA & BB86 bottom bracket)
-137mm(for use with 73mm BSA & BB92 bottom bracket)
-147mm(for use with 83mm BSA & BB107 bottom bracket)
AXLE MOUNTING INTERFACE: Profile 8-Spline Taper

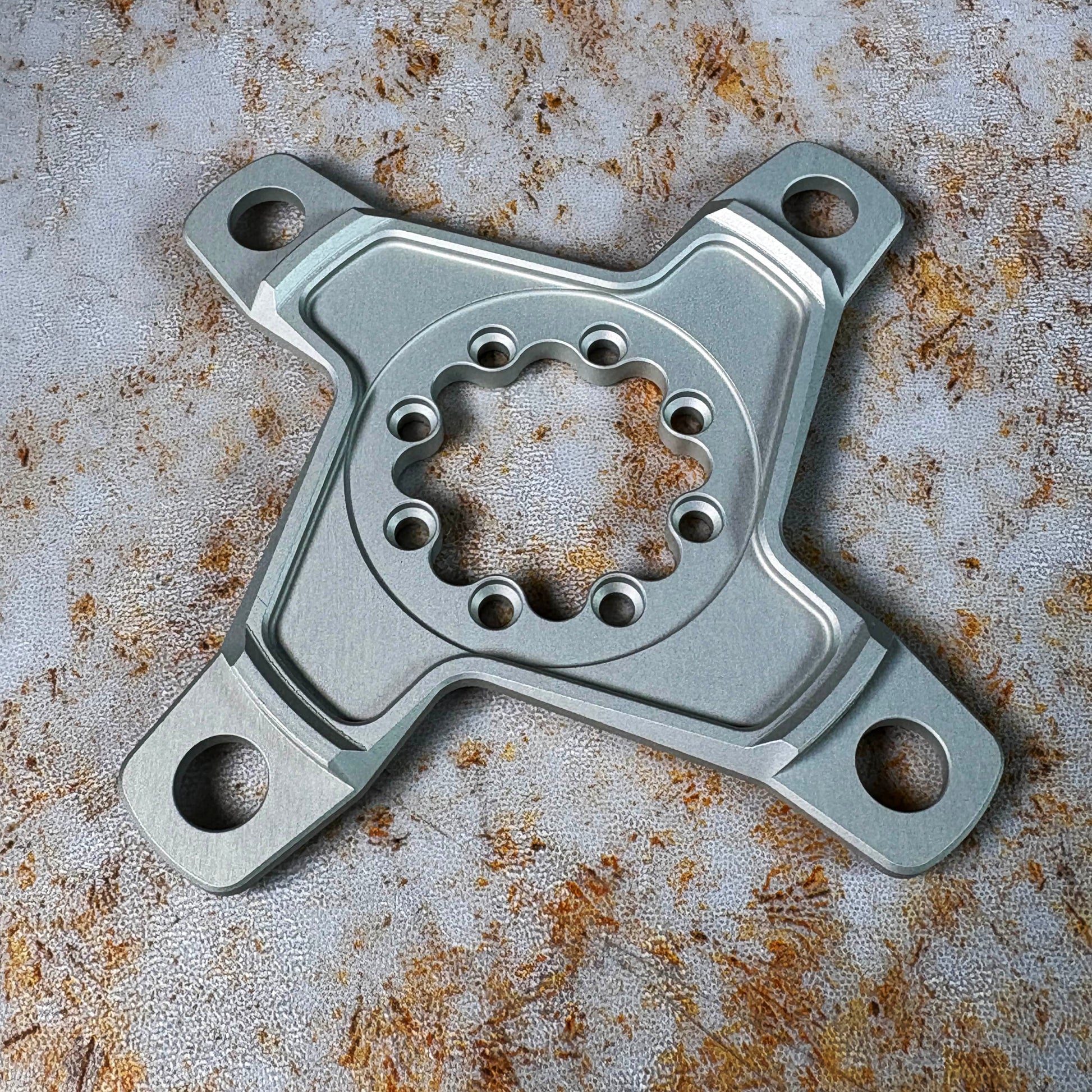

SPIDER/CHAINWHEEL MOUNT: SRAM 8 Bolt (T20 Torx)

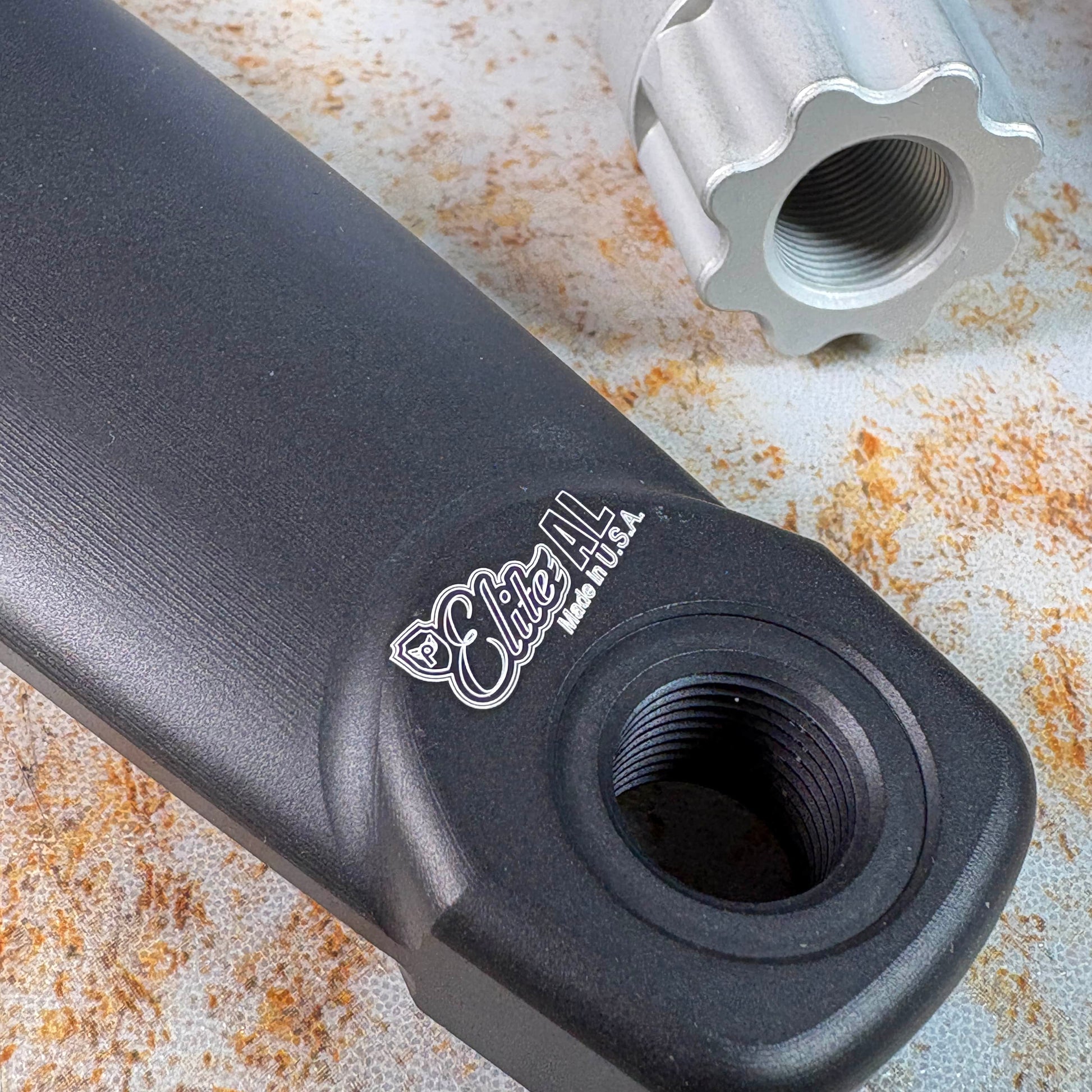

CRANK ARM MATERIAL: 2024 Billet Aluminum
WEIGHT: 725g (170mm) LH & RH crank arms with axle bolts and caps

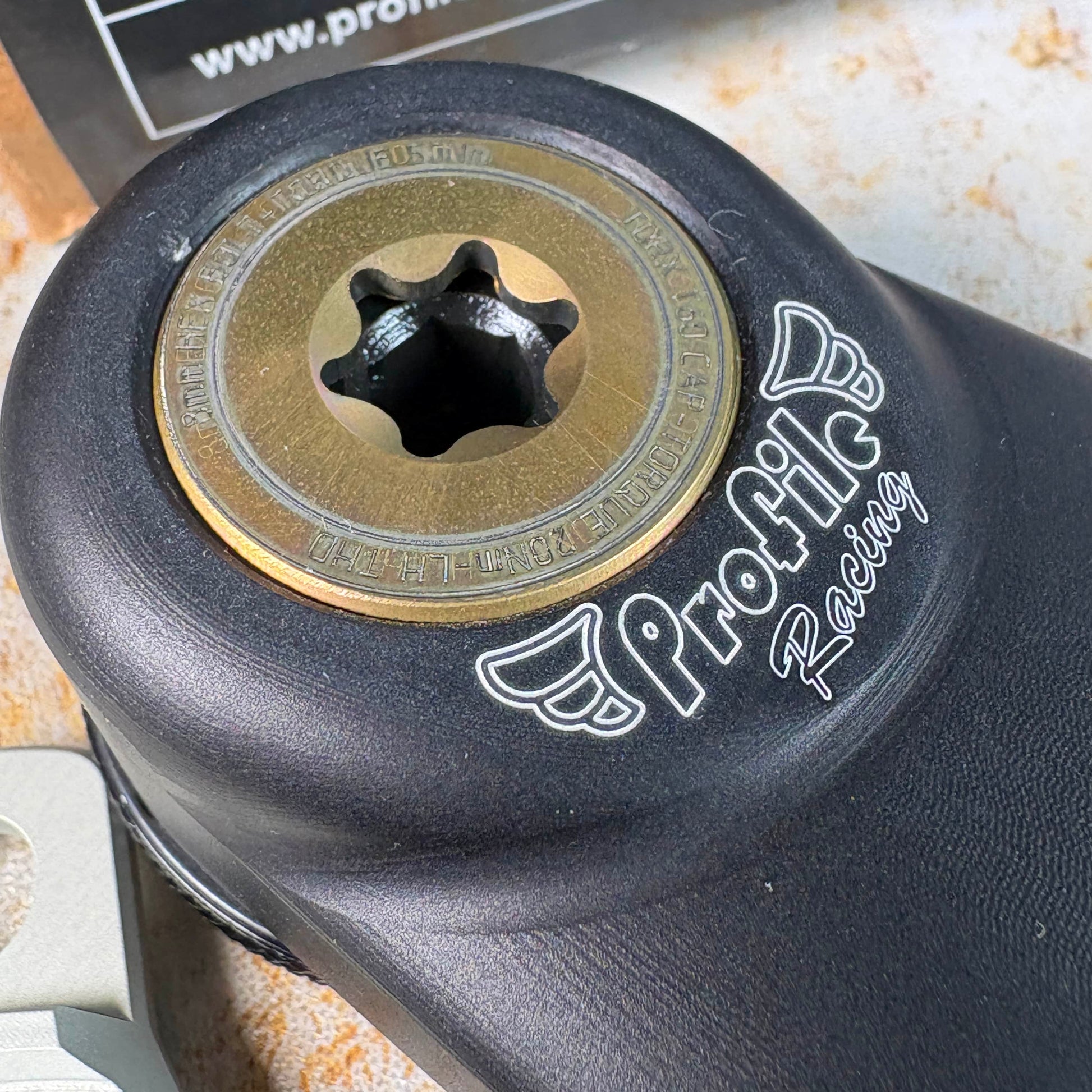

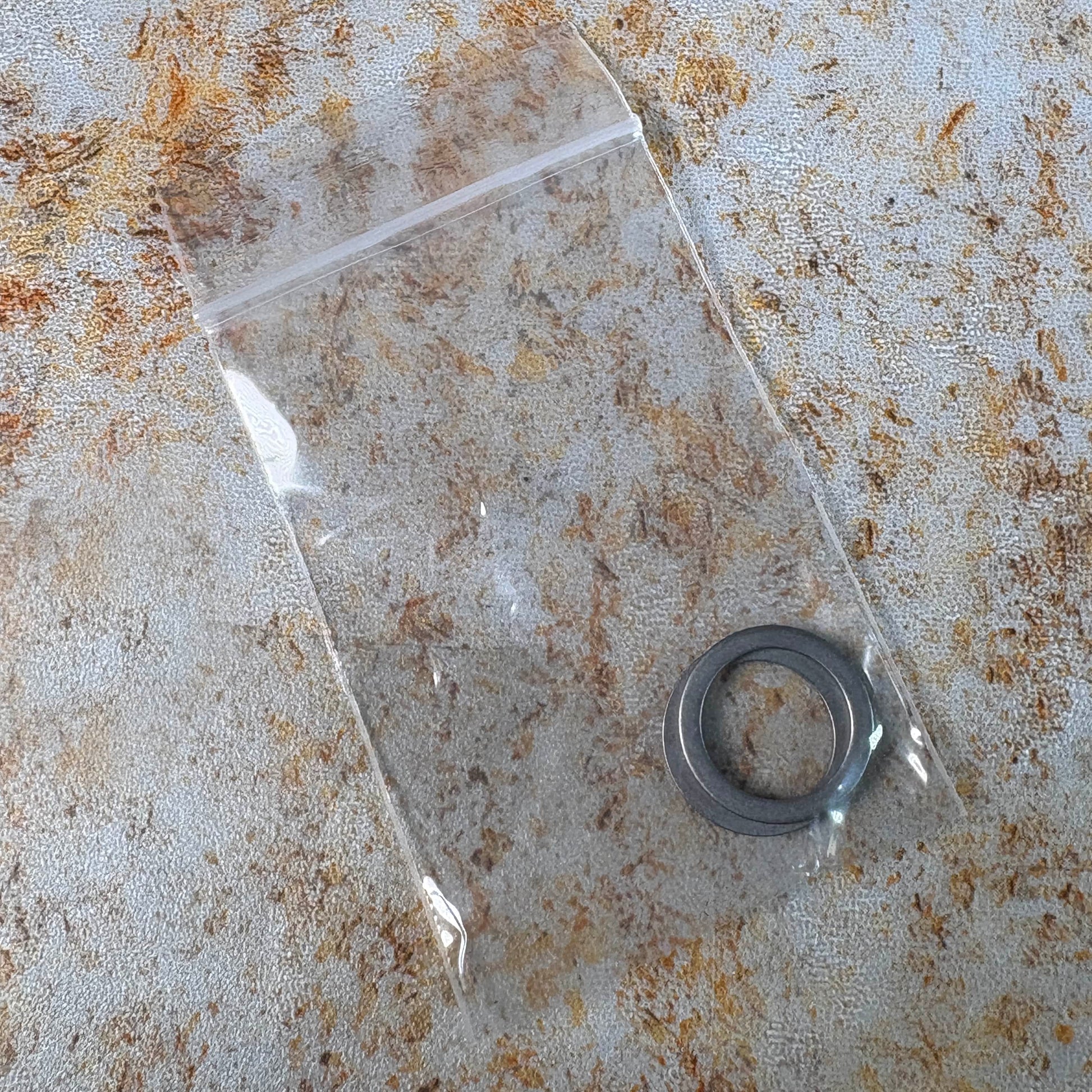

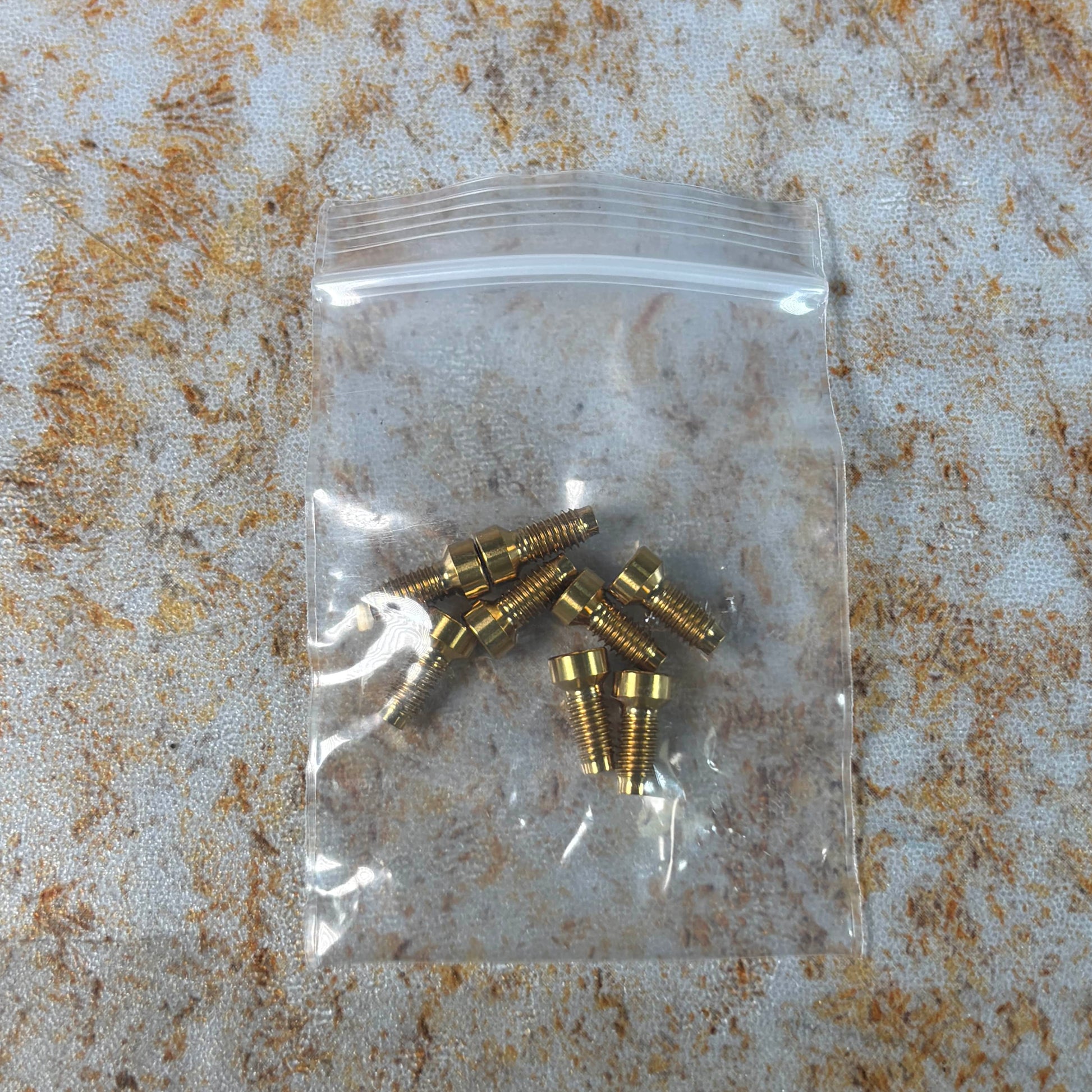

HARDWARE: M15 x 1 steel self extractor bolts(8mm Hex) & 6Al-4v Titanium T60 Torx caps(black anodized), Stainless Steel pedal washers, 8-pcs T20 Torx mounting screws
Note: Although Elite AL BMX crank arms and axle are proprietary and can only be used in conjunction with one another, bottom bracket and spider/chainwheel are not. This means many other component manufacturer’s 30mm axle bottom brackets and SRAM 8 Bolt spiders/chainwheels are compatible with this crankset. There are plenty out there to choose from!
