SKU: Product Code: A100016738

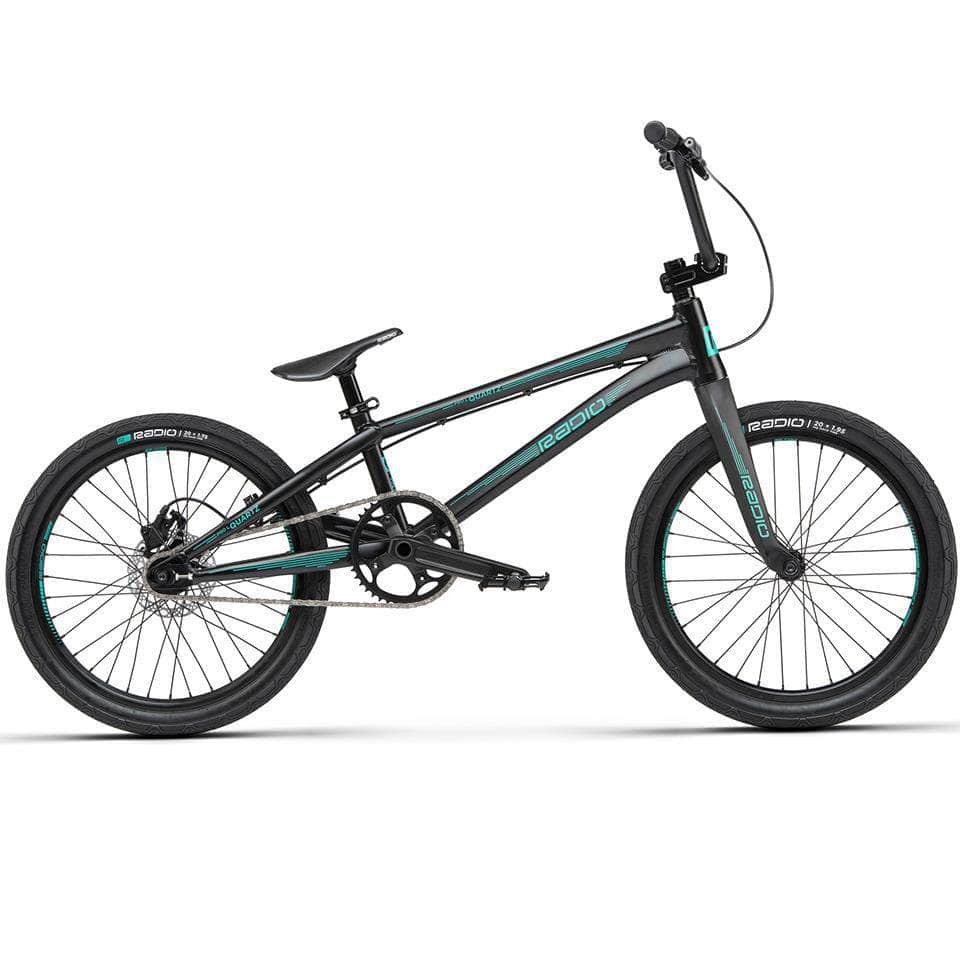

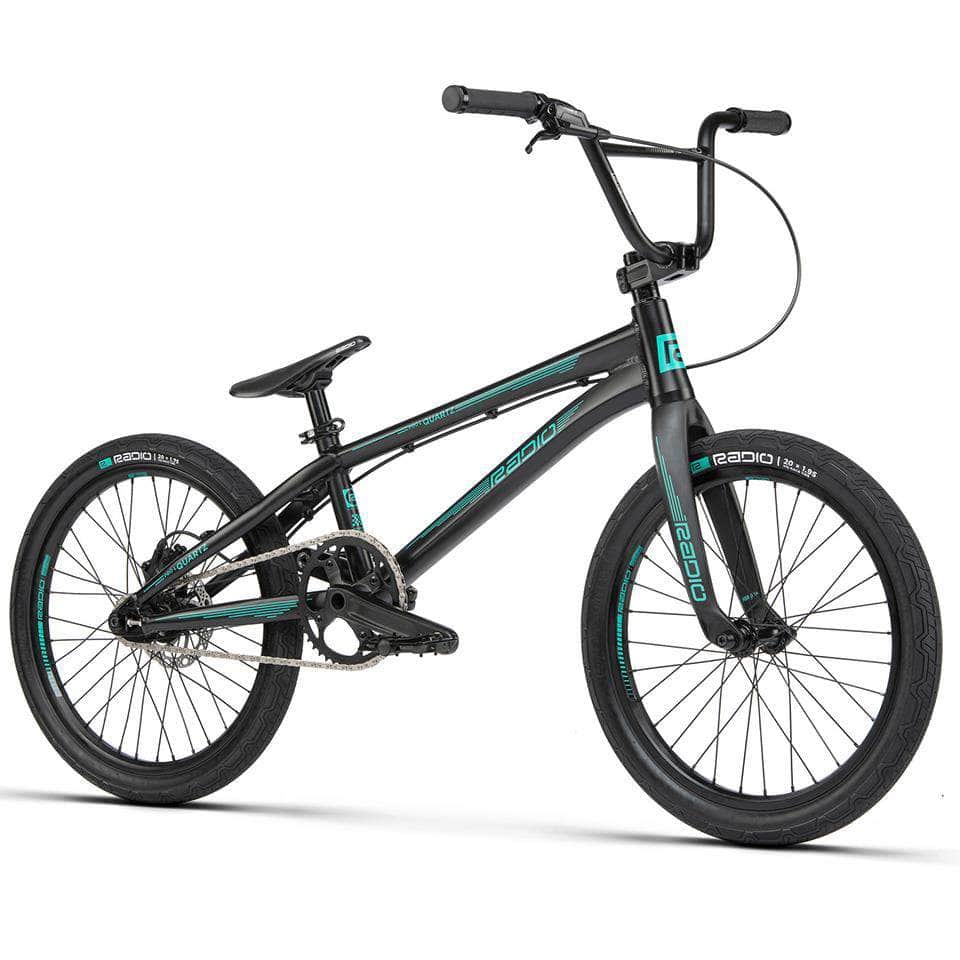

Radio Quartz Pro XL Race Bike Matt Black
Radio Quartz Pro XL Race Bike Matt Black
The Quartz is Radio's two time World Championship winning mega light alloy frame with nothing but the best. Kitted out to a top quality level with state of the art components, it's unfair. Radio's Solar carbon fork, Oxygen tyres, Argon rims, Turbine hubs and even Radio's hydraulic disk brake kit make this arguably the best complete on the market.
- FRAME: RADIO RACELINE "QUARTZ DISC" frame, lightweight hydroformed 6061-T6 alloy, tapered headtube, sliding forged dropouts, with int. chaintensioners, flatmount disc brake
- FORK: RADIO RACELINE "SOLAR" carbon fork, 1-1/8" - 1.5" tapered steerer, 32mm offset, inc. 10mm adaptors
- HANDLEBAR: RADIO RACELINE "NEON PRO 7.5 / 8 / 8.5" hydroformed bar, multiple butted & heattreated crmo
- GRIPS: RADIO RACELINE "XENON" grips, diamond knurling, clamp on grip, 139mm length

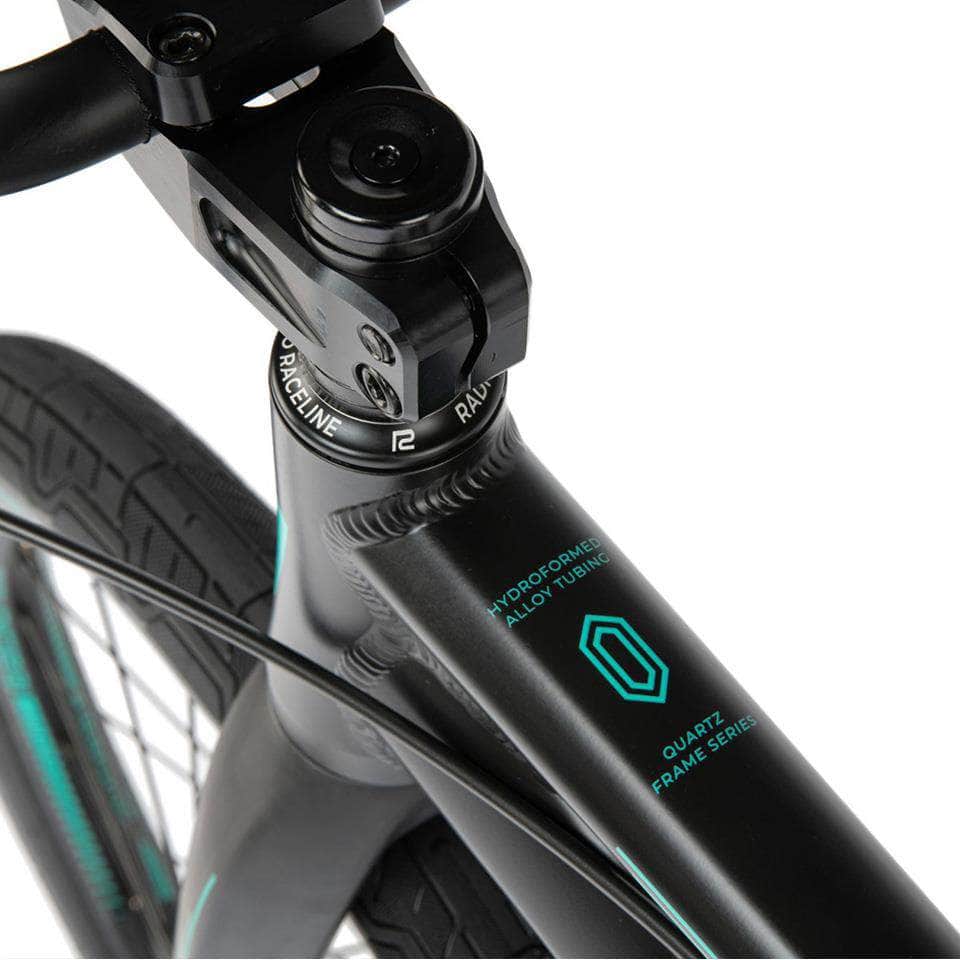

- STEM: RADIO RACELINE "XENON PRO" toploader stem, ext. 53mm, cold forged/cnc alloy
- HEADSET: RADIO RACELINE "PRO" integrated headset, sealed, threadless, 1-1/8" - 1.5"
- BRAKE LEVER: PROMAX "F1" 2 finger lever for hydraulic disc brake rear
- BRAKE: PROMAX "F1" hydraulic disc brake, 120mm rotor, rear, flatmount

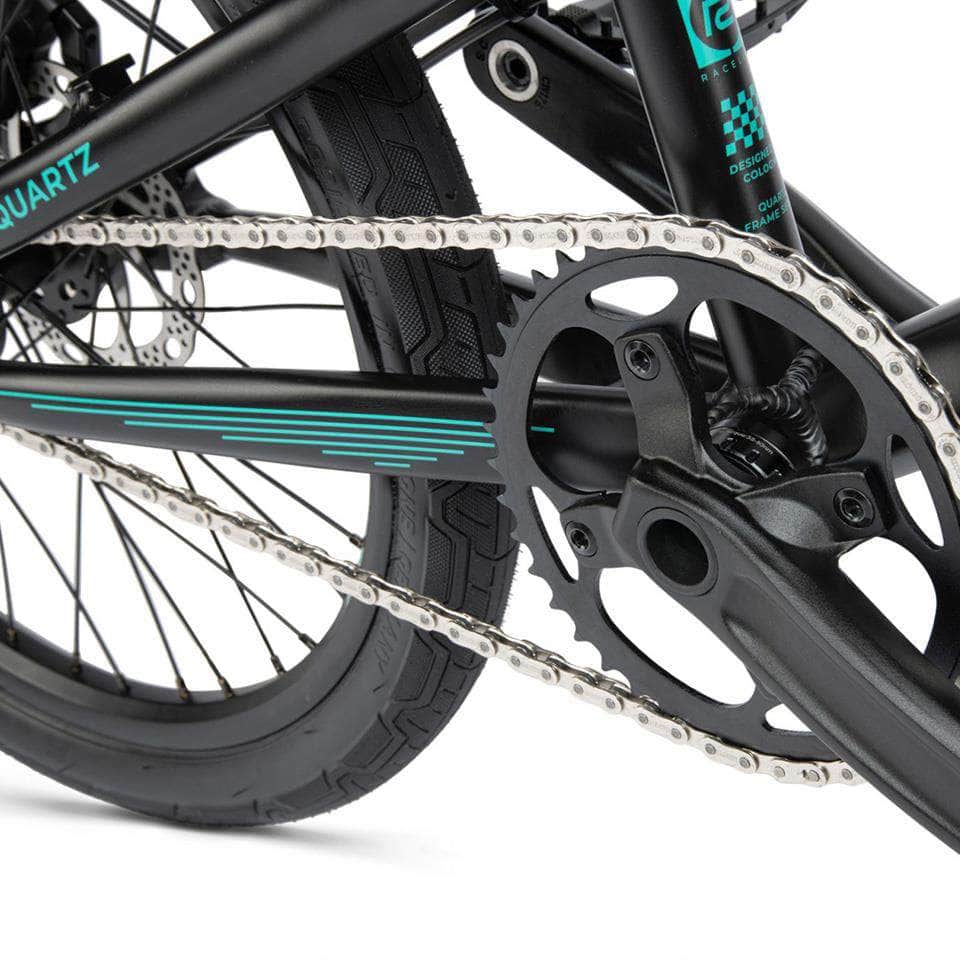

- CRANK: RADIO RACELINE, Xenon Pro, 2pc crank, cold forged/cnc, alloy, 175mm / 180mm length, 24mm spindle
- BB: RADIO RACELINE "BSA24" bb set, external bearing cups, cnc machined, sealed
- PEDALS: RADIO RACELINE "XENON SLIM" pedal, alloy
- CHAIN: KMC "Z1eHX" chain, 1/2" x 3/32"
- SPROCKET: RADIO RACELINE "XENON PRO" sprocket, 43T / 44T, alloy
- DRIVER: RADIO RACELINE driver, 16T, 1/2"- 3/32", sealed cassette
- FRONT HUB: RADIO RACELINE "TURBINE" front hub, alloy cnc, fully sealed, 32h / 36h, 3/8" female crmo axle

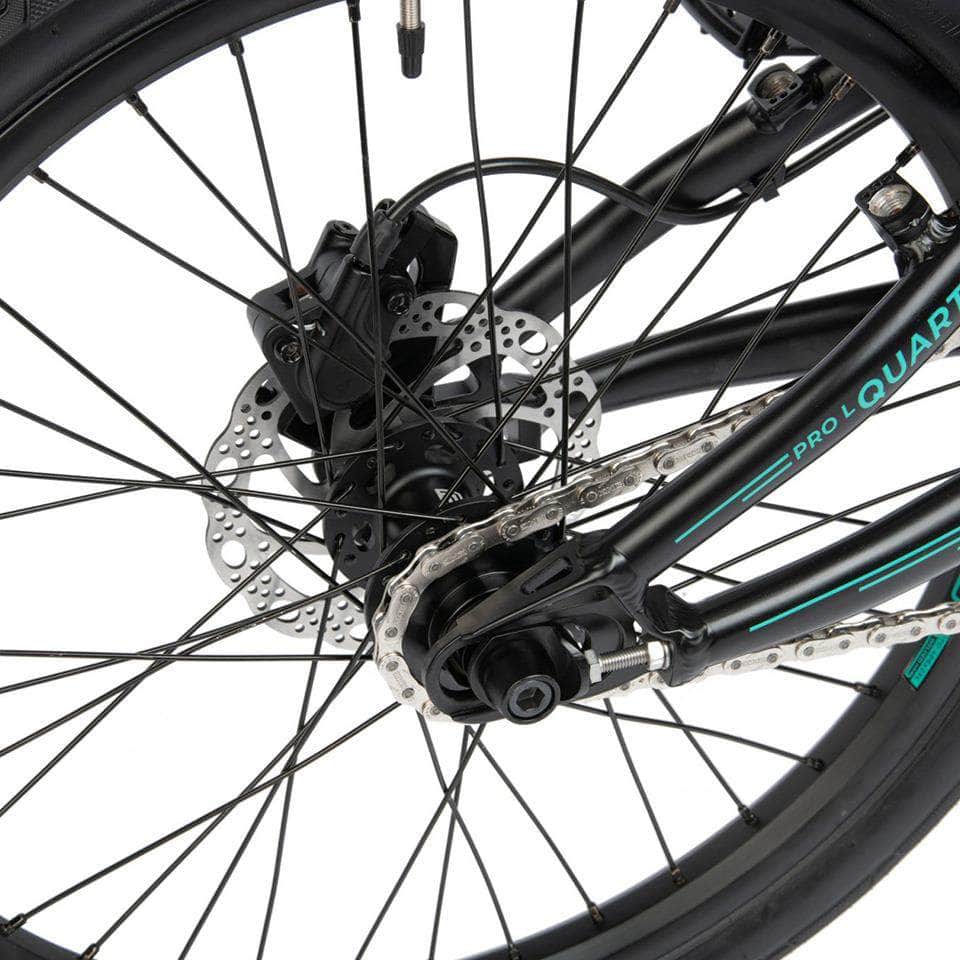

- REAR HUB: RADIO RACELINE "TURBINE" rear hub, alloy cnc, fully sealed, 32h / 36h, disc brake cassette, 3/8" female crmo axle
- FRONT RIM: RADIO RACELINE "ARGON PRO" rim, flash welded, 32 / 36h, tubeless ready, alloy
- REAR RIM: RADIO RACELINE "ARGON PRO" rim, flash welded, 32 / 36h, tubeless ready, alloy

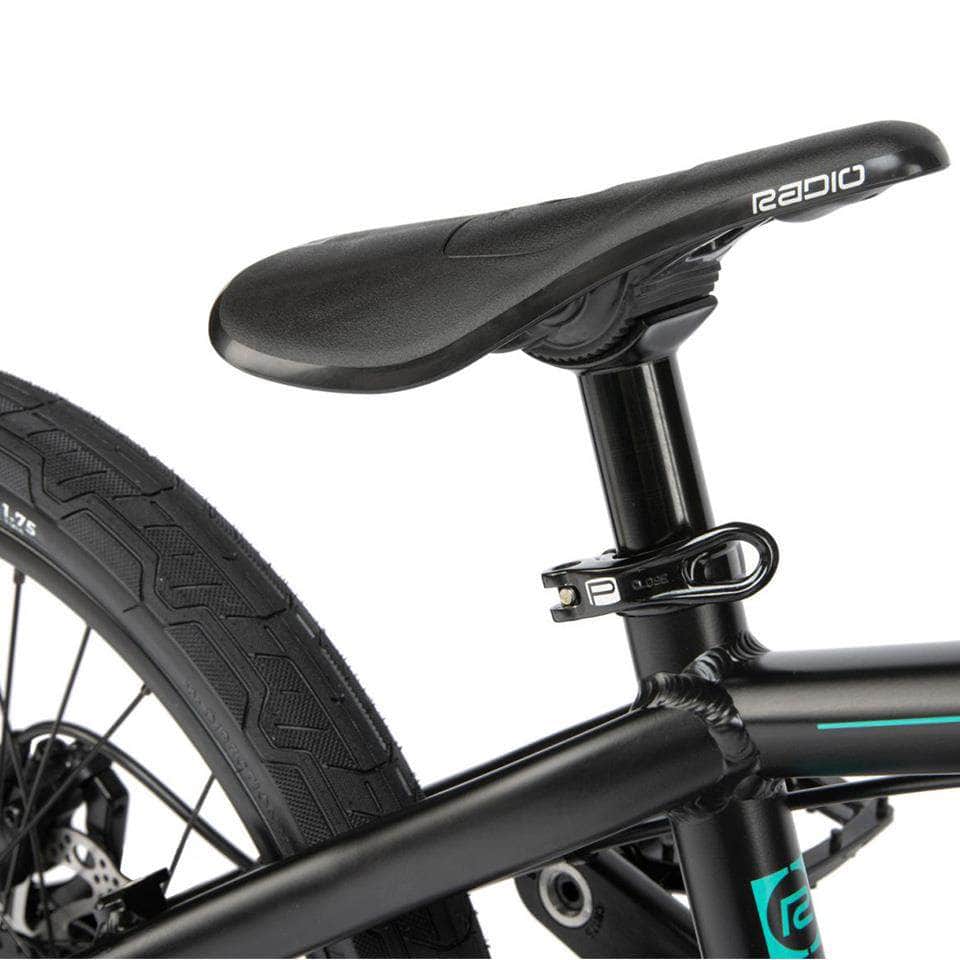

- SEAT: RADIO RACELINE "XENON" pivotal seat, no padding
- SEAT POST: RADIO RACELINE pivotal seat post, 27.2mm, alloy
- SEAT CLAMP: RADIO RACELINE "XENON" seat clamp, quick-release, alloy
- TYRES: RADIO RACELINE "OXYGEN" tires, foldable, tubeless ready, front: 20" x 1.95" and rear: 20" x 1.75"
Weight
9.4kg / 20.74lbs
Frame Geometry:
| Top Tube Length | 20.9" / 21.25" / 21.75" |
| Chain Stay Length | 14.25" / 14.85" / 15.25" |
| Head Tube Angle | 74° |
| Seat Tube Angle | 71° |
| Bottom Bracket Height | 11.6" |
Handlebar Geometry:
| Rise | 7.5" / 8" / 8.5" |
| Width | 28" / 28.5" / 29" |
| Backsweep | 6.5° |
| Upsweep | 2.5° |
