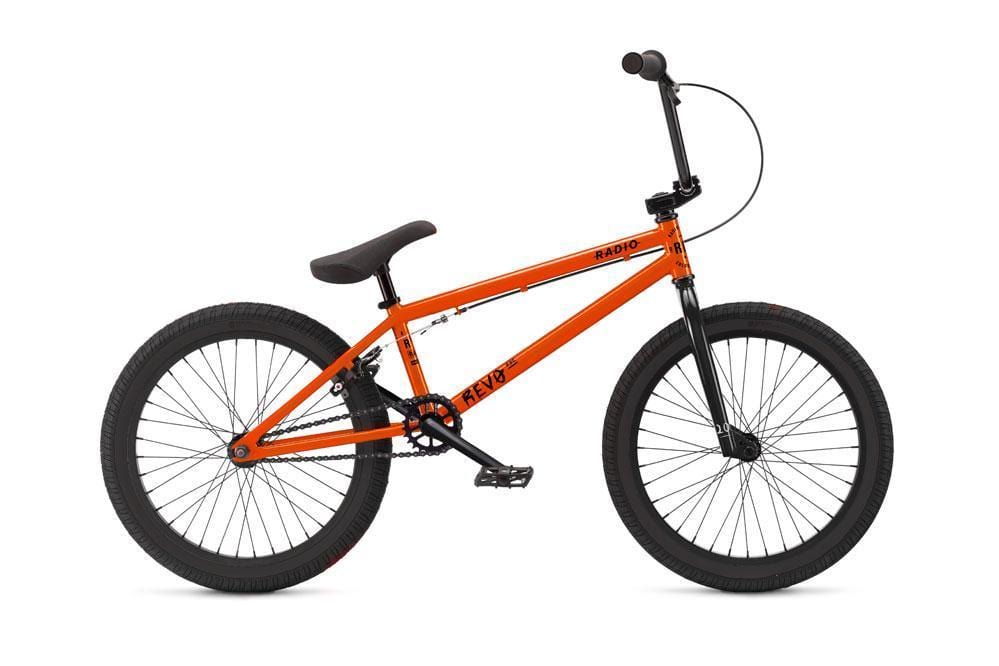

Radio Revo 20 Inch Bike Orange
All our BMX Bikes are sent flatpacked and require assembly by a qualified cycle mechanic for the warranty to be valid, you can select our Ready2Ride shipping method and we will build the bike and sent it via courier with your warranty all valid, you just need to turn the bars and attatch the pedals. If you wish to collect your bike from our retail store it will come fully built and ready to ride free of charge.
The all-new REVO line offers quality affordable bikes in wheel sizes, 14, 16, 18 & 20” to get your youngster started out right.
BIKE SPEC
COLOUR: Gloss Black or Gloss Orange
FRAME: full 1020 hi-ten
FORK: RADIO "Rookie", hi-ten fork
BARS: hi-ten
GRIPS: RADIO “AM” grips
STEM: RADIO "AM" top loading stem, 50mm reach
HEADSET: FSA "a-head-set" loose ball
BRAKE LEVER: RADIO “AM” alloy brake lever
BRAKES: RADIO "AM" alloy caliper brake front / RADIO "AM-U" alloy u-brake rear
CRANKS: RADIO "Rookie" OPC forge crank crmo 170mm
BB : USA size, loose ball
PEDALS: RADIO “Rookie” nylon pedals
CHAIN: PYC 410
SPROCKET: RADIO "Rookie" steel 25t sprocket
DRIVER: 9T, cassette
FRONT HUB: RADIO "Rookie" steel hub,lb, 3/8"s, 36h
REAR HUB: RADIO "Rookie" cassette hub, lb, 9T, 14mm axle, 36h
FRONT RIM: SALT “AM” rim, straight single wall, 36h
REAR RIM: SALT “AM” rim, straight single wall, 36h
SEAT: RADIO "Century" mid padded combo seat
SEAT CLAMP: alloy seatclamp
TYRES: RADIO "Rookie" 20"x2.25"
FRAME GEOMETRY
TOP TUBE LENGTH: 20"
CHAIN STAY LENGTH: 13.2"
HEAD TUBE ANGLE: 75°
SEAT TUBE ANGLE: 71.5°
BOTTOM BRACKET HEIGHT: 11.75"
STAND OVER HEIGHT: 7.9"
HANDLEBAR GEOMETRY
RISE: 8.6"
WIDTH: 28.75"
BACKSWEEP: 11°
UPSWEEP: 2°
"
