SKU: Product Code: A100016735

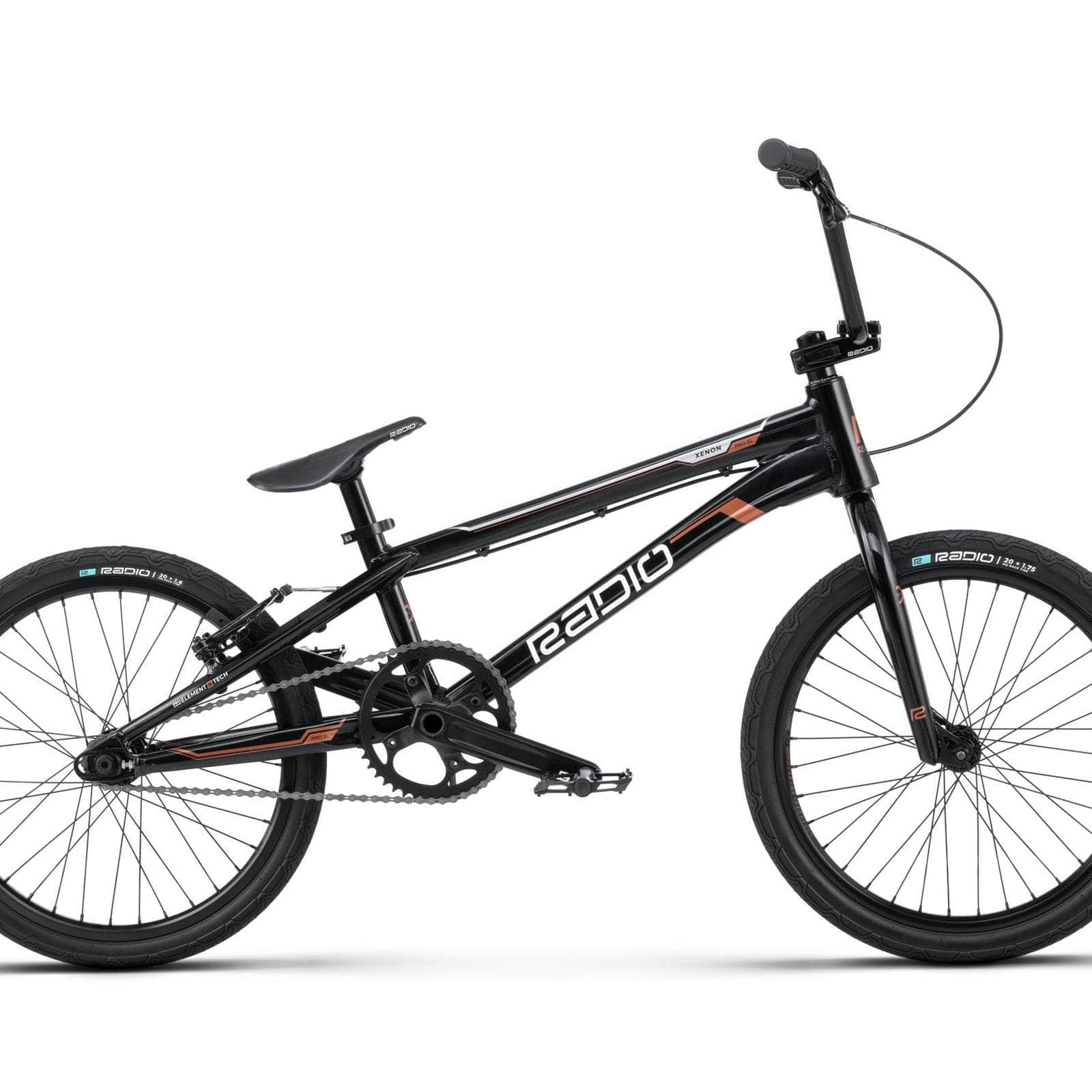

Radio Xenon Pro XL Race Bike Black
Radio Xenon Pro XL Race Bike Black
The Radio Xenon PRO XL features a full spec upgrade for 2025. Radio took no shortcuts, with forged disc-ready dropouts with tensioners, their very own aftermarket Xenon Stem, Oxygen Tires and Argon PRO Rims, the Xenon is a great option.
Comes Disc-ready, allowing you to convert them to a full disc-brake setup with our aftermarket disc brake kit.
- FRAME: hydroformed 6061-T6 alloy frame, tapered headtube, forged & disc brake mount ready dropouts, with int. chaintensioners
- FORK: crmo fork, 1-1/8" butted steerer, crmo fork legs, 30mm offset
- HANDLEBAR: 4130 crmo bar, seamless
- GRIPS: RADIO RACELINE "XENON" grips, diamond knurling, clamp on grip, 139mm length

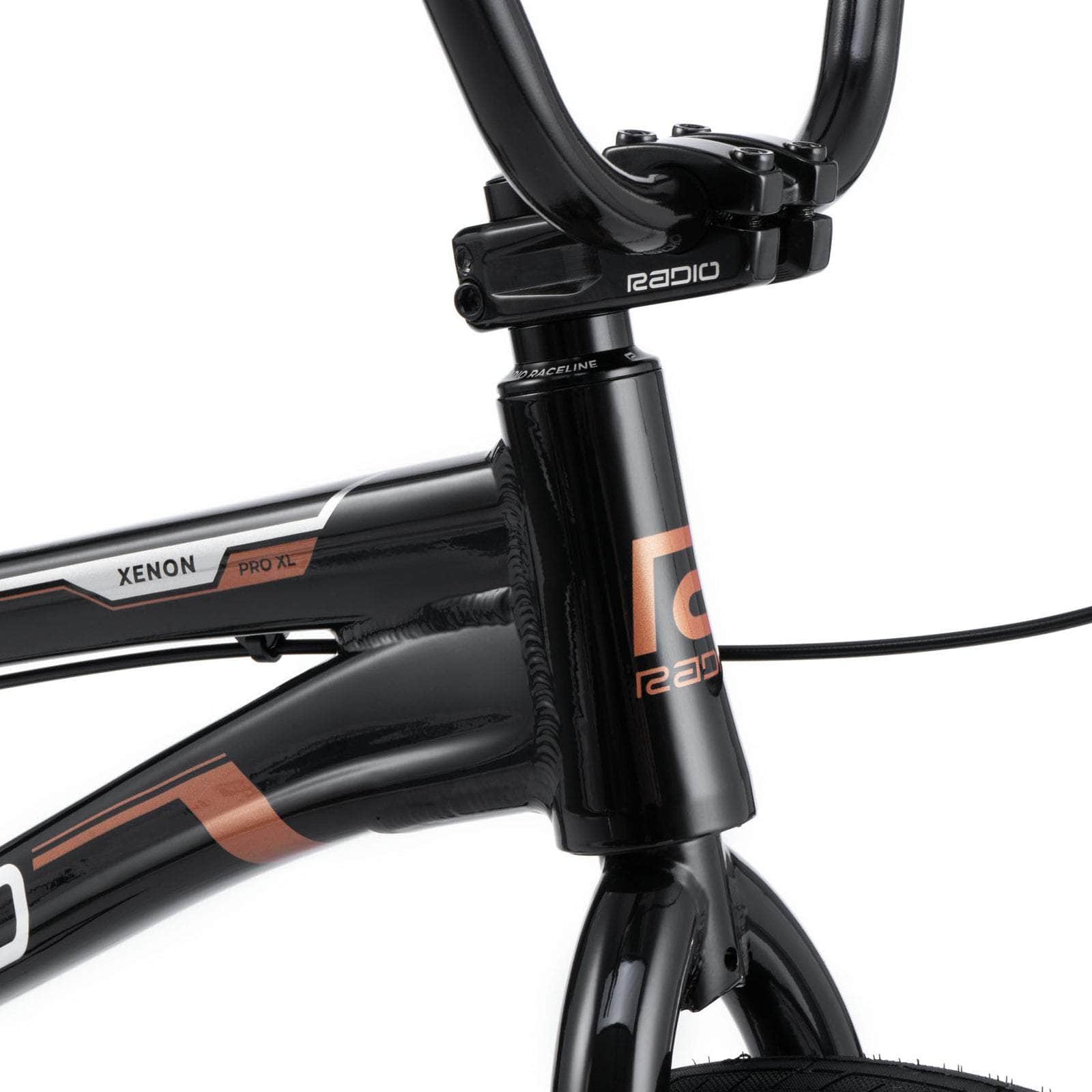

- STEM: RADIO RACELINE "XENON PRO" toploader stem, ext. 53mm, cold forged/cnc alloy
- HEADSET: RADIO RACELINE "PRO" integrated headset, sealed, threadless, 1-1/8" - 1.5", including fork crown race 1.5"-1 1/8" converter
- BRAKE LEVER: PROMAX "XL-373" brake lever, rear
- BRAKE: PROMAX "TX-131" brake, rear

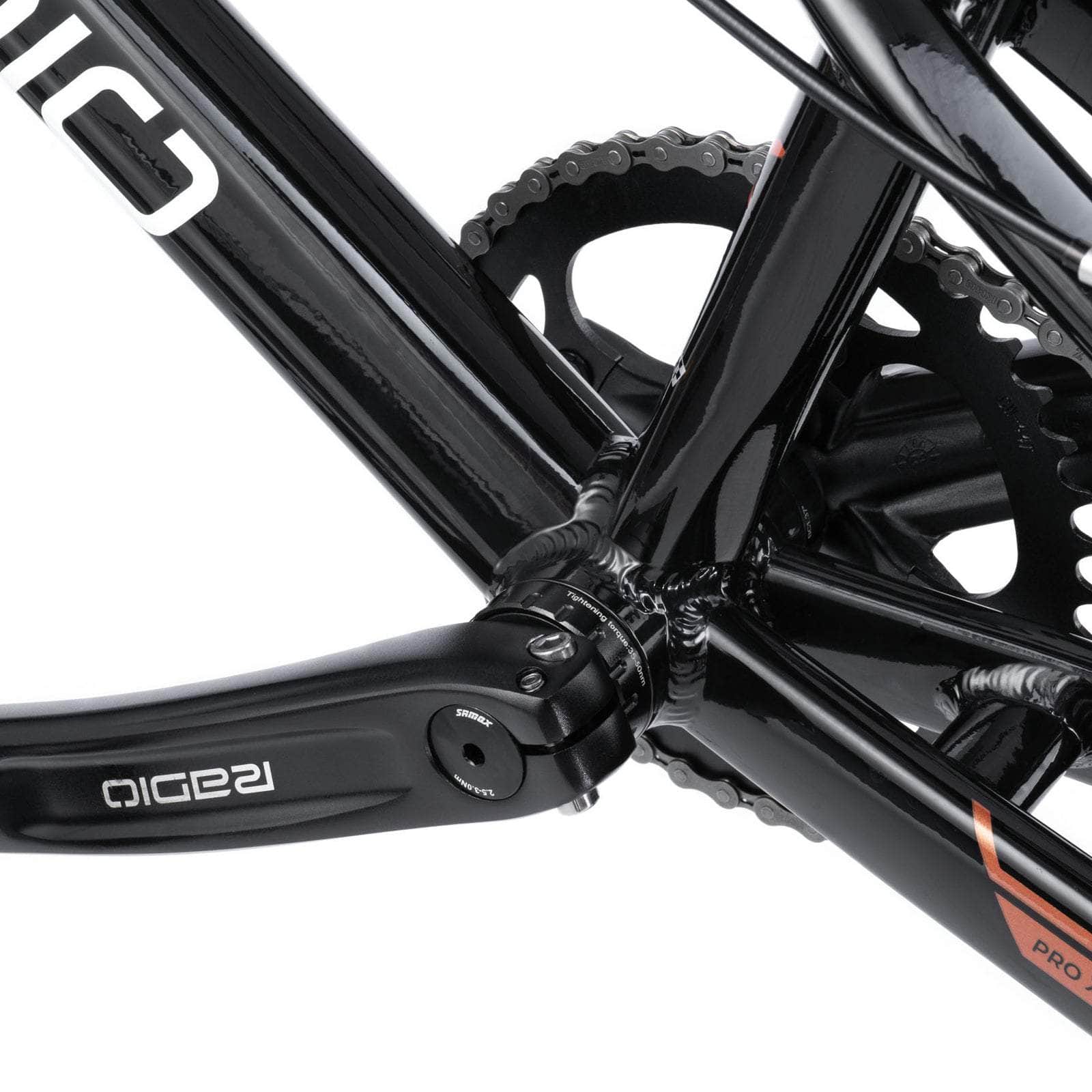

- CRANK: RADIO RACELINE, Xenon Pro, 2pc crank, cold forged/cnc, alloy, 180mm length, 24mm spindle
- BB: RADIO RACELINE "BSA24" bb set, external bearing cups, cnc machined, sealed
- PEDALS: RADIO RACELINE "XENON SLIM" pedal, alloy
- CHAIN: KMC "Z6" chain, 1/2" x 3/32"
- SPROCKET: RADIO RACELINE "XENON PRO" sprocket, 44T, alloy
- DRIVER: RADIO RACELINE driver, 16T, 1/2"- 3/32", sealed cassette

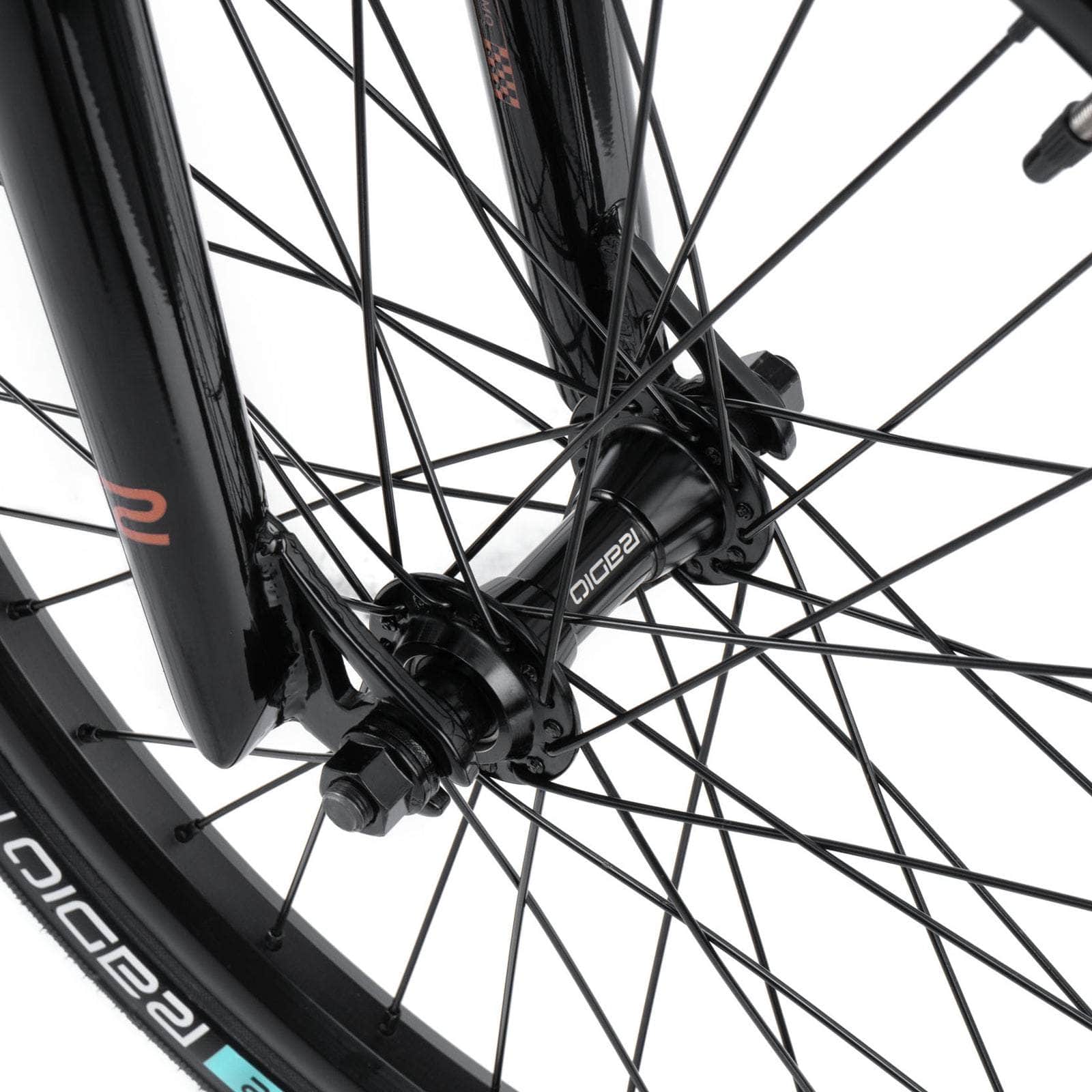

- FRONT HUB: RADIO RACELINE "XENON" front hub, alloy cnc, fully sealed, 36h, 3/8" crmo axle

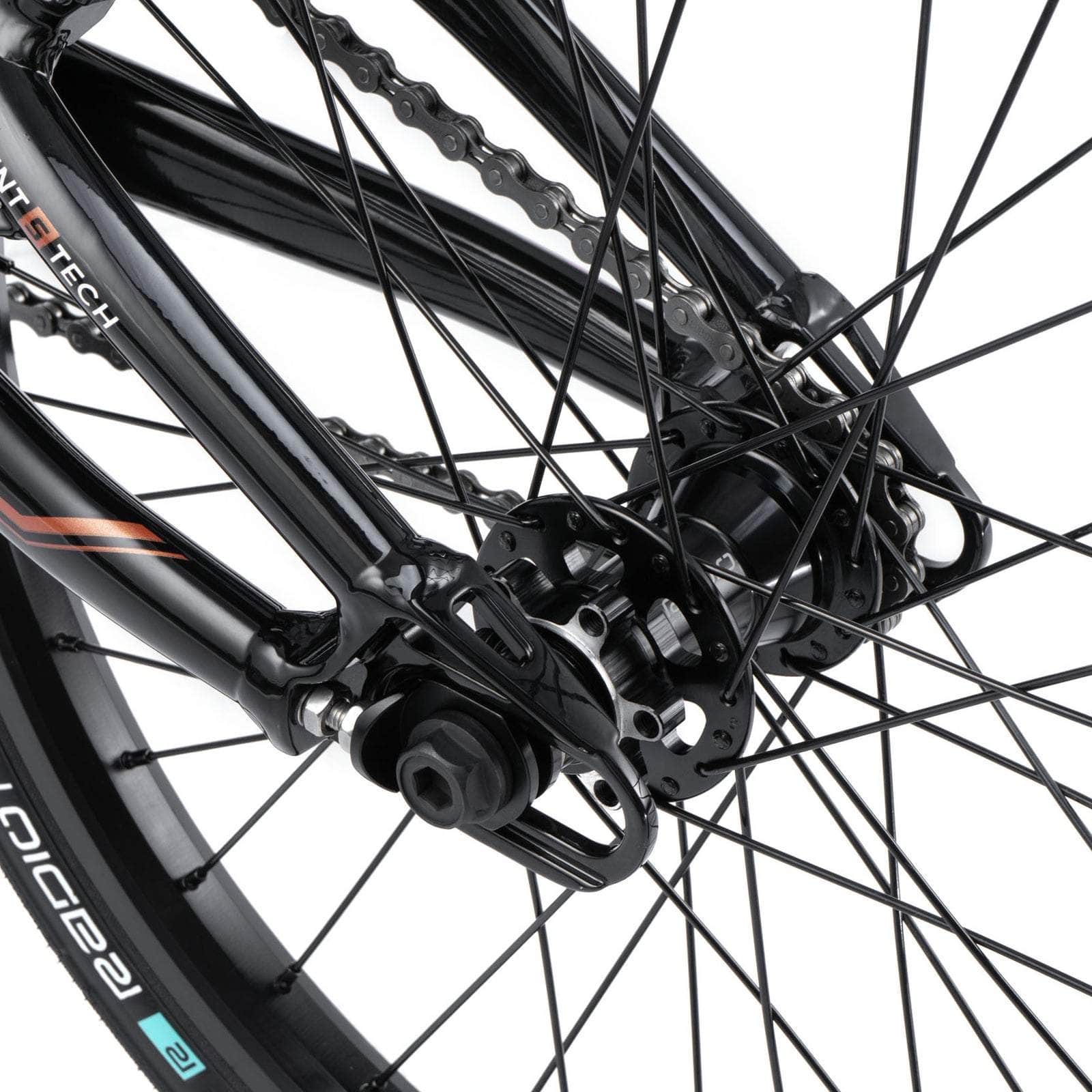

- REAR HUB: RADIO RACELINE "XENON" rear hub, alloy cnc, fully sealed, 36h, disc brake cassette, 3/8" crmo axle
- FRONT RIM: RADIO RACELINE "ARGON PRO" rim, sleeved joint, 36h, alloy
- REAR RIM: RADIO RACELINE "ARGON PRO" rim, sleeved joint, 36h, alloy

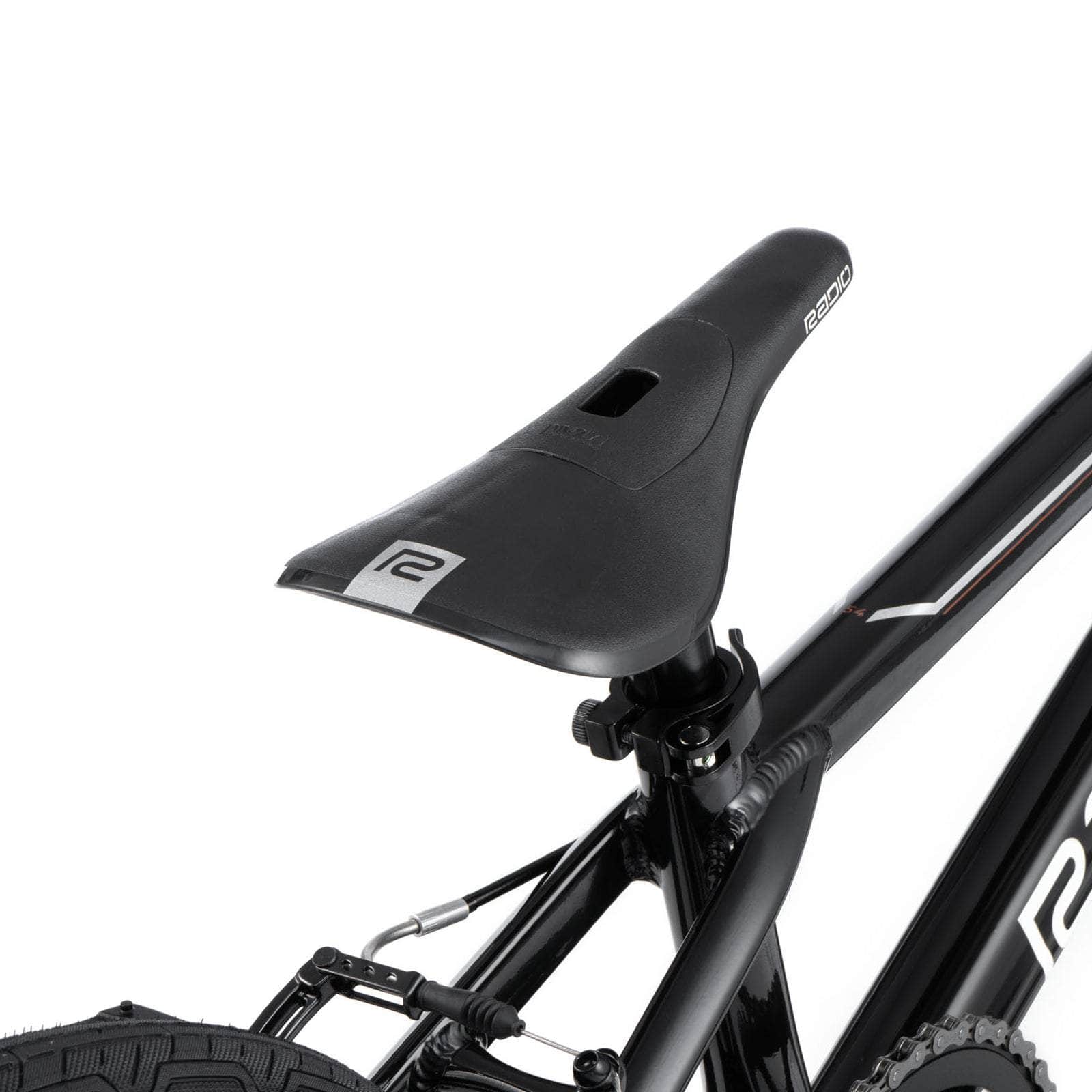

- SEAT: RADIO RACELINE "XENON" pivotal seat, no padding
- SEAT POST: RADIO RACELINE pivotal seat post, 27.2mm, alloy
- SEAT CLAMP: RADIO RACELINE "XENON" seat post, quick-release, alloy
- TYRES: RADIO RACELINE "OXYGEN" tires, front: 20" x 1.75" and rear: 20" x 1.6"
Frame Geometry:
| Top Tube Length | 21.25" |
| Chain Stay Length | 14.8" |
| Head Tube Angle | 74° |
| Seat Tube Angle | 71° |
| Bottom Bracket Height | 11.6" |
Handlebar Geometry:
| Rise | 8.1" |
| Width | 28.25" |
| Backsweep | 11° |
| Upsweep | 3.5° |
