SKU: Product Code: 100001826

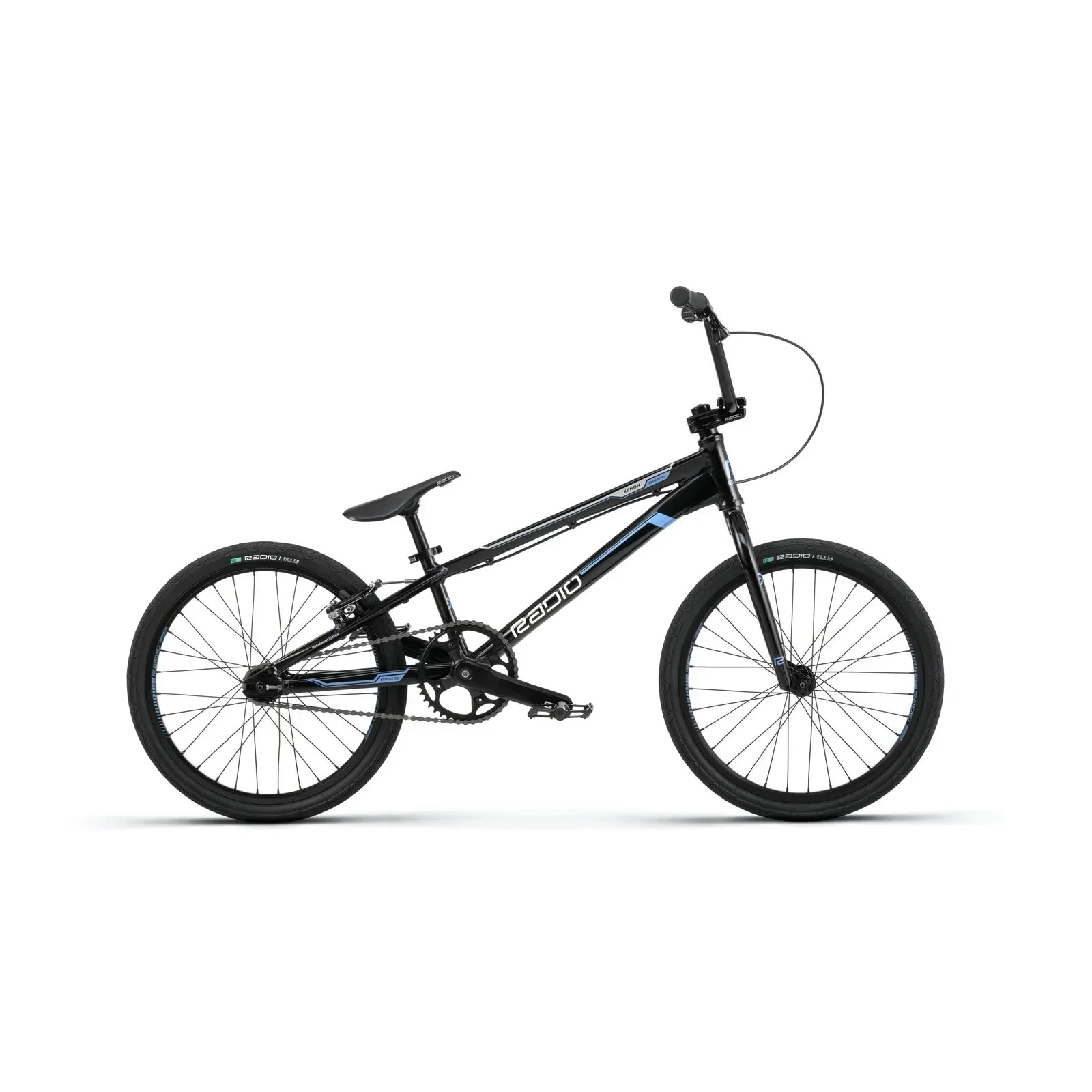

Radio Xenon Expert XL Race Bike Black / Sky Blue
Radio Xenon Expert XL Race Bike Black / Sky Blue
The Xenon Expert XL features a full parts overhaul. The mid-tier Xenon line is a game changer with all bikes being Disc-ready allowing you to convert them to a full disc-brake setup with our aftermarket disc brake kit. We spared no details here, from forged disc-ready dropouts with tensioners, our very own aftermarket Oxygen Tires and Clipper Expert Rims, the Xenon is a natural born winner.
Comes Disc-ready, allowing you to convert them to a full disc-brake setup with our aftermarket disc brake kit.

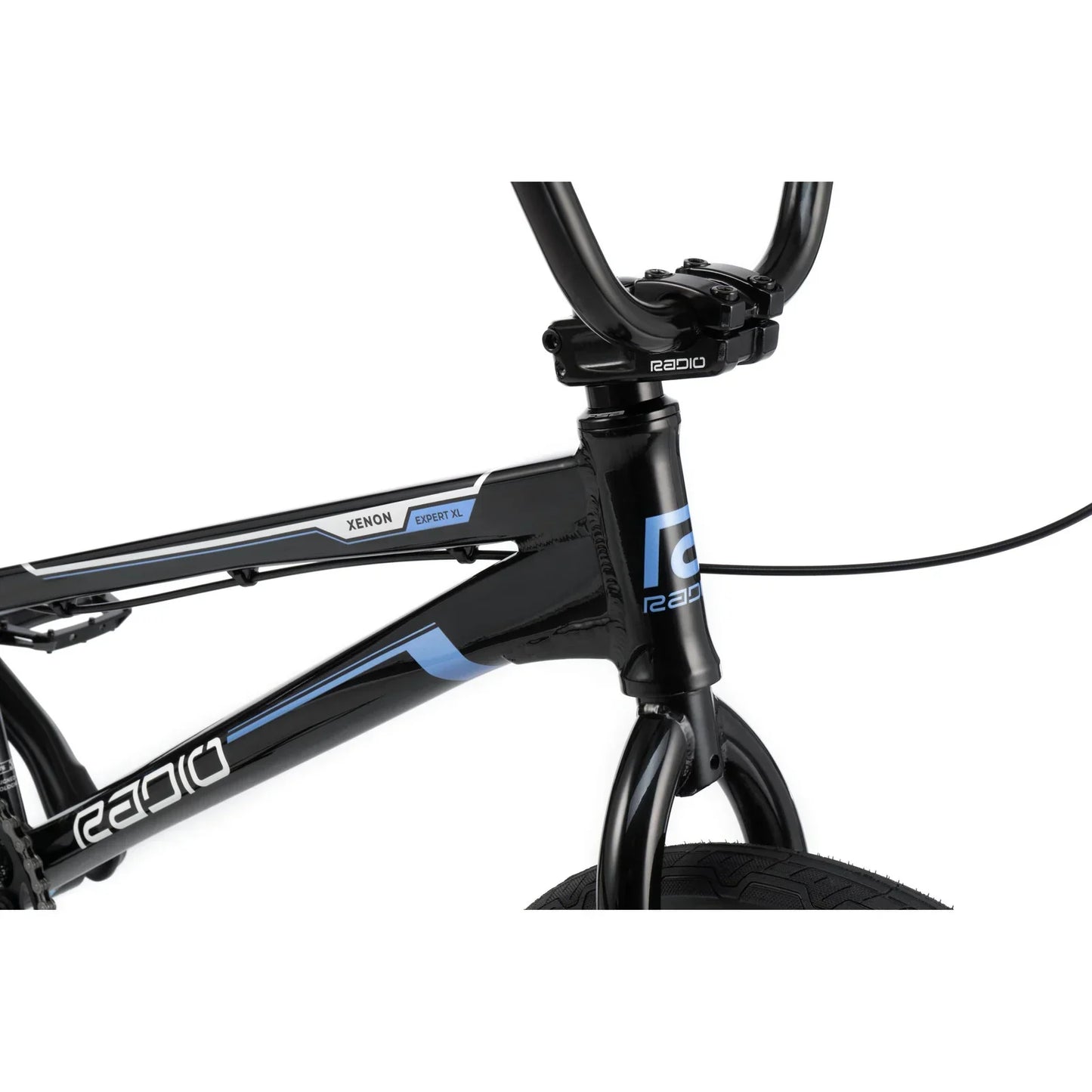

- FRAME: hydroformed 6061-T6 alloy frame, forged & disc brake mount ready dropouts, with int. chaintensioners, 20.25" toptube
- FORK: crmo fork, 1-1/8" butted steerer, crmo fork legs, 23mm offset
- HANDLEBAR: 6061-T6 alloy bar
- GRIPS: RADIO RACELINE "XENON" grips, diamond knurling, clamp on grip, 139mm length
- STEM: RADIO RACELINE "COBALT" toploader stem, ext. 50mm, alloy
- HEADSET: FSA "No.28" integrated headset, sealed, 1-1/8"
- BRAKE LEVER: PROMAX "XL-378" brake lever, rear
- BRAKE: PROMAX "MV-85" brake, rear

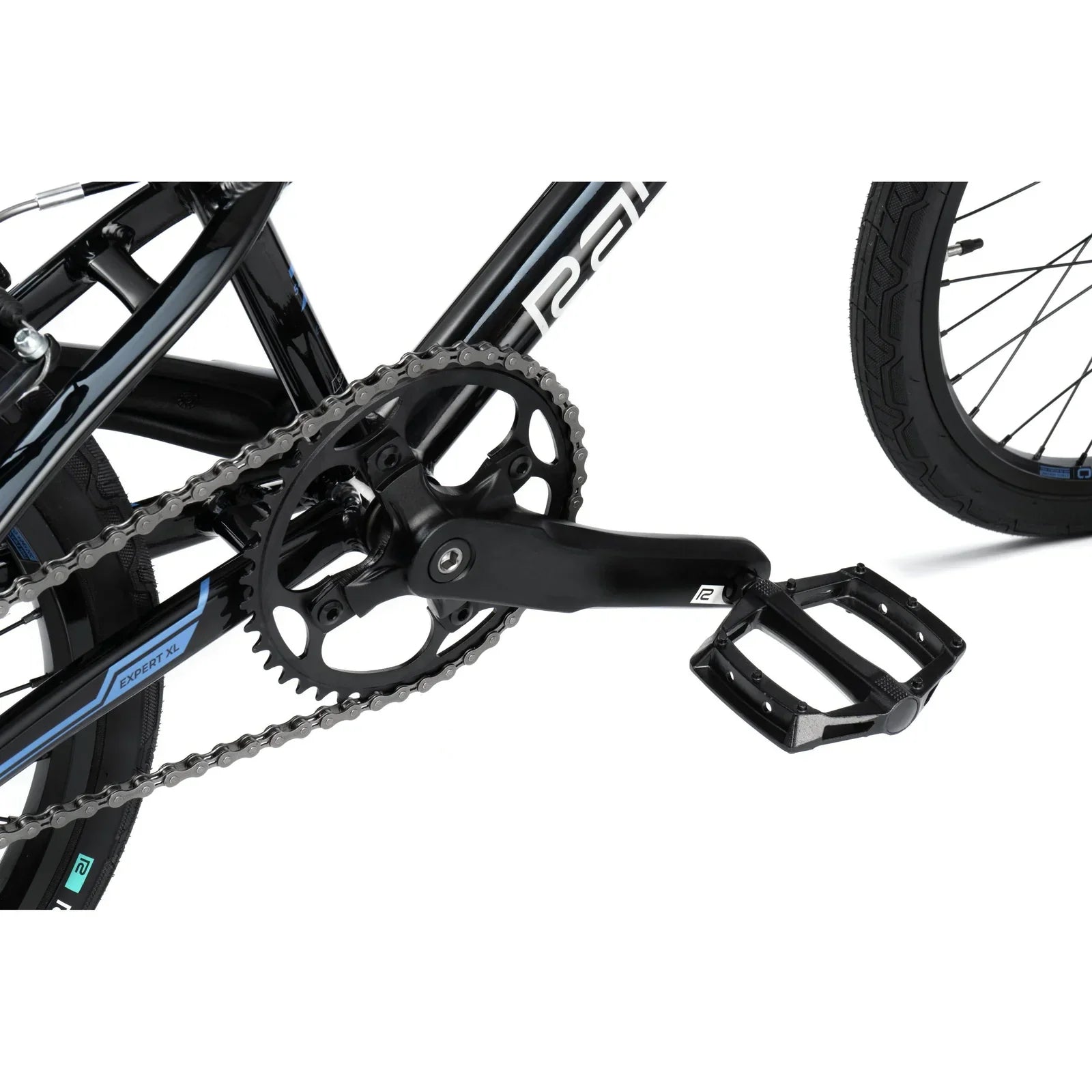

- CRANK: RADIO RACELINE "XENON" 3pc crank, forged alloy, cnc machined, 170mm length
- BB: RADIO RACELINE BB set, BSA square taper, sealed
- PEDALS: RADIO RACELINE "XENON SLIM" pedal, alloy
- CHAIN: KMC "Z6" chain, 1/2" x 3/32"
- SPROCKET: RADIO RACELINE sprocket, 42T, alloy
- DRIVER: RADIO RACELINE driver, 16T, 1/2"- 3/32", sealed cassette

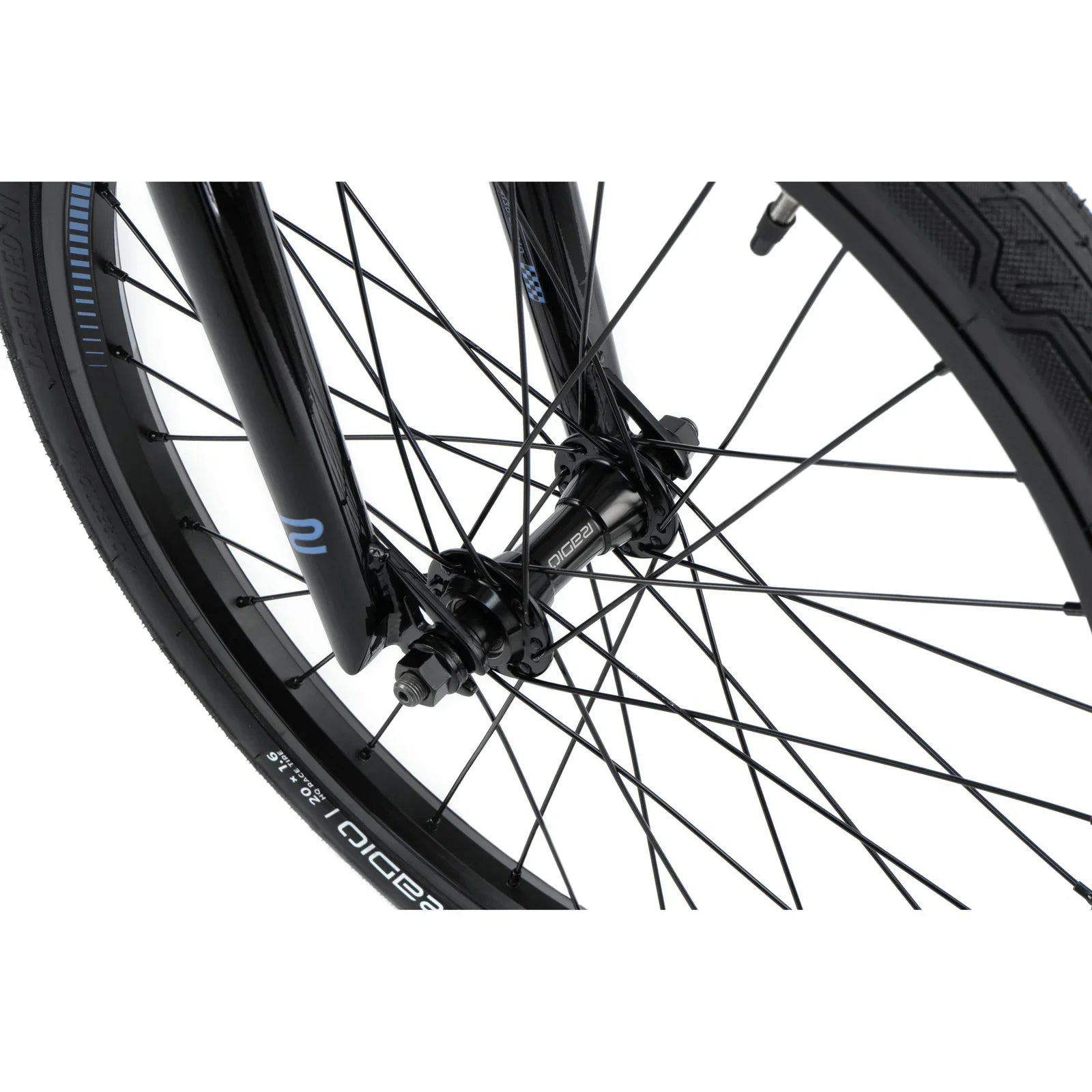

- FRONT HUB: RADIO RACELINE "XENON" front hub, alloy cnc, fully sealed, 32h, 3/8" crmo axle

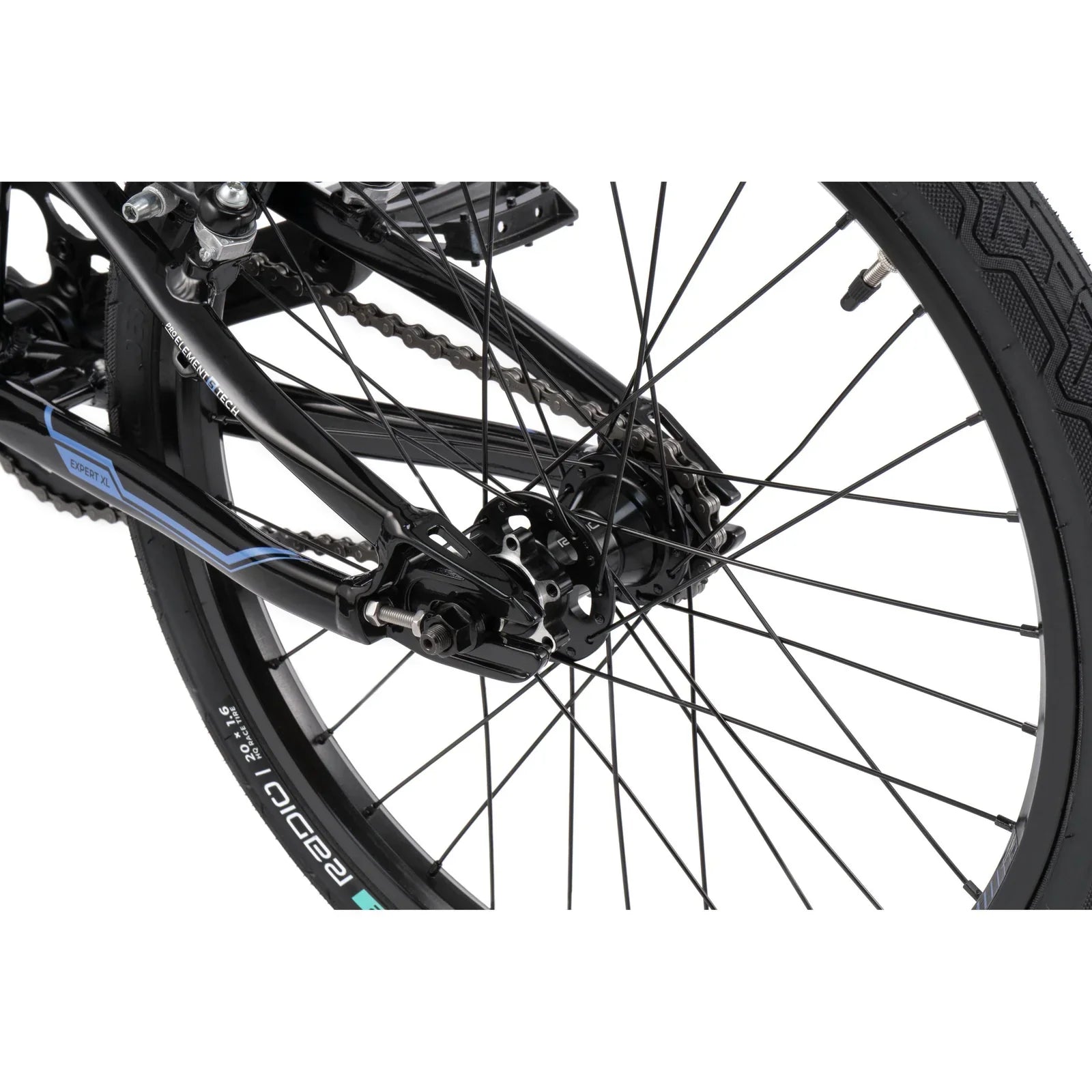

- REAR HUB: RADIO RACELINE "XENON" rear hub, alloy cnc, fully sealed, 32h, disc brake cassette, 3/8" crmo axle
- FRONT RIM: RADIO RACELINE "CLIPPER EXPERT" rim, pinned joint, 32h, alloy
- REAR RIM: RADIO RACELINE "CLIPPER EXPERT" rim, pinned joint, 32h, alloy

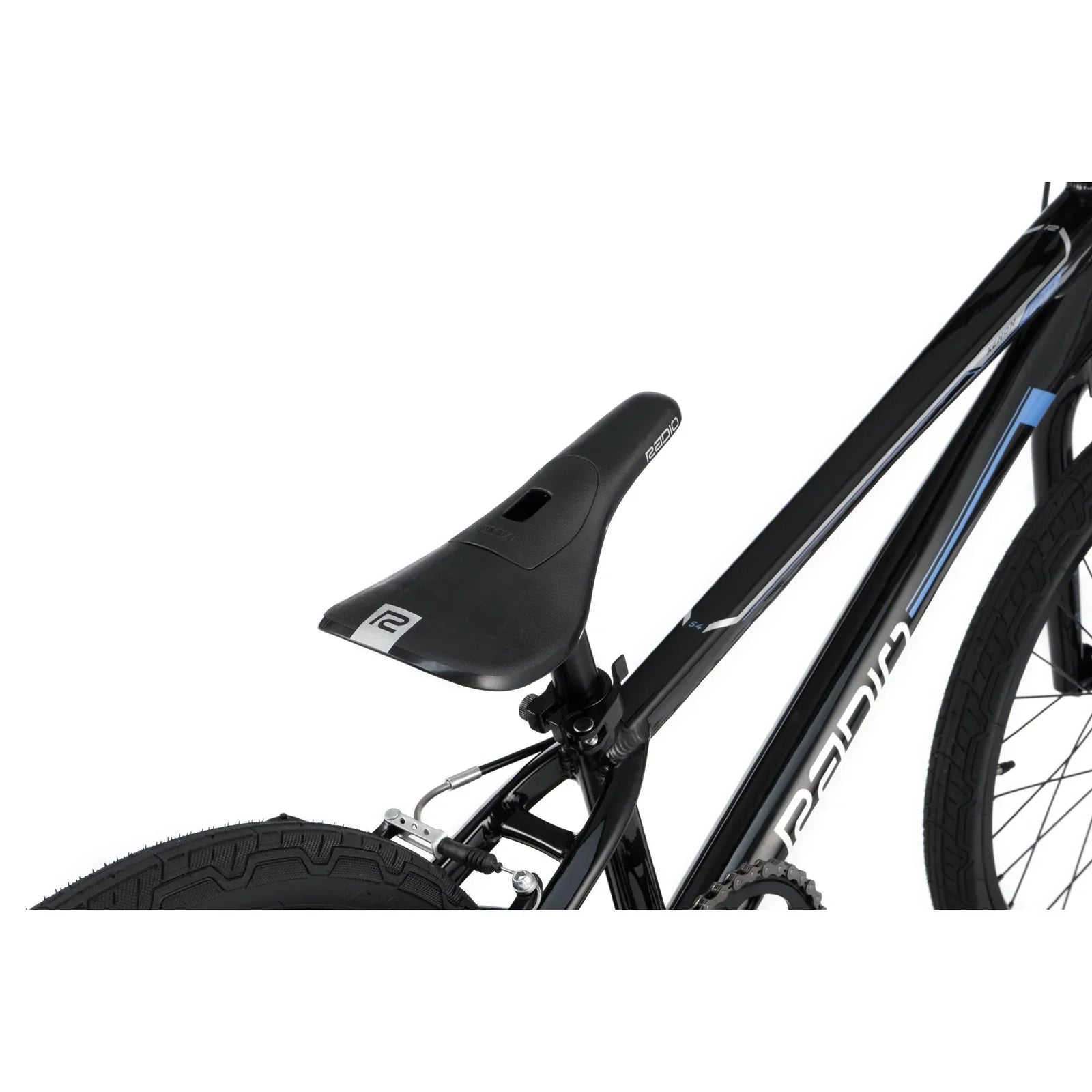

- SEAT: RADIO RACELINE "XENON" pivotal seat, no padding
- SEAT POST: RADIO RACELINE seat post, 22.2mm, alloy
- SEAT CLAMP: RADIO RACELINE "XENON" seat post, quick-release, alloy
- TIRES: RADIO RACELINE "OXYGEN" tires, 20" x 1.6"
Weight: 9.09kg / 19.86lbs
Frame Geometry:
| Top Tube Length | 20.25" |
| Chain Stay Length | 13.8" |
| Head Tube Angle | 73.5° |
| Seat Tube Angle | 71° |
| Bottom Bracket Height | 10.8" |
Handlebar Geometry:
| Rise | 7" |
| Width | 26.25" |
| Backsweep | 6° |
| Upsweep | 3° |
