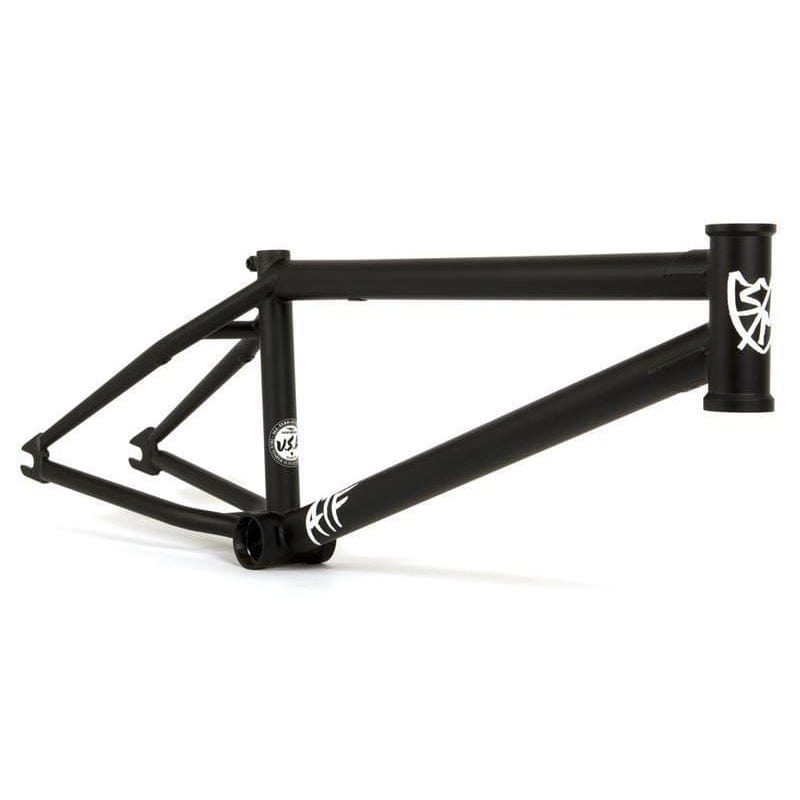

S&M Bikes ATF Frame Flat Black

Brand: S&M Bikes
£480.00
£599.99

Code: FRSM51BK205

Code: FRSM51BK275

Code: FRSM51BK210

Call us on 01942 826 598 for availability or an alternative!

Code: FRSM51BK212

Call us on 01942 826 598 for availability or an alternative!

Code: FRSM51BK220

Call us on 01942 826 598 for availability or an alternative!

Ask a Question

Brand: S&M Bikes

The ATF is the base model most of S&M's Pro signature frames have started from for awhile now. It’s also the basic custom frame most of the employees here ride. It’s a little stronger and heavier than some of the frames on the market but it’s what people that really ride want. Stylish, classic, and burly all rolled up into one.

TOP TUBE LENGTHS 20.5″, 20.75″, 21″, 21.25″,21.5″,22″
REAR END LENGTH 13.4″-13.875″
HEAD TUBE ANGLE 75°
HEAD TUBE STYLE Integrated (45°/45°, 41.8mm)
SEAT TUBE ANGLE 71°
SEAT CLAMP Integrated
SEAT POST SIZE 1″ (25.4mm)
BB HEIGHT 11.7″
BB STYLE Mid w/EZ-out punch slots
STANDOVER HEIGHT 8.5″
BRAKE MOUNTS Thread-On 990 (Mounts sold separately)
DROPOUTS 14mm Slot, 4Q-Baked
GYRO TABS None
WEIGHT 4.65 lb (2.12 kg)
TUBESET Butted True Temper SuperTherm Tubing
