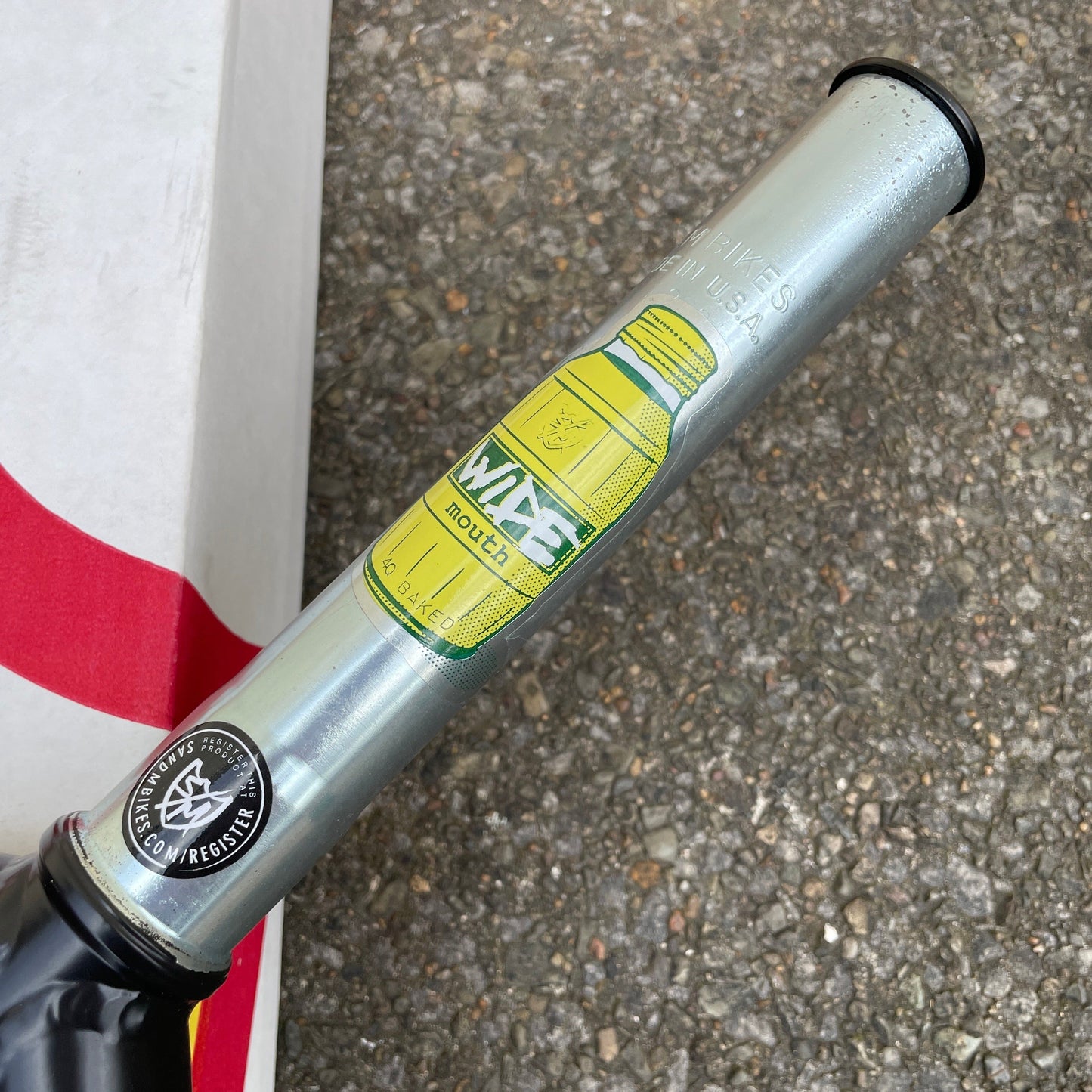

S&M Bikes 22 Inch Pitchfork Widemouth Forks

Brand: S&M Bikes

Code: FOSM32BK

Code: FOSM17BK

Code: FOSM17CP

Call us on 01942 826 598 for availability or an alternative!

Ask a Question

Brand: S&M Bikes

The new Widmouth Pitchforks from S&M have more clearance for tyres up to 2.5" wide. Black or chrome and in 26 or 33mm offset to suit your riding style.

About Ordering:
Stock in store and at the UK warehouse is displayed. If there is no stock at either please contact us and we will get you an estimate. If the frame is in stock in California it shouldn't take long are we get air freight shipments every few week. If they don't have it there we will find out when a production run is planned next.

Legs - Double Butted, Tapered, 4130 CrMo

Dropouts - Laser Cut 3/8" Slot

Steerer Tube - 1 Piece CNC-Machined 4130 CrMo, Extruded 6061 Steerer Tube Insert

Steerer Tube Length - 173mm

Compression - M25 x 1.5 Thread, 6mm Allen Slot

Axle To Crown Height - 320mm

Offset - 33mm

Weight - 1.99 lb (.90 kg)

Heat Treat - 4Q Baked Post-Weld
