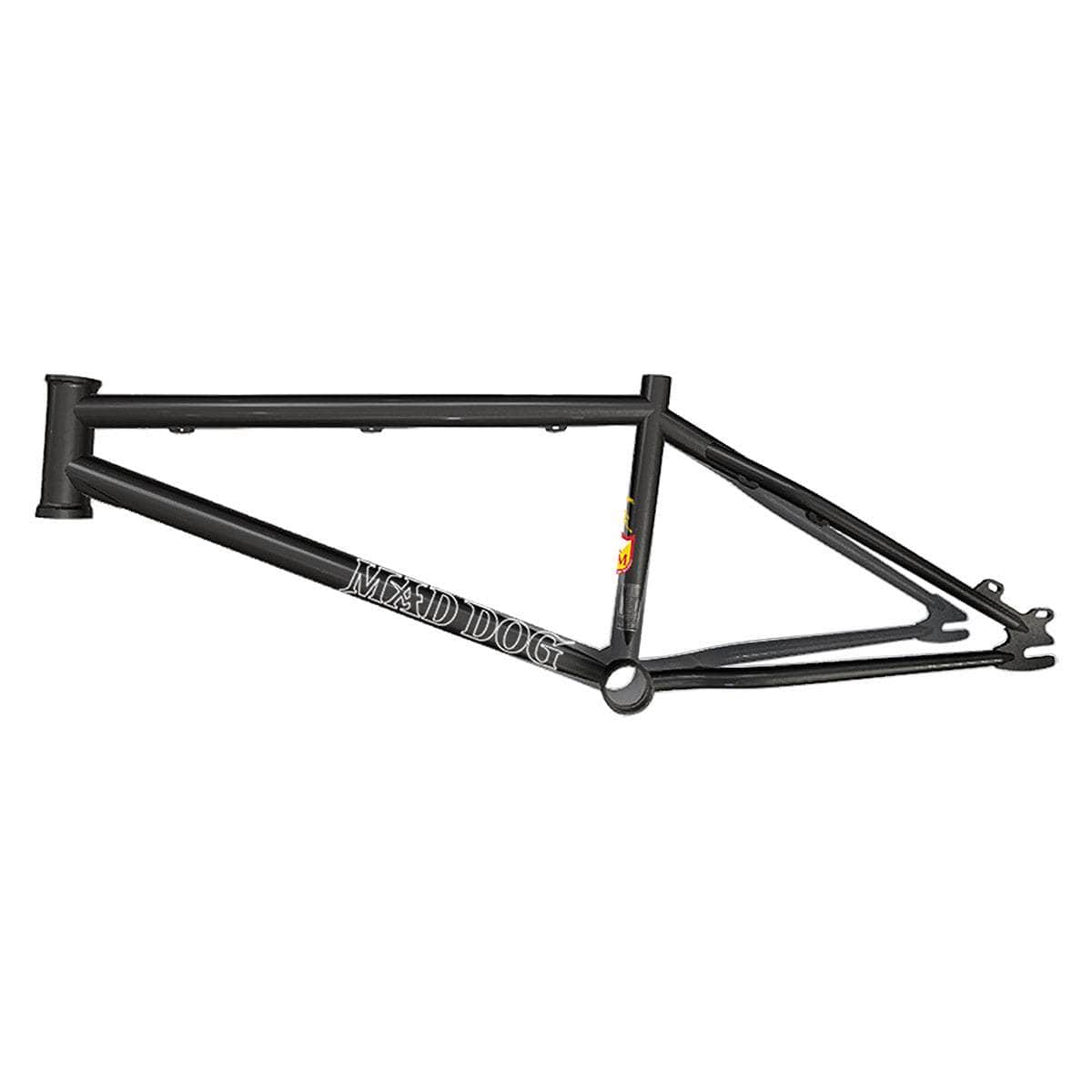

S&M Bikes Mad Dog Frame Gloss Black
S&M Bikes Mad Dog Frame Gloss Black
Throw a dog a wishbone! And a disc brake, with a tall stand-over, but keep it light (sub 5lbs) and you’ve got yourself the reincarnated Chris “Mad Dog” Moeller frame. It only took 36 years for S&M’s Top Dawg to drop another bike custom-crafted for his breed of biking, but much like the original, its designed for dudes who want to terrorize the trails and the track and claim their territory doing it.
Engraved Shield on Headtube.
Engraved ’87’ on BB shell.
MAD DOG-tag on seat-tube
Disk mount is designed for 120mm rotor with 0mm IS to POST mount adaptor (Profile hub or hub with similar narrow flange width recommended for spoke/caliper clearance), 140mm rotor requires a 20mm IS to POST mount adaptor.
Max sprocket size with proper chain alignment is 39 tooth.
Seat tube is slotted for traditional 28.6mm seat clamp or Quick Release 28.6mm seat clamp.
Rear drop-out spacing is traditional BMX 110mm.
ETA: painted frames May, chrome June
If you'd like to order one just leave a deposit, a £100 non-refundable deposit will do it, or call us 01942 826598.
TOP TUBE LENGTHS | 20.5″, 20.75″, 21″, 21.125″, 21.25″, 21.5″, 21.75″, 22″ |
REAR END LENGTH | 13.9″ |
HEAD TUBE ANGLE | 74.25° |
STANDOVER HEIGHT | 10″ |
B.B. HEIGHT | 11.6″ |
SEAT TUBE ANGLE | 71° |
HEAD TUBE | 5″ Tall Integrated Campy Style |
B.B. STYLE | Mid |
BRAKE MOUNTS | Disk 120mm Rotor Spacing with 0mm IS to POST mount adaptor, 140mm Rotor with 20mm IS to POST mount adaptor. |
DROPOUTS | 3/8″ |
SEAT POST SIZE | 1″ / 25.4mm – Frame slotted for 28.6mm Seatpost Clamp |
WEIGHT | 4.9 lbs |

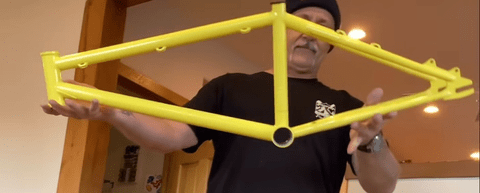

For a sneak peak and to hear a little more from the man himself check out the latest Factory Friday video (skip to 3:36)
