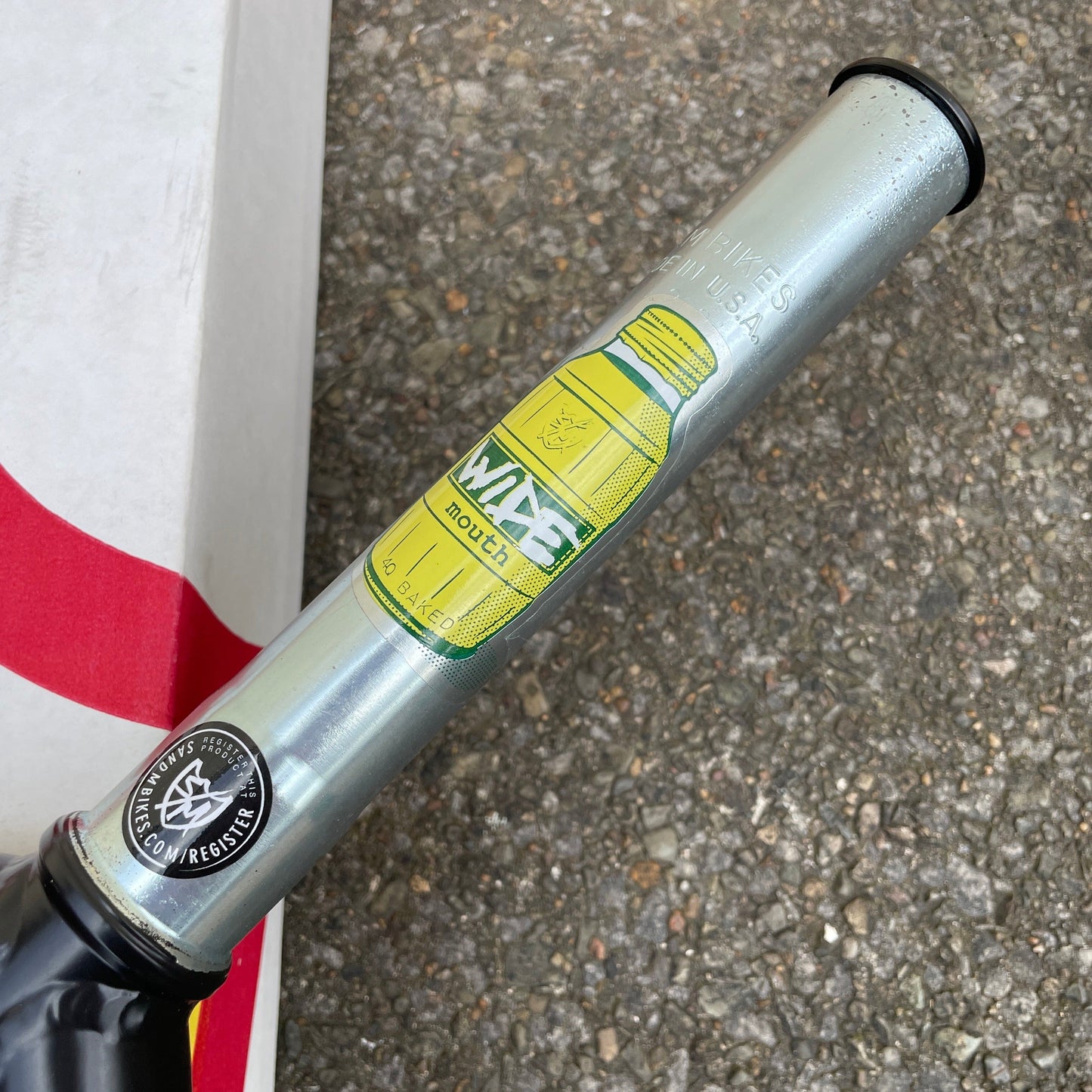

S&M Bikes Pitchfork Widemouth Forks Black

Brand: S&M Bikes

Code: FOSM16BK

Code: FOSM14BK

Call us on 01942 826 598 for availability or an alternative!

Ask a Question

Brand: S&M Bikes

The new S&M Bikes Pitchfork Widemouth designed with more tyre clearance for todays modern tyres. Also available in two Offsets 33mm or 26mm with the longer aimed more at trails and ramp riders and shorter for technical street riding.

Legs - Double Butted, Tapered, 4130 CrMo
Dropouts - Laser Cut 3/8" Slot
Steerer Tube - 1 Piece CNC-Machined 4130 CrMo, Extruded 6061 Steerer Tube Insert
Steerer Tube Length - 166mm
Compression - M24 X 1.5 Thread - 6mm Allen Slot
Axle to Crown - 320mm
Offset - 33mm or 26mm
Weight - 1.99 lb (.90 kg)
Heat Treat - 4Q Baked Post-Weld
