SKU: Product Code: SBX-222-MKIWI
Sunday Blueprint 20" TT Bike Matte Kiwi
Sunday Blueprint 20" TT Bike Matte Kiwi
This Sunday Blueprint in Matte Kiwi Green comes with a shorter 20" toptube frame, perfect for those riders moving up from 18 inch wheels. Spec includes an Odyssey Springfield brake, wide Sunday Current 2.4" tyes and a Sunday front load stem.
The frame includes holes for a Gyro - if you'd like one fitted and set up by us just add to basket and we will install it for you (extra).
NOTE: Front caliper brake and all safety kit included to make this bike UK road legal.
Specifications
Frame: Sunday Blueprint, 20" top tube, integrated 1-1/8" head tube
Fork: Sunday Blueprint, 20" fork w/ 2-piece steerer tube and welded pre-load
Handlebar: Sunday, 2-piece
Stem: Sunday Freeze front load, 48mm
Headset: FSA integrated, 1-1/8"
Alloy Cap: FSA aluminum cap
Brake Lever: Aluminum, U-brake compatible
Brakes: Odyssey Springfield U-brake
Brake Cable: Odyssey Quik Slic
Grips: Sunday Cornerstone
Seat: Sunday Badge, seat and post combo
Seat Post: Integrated
Seat Clamp: Integrated
Sprocket: Sunday Sabretooth V2, 25T, steel
Cranks: 160mm, 3-piece, chromoly
BB Parts: Loose-ball, American, 19mm
Pedals: Wellgo platform, plastic
Rims: P-7X aluminum, 20", 36H
Front Hub: Sunday, 36H, low-flange, loose-ball, 3/8" axle
Rear Hub: Sunday, 36H,14mm axle w/ 9t Driver
Spokes: 14g steel, black

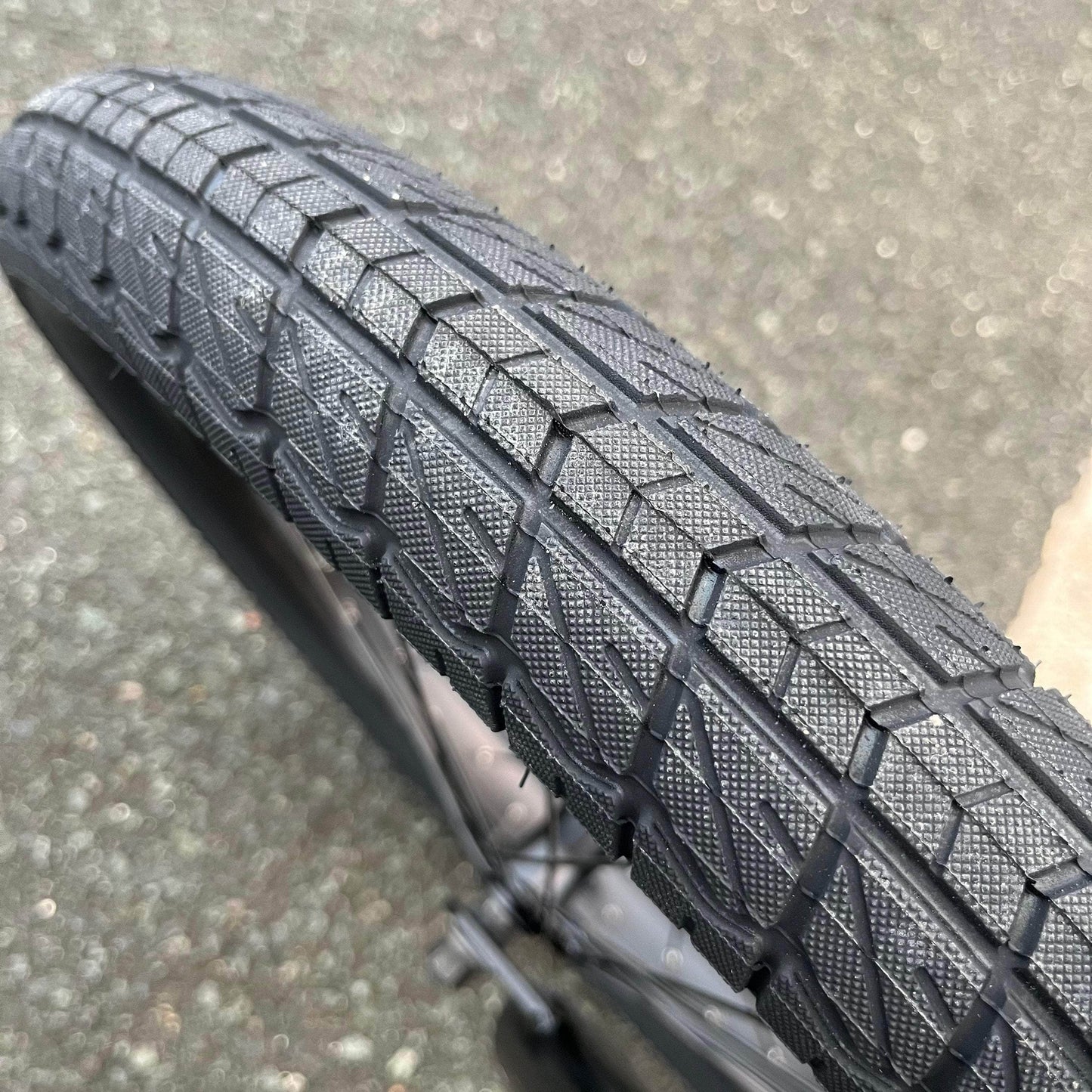

Tyres: Sunday Current, 20 x 2.4" (F & R)
Chain: KMC S1
Approx. Weight: 26lbs (with brakes)
Frame Geometry
Top Tube Length: 20"
Head Tube Angle: 75°
Seat Tube Angle: 71°
Chainstay Length: 13.2-13.5”
Bottom Bracket Height: 11.5"
Standover: 8.75"
Handlebar Geometry
Rise: 9"
Width: 28.5"
Backsweep: 12°
Upsweep: 4°
*Specs subject to change without notice.
