SKU: Product Code: SBX-2577-MMDPUR
Sunday Darkwave FC Bike 21.25" LHD Raiford Matte Midnight Purple
Sunday Darkwave FC Bike 21.25" LHD Raiford Matte Midnight Purple
Introducing the new Sunday Broc Raiford Darkwave Authentic. This model is assembled entirely from aftermarket Odyssey and Sunday parts, including the LHD spec that Broc rides, all the way down to his signature Odyssey parts, long 21.25 " top tube and - of course - 4 steel pegs, just like Broc's bike.
The price reflects a significant saving on buying the parts separately and these high-end model Sunday bikes always sell out first, so get on it now if you are thinking of getting one.
IMPORTANT NOTE ABOUT PEDAL FITMENT
Key Features
- 100% Aftermarket Parts Kit
- Lifetime Warranty on Bars, Forks, and Cranks
- Sunday Darkwave Frame
- Sunday Darkwave 41-Thermal Forks
- Odyssey BROC 41-Thermal Bars
- Odyssey Thunderbolt 41-Thermal Cranks
- Odyssey Broc v2 Stem
- Odyssey Clutch v2 Freecoaster
- Odyssey Vandero Pro Front Hub
- Odyssey Hazard Lite Rims
- Odyssey Broc Tyres with R-Grip
- Left hand drive
- 21.25" toptube frame
Specifications
Frame: Sunday Darkwave, 21.25" (LHD), 100% chromoly, aftermarket frame, w/ wave downtube and removable brake hardware
Fork: Sunday Darkwave, 100% chromoly, 41-Thermal, aftermarket fork, 28mm offset
Handlebar: Odyssey BROC Bar, 41-Thermal, aftermarket bar
Stem: Odyssey BROC V2 Stem, 50mm
Headset: Odyssey Pro Conical, 1-1/8"
Headset Cap: Sunday aftermarket, aluminum
Brake Lever: Odyssey Springfield
Brakes: Odyssey Springfield U-brake
Brake Cable: Odyssey Linear Quik Slic
Grips: Odyssey Broc Raiford
Seat: Odyssey Broc Raiford Signature, Pivotal
Seat Alternate: Odyssey Big Stitch, Pivotal
Seat post: Odyssey Pivotal
Seat Clamp: Integrated
Sprocket: Odyssey La Guardia Sprocket, 28T
Cranks: Odyssey Thunderbolt, 170mm, 100% chromoly, 41-Thermal, LHD
BB Parts: Odyssey Sealed, Mid, 22mm

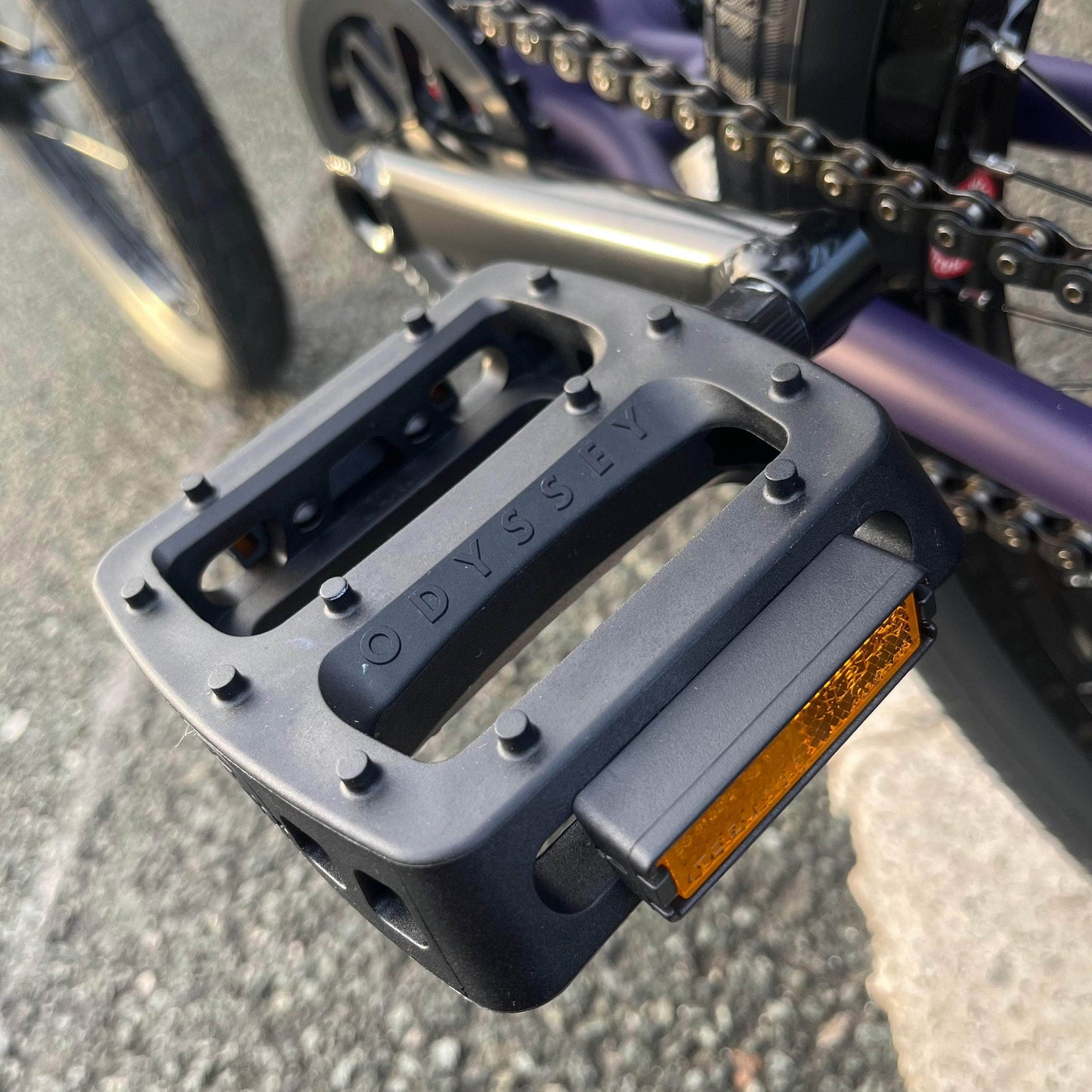

Pedals: Odyssey Twisted PC Pro
Rims: Odyssey Hazard Lite, 20", 36H
Front Hub: Odyssey Vandero Pro, 36H, sealed, 3/8" female axle, 2 plastic guards

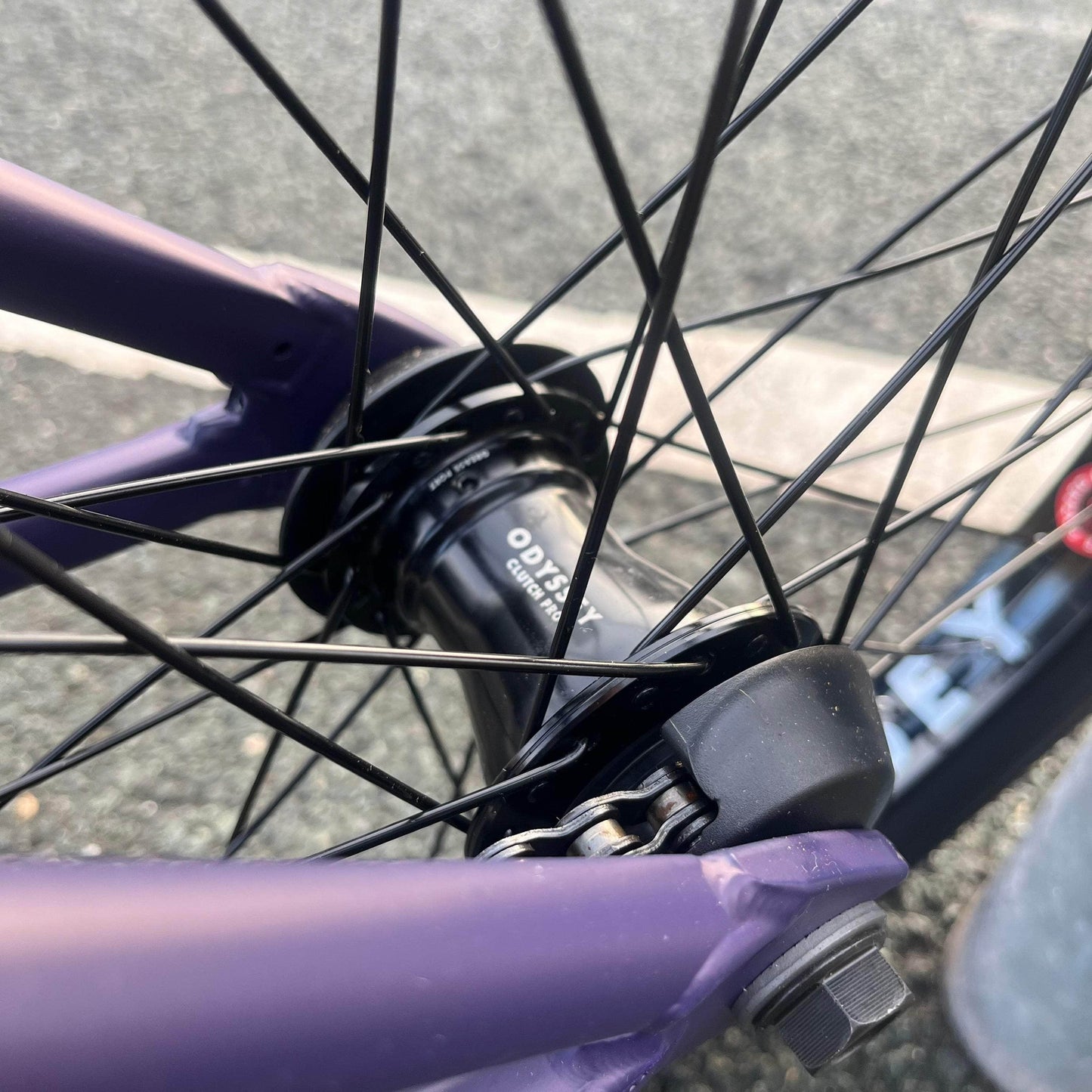

Rear Hub: Odyssey Clutch V2 freecoaster, 36H, 14mm female axle w/ 9T driver, RHD, non-drive side plastic guard
Spokes: 14g steel, black
Tyres: Odyssey Broc, 20 x 2.4" (F & R)
Chain: Odyssey Bluebird Half-Link
Pegs: Sunday Seeley Peg 4.75" (x4)
Approx. Weight: 24.97lbs (brakeless)
Frame Geometry
Top Tube Length: 21.25" (RHD)
Head Tube Angle: 75.25°
Seat Tube Angle: 71°
Chainstay Length: 13.25"-13.5”
Bottom Bracket Height: 11.75"
Standover: 9.25”
Handlebar Geometry
Rise: 9.8"
Width: 29"
Backsweep: 10°
Upsweep: 2°
Also available in RHD with 21" toptube.
