SKU: Product Code: SBX-2560-MIGRN

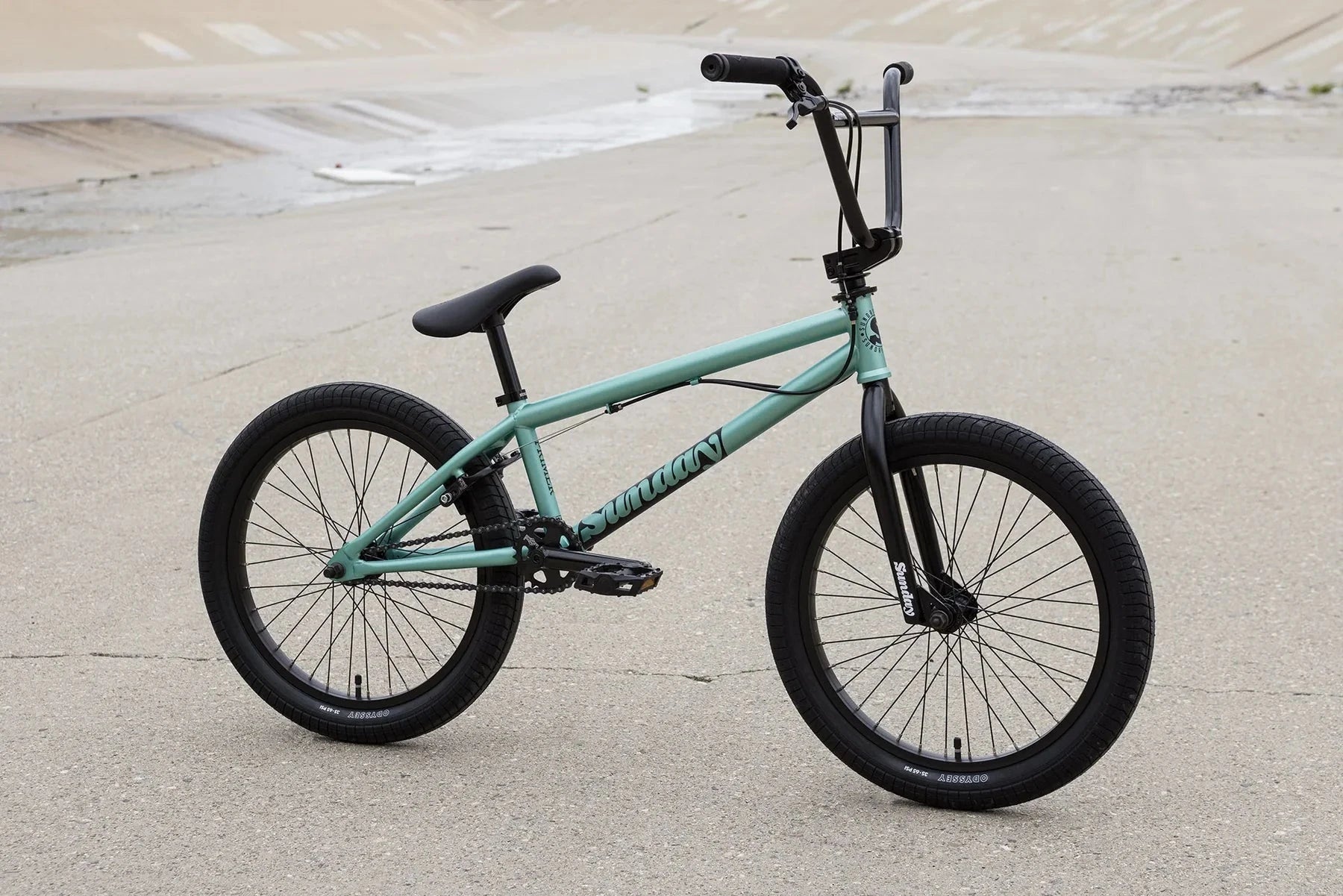

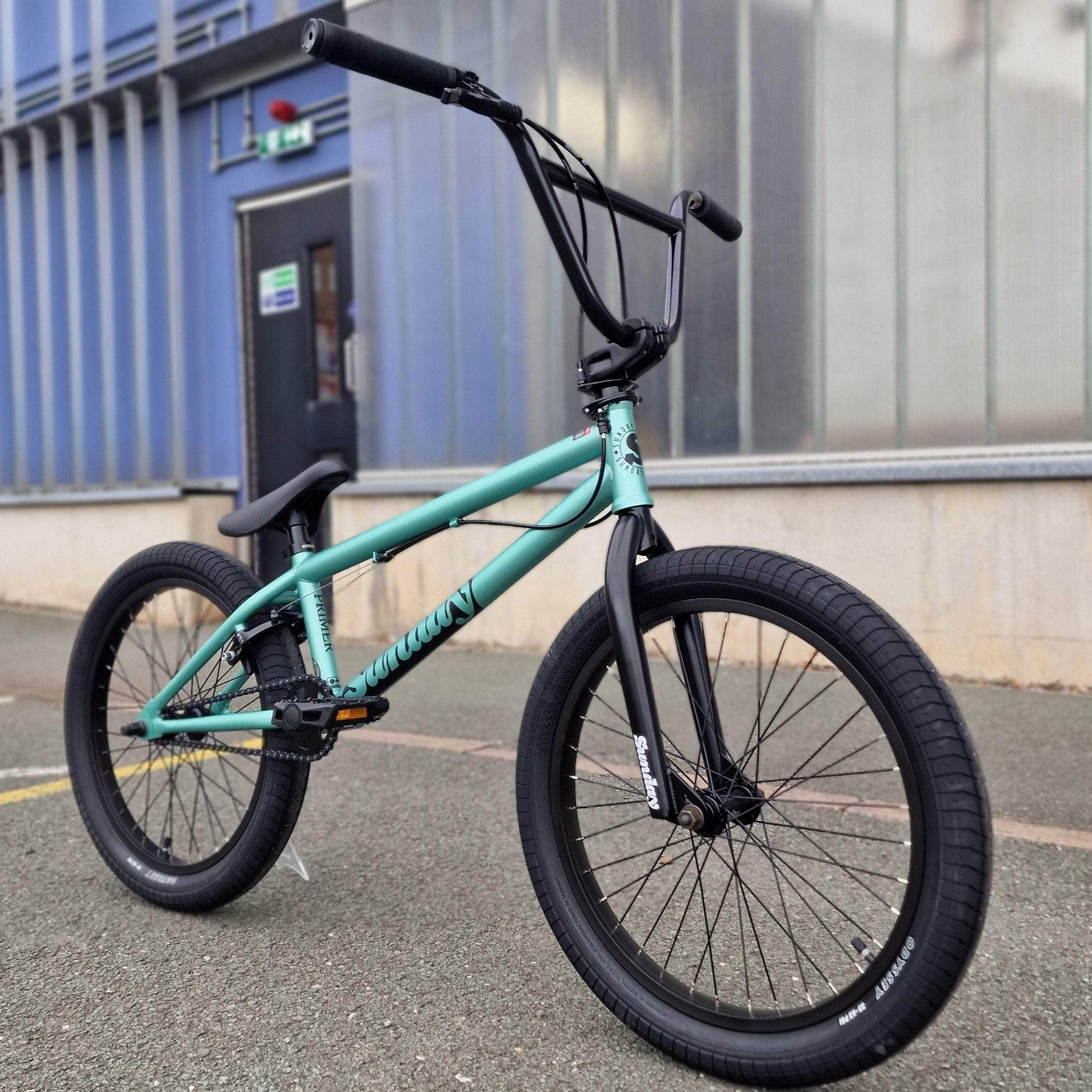

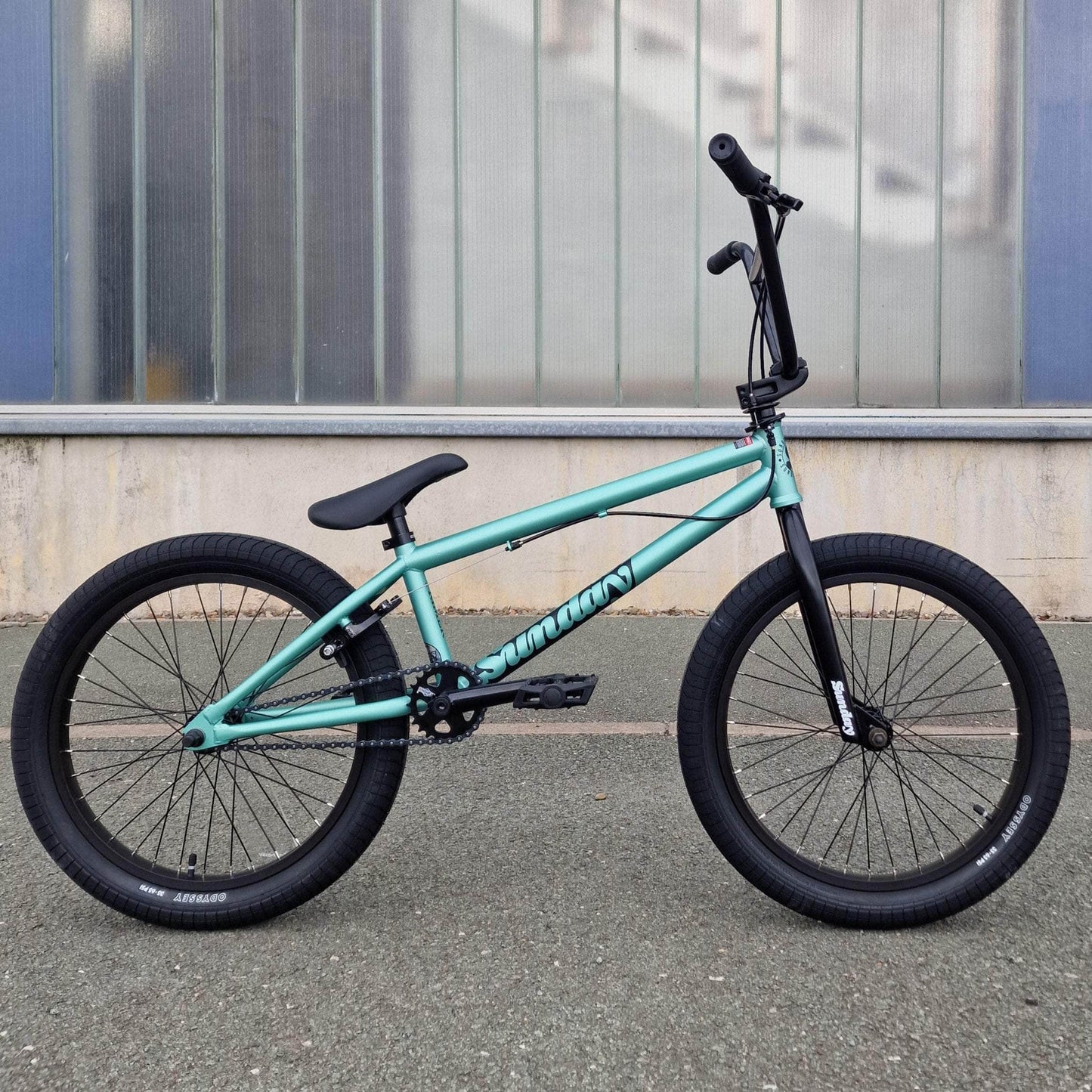

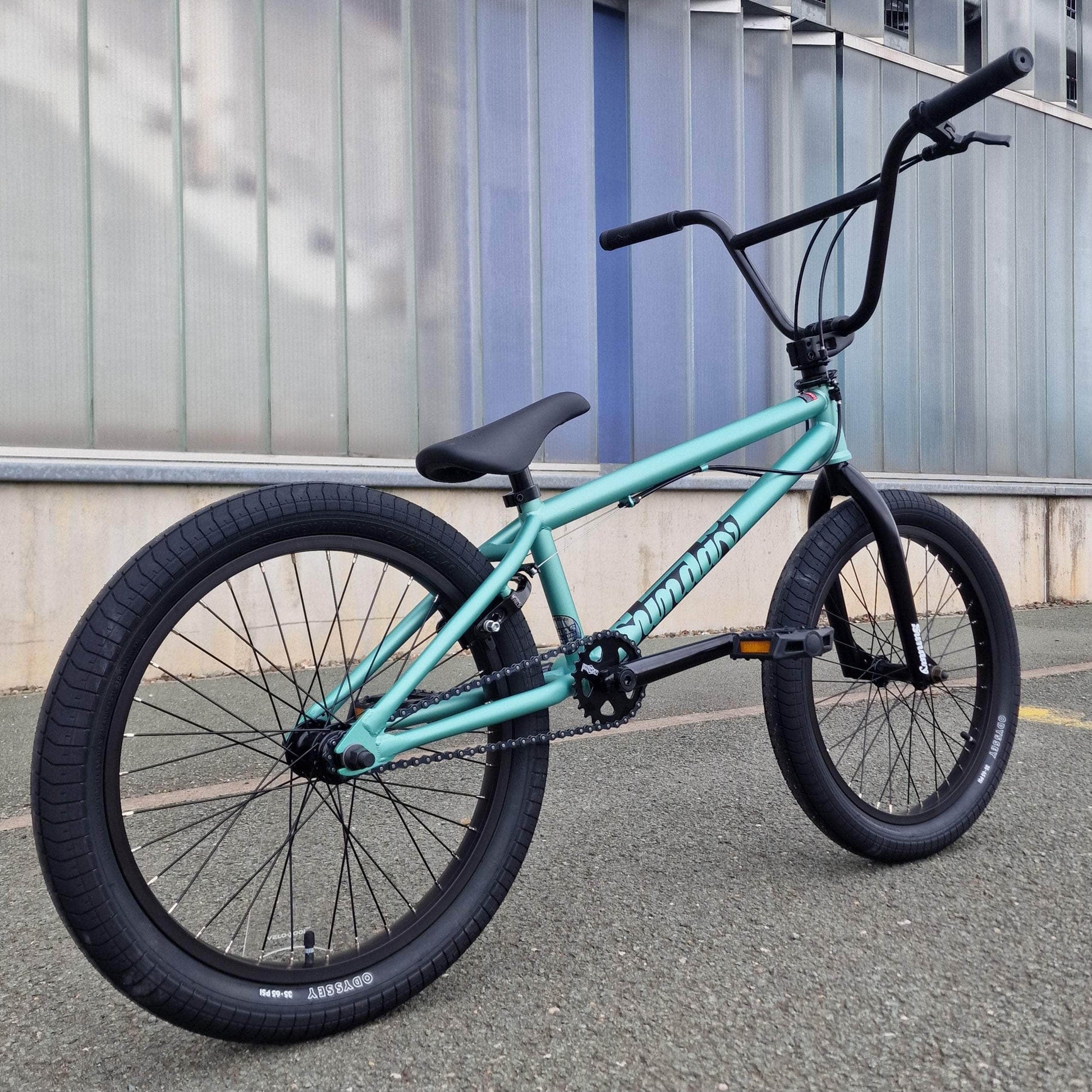

Sunday Primer Park 20.5" TT Bike Matte Ice Green
Sunday Primer Park 20.5" TT Bike Matte Ice Green
The Sunday Primer in this Park version adds an Odyssey G3 Gyro and M2 Trigger lever and has a lower standover 20.5" frame in Matte Toothpaste. It comes kitted out with Odyssey Springfield brake, Odyssey Path OEM 2.4" tyres, sealed bottom bracket and rear hub and a Sunday Freeze top load stem.
SPECIFICATIONS

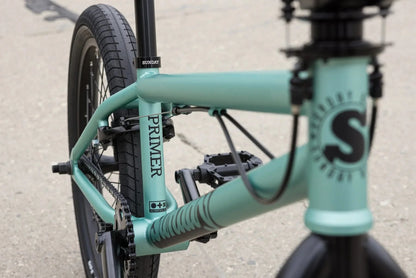

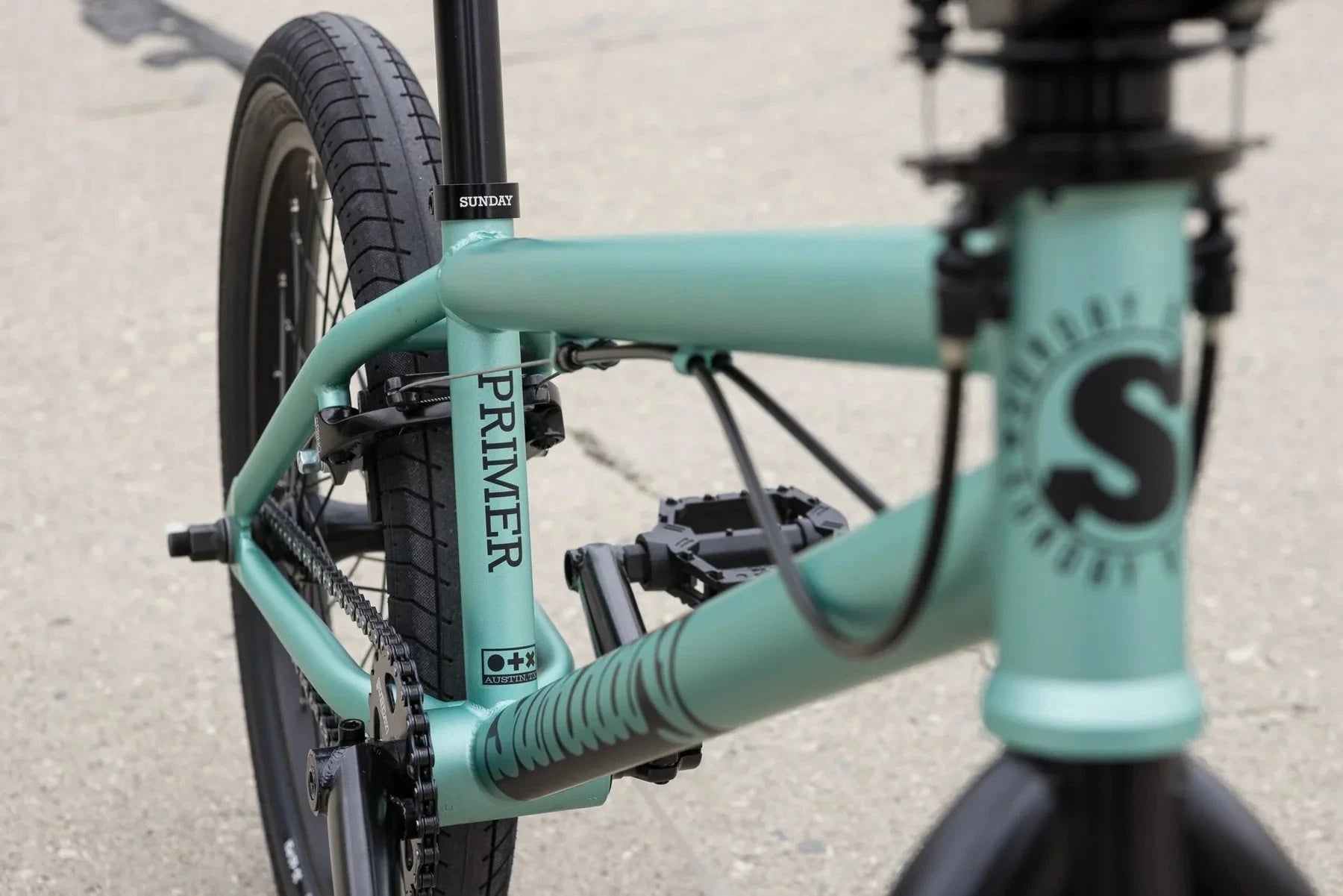

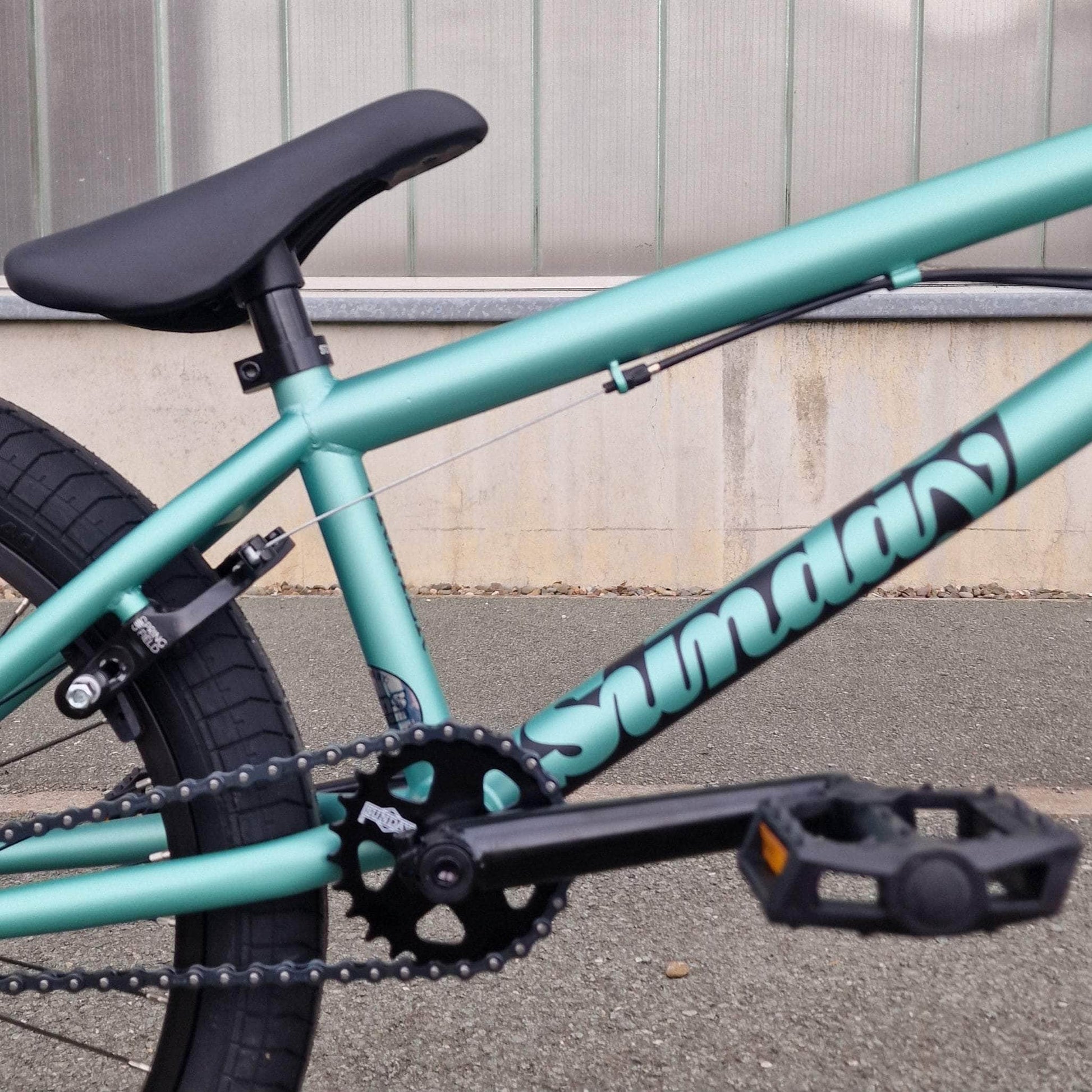

Frame: Sunday Primer, 20.5" top tube, integrated 1-1/8" head tube

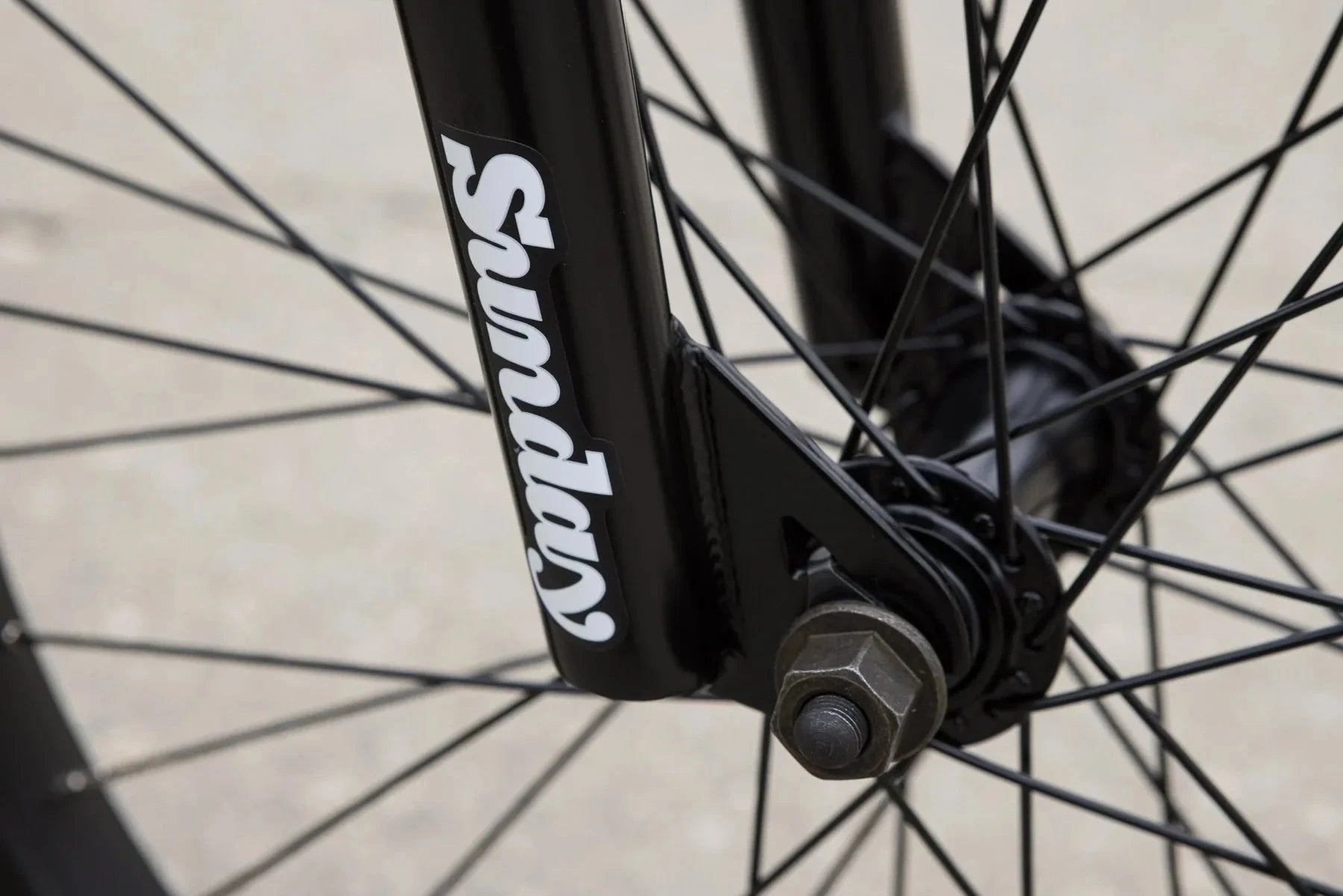

Fork: Sunday Primer, 20" fork w/ 2-piece steerer tube and welded pre-load

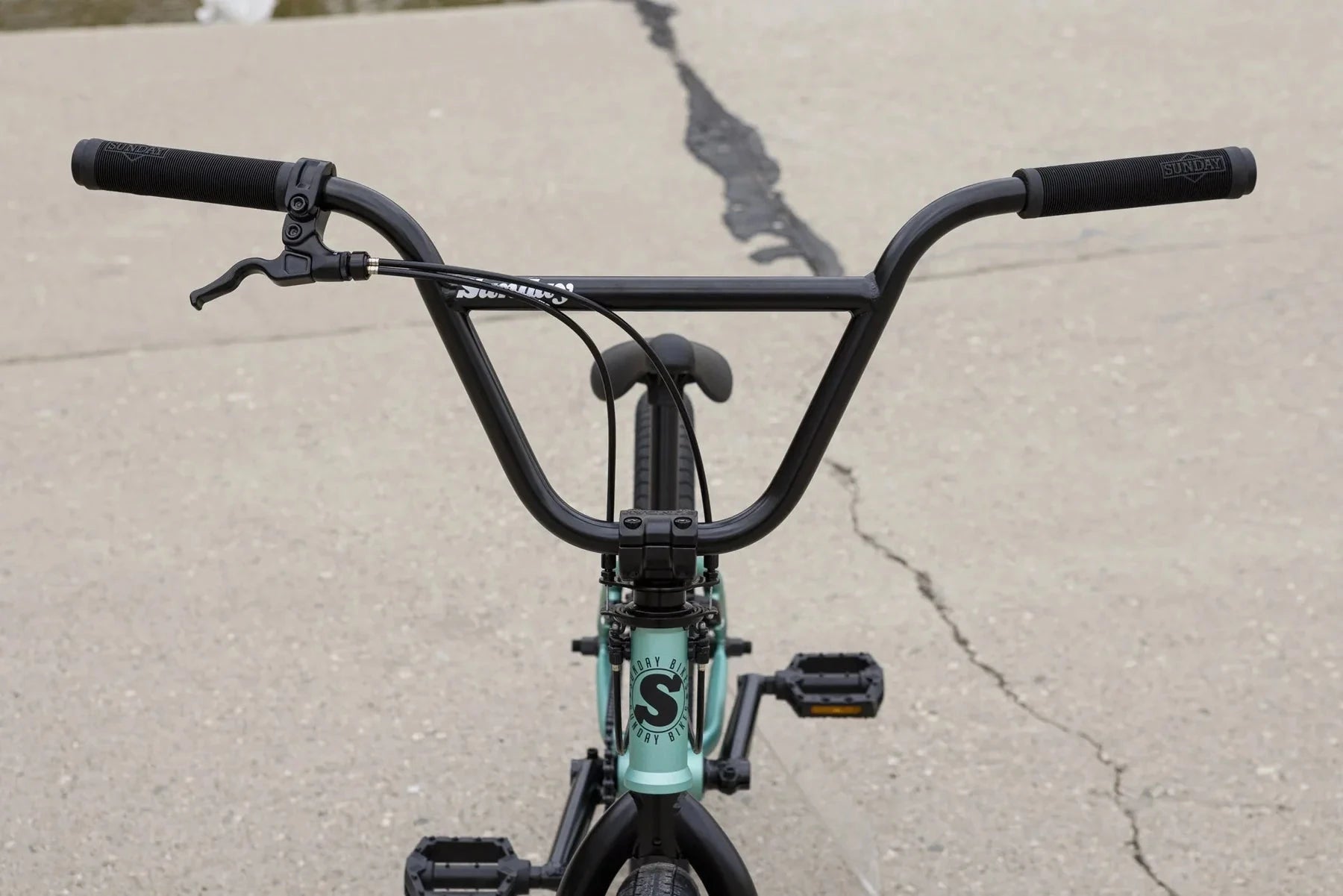

Handlebar: Sunday, 2-piece

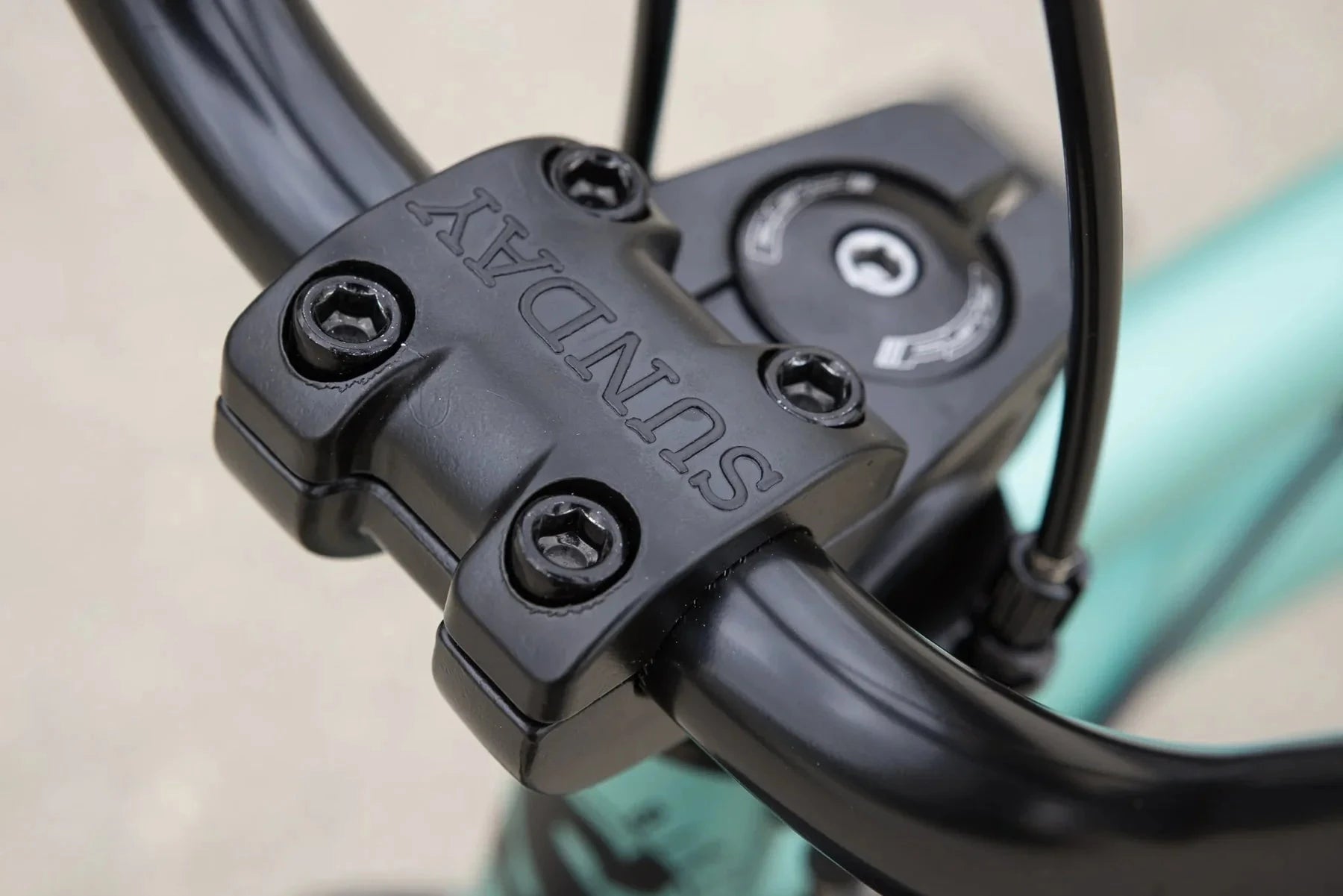

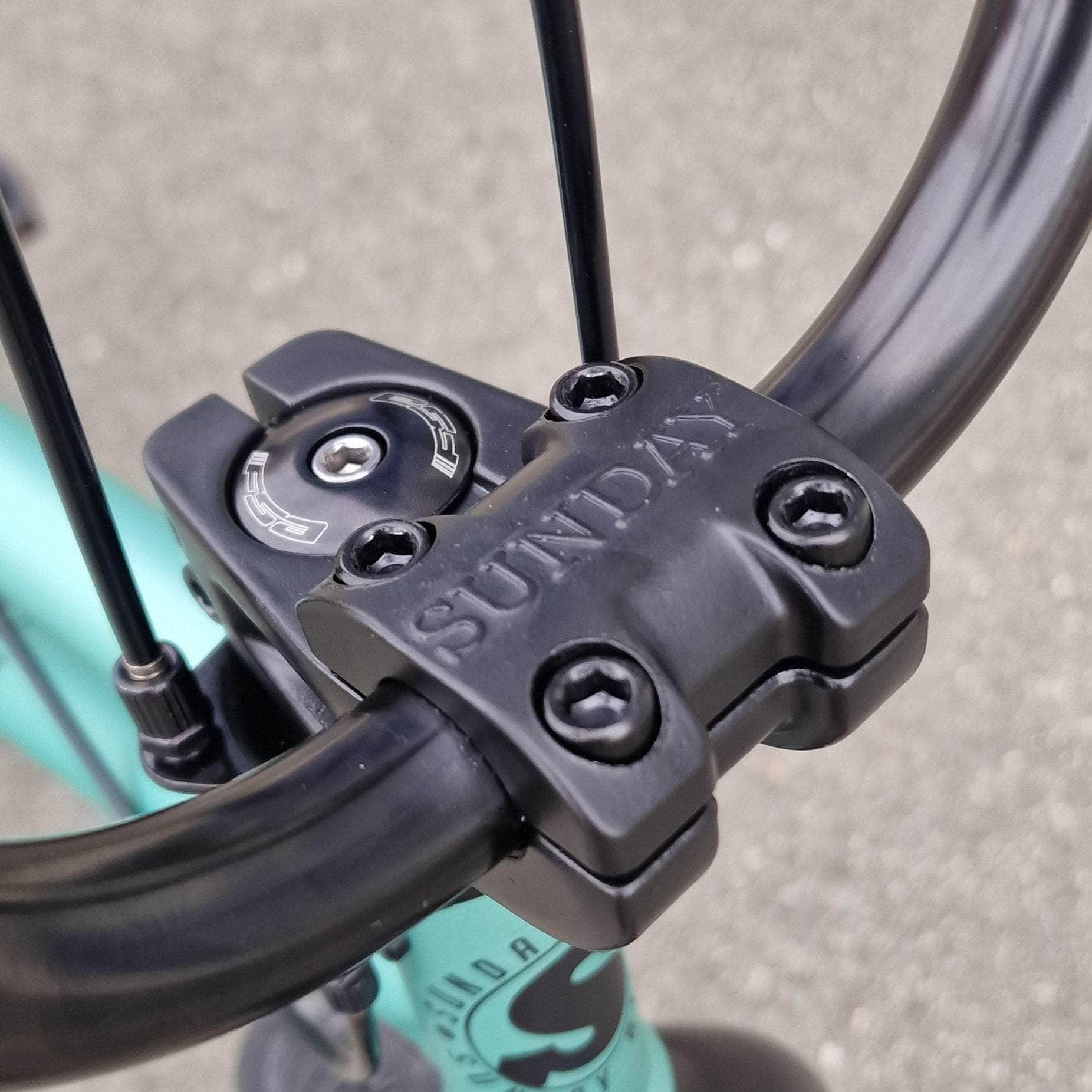

Stem: Sunday Freeze top load, 48mm
Headset: FSA integrated, 1-1/8"
Alloy Cap: FSA aluminum cap

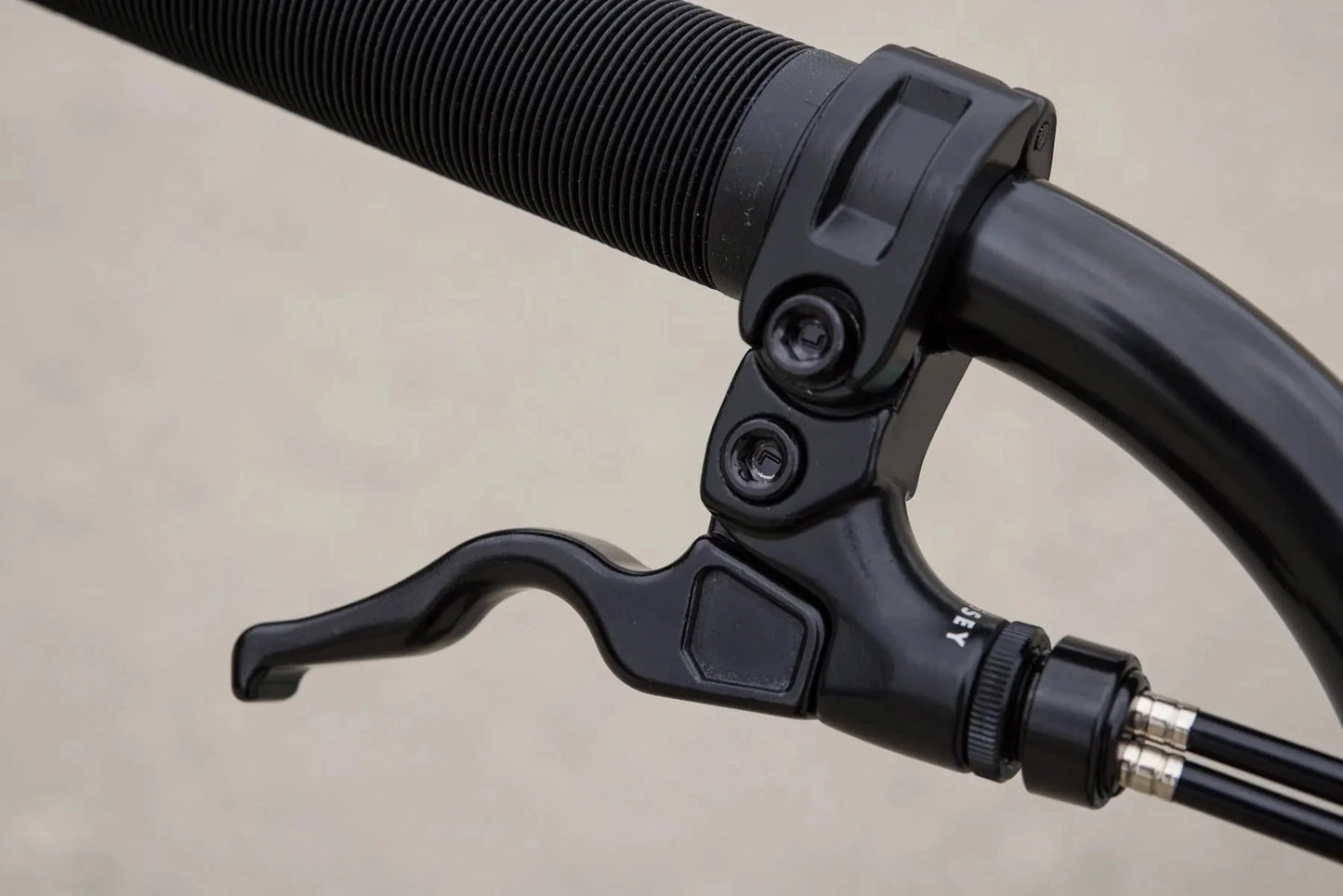

Brake Lever: Odyssey M2 Trigger

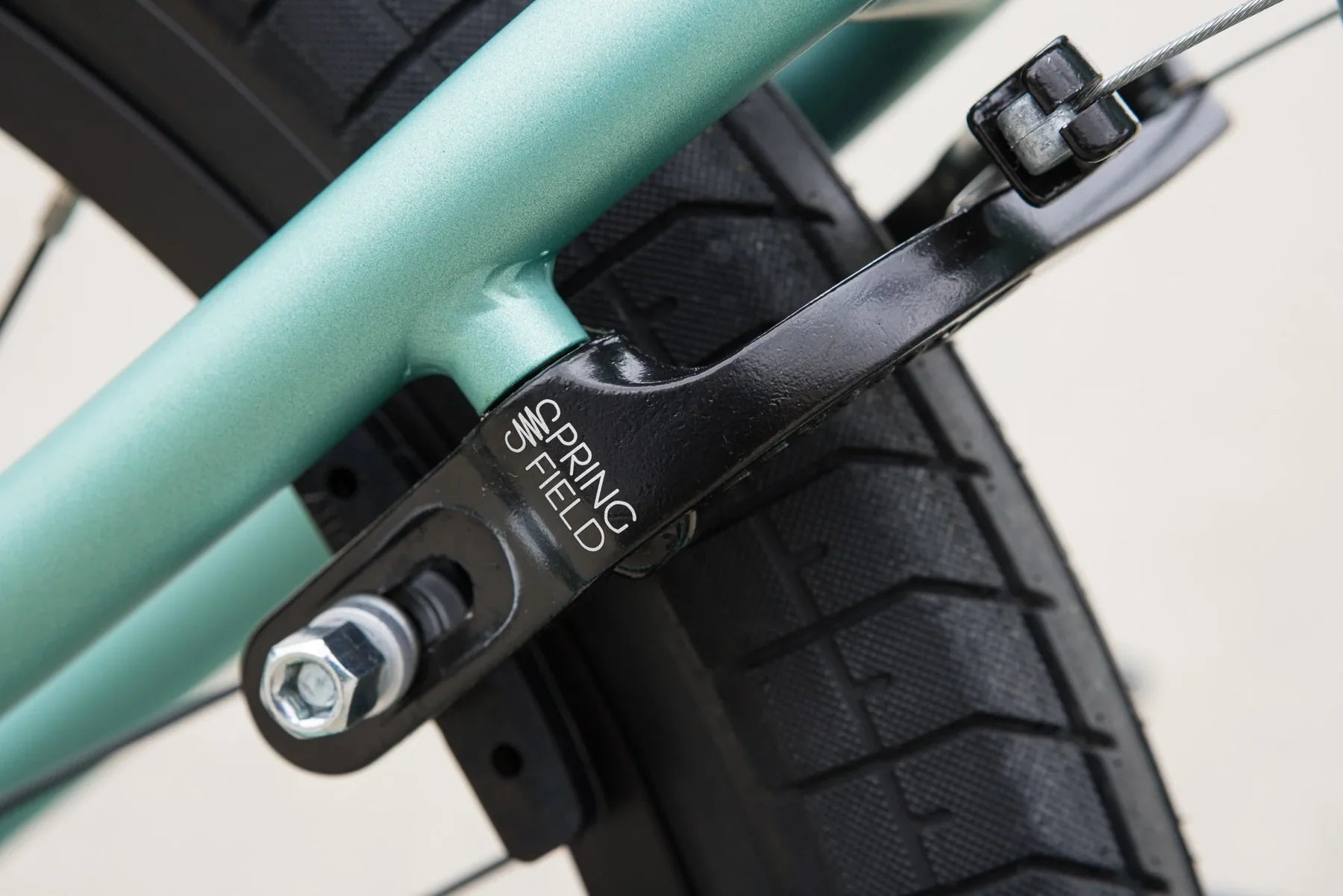

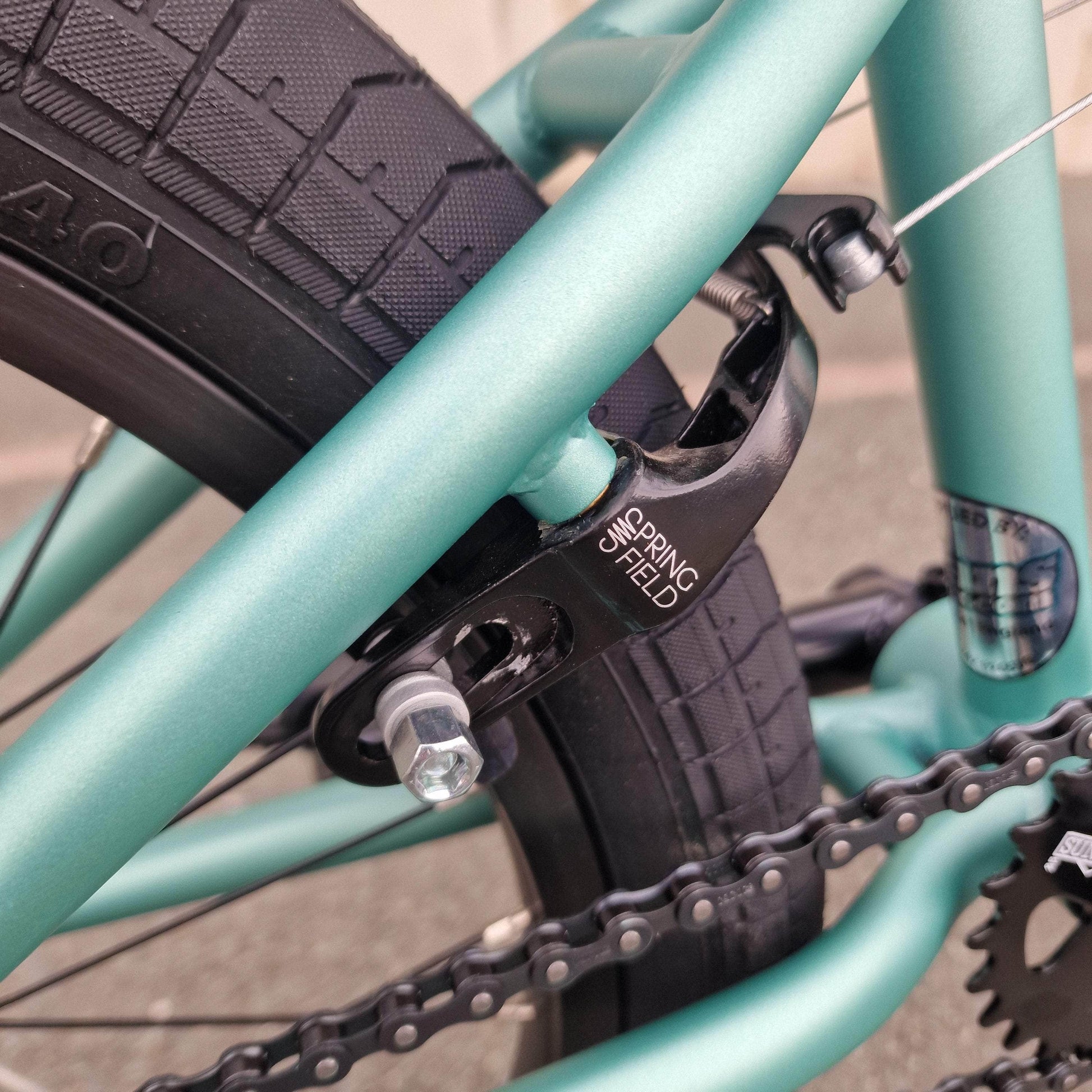

Brakes: Odyssey Springfield U-brake

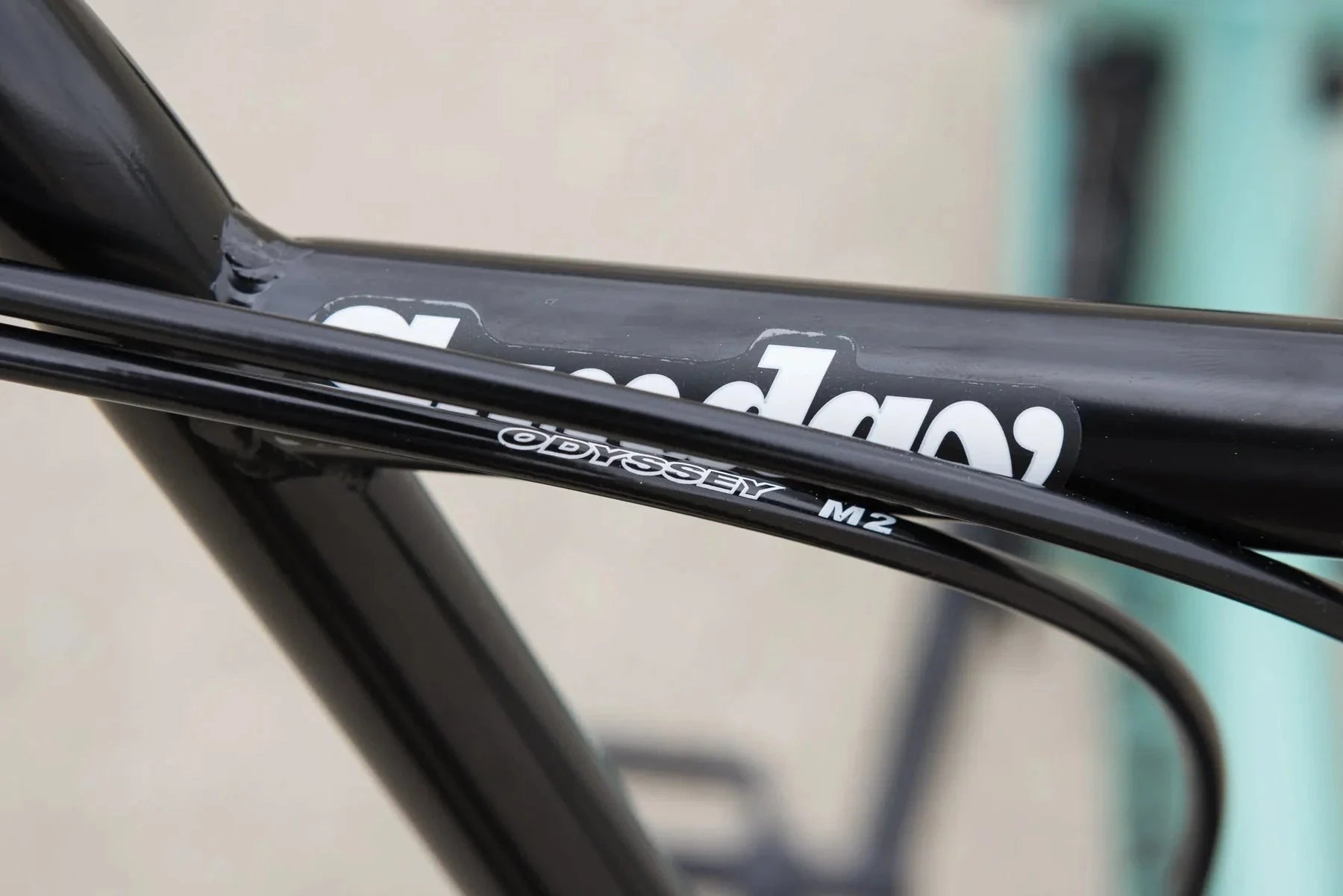

Brake Cables: Odyssey M2 Upper, 2x Single Lower

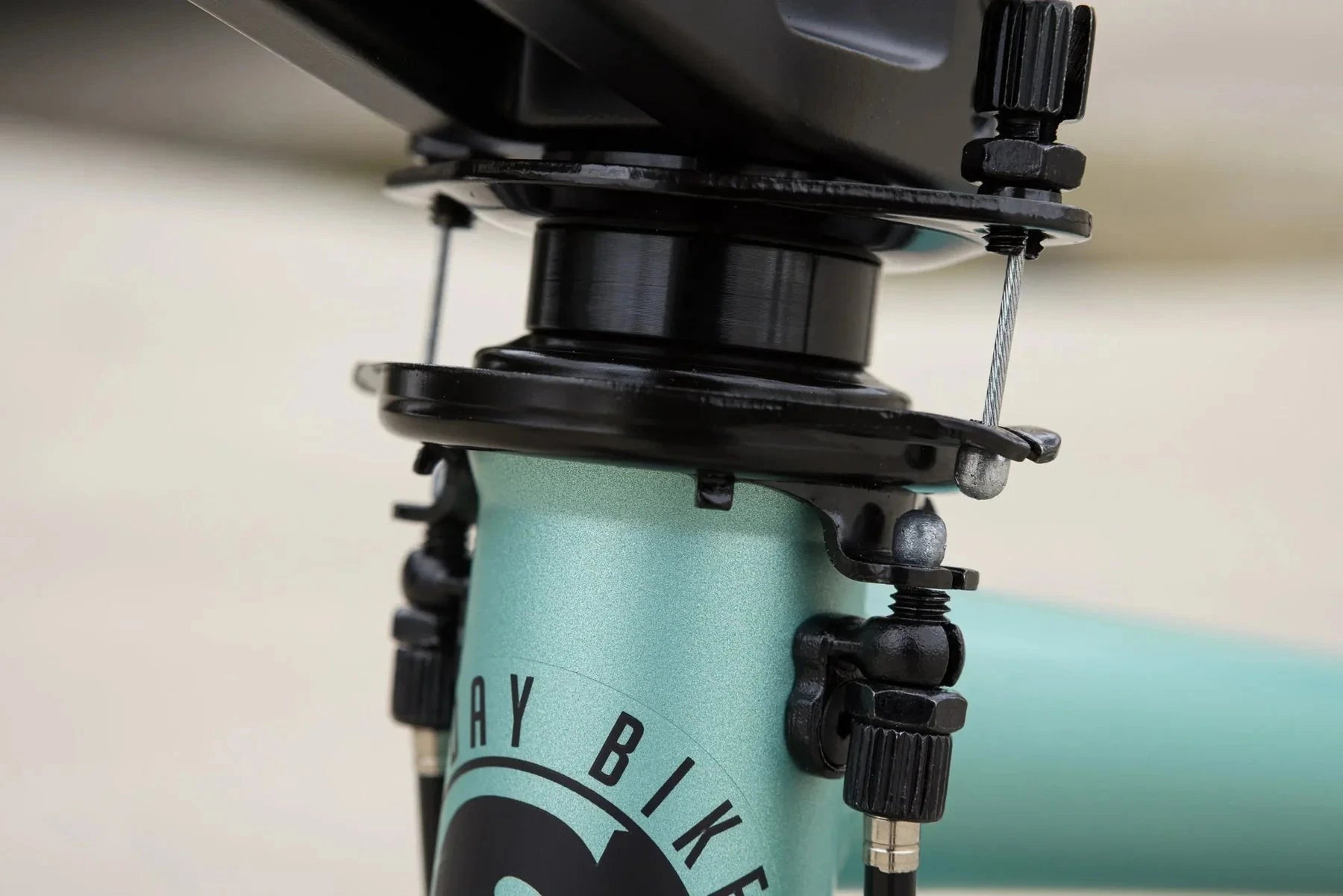

Brake Cable Detangler: Odyssey Gyro G3

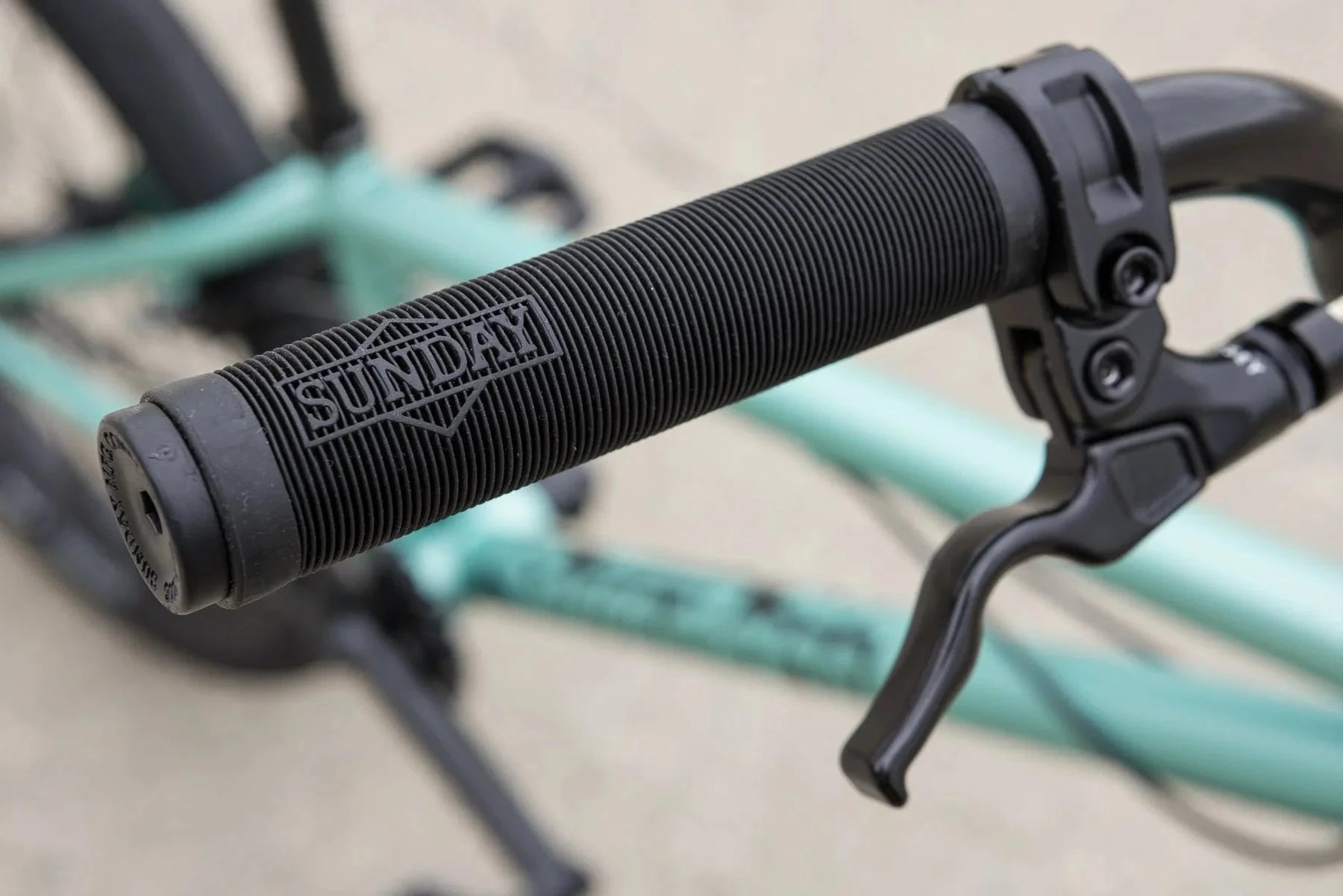

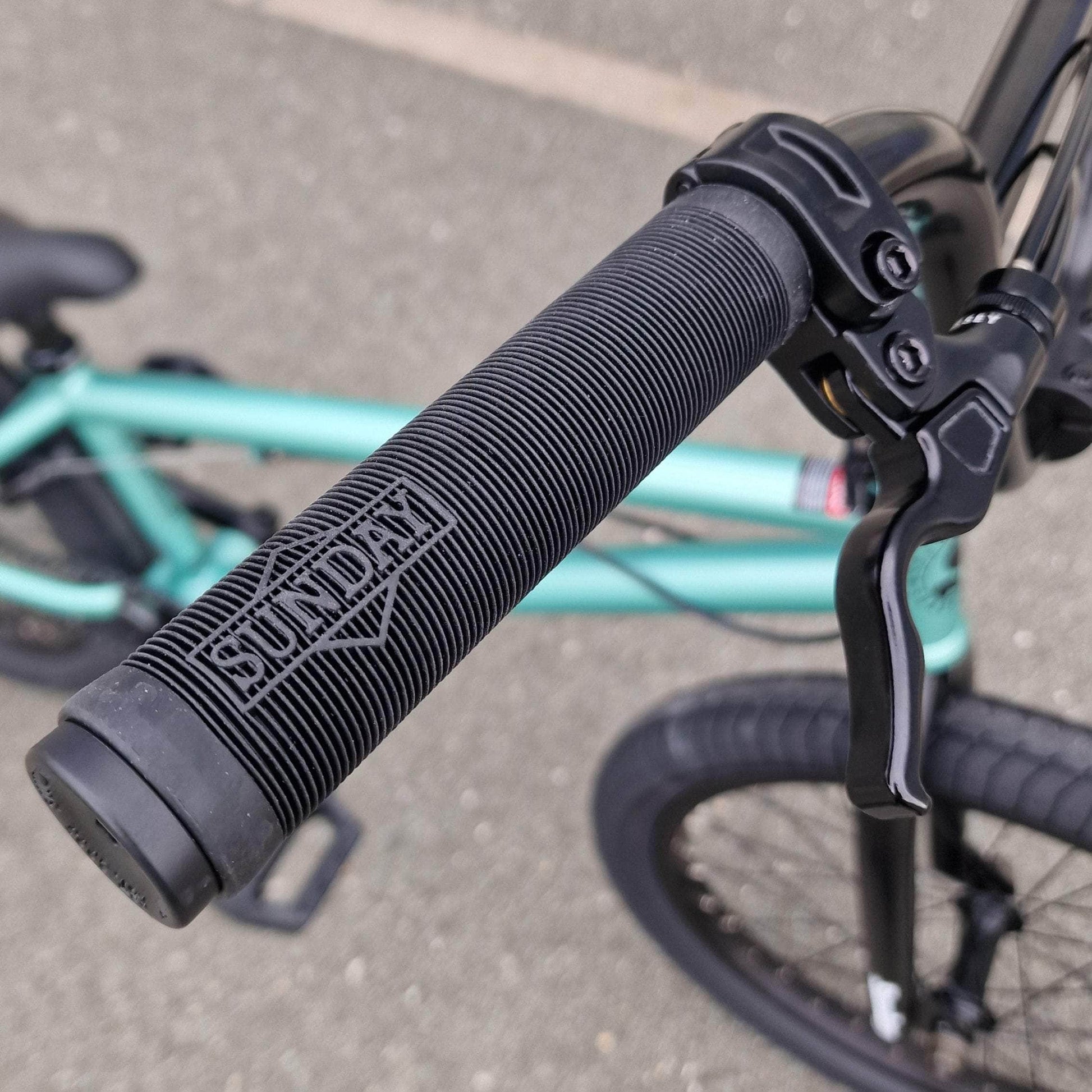

Grips: Sunday Cornerstone

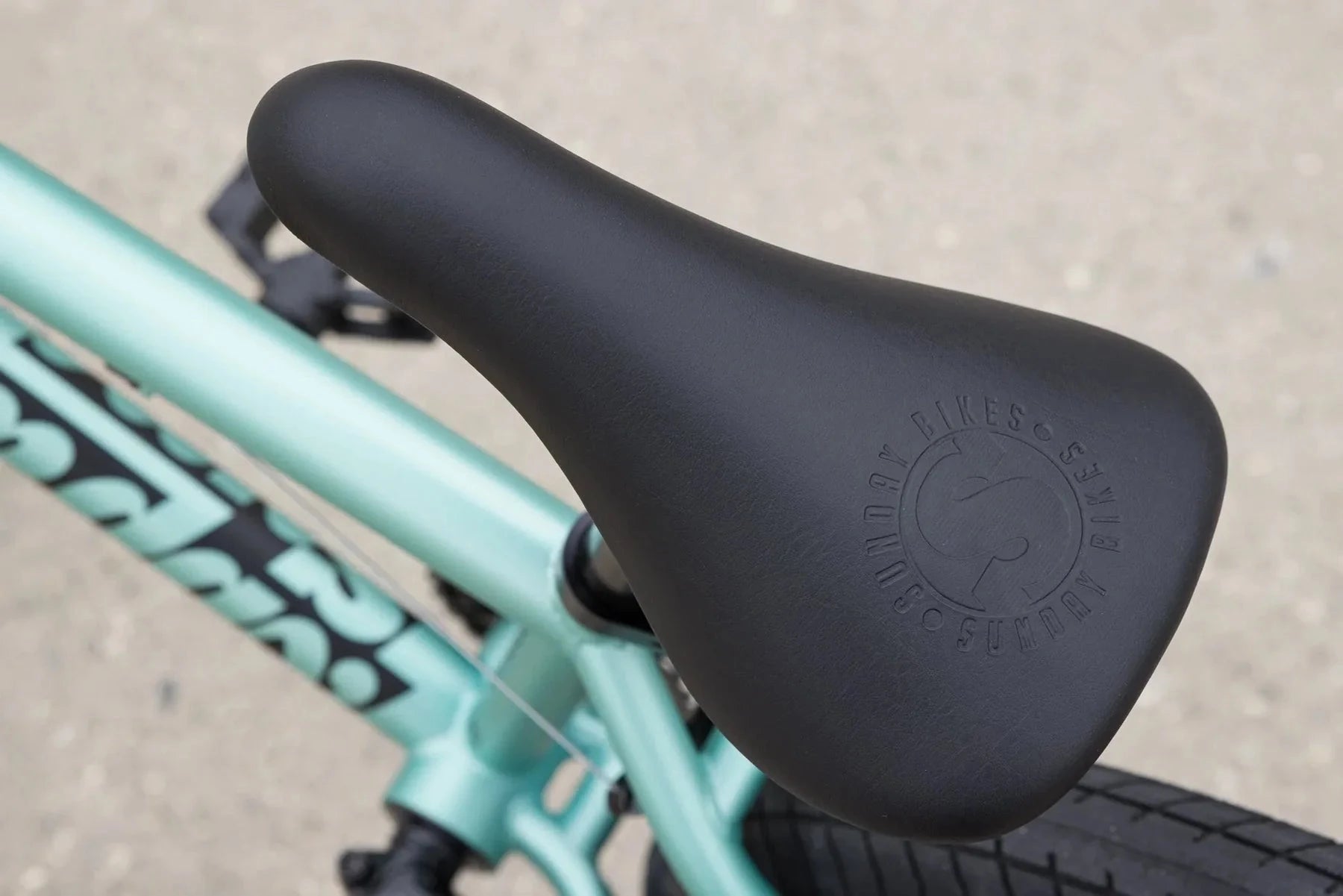

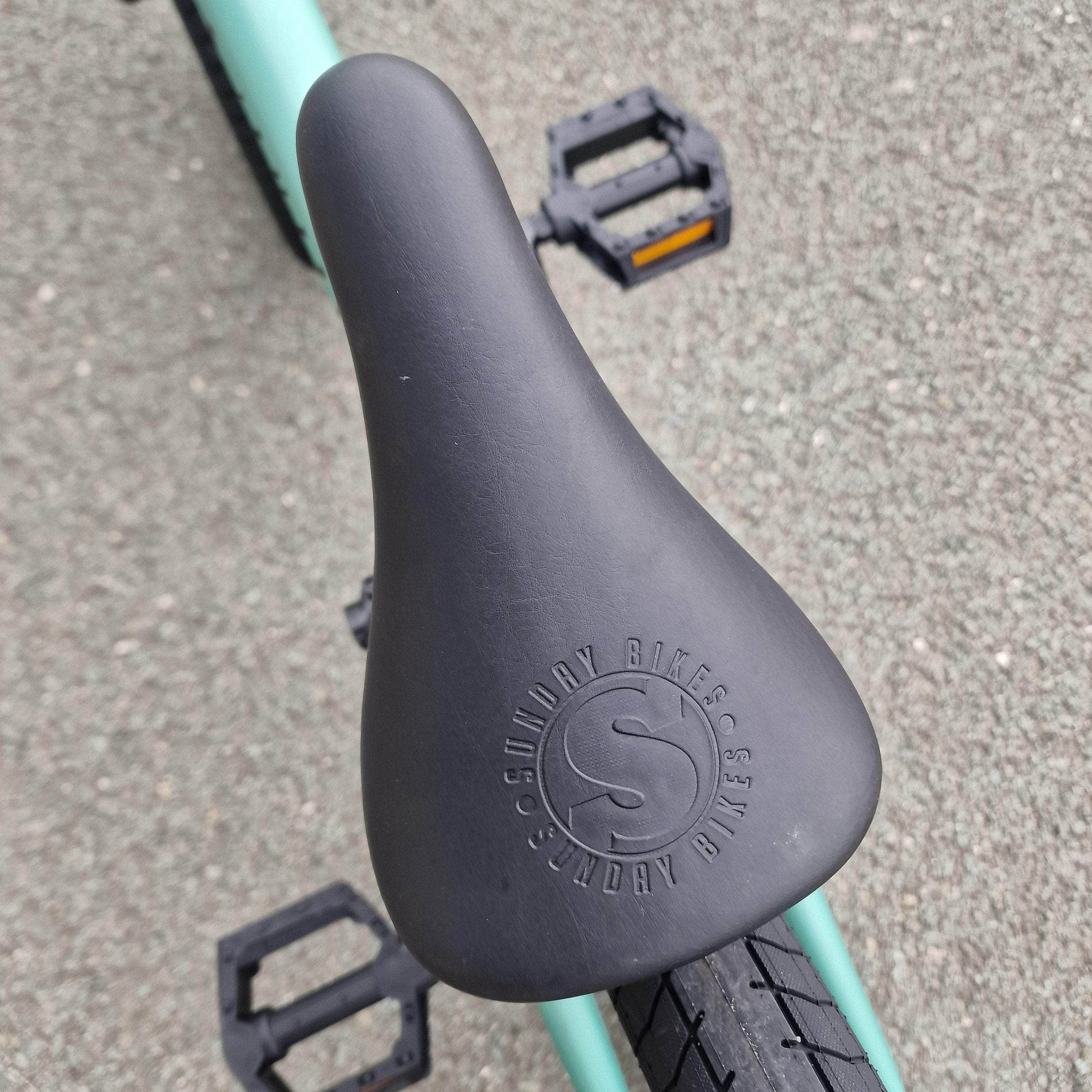

Seat: Sunday Badge, seat and post combo
Seat Post: Integrated
Seat Clamp: Sunday

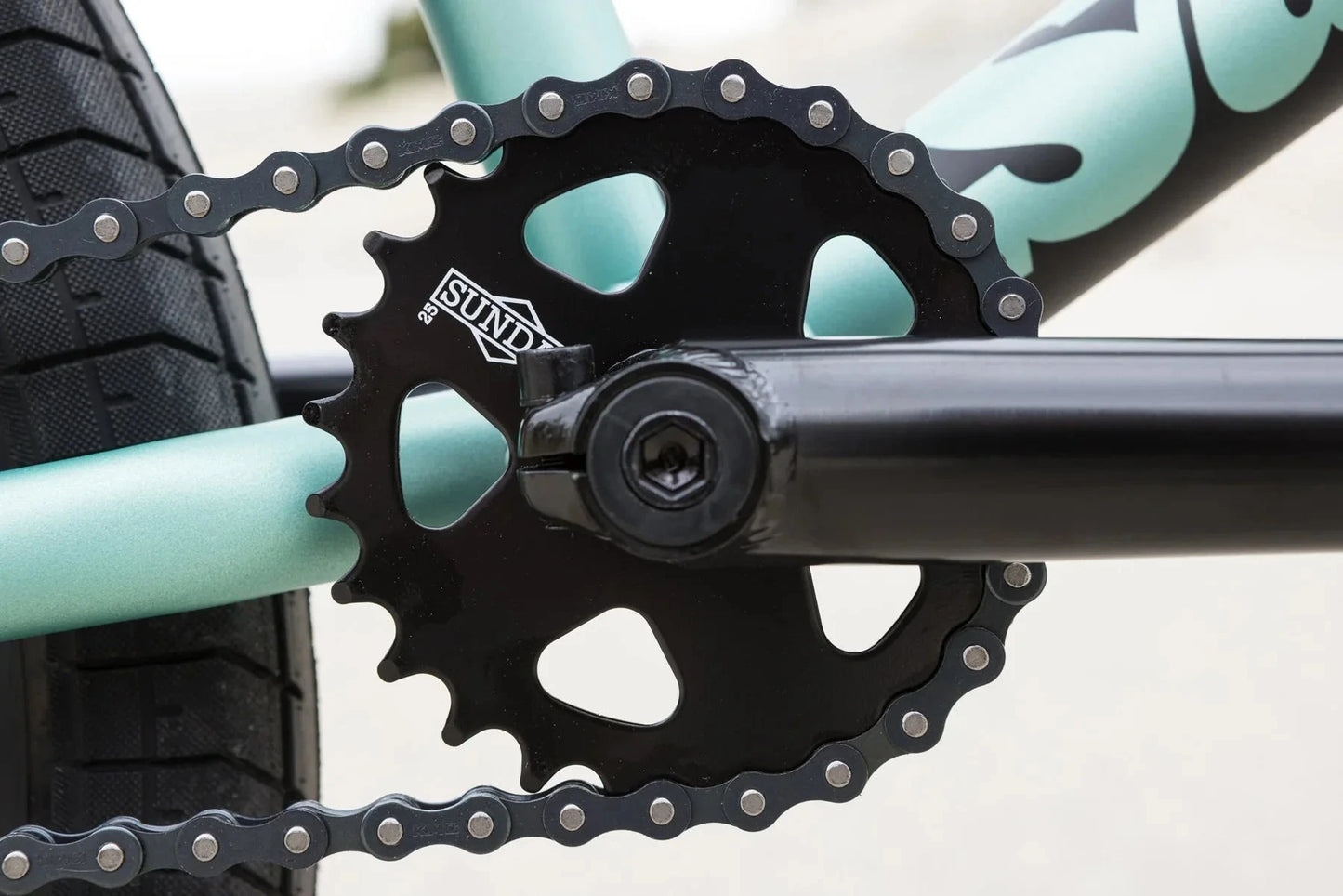

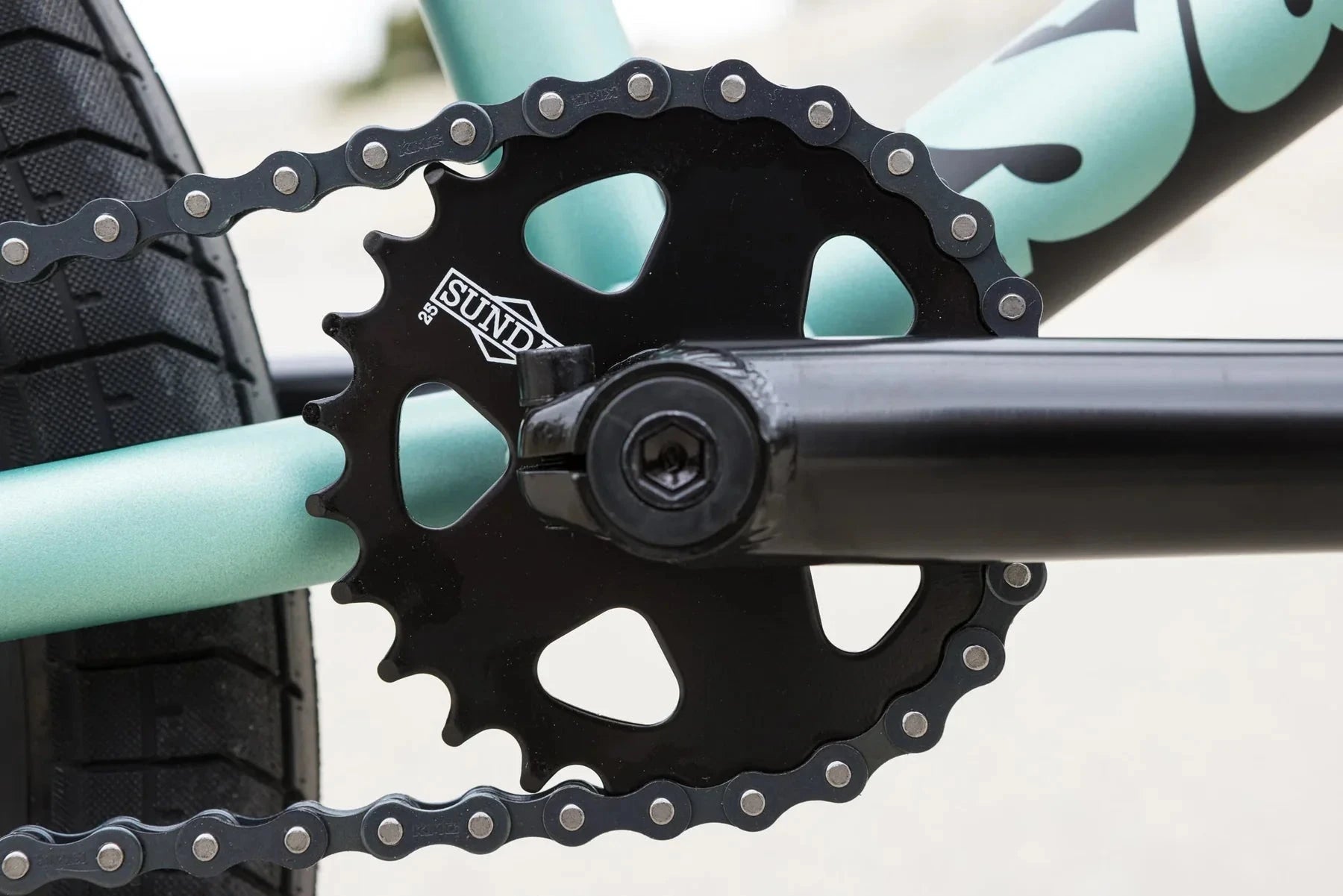

Sprocket: Sunday Sabertooth v2, 25T, steel
Cranks: 160mm, 3-piece, chromoly
BB Parts: Sealed, Mid, 19mm

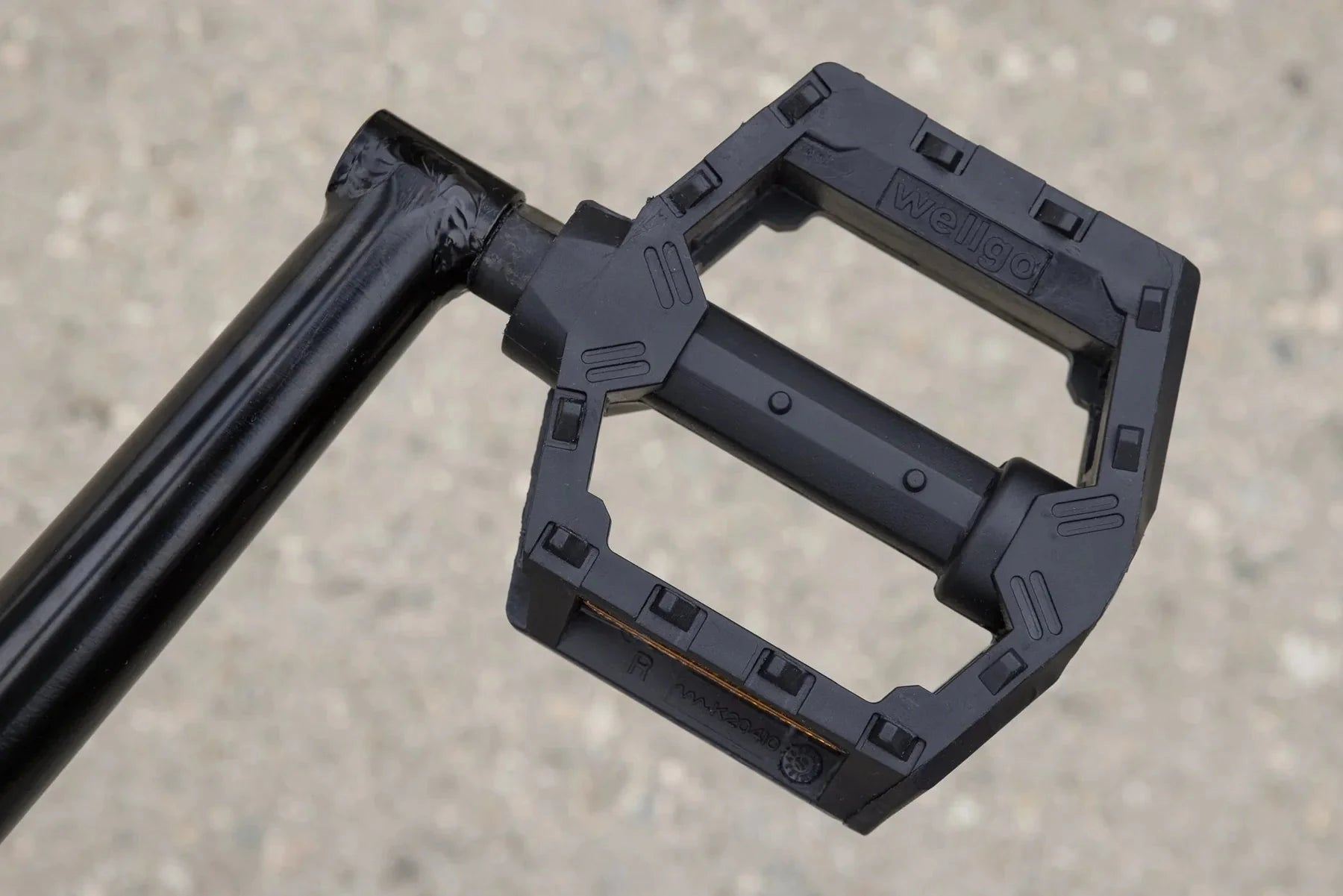

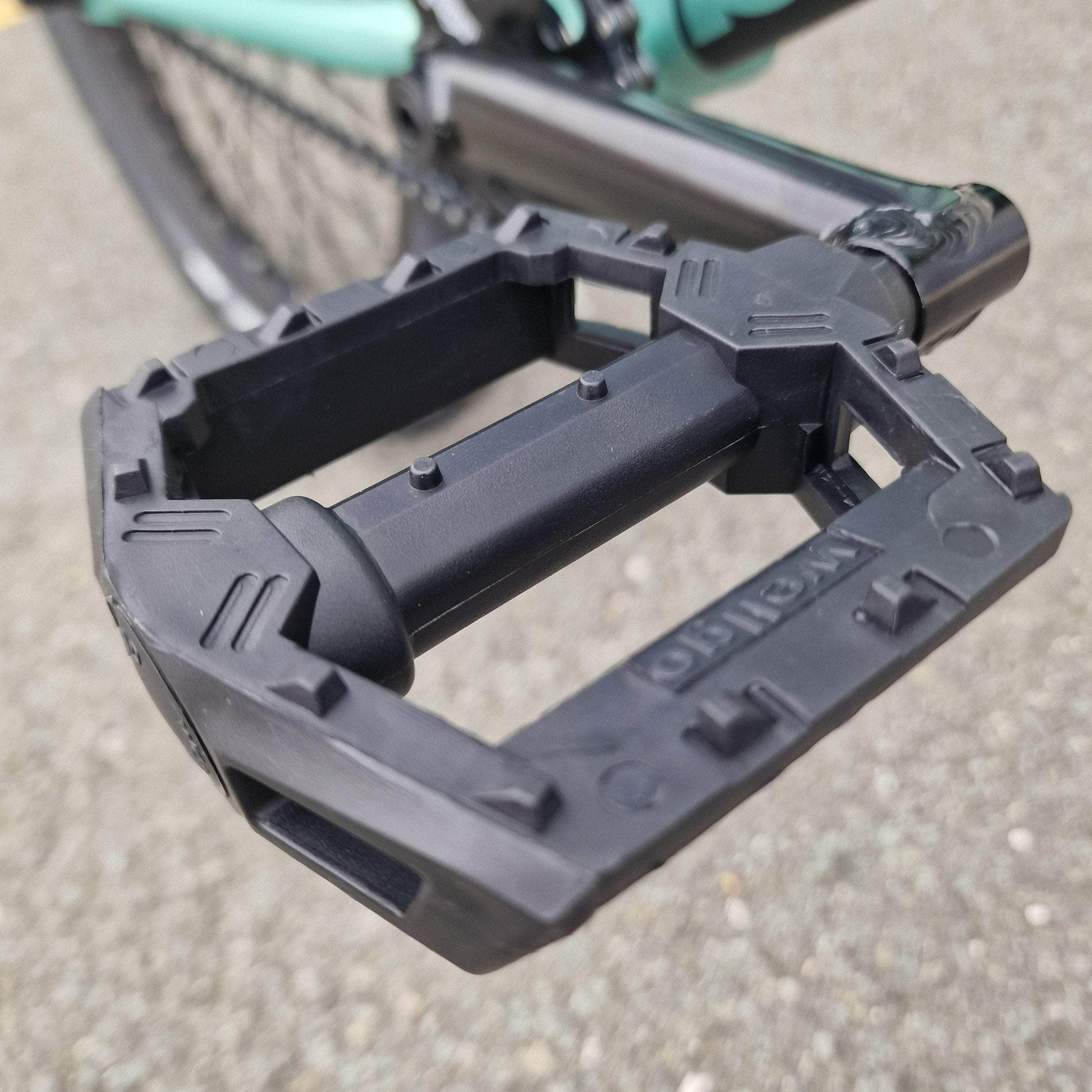

Pedals: Wellgo platform, plastic
Rims: P-7X aluminum, 20", 36H

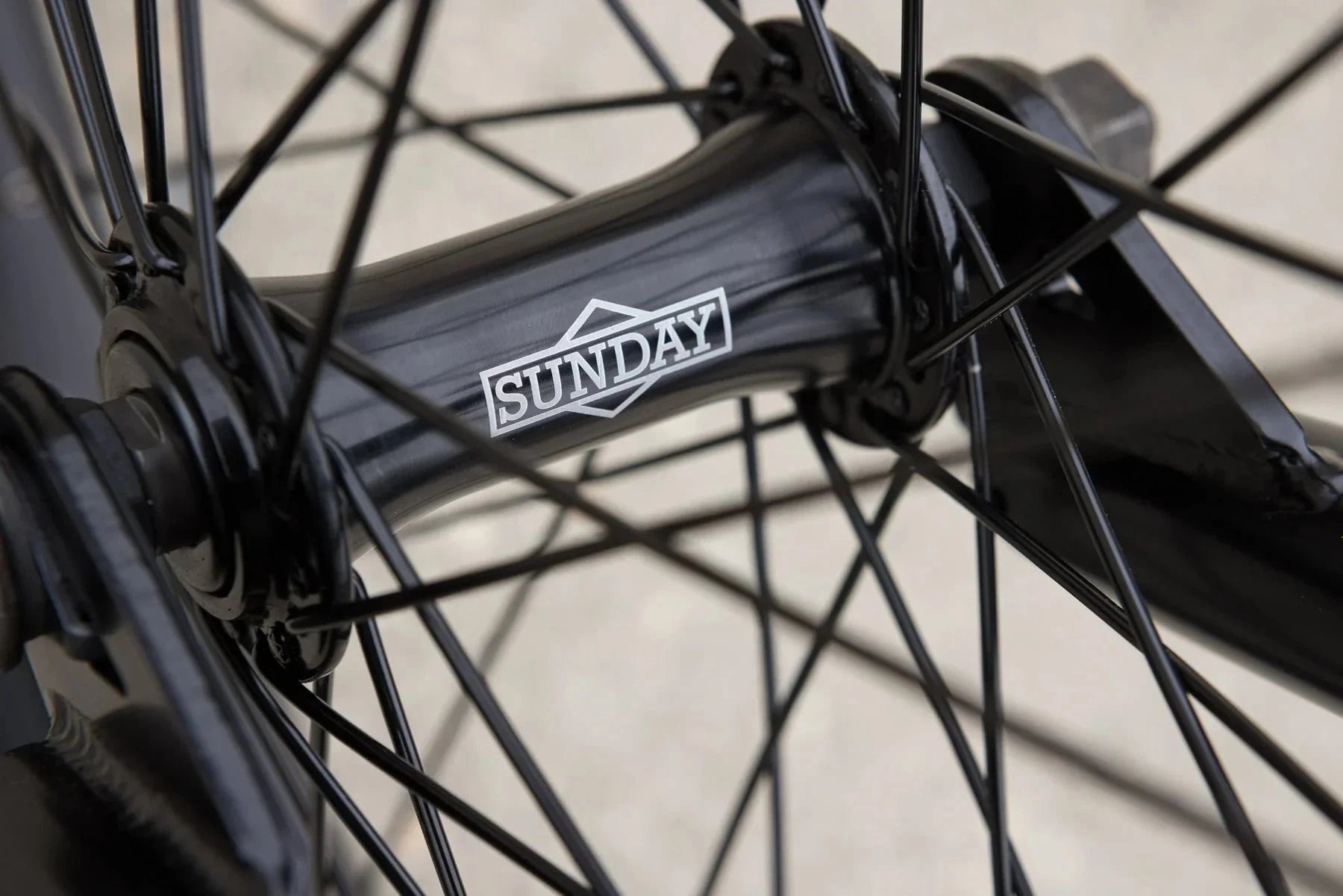

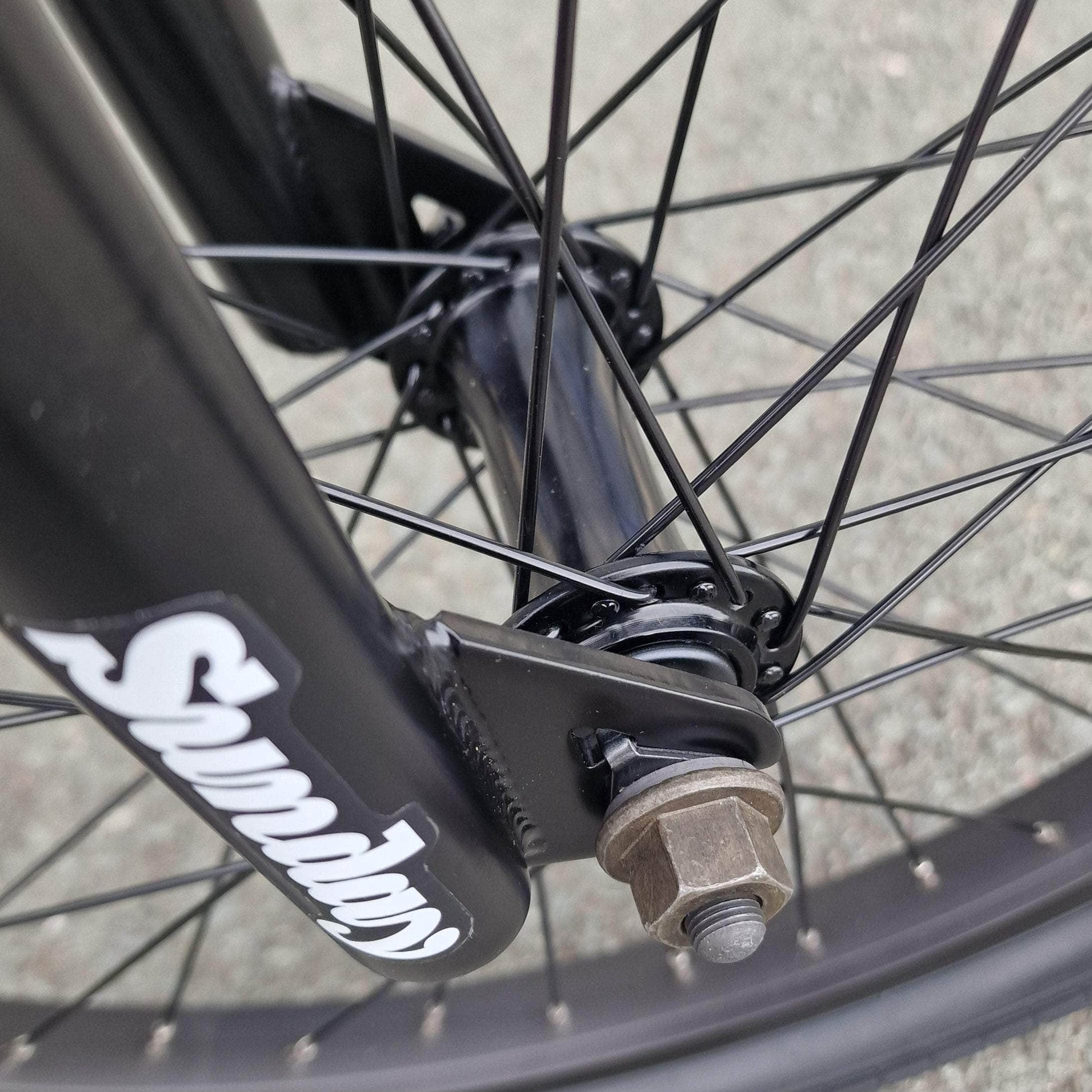

Front Hub: Sunday, 36H, low-flange, loose-ball, 3/8" axle

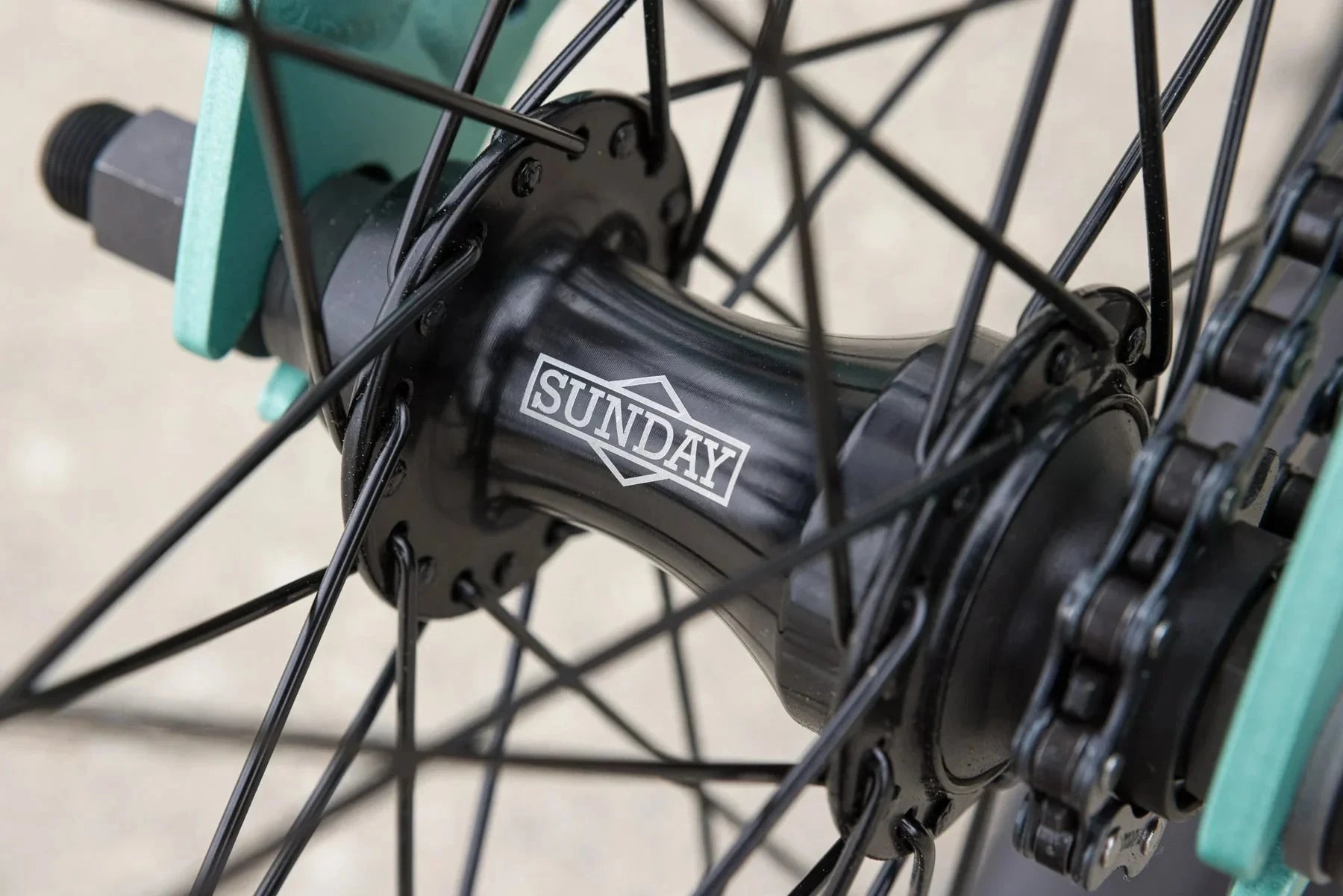

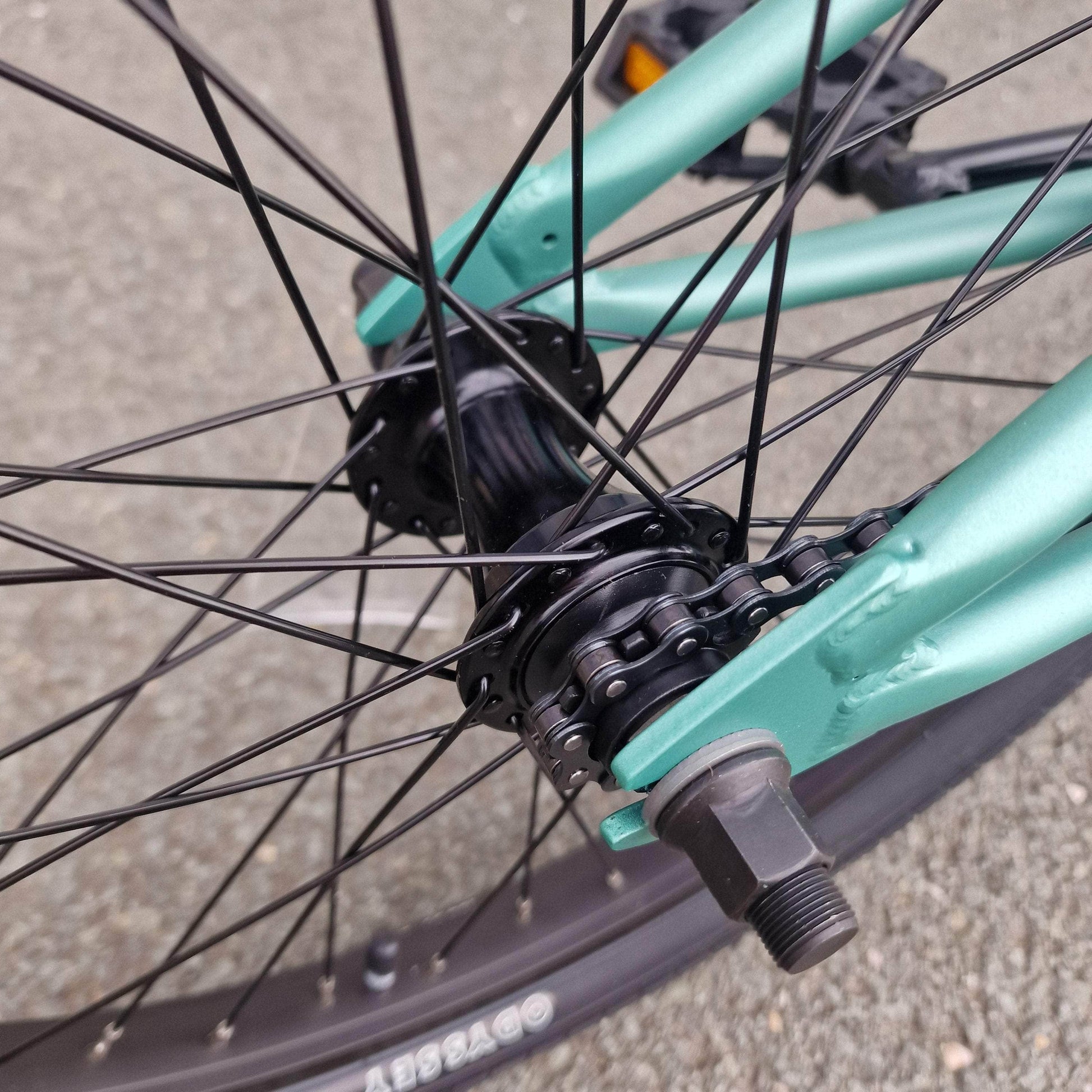

Rear Hub: Sunday, 36H, sealed, 14mm axle w/ 9T Driver
Spokes: 14g steel, black

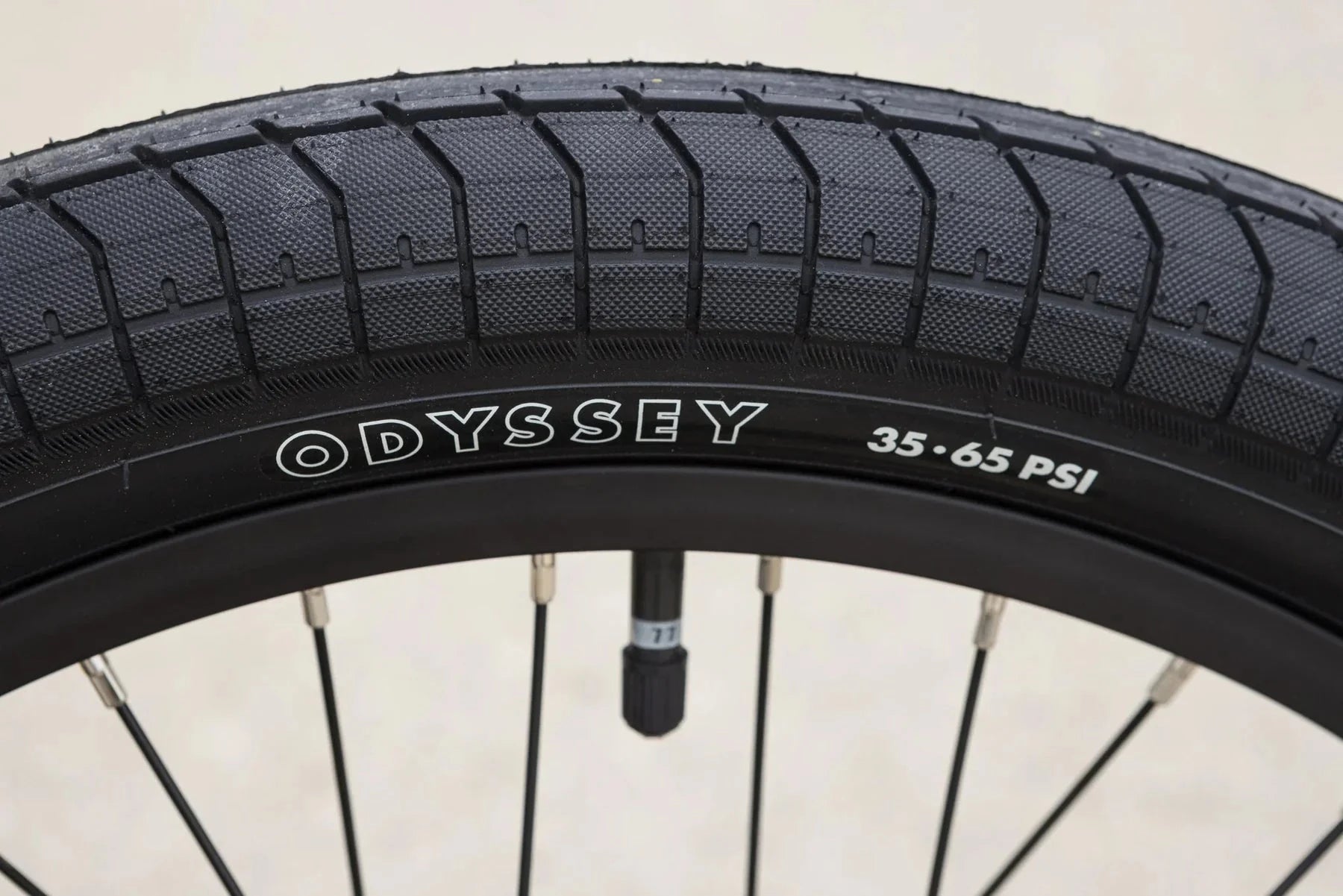

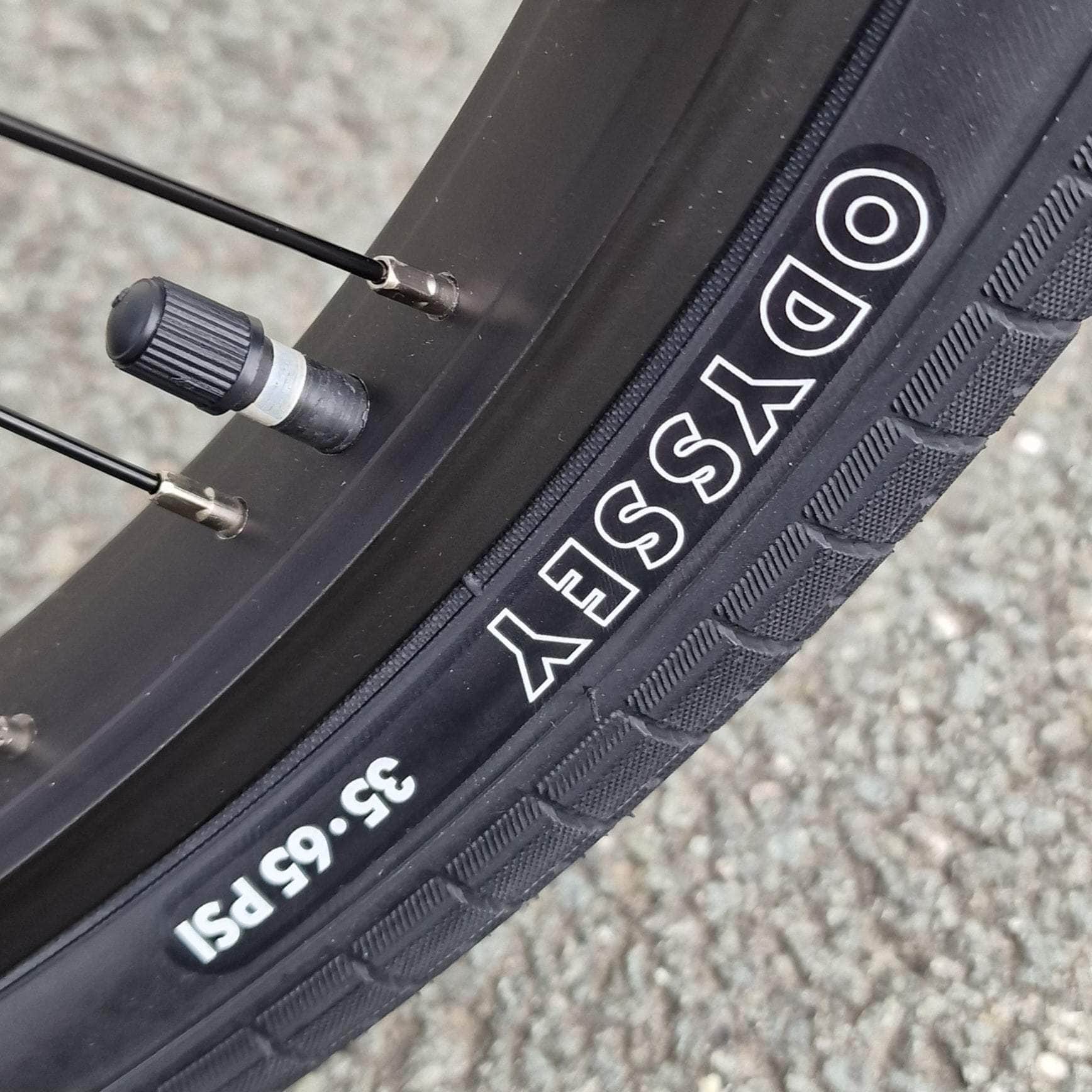

Tires: Odyssey Path Pro OEM, 20 x 2.4" (F & R)
Chain: KMC S1
Approx. Weight: 25.8lbs (with brakes)
FRAME GEOMETRY
Top Tube Length: 20.5"
Head Tube Angle: 75.5°
Seat Tube Angle: 71°
Chainstay Length: 12.7-13”
Bottom Bracket Height: 11.625"
Standover: 7.5"
HANDLEBAR GEOMETRY
Rise: 9"
Width: 28.5"
Backsweep: 12°
Upsweep: 4°
