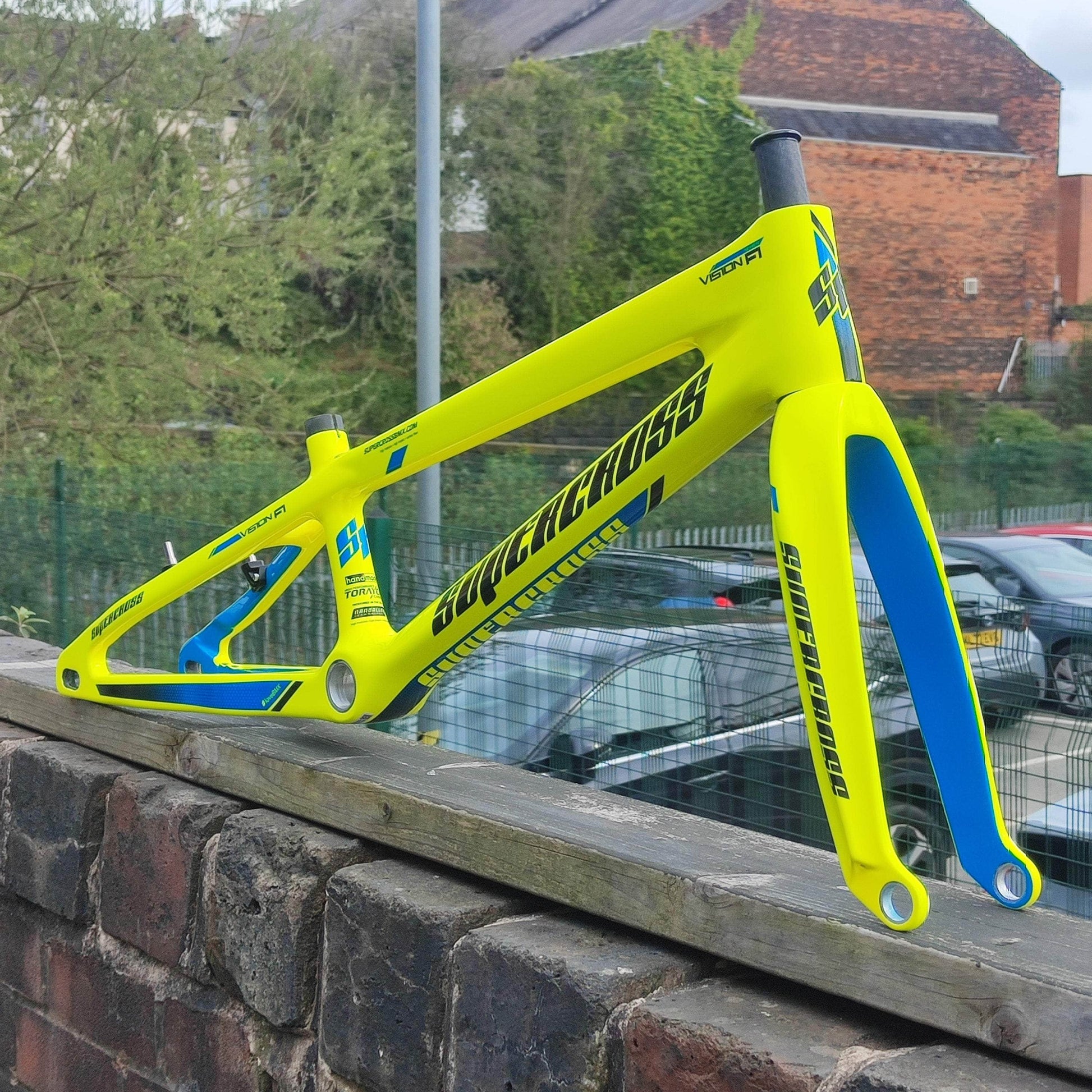

Supercross BMX Vision F1 Carbon Fibre Race Chassis Kit Hi Vis Yellow

PLEASE NOTE: We get airfreight deliveries on a regular basis - see warehouse stock quantity. If you are in the UK these prices INCLUDE import duty, handling fees, VAT, Warranty and Support for our UK customers.

The Vision F1 – The World’s First Monocoque BMX Racing Frame

The Vision F1 is the world’s first Monocoque (one-piece) Carbon Fibre BMX Racing Frame, engineered for top-level riders who demand the ultimate in performance.

Unlike traditional multi-piece designs, the Vision F1’s fully unitized one-piece construction eliminates weak bonding points and heavy lugs, delivering maximum strength, minimal weight, and pure speed. This frame is optimized for performance, yet built with fun in mind.

Advanced Carbon Technology

• Frame: Constructed from premium Toray T1100 KS carbon fiber with Nano Alloy Resin, providing exceptional tensile strength and performance.

• Fork: A special blend of Toray T700S and T800 carbon fiber, also reinforced with Nano Alloy Resin, ensures unmatched durability while keeping weight to a minimum. Together, they create a true high-performance chassis kit.

Versatile Brake & Axle Options
The Vision F1 brings forward-thinking design with flexibility to fit your riding style:

• Compatible with V-Brakes or Disc Brakes (removable mounts included).

• Choice of 10mm or 15mm axles (Pro size and larger feature both options; smaller frames use 10mm only).

What’s Included in Each Frame Kit

• Monocoque Carbon Fiber Frame

• Monocoque Carbon Fiber Fork

• Speedline Sealed Bearing Headset

• Removable V-Brake Mounts

• Removable Disc Brake Mounts

• Flip Chips and Idler System

Mini, Junior, Expert & Expert XL Chassis kits only contain 1 set of FLIP/CHIPs for the 100m axle size. They also use a 10mm front dropout on the fork

Frame Specifications

• Pro Size & Larger Frames: Feature a 1 1/8” to 1.5” Integrated Headtube and, new for 2025, the T47 Bottom Bracket Standard. This upgrade allows larger bearings and spindles while keeping the precision of a threaded BB shell.

• Expert XL & Smaller Frames: Use a Campy Integrated headset with a traditional 68mm European BB shell.
