Monocoque (one-piece) frame and fork construction
- TORAYCA T1100-KS (frame) / TORAYCA T700S Nano Alloy Resin (forks)
- Accepts 120mm Disc Brakes & All V-Braking systems

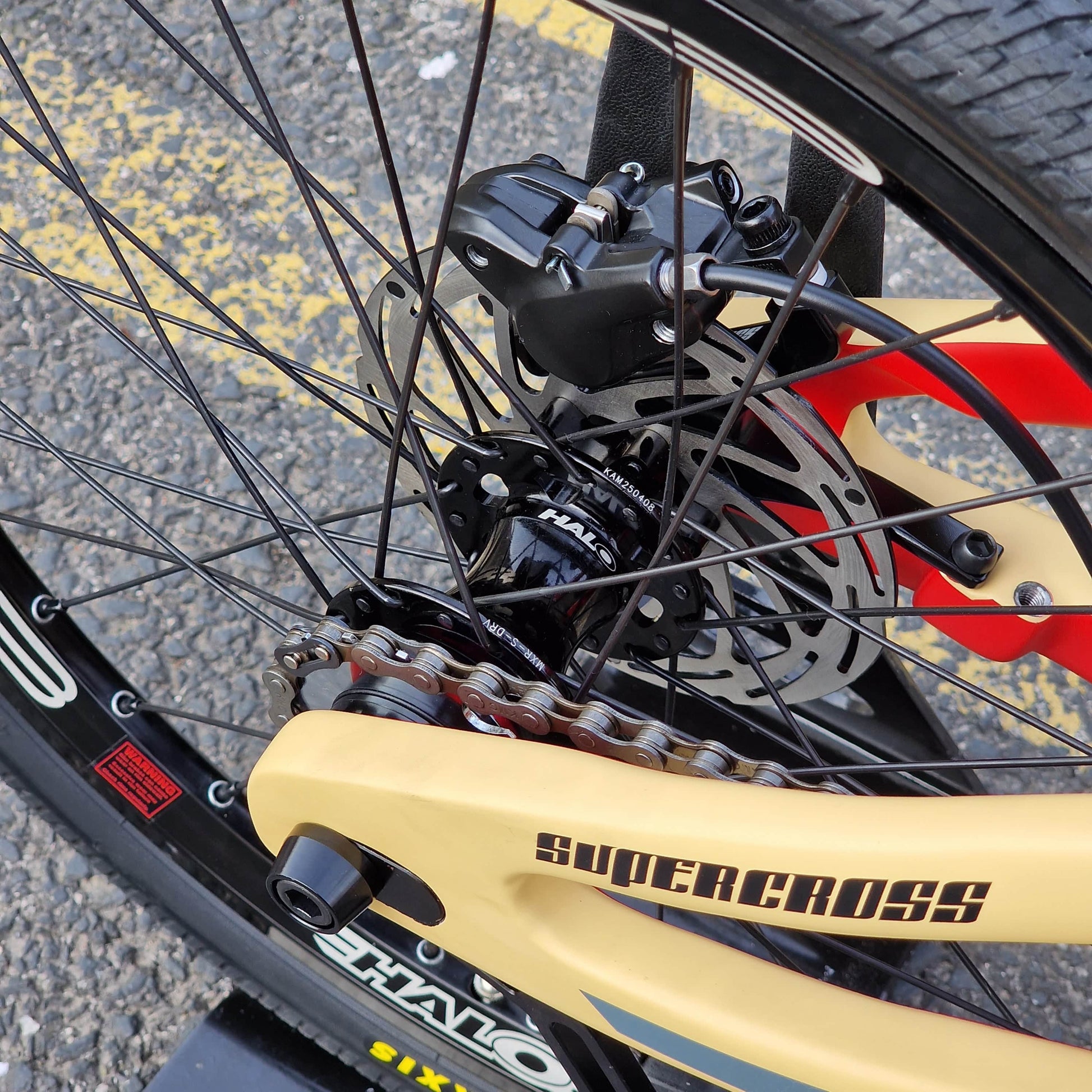

- Fully captive, solid carbon rear dropout featuring the Supercross BMX FLIP/CHIP
- Built-in chain idler/guide
- Traditional Euro BB Shell bottom bracket
- Each Pro Chassis contains:
- 1 x Vision F1 Frame
- 1 x Vision F1 matching fork
- 1 x Steering tube top cap
- 1 x 20mm adapters
- 1 x Hydraulic disc brake adapter kit
- 1 x Mechanical disc brake adapter arm
- 2 x Removable V-Brake mounts
- 2 x FLIP/CHIP’s (15mm & 10mm)
- 1 x Chain Idler/Guide
- 1 x Sealed Bearing Headset
- Mini, Junior, Expert & Expert XL Chassis kits only contain 1 set of FLIP/CHIPs for the 100m axle size. They also use a 10mm front dropout on the fork.
FRAME GEOMETRY
Supercross BMX VISION F1 Carbon Race Frame Geometry Chart

| VISION F1 Carbon | Pro | Pro Plus | Pro XL | Pro XXL | Pro XXXL |
| A. Top Tube Length | 20.5" | 20.75" | 21.25" | 21.75" | 22.25" |
| B. Chainstay Length | 15.0" | 15.0" | 15.2" | 15.2" | 15.2" |
| C. Steertube Angle | 74.5º | 74.5º | 74.5º | 74.5º | 74.5º |
| D. Seat Tube Angle | 70º | 70º | 70º | 70º | 70º |
| E. Bottom Bracket Height | 11.6" | 11.6" | 11.6" | 11.6" | 11.6" |
| Seat Post Size | 27.2mm | 27.2mm | 27.2mm | 27.2mm | 27.2mm |
| Headset Type | 1 1/8" - 1.5" Integrated | 1 1/8" - 1.5" Integrated | 1 1/8" - 1.5" Integrated | 1 1/8" - 1.5" Integrated | 1 1/8" - 1.5" Integrated |
| Wheel Size | 20" X 1.75" | 20" X 1.75" | 20" X 1.75" | 20" X 1.75" | 20" X 1.75" |
