SKU: Product Code: VISF1DEAL04

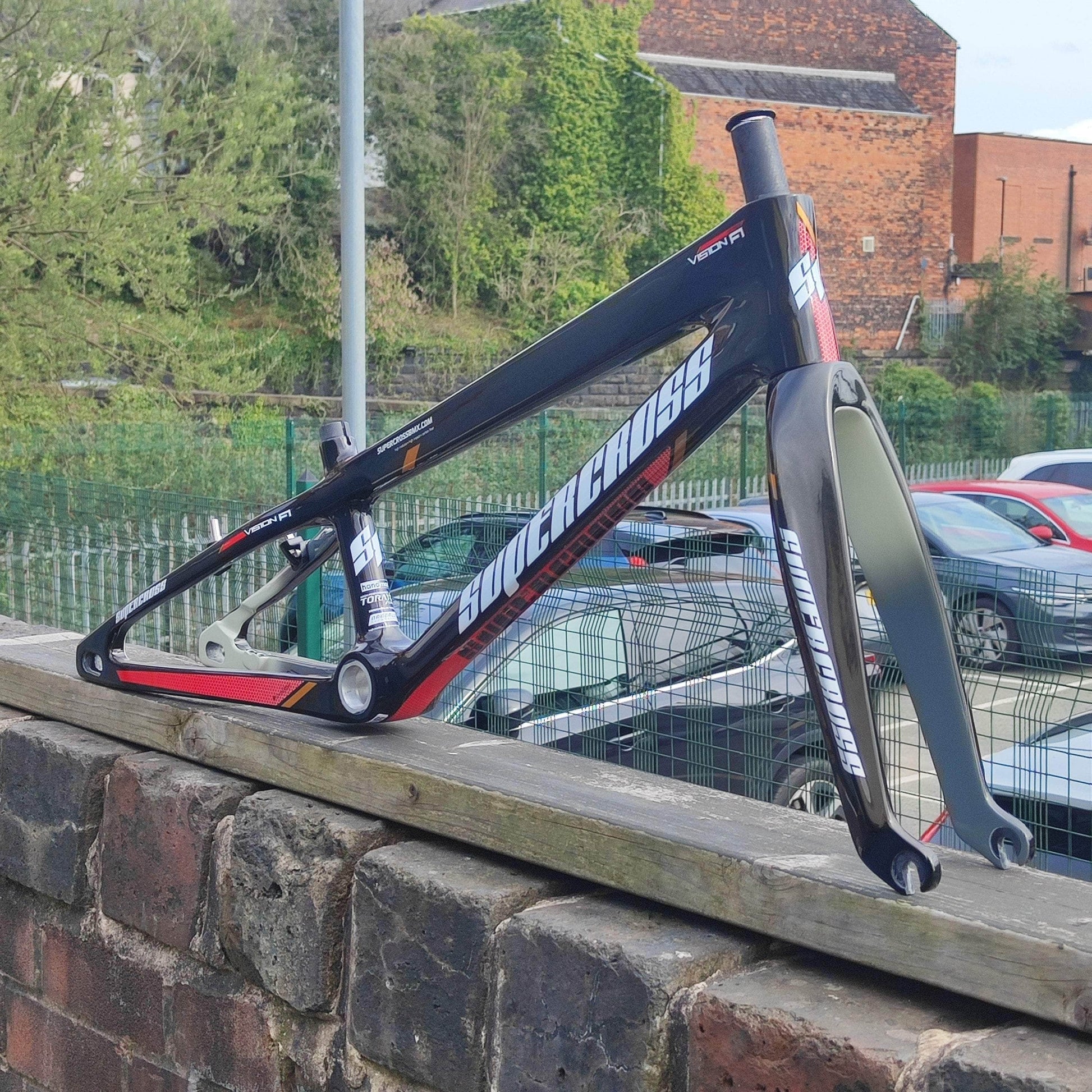

Supercross Vision F1 Carbon Fibre Frame Kit In Stock Special Offer
Supercross Vision F1 Carbon Fibre Frame Kit In Stock Special Offer
Get a great deal on our in stock Vision F1 Frame Kits!
Monocoque (one-piece) frame and fork construction
- TORAYCA T1100-KS (frame) / TORAYCA T700S Nano Alloy Resin (forks)
- Accepts 120mm Disc Brakes & All V-Braking systems
- Fully captive, solid carbon rear dropout featuring the Supercross BMX FLIP/CHIP
- Built-in chain idler/guide
- Traditional Euro BB Shell bottom bracket
- Each Pro Chassis contains:
- 1 x Vision F1 Frame
- 1 x Vision F1 matching fork
- 1 x Steering tube top cap
- 1 x 20mm adapters
- 1 x Hydraulic disc brake adapter kit
- 1 x Mechanical disc brake adapter arm
- 2 x Removable V-Brake mounts
- 2 x FLIP/CHIP’s (15mm & 10mm)
- 1 x Chain Idler/Guide
- 1 x Sealed Bearing Headset
- Mini, Junior, Expert & Expert XL Chassis kits only contain 1 set of FLIP/CHIPs for the 10mm axle size. They also use a 10mm front dropout on the fork.
FRAME GEOMETRY
Supercross BMX VISION F1 Carbon Race Frame Geometry Chart

| VISION F1 Carbon | Pro | Pro Plus | Pro XL | Pro XXL | Pro XXXL |
| A. Top Tube Length | 20.5" | 20.75" | 21.25" | 21.75" | 22.25" |
| B. Chainstay Length | 15.0" | 15.0" | 15.2" | 15.2" | 15.2" |
| C. Steertube Angle | 74.5º | 74.5º | 74.5º | 74.5º | 74.5º |
| D. Seat Tube Angle | 70º | 70º | 70º | 70º | 70º |
| E. Bottom Bracket Height | 11.6" | 11.6" | 11.6" | 11.6" | 11.6" |
| Seat Post Size | 27.2mm | 27.2mm | 27.2mm | 27.2mm | 27.2mm |
| Headset Type | 1 1/8" - 1.5" Integrated | 1 1/8" - 1.5" Integrated | 1 1/8" - 1.5" Integrated | 1 1/8" - 1.5" Integrated | 1 1/8" - 1.5" Integrated |
| Wheel Size | 20" X 1.75" | 20" X 1.75" | 20" X 1.75" | 20" X 1.75" | 20" X 1.75" |
| VISION F1 Carbon | Junior | Expert | Expert XL | Mini |
| A. Top Tube Length | 18.5" | 19.5" | 20" | 17.5 |
| B. Chainstay length | 12.5" | 13.75" | 14.0" | 12.0 |
| C. Steertube Angle | 73.5º | 74º | 74º | 72º |
| D. Seat Tube Angle | 70º | 70º | 70º | 70º |
| E. Bottom Bracket Height | 10.7" | 11.2" | 11.2" | 10.7" |
| Seat Post Size | 22.2mm | 22.2mm | 22.2mm | 22.2mm |
| Headset Type | Campy Integrated | Campy Integrated | Campy Integrated | Campy Integrated |
| Wheel Size | 20" X 1" | 20" X 1 3/8" | 20" X 1 3/8" | 20" X 1 1/8" |
* Specifications will vary depending upon your choice of Fork, Tire and Rim selection. Measurements are based off of a Supercross Fork and equal size (ie. 20X1.75 front and rear) tire combination. Specifications subject to change without notice.All weights are measured on a UPS Calibrated Scale. Weights will vary depending upon the amount of powdercoat and the amount of filler rod used on a particular frame. Polished Frames and Anodized Frames are the lightest as there is no paint. Weights and Specifications are subject to change without notice.
