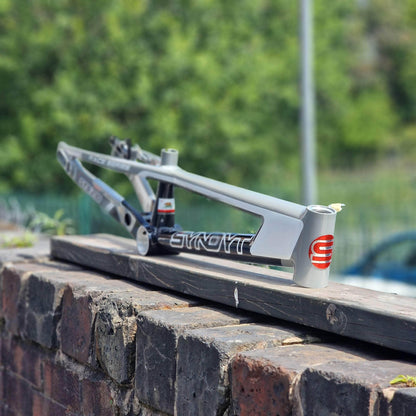

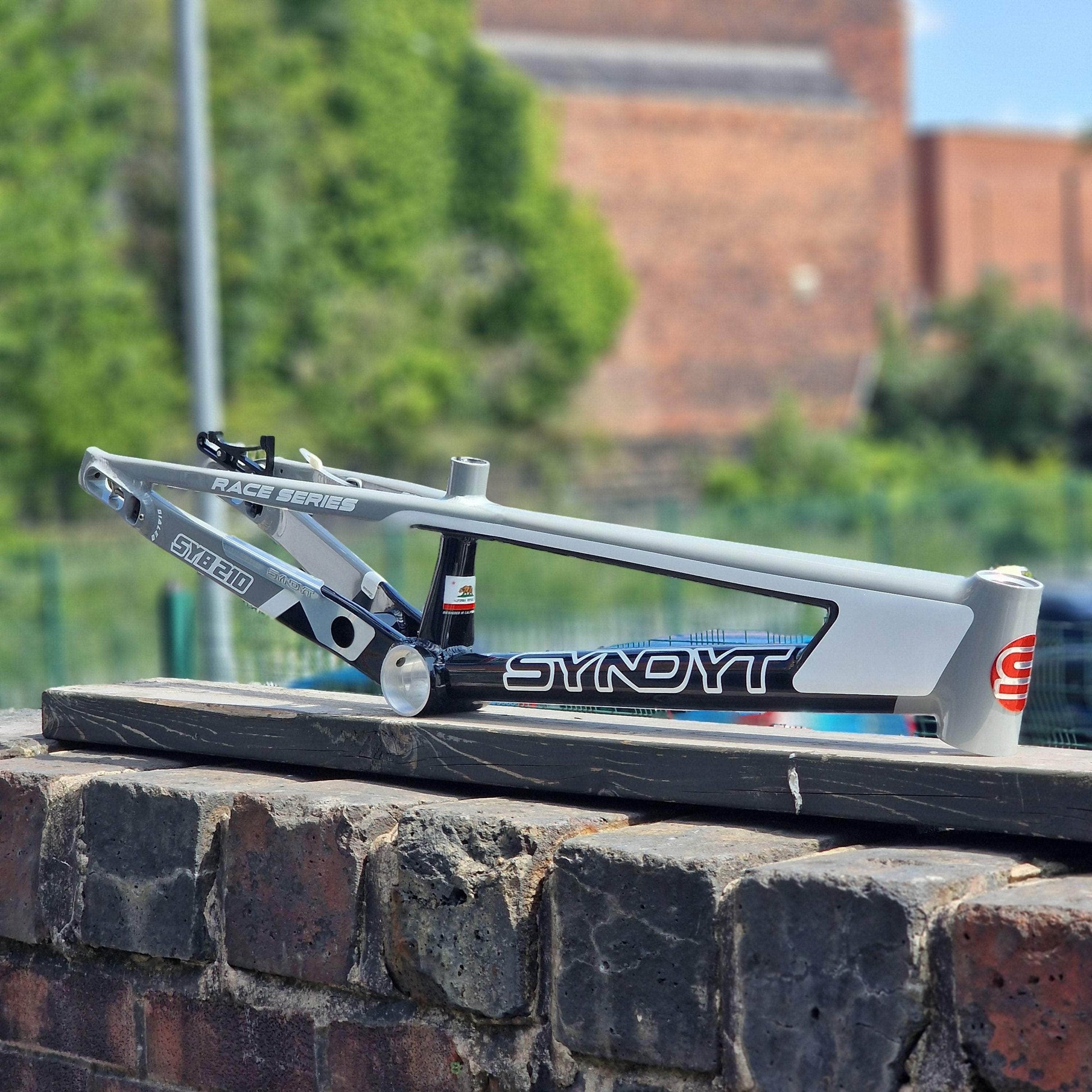

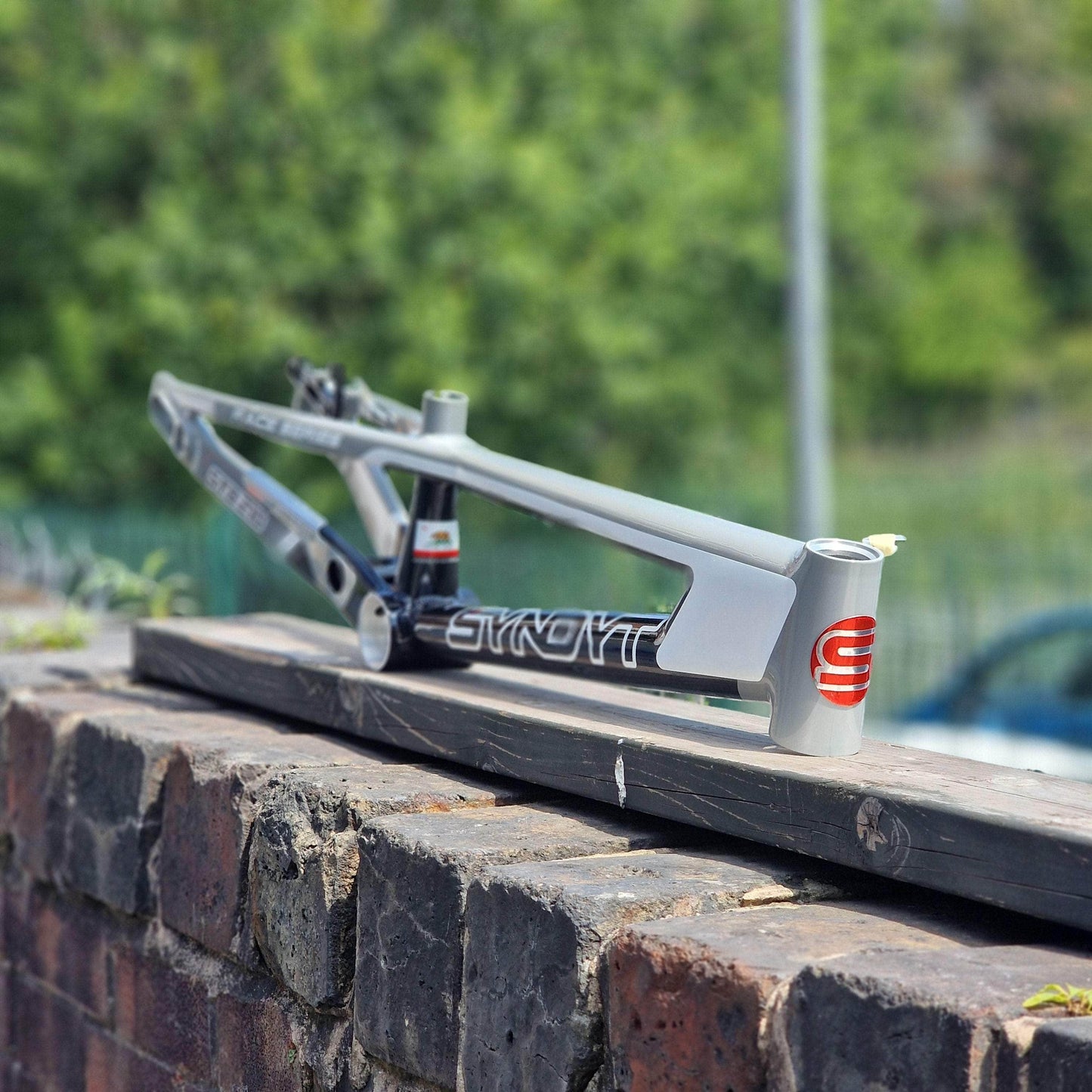

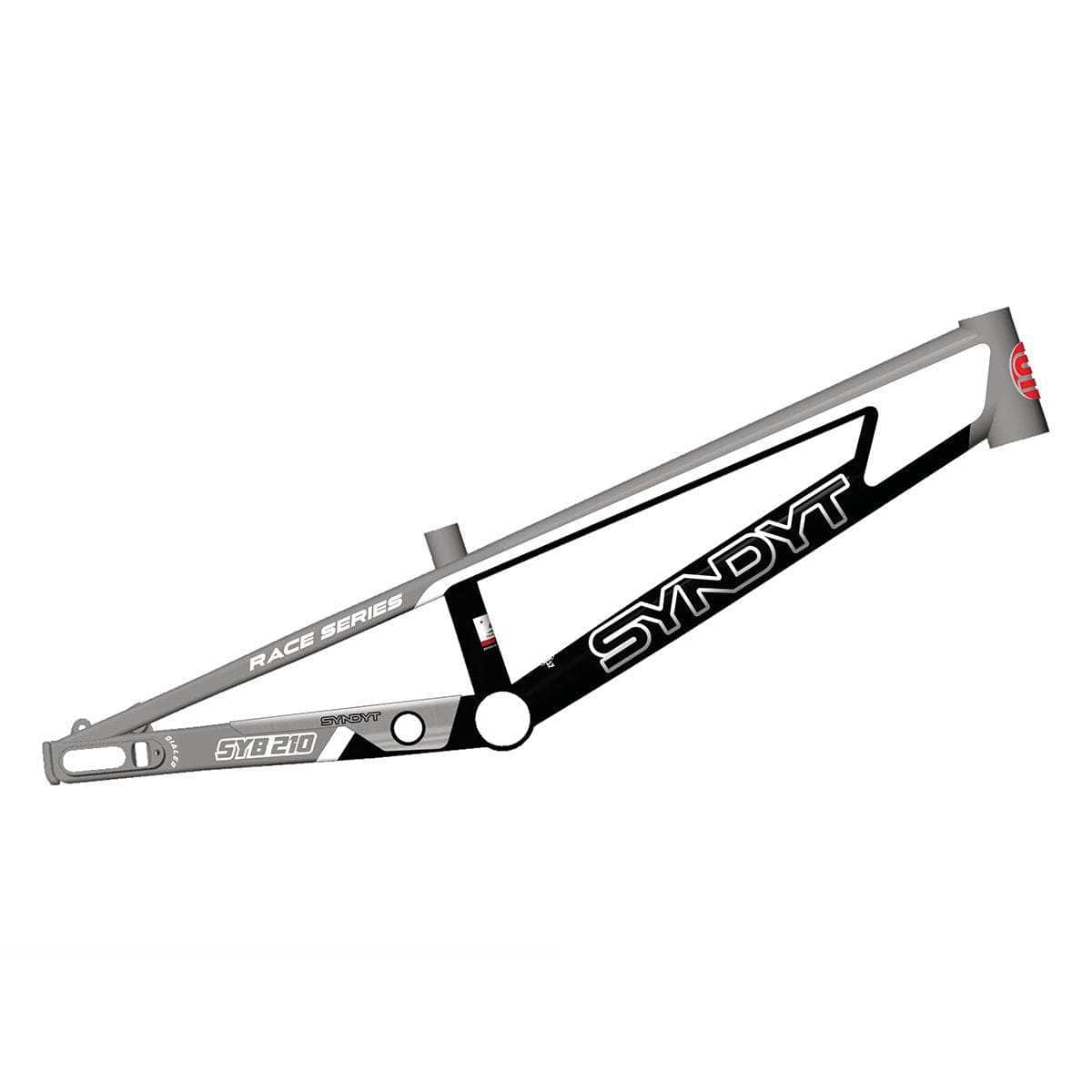

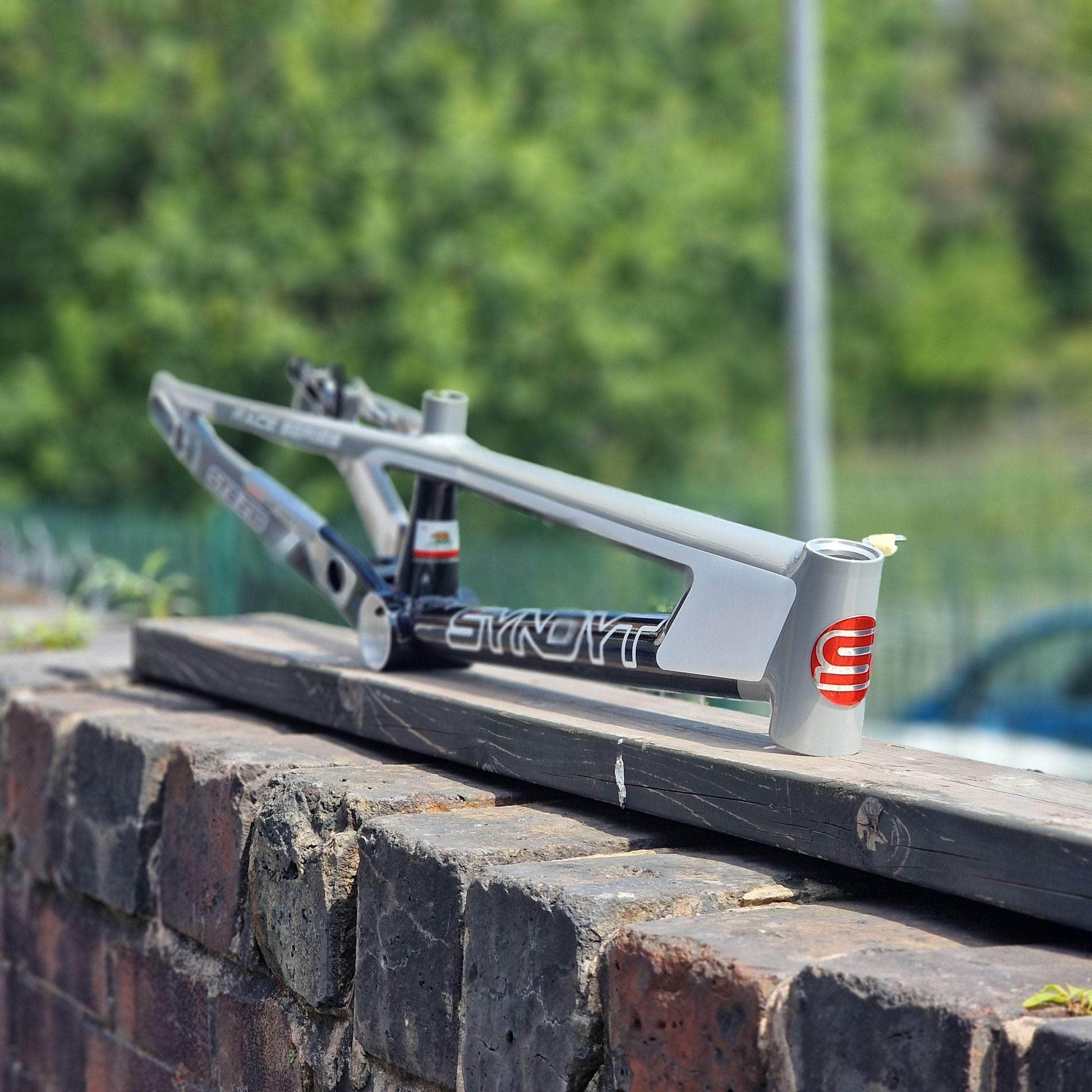

Syndyt SYB Race Frame Grey
Syndyt SYB Race Frame Grey
Due late January 2025, pre-order now.
SYB BMX Racing frames, a revolutionary evolution in BMX frame design. Made from premium hand-crafted 6061 alloy, these frames embody the perfect balance of durability, precision, lightweight and unmatched ride quality. Using cutting-edge hydroforming technology and featuring triple-butted tubing, these frames provide optimum power transfer and responsiveness, enhancing your overall riding experience.
FEATURES:
- 6061-T6 Aluminum Frame
- Triple Butted Hydroformed Tubes

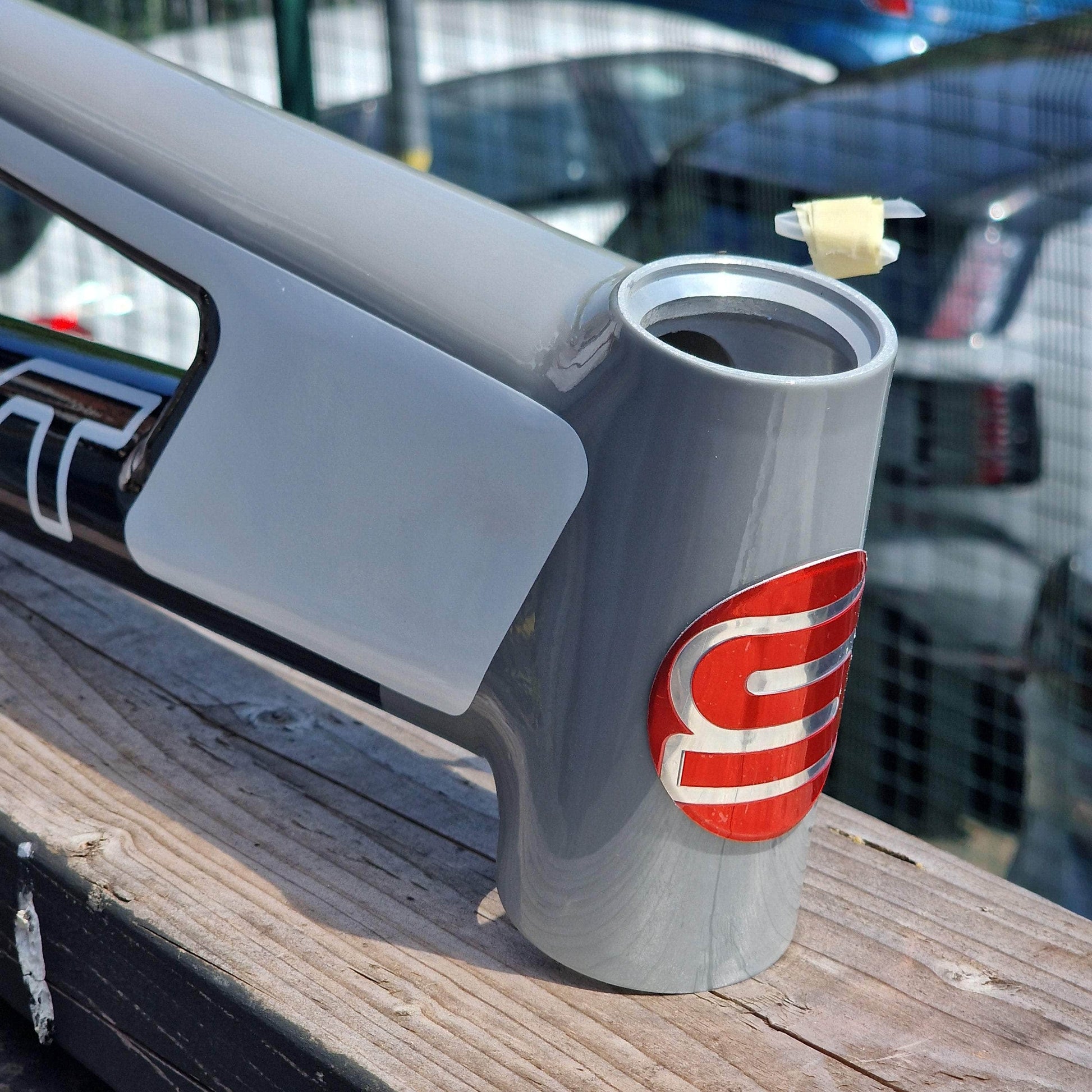

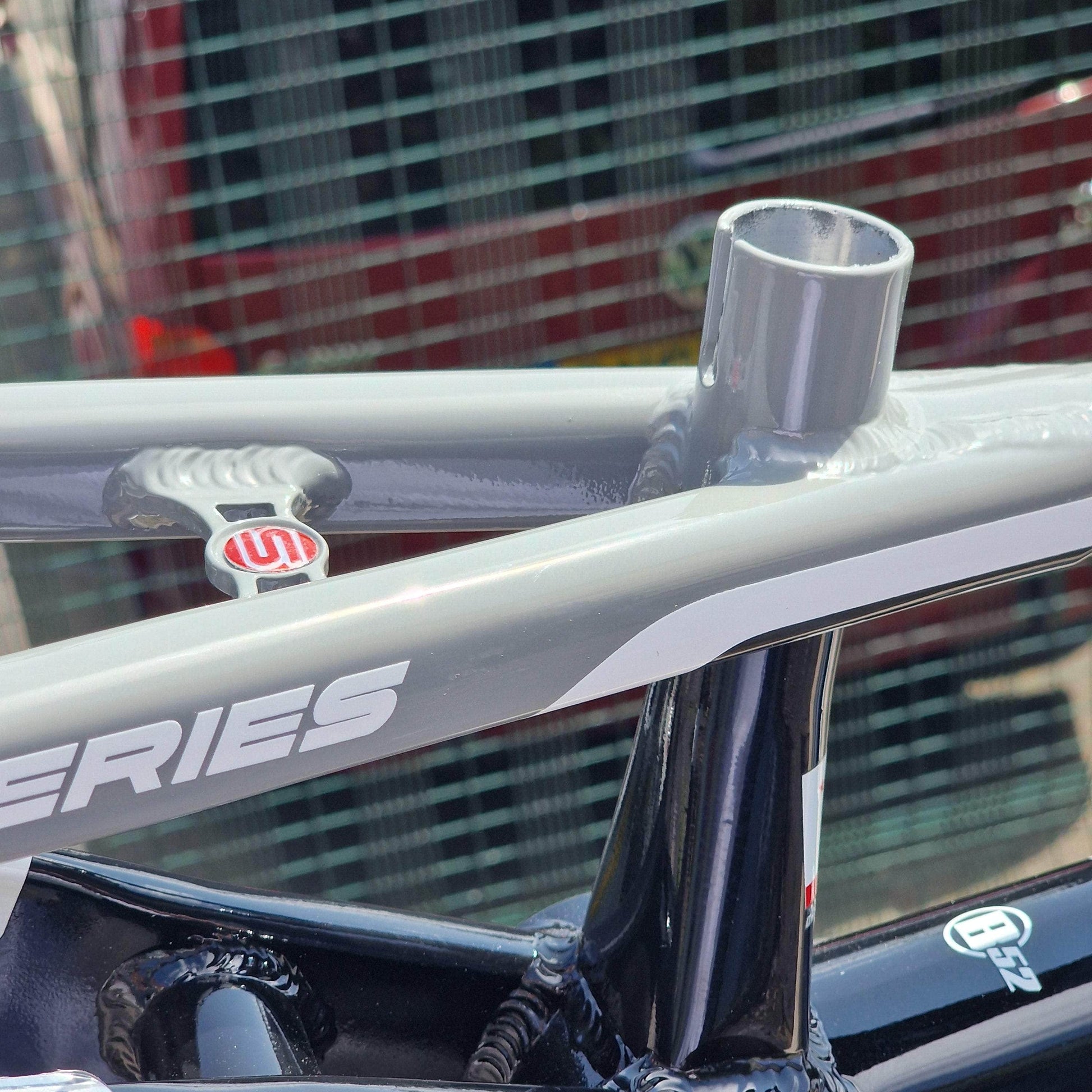

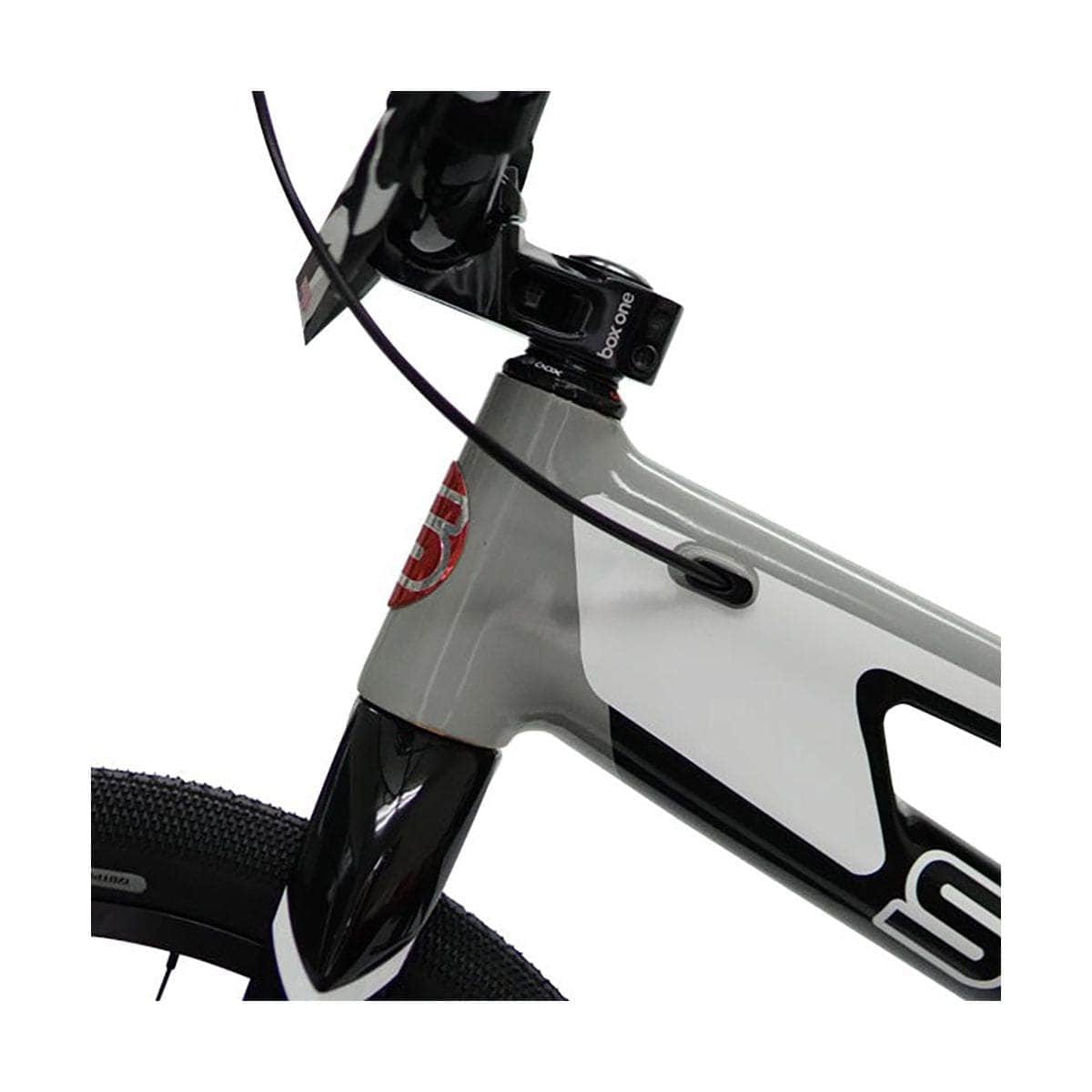

- Tapered Head Tube

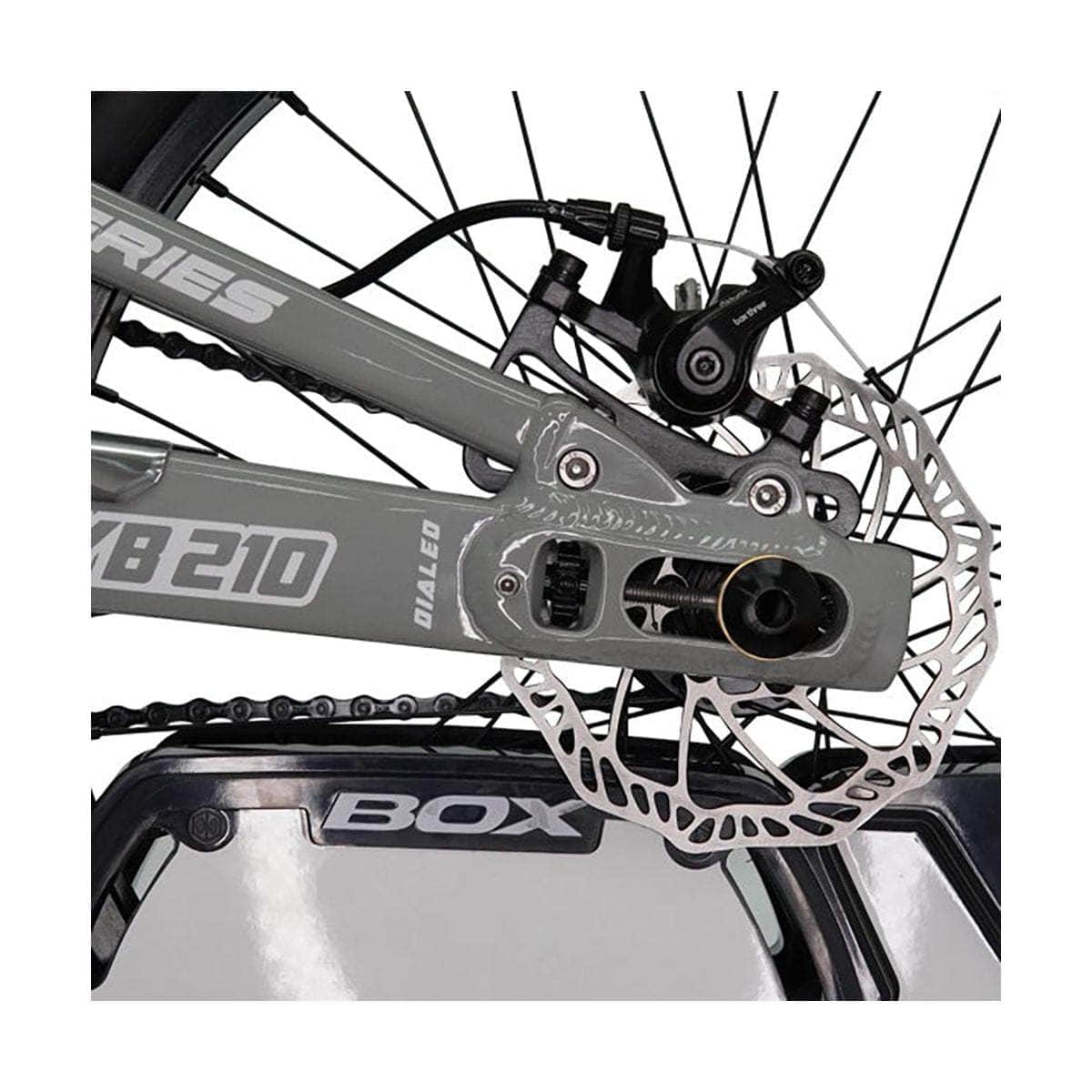

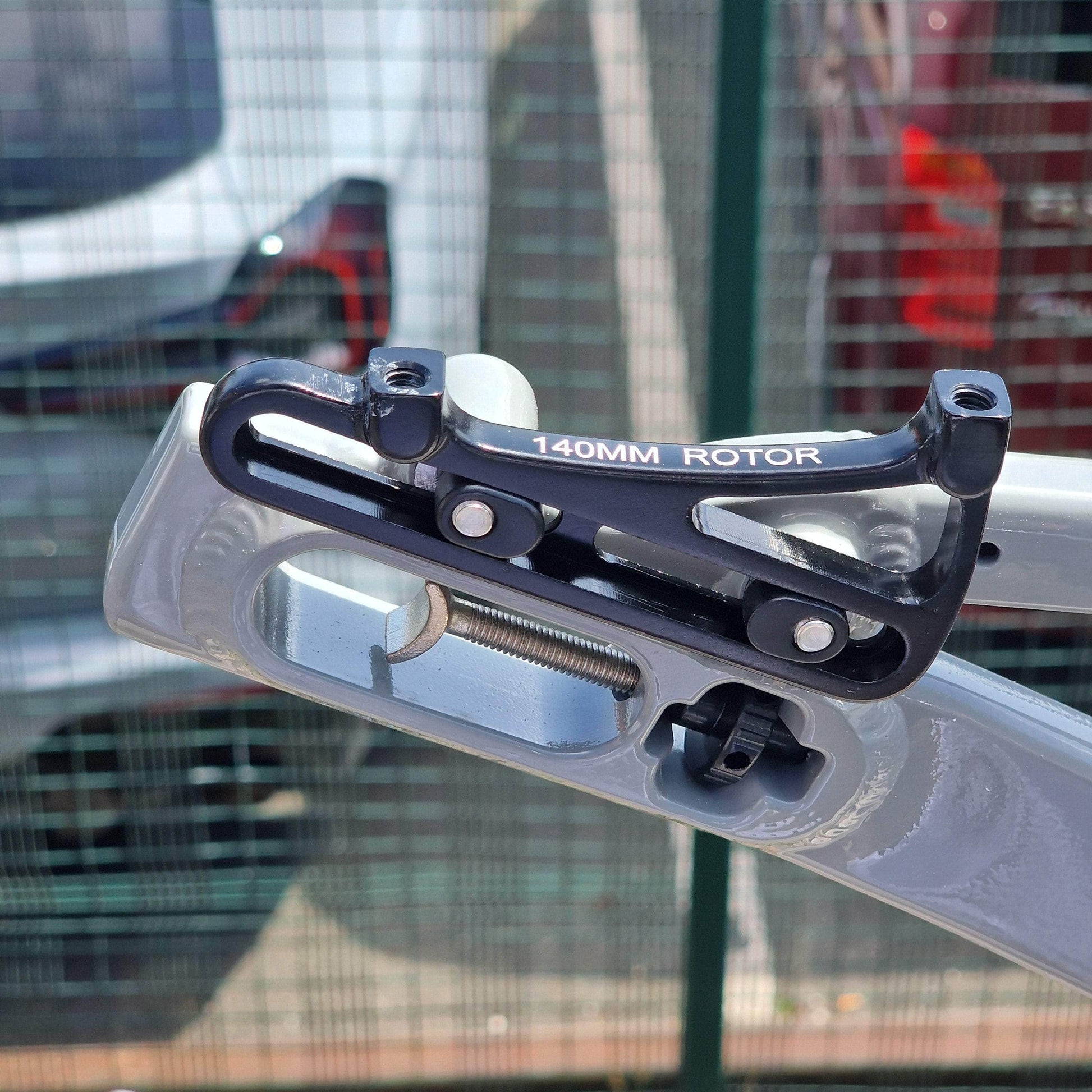

- Integrated Hydraulic Brake Dropouts

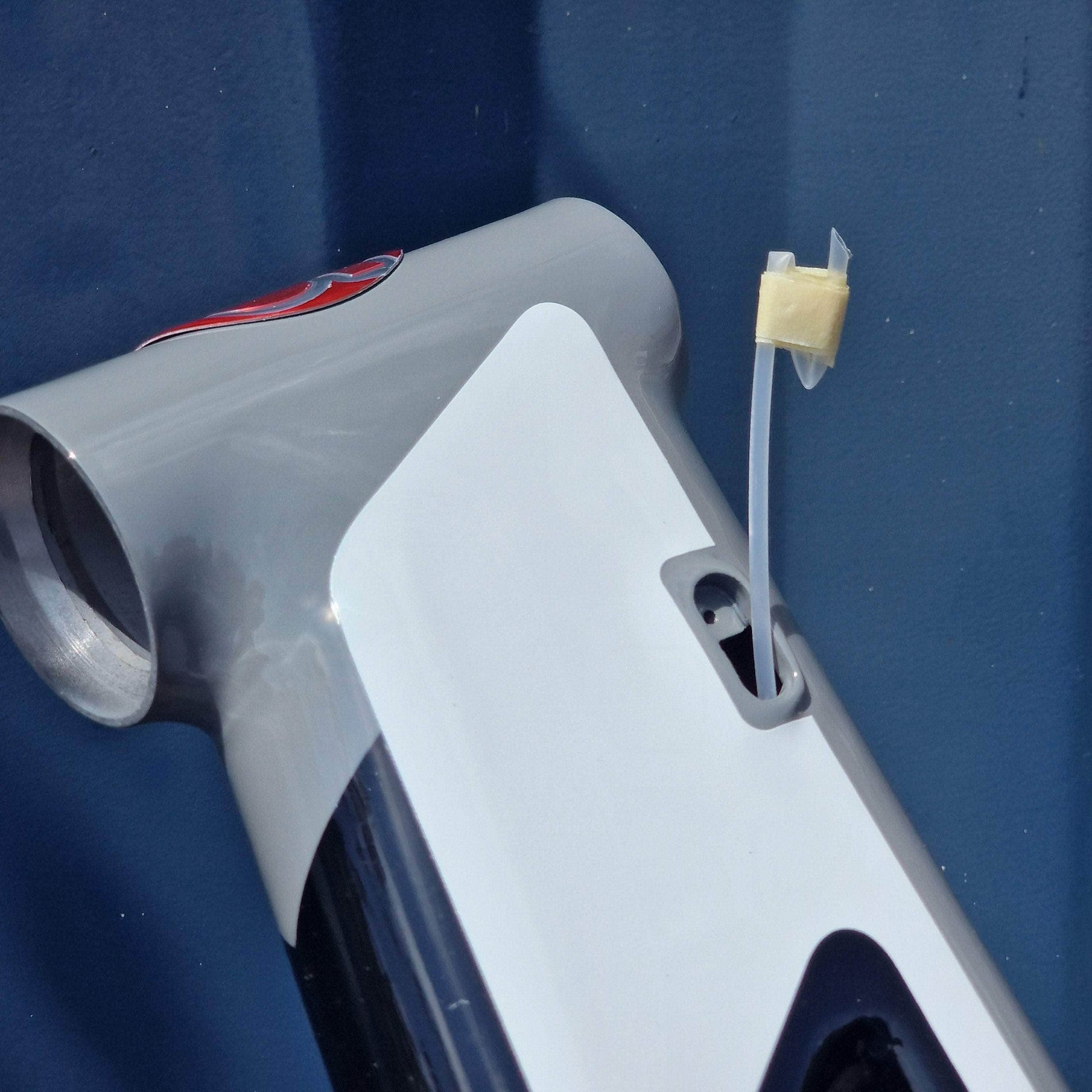

- Internal Cable Routing

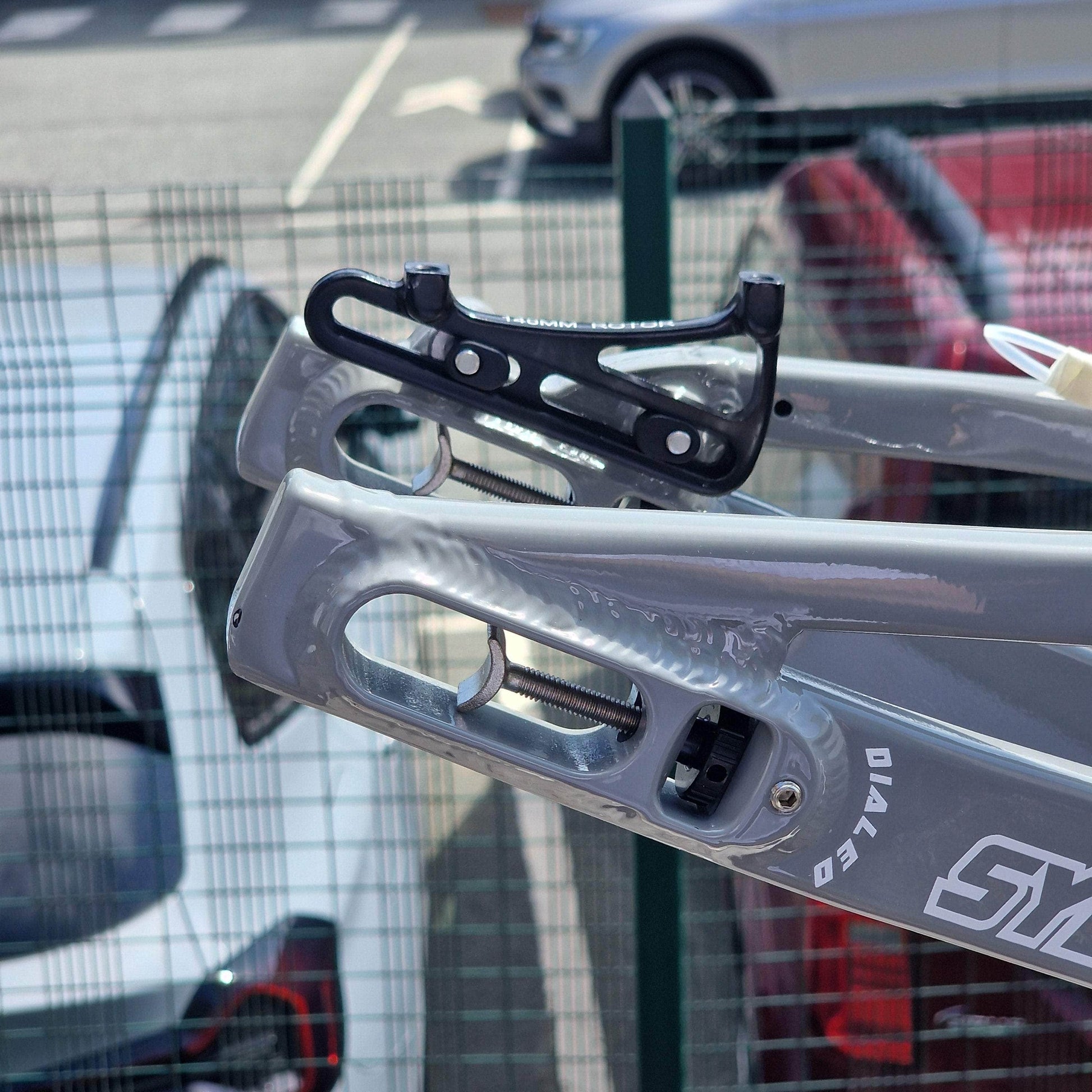

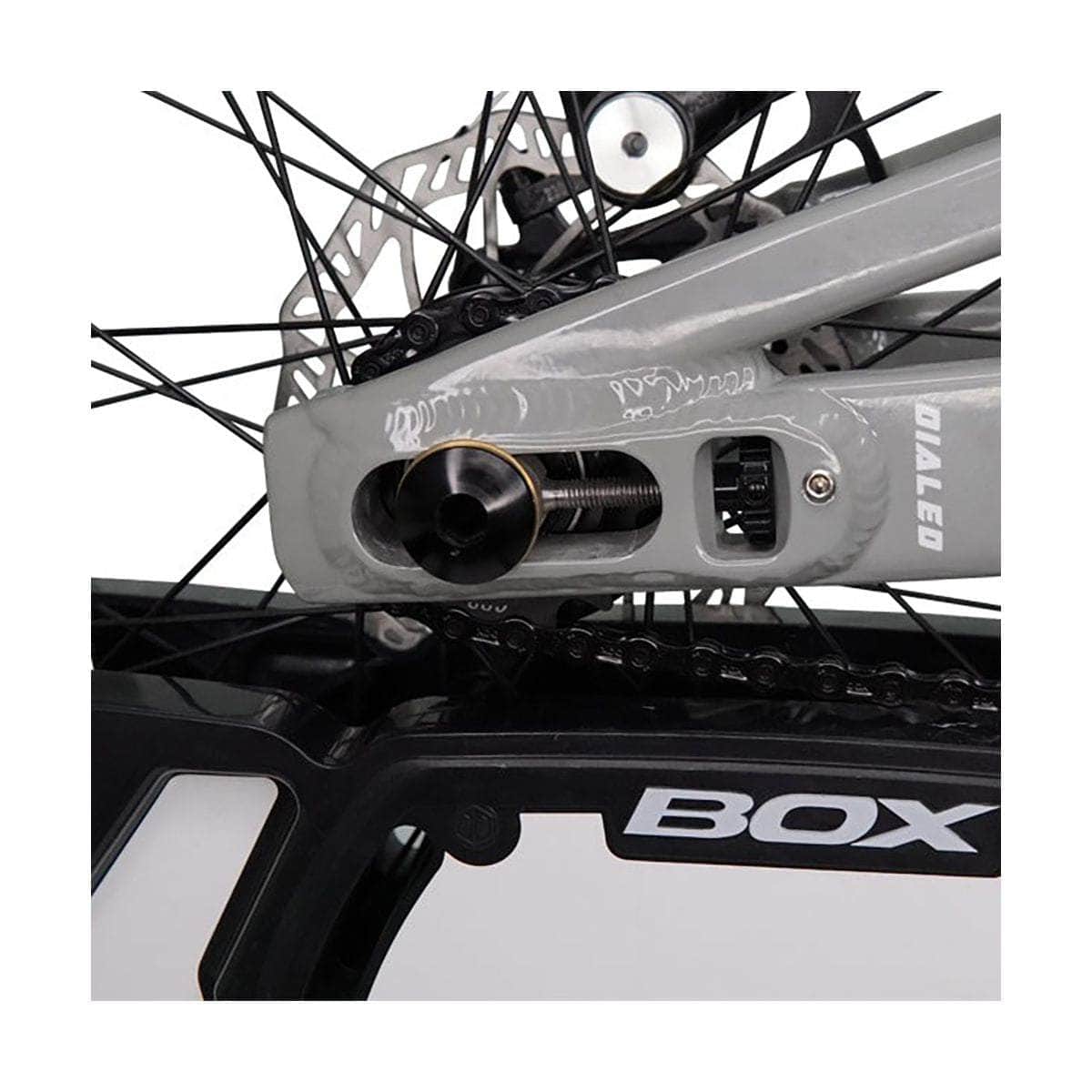

- Integrated Chain Tensioners with 38mm of Adjustment

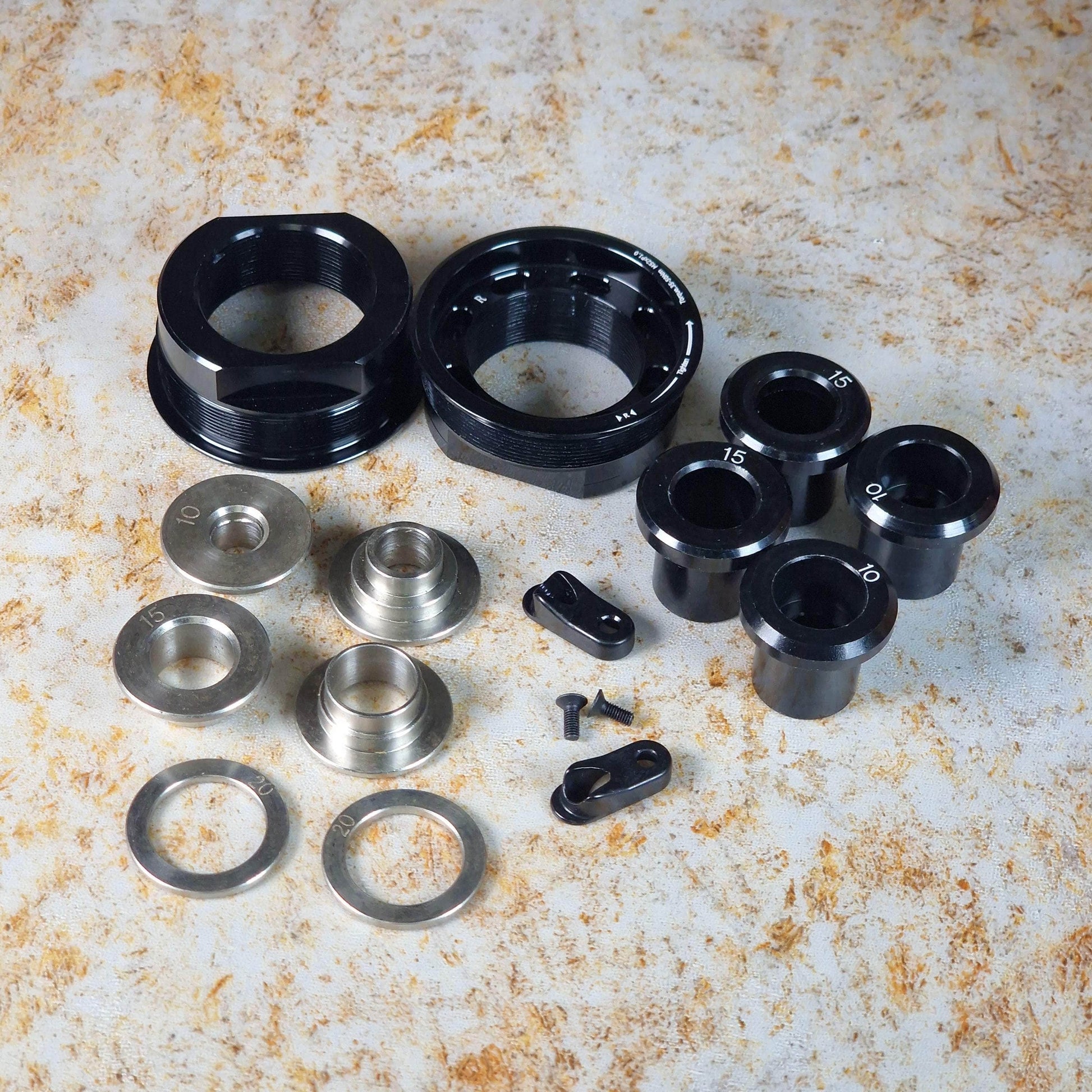

- 10 and 15mm Axle Adapters
- Supplied with Integrated Headset
- Weight : 1.83 Kg (Pro XL)
From Mini to Expert XL
- Integrated Head Tube IS 38/42

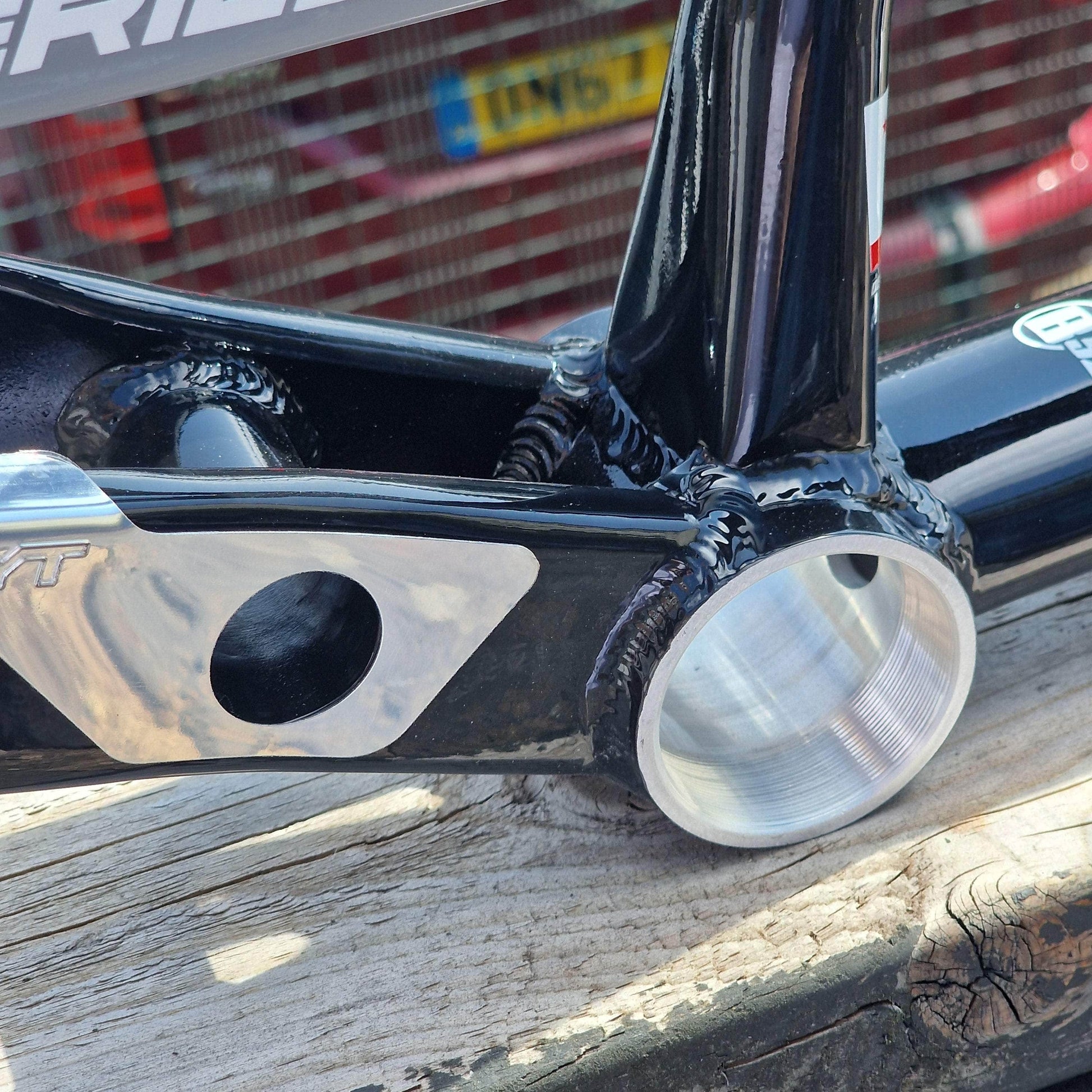

- Euro BSA 68x73mm Bottom Bracket
- Compatible with 22.2mm Seat Post and 25.4mm Clamp
From Pro to Cruiser ProXL
- Integrated Tapered Head Tube IS 42/52

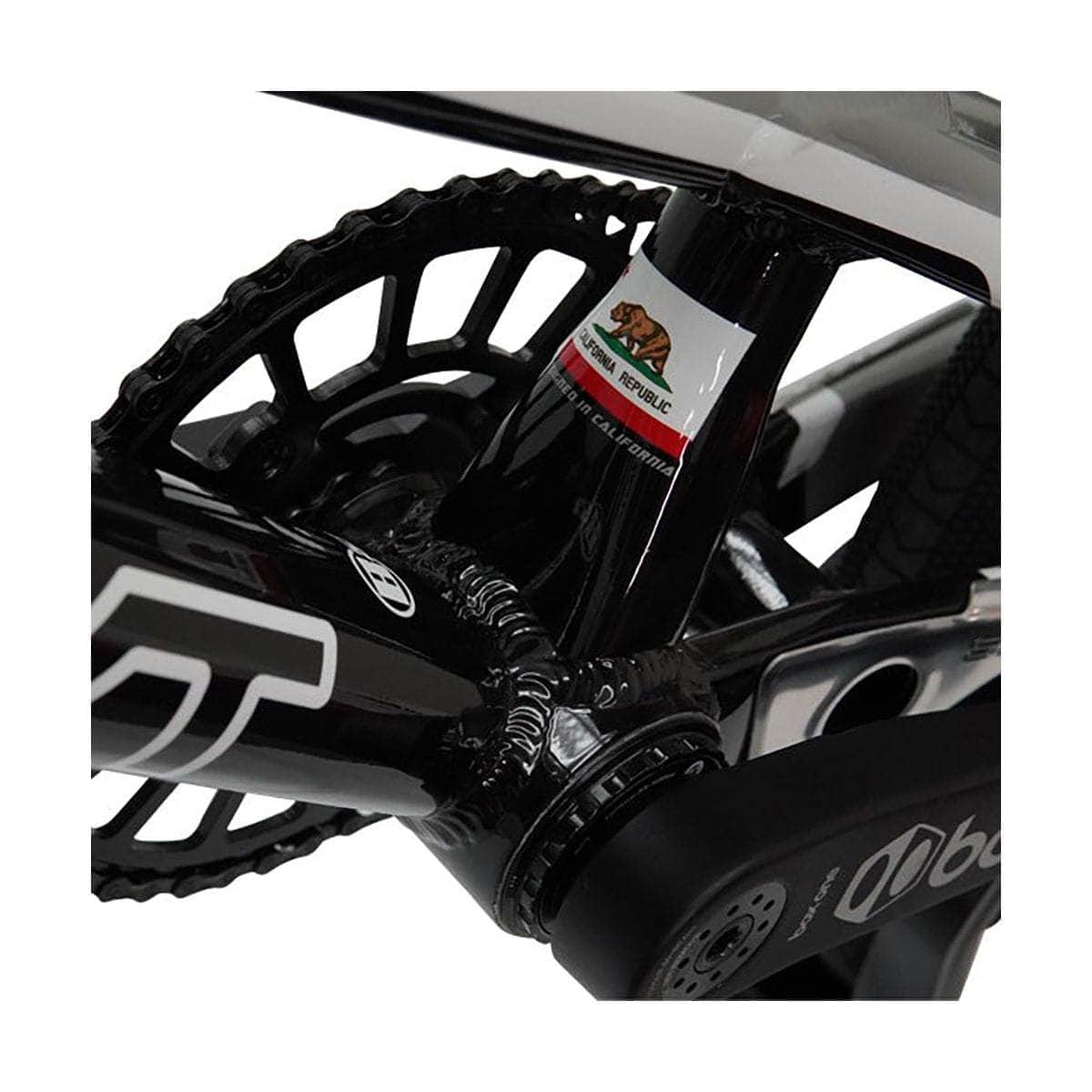

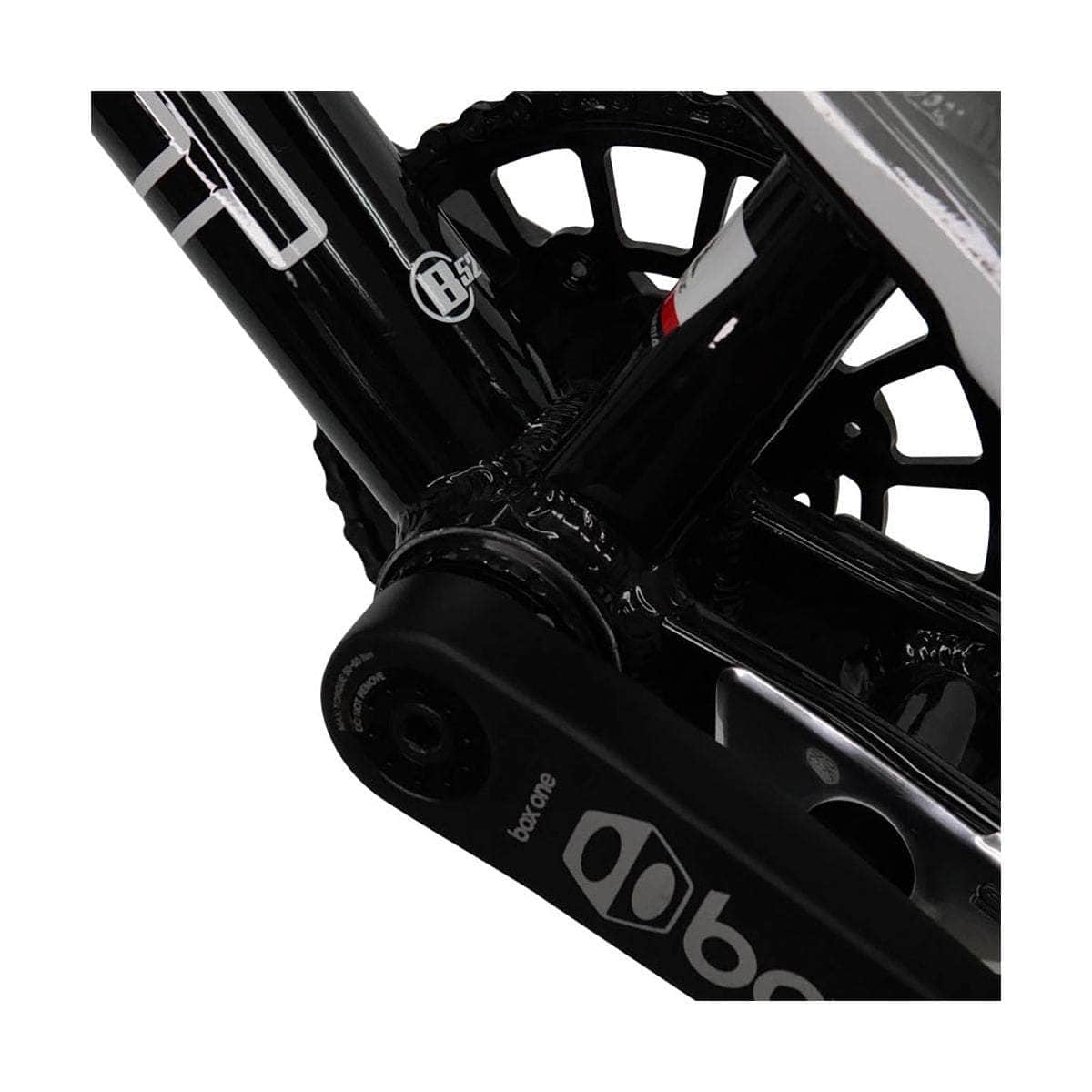

- Press Fit B52 Bottom Bracket
- Compatible with 27.2mm Seat Post and 31.8mm Clamp
COMPATIBILITY:
- Integrated Tapered Headset Top 1" - Bottom 1-1/8’’ (from Mini to Expert XL)
- Integrated Tapered Headset Top 1-1/8’’ - Bottom 1.5’’ (from Pro)
- Euro BSC/BSA bottom bracket (from Mini to Expert XL)
- Press Fit B52 bottom bracket (from Pro)
GEOMETRY :
Size | Top Tube | Rider Area | Chain Stay | BB Height | Seat Tube Angle | Head Tube Angle | Head Tube | Weight |
Mini | 17.5" | 18.98" | 12.25" | 10" | 70° | 73° | 100mm | |
Mini XL | 18" | 19.25" | 12.5" | 10.25" | 70° | 73° | 100mm | NC |
Junior | 18.5" | 19.57" | 12.75" | 10.50" | 71° | 73.5° | 110mm | NC |
Junior XL | 19" | 19.92" | 13" | 10.75" | 71° | 73.5° | 110mm | NC |
Expert | 19.5" | 20.35" | 13.25" | 11" | 72° | 73.5° | 115mm | NC |
Expert XL | 20" | 20.75" | 14" | 11.25" | 72° | 74° | 120mm | NC |
Pro | 20.5" | 21.18" | 14.5" | 11.25" | 72° | 74° | 120mm | 1.8 Kg |
Pro XL | 21" | 21.61" | 14.8" | 11.25" | 72° | 74° | 120mm | 1.83 Kg |
Pro XXL | 21.5" | 22.09" | 15" | 11.25" | 72° | 74° | 120mm | 1.85 Kg |
Pro XXXL | 22" | 22.52" | 15.2" | 11.25" | 72° | 74° | 120mm | 1.88 Kg |
Pro XXXXL | 22.5" | 22.95" | 15.5" | 11.25" | 72° | 74° | 120mm | 1.9 Kg |
Cruiser Junior 24 | 19" | 20.91" | 14" | 11" | 69° | 72.5° | 115mm | NC |
Cruiser Pro 24 | 20.5" | 22.4" | 15.25" | 11.5" | 70° | 73° | 120mm | 1.92 Kg |
Cruiser Pro XL 24 | 22" | 23.58" | 15.5" | 11.5" | 70° | 73° | 120mm | 1.95 Kg |
