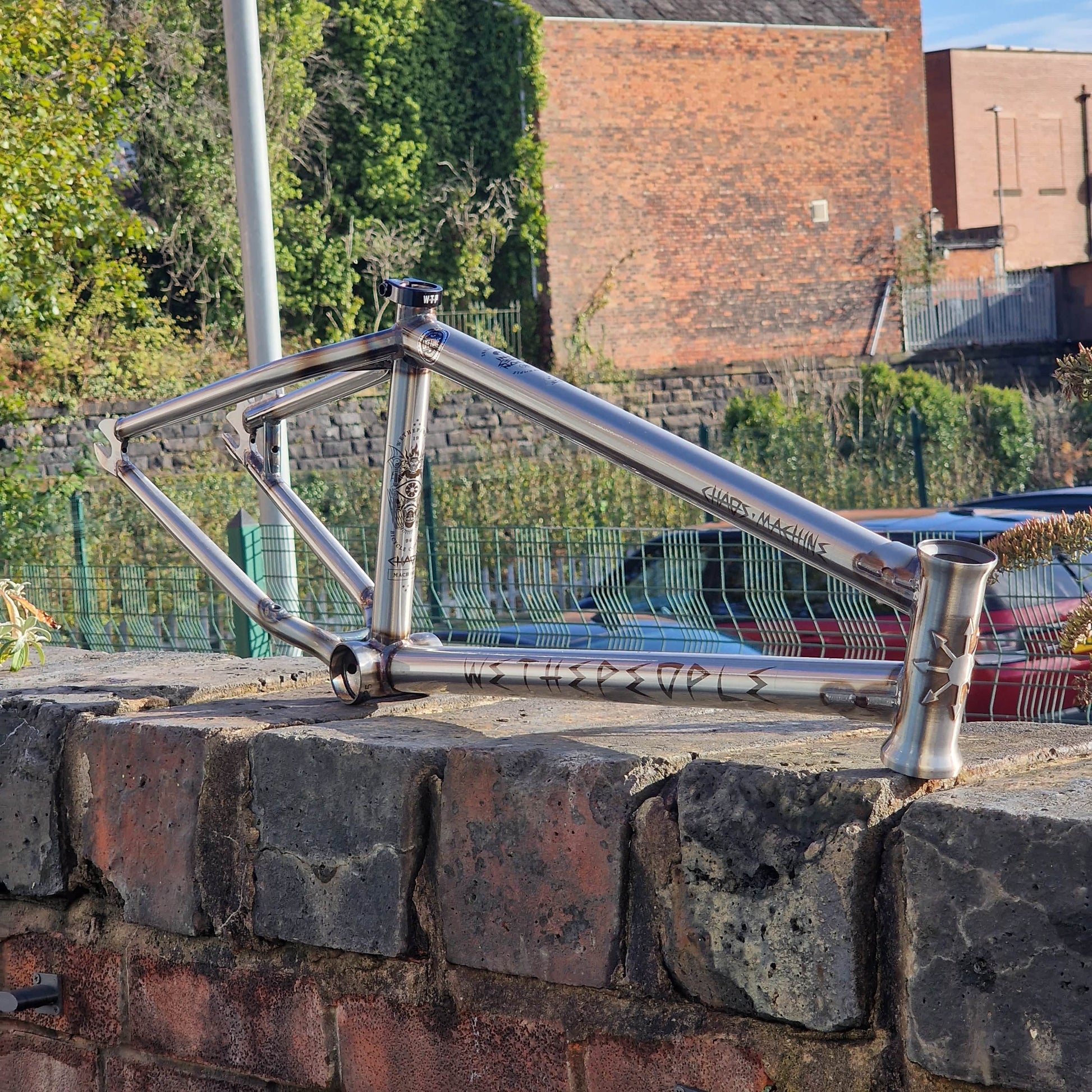

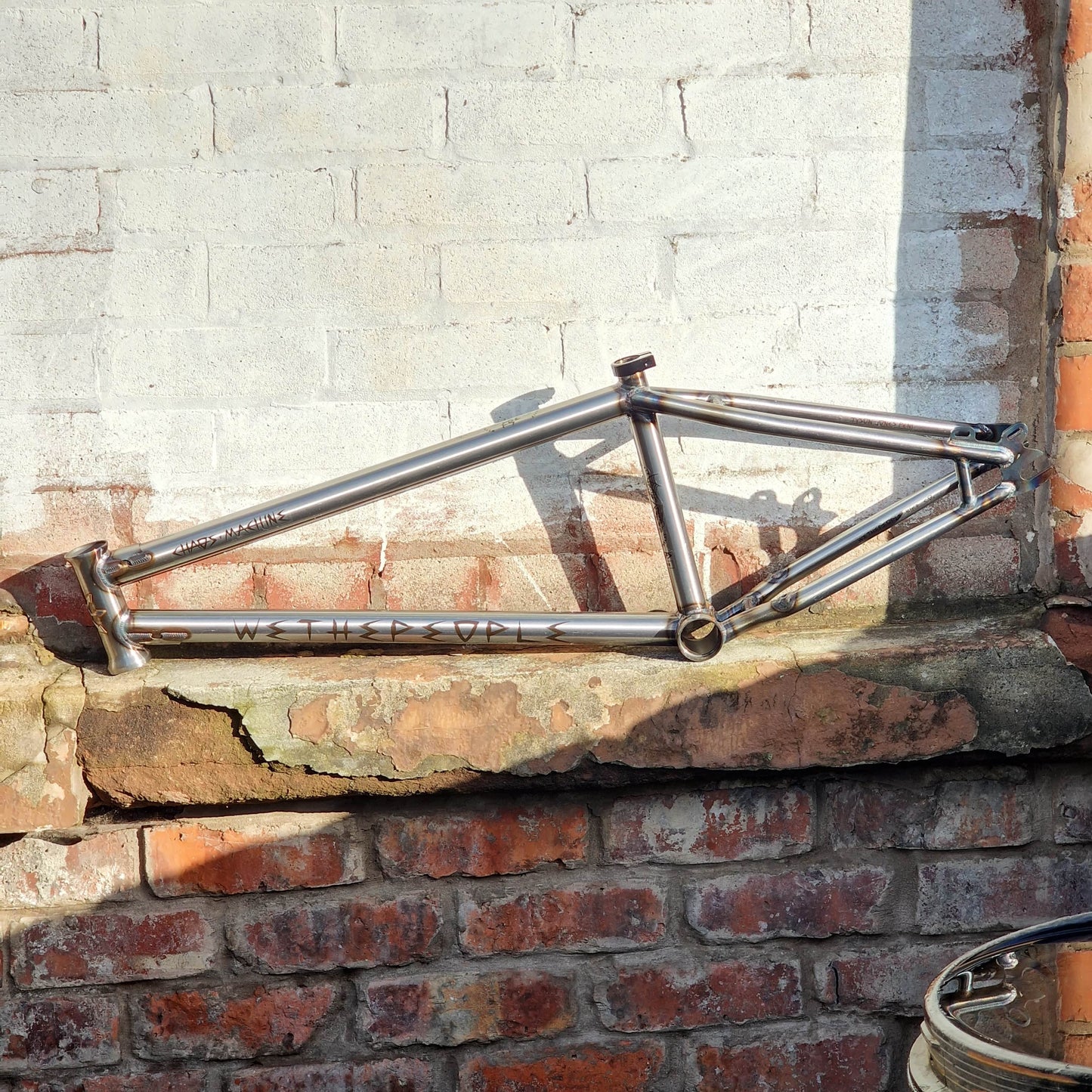

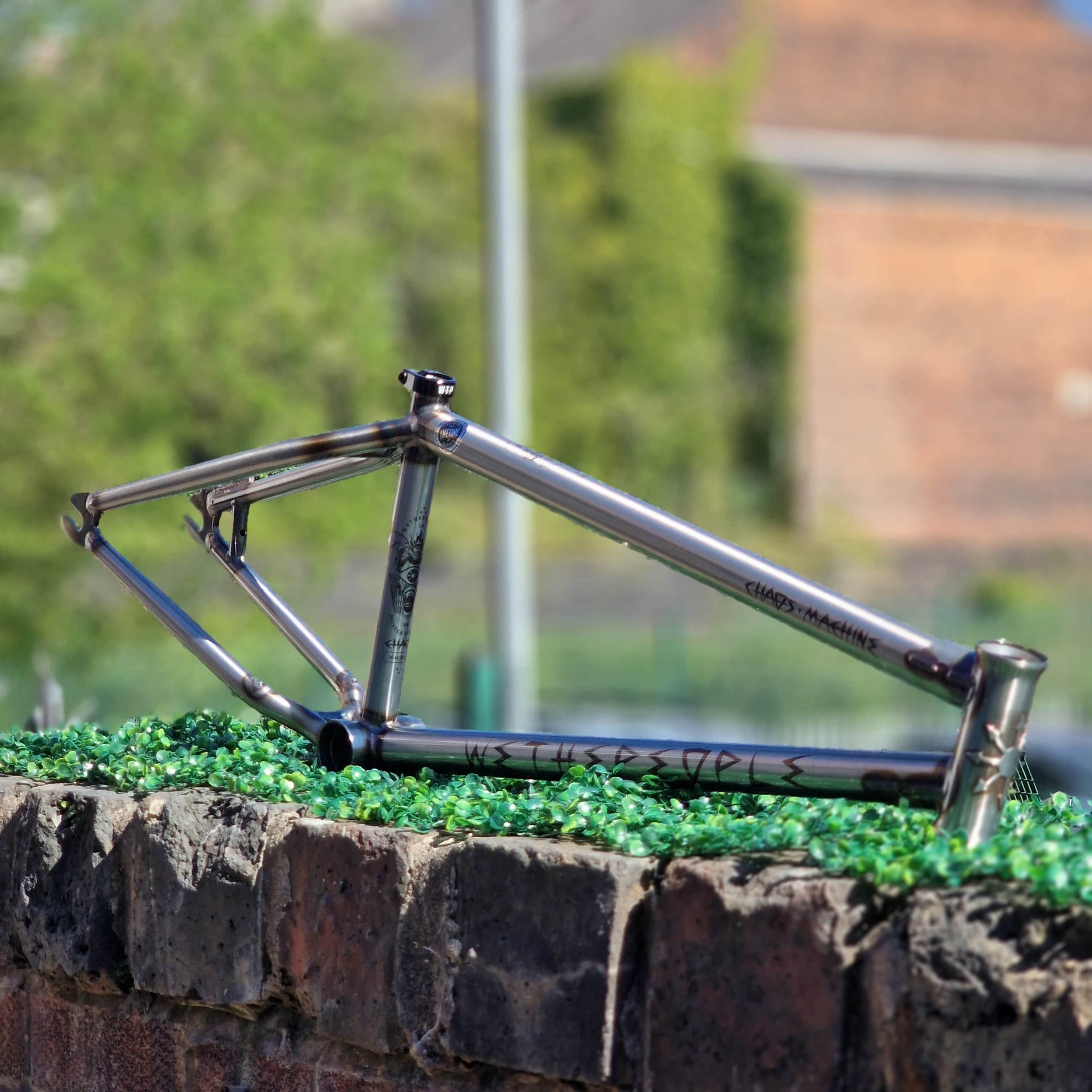

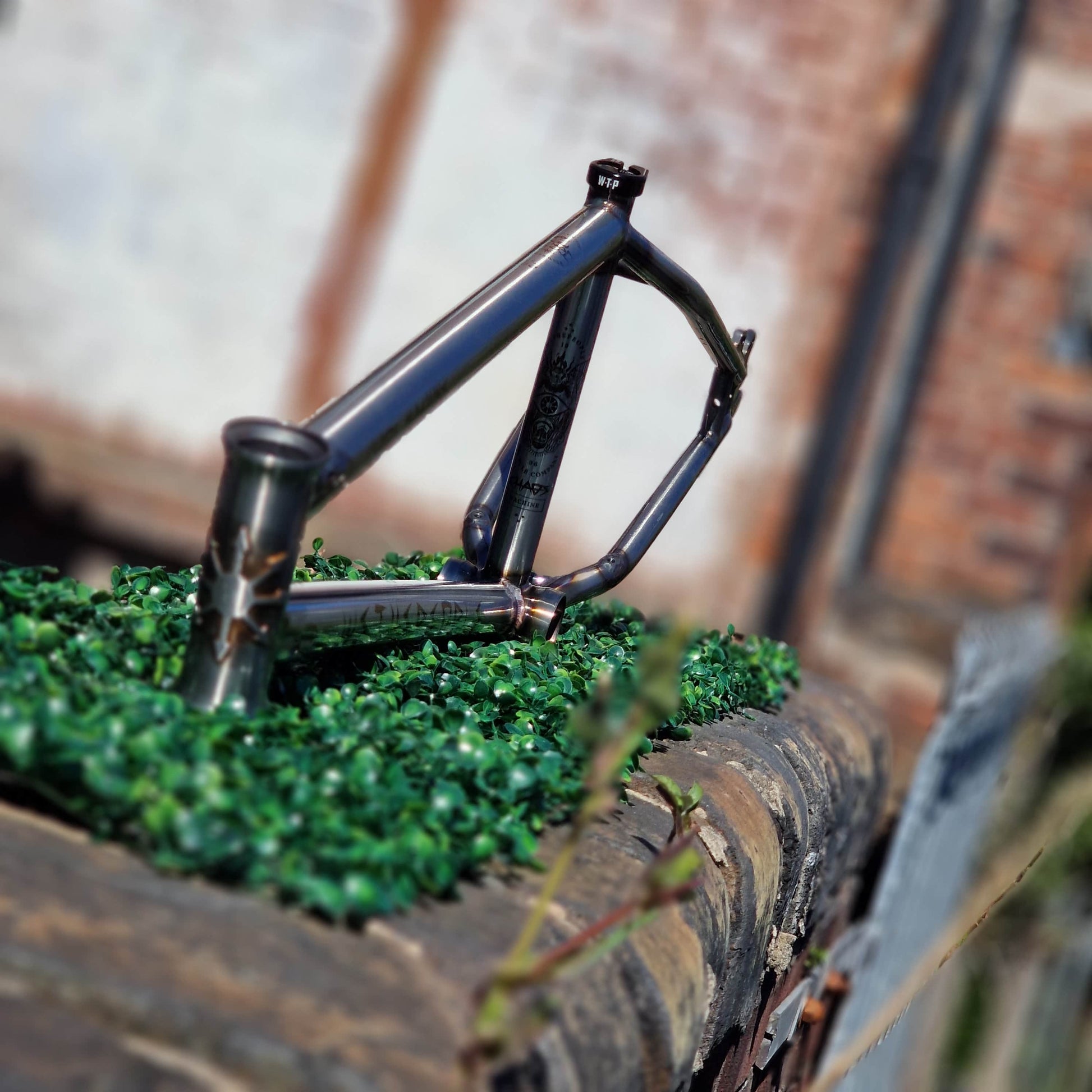

We The People Chaos Machine 22 Inch Tyson Jones-Peni Signature Frame Glossy Raw
New Gloss Raw 22" wheeled version of Tyson's game changing disc-brake equipped trail beast! We worked with Aussie trail boss and BMX lifer Tyson Jones-Peni on an all-out trail and bowl roasting machine. The Wethepeople Chaos Machine Frame features long and stable geometry, combined with Wethepeople’s legendary frame-building technology making it one of the meanest and toughest rigs in the game. Tyson isn’t scared to go fast and hit the mainline with some serious speed so we equipped his signature steed with mounts for a disc brake (and a regular u-brake) making it the first frame of its kind and perfect for riders needing some upgraded stopping power. From the super long 14"+ chainstay to the unique detailing on the seat stay bridge and head tube, the Chaos Machine frame is one of the most “signature” frames we’ve ever made. PLEASE NOTE: This frame is designed specifically for 22" wheels and will require 22" specific forks, wheels and tyre.
Includes lifetime guarantee.
Ask us about us building you a custom bike around this frame! We can put together your dream bike with payment options and Cycle schemes (potentially making you quite a saving), subject to eligibility.
Tubing: butted, Japanese seamless 4130 crmo tubing
Bottom bracket: 74mm mid size, cnc machined and heat-treated

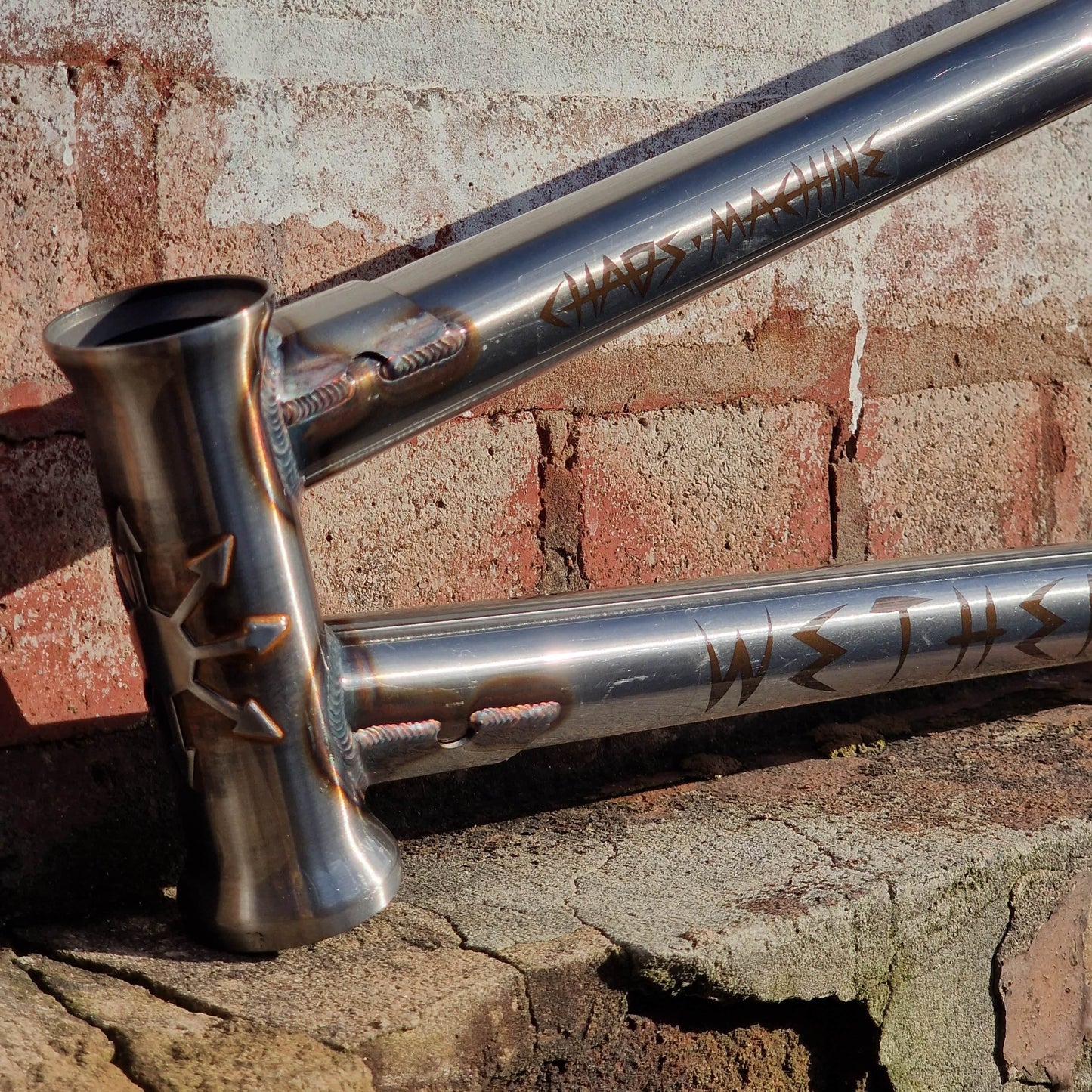

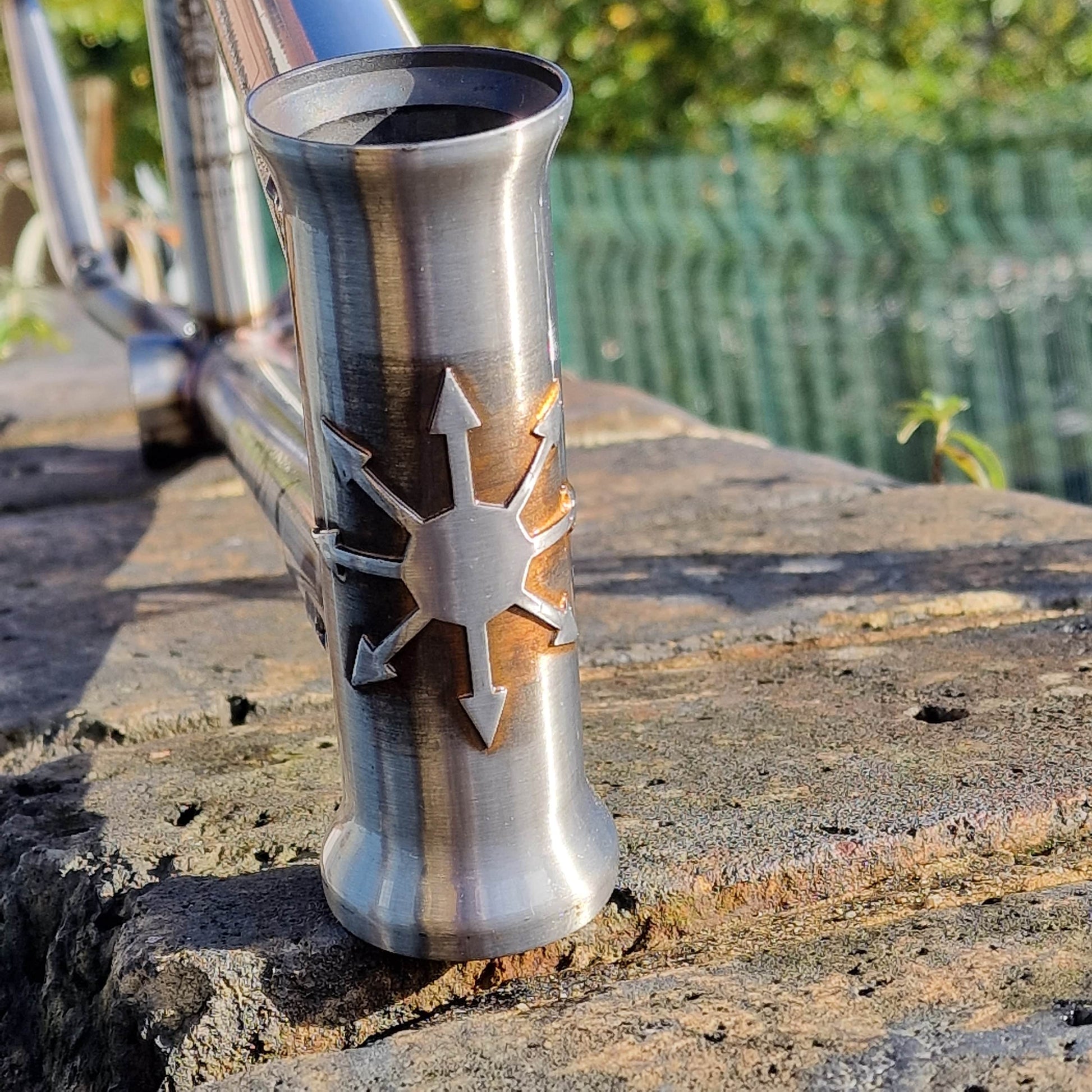

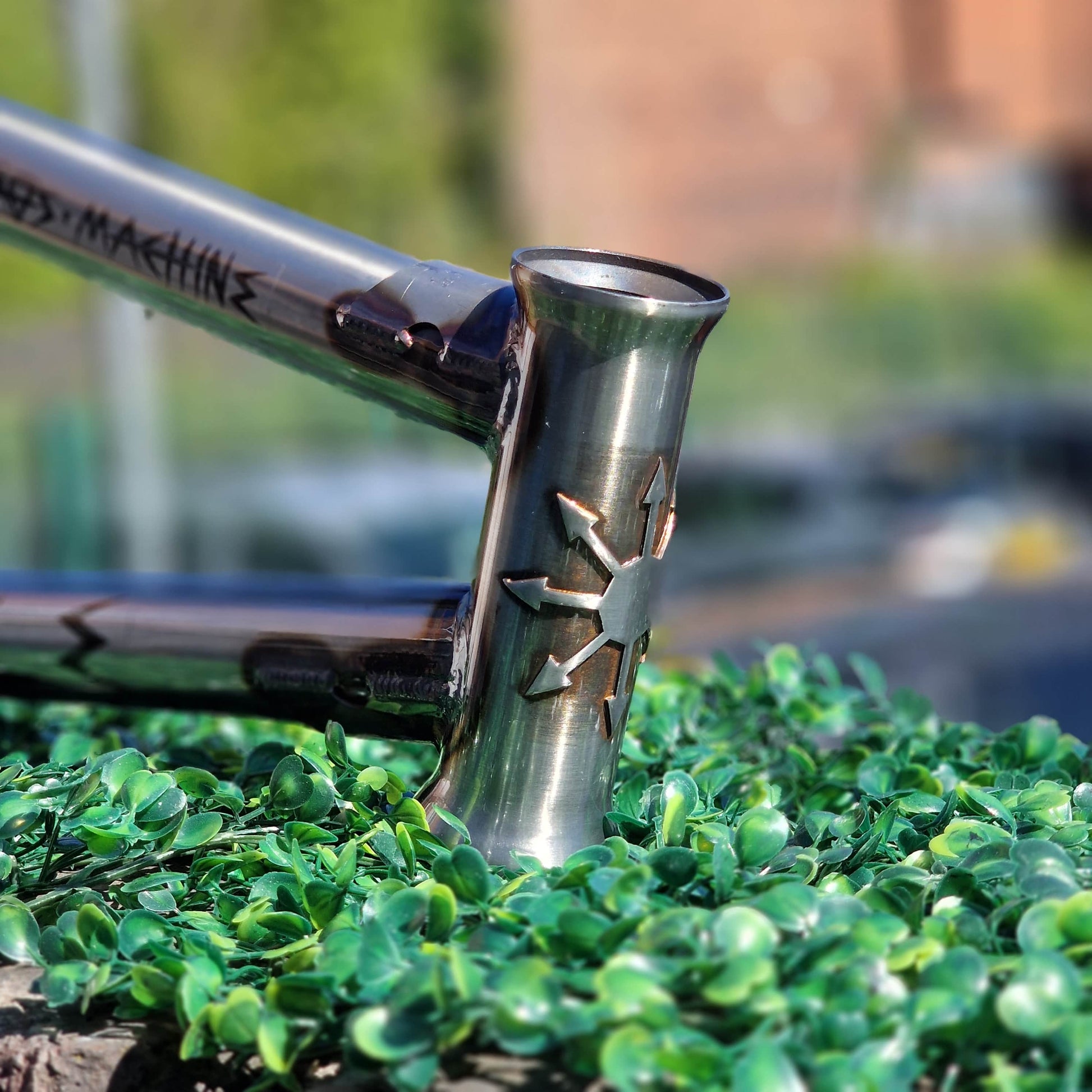

Head tube: 127mm cnc machined and heat-treated, integ. h/set, badge

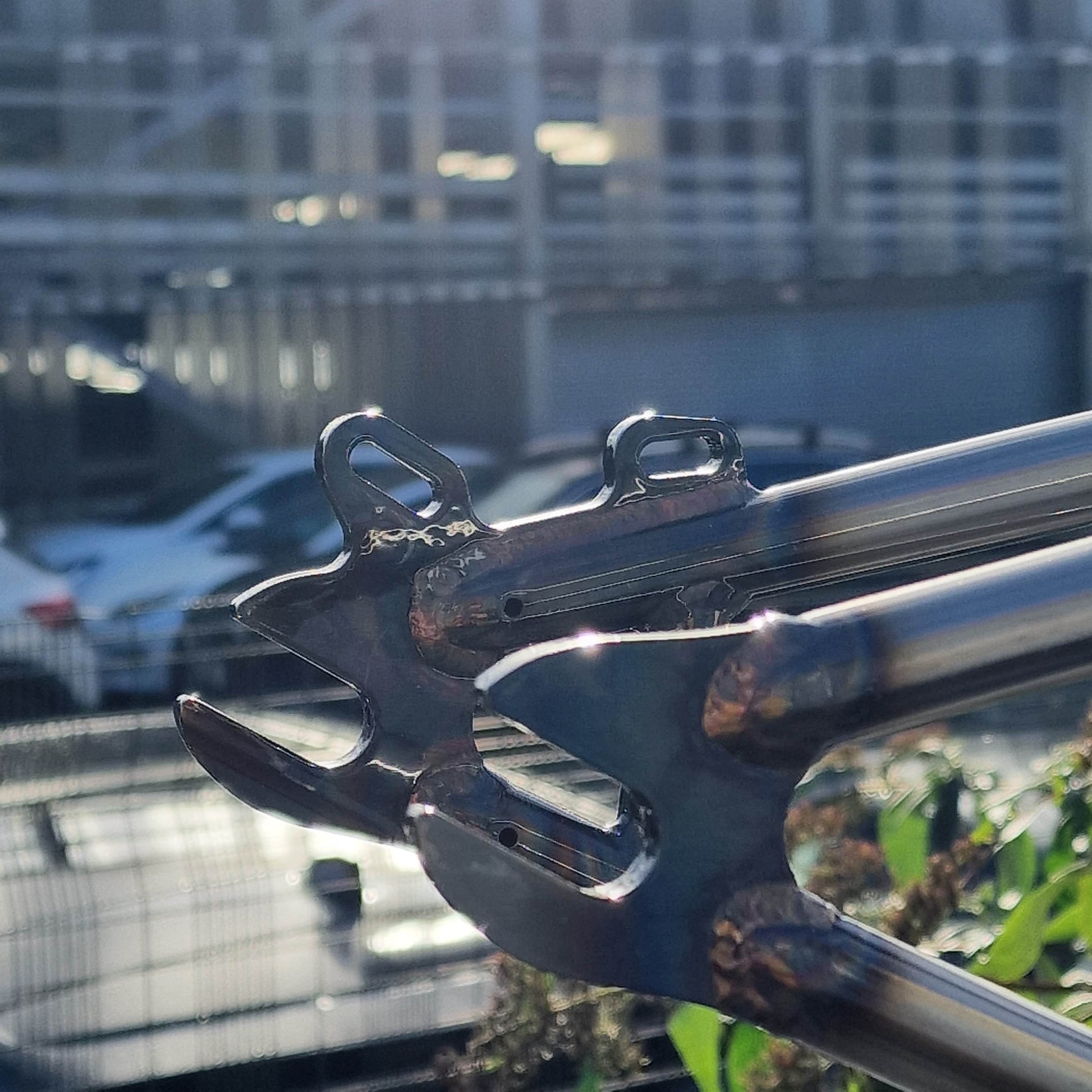

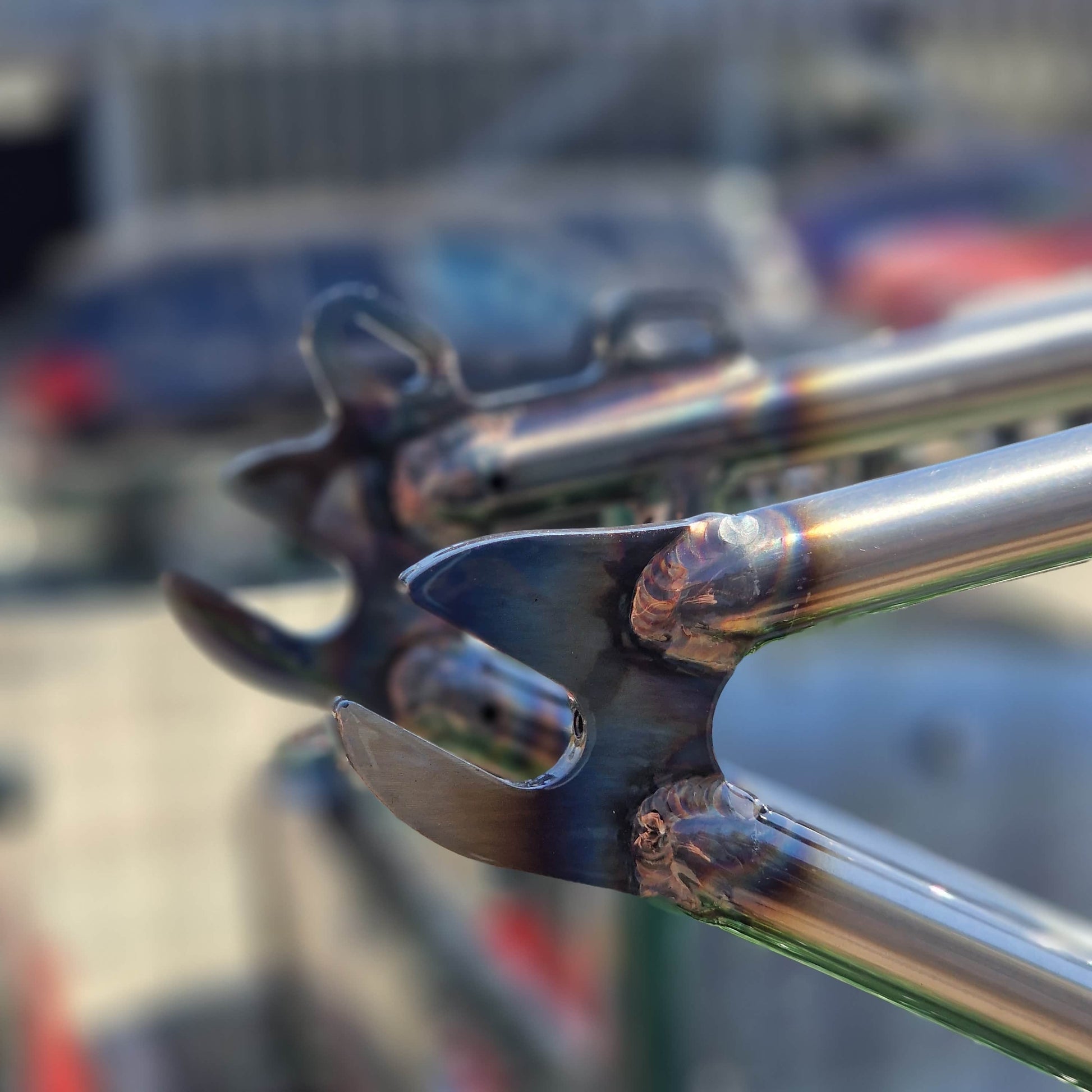

Dropouts: minimal size, not suitable for pegs, 6mm cnc machined heat-treated crmo, integrated chain tensioners

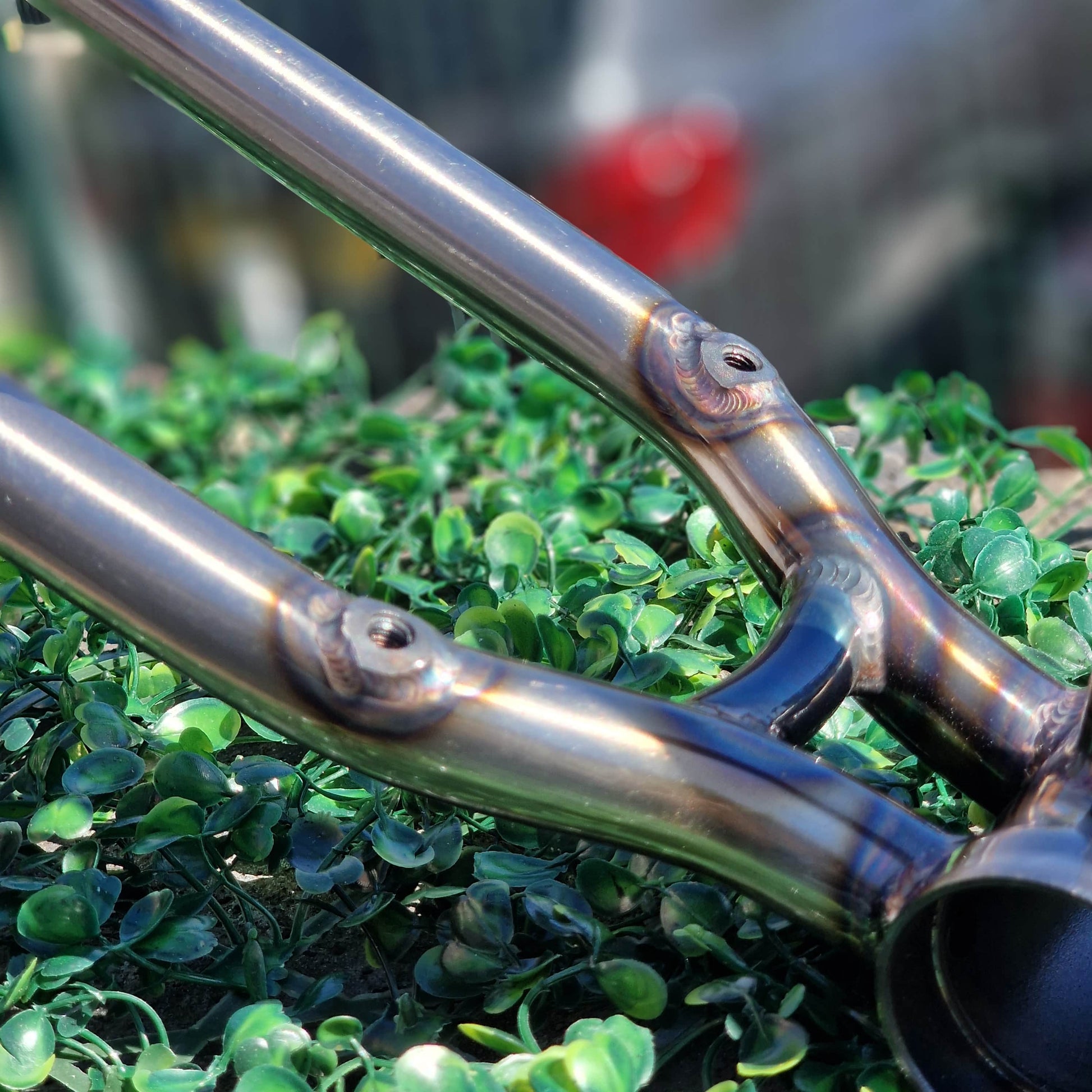

Brakes: disc mount for 140-160mm rotors, frame comes with repl. brake hardwarepivot-3 removable brake mounts, frame comes with repl. brake hardware
Weight: 2.54kg (5.6lbs)
Special features:

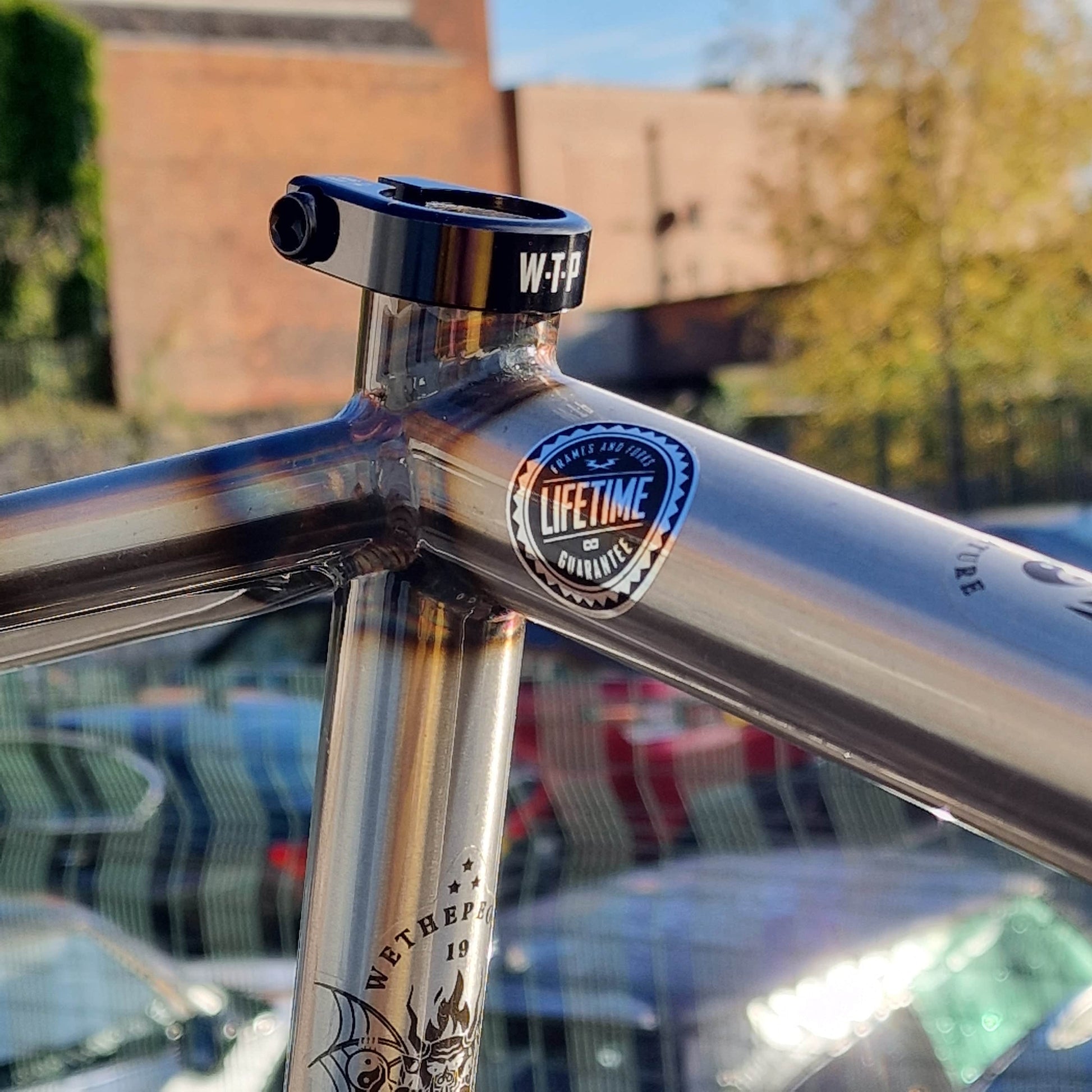

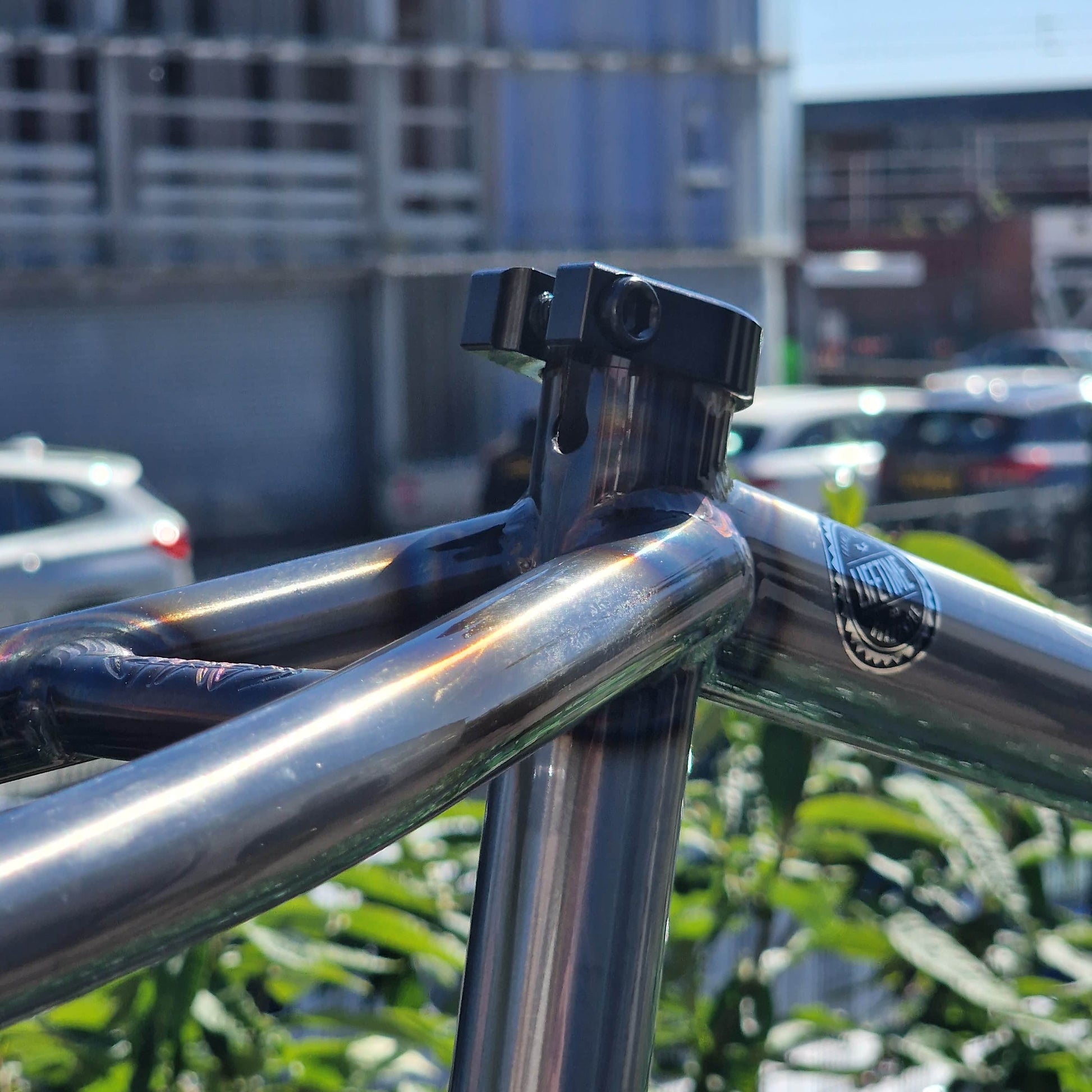

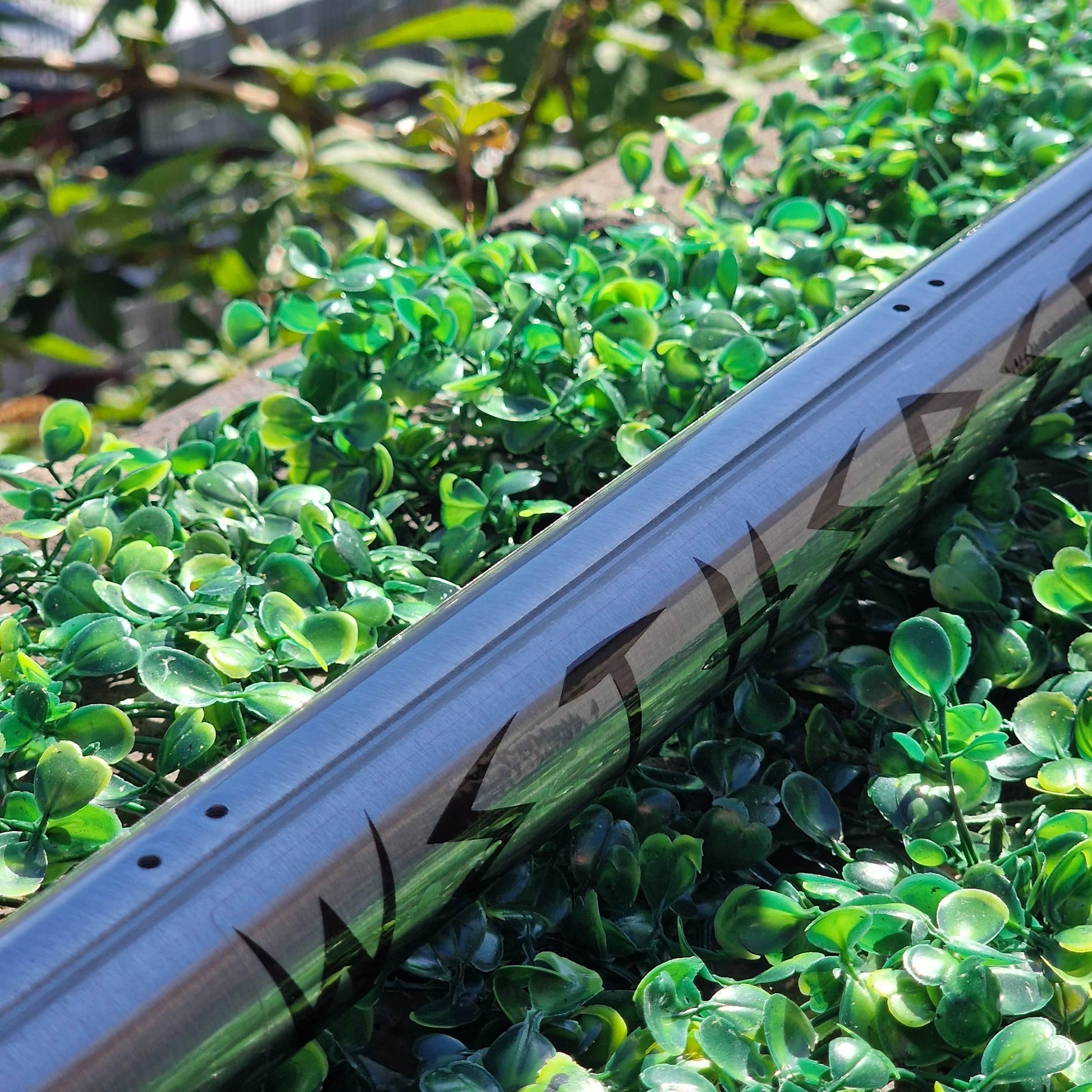

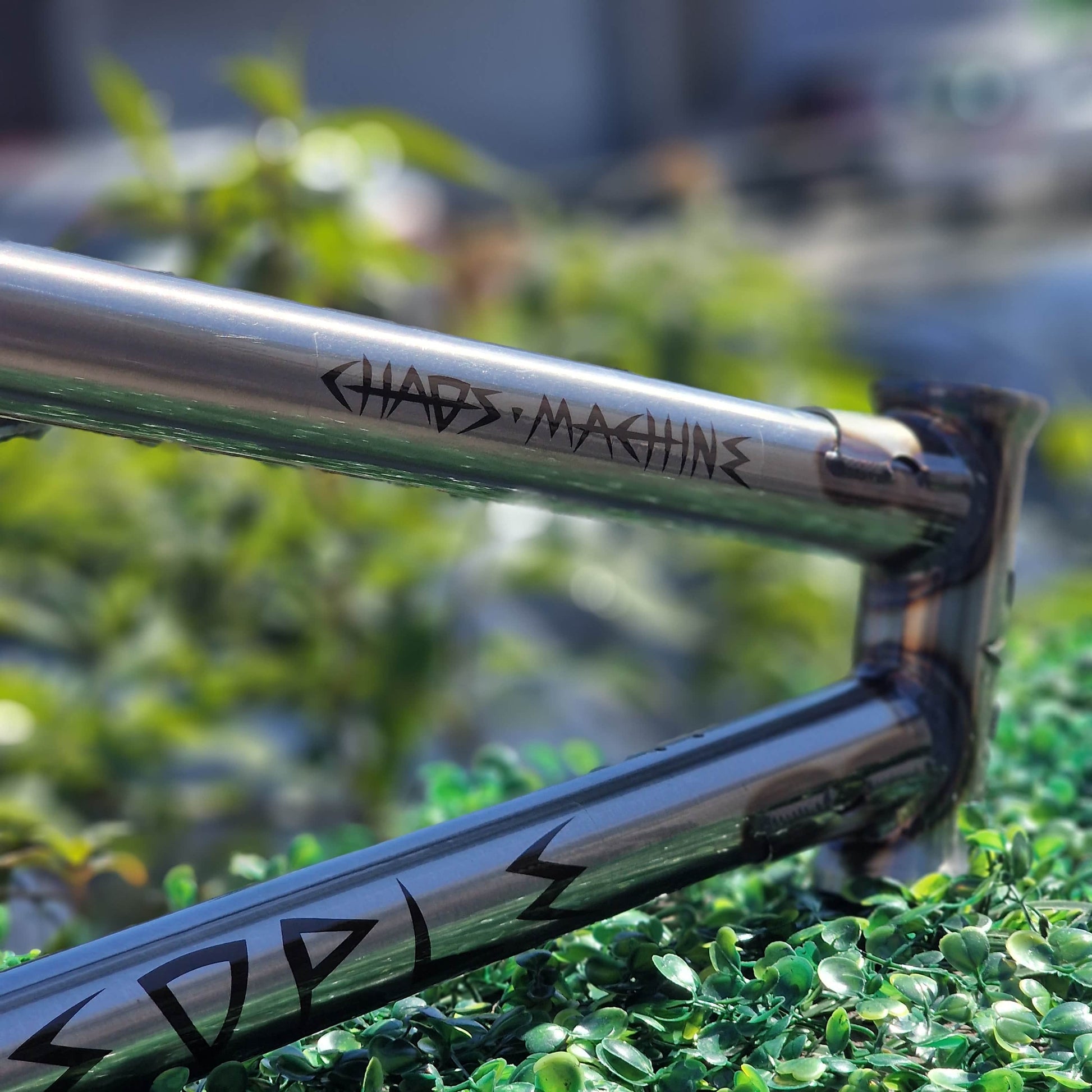

• 22inch wheel frame! • Tyson Jones-Peni signature trail/transition frame • Long and stable trail geometry (same chainstay length as the 20" Chaos Machine) • IS disc mount for 140mm-160mm rotors & removable u-brake mounts • unique disc brake mount works in multiple chain stay positions • 127mm tall head tube for less spacers with an uncut fork • larger radius stay tubing for a stiffer and stronger back end • cnc machined seat stay bridge • disc brace on stays for extra braking stiffness • larger 1.8mm welding at head tube • includes Wethepeople Supreme alloy seat clamp • wider rear triangle allows clearance for a 2.4" tire • WTP top tube and down tube gusset • includes LIFETIME GUARANTEE • requires 22 inch forks, wheels and tyres.
Geometry
- Top tube length: 22.25"
- Chain stay length: 14" - 14.75" / optimised for 14.1"/14.35"/14.7" with 30-9 gearing (same chainstay length as 20" frame)
- Head tube angle: 74.25°
- Seat tube angle: 71°
- BB height: 12,25
- Standover height: 9.75"
