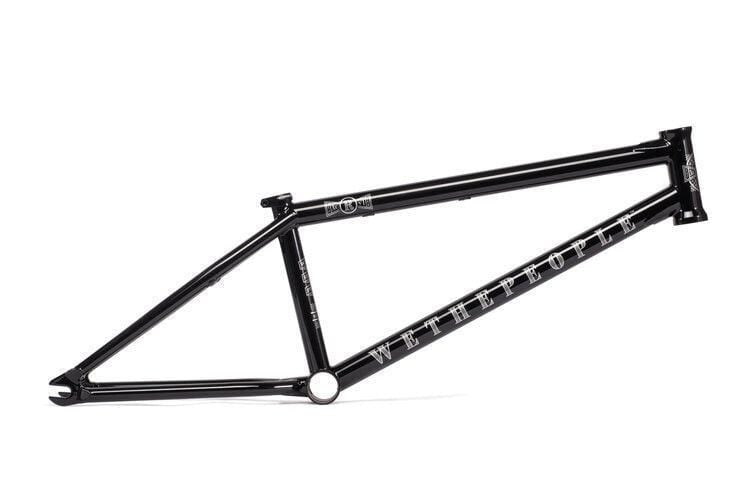

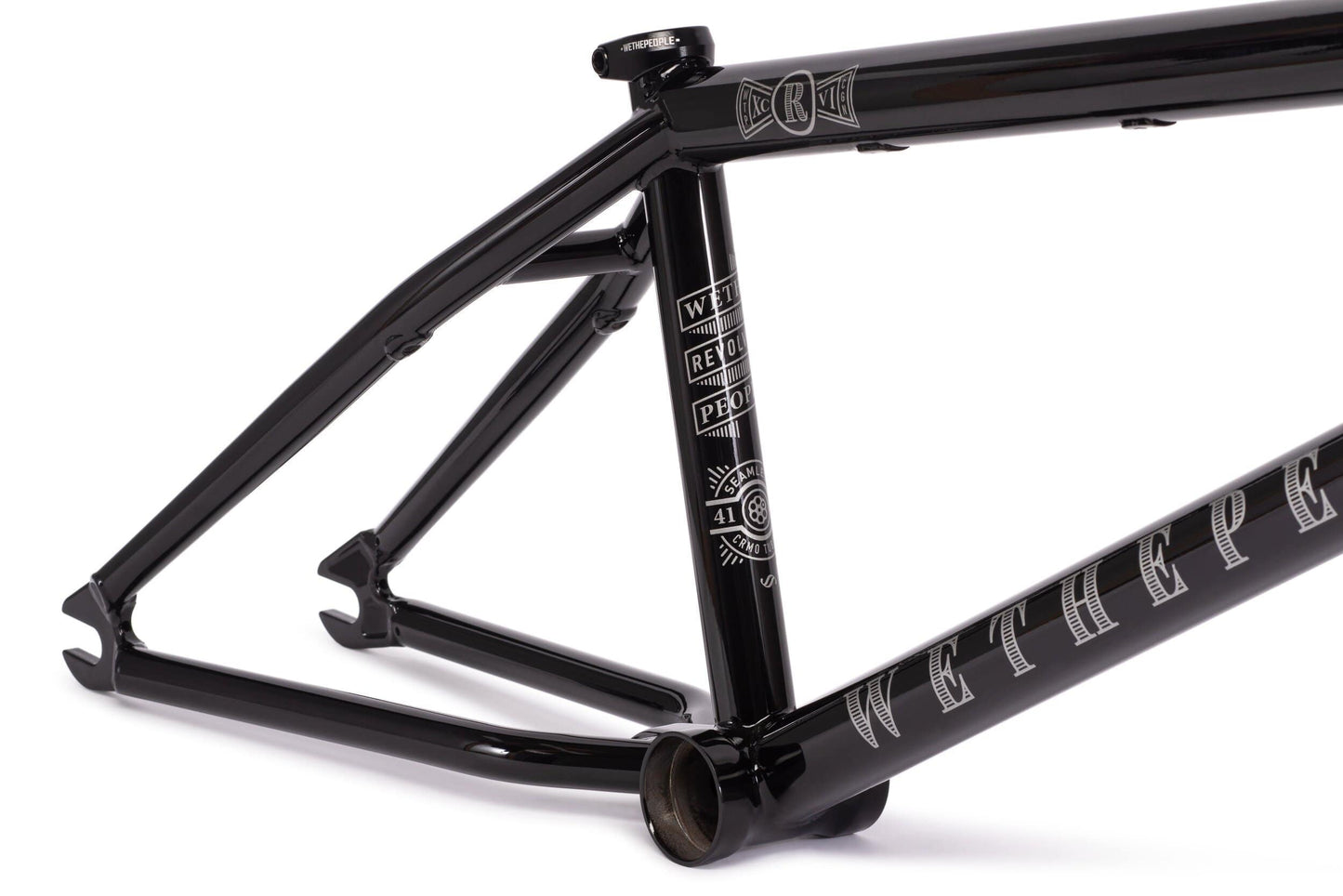

We The People Revolver Frame Glossy Black

The Revolver frame, the perfect do-it-all and do it well model. A frame that was created with the sole intention of shredding on any terrain. We used larger diameter rear tubing and an invest cast wishbone, to not only give the revolver a strong and unique look but more importantly to strengthen and stiffen the whole frame up - giving it a stable yet responsive feel. Combined with our new 7.5mm thick invest cast dropouts with integrated chain tensioners - the revolver is a deadly weapon capable of just about anything.

Includes lifetime guarantee

SPECIAL FEATURES:
Perfect all-round geometry

Oversize seatstays and chainstays for increased stiffness

Wider rear triangle allows clearance for a 2.5" tire

Invest cast wishbone

Frame comes drilled for Pivot-3 type removable brake mounts, but brake hardware is NOT included

Custom 127mm headtube with smoother shape and matching bottom bracket shell

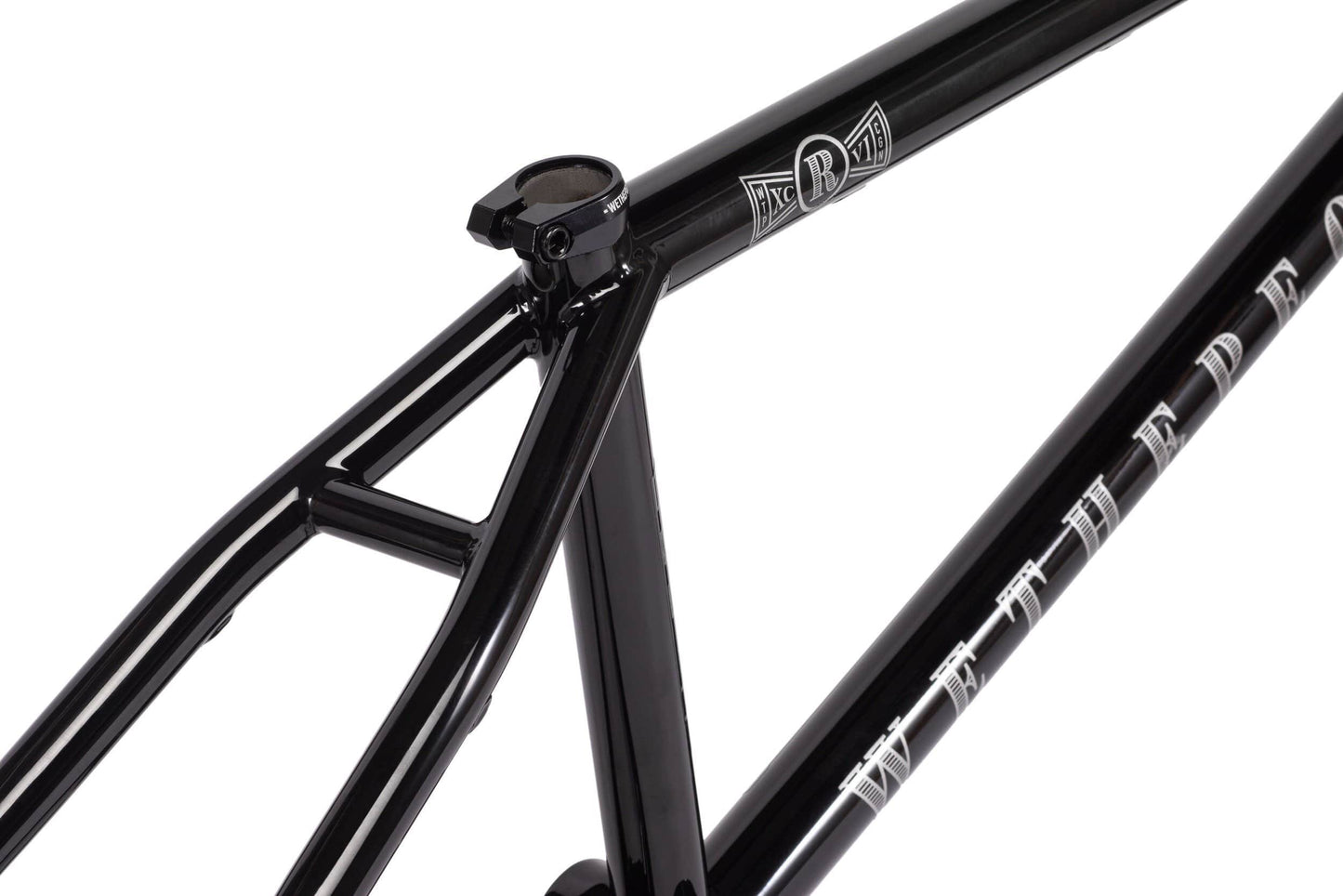

Includes WTP Supreme alloy seatclamp

Top and down tube gussetts

SPECIFICATIONS
TUBING:
Butted, seamless 4130 chromoly tubing japanese

TOPTUBE:
20.75", 21 "or 21.25" TT

CHAINSTAY LENGTH:
13.25" slammed with 28-9 gearing, 13.5" centered

ANGLES:
HT: 74.85 °, ST: 71 °

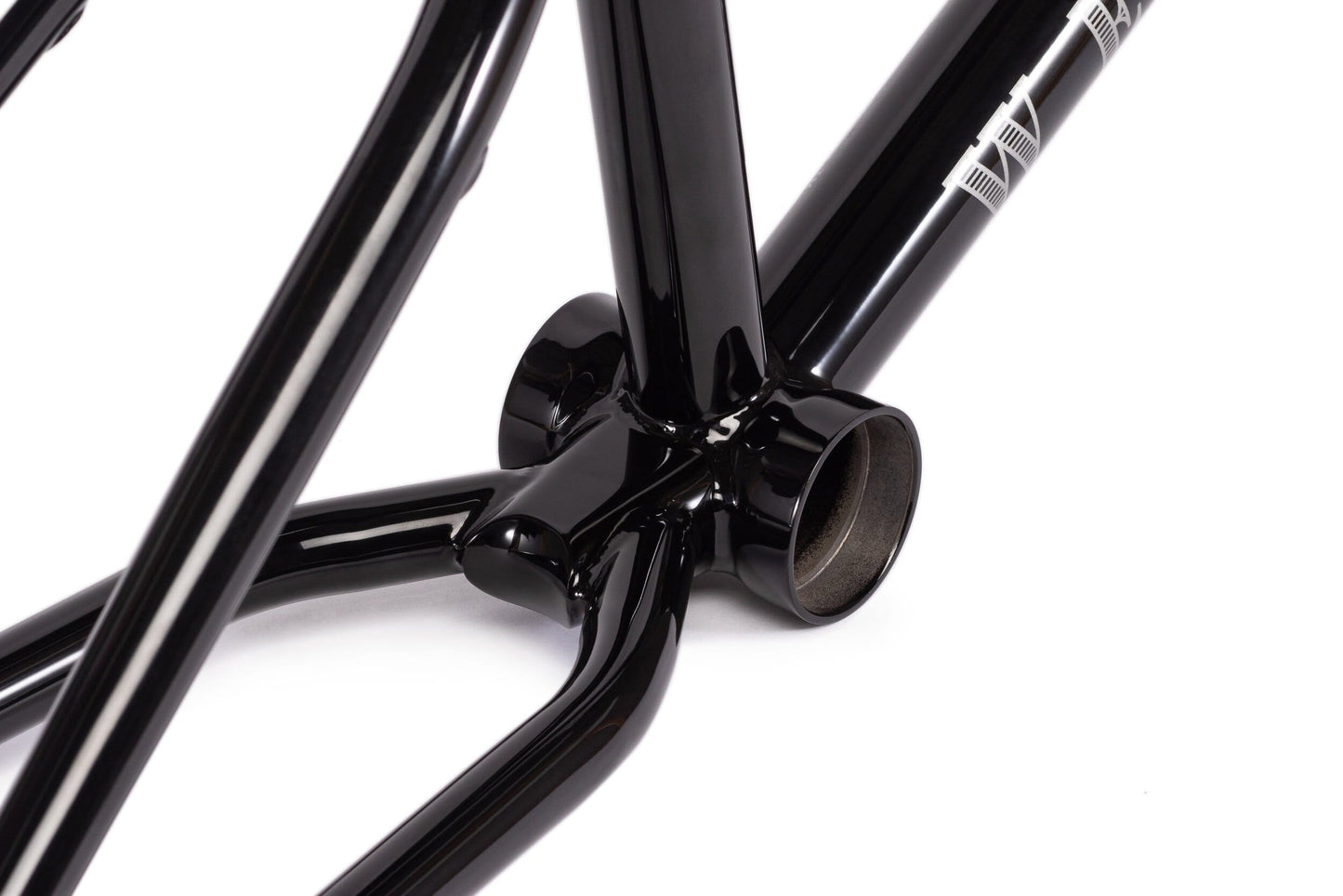

BOTTOM BRACKET:
Mid-BB width: 74mm, height: 11.5 ", cnc machined and heat-treated

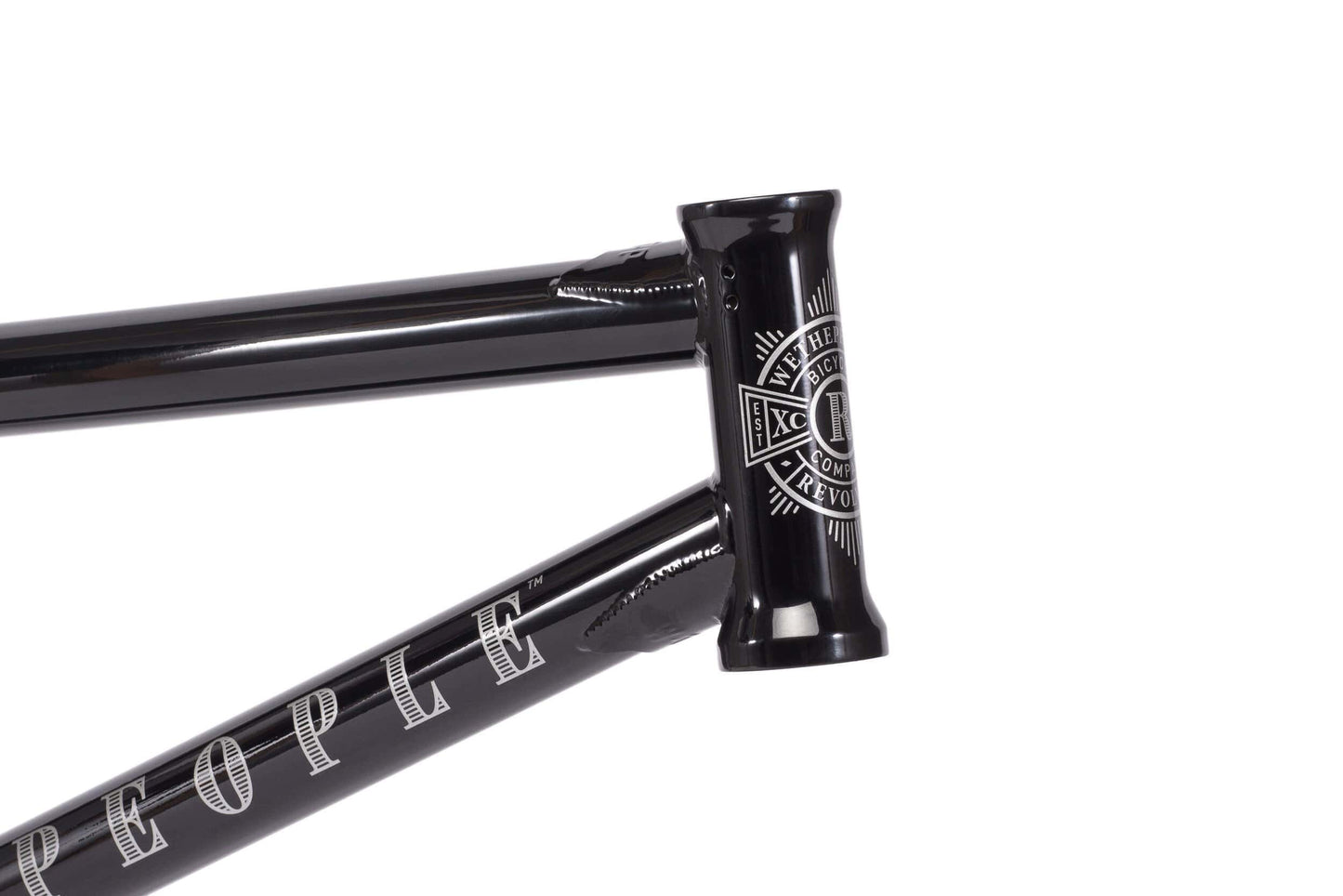

HEADTUBE:
127mm tall, cnc machined and heat-treated, integ. h / set, drilled for gyro tabs

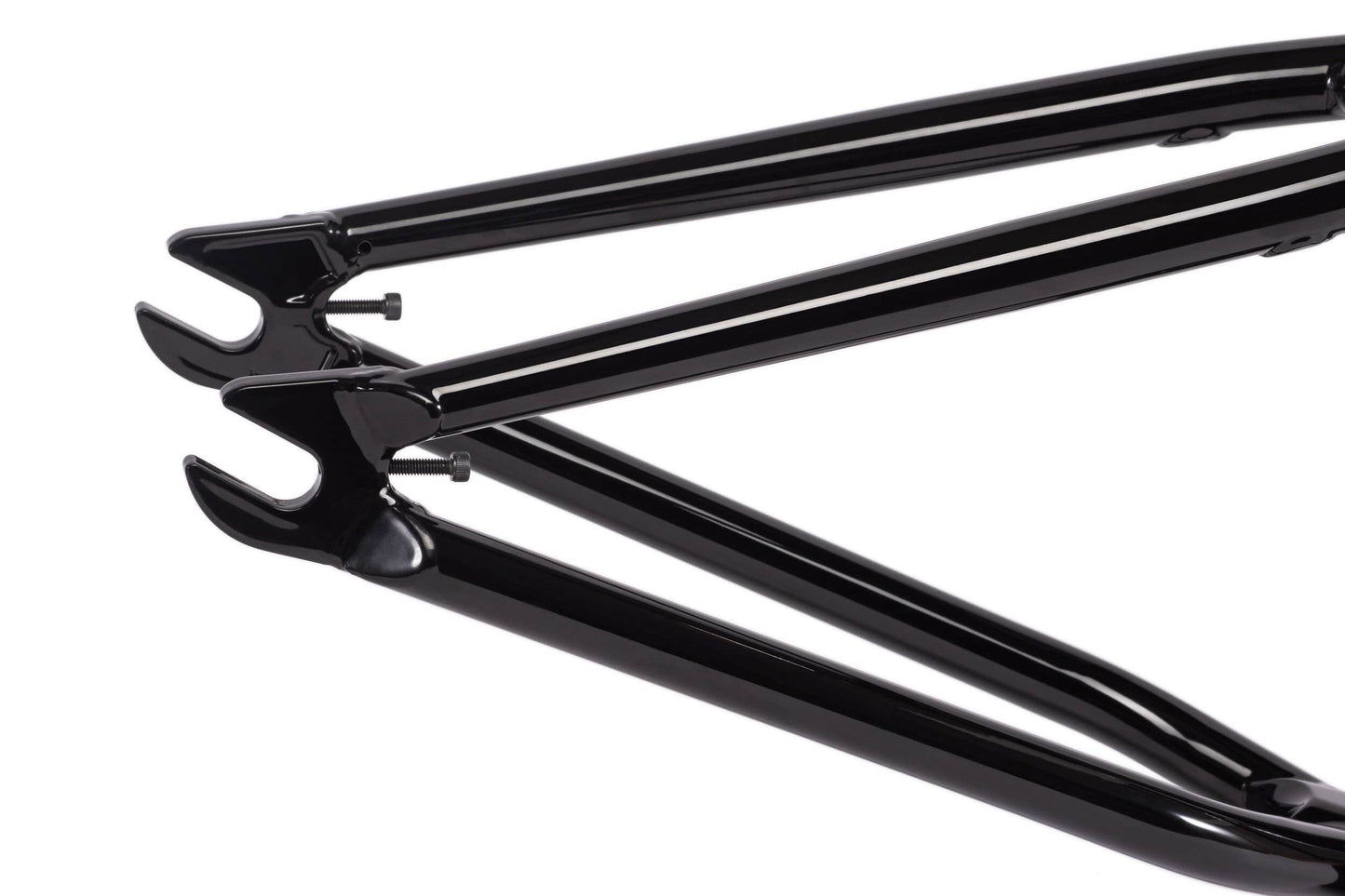

DROPOUTS:
7.5mm invest cast crmo, heat-treated, integrated chain tensioners

COLORS:
glossy black ed, matt translucent maroon, turbo red

WEIGHT:
2.385kg - 5.25lbs (21")

A: Top Tube:  20.75"/21"/21.25"

B: Chain Stay: 13.25"-13.75"

C: Head Tube Angle: 74.85°

D: Seat Tube Angle: 71°

E: Bottom Bracket Height: 11.5”

F: Stand Over Height: 9.1”
