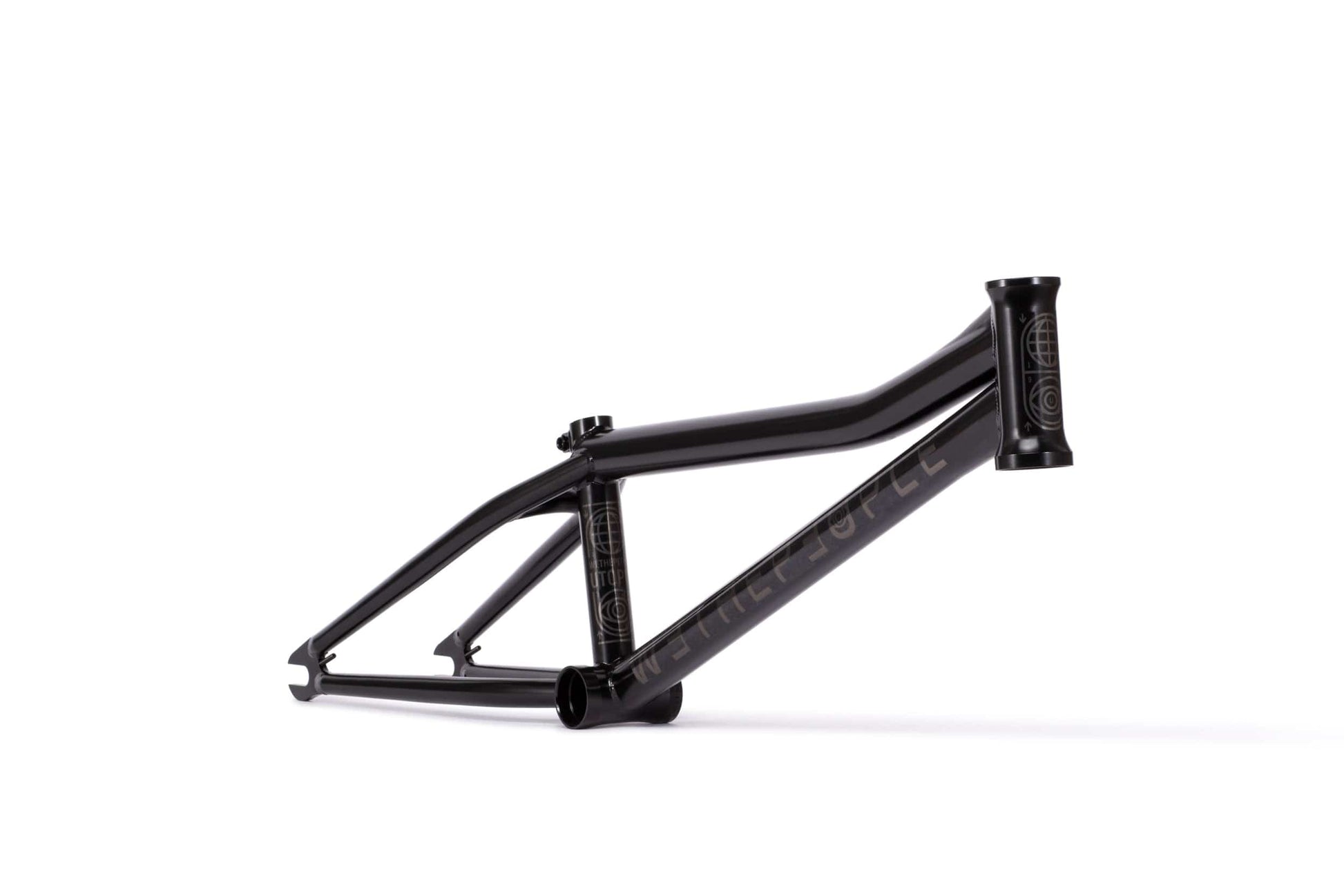

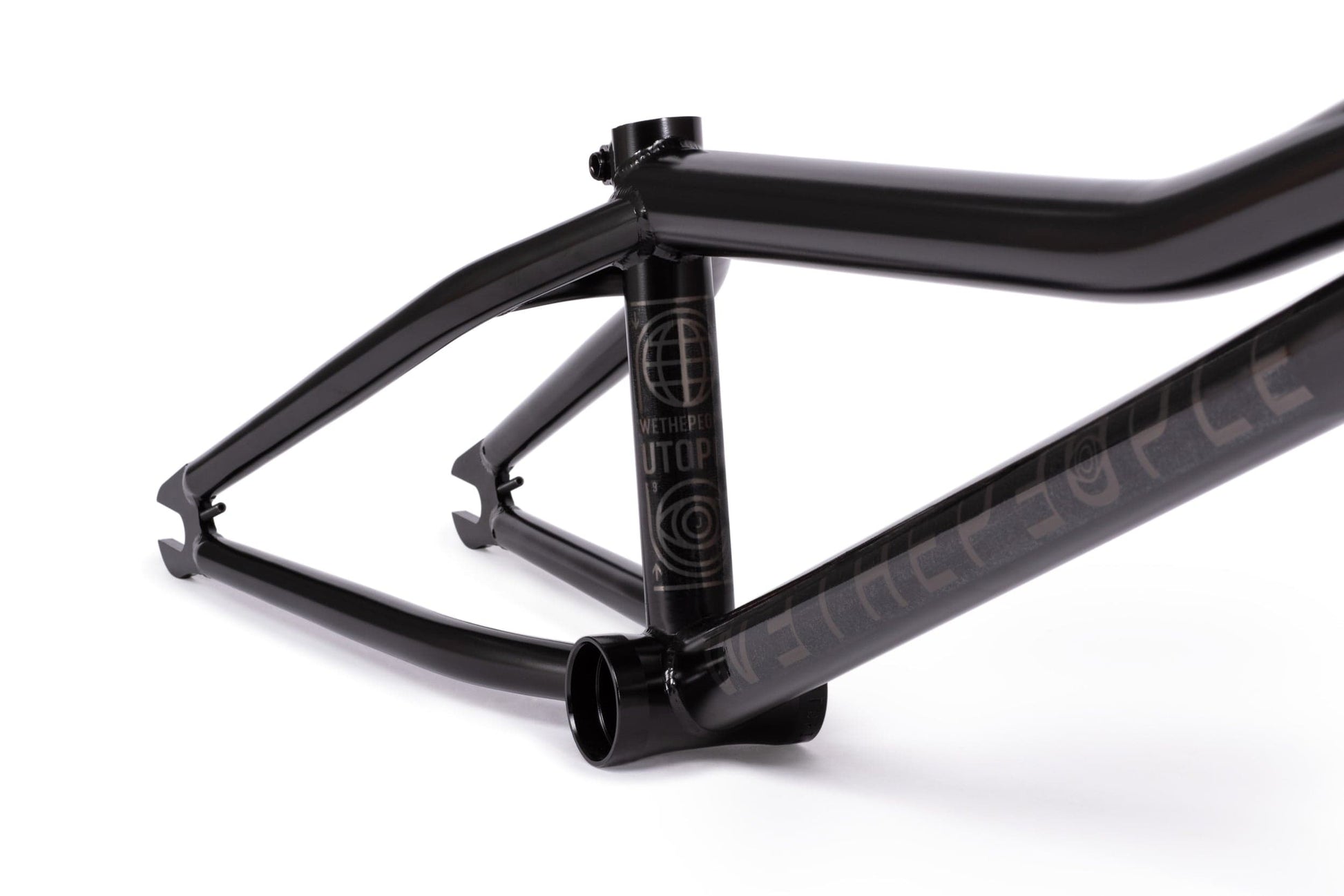

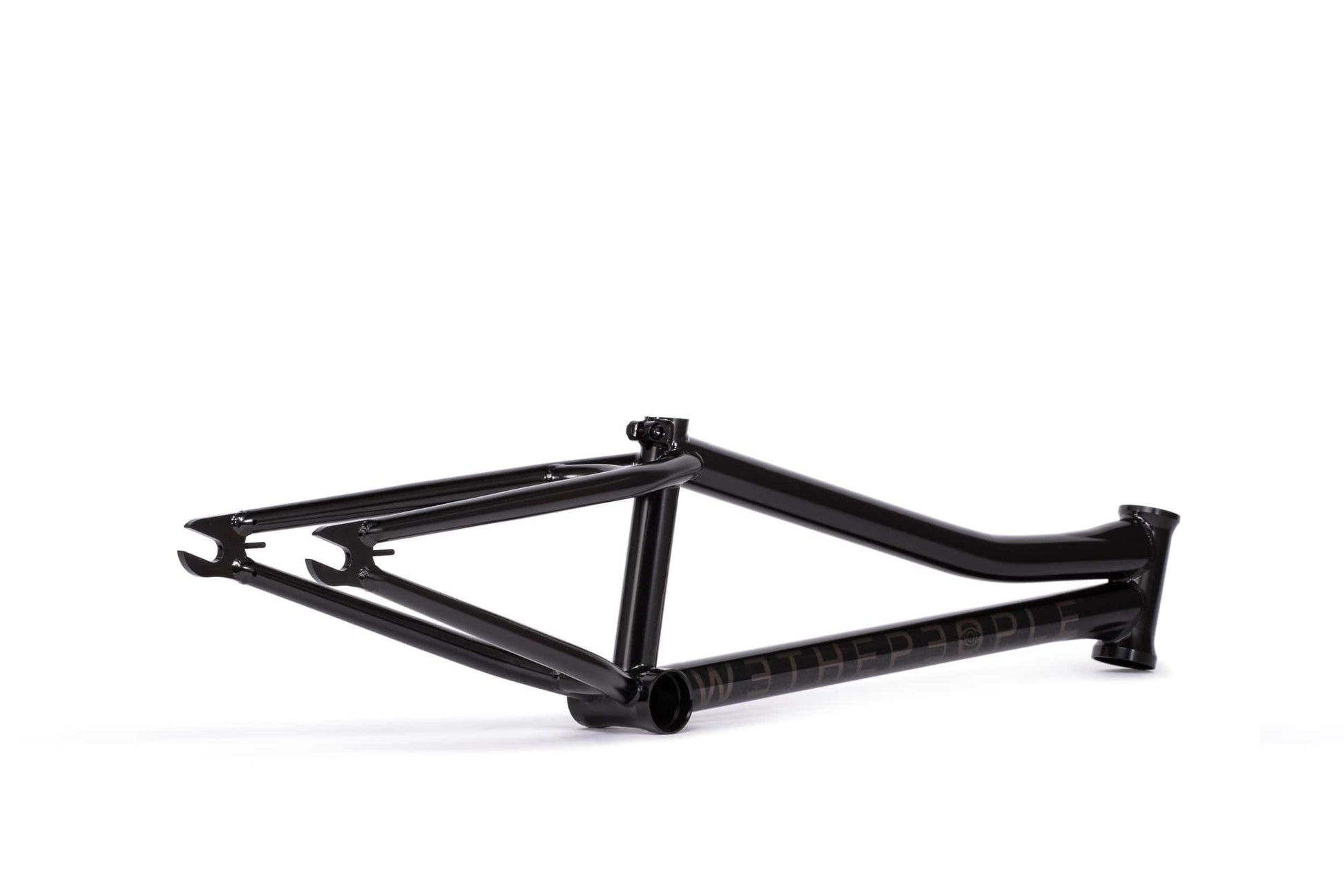

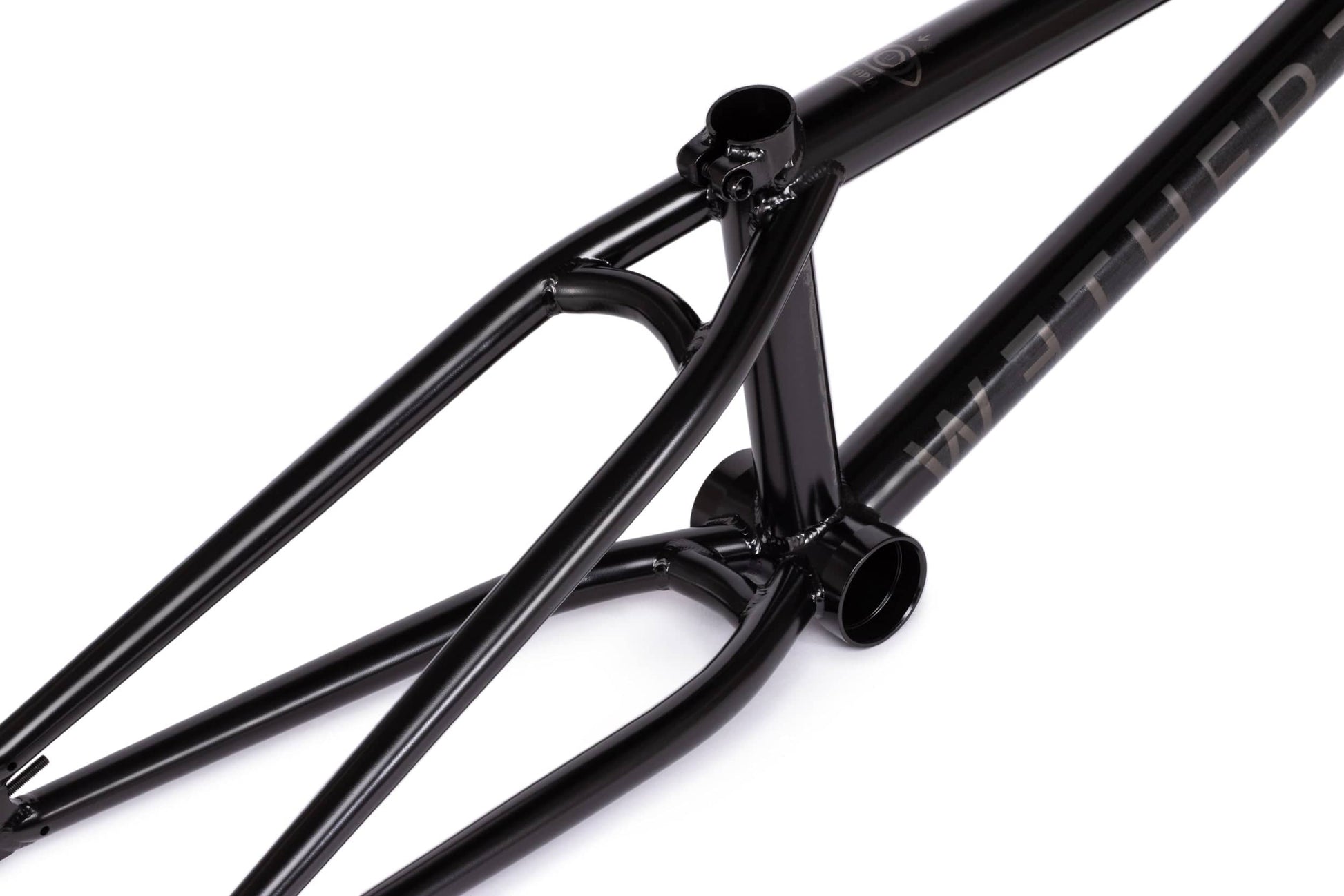

We The People Utopia Flatland Frame Black
Brand: We The People
£379.99
A pure-bred flatland machine, the Utopia frame is the most advanced flatland specific frame we’ve ever made. Based around modern flatland geometry, a kinked top tube for extra clearance and all new super-lightweight hydroformed tubing, this is one of the only flatland frames on the market backed up by a lifetime guarantee, so you know it’s built to last.
TUBING:
BUTTED, JAPANESE SEAMLESS 4130 CRMO TUBING
BOTTOM BRACKET:
74MM SPANISH SIZE, CNC MACHINED AND HEAT-TREATED
HEAD TUBE:

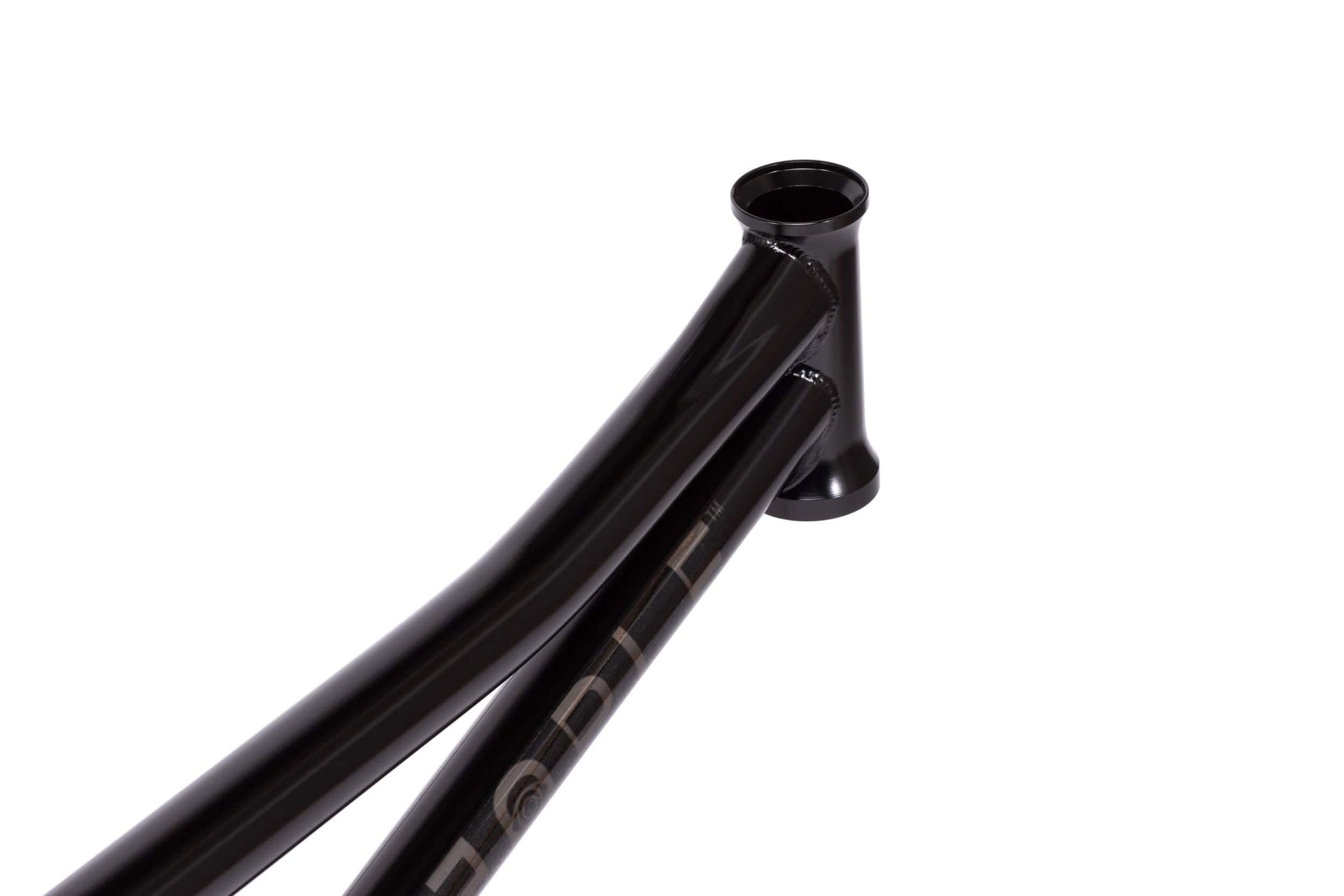

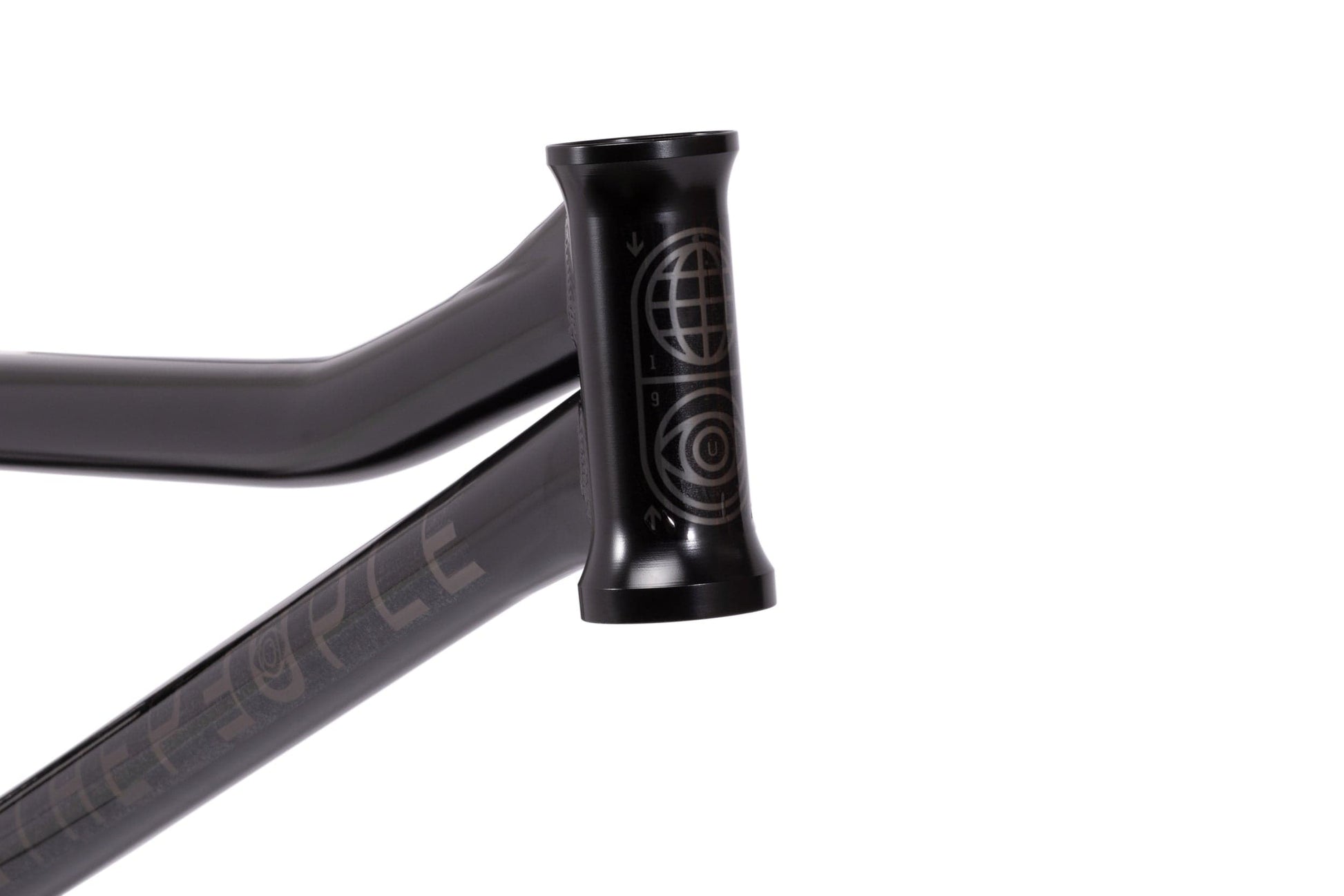

110MM CNC MACHINED AND HEAT-TREATED, INTEG. H/SET
DROPOUTS:
LASER CUT AND CNC MACHINED 6MM HEAT-TREATED 4130 CRMO, PERFECT SHAPE FOR PEGS, INTEGRATED CHAIN TENSIONER
BRAKES:
BRAKELESS FRAME
SPECIAL FEATURES:
• TECHNICAL STREET/FLATLAND FRAME, SHORTER TOP TUBE AND LOWER SEAT TUBE FOR YOUNGER RIDERS
• HYDROFORMED TOP AND DOWN TUBE FOR SUPERIOR STRENGTH AND STIFFNESS
• KINKED TOPTUBE FOR INCREASED FOOT CLEARANCE
• FRAME COMES WITH 14MM SLOT DROPOUTS
• EXTRUDED TOP TUBE WITH INTEGRATED THREADS FOR CABLE GUIDES

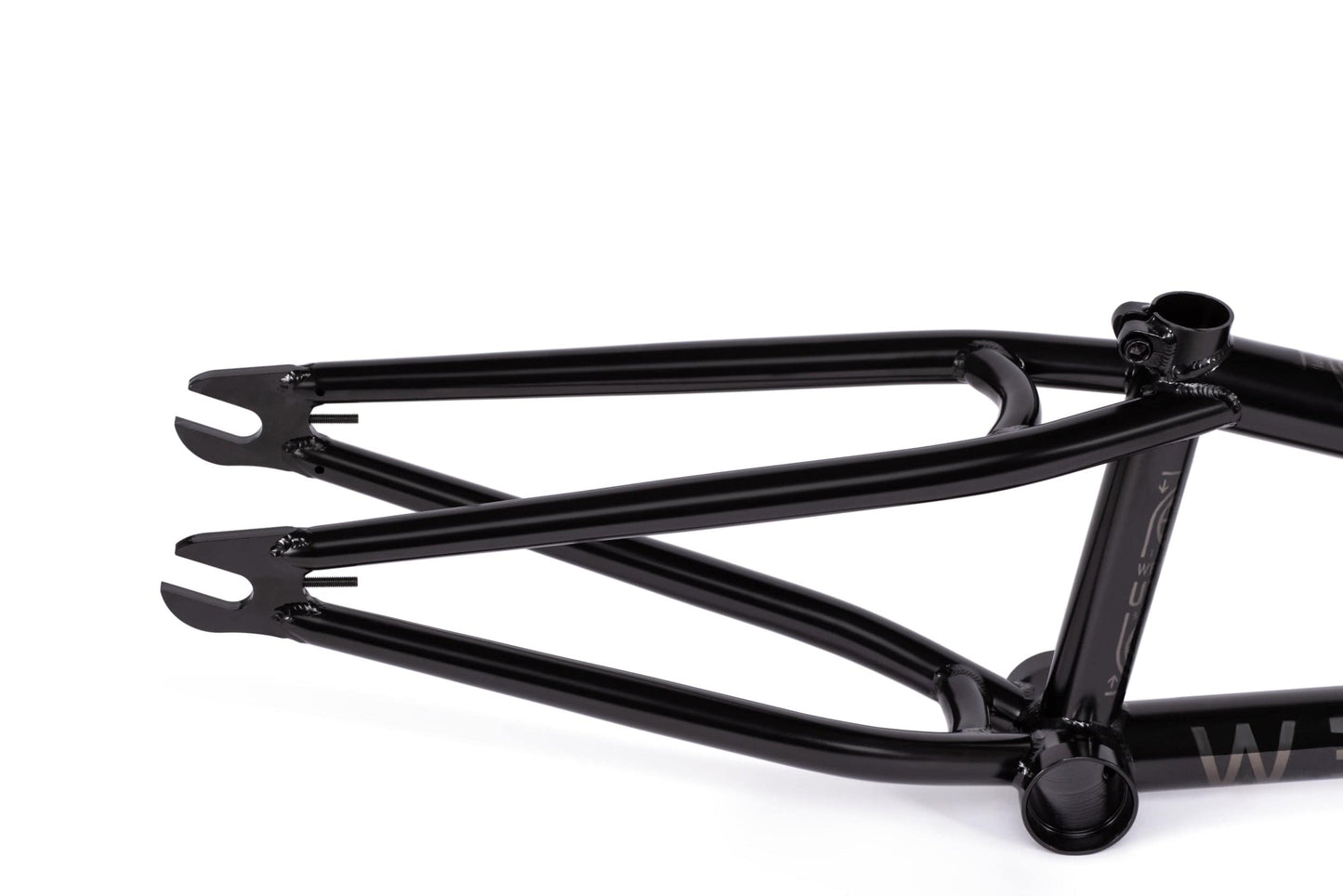

• TAPERED SEAT STAYS AND CHAIN STAYS WITH BULLET TIPPED ENDS
• CURVED SEAT STAY BRIDGE AND CHAIN STAY BRIDGE
• WIDER REAR TRIANGLE ALLOWS CLEARANCE FOR A 2.3" TIRE
• WTP TOP TUBE AND DOWN TUBE GUSSET

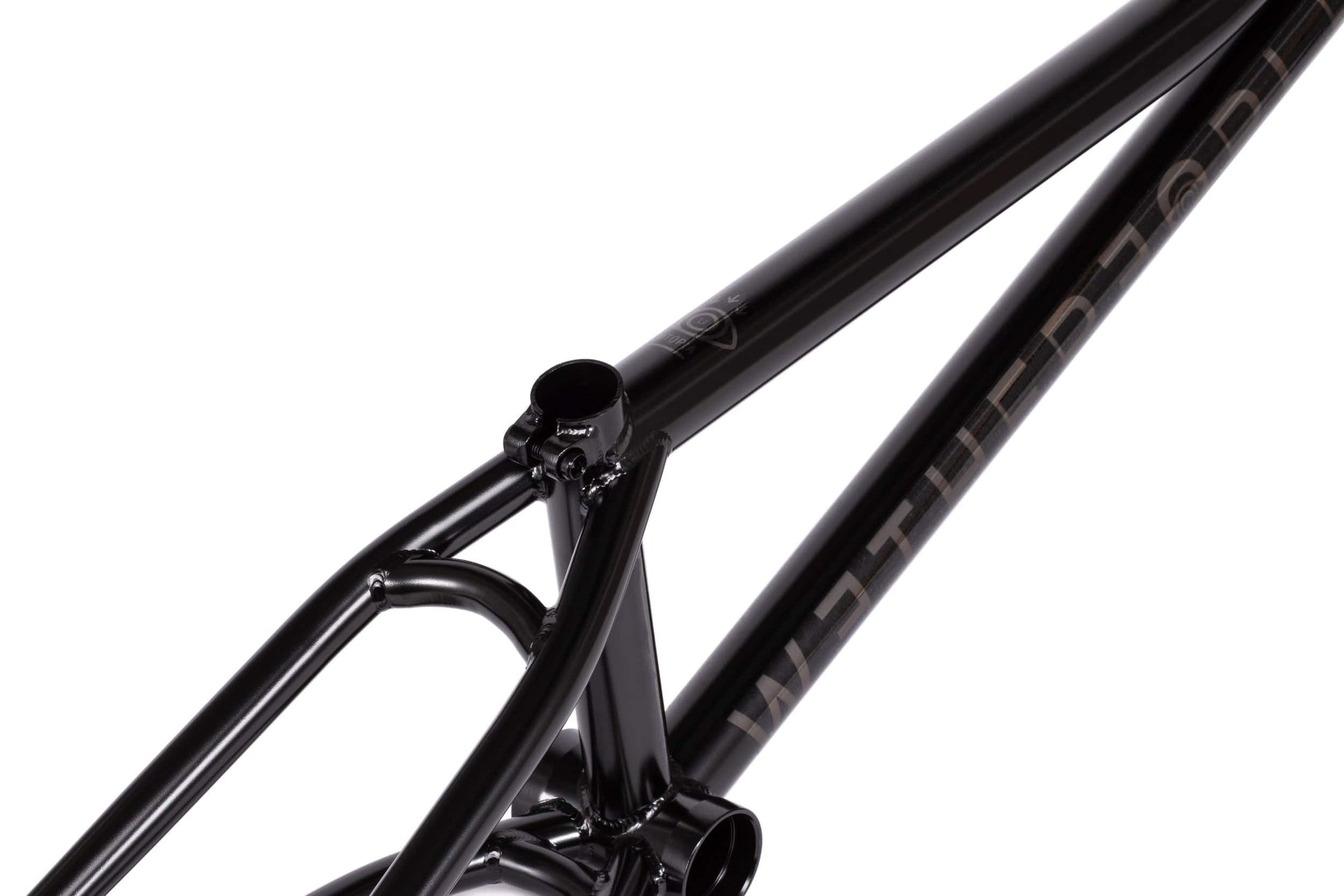

• 6MM SEAT CLAMP BOLT
• INCLUDES LIFETIME GUARANTEE
WEIGHT:
4.27LBS / 1.92KG (20”)

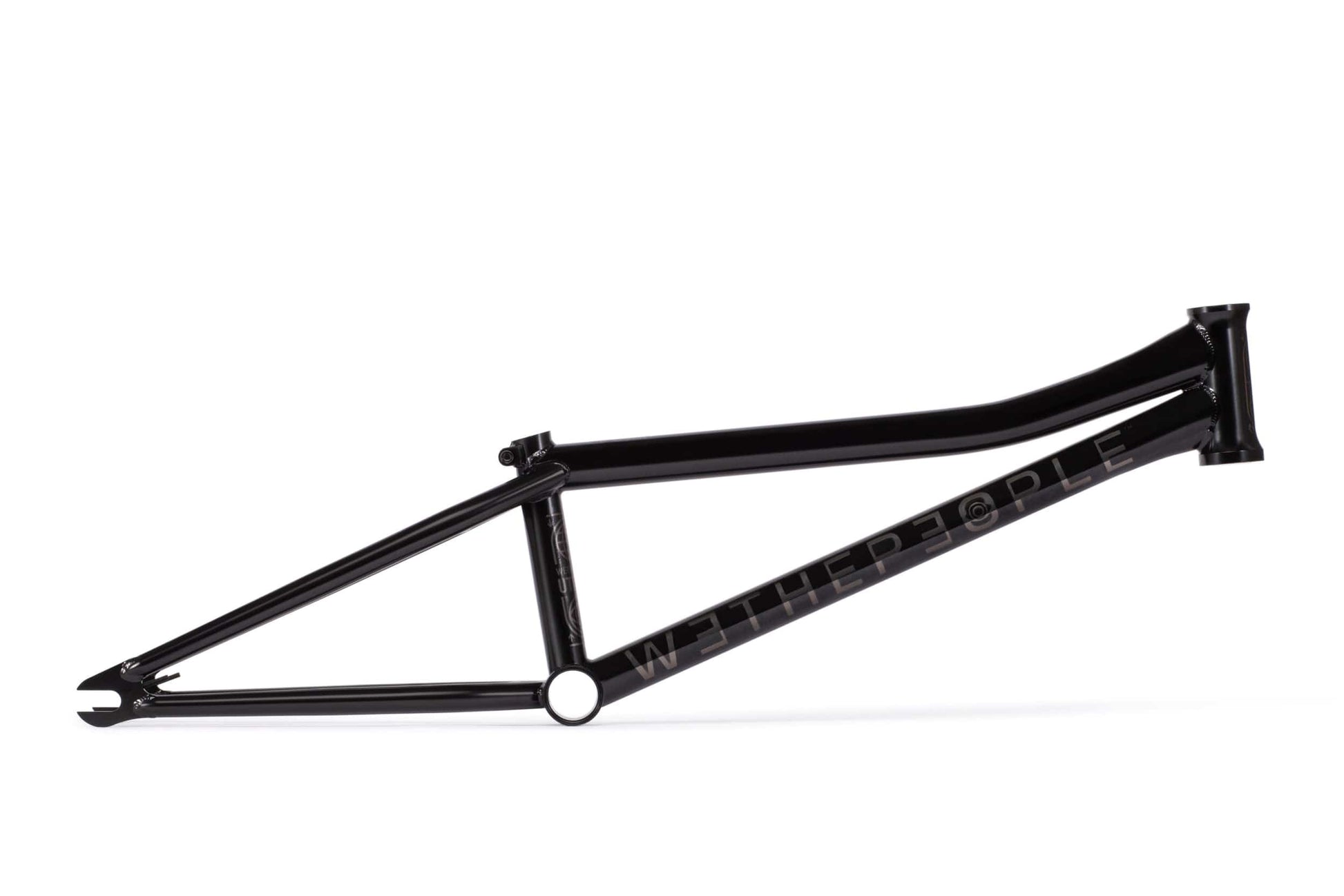

GEOMETRY
A - TOP TUBE LENGTH:
19" OR 20"
B - CHAIN STAY LENGTH:
12.4" - 13.2" - OPTIMIZED FOR 12.5/12.75" W/25-9
C - HEAD TUBE ANGLE:
75°
D - SEAT TUBE ANGLE:
71°
E - BB HEIGHT:
12"
F - STANDOVER HEIGHT:
6.2"
